Article-No.:
95483
URailConnector
T-piece illuminated
224x141mm 5,3W Chrome matt
224x141mm 5,3W Chrome matt
£76.95*
Prices incl. Standard rate VAT
- Simple plug-in installation
- Efficient LED technology
- LED lamp (fixed) included in scope of delivery

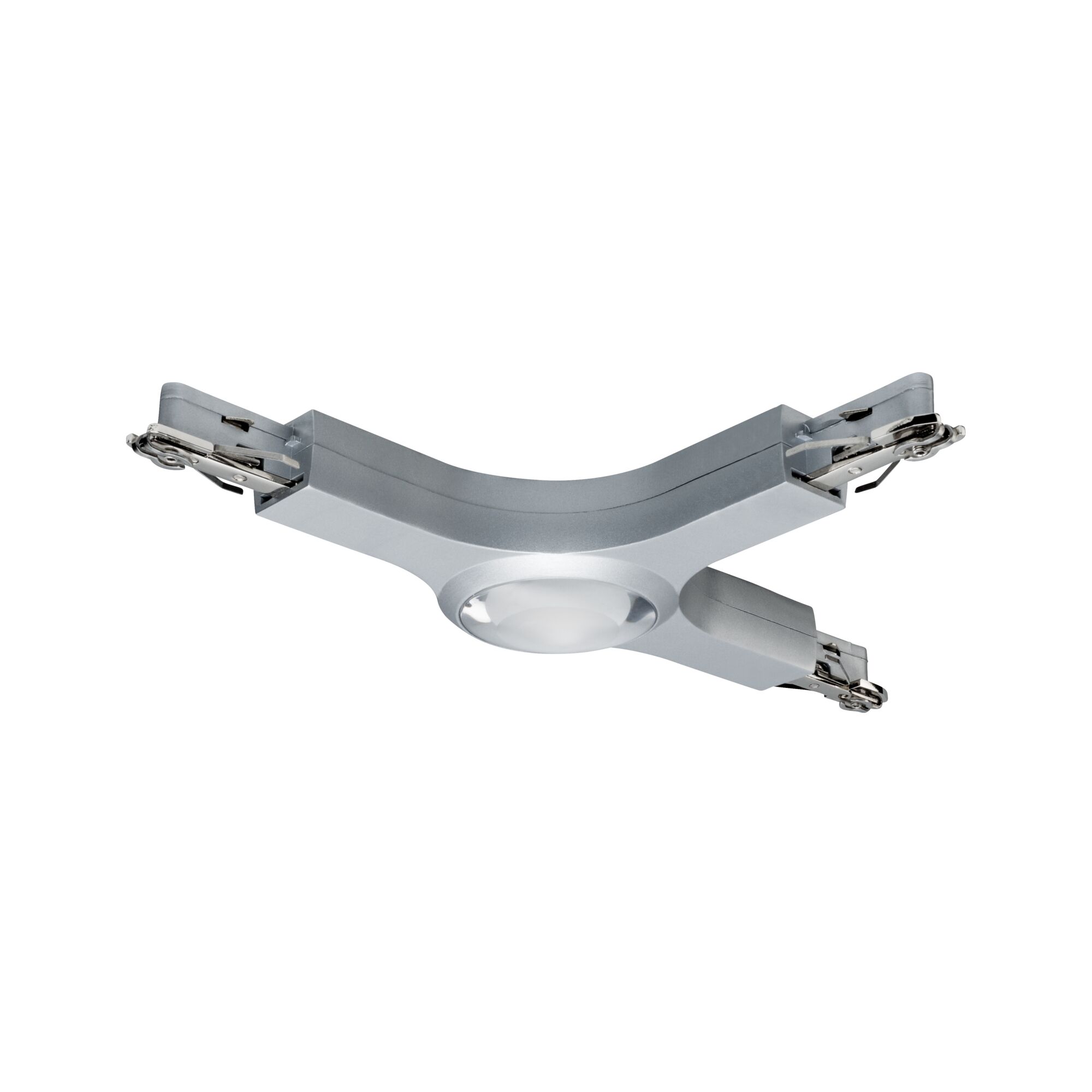

URail Connector T-piece illuminated 224x141mm 5,3W Chrome matt

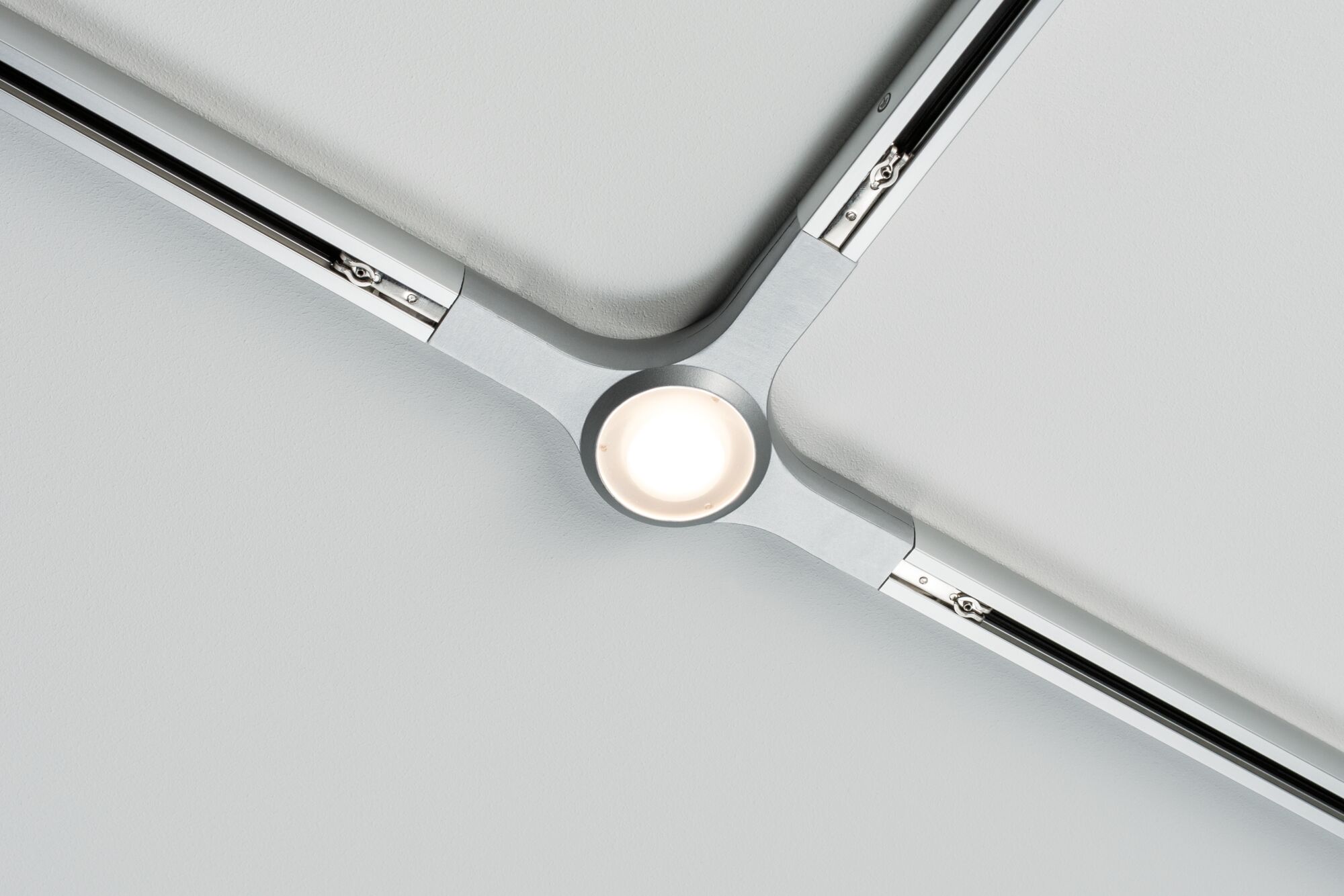

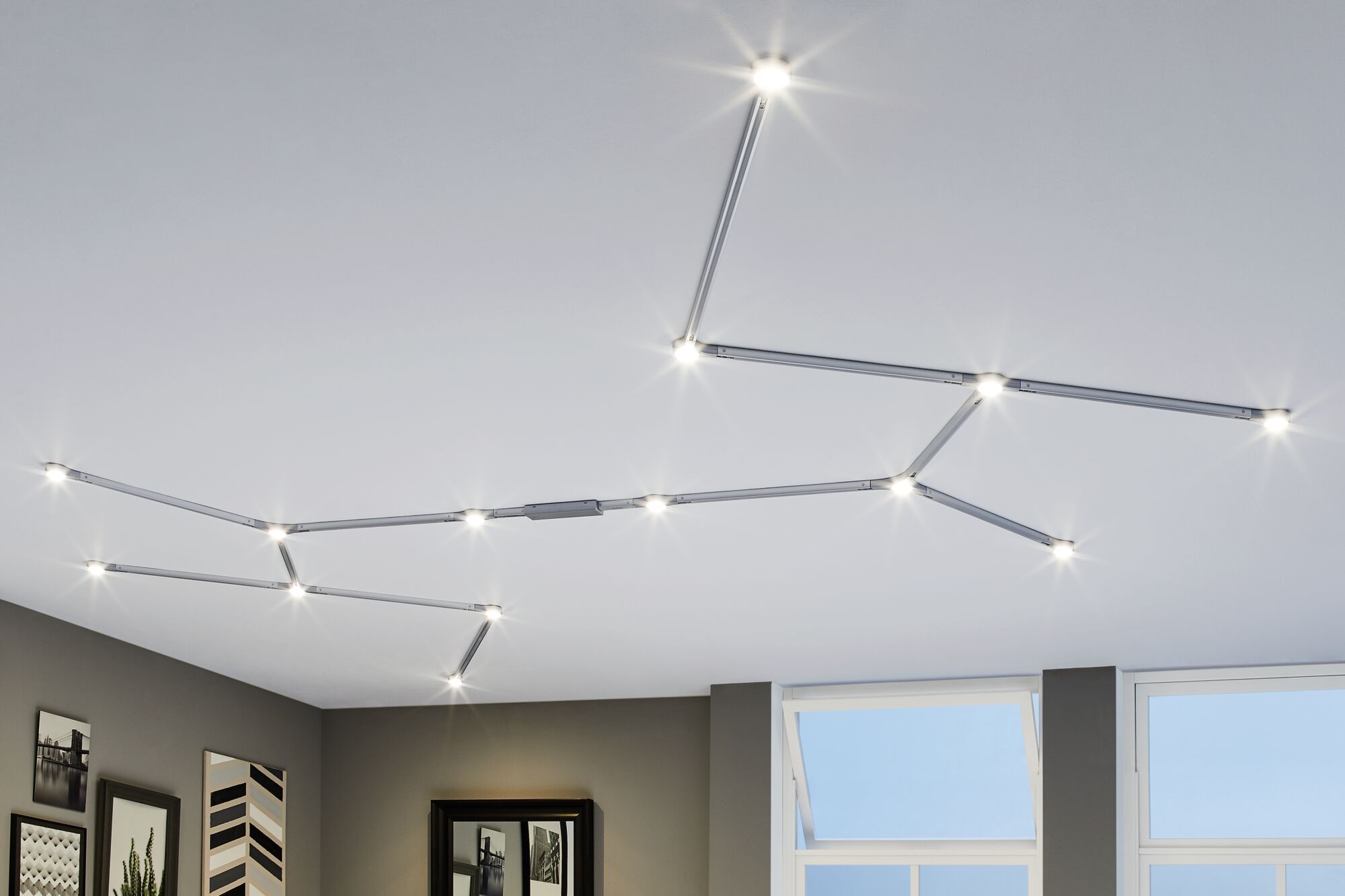

Design your own individual rail system! The illuminated connectors are low-glare, variably dimmable and can easily be plugged together with other URail components. They are suitable both for wall and ceiling installation.
- Simple plug-in installation
- Efficient LED technology
- LED lamp (fixed) included in scope of delivery

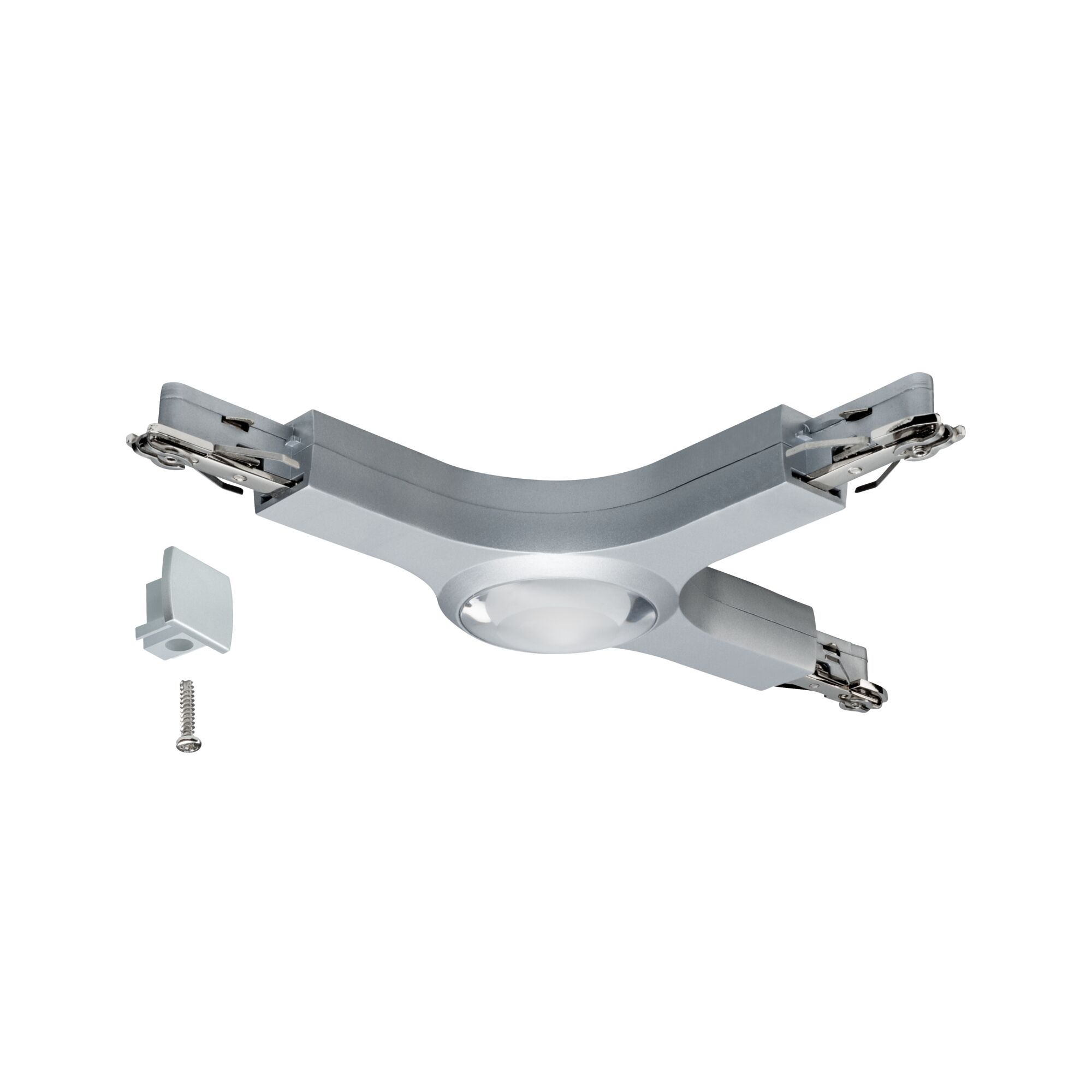

- One end cap to close off the rail ends is included in the scope of delivery
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 27 x B: 224 x T: 141 mm |
| Usable length | 120/88 mm |
| Design and Material | |
|---|---|
| Colour | Chrome matt |
| Material | Metal |
| Installation | |
|---|---|
| can be used with the following dimmers | RL Busch-Jäger 2247 U, RC Merten MEG 5136-0000, RLC Müller Paladin 873 030 LED, RL Merten MEG5133-0000, RC Busch-Jäger 6513U-102 |
| Installation site (recommendation) | Ceiling mounting |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Rated life time | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 2700 K |
| color temp | 2700 K |
| Farbtemperatur_Text | Warmweiß |
| Beam angle | 80 ° |
| Usable luminous flux | 399,6 lm |
| Luminous flux LED module | 440 lm |
| Beam angle LED module | 125 ° |
| Rated luminous flux (Lumen) | 420 lm |
| Lamp Features | |
|---|---|
| Component parts | 5,3 W |
| Technique | LED |
| Dimmable | with dimmer R, L, C (universal compatibility) |
| Inclusive lamp | yes |
| Incandescent Equivalent | 42 W |
| Adjustability | fixed |
| Number of component parts | 1x |
| protection class | protection class II |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced. |
| Power consumption | 5,85 W |
| Transformer | |
|---|---|
| power supply efficiency factor | 0,99 |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
