Article-No.:
79934
VariFit
LED Recessed panel
Veluna Edge
IP44 round 160mm 12W 1100lm 4000K White
IP44 round 160mm 12W 1100lm 4000K White
- Especially flat construction
- Color temperatur: 4000K - Neutral white
- Even room light based on cutting-edge LED technology

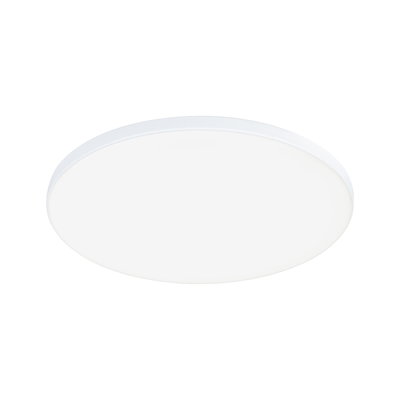

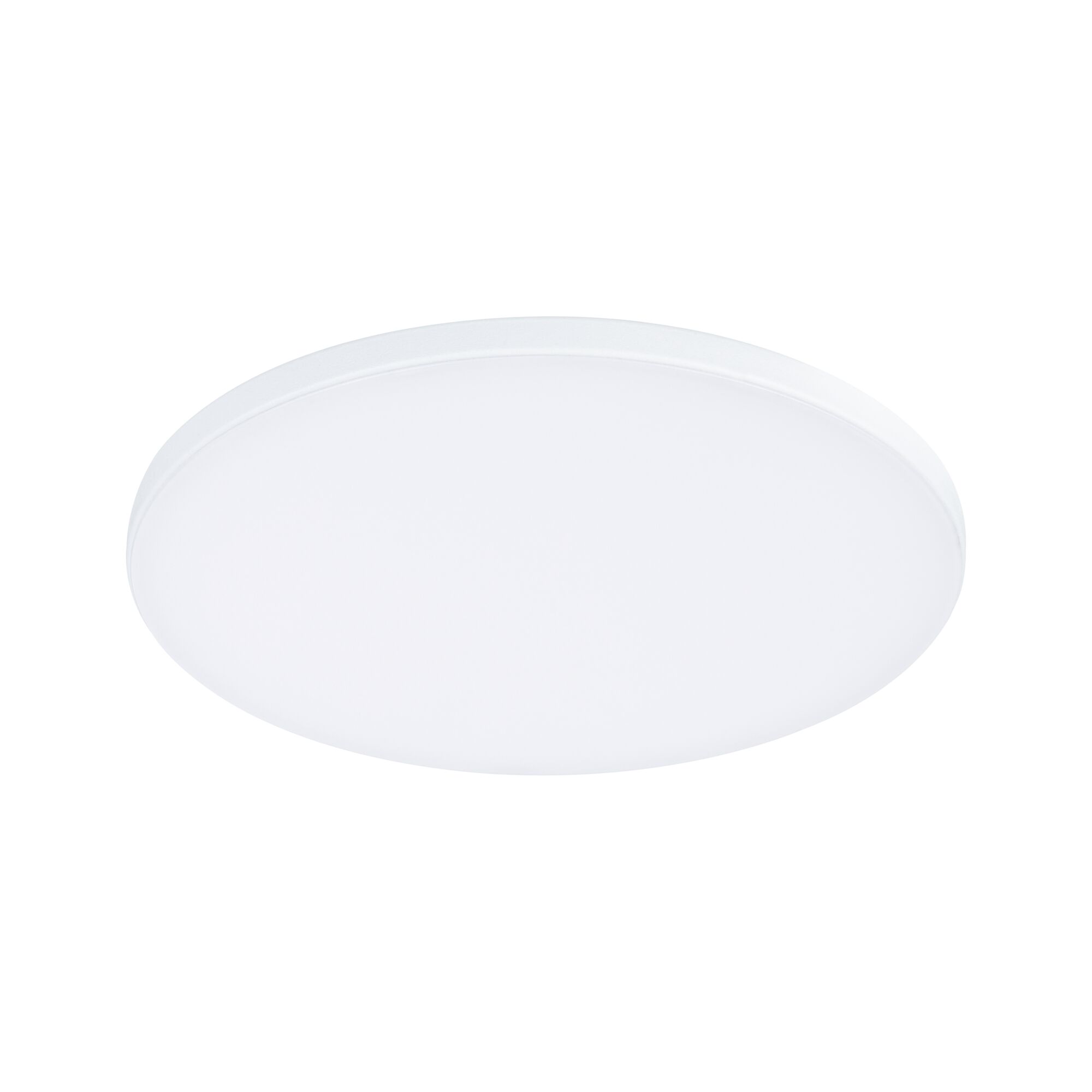

VariFit LED Recessed panel Veluna Edge IP44 round 160mm 12W 1100lm 4000K White

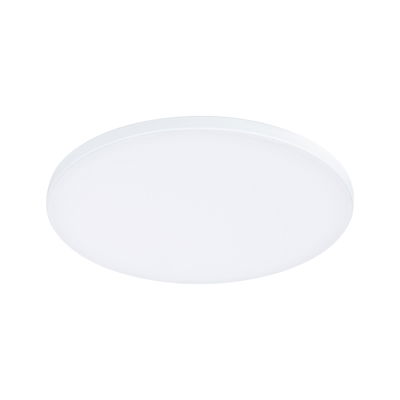

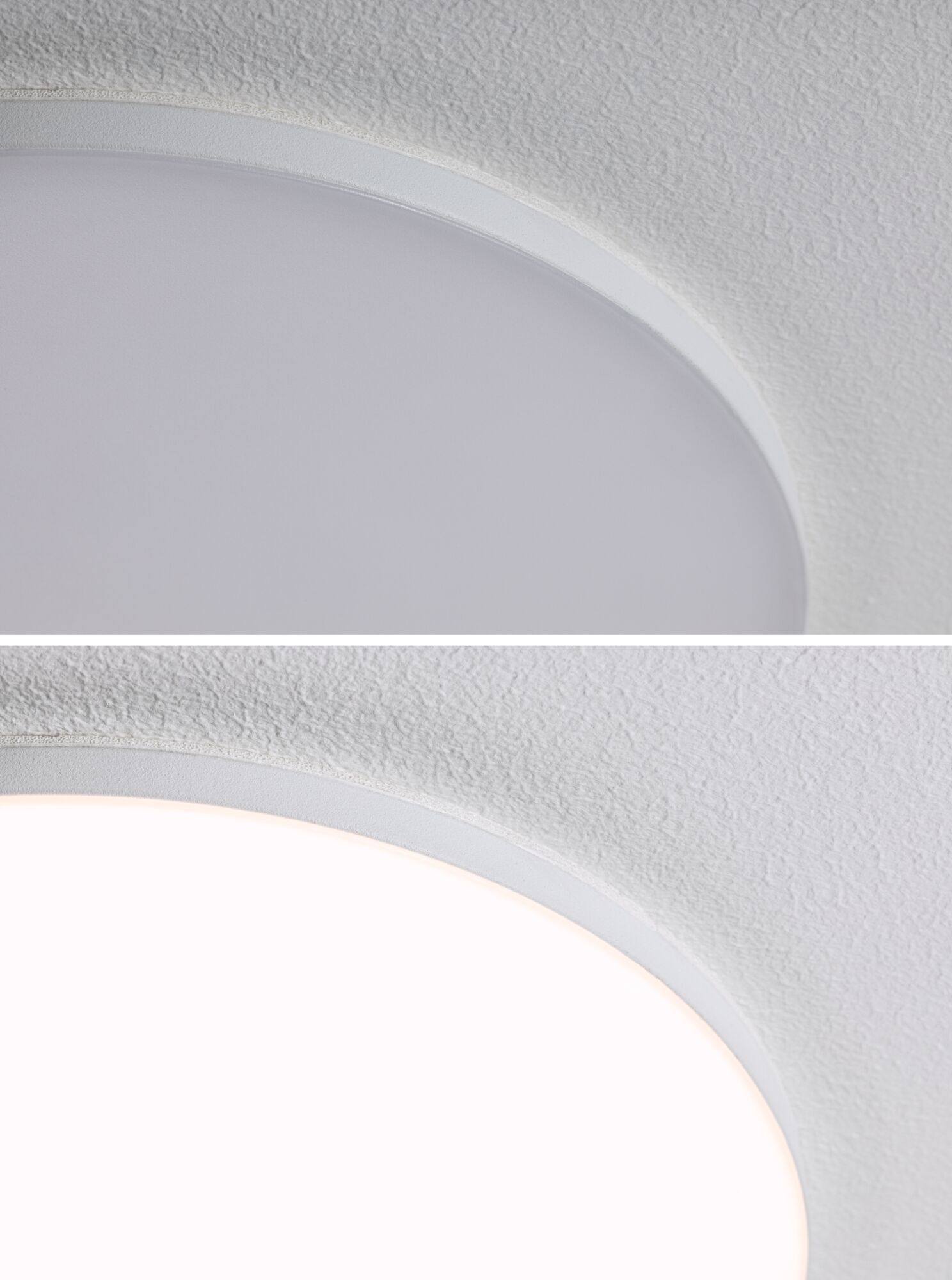

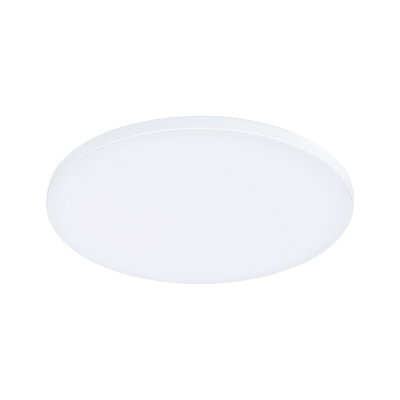

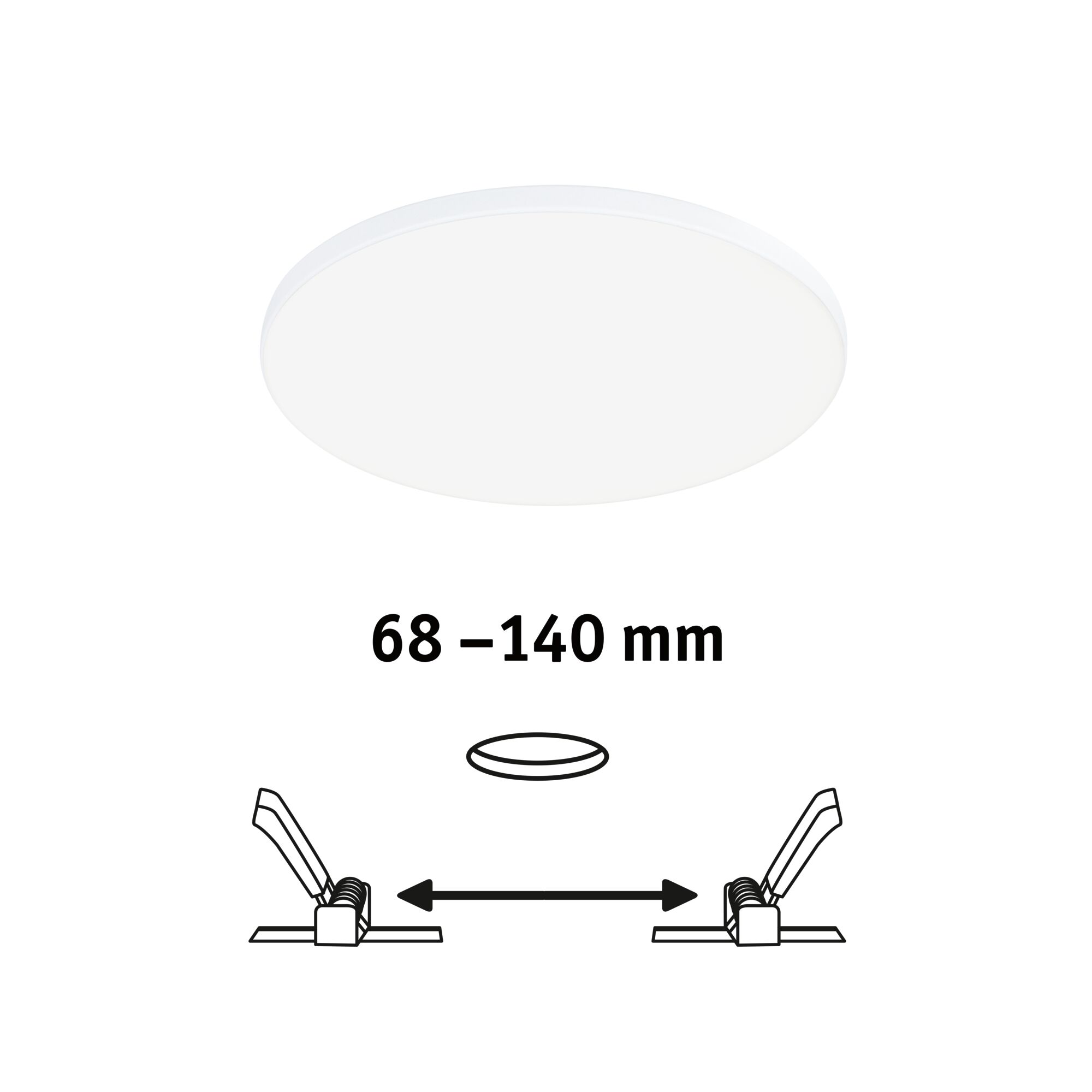

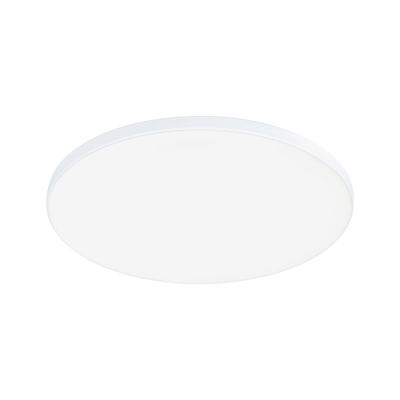

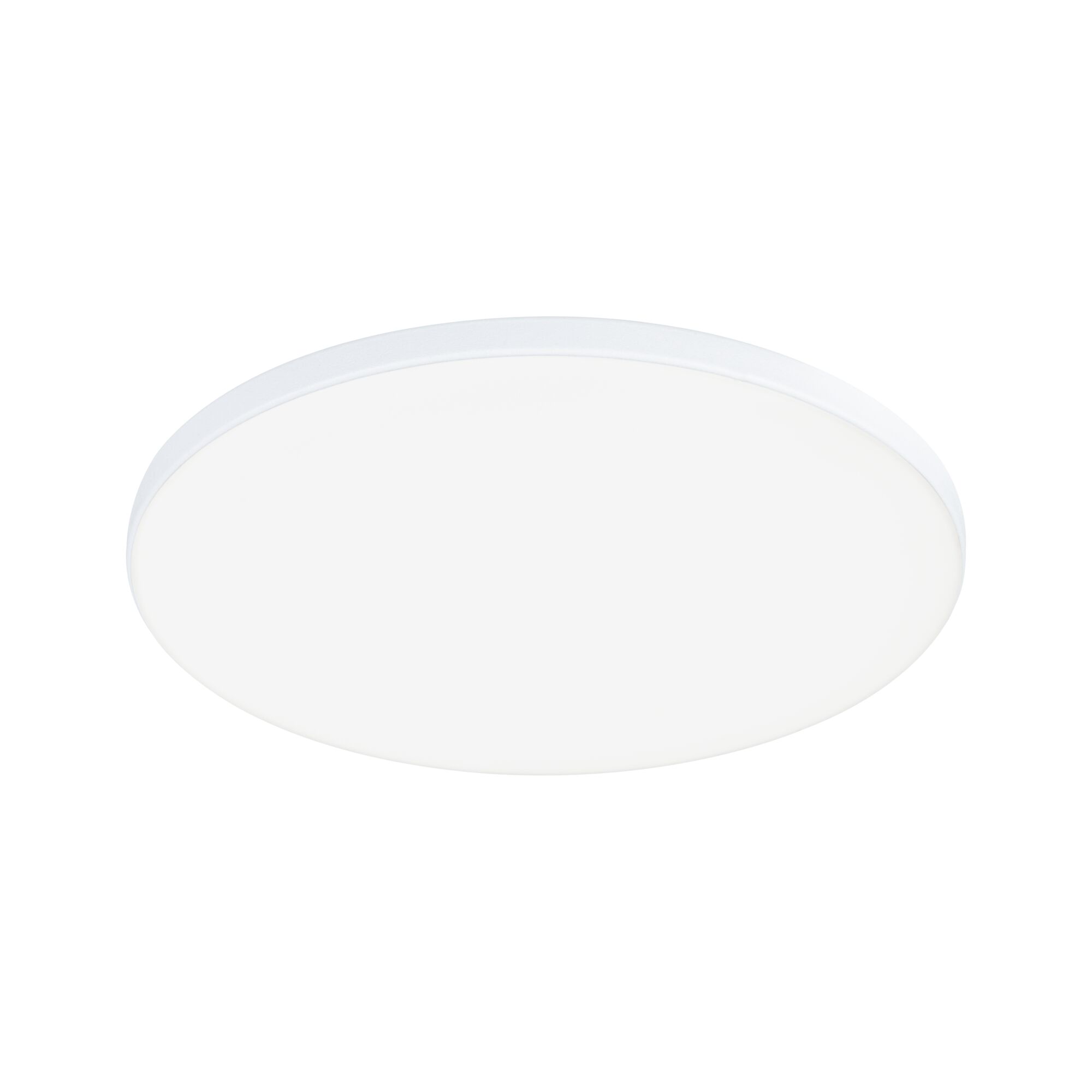

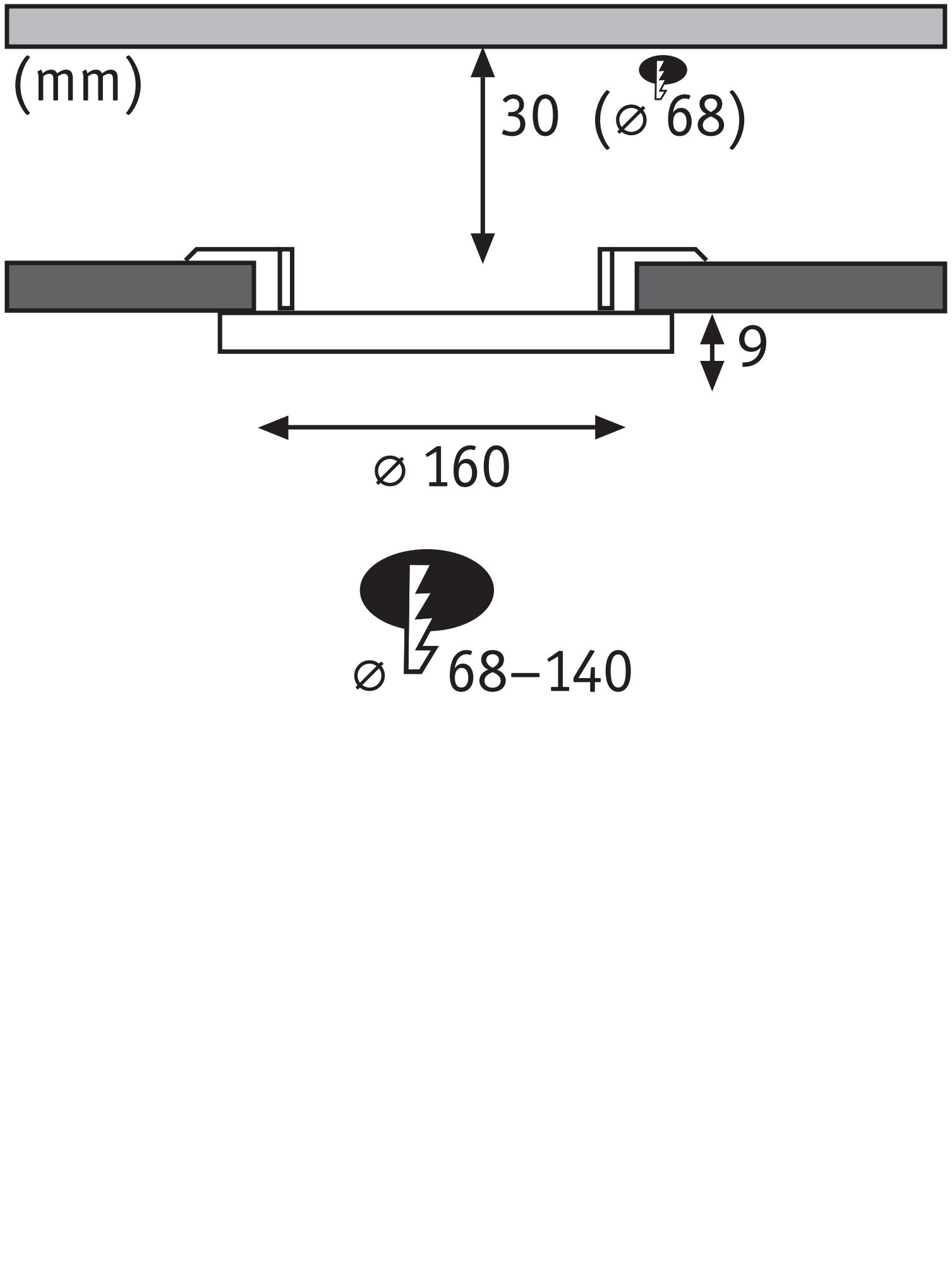

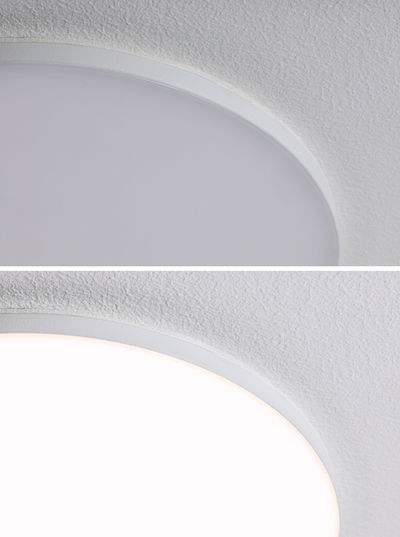

The rounde Veluna VariFit Edge recessed panel features a modern, frameless design in subtle White. With a diameter of 160 mm and a colour temperature of 4000 K, the panel has a high, uniform light yield. Thanks to flexible VariFit technology, the clamping springs can be continuously adjusted between 68 and 140 mm for installation. The panel can therefore be installed both in existing boreholes and in new ones. For hole diameters larger than 68 mm, a cavity depth of at least 30 mm is needed. The satined plastic cover provides finely diffused light and bright, activating light in neutral white.
- Especially flat construction
- Color temperatur: 4000K - Neutral white
- Even room light based on cutting-edge LED technology
- High light yield for area lighting

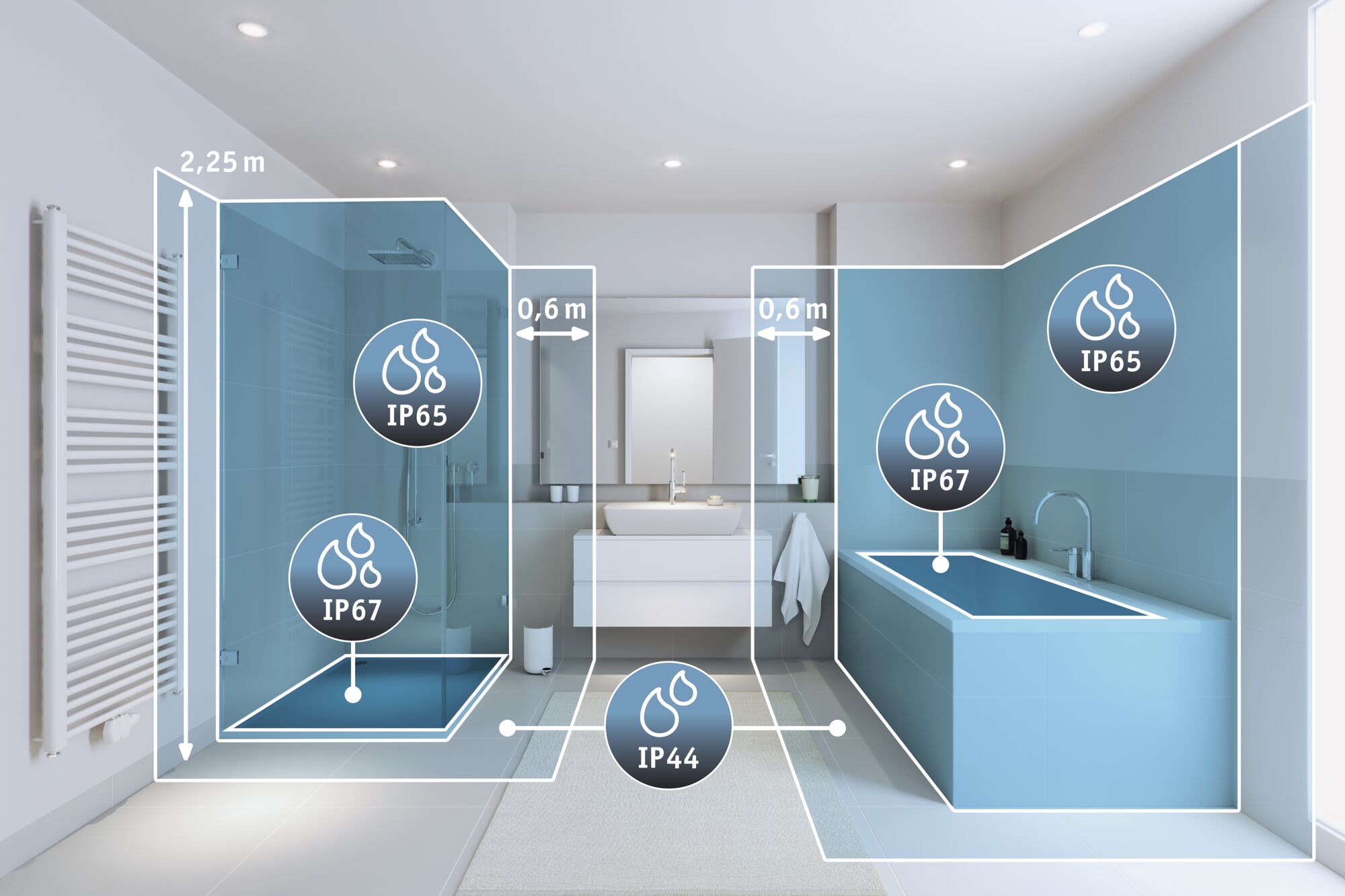

- IP44 splash-protected for bathrooms and similar rooms
- Satined plastic cover for fine diffusion of light

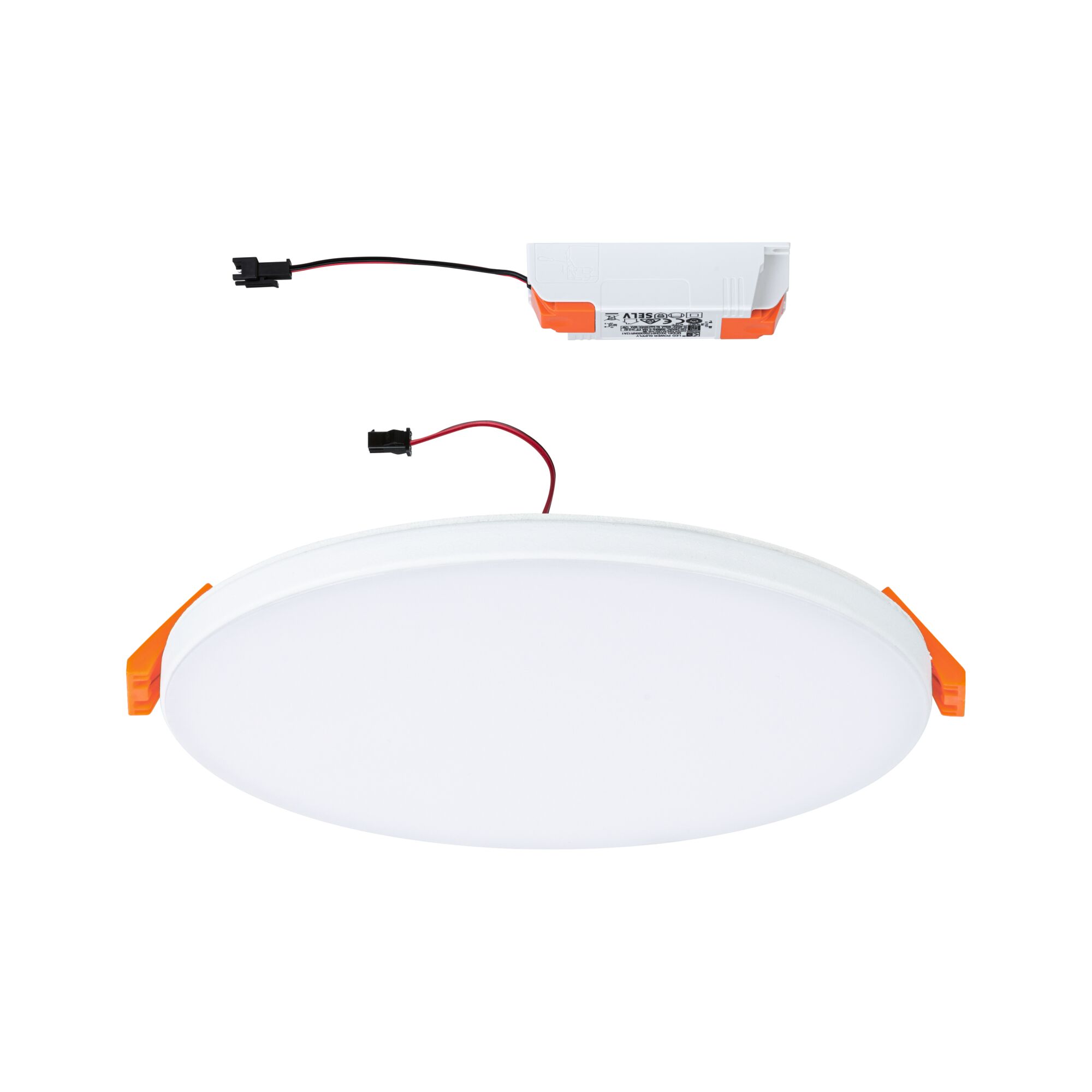

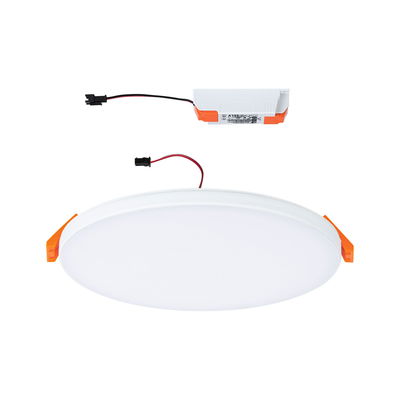

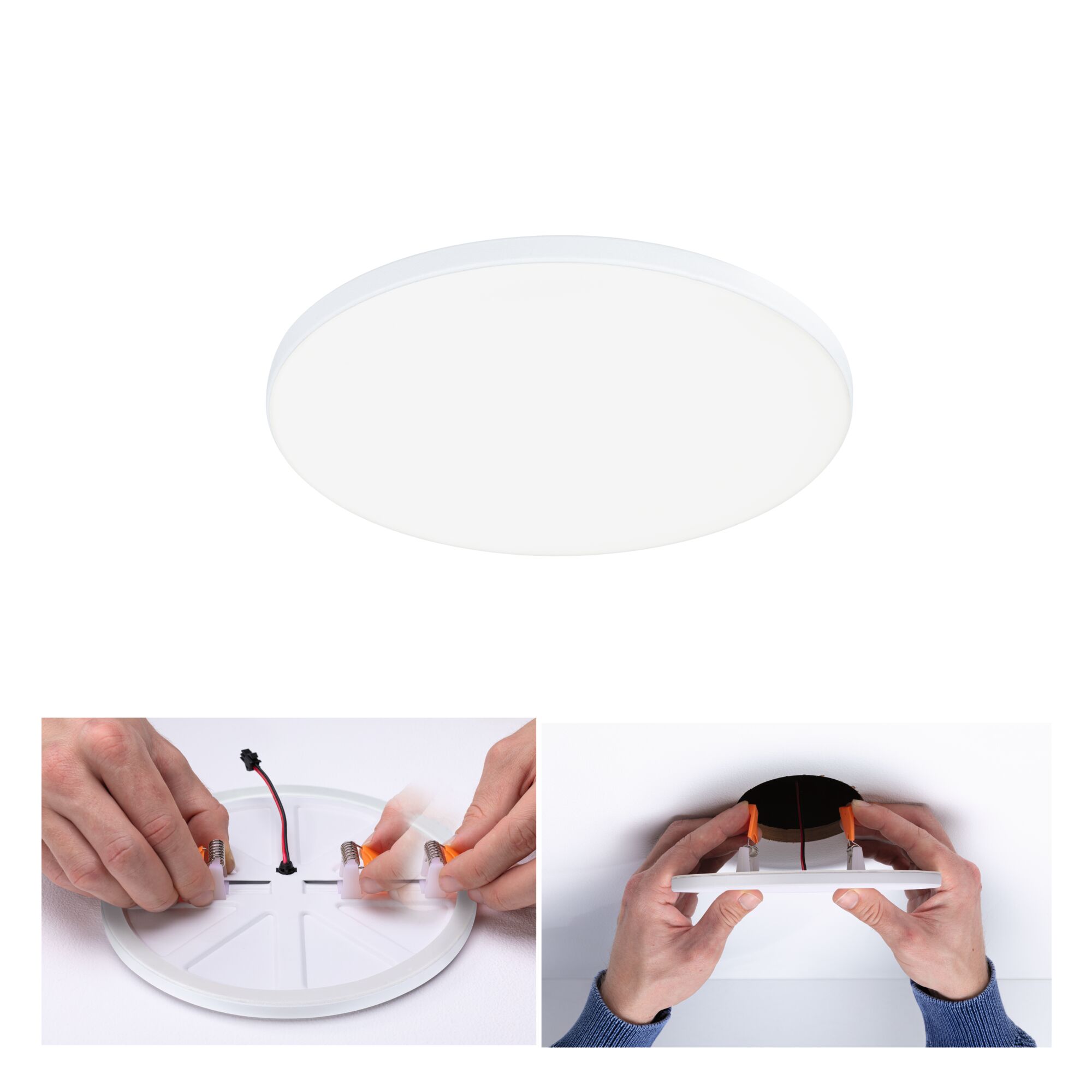

- VariFit – flexible installation with infinitely adjustable clamping springs
- With integrated LED bulb
- Service life 50,000 hours
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 9 mm |
| Ø | 160 mm |
| Mounting hole | 68 mm |
| Form | round |
| Design and Material | |
|---|---|
| Colour | White |
| Material | Plastic |
| Installation | |
|---|---|
| Installation site (recommendation) | Wall and ceiling mounting |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | E |
| Service life | |
|---|---|
| Lifetime | 50000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 4000 K |
| Usable luminous flux | 1100 lm |
| Luminous flux LED module | 1600 lm |
| color temp | 4000 K |
| Color rendering index | > 80 Ra |
| Lamp Features | |
|---|---|
| Component parts | 12 W |
| Technique | LED |
| IP protection | IP44 ceiling mounting |
| Dimmable | No |
| Inclusive lamp | yes |
| Incandescent Equivalent | 104 W |
| Number of component parts | 1x |
| protection class | protection class II |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|5 Control gear is replaceable without damage the lighting fixture by electrician. |
| Power consumption | 14 W |
| Transformer | |
|---|---|
| apparent power | 15 VA |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
