Article-No.:
93555

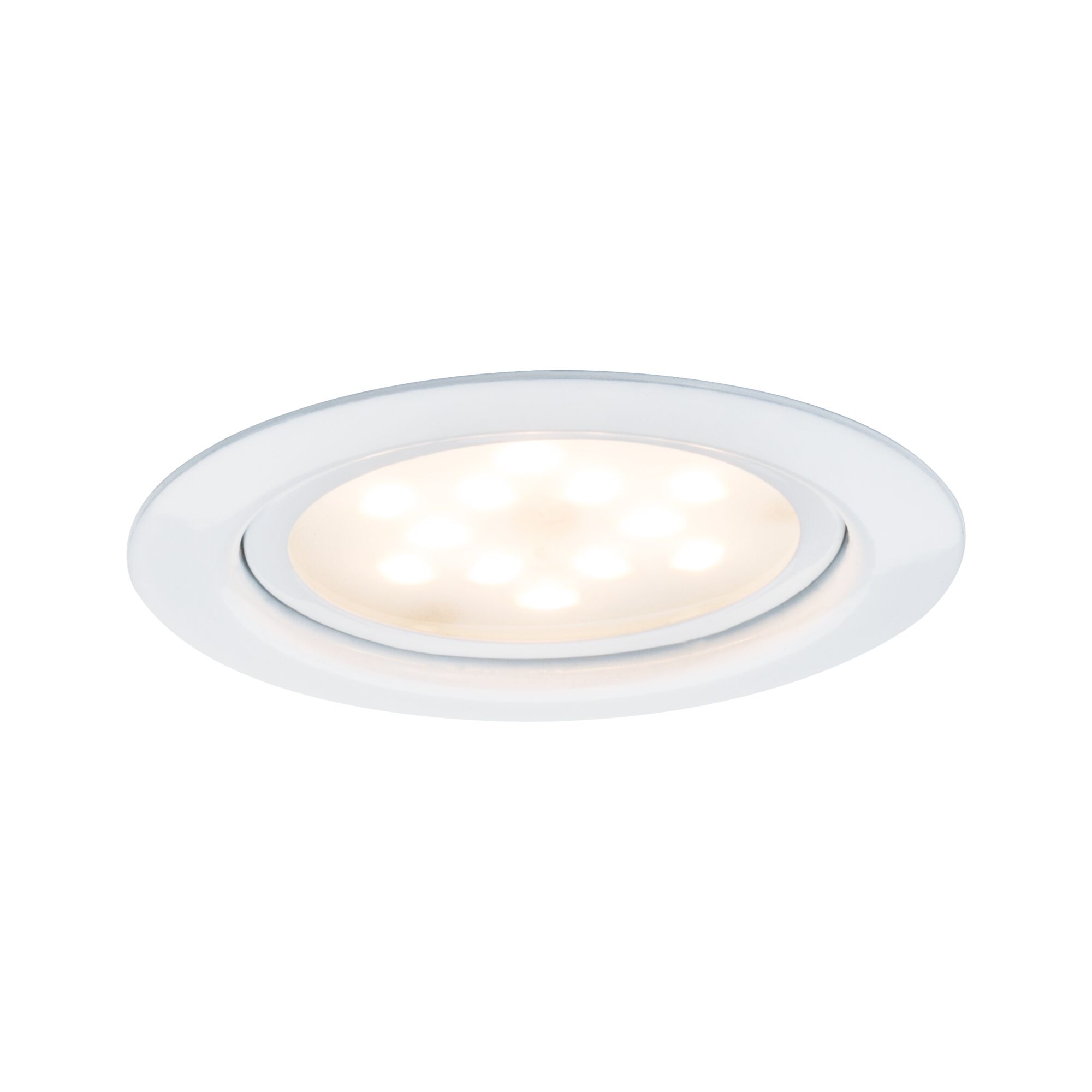

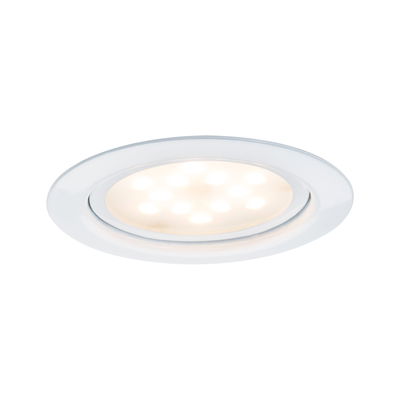

LED Recessed furniture luminaire
Micro Line Single Luminaire
round 65mm 4,5W 300lm 230V 2700K White
round 65mm 4,5W 300lm 230V 2700K White
- Set of 1 lamp including LED, 1x4.5 W
- Material: Metal
- Color: White
LED Recessed furniture luminaire Micro Line Single Luminaire round 65mm 4,5W 300lm 230V 2700K White
The right choice for display cabinets, furniture, etc.: The Micro Line Flat LED furniture recessed luminaire set emits practically no heat at all and provides cupboard illumination for unobtrusive lighting and decorative effects.
- Set of 1 lamp including LED, 1x4.5 W
- Material: Metal
- Color: White
- Energy-saving LED technology (conserves up to 80% energy in comparison to conventional light bulbs)
- Low mounting depth: only 30mm
- Diameter: 65mm
- Operating voltage: 230 V
- protection class II
- Color temperatur: 2700K - Warm white

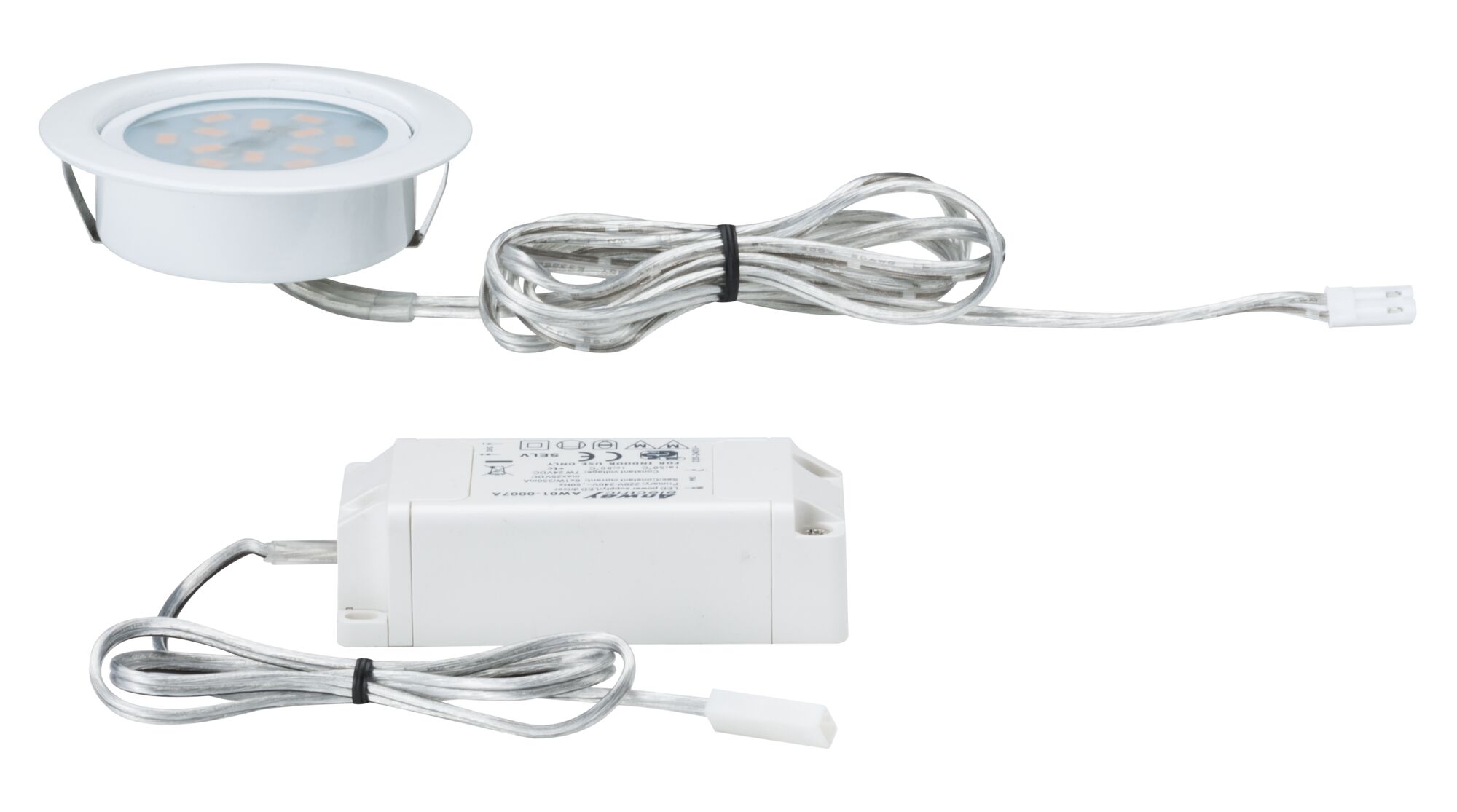

- Incl. plug-in connector and transformer
| Dimension | |
|---|---|
| Total Mounting depth | 30 mm |
| Ø | 65 mm |
| Mounting hole | 54 mm |
| Form | round |
| Depth of hollow wall | 15 mm, 15 mm |
| Design and Material | |
|---|---|
| Colour | White |
| Material | Metal |
| Installation | |
|---|---|
| Installation site (recommendation) | Installation on cabinet |
| Connections | |
|---|---|
| Plug-and-socket connector | Plug-and-socket connector |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | E |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Rated life time | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 2700 K |
| Beam angle | 180 ° |
| Usable luminous flux | 300 lm |
| Luminous flux LED module | 550 lm |
| color temp | 2700 K |
| Rated luminous flux (Lumen) | 305 lm |
| Lamp Features | |
|---|---|
| Component parts | 4,5 W |
| Technique | LED |
| IP protection | IP20 |
| Dimmable | No |
| Inclusive lamp | yes |
| Number of component parts | 1x |
| protection class | protection class II |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|4 Control gear is replaceable without damage the lighting fixture by enduser. |
| Power consumption | 6,3 W |
| Transformer | |
|---|---|
| Transformer power | 6 VA |
| Transformer height | 20 mm |
| Transformer width | 40 mm |
| Transformer depth | 56 mm |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
