Article-No.:
94108
LED Cable system
MacLED Basic Set
5x200lm 5x4,3W 2700K 230/12V Chrome matt
5x200lm 5x4,3W 2700K 230/12V Chrome matt
£242.00*
£120.99*
Prices incl. Standard rate VAT
Ready to ship, delivery within 2-3 working days

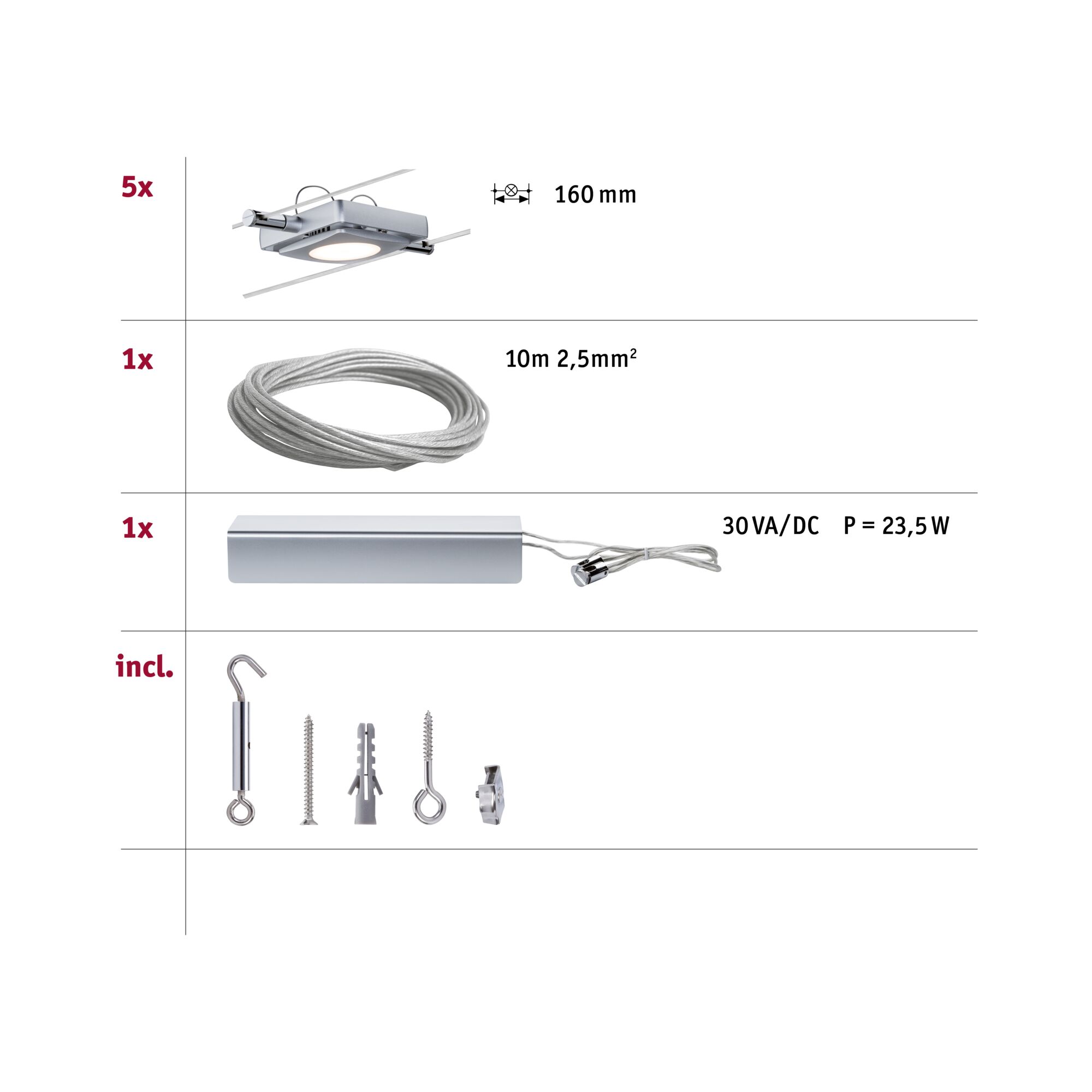

- Complete set consisting of transformer, cable, spots and installation instructions
- Including LED bulb (built-in)
- Surface/color: Chrome matt

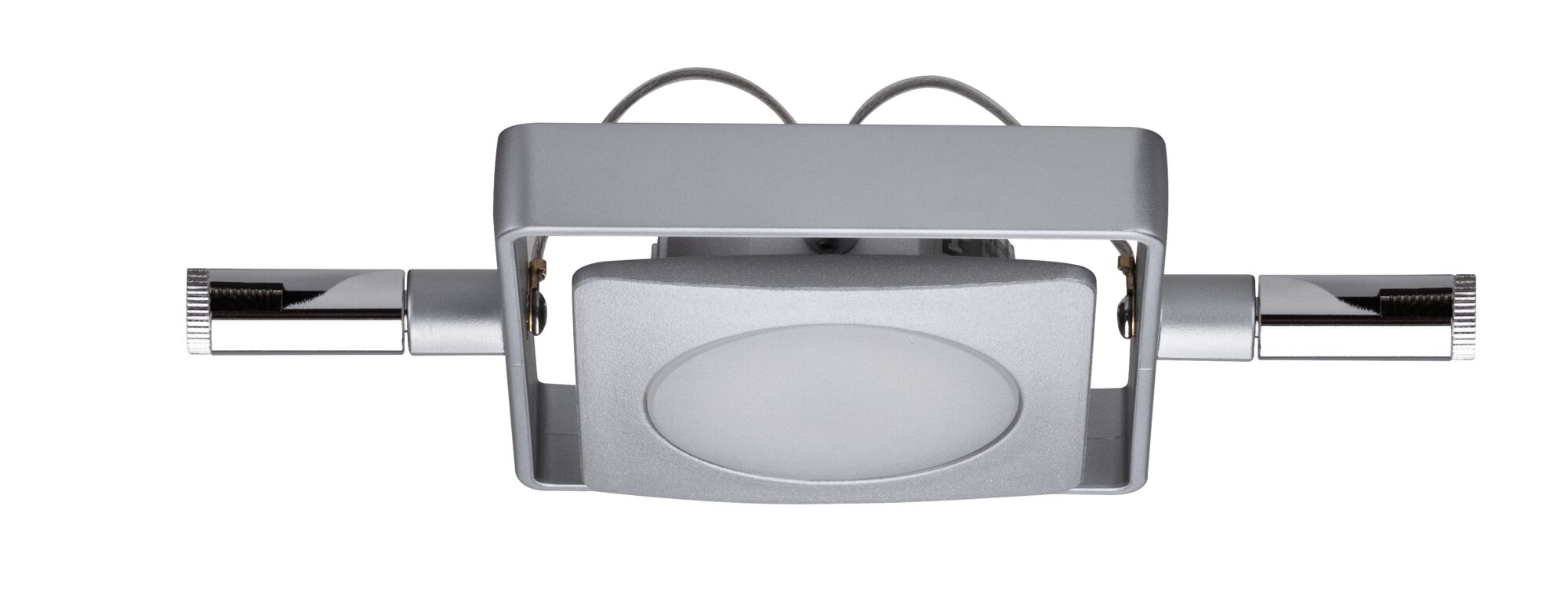

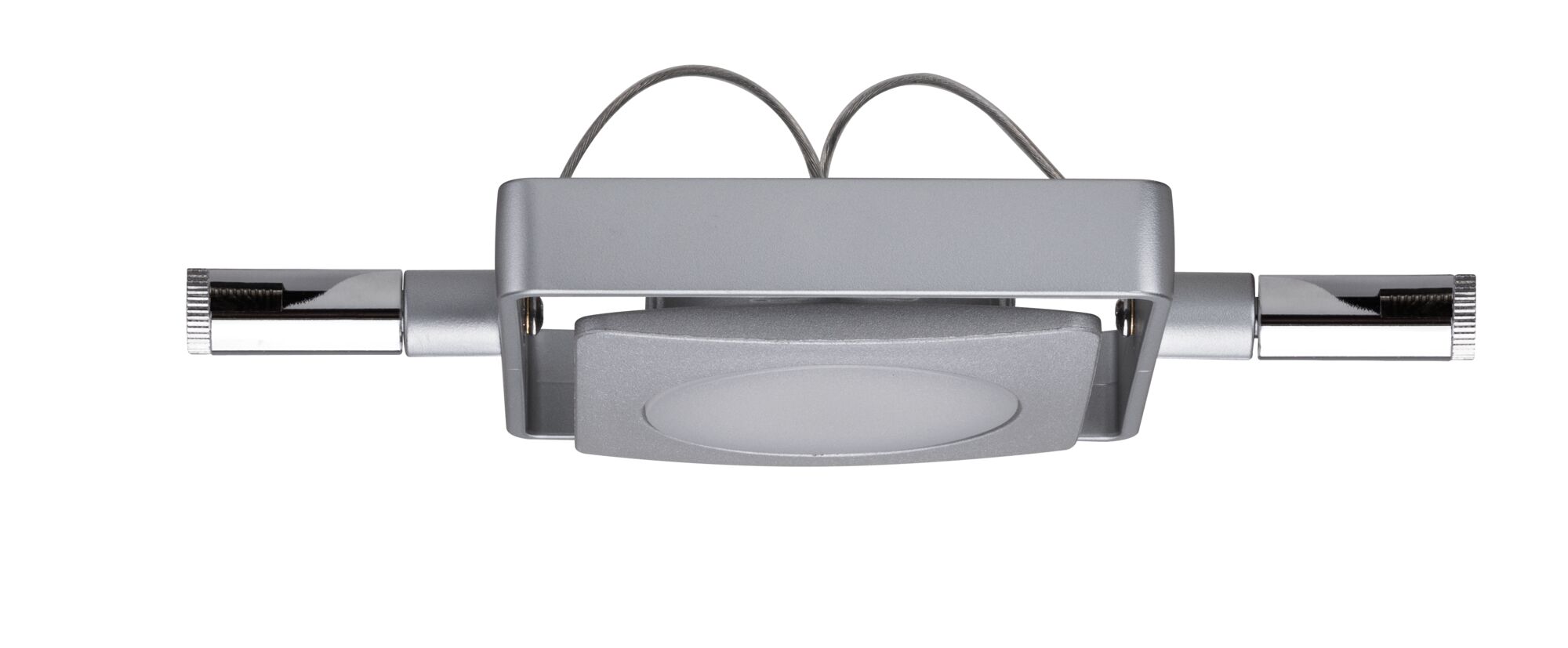

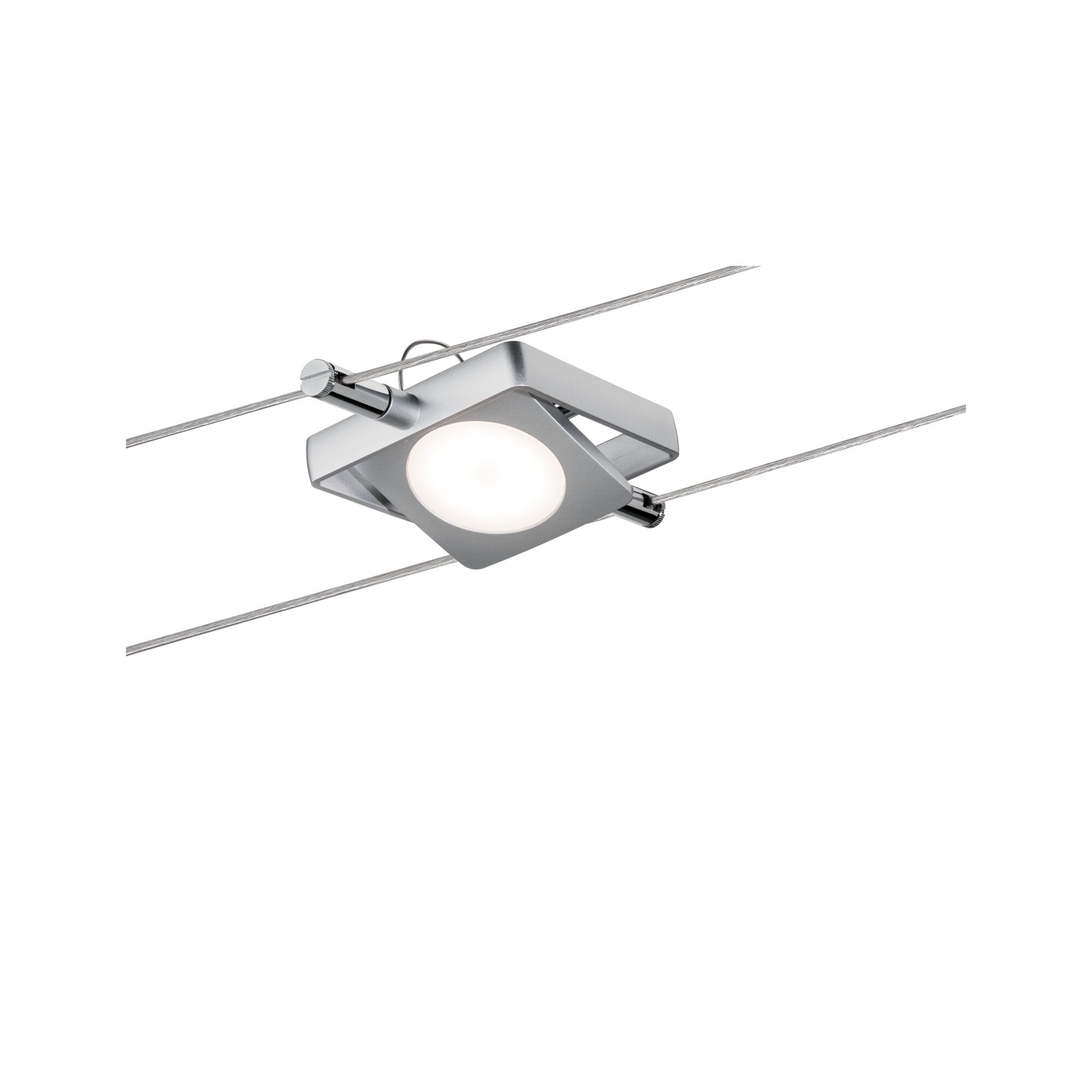

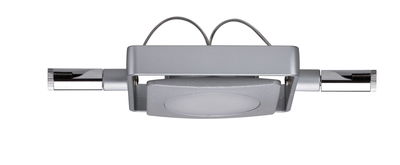

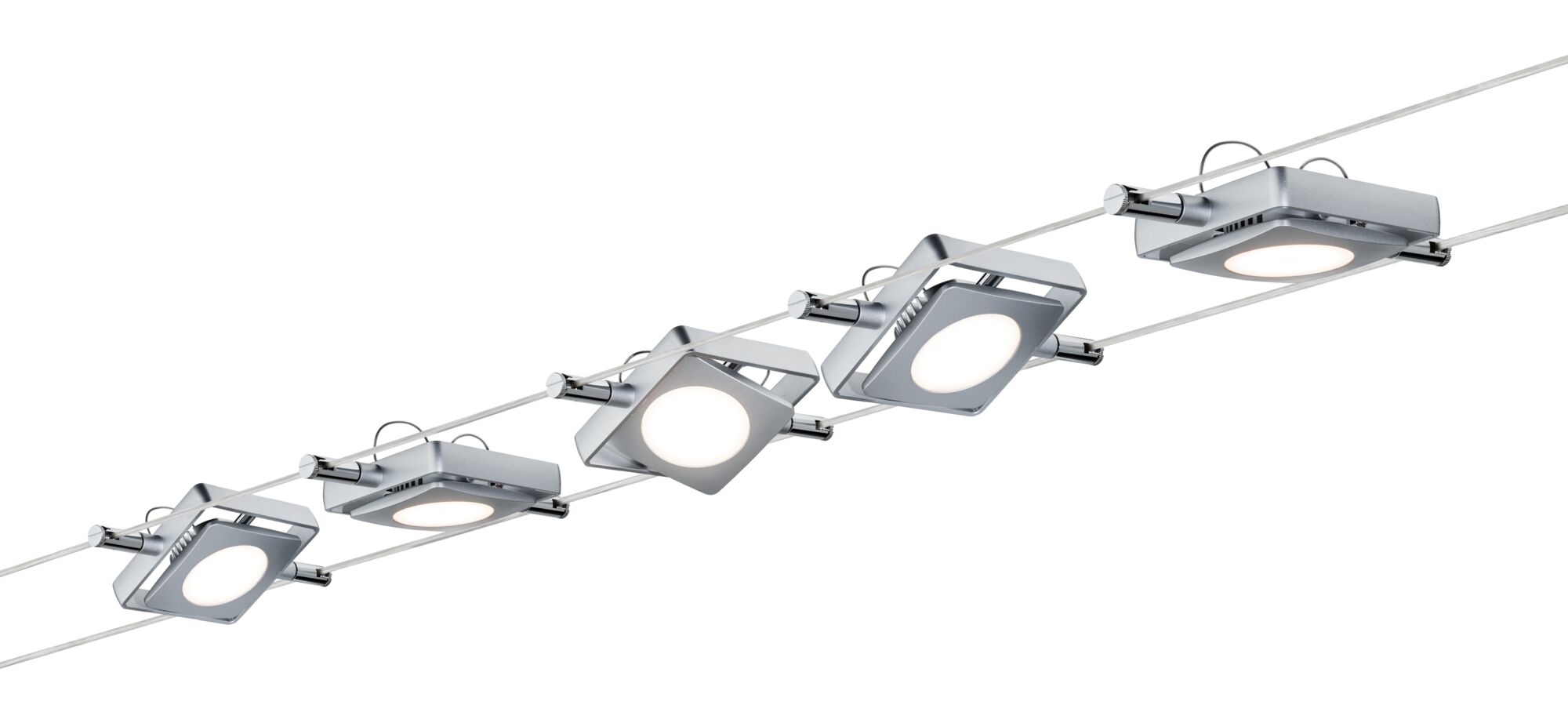

LED Cable system MacLED Basic Set 5x200lm 5x4,3W 2700K 230/12V Chrome matt

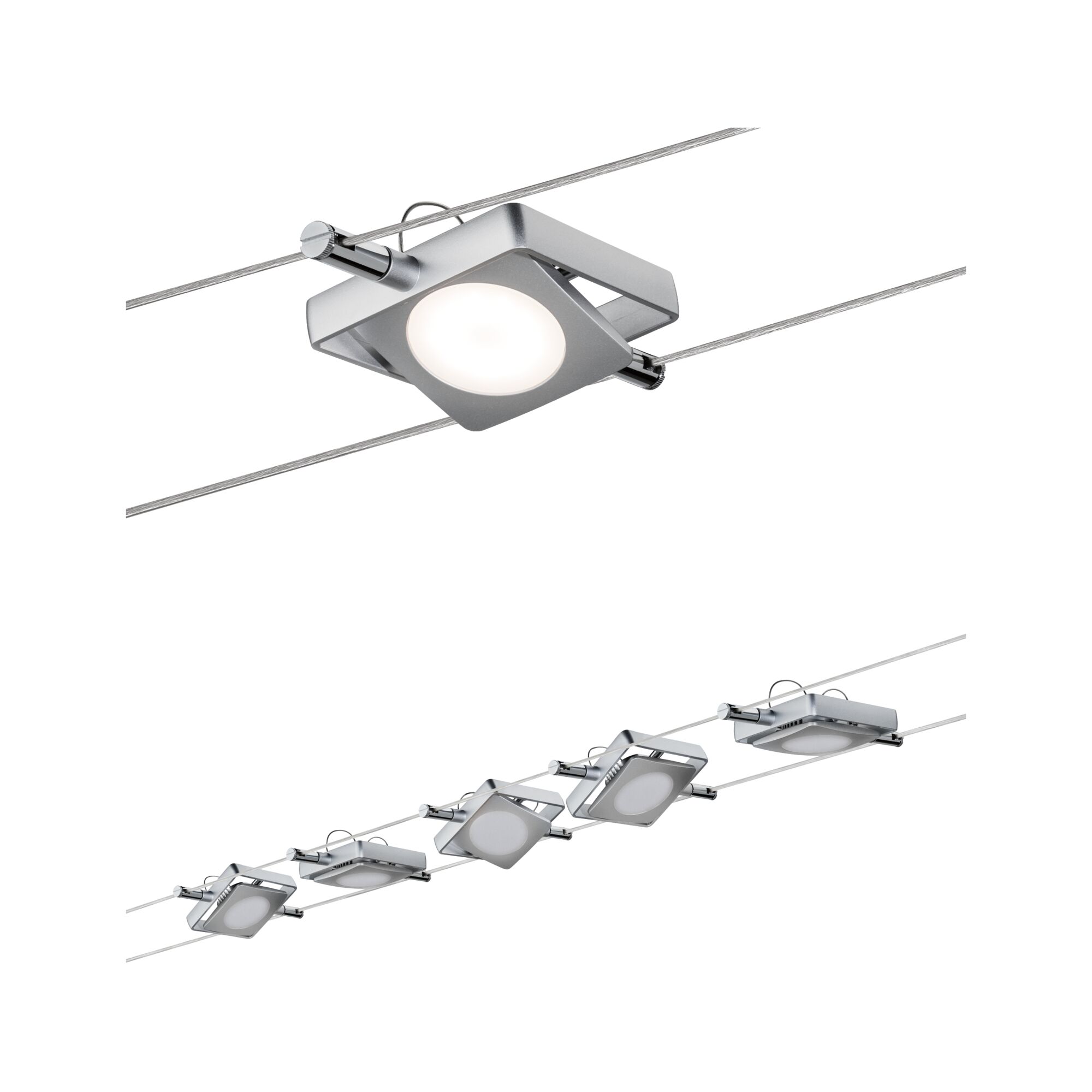

The 5-lamp LED cable system -MacLED- is an innovation in LED technology with a total output of 20 watt. The system is suitable for wall and ceiling mounting and is an -all-rounder- in the realm of individual lighting solutions with the appropriate accessories, such as diffusers.
- Complete set consisting of transformer, cable, spots and installation instructions
- Including LED bulb (built-in)
- Surface/color: Chrome matt
- Sweeping diffusion of light for ideal room illumination
- LED equipment conserves up to 80% in comparison to conventional light bulbs
- Can only be extended with 12V direct current (DC) products, not compatible with 12V alternating current (AC) products
| Dimension | |
|---|---|
| Length | 10 m |
| Wire distance | 160 mm |
| Span width | 5 m |
| Design and Material | |
|---|---|
| Colour | Chrome matt |
| Material | Metal, Plastic |
| Installation | |
|---|---|
| Installation site (recommendation) | Ceiling mounting |
| Energy consumption | |
|---|---|
| Energy efficiency (LED Module) | F |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temperature | Warm white, 2700 K |
| Nominal luminous flux | 200 lm |
| Luminous flux LED module | 450 lm |
| Lamp Features | |
|---|---|
| Dimmable | No |
| Inclusive lamp | yes |
| Lamp property | Leuchtmittel fest integriert |
| Protection class | Protection class II |
| Technique | LED |
| Component parts | 4,3 W |
| Number of component parts | 5x |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|5 Control gear is replaceable without damage the lighting fixture by electrician. |
| Power consumption | 22 W |
| Adjustability | swivelling/tilting |
| Voltage | 230/12 V |
| Transformer | |
|---|---|
| apparent power | 24 VA |
| Transformer power range | 30 VA |
| Transformer height | 30 mm |
| Transformer width | 43 mm |
| Transformer depth | 137 mm |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
Downloads
Flyer and Safety instructions
Safety instructions

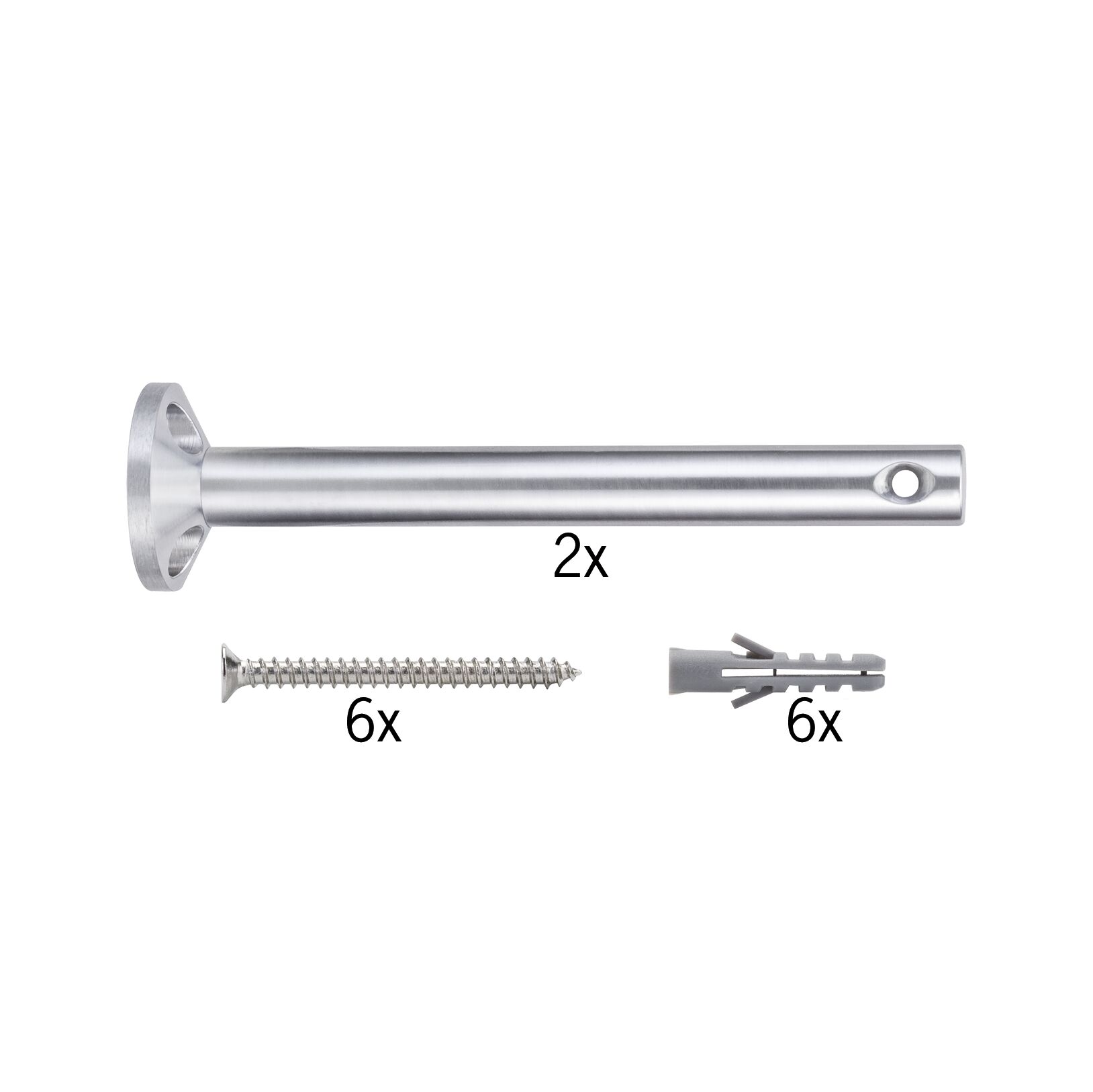

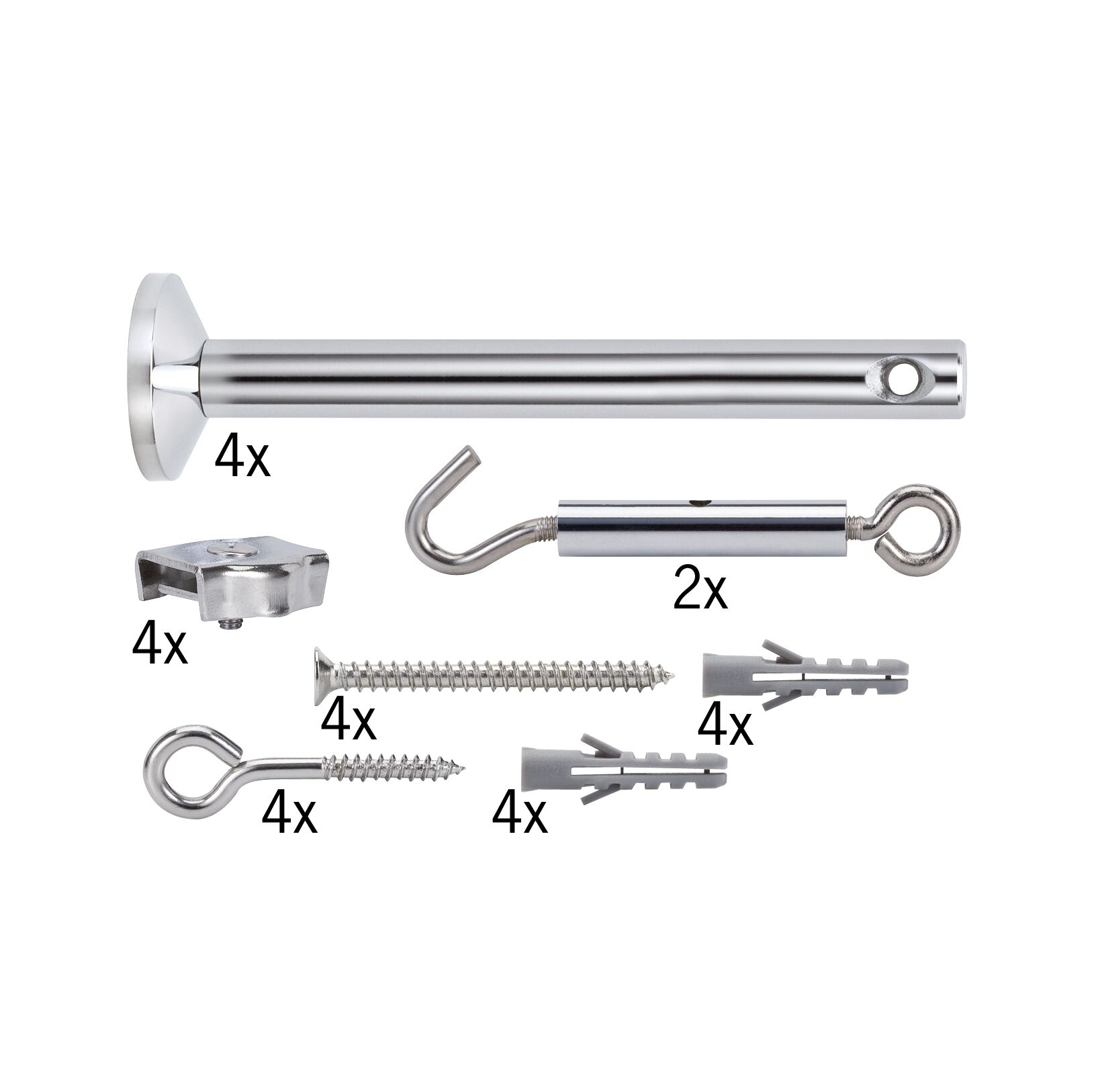

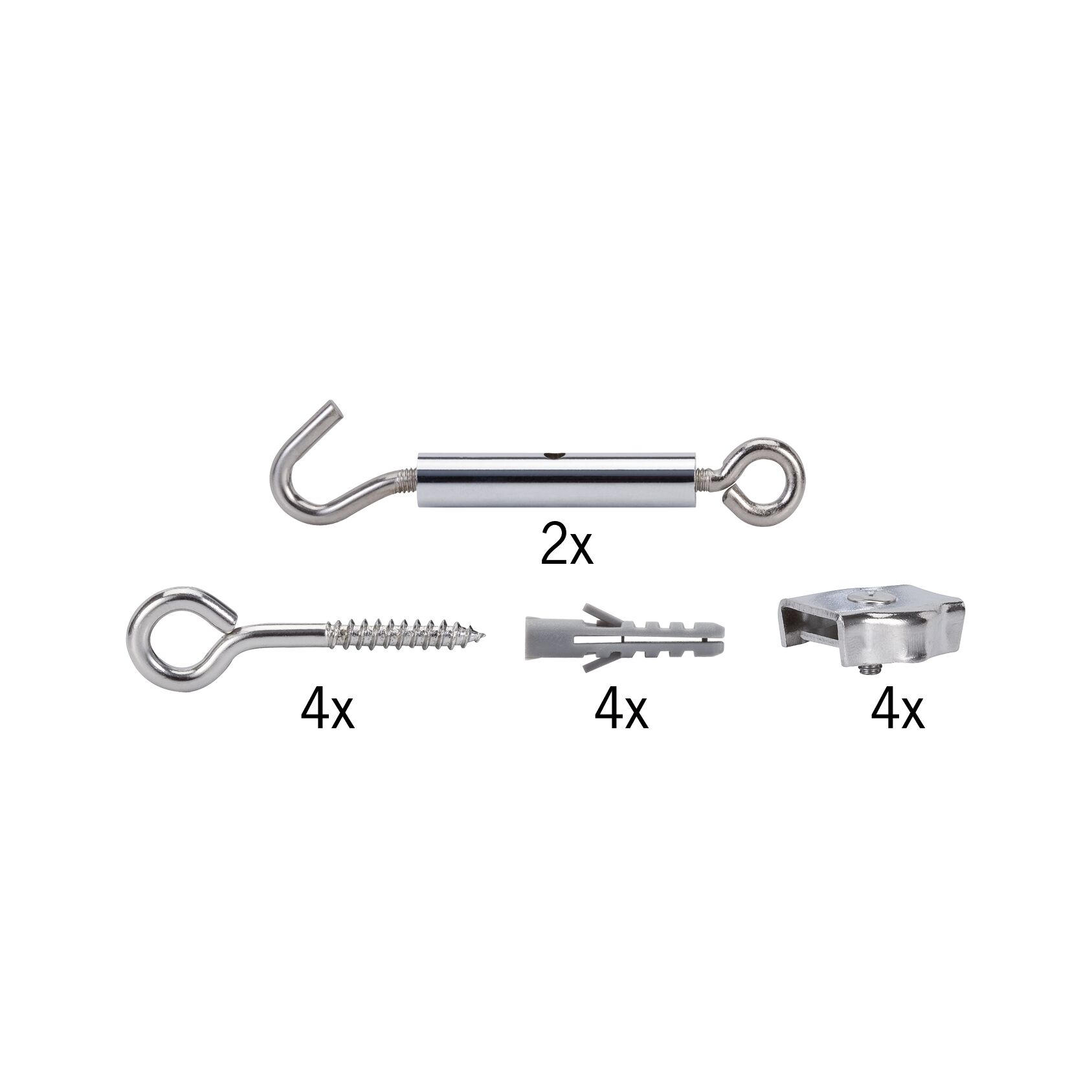

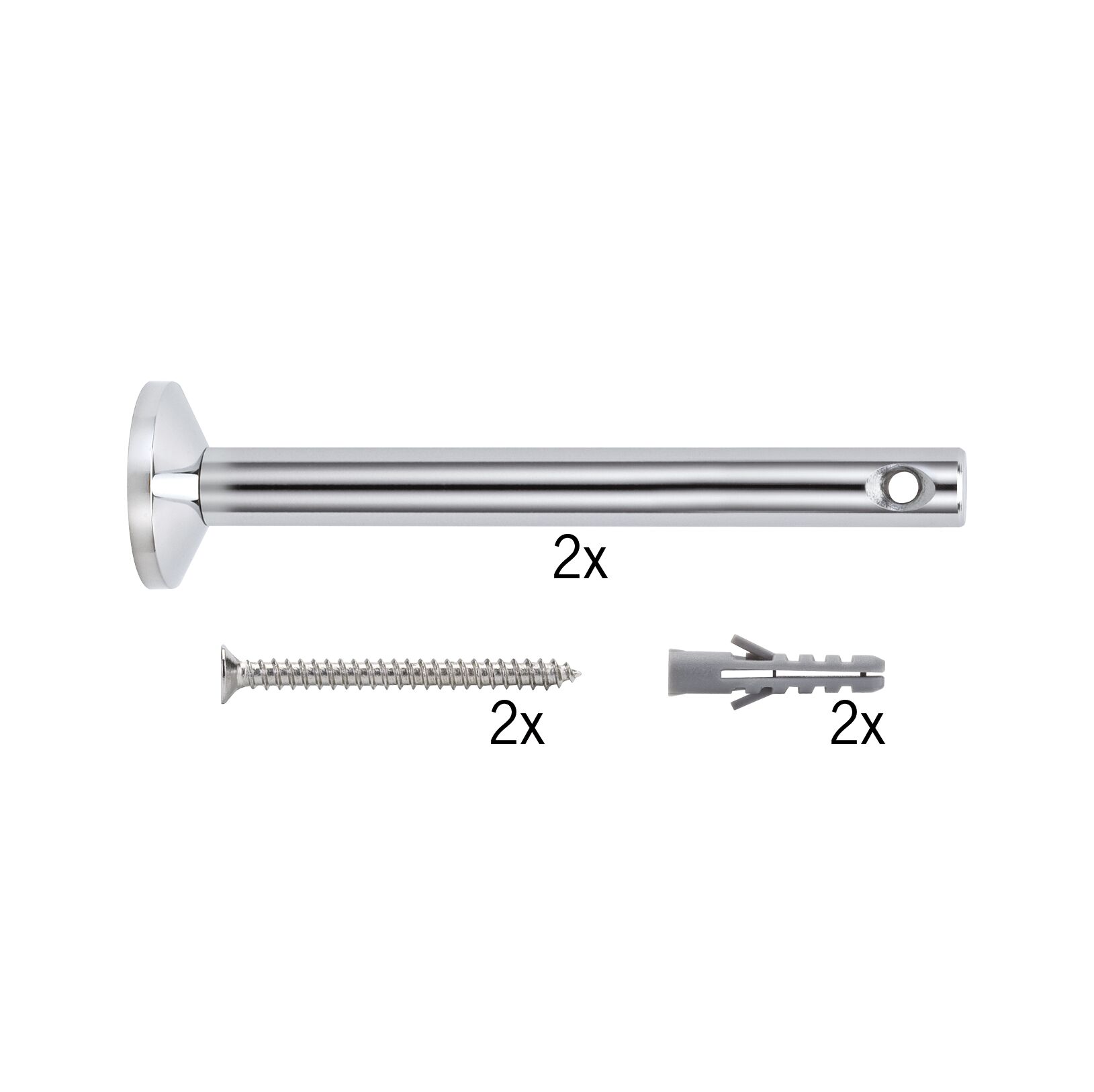

- Cable system installation set
