Article-No.:
93079
LED Module recessed luminaire
Nova Plus Coin
round 50mm Coin 6W 530lm 230V dimmable 4000K Satin
round 50mm Coin 6W 530lm 230V dimmable 4000K Satin

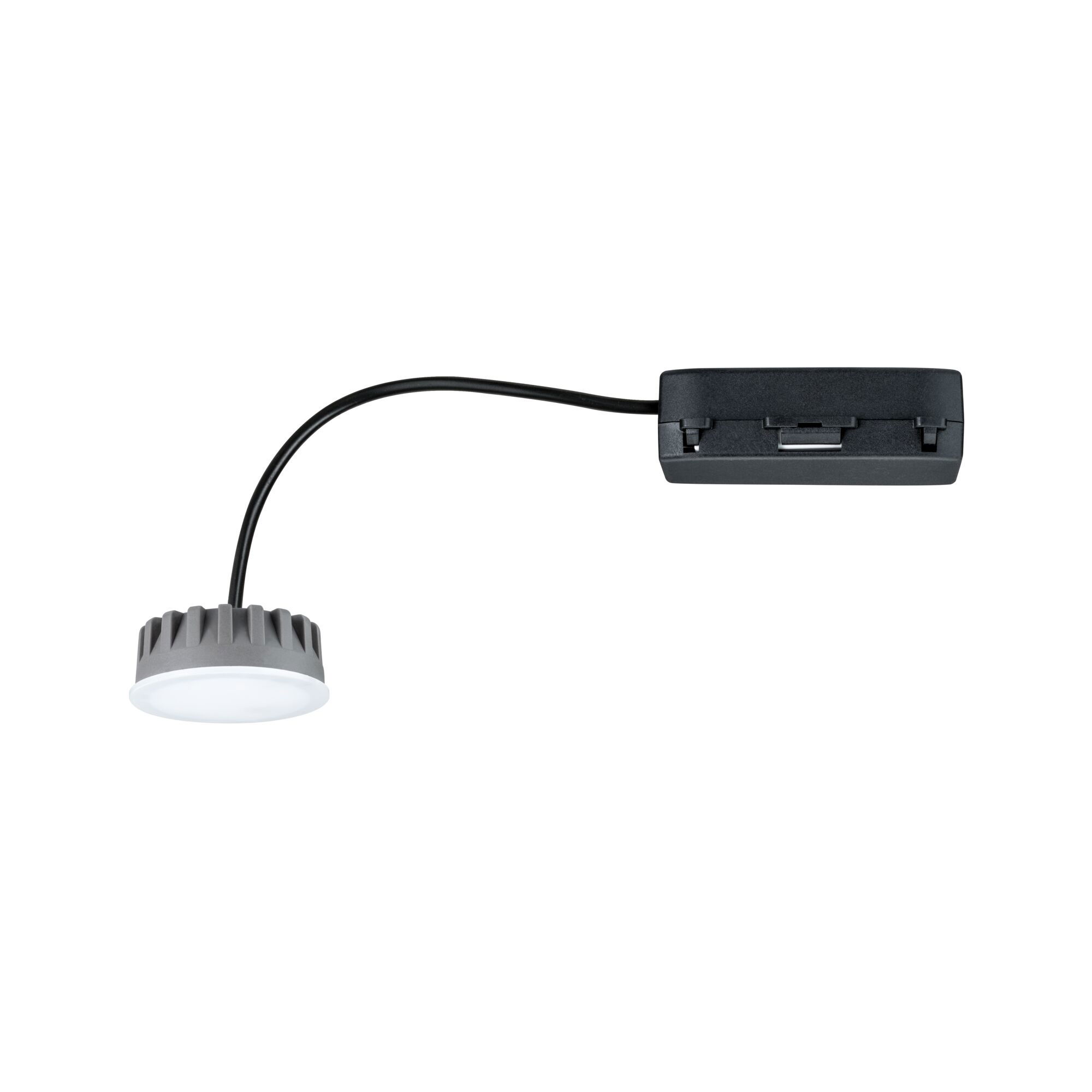

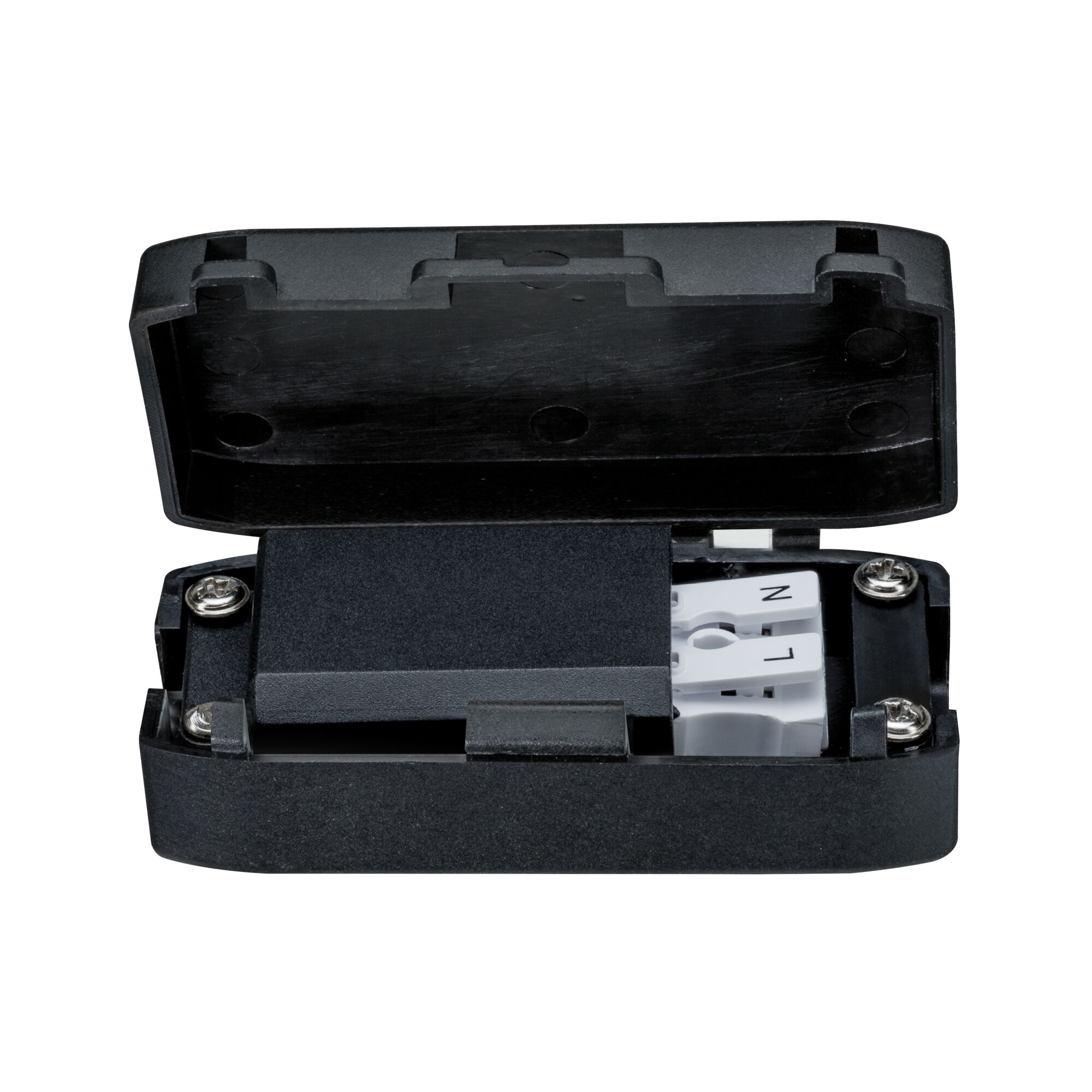

- LED module with junction box, incl. double quick terminal to loop through
- For 230 V direct connection
- Dimmable
LED Module recessed luminaire Nova Plus Coin round 50mm Coin 6W 530lm 230V dimmable 4000K Satin

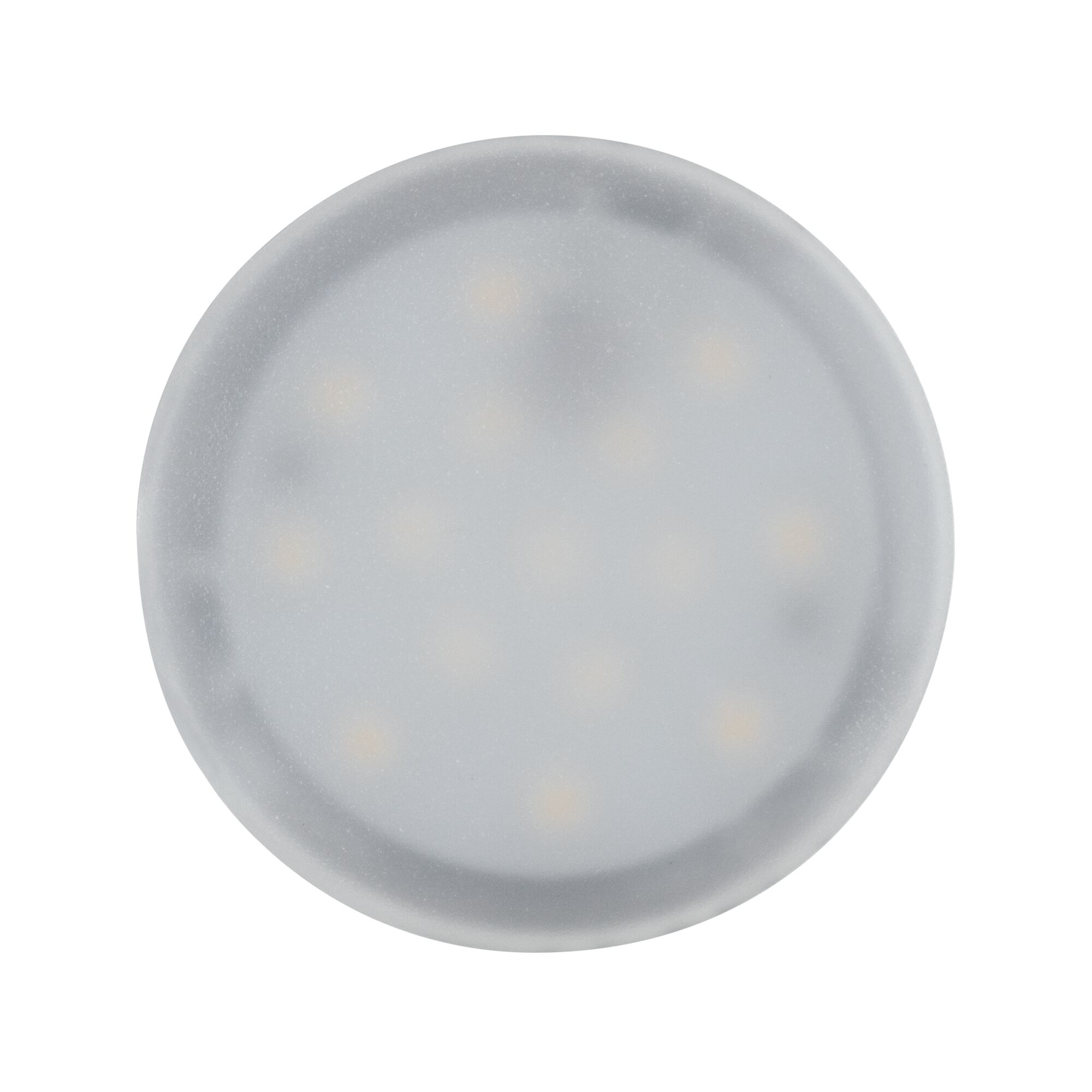

The innovative Nova Plus coins with a neutral white light can also be used in combination with existing light installations. If you have already installed recessed spotlights with a diameter of 51 mm, you can simply switch over to the energy-saving LED modules. The old lamp is removed, the Slim Coin is connected with the help of quick clips, without having to use tools - that is all!
- LED module with junction box, incl. double quick terminal to loop through
- For 230 V direct connection
- Dimmable
- Efficient LED technology
- Color temperatur: 4000K - Neutral white
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 35 mm |
| Ø | 50 mm |
| Mounting hole | 68 mm |
| Form | round |
| Design and Material | |
|---|---|
| Colour | Satin |
| Material | Plastic |
| Installation | |
|---|---|
| can be used with the following dimmers | RC Merten MEG 5136-0000, RLC Müller Paladin 873 030 LED, RC Busch-Jäger 6513U-102 |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | F |
| Energy consumption | 6 kWh_1000h |
| Service life | |
|---|---|
| Lamp lumen maintenance factor 6000h | 90 % |
| luminous flux at the end of lamplife | 85 % |
| Number of switching cycles >= | 50000 |
| Lifetime | 30000 h |
| Rated life time | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 4000 K |
| Beam angle | 100 ° |
| Usable luminous flux | 530 lm |
| color temp | 4000 K |
| colour consistency | SDCM 6 |
| Color rendering index | > 80 Ra |
| Beam angle LED module | 118 ° |
| Rated luminous flux (Lumen) | 530 lm |
| Lamp Features | |
|---|---|
| Component parts | 6 W |
| Technique | LED |
| Socket | Coin |
| Type | Special lamps |
| Dimmable | with dimmer R+C f.elect.trafos+230V bulbs |
| Inclusive lamp | yes |
| Incandescent Equivalent | 43 W |
| Number of component parts | 1x |
| protection class | protection class II |
| Replacable | 7 not concerned. |
| Power consumption | 6 W |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
