Article-No.:
92452
LED Module recessed luminaire
RGBW Coin
50mm Coin 6W 500lm 230V dimmable 2200 - 6500K Satin
50mm Coin 6W 500lm 230V dimmable 2200 - 6500K Satin
A
G
G
£28.95*
Prices incl. Standard rate VAT
- Tunable white offers an infinitely adjustable selection from gold light (2200K) to daylight white (6500K)
- The memory function saves the last level used until the next time it is switched on
- RGBW multicolour colour change

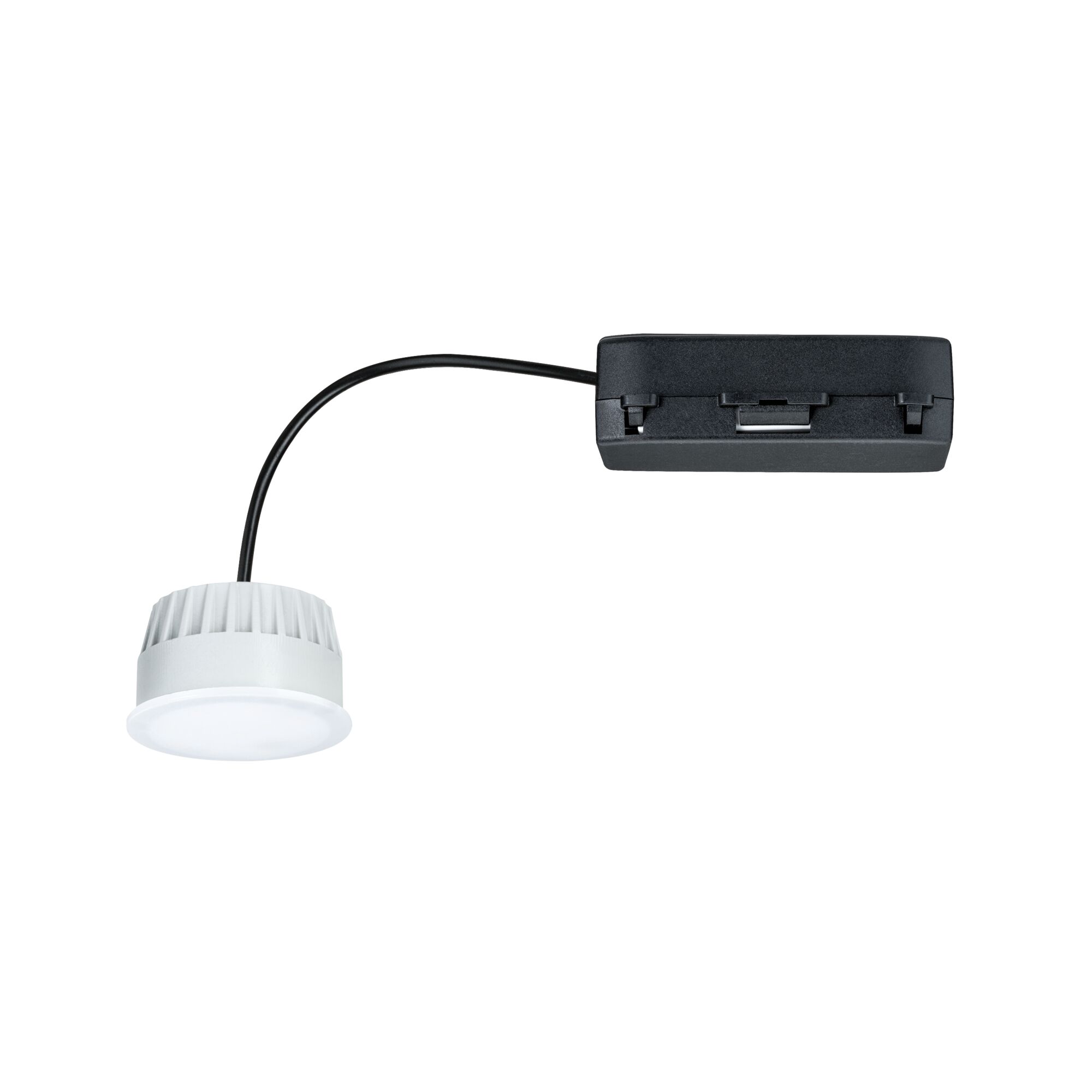

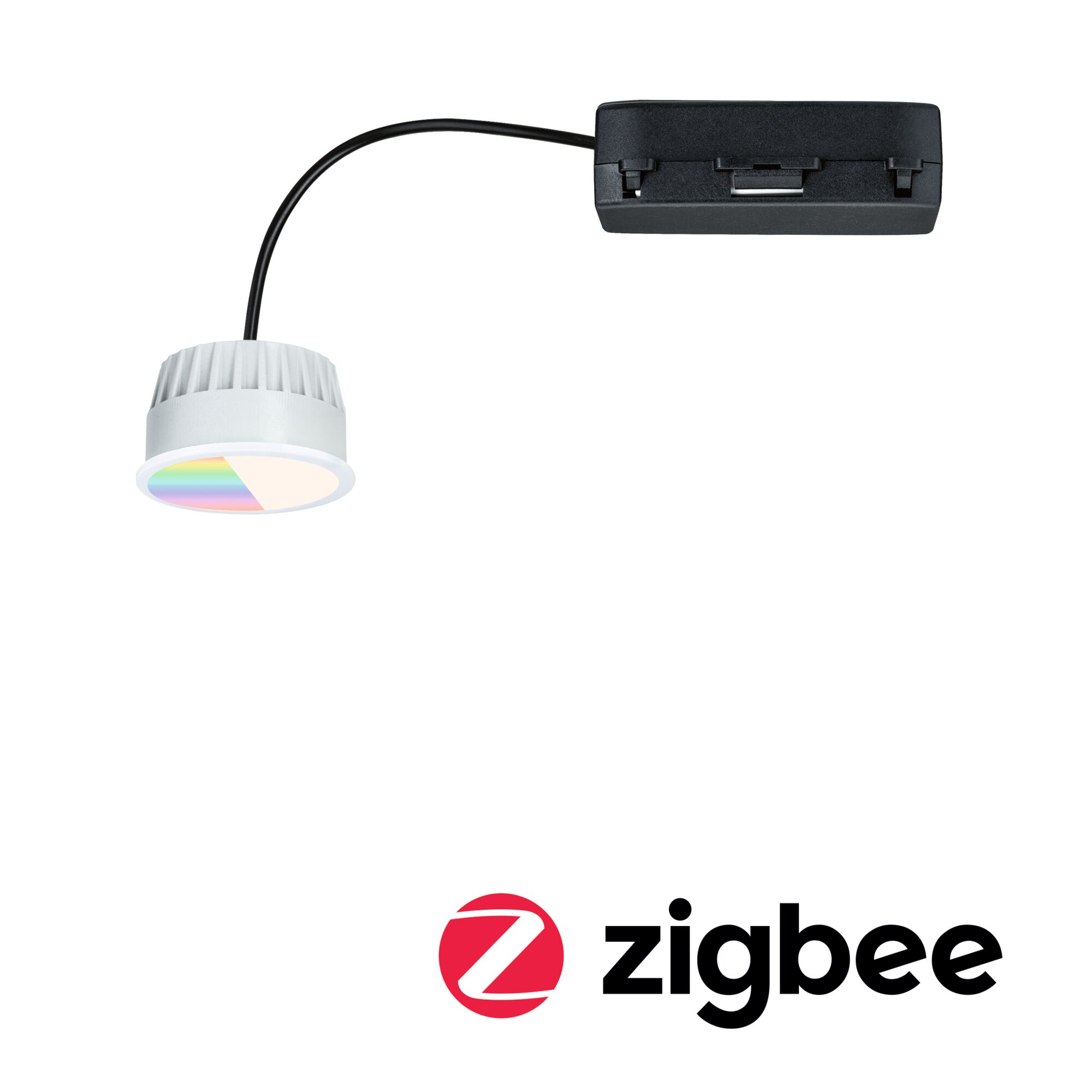

LED Module recessed luminaire RGBW Coin 50mm Coin 6W 500lm 230V dimmable 2200 - 6500K Satin
The innovative, smart coins can also be used in combination with existing light installations. If you have already installed recessed spotlights with a diameter of 51 mm, you can simply switch over to the smart LED modules. The old lamp is removed and the Slim Coin is connected and inserted using quick clips – and it’s ready to use! The luminaire is Zigbee 3.0-compatible. Zigbee 3.0 is a radio transmission protocol that interlinks devices from different manufacturers. As a result, the luminaire can be controlled individually or in groups via app, remote control or voice command. From cosy, warm gold light (2200K) to functional daylight white (6500K) or colourful colour gradients: the combinations of tunable white, RGB and dimming function are virtually endless. Installation is particularly simple and efficient, thanks to the interlinkable and replaceable coins, the low installation depth of just 29mm and the 230V direct connection.
- Tunable white offers an infinitely adjustable selection from gold light (2200K) to daylight white (6500K)
- The memory function saves the last level used until the next time it is switched on
- RGBW multicolour colour change
- Integrates seamlessly in existing Zigbee Smart Home infrastructures.
- Can still be switched on and off using the light switch
- Linkable coins for direct 230V connections
- Efficient LED technology
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 29 mm |
| Diameter | 50 mm |
| Design and Material | |
|---|---|
| Colour | Satin |
| Material | Plastic |
| Energy consumption | |
|---|---|
| Energy consumption | 6 kWh_1000h |
| Energy efficiency | G |
| Service life | |
|---|---|
| luminous flux at the end of lamplife | 94 % |
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 2200 K |
| colour temperature to | 6500 K |
| color temp | Gold light to Daylight white |
| Beam angle | 105 ° |
| Nominal luminous flux | 500 lm |
| Color rendering index | > 80 Ra |
| Colour consistency (SDCM) | 6 |
| Rated luminous flux (Lumen) | 500 lm |
| Lamp Features | |
|---|---|
| Component parts | 6 W |
| Compatible Smart Home technology | Zigbee |
| Technique | LED |
| Base/Socket | Coin |
| Type | Reflector |
| Dim | with Smart Home |
| Inclusive lamp | yes |
| Incandescent Equivalent | 42 W |
| Adjustability | fixed |
| Lamp property | Leuchtmittel |
| Dimmable | Yes |
| IP protection | IP20 |
| Number of component parts | 1x |
| protection class | Protection class II |
| Replacable | 7 not concerned. |
| Transformer | |
|---|---|
| apparent power | 8.5 VA |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
| Smart Home | |
|---|---|
| Protocol type | Zigbee 3.0 |
| Zigbee certification | Zigbee zertifiziert |
| Radio frequency | 2,4 GHz |
| Radio range (Open field) | 20 m |
