Article-No.:
92451

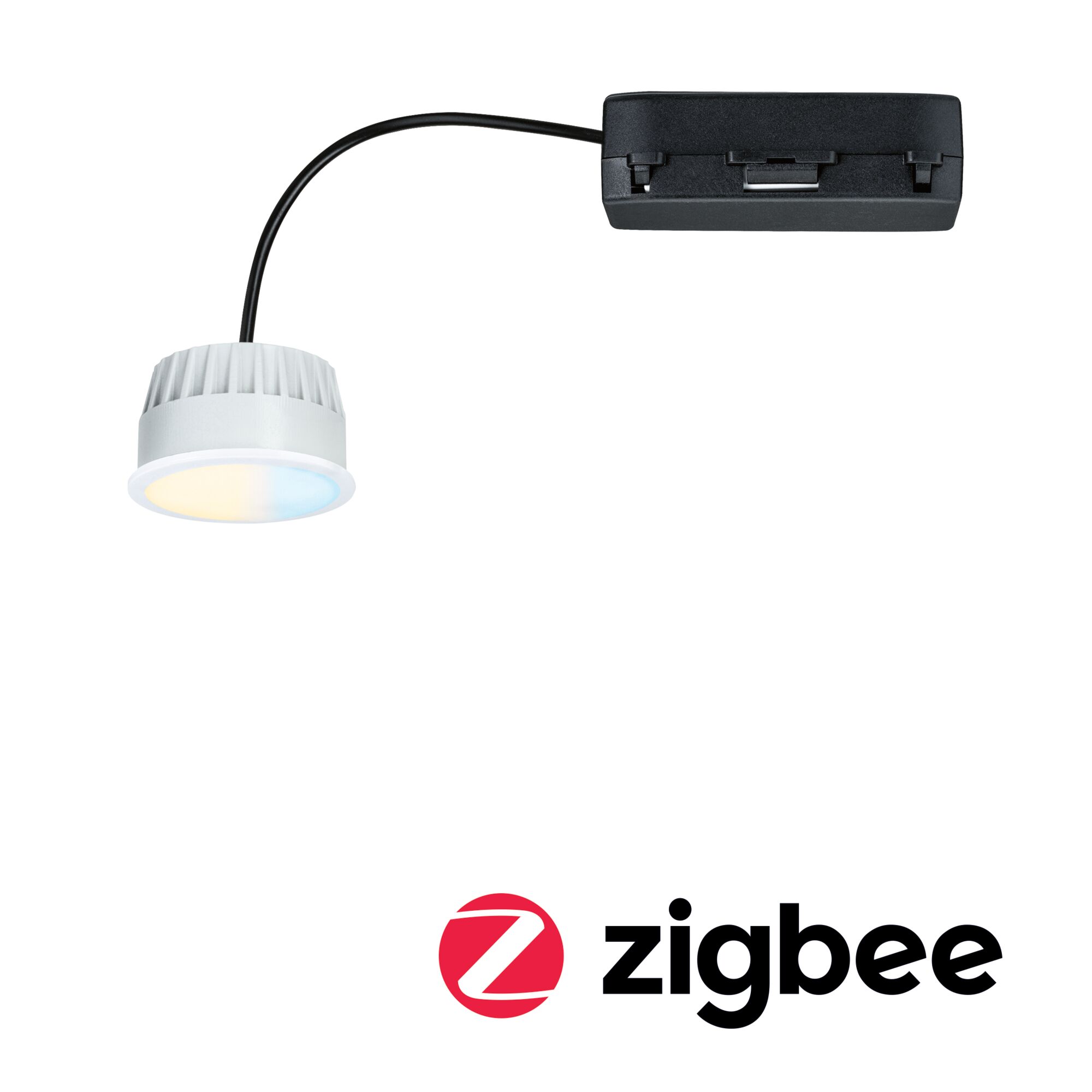

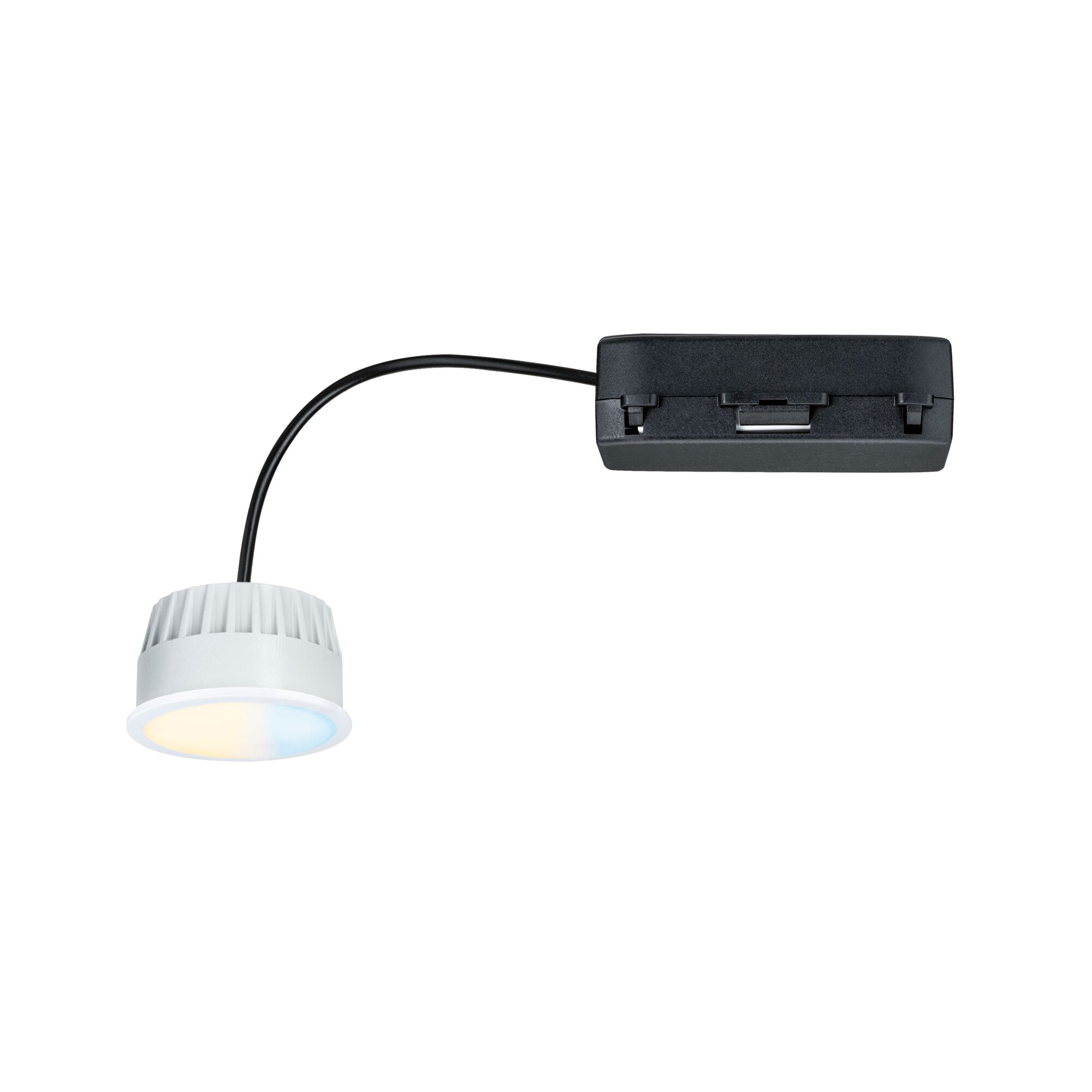

LED Module recessed luminaire
Tunable White Coin
50mm Coin 6W 530lm 230V dimmable 2200 - 6500K Satin
50mm Coin 6W 530lm 230V dimmable 2200 - 6500K Satin
£25.95*
Prices incl. Standard rate VAT
Ready to ship, delivery within 2-3 working days
- Usable with smart home gateways that have a Zigbee interface
- Tunable white offers an infinitely adjustable selection from gold light (2200K) to daylight white (6500K)
- The memory function saves the last level used until the next time it is switched on
LED Module recessed luminaire Tunable White Coin 50mm Coin 6W 530lm 230V dimmable 2200 - 6500K Satin
The innovative, smart coins can also be used in combination with existing light installations. If you have already installed recessed spotlights with a diameter of 51 mm, you can simply switch over to the smart LED modules. The old lamp is removed and the Slim Coin is connected and inserted using quick clips – and it’s ready to use! The luminaire is Zigbee 3.0-compatible. Zigbee 3.0 is a radio transmission protocol that interlinks devices from different manufacturers. As a result, the luminaire can be controlled individually or in groups via app, remote control or voice command. From cosy, warm gold light (2200K) to functional daylight white (6500K): the tunable white function allows you to continuously adjust the light colour to your preferences. The continuous dimming function lets you adjust their brightness depending on your needs: a bright work light and feel-good mood lighting in one! Installation is particularly simple and efficient, thanks to the interlinkable and replaceable coins, the low installation depth of just 29mm and the 230V direct connection.
- Usable with smart home gateways that have a Zigbee interface
- Tunable white offers an infinitely adjustable selection from gold light (2200K) to daylight white (6500K)
- The memory function saves the last level used until the next time it is switched on
- Integrates seamlessly in existing Zigbee Smart Home infrastructures.
- Can still be switched on and off using the light switch
- Linkable coins for direct 230V connections
- Efficient LED technology
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 29 mm |
| Diameter | 50 mm |
| Design and Material | |
|---|---|
| Type | Coin |
| Colour | Satin |
| Material | Plastic |
| Recycled material included | no |
| Energy consumption | |
|---|---|
| Energy efficiency | F |
| Energy consumption | 6 kWh_1000h |
| Service life | |
|---|---|
| luminous flux at the end of lamplife | 96 % |
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temperature to | 6500 K |
| Colour temperature | Gold light to Daylight white, 2200 K |
| Nominal luminous flux | 530 lm |
| Colour consistency (SDCM) | 6 |
| Color rendering index | > 80 Ra |
| Beam angle | 105 ° |
| Lamp Features | |
|---|---|
| Dimmable | Yes |
| Dim | with Smart Home |
| Inclusive lamp | yes |
| Lamp property | Leuchtmittel |
| Incandescent Equivalent | 44 W |
| IP protection | IP20 |
| Protection class | Protection class II |
| Base/Socket | Coin |
| Technique | LED |
| Component parts | 6 W |
| Number of component parts | 1x |
| Compatible Smart Home technology | Zigbee |
| Replacable | 7 not concerned. |
| Adjustability | fixed |
| Voltage | 230 V |
| Voltage type | AC 50 Hz |
| Transformer | |
|---|---|
| apparent power | 6.7 VA |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
| Smart Home | |
|---|---|
| Protocol type | Zigbee 3.0 |
| Zigbee certification | Zigbee zertifiziert |
| Radio frequency | 2,4 GHz |
| Radio range (Open field) | 20 m |
