Article-No.:
71186
LED Panel
Alya
round 230mm 17W 1700lm 3000 - 6500K White
round 230mm 17W 1700lm 3000 - 6500K White

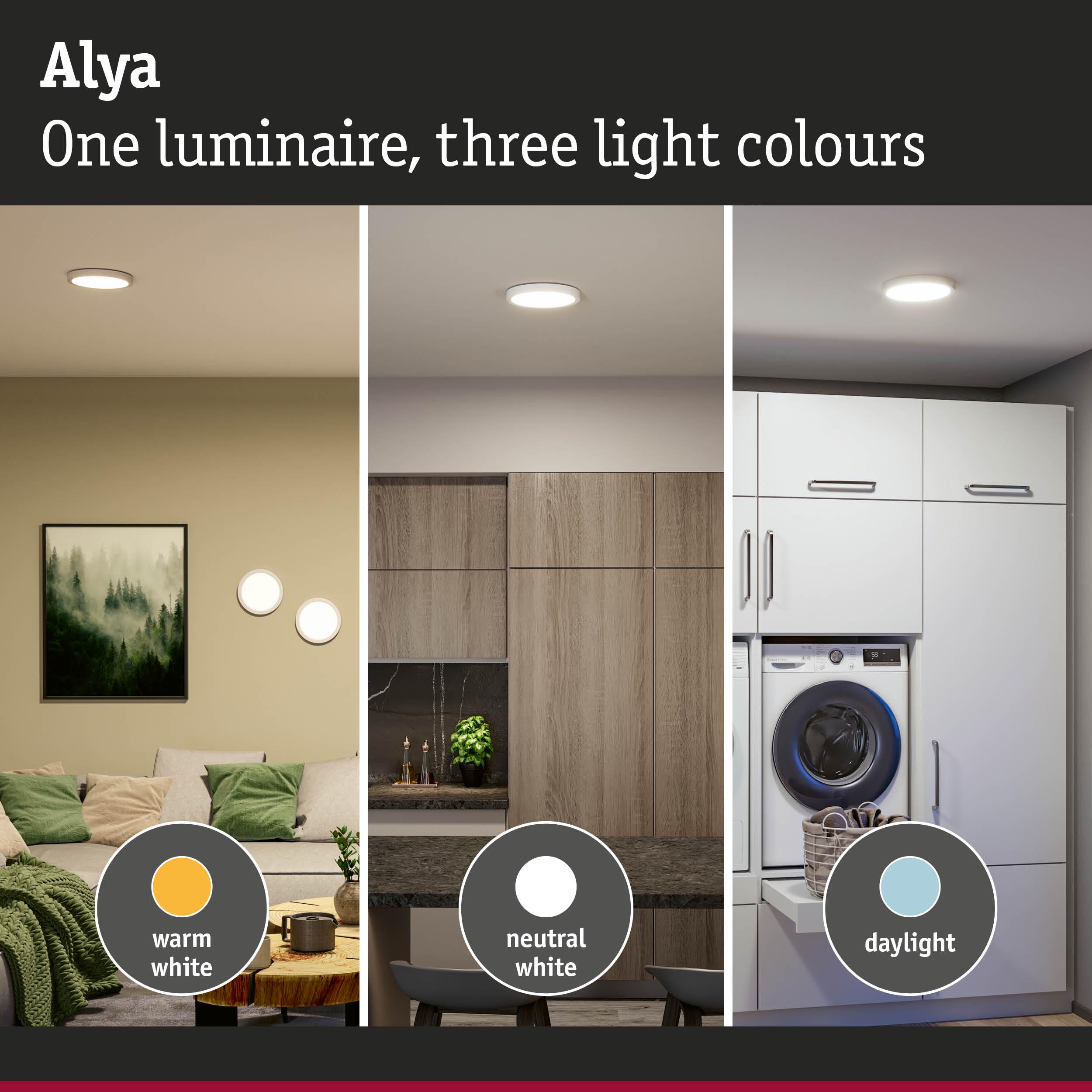

- Uniform, attractive basic lighting for a variety of uses: living room, kitchen, utility room

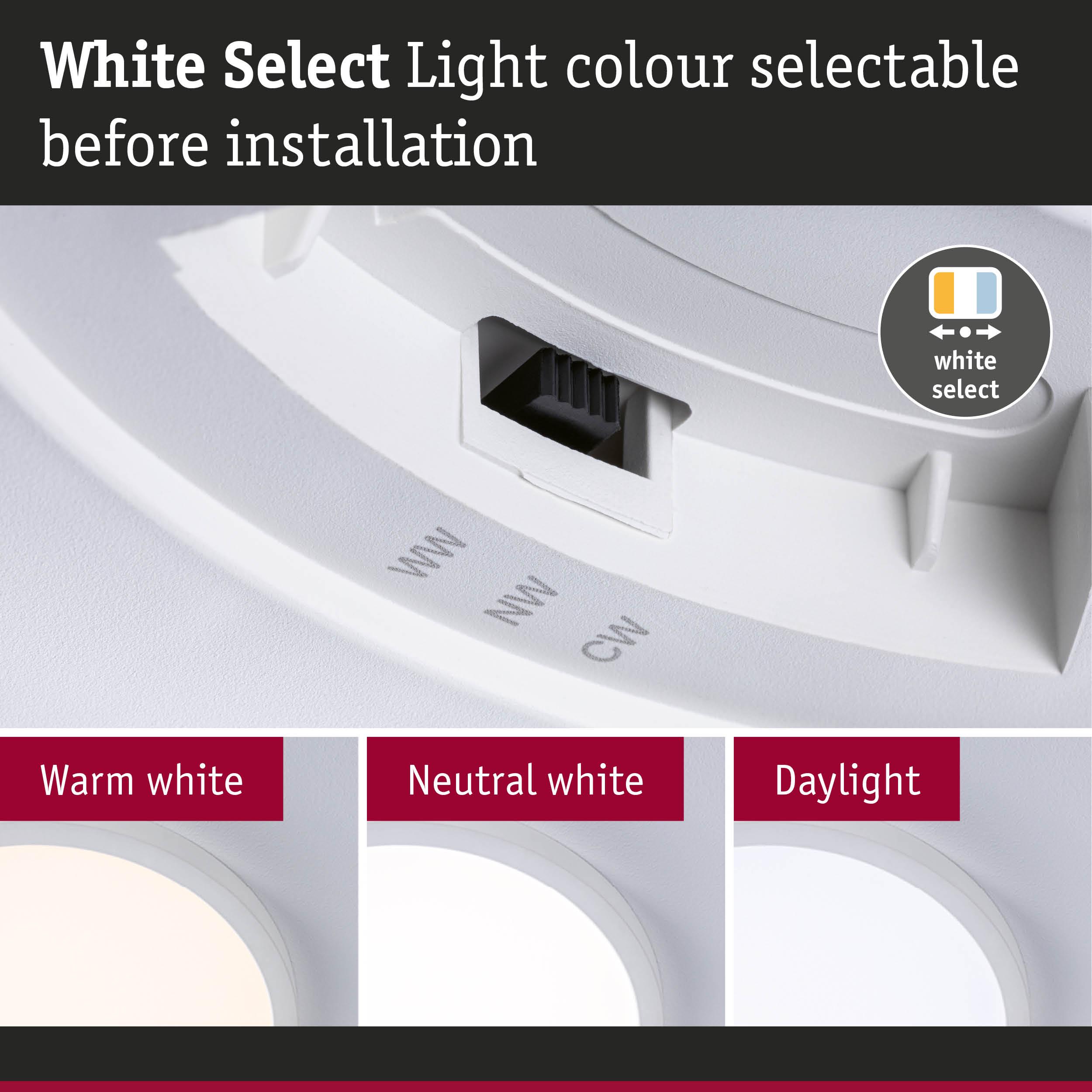

- Customisable colour selection (3000K, 4000K, 6500K) via the White Select function before installation

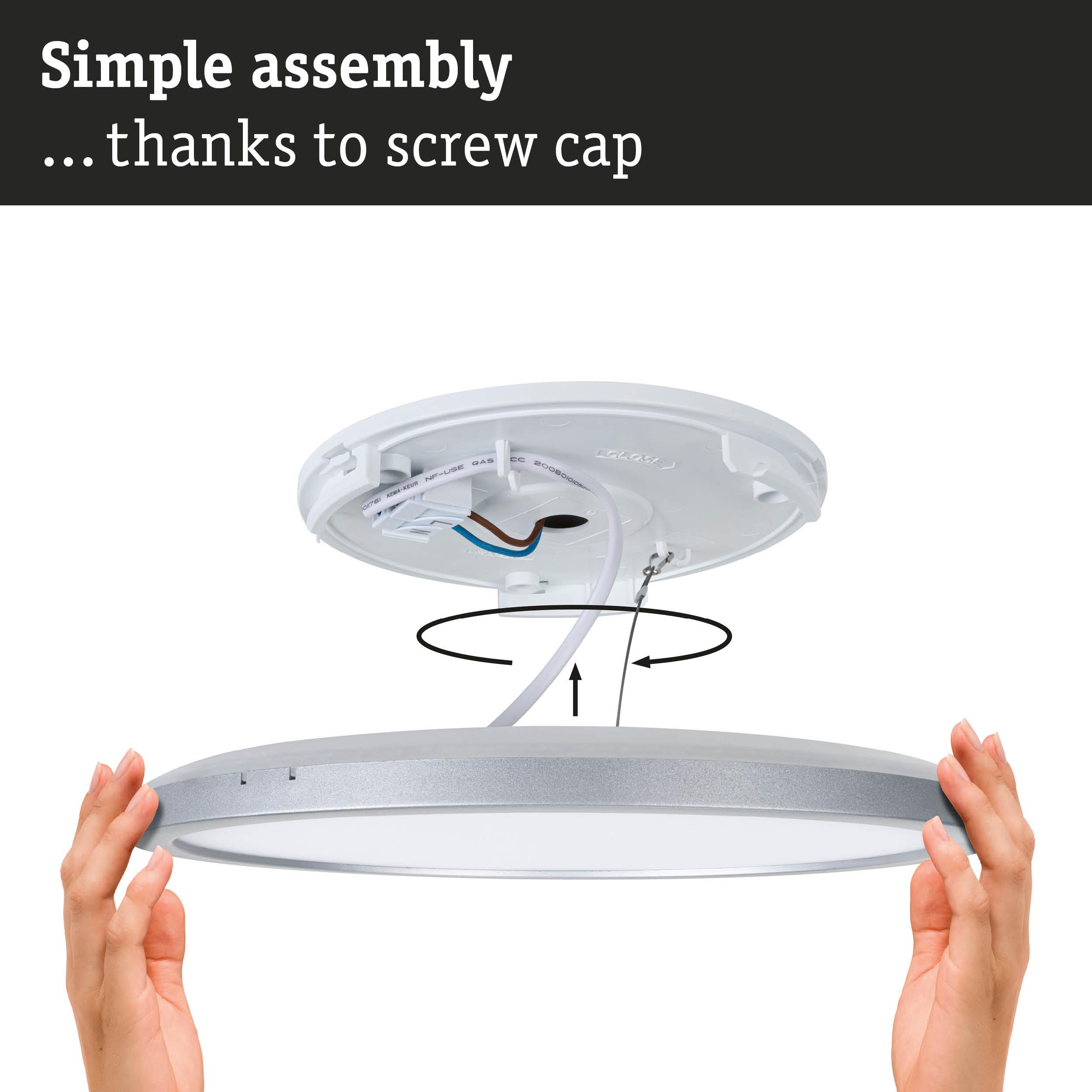

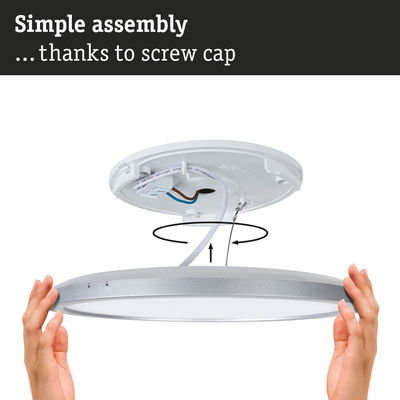

- Twist lock function for easy installation
LED Panel Alya round 230mm 17W 1700lm 3000 - 6500K White
The Alya LED surface-mounted panel luminaire with a diameter of 230mm offers many options for the implementation of custom lighting requirements in any space. The innovative White Select function allows the user to choose a particular light colour prior to installation to suit usage requirements or personal preferences. The White Select function ensures that this panel luminaire can be used in virtually any space. Warm white light for the living room, neutral white for the kitchen, or daylight white for crafts or cellar rooms – the Alya panel luminaire will always emit the right light colour. It offers a choice of light colours (3000K, 4000K and 6500K) to ensure flexibility of the lighting solution for any requirement. The understated and flat design blends seamlessly with any environment and ensures uniform, comfortable illumination.
- Uniform, attractive basic lighting for a variety of uses: living room, kitchen, utility room
- Customisable colour selection (3000K, 4000K, 6500K) via the White Select function before installation
- Twist lock function for easy installation
- The understated look and flat design suits any environment
- The choice of warm white, neutral white, and daylight white make it suitable for many applications
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 28 mm |
| Ø | 230 mm |
| Form | round |
| Design and Material | |
|---|---|
| stainless | stainless |
| Colour | White |
| Material | Plastic |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | E |
| Service life | |
|---|---|
| Lifetime | 20000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 3000 K |
| Colour change | White Select |
| Usable luminous flux | 1700 lm |
| Luminous flux LED module | 2200 lm |
| color temp | 3000 - 6500 K |
| Color rendering index | > 80 Ra |
| Lamp Features | |
|---|---|
| Component parts | 17 W |
| Technique | LED |
| IP protection | IP20 |
| Dimmable | No |
| Inclusive lamp | yes |
| Number of component parts | 1x |
| protection class | protection class II |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|6 Control gear is not replaceable, the complete lighting must be replaced. |
| Power consumption | 18 W |
| Transformer | |
|---|---|
| apparent power | 32 VA |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
