Article-No.:
50082
LED PanelSmart Home Zigbee 3.0
Cesena
round 170mm 9W 600lm Tunable White Matt white dimmable
round 170mm 9W 600lm Tunable White Matt white dimmable
£67.95*
Prices incl. Standard rate VAT
Ready to ship, delivery within 2-3 working days
- Usable with smart home gateways that have a Zigbee interface
- Can be controlled with the Smart Home Zigbee remote control
- Can still be switched on and off with the light switch
LED Panel Smart Home Zigbee 3.0 Cesena round 170mm 9W 600lm Tunable White Matt white dimmable
Cesena panels combine LED technology, outstandingly uniform light distribution and a very low installation height. Their clear lines harmonise perfectly with comfortable modern interior furnishing styles. Use the tunable white function to set the light colour to suit your needs: from daylight white working light to relaxing, warm white lighting. The luminaire is Zigbee 3.0-compatible. Zigbee 3.0 is a radio transmission protocol which links up the devices of several manufacturers. This allows not only the centralised control of lighting; shutters, heating and alarm systems, for example, can also be integrated. To operate the control, you can choose between the Smart Friends Box, a gateway for the same standard by a different manufacturer, or a Smart Home Zigbee 3.0 hand-held transmitter. Specific individual components can be addressed, or switched in groups as lighting scenarios.
- Usable with smart home gateways that have a Zigbee interface
- Can be controlled with the Smart Home Zigbee remote control
- Can still be switched on and off with the light switch
- Bidirectional data transfer
- Mesh-capable: range increases from product to product
- Single luminaire incl. LED module
- Satined plastic cover for fine diffusion of light
- With white-light control (Tunable White)
- Color temperatur: 2700K - Warm white - 6500K -Daylight white
| Dimension | |
|---|---|

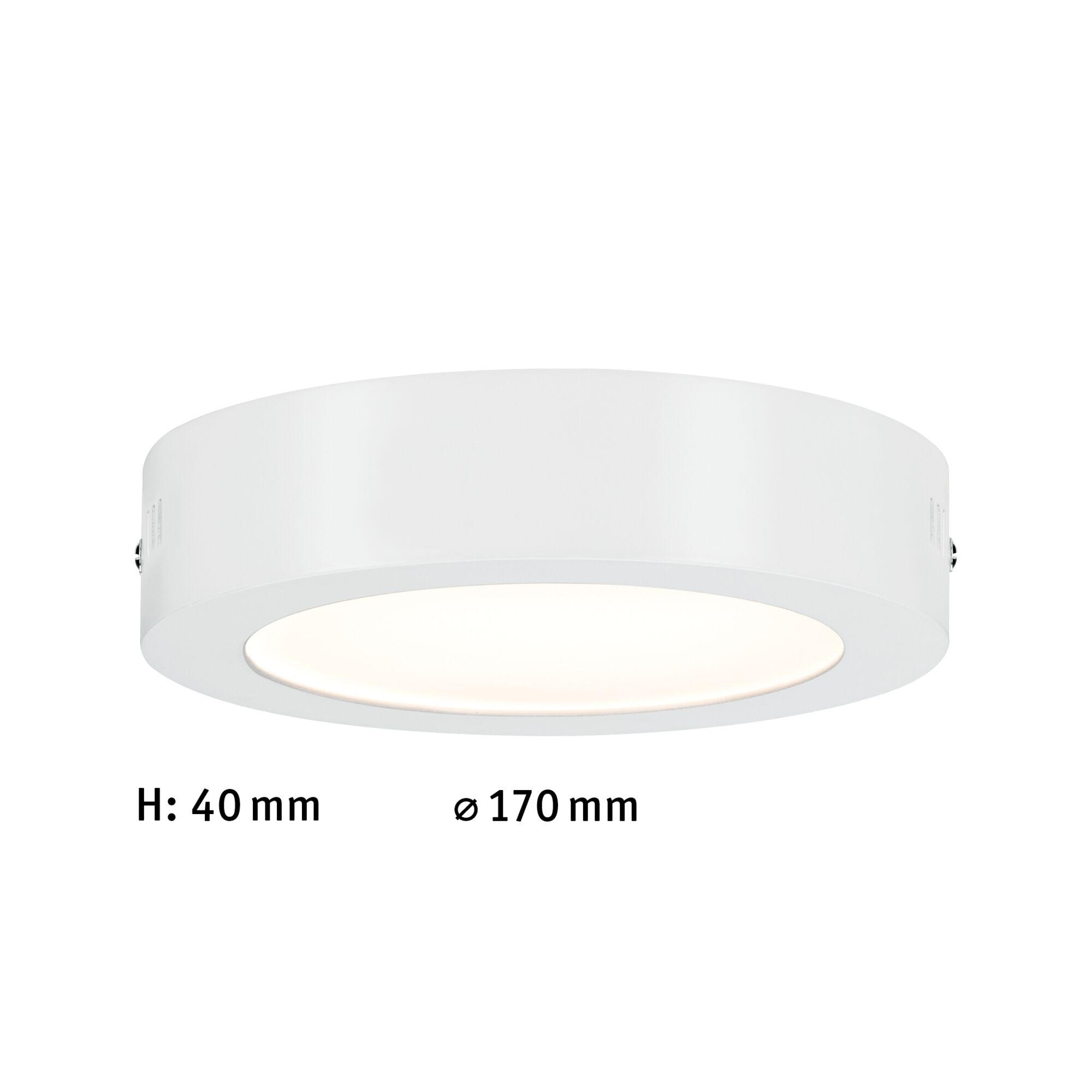

| Dimensions (Height x Width x Depth) | T: 40 mm |
| Diameter | 170 mm |
| net weight | 434 g |
| Design and Material | |
|---|---|
| Form | round |
| Colour | Matt white |
| Material | Plastic |
| Installation | |
|---|---|
| Installation site (recommendation) | Ceiling mounting |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temperature to | 6500 K |
| Colour temperature | Warm white to Daylight white, 2700 K |
| Nominal luminous flux | 600 lm |
| useful luminous flux 2 | 650 lm |
| Luminous flux LED module | 1050 lm |
| Color rendering index | > 80 Ra |
| Beam angle | 116 ° |
| Colour change | Tunable White |
| Lamp Features | |
|---|---|
| Dimmable | Yes |
| Dimming Control | with Smart Home |
| Inclusive lamp | yes |
| light source property | Light source integrated (non-replacable) |
| Incandescent Equivalent | 75 W |
| IP protection | IP20 |
| Protection class | Protection class II |
| Technique | LED |
| Component parts | 9 W |
| Number of component parts | 1x |
| Compatible Smart Home technology | Zigbee |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|5 Control gear is replaceable without damage the lighting fixture by electrician. |
| Power consumption | 11 W |
| Adjustability | fixed |
| Voltage | 230 V |
| Voltage type | AC 50 Hz |
| Transformer | |
|---|---|
| Transformer height | 23 mm |
| Transformer width | 38 mm |
| Transformer depth | 80 mm |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
| Smart Home | |
|---|---|
| Protocol type | Zigbee 3.0 |
| Zigbee certification | Zigbee zertifiziert |
| Radio frequency | 2,4 GHz |
| Radio range (Open field) | 20 m |
