Article-No.:
94336

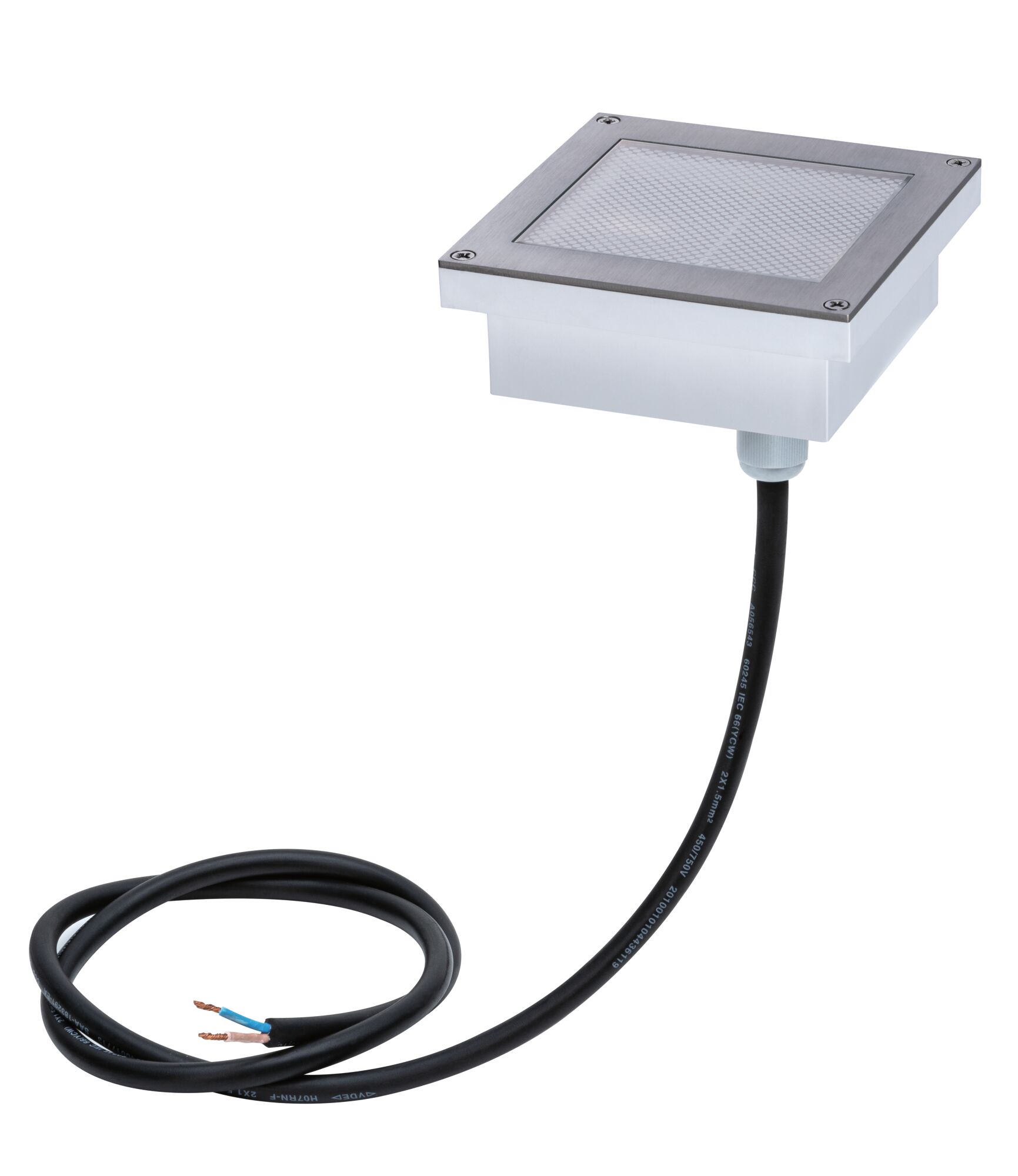

LED Recessed floor luminaire
Brick Twilight-controlled motion detector (IR)
IP67 100x100mm 3000K 0,8W 25lm 230V Aluminium/Grey Metal/Stainless steel
IP67 100x100mm 3000K 0,8W 25lm 230V Aluminium/Grey Metal/Stainless steel
£64.95*
Prices incl. Standard rate VAT
Ready to ship, delivery within 2-3 working days
- Automatic switching with integrated motion detector
- A dusk sensor automatically switches on the light as soon as darkness begins to fall.
- For 230 V direct connection
LED Recessed floor luminaire Brick Twilight-controlled motion detector (IR) IP67 100x100mm 3000K 0,8W 25lm 230V Aluminium/Grey Metal/Stainless steel

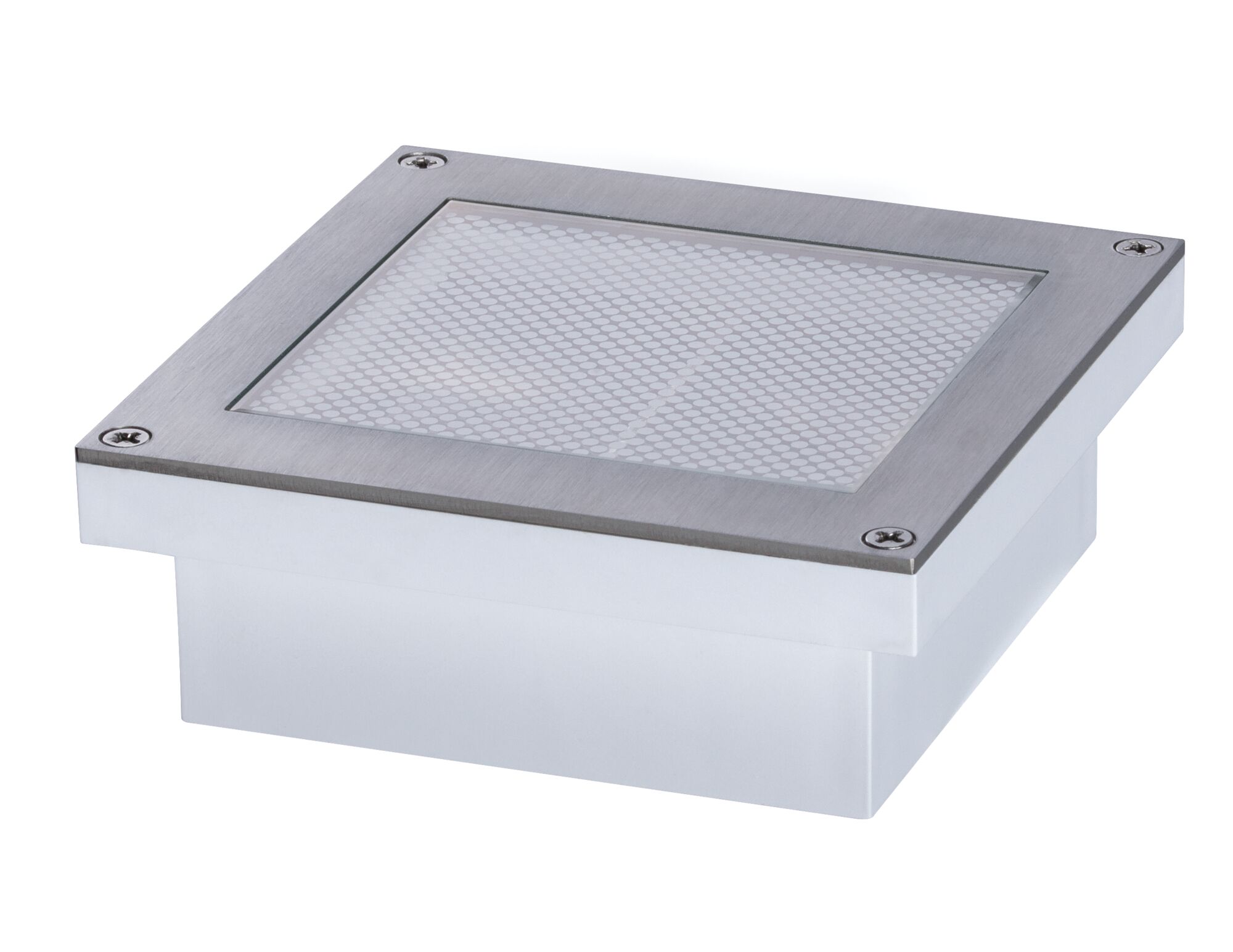

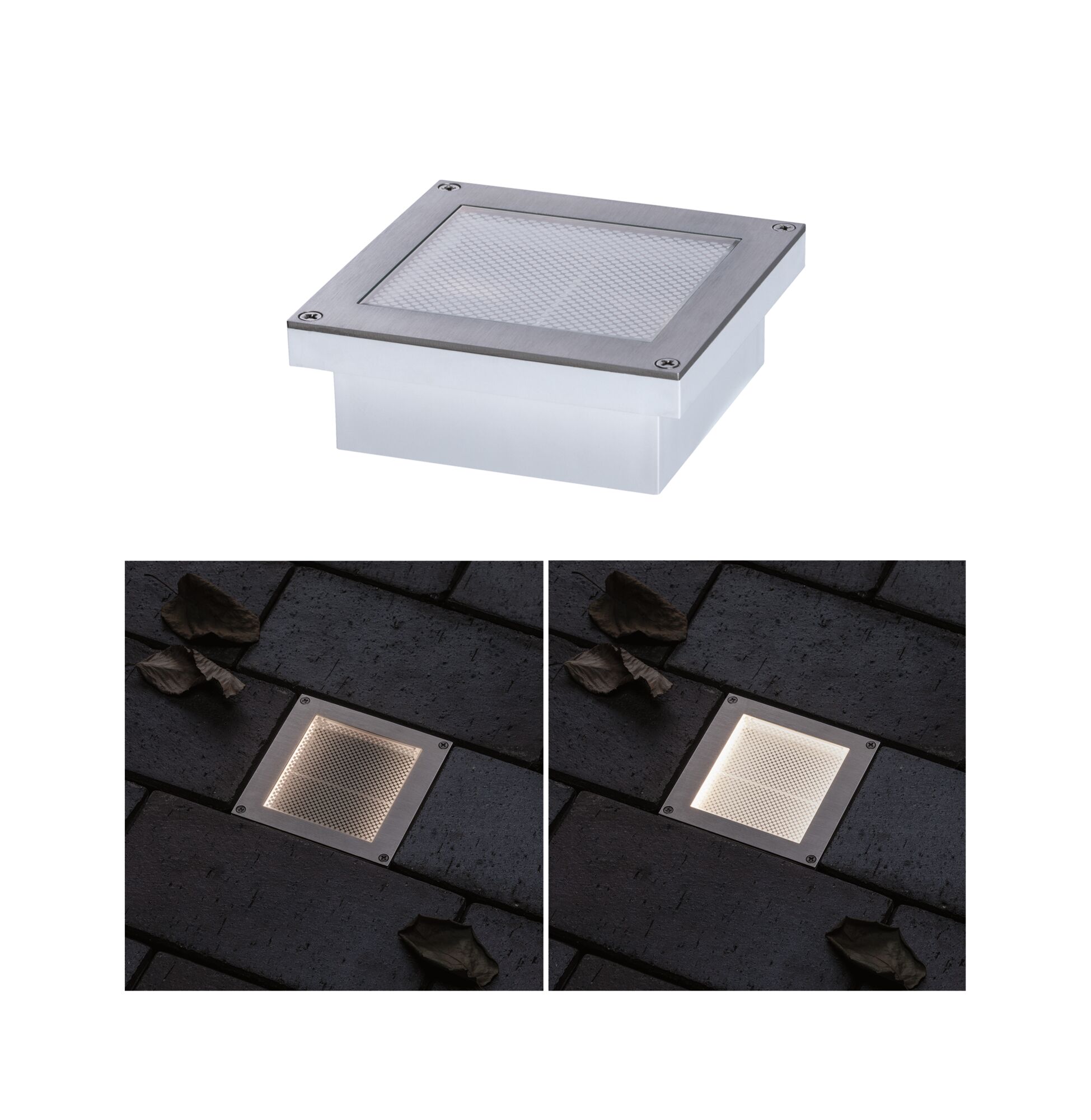

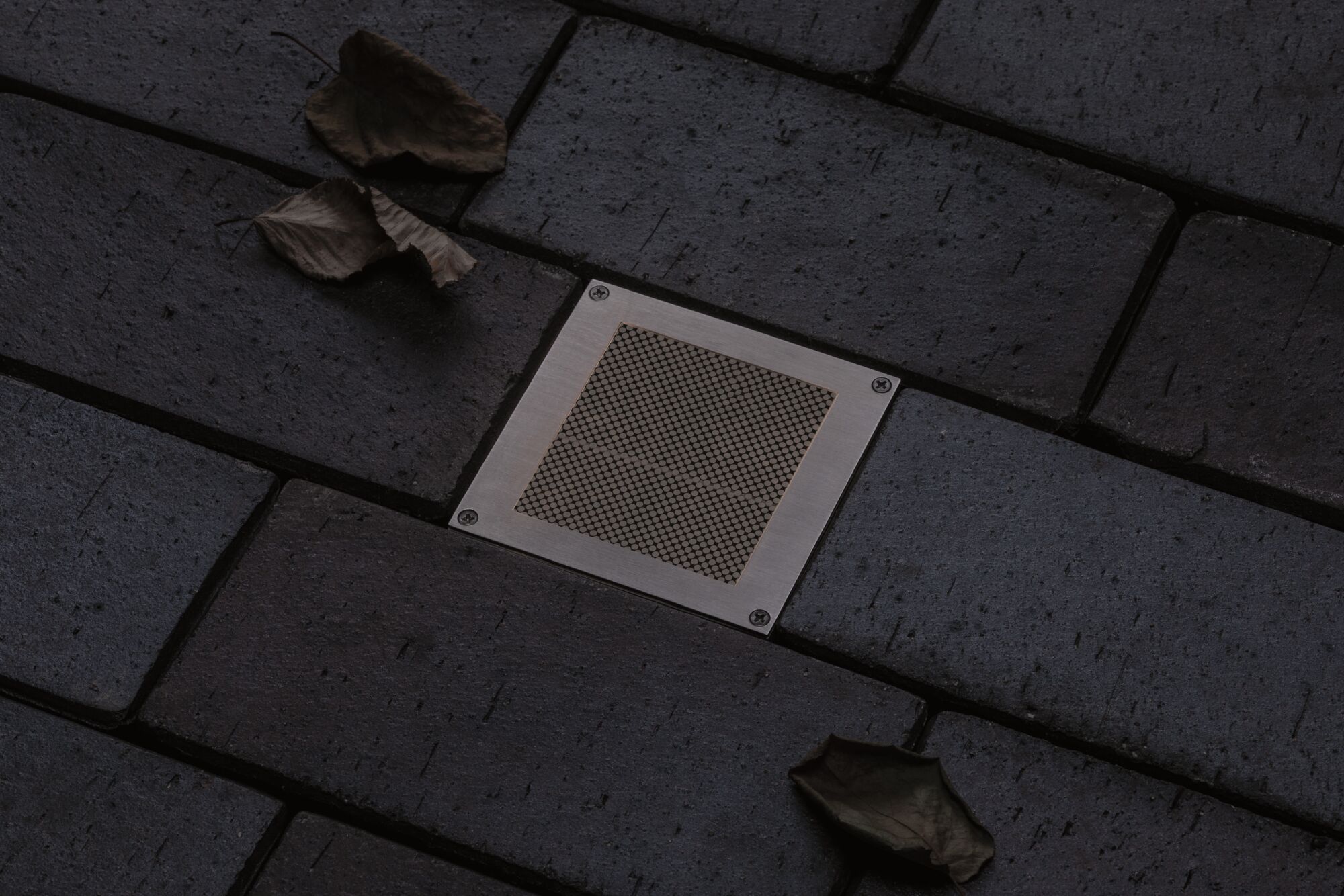

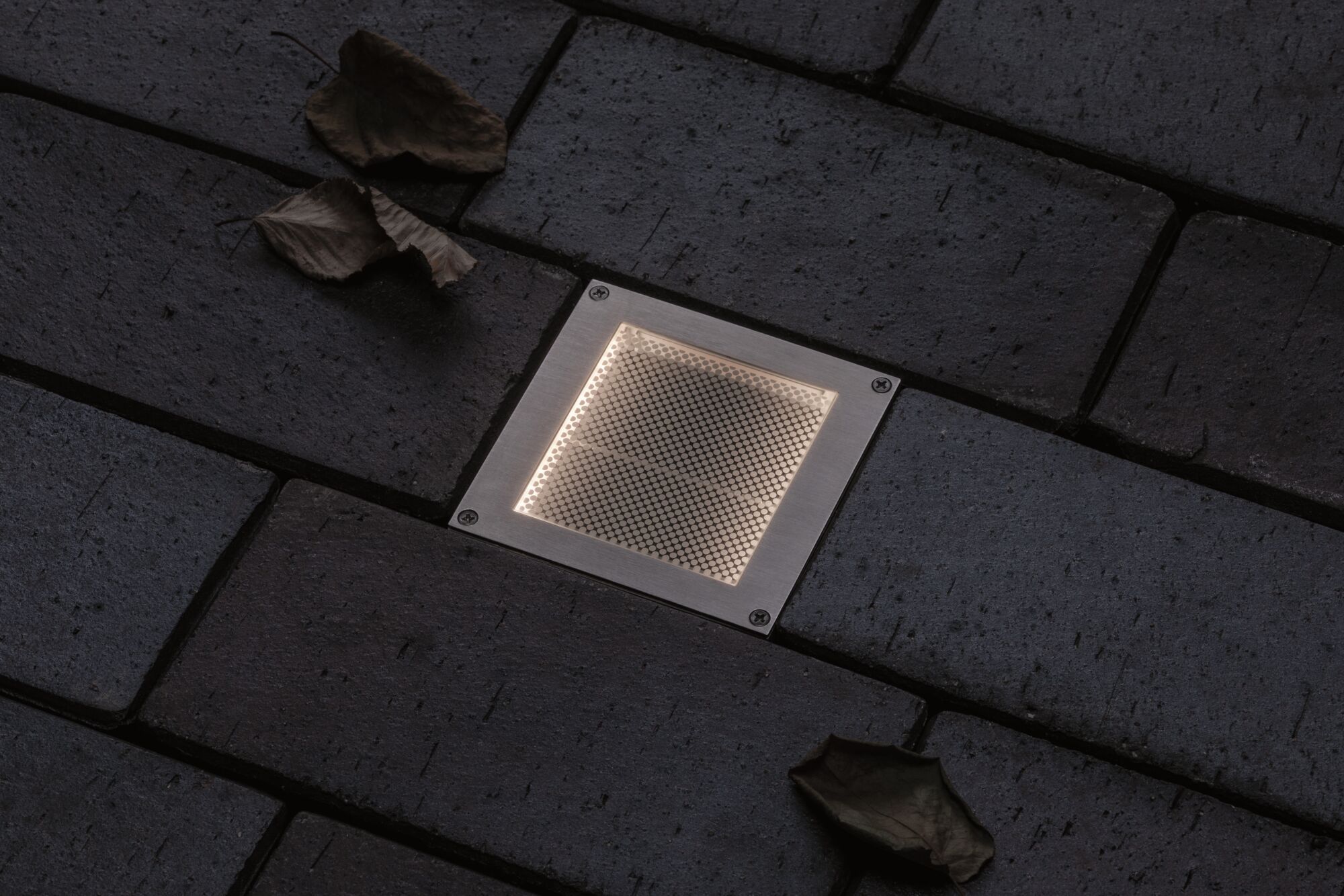

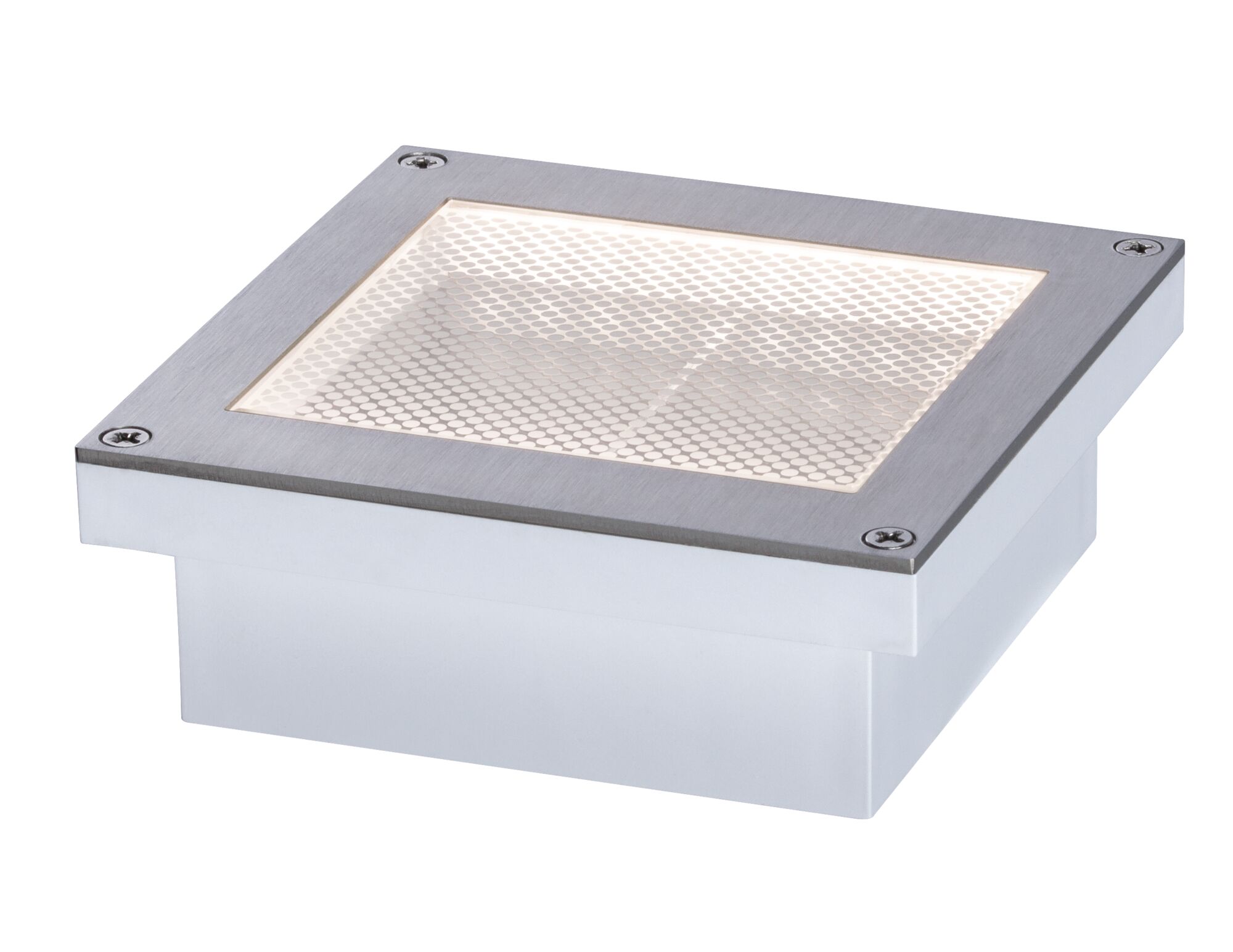

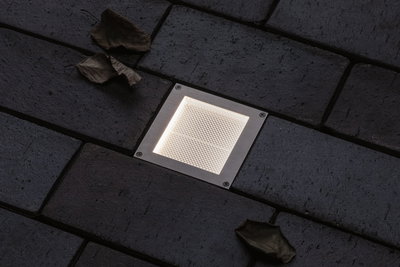

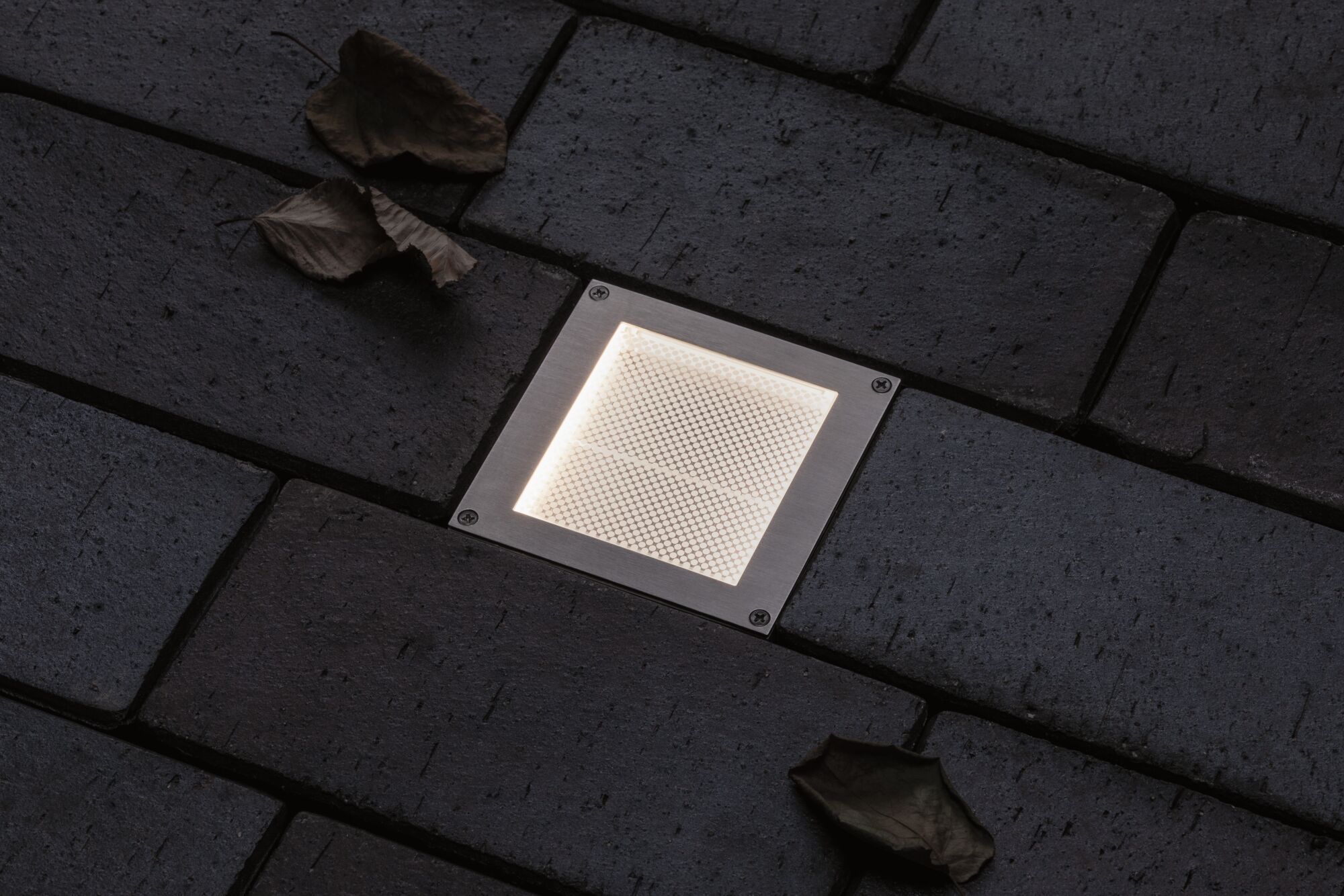

The Brick recessed floor luminaire made of Metal/stainless steel, in the dimensions 100 mm x 100 mm x 38 mm, activates at dusk to provide a functional orientation light when the motion sensor detects people in the immediate vicinity. The functions can be adjusted using a switch on the luminaire. It is virtually invisible, creating the overall effect of a uniformly lit area. Thanks to its IP67 protection class, the floor recessed luminaire is guaranteed waterproof, stainless and suited for installation in walkable outdoor areas – and can easily withstand up to 500 kg in weight. The recessed luminaire emits a pleasant light colour of 3,000 K at night.
- Automatic switching with integrated motion detector
- A dusk sensor automatically switches on the light as soon as darkness begins to fall.
- For 230 V direct connection
- Color temperatur: 3000K - Warm white
| Dimension | |
|---|---|

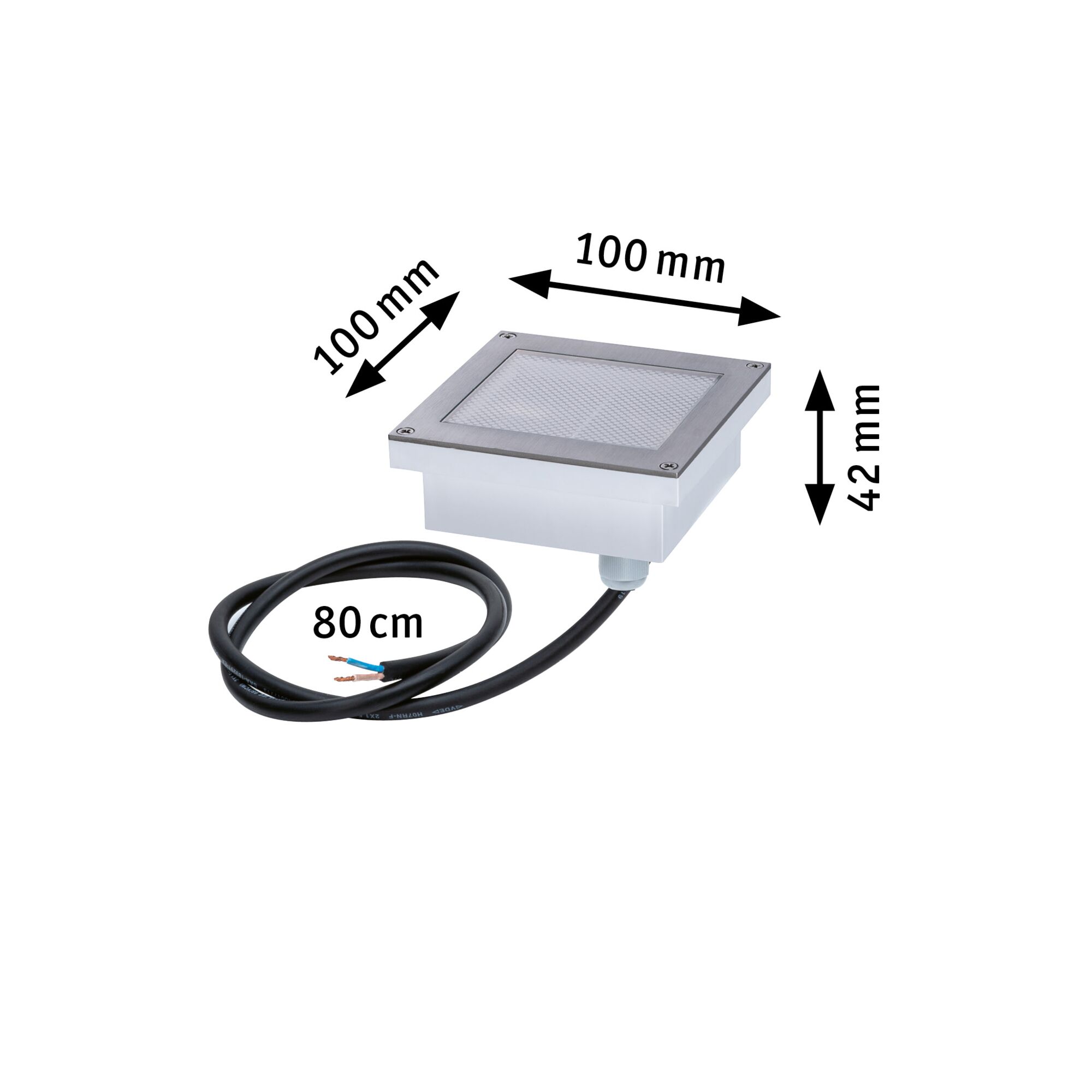

| Dimensions (Height x Width x Depth) | H: 42 x B: 100 x T: 100 mm |
| Built-in diameter | 100 mm |
| Mounting depth | 36,5 mm |
| Depth of hollow wall | 21,5 mm |
| Design and Material | |
|---|---|
| Colour | Aluminium, Grey |
| Material | Metal, Stainless steel |
| Stainless | stainless |
| Installation | |
|---|---|
| Installation site (recommendation) | Floor mounting |
| Energy consumption | |
|---|---|
| Energy efficiency (spectrum A-G) (LED Module) | F |
| Features | |
|---|---|
| Sensors | Twilight-controlled motion detector (IR) |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temperature | Warm white, 3000 K |
| Nominal luminous flux | 25 lm |
| Luminous flux LED module | 80 lm |
| Color rendering index | > 80 Ra |
| Lamp Features | |
|---|---|
| Dimmable | No |
| Inclusive lamp | yes |
| light source property | Light source integrated (non-replacable) |
| Incandescent Equivalent | 9 W |
| IP protection | IP67 |
| Protection class | Protection class II |
| Technique | LED |
| Component parts | 0,8 W |
| Number of component parts | 1x |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|6 Control gear is not replaceable, the complete lighting must be replaced. |
| Power consumption | 3 W |
| Adjustability | fixed |
| Voltage | 230 V |
| Voltage type | AC 50 Hz |
| Transformer | |
|---|---|
| apparent power | 5.8 VA |
| Transformer height | 22 mm |
| Transformer width | 28 mm |
| Transformer depth | 53 mm |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
