Article-No.:
93551

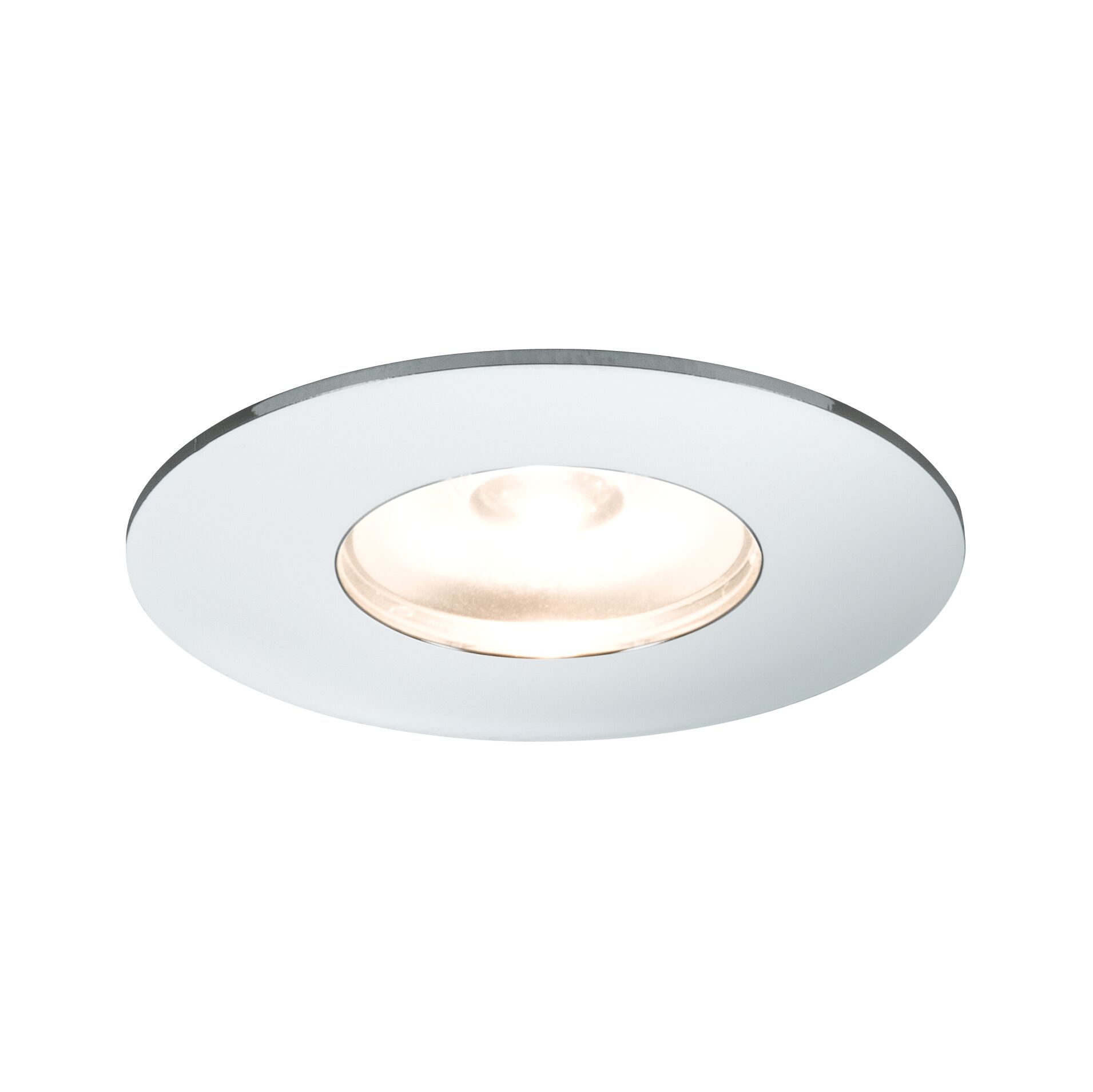

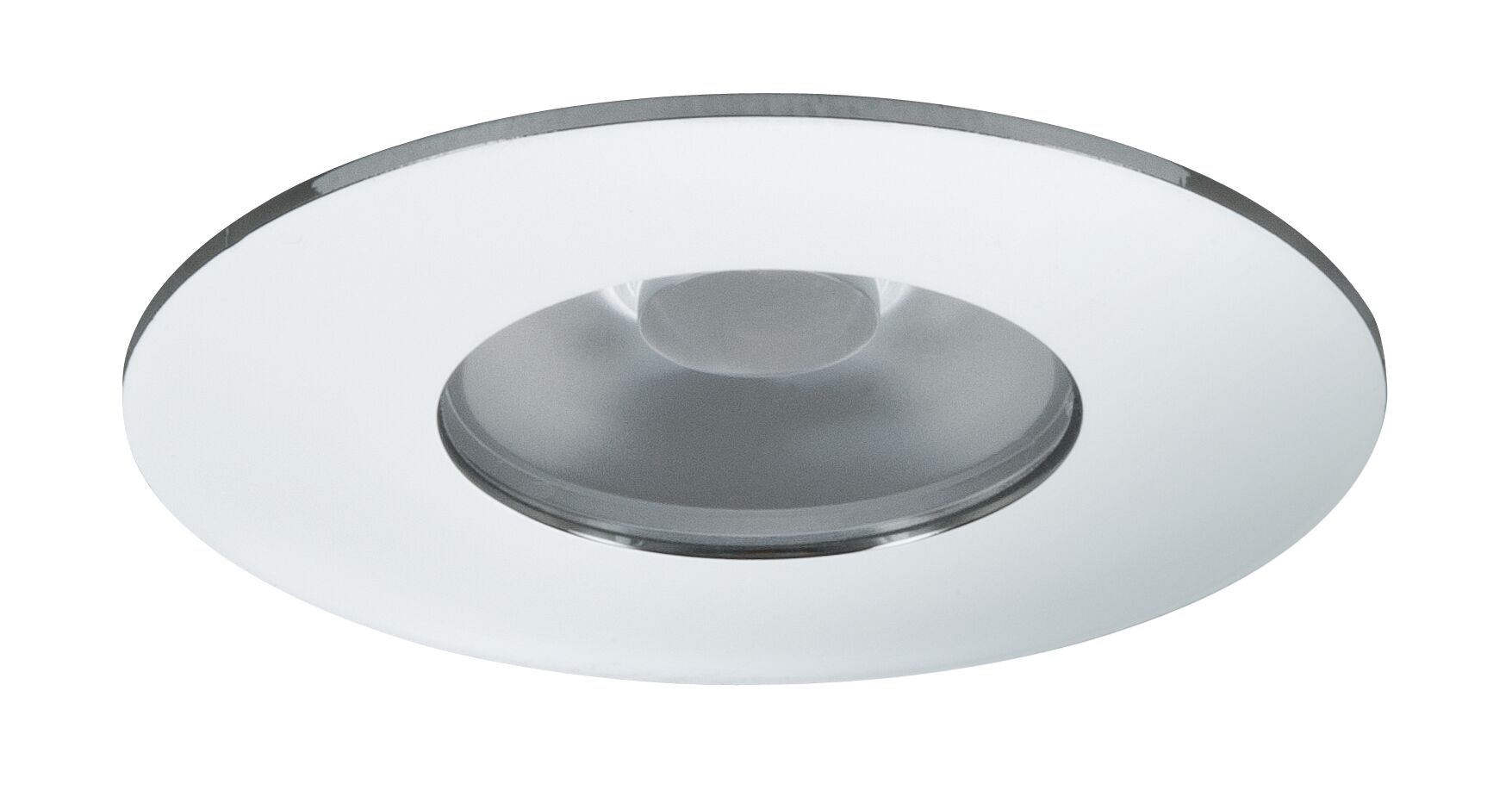

LED Recessed furniture luminaire
Micro Line Mini
round 35mm 5x1W 5x95lm 230V 2700K Chrome
round 35mm 5x1W 5x95lm 230V 2700K Chrome
£91.95*
Prices incl. Standard rate VAT

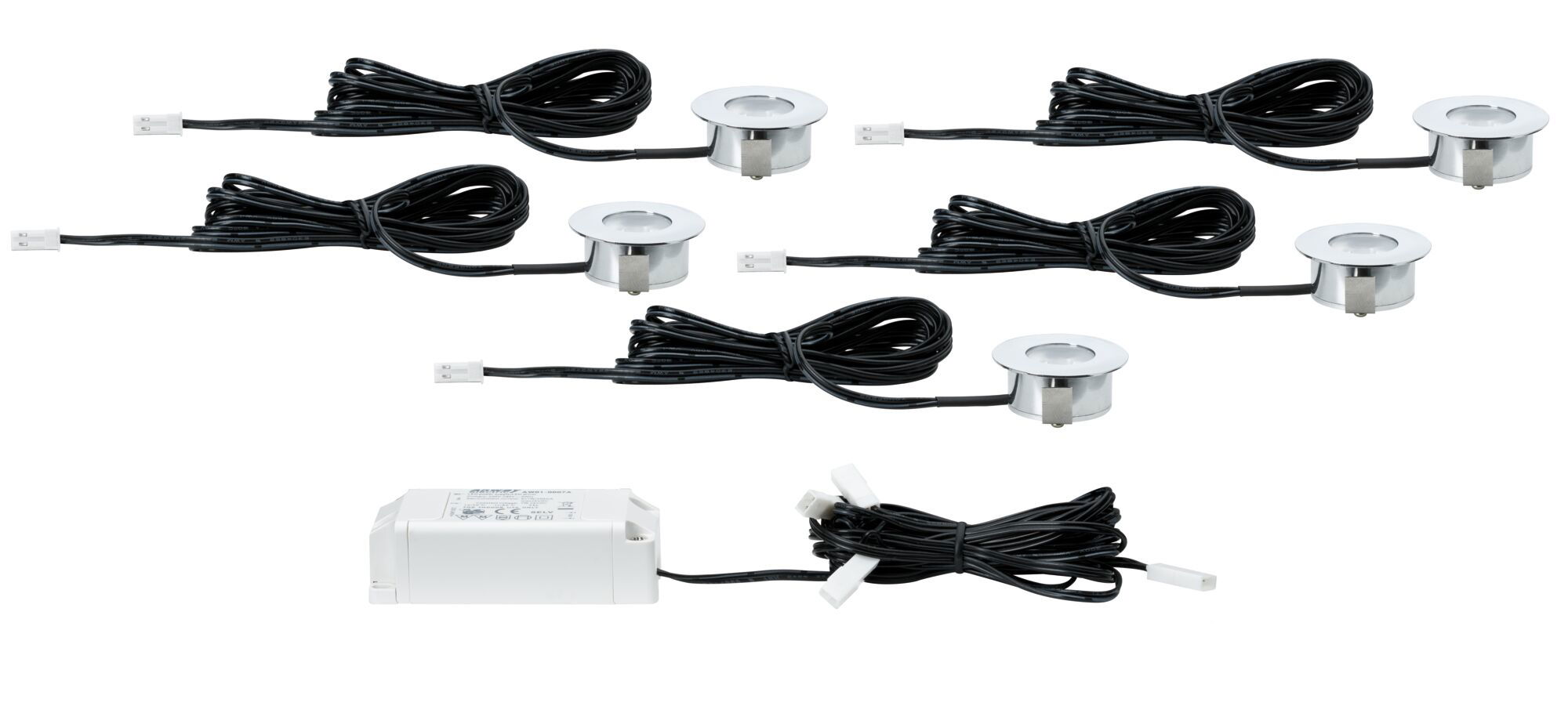

- Set of 5 lamps including LED, 5x1W
- Material: Alu
- Color: Chrome
LED Recessed furniture luminaire Micro Line Mini round 35mm 5x1W 5x95lm 230V 2700K Chrome

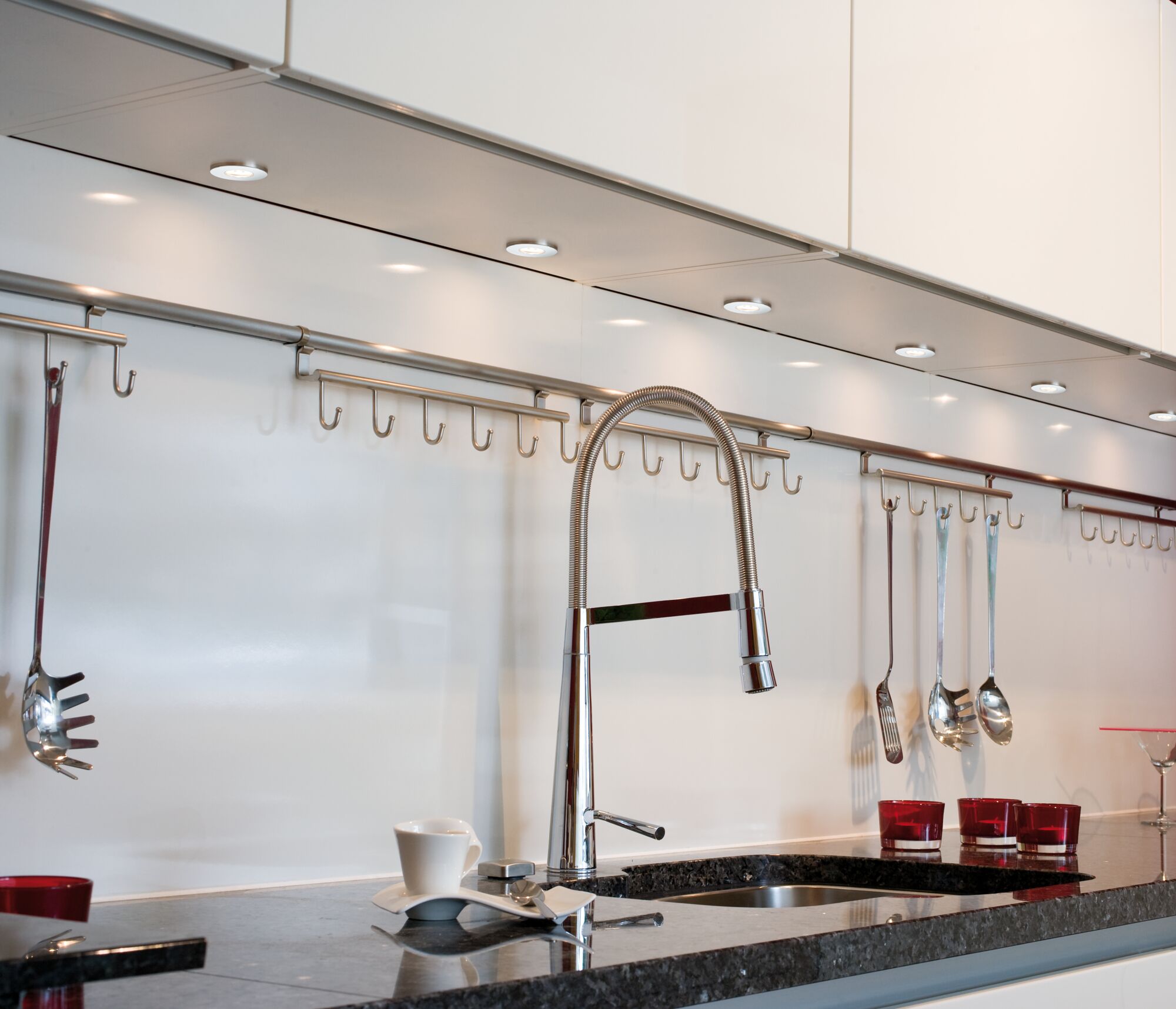

The right choice for display cases, furniture and the like: The Micro Line Mini LED furniture recessed lighting set needs an installation depth of just 20 mm and provides for decorative effects in particular in small display cases and cabinets, thanks to its small dimensions.
- Set of 5 lamps including LED, 5x1W
- Material: Alu
- Color: Chrome
- Energy-saving LED technology (conserves up to 80% energy in comparison to conventional light bulbs)
- Low installation depth: only 20mm
- Diameter: 35mm
- Operating voltage: 230 V
- protection class II
- Color temperatur: 2700K - Warm white
| Dimension | |
|---|---|
| Total Mounting depth | 20 mm |
| Ø | 35 mm |
| Mounting hole | 30 mm |
| Form | round |
| Depth of hollow wall | 5 mm, 5 mm |
| Design and Material | |
|---|---|
| Colour | Chrome |
| Material | Aluminium |
| Installation | |
|---|---|
| Installation site (recommendation) | Installation on cabinet |
| Connections | |
|---|---|
| Plug-and-socket connector | Plug-and-socket connector |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Rated life time | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 2700 K |
| color temp | 2700 K |
| Farbtemperatur_Text | Warmweiß |
| Beam angle | 65 ° |
| Usable luminous flux | 95 lm |
| Luminous flux LED module | 110 lm |
| Luminous intensity | 45 cd |
| Rated luminous flux (Lumen) | 60 lm |
| Lamp Features | |
|---|---|
| Component parts | 1 W |
| Technique | LED |
| IP protection | IP20 |
| Dimmable | No |
| Inclusive lamp | yes |
| Incandescent Equivalent | 12 W |
| Adjustability | fixed |
| Number of component parts | 5x |
| protection class | protection class II |
| Replacable | 7 not concerned. |
| Power consumption | 7,5 W |
| Transformer | |
|---|---|
| Transformer power | 6 VA |
| Transformer height | 23 mm |
| Transformer width | 38 mm |
| Transformer depth | 80 mm |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
