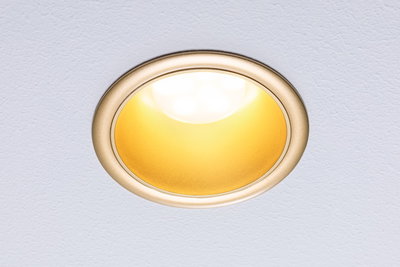

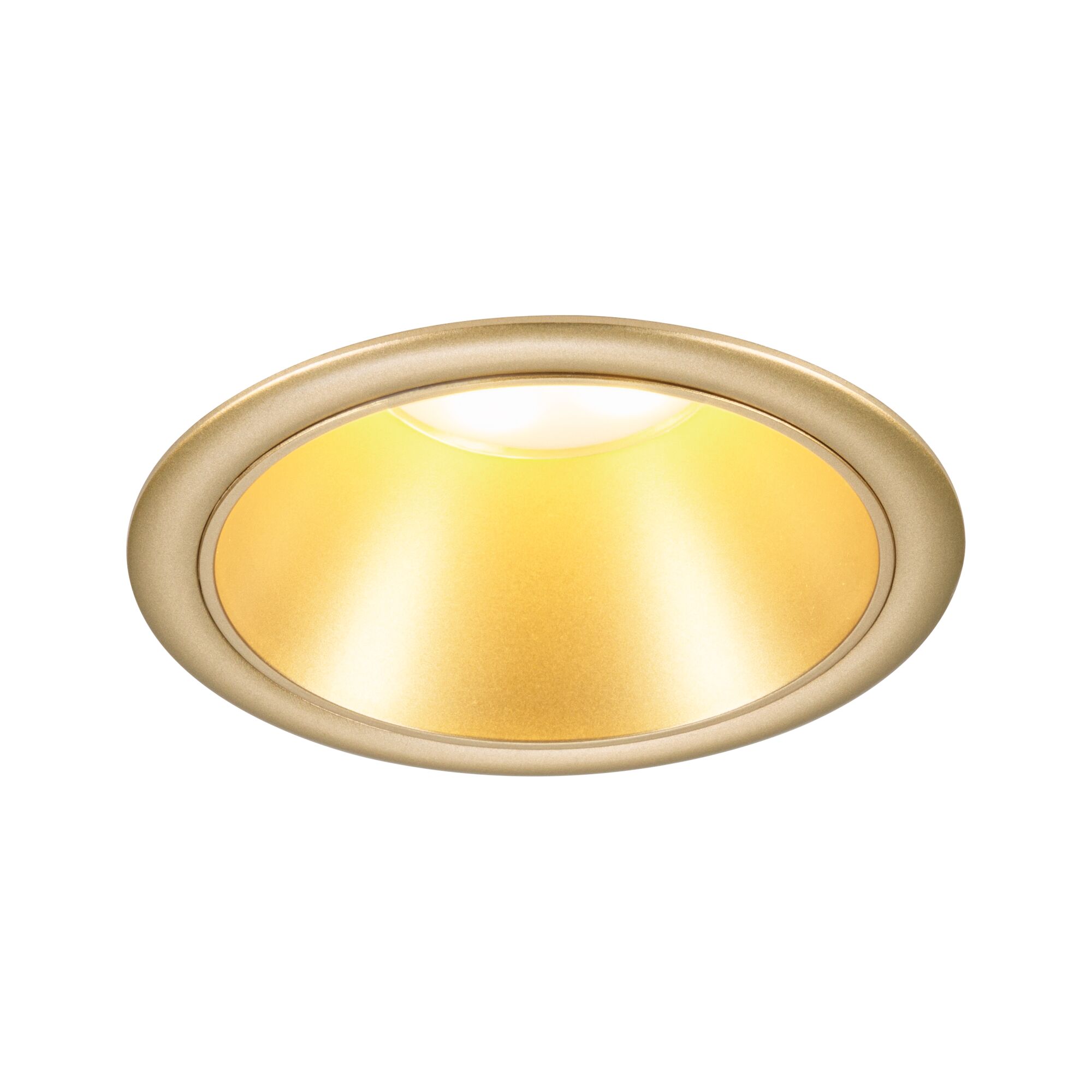

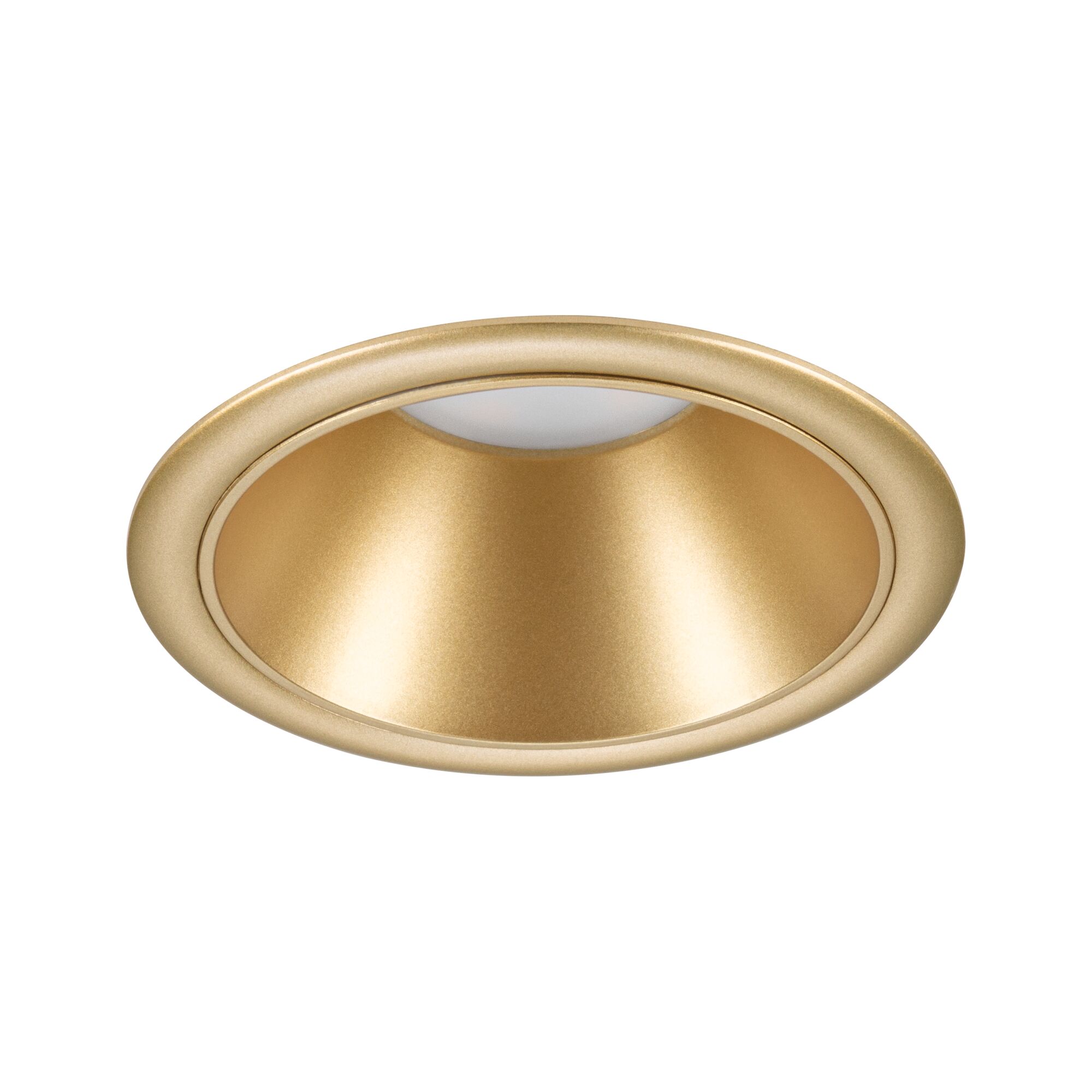

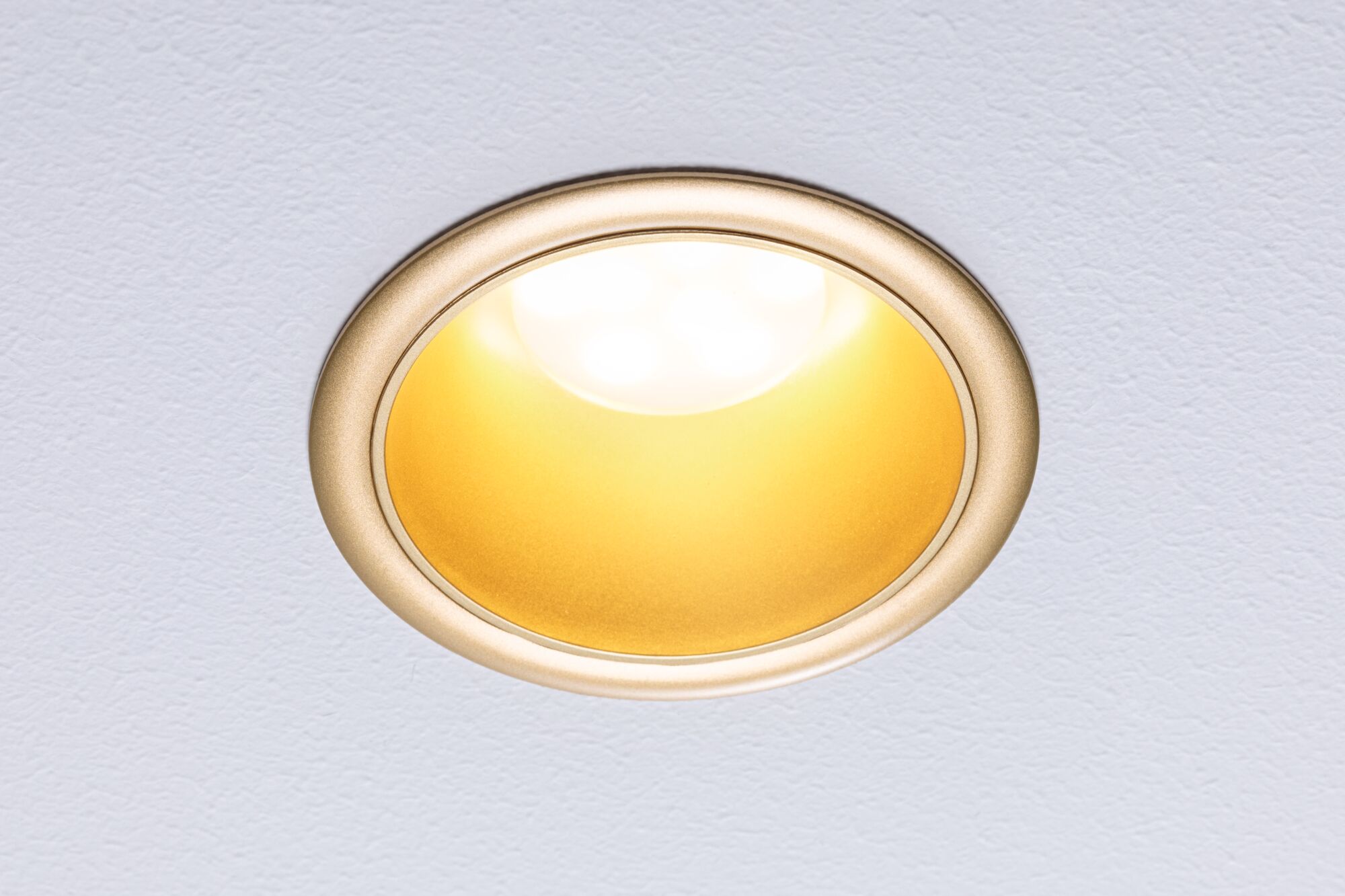

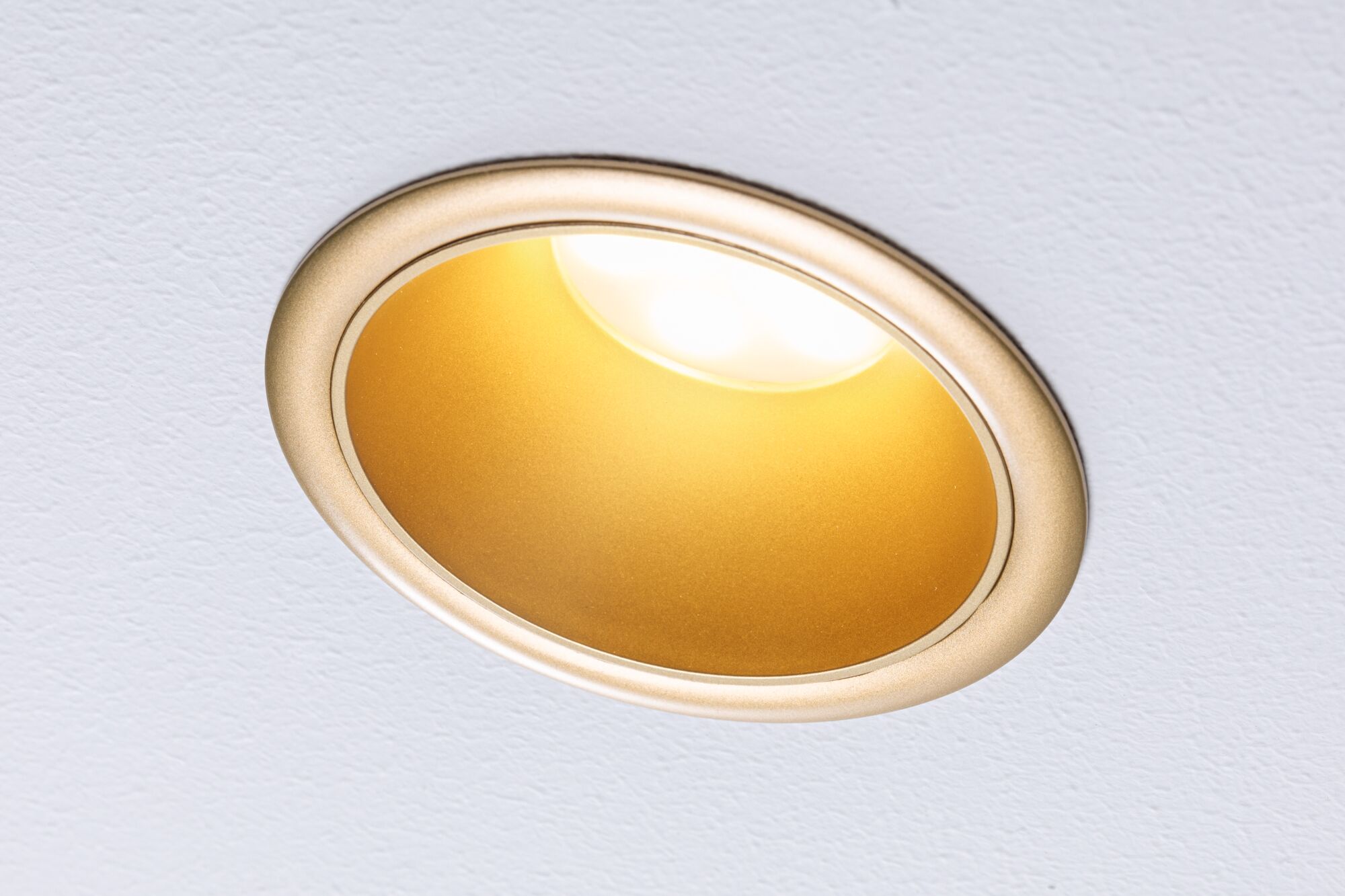

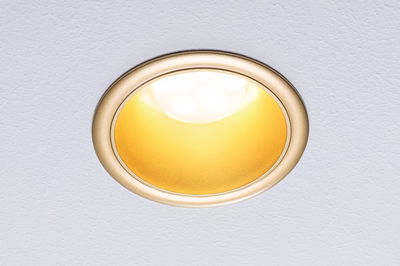

LED Recessed luminaire3-Step-Dim

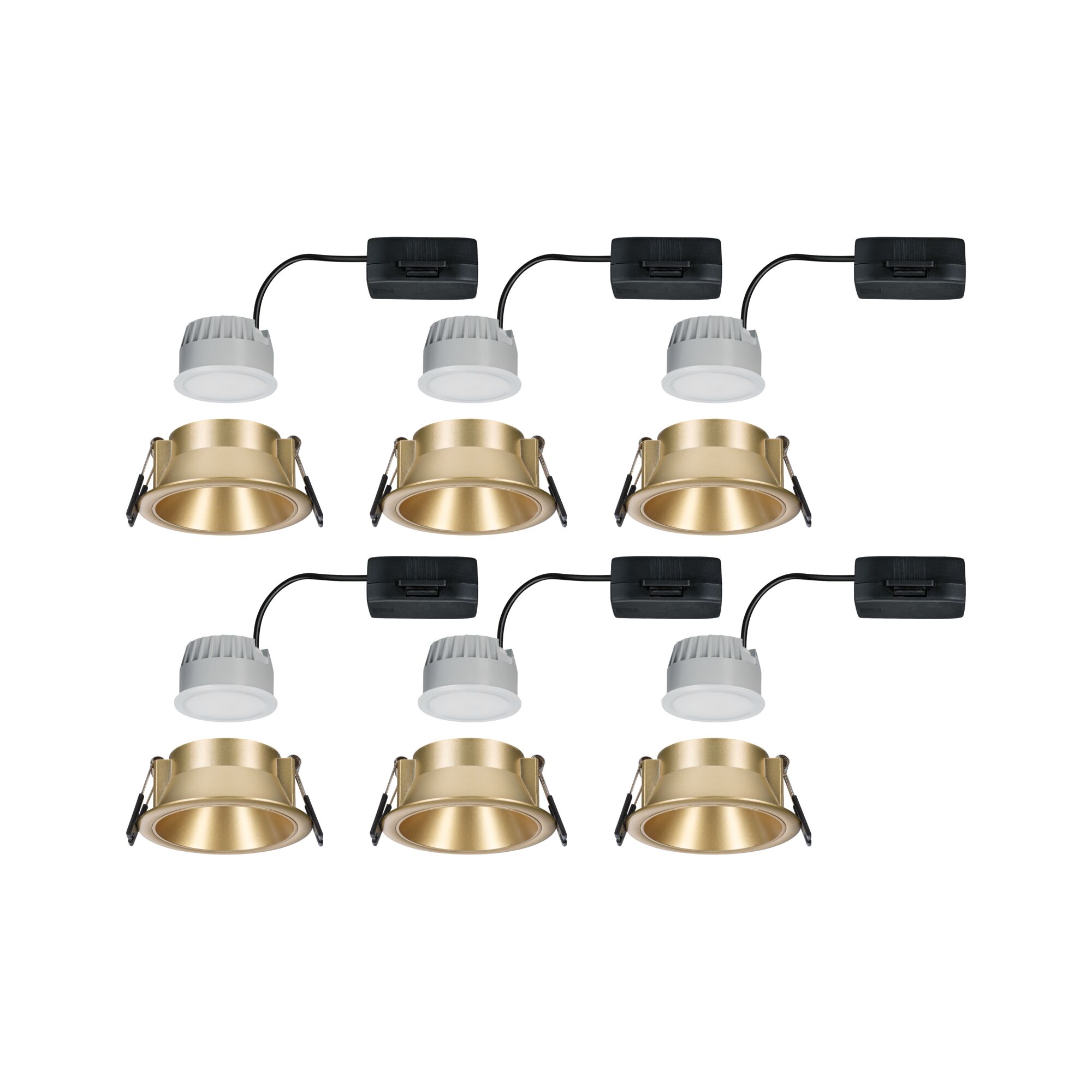

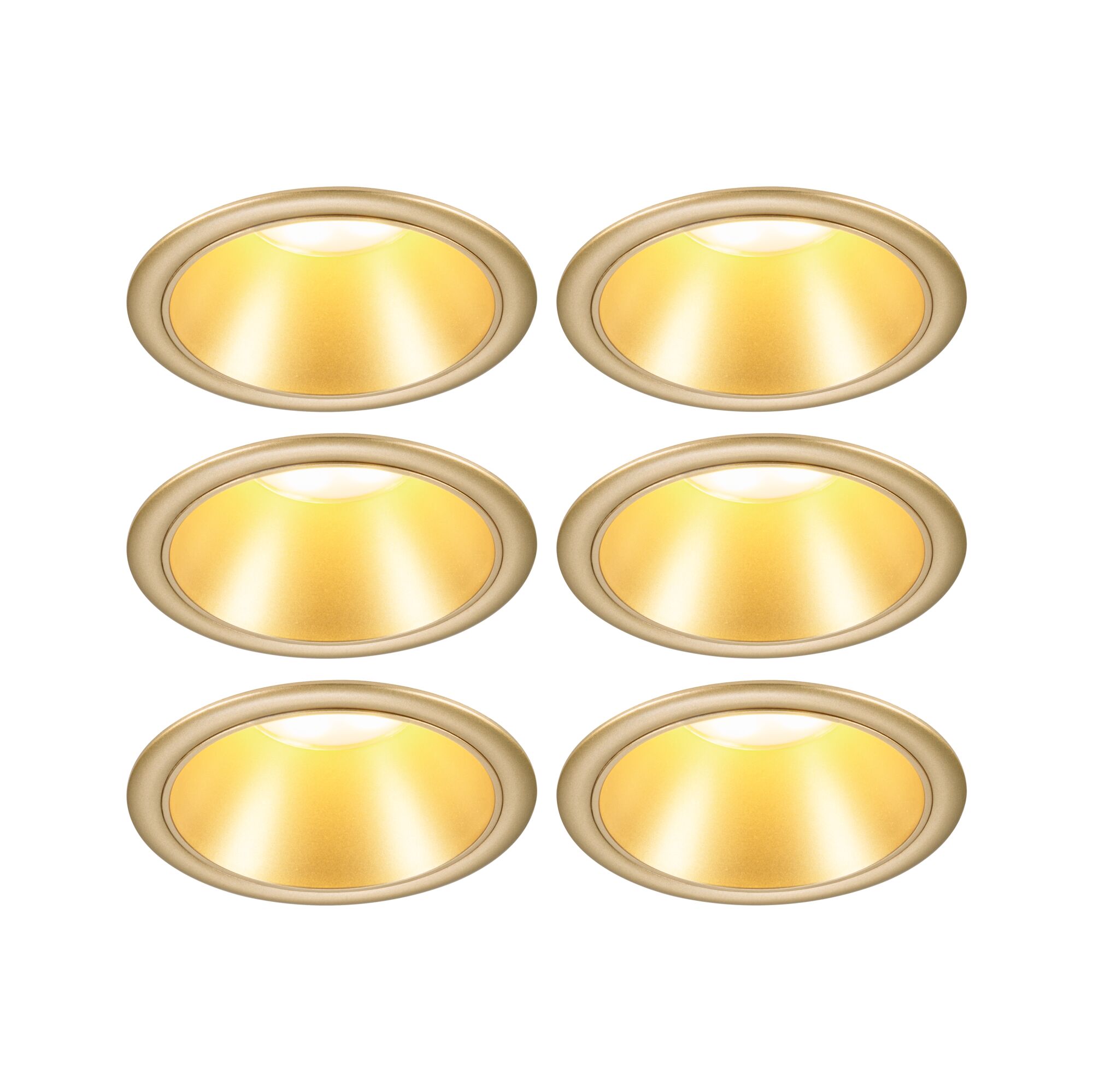

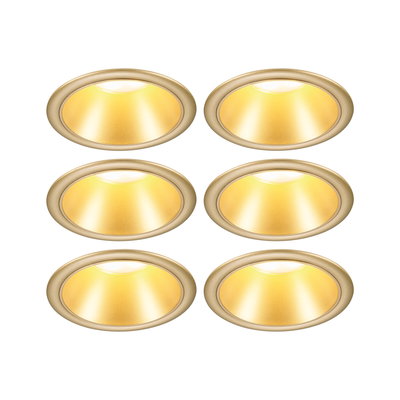

Cole Coin 6-piece set
IP44 round 88mm Coin 6x6W 6x470lm 230V dimmable 2700K Gold matt
IP44 round 88mm Coin 6x6W 6x470lm 230V dimmable 2700K Gold matt
Ready to ship, delivery within 2-3 working days

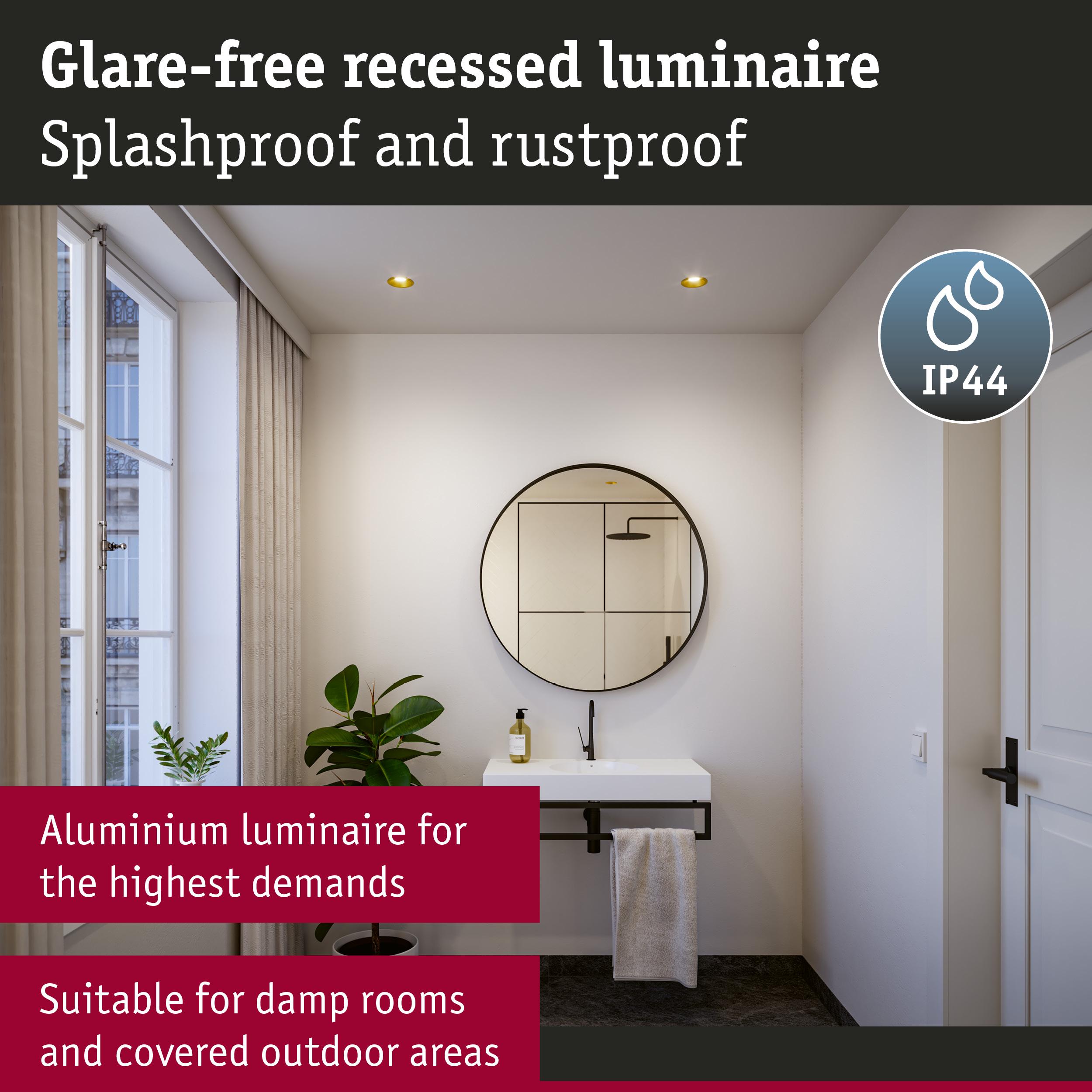

- IP protection: IP44 - splash-protected

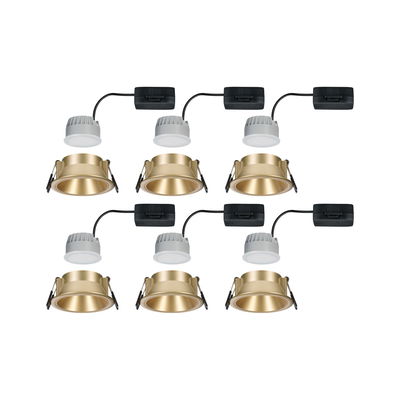

- Incl. replaceable LED lamp
- For 230 V direct connection
LED Recessed luminaire 3-Step-Dim Cole Coin 6-piece set IP44 round 88mm Coin 6x6W 6x470lm 230V dimmable 2700K Gold matt
- IP protection: IP44 - splash-protected
- Incl. replaceable LED lamp
- For 230 V direct connection
- Color temperatur: 2700K - Warm white
- Can be dimmed with a standard light switch, with 3 dimming levels
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 38 mm |
| Diameter | 88 mm |
| Built-in diameter | 80 mm |
| Mounting depth | 70 mm |

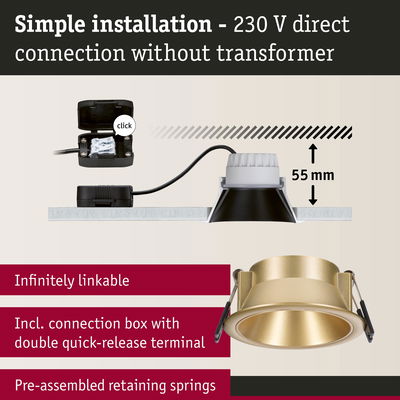

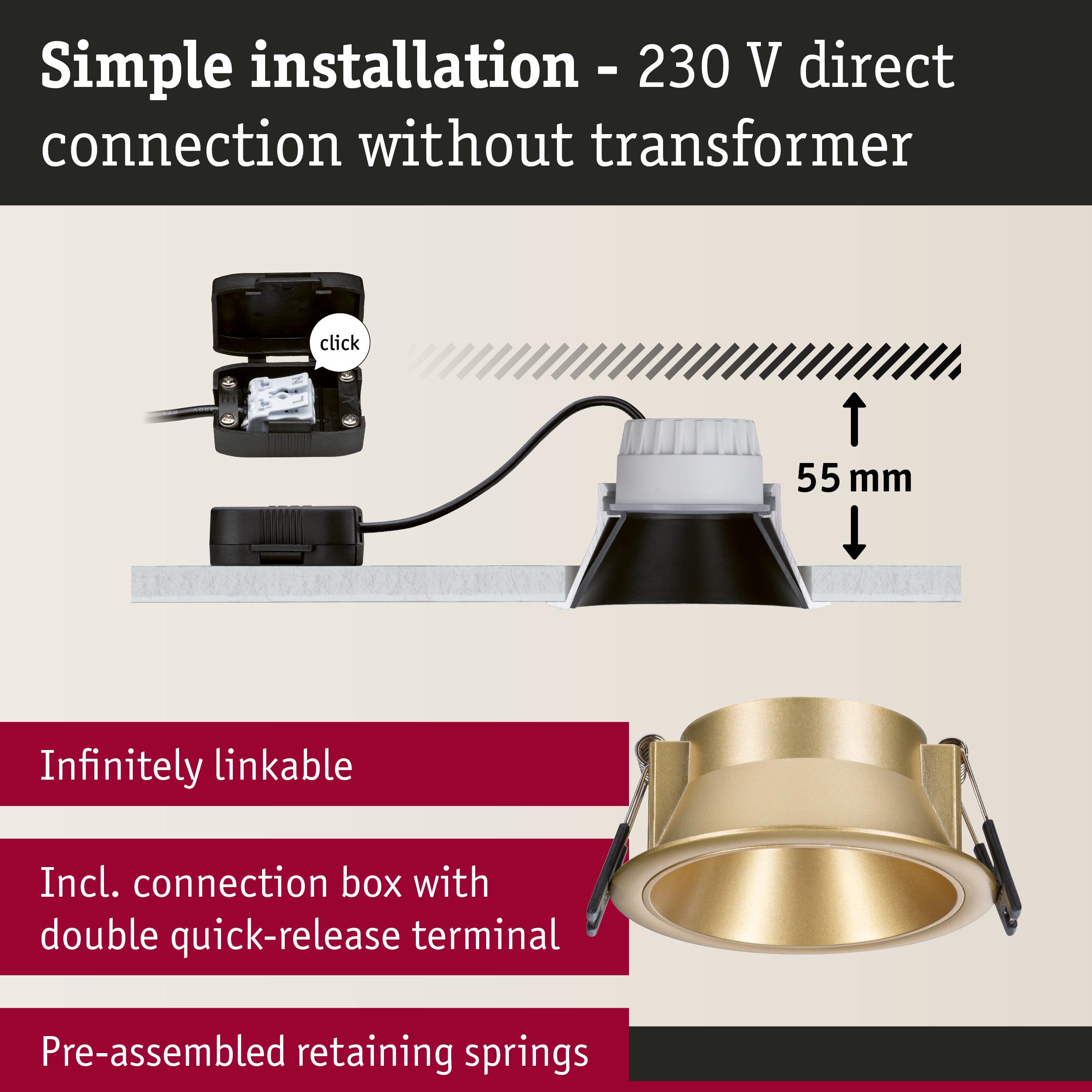

| Depth of hollow wall | 55 mm |
| Design and Material | |
|---|---|
| Form | round |
| Type | Coin |
| Colour | Gold matt |
| Material | Plastic, Aluminium zinc |
| Stainless | stainless alu |
| Energy consumption | |
|---|---|
| Energy efficiency (LED Module) | G |
| Energy consumption | 7 kWh_1000h |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temperature | Warm white, 2700 K |
| Nominal luminous flux | 470 lm |
| Colour consistency (SDCM) | 6 |
| Color rendering index | > 85 Ra |
| Beam angle | 100 ° |
| Lamp Features | |
|---|---|
| Dimmable | Yes |
| Dim | Dimmable in 3 steps with normal light switch |
| Inclusive lamp | yes |
| Lamp property | Leuchtmittel enthalten und wechselbar |
| Incandescent Equivalent | 40 W |
| IP protection | IP44 ceiling mounting |
| Protection class | Protection class II |
| Base/Socket | Coin |
| Technique | LED |
| Component parts | 6 W |
| Number of component parts | 6x |
| Replacable | 2 Lightsource is replaceable without damage the lighting fixture by electrician. |
| Power consumption | 6,2 W |
| Adjustability | fixed |
| Voltage | 230 V |
| Voltage type | AC 50 Hz |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
