Article-No.:
93488
LED Recessed luminaire
3-Step-Dim
Nova Coin Basic Set Swivelling
round 84mm 50° Coin 3x6W 3x470lm 230V dimmable 2700K Chrome
round 84mm 50° Coin 3x6W 3x470lm 230V dimmable 2700K Chrome

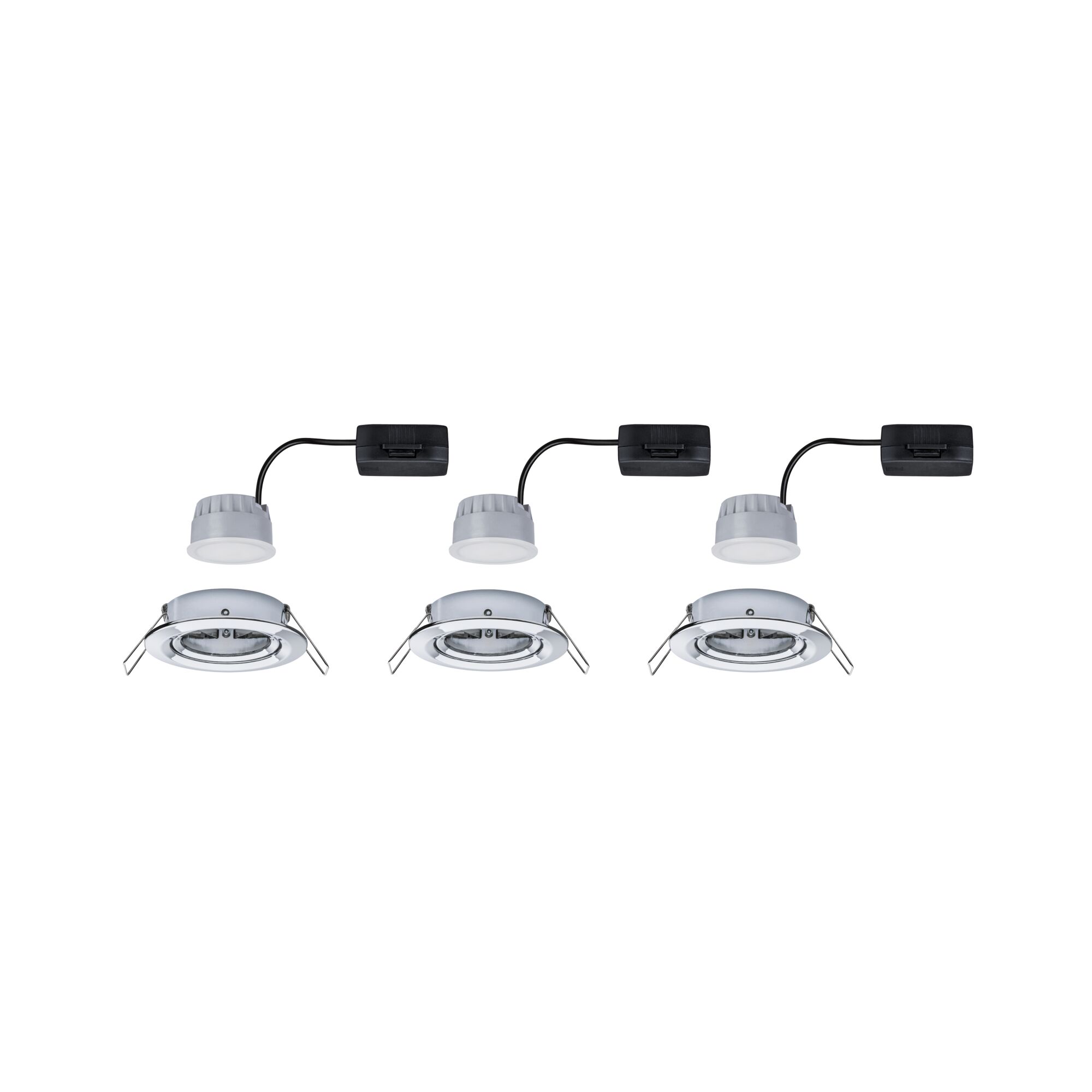

- Set of 3 luminaires incl. LED module
- Color temperatur: 2700K - Warm white

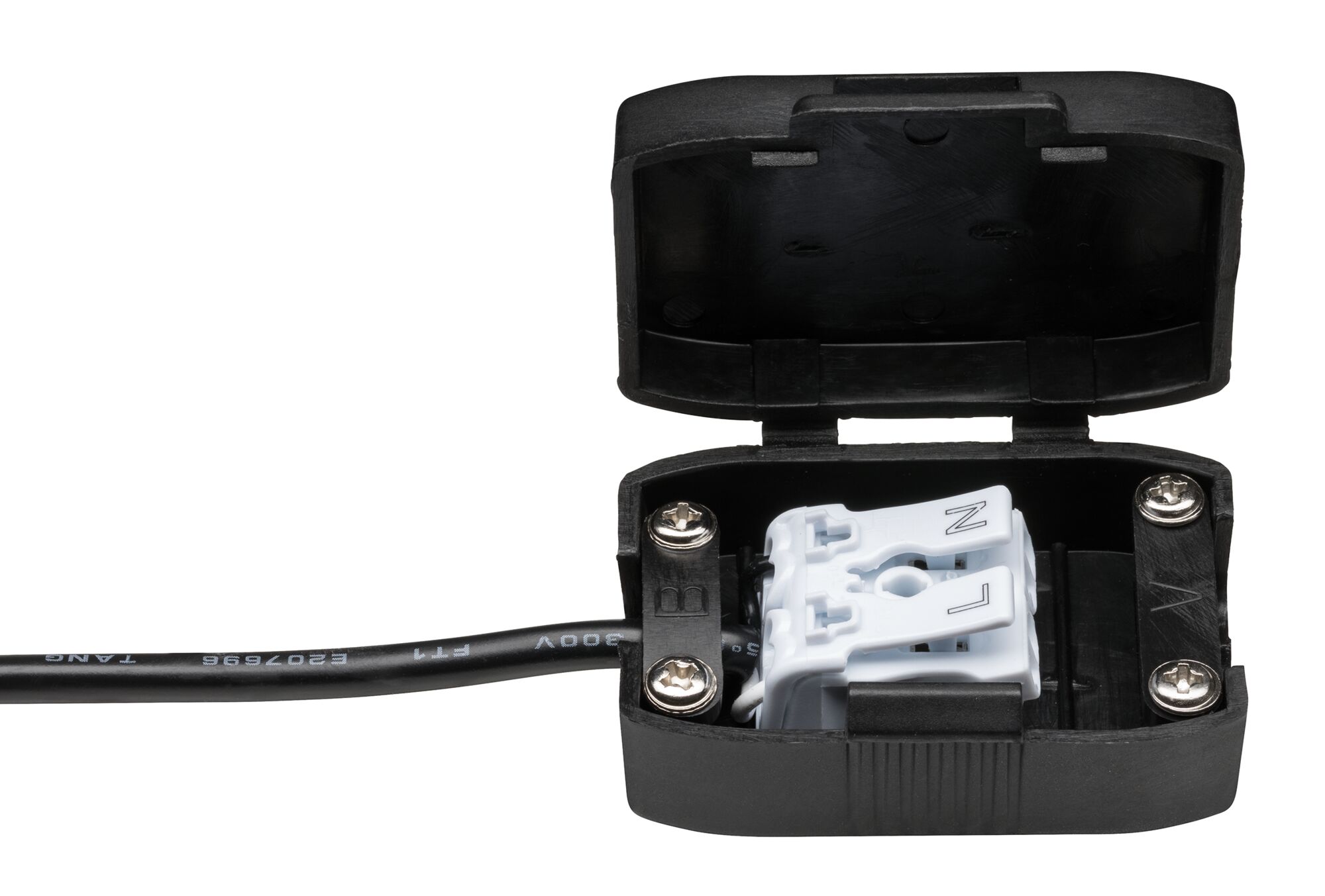

- For 230 V direct connection

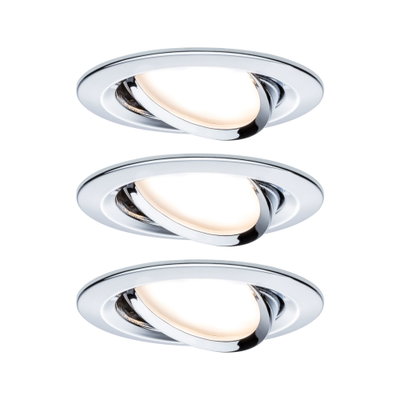

LED Recessed luminaire 3-Step-Dim Nova Coin Basic Set Swivelling round 84mm 50° Coin 3x6W 3x470lm 230V dimmable 2700K Chrome

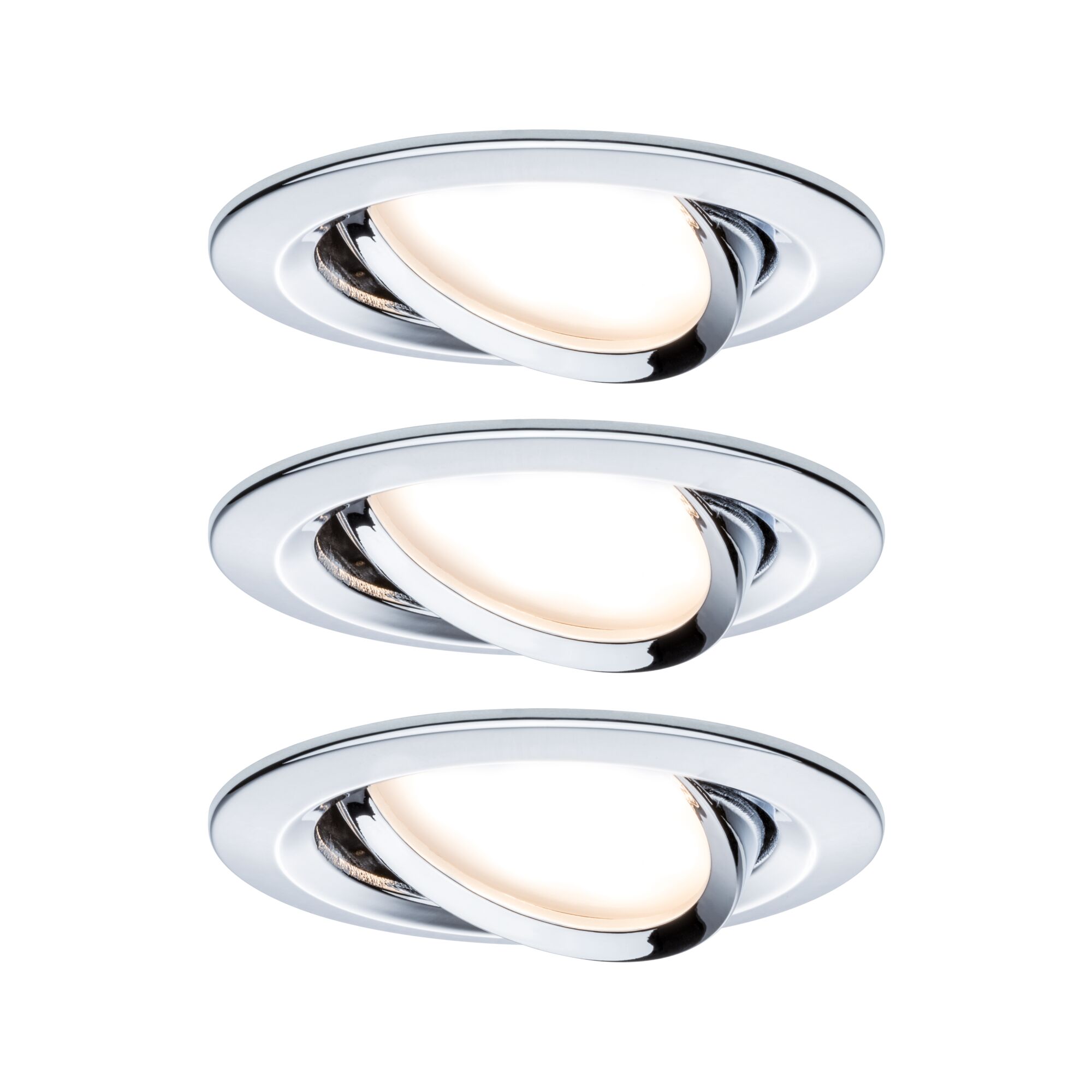

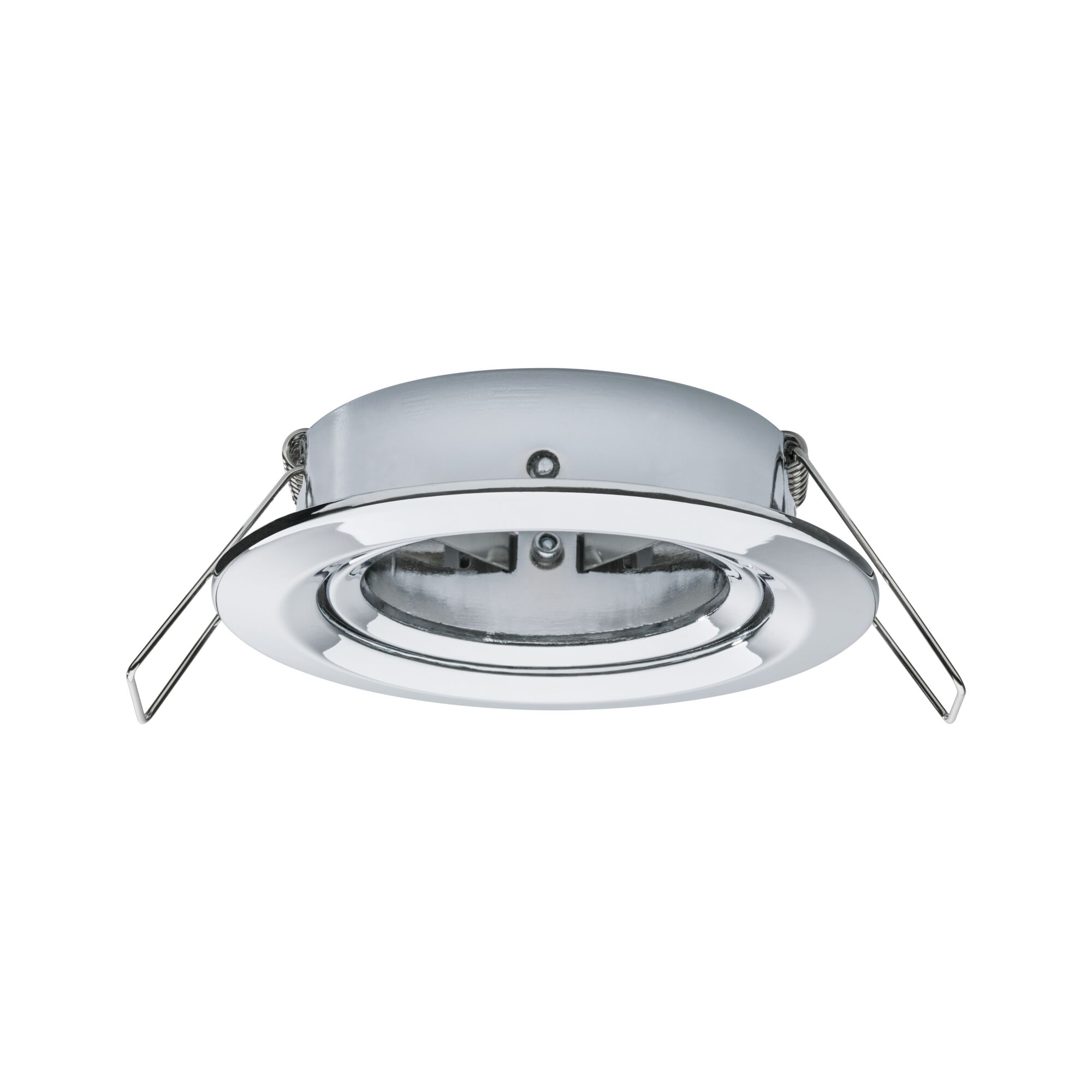

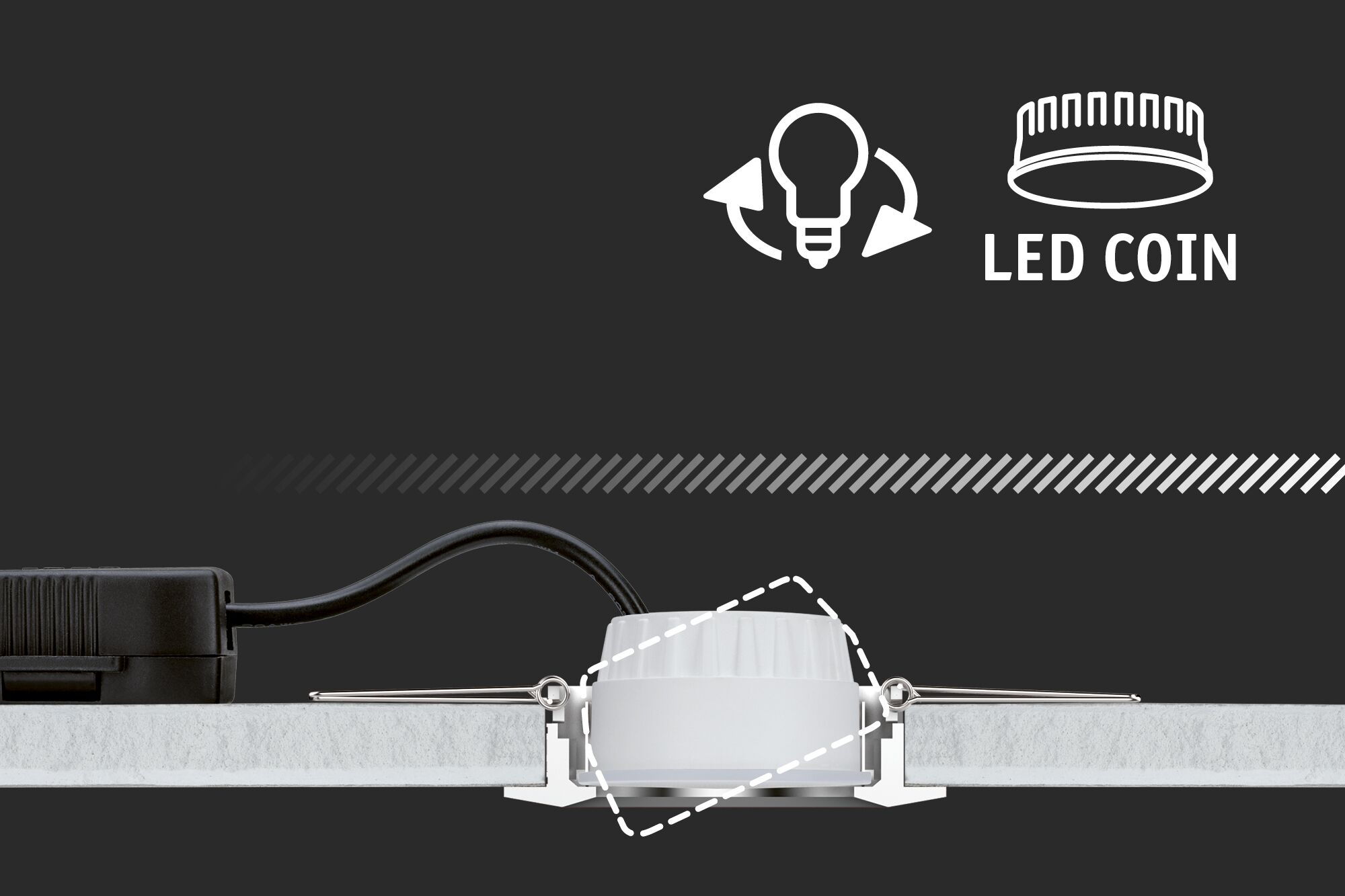

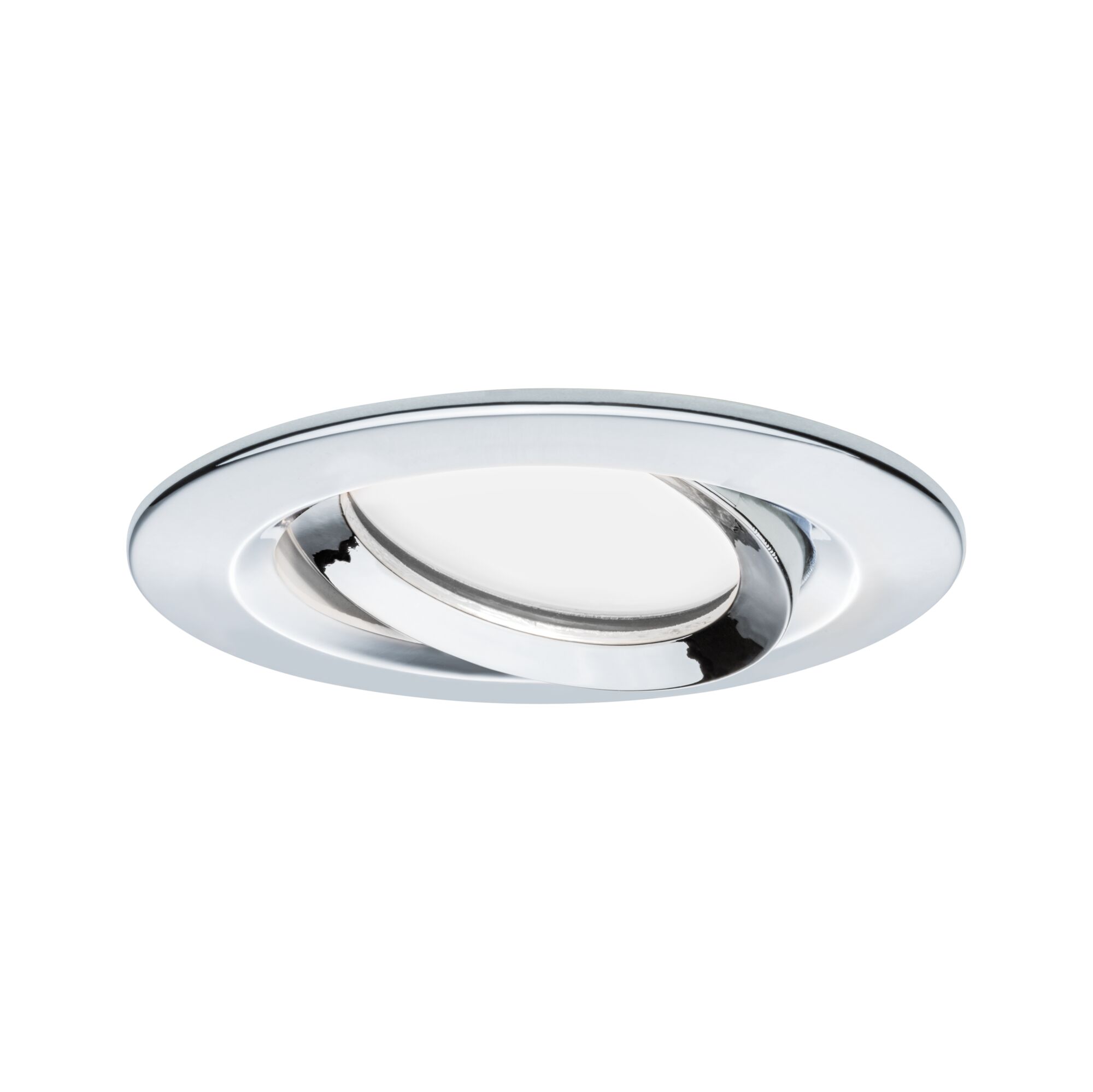

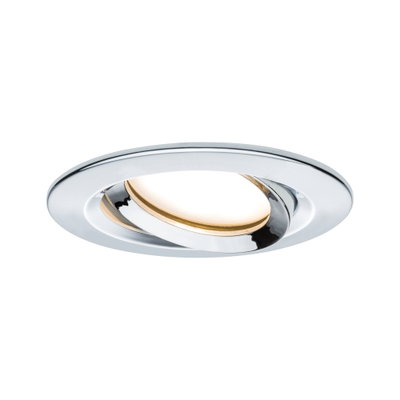

The swivelling and dimmable Nova recessed spotlights with 3x6 watts in Chrome provide effective lighting, a harmonious design and high energy efficiency. As the lamp is inserted from behind, no snap rings are necessary. This preserves the puristic aesthetic of the luminaire. Thanks to the 230V direct connection, an unlimited number of luminaires can easily be linked together. Thanks to the simple fixing method with retaining springs, the ceiling remains undamaged, even after multiple installations and removals. Efficient, long-lasting LED lamps are included, and guarantee a comfortable atmosphere with their warm white light.
- Set of 3 luminaires incl. LED module
- Color temperatur: 2700K - Warm white
- For 230 V direct connection
- Can be dimmed with a standard light switch, with 3 dimming levels
| Dimension | |
|---|---|
| Depth of hollow wall | 30 mm, 30 mm |
| Total Mounting depth | 45 mm |
| Ø | 84 mm |
| Mounting hole | 68 mm |
| Form | round |
| Design and Material | |
|---|---|
| stainless | stainless alu |
| Colour | Chrome |
| Material | Aluminium |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | G |
| Energy consumption | 7 kWh_1000h |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 2700 K |
| Beam angle | 100 ° |
| Usable luminous flux | 470 lm |
| color temp | 2700 K |
| colour consistency | SDCM 6 |
| Color rendering index | > 85 Ra |
| Lamp Features | |
|---|---|
| Component parts | 6 W |
| Swivel range | 50 ° |
| Technique | LED |
| Socket | Coin |
| IP protection | IP23 ceiling mounting |
| Dim | dimmable in 3 steps with normal light switch |
| Dimmable | Yes |
| Inclusive lamp | yes |
| Incandescent Equivalent | 40 W |
| Number of component parts | 3x |
| protection class | protection class II |
| Replacable | 2 Lightsource is replaceable without damage the lighting fixture by electrician. |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
