Article-No.:
93489
LED Recessed luminaire3-Step-Dim
Nova Coin Swivelling
angular 84x84mm 50° Coin 6W 470lm 230V dimmable 2700K Matt white
angular 84x84mm 50° Coin 6W 470lm 230V dimmable 2700K Matt white
£25.95*
Prices incl. Standard rate VAT
Ready to ship, delivery within 2-3 working days
- For 230 V direct connection
- Color temperatur: 2700K - Warm white
- Incl. replaceable LED lamp
LED Recessed luminaire 3-Step-Dim Nova Coin Swivelling angular 84x84mm 50° Coin 6W 470lm 230V dimmable 2700K Matt white

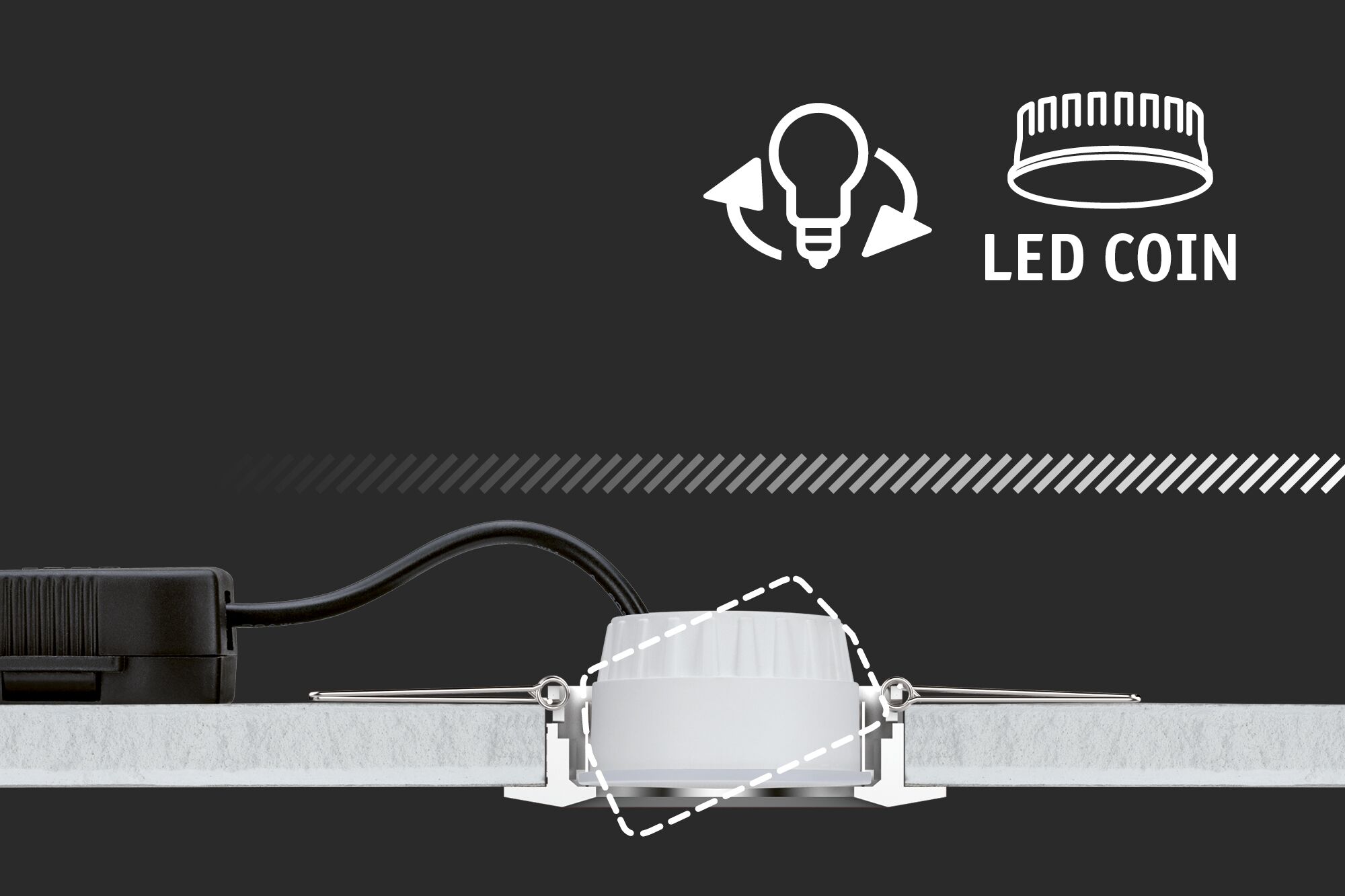

The swivelling and dimmable Nova recessed spotlights with 1x6 watts in Matt white provide effective lighting, a harmonious design and high energy efficiency. As the lamp is inserted from behind, no snap rings are necessary. This preserves the puristic aesthetic of the luminaire. Thanks to the 230V direct connection, an unlimited number of luminaires can easily be linked together. Thanks to the simple fixing method with retaining springs, the ceiling remains undamaged, even after multiple installations and removals. Efficient, long-lasting LED lamps are included, and guarantee a comfortable atmosphere with their warm white light.
- For 230 V direct connection
- Color temperatur: 2700K - Warm white
- Incl. replaceable LED lamp
- Can be dimmed with a standard light switch, with 3 dimming levels
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | B: 84 x T: 84 mm |
| Built-in diameter | 68 mm |
| Mounting depth | 45 mm |
| Depth of hollow wall | 30 mm |
| Design and Material | |
|---|---|
| Form | angular |
| Type | Coin |
| Colour | Matt white |
| Material | Aluminium |
| Stainless | stainless alu |
| Energy consumption | |
|---|---|
| Energy efficiency (LED Module) | G |
| Energy consumption | 7 kWh_1000h |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temperature | Warm white, 2700 K |
| Nominal luminous flux | 470 lm |
| Colour consistency (SDCM) | 6 |
| Color rendering index | > 85 Ra |
| Beam angle | 100 ° |
| Lamp Features | |
|---|---|
| Dimmable | Yes |
| Dim | Dimmable in 3 steps with normal light switch |
| Inclusive lamp | yes |
| Lamp property | Leuchtmittel enthalten und wechselbar |
| Swivel range | 50 ° |
| Incandescent Equivalent | 40 W |
| IP protection | IP23 ceiling mounting |
| Protection class | Protection class II |
| Base/Socket | Coin |
| Technique | LED |
| Component parts | 6 W |
| Number of component parts | 1x |
| Replacable | 2 Lightsource is replaceable without damage the lighting fixture by electrician. |
| Adjustability | swivelling/tilting |
| Voltage | 230 V |
| Voltage type | AC 50 Hz |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
