Article-No.:
93090

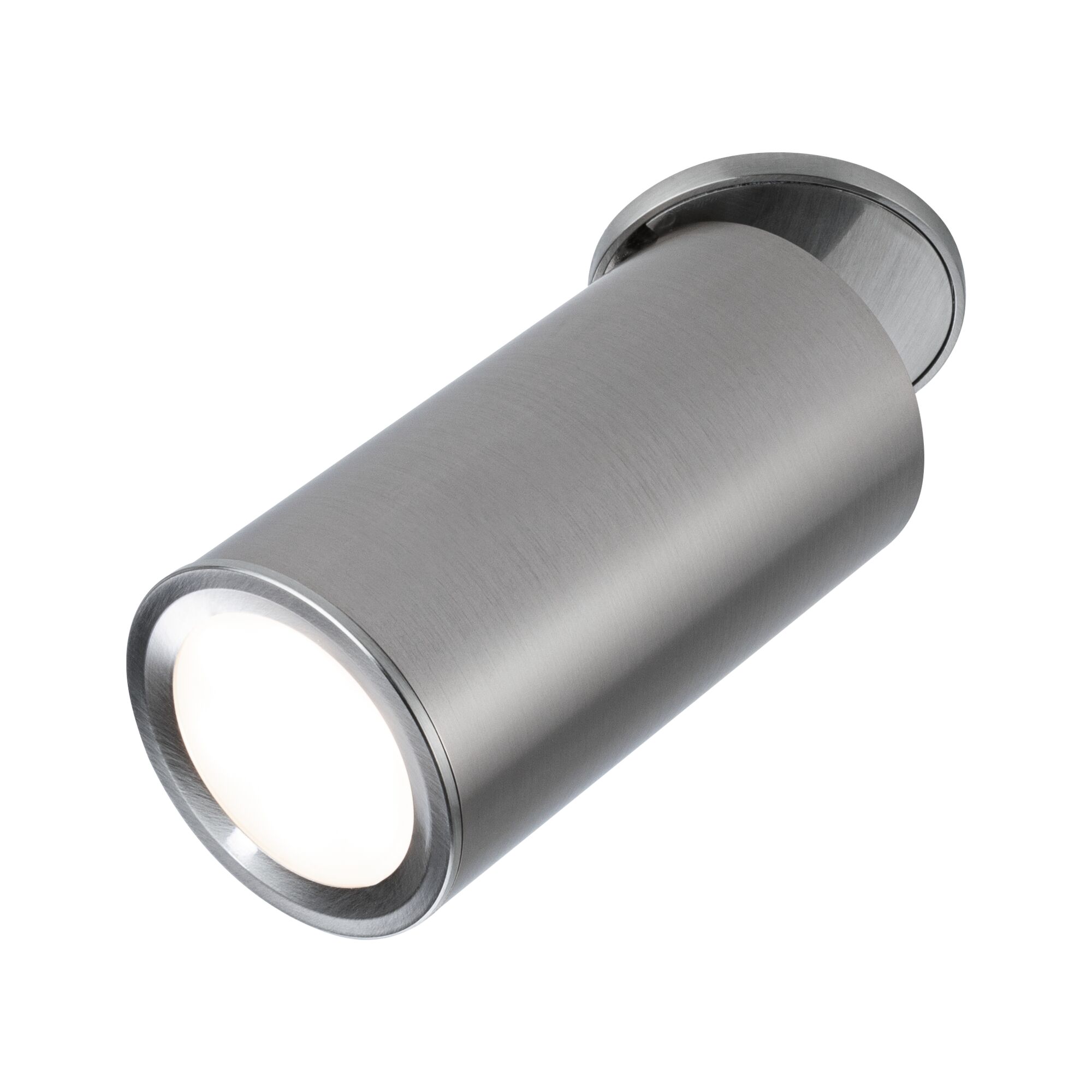

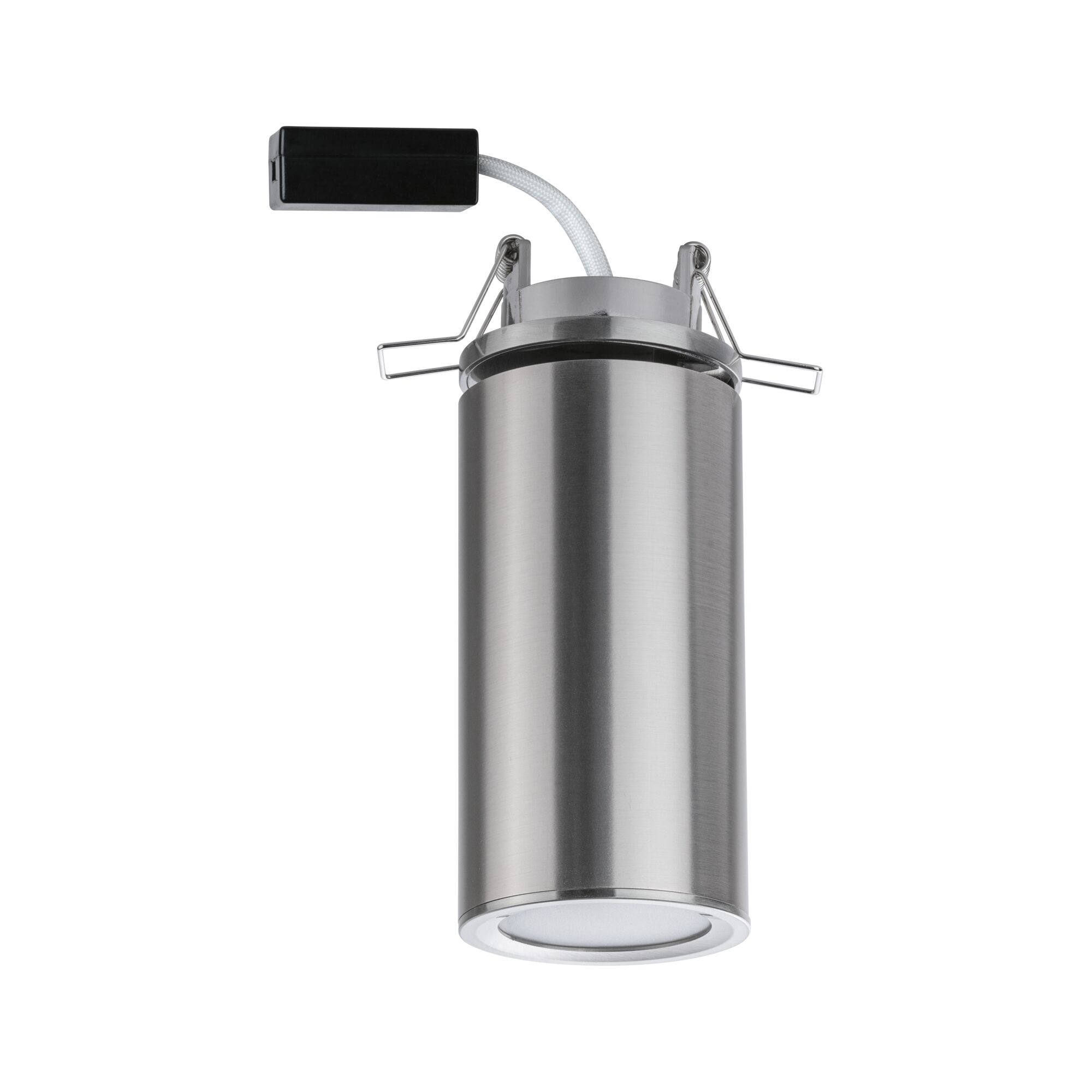

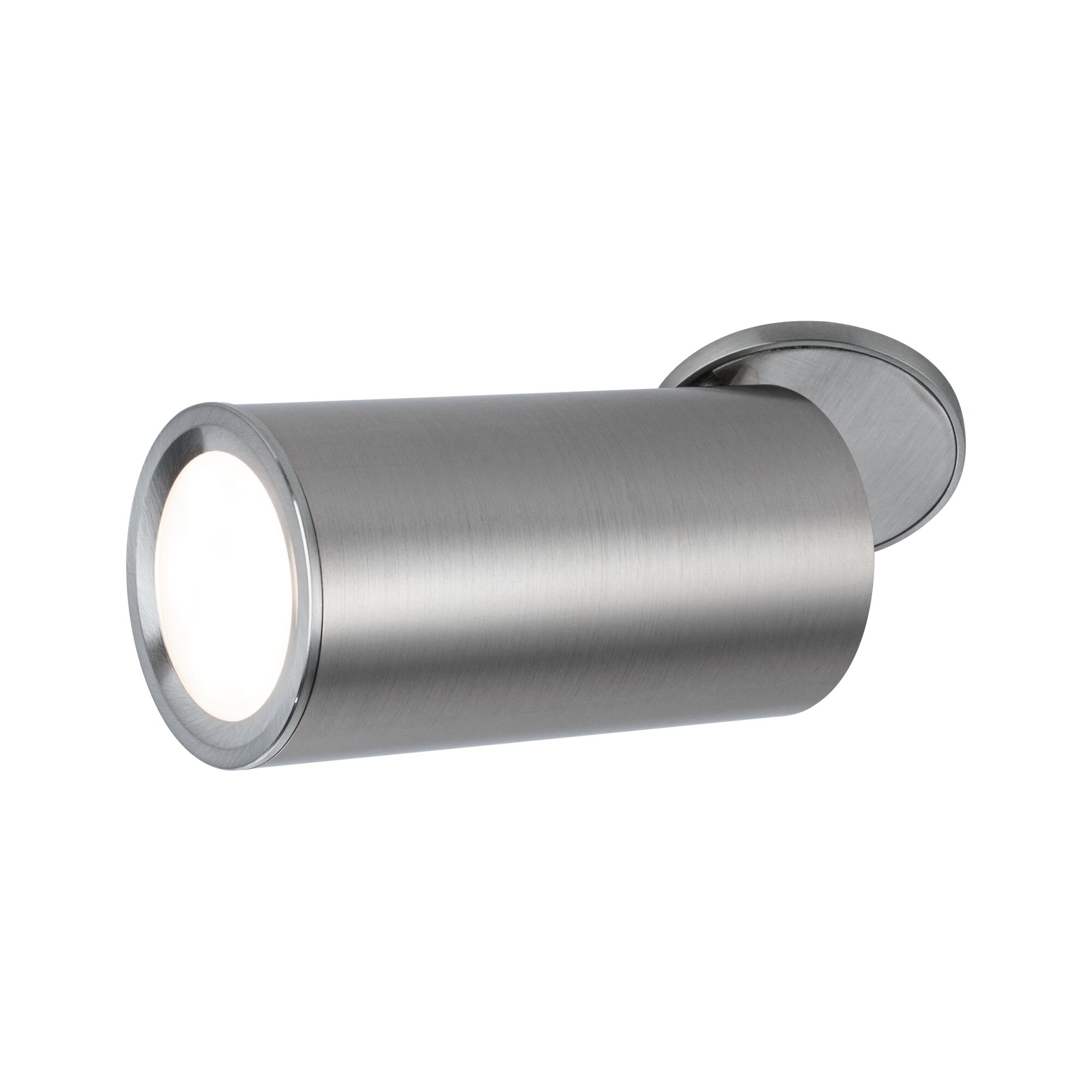

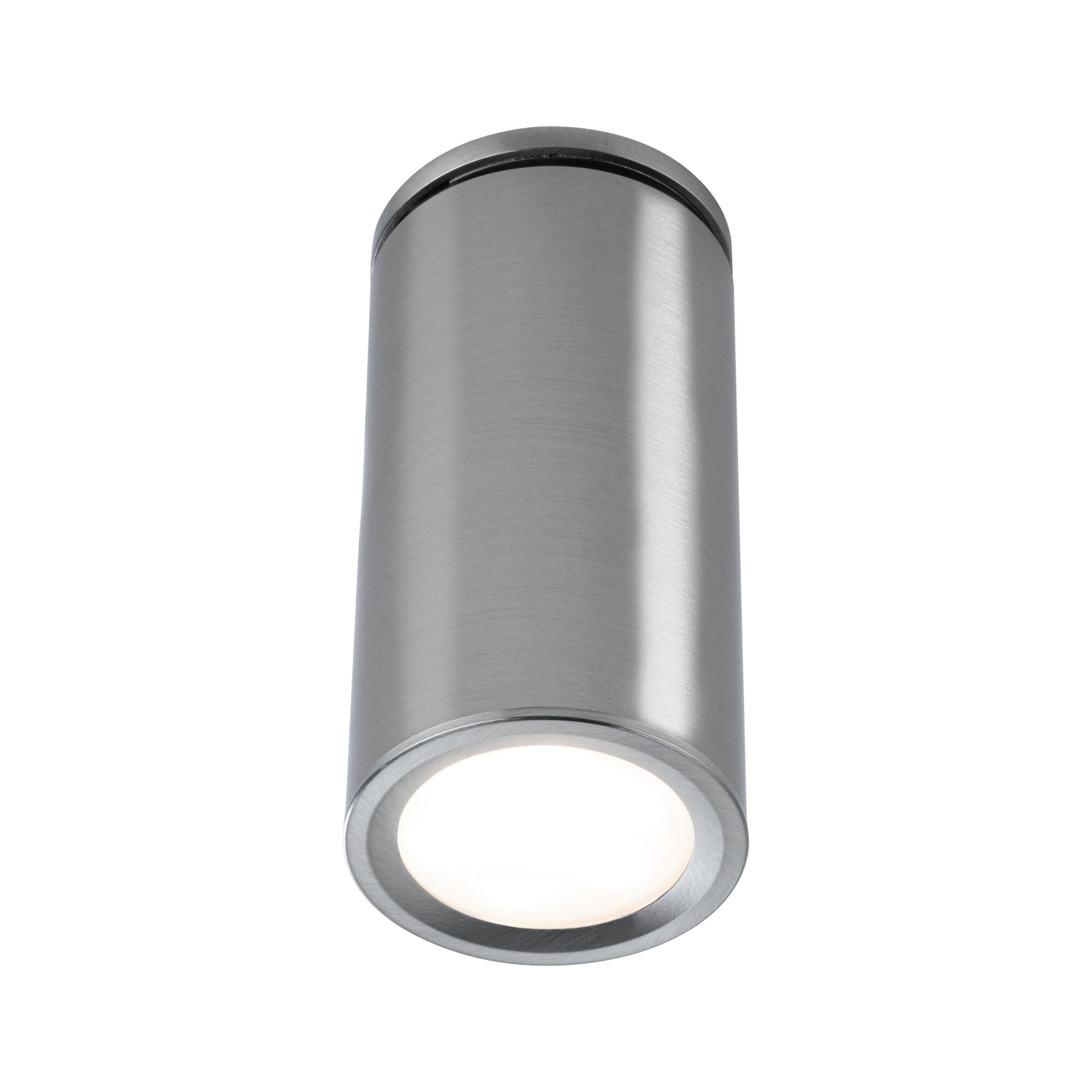

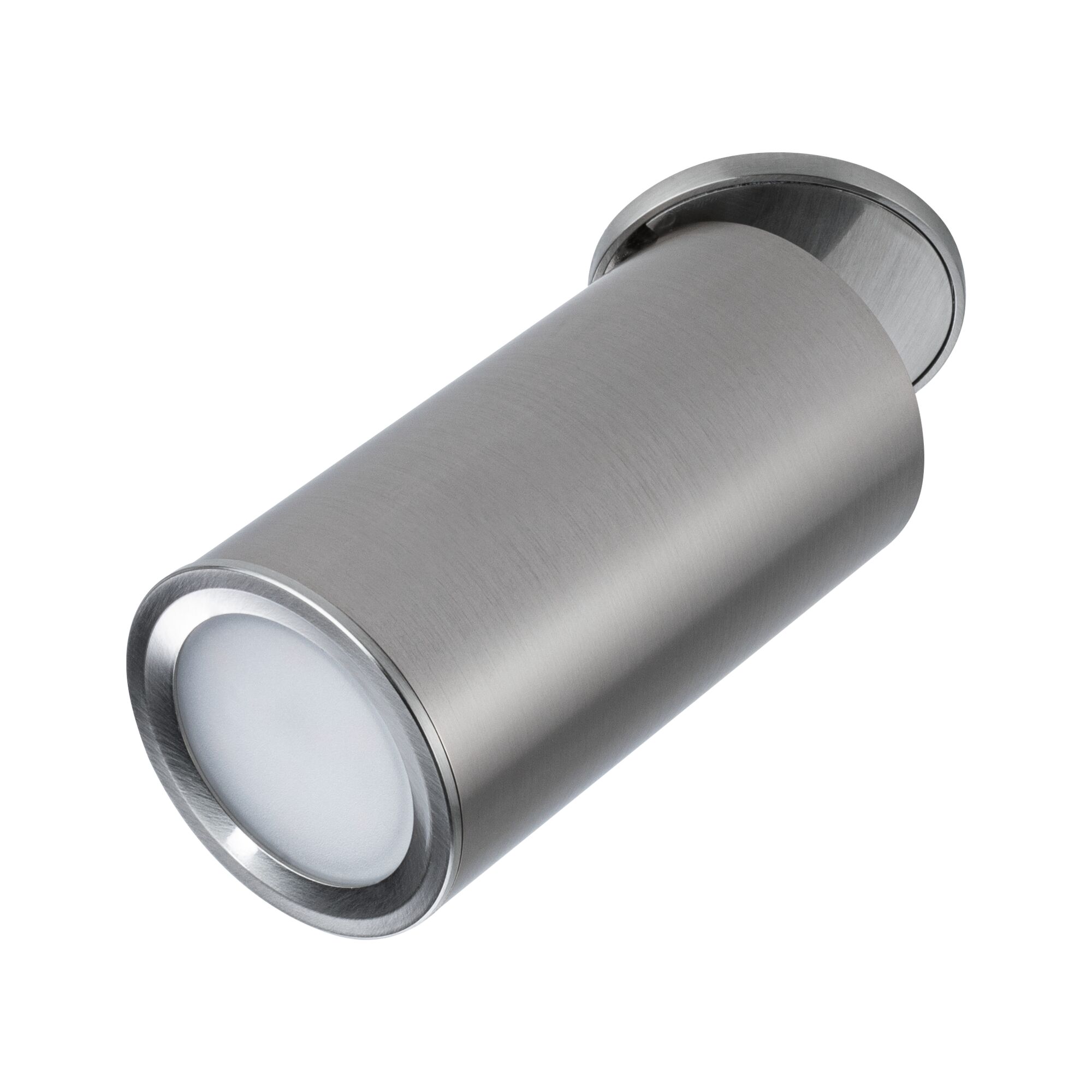

LED Recessed luminaire
3-Step-Dim
Turnal
round 60mm 90° Coin 6W 470lm 230V dimmable 2700K Brushed iron
round 60mm 90° Coin 6W 470lm 230V dimmable 2700K Brushed iron

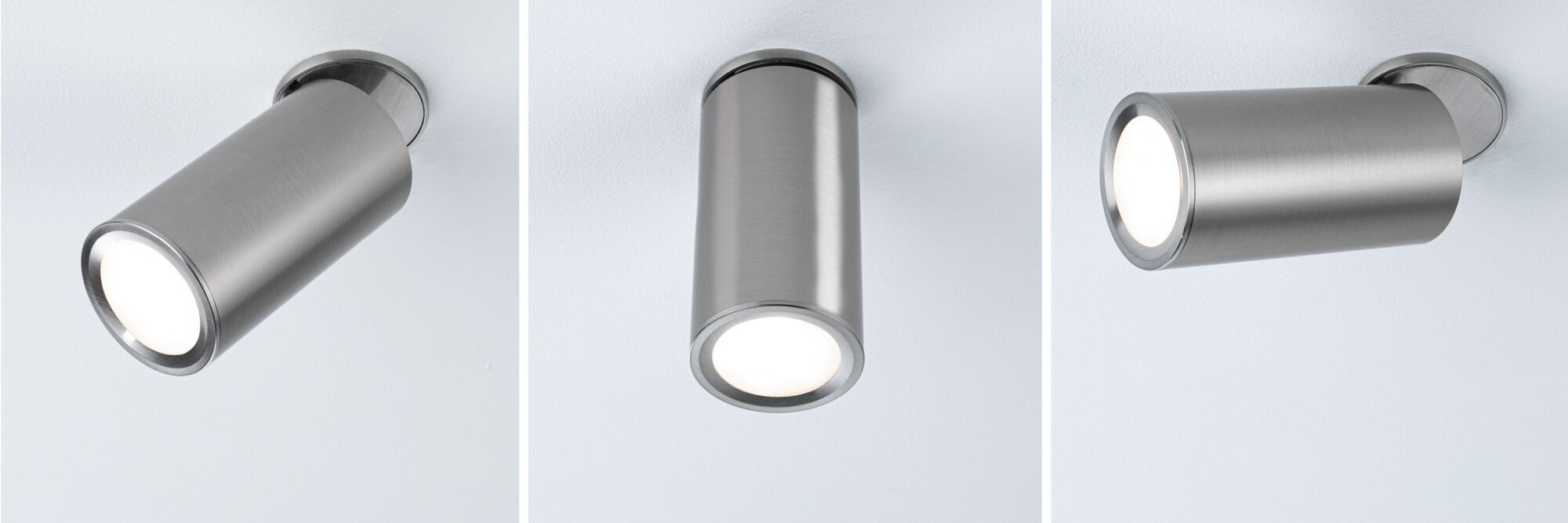

- Swivelling spot head makes it easy to reposition the light
- Directional light sets light accents by shining on objects.
- Color temperatur: 2700K - Warm white

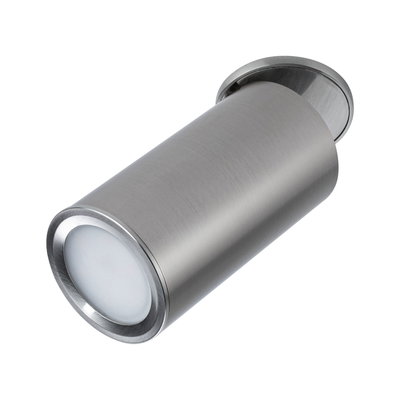

LED Recessed luminaire 3-Step-Dim Turnal round 60mm 90° Coin 6W 470lm 230V dimmable 2700K Brushed iron

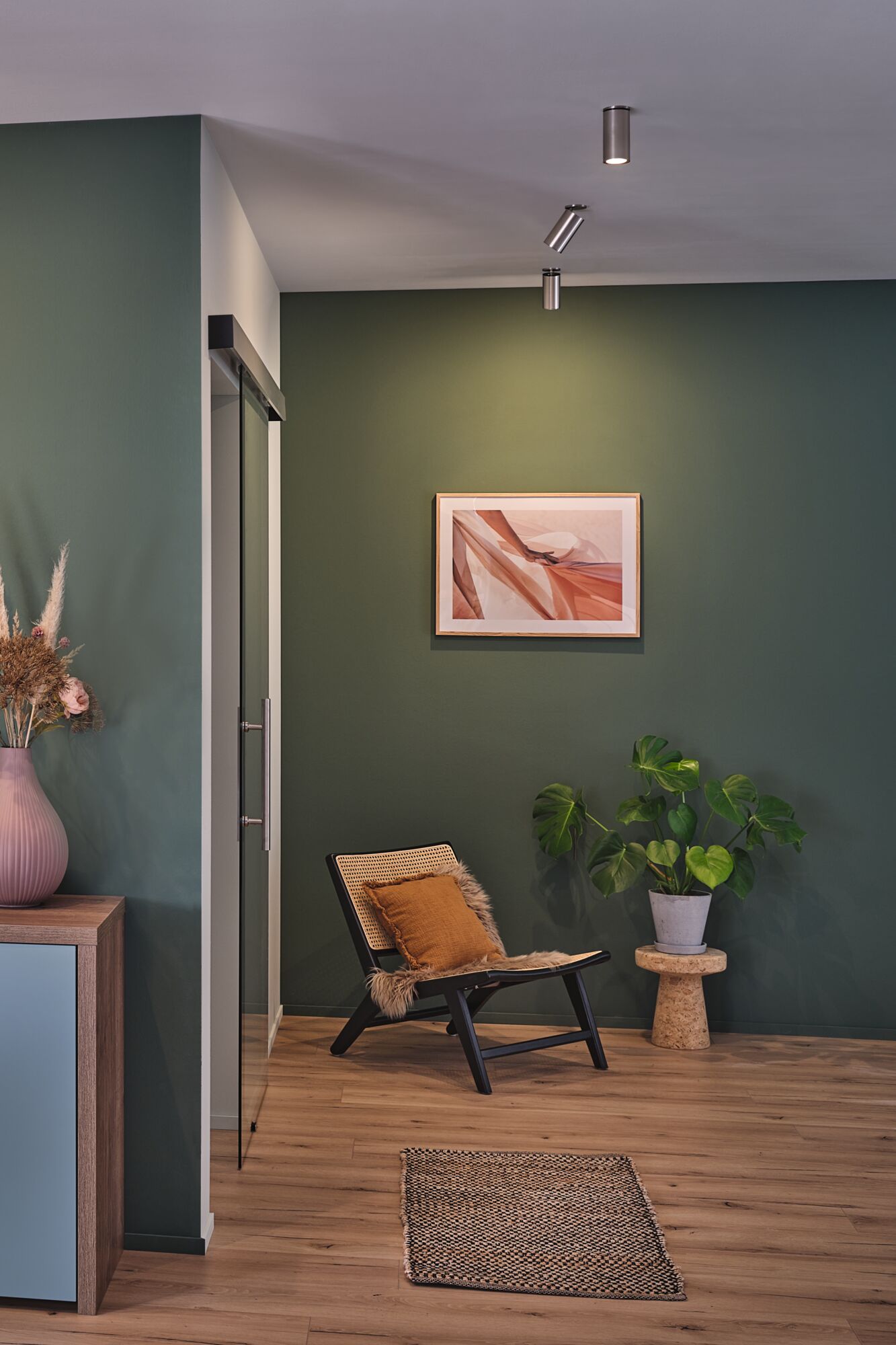

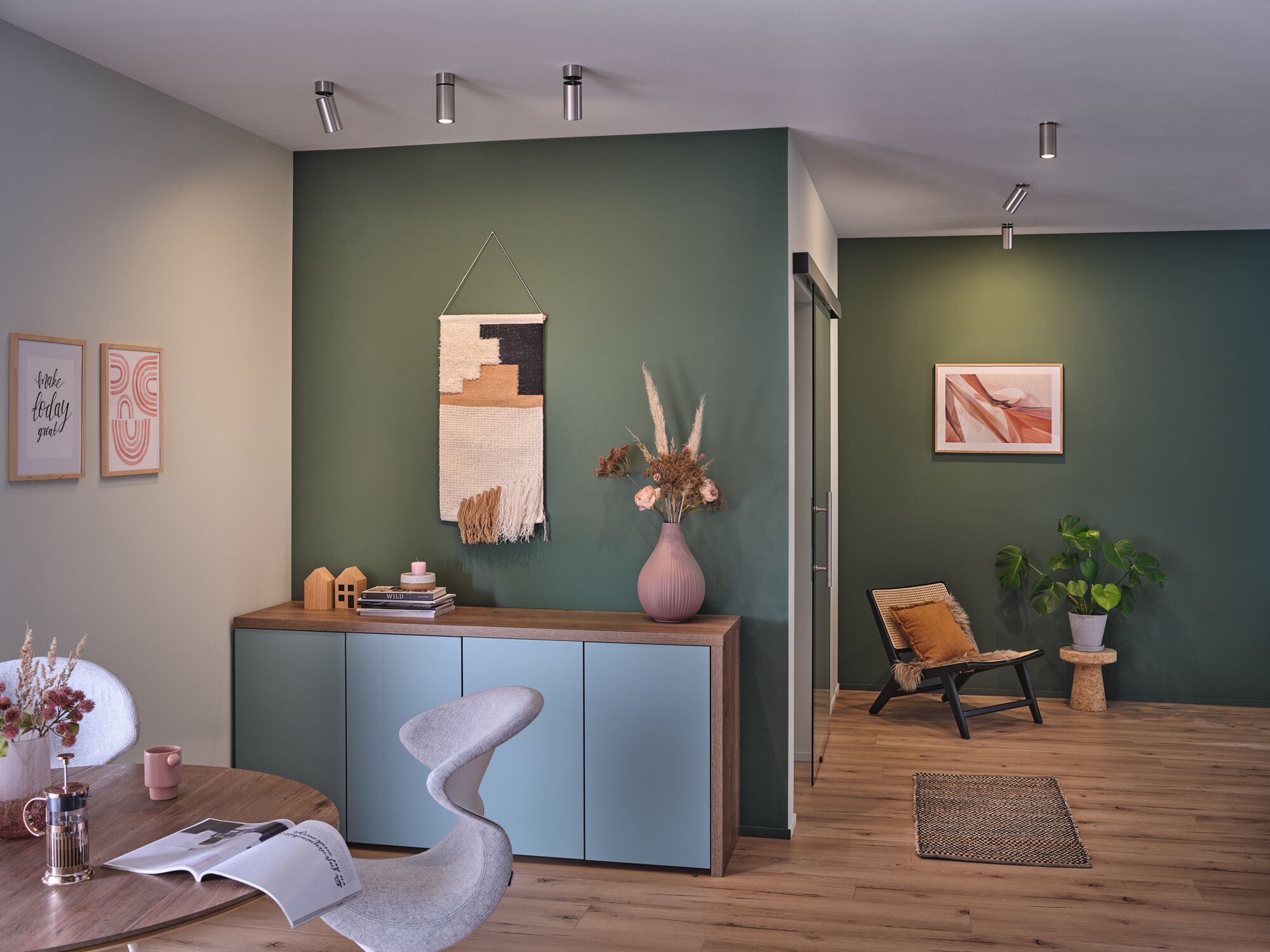

The recessed luminaire set Turnal Coin in a brushed-iron industrial look provides targeted illumination of zones and objects in your living space. With its simple design, the luminaire fits in with any interior style and can be flexibly aligned using its rotating and swivelling function to highlight your favourite decorative features.
- Swivelling spot head makes it easy to reposition the light
- Directional light sets light accents by shining on objects.
- Color temperatur: 2700K - Warm white
- Incl. replaceable LED lamp
- 3 brightness levels
| Dimension | |
|---|---|
| Depth of hollow wall | 30 mm, 30 mm |
| Total Mounting depth | 45 mm |
| Dimensions (Height x Width x Depth) | H: 115 mm |
| Ø | 60 mm |
| Mounting hole | 48 mm |
| Form | round |
| Design and Material | |
|---|---|
| Colour | Brushed iron |
| Material | Metal |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | G |
| Energy consumption | 7 kWh_1000h |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 2700 K |
| Beam angle | 100 ° |
| Usable luminous flux | 470 lm |
| color temp | 2700 K |
| colour consistency | SDCM 6 |
| Color rendering index | > 85 Ra |
| Beam angle LED module | 100 ° |
| Lamp Features | |
|---|---|
| Component parts | 6 W |

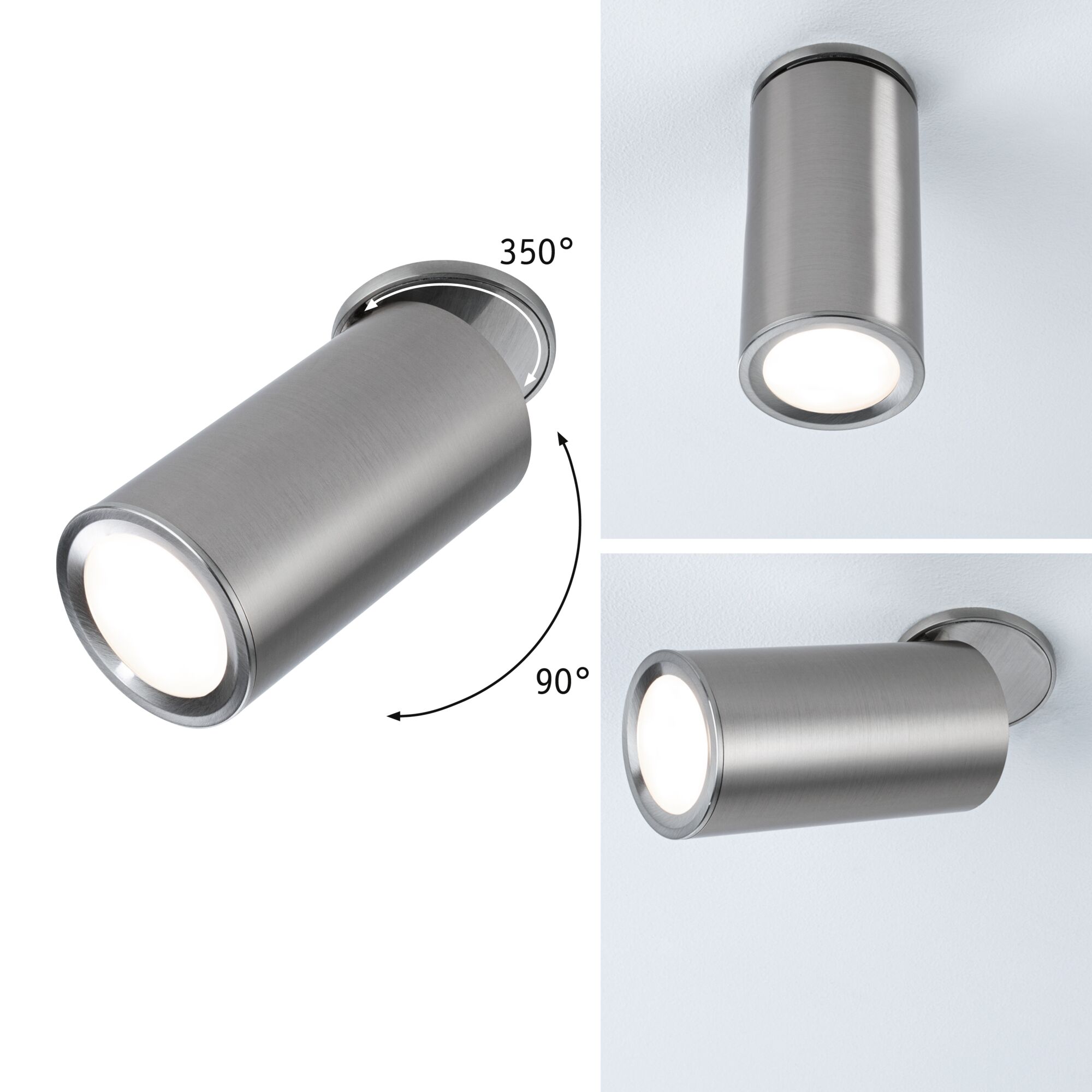

| Swivel range | 90 ° |
| Technique | LED |
| Socket | Coin |
| IP protection | IP20 |
| Dim | dimmable in 3 steps with normal light switch |
| Dimmable | Yes |
| Inclusive lamp | yes |
| Incandescent Equivalent | 40 W |
| Number of component parts | 1x |
| protection class | protection class II |
| Replacable | 2 Lightsource is replaceable without damage the lighting fixture by electrician. |
| Transformer | |
|---|---|
| apparent power | 6 VA |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
