Article-No.:
93414
LED Recessed luminaire
Base Coin Single luminaire Swivelling
round 90mm 20° Coin 5W 370lm 230V 3000K Brushed iron
round 90mm 20° Coin 5W 370lm 230V 3000K Brushed iron
- Incl. replaceable LED lamp
- Color temperatur: 3000K - Warm white
- With swivelling spots for ideal illumination

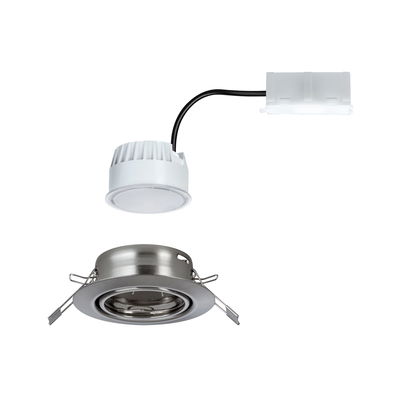

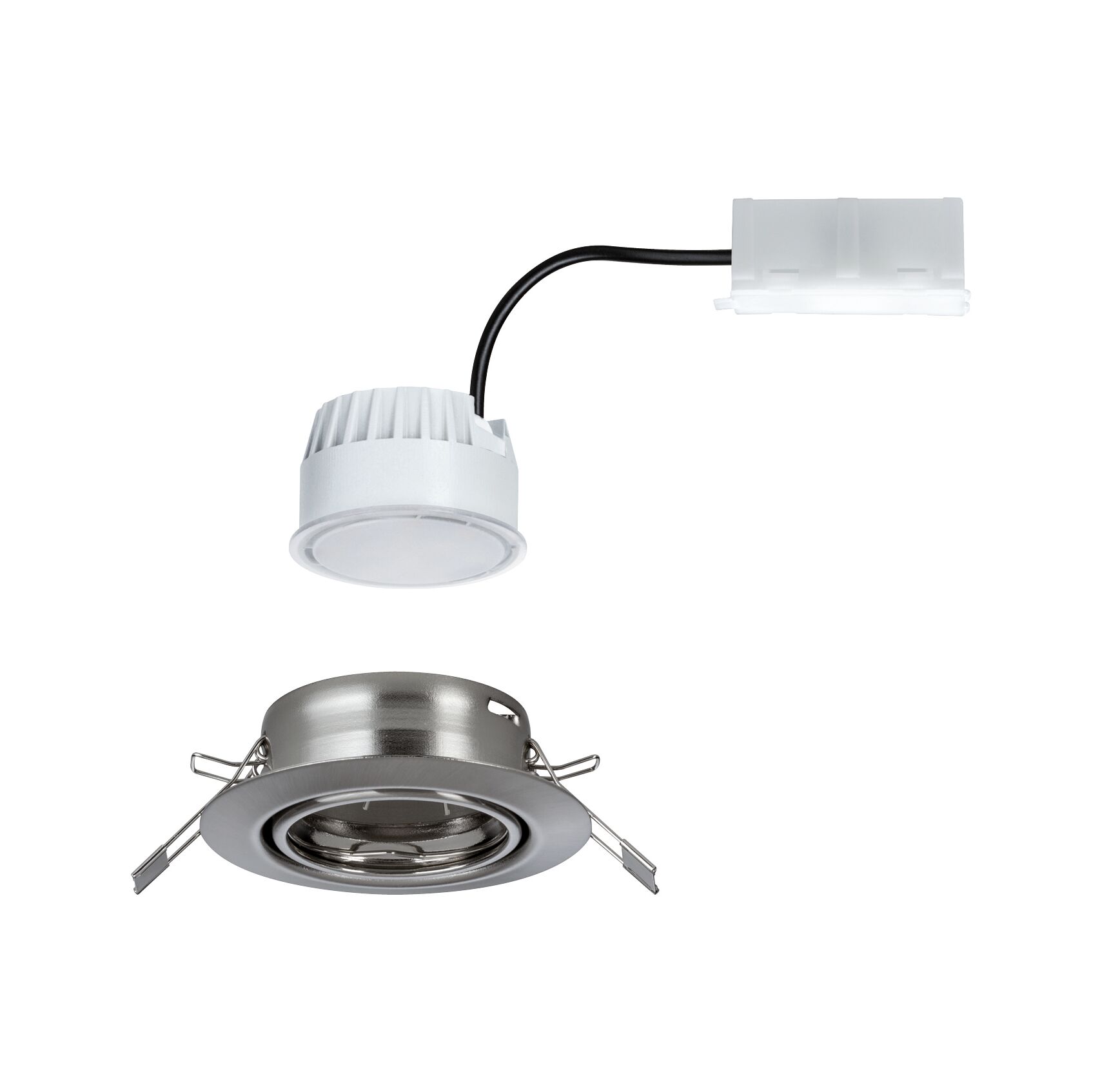

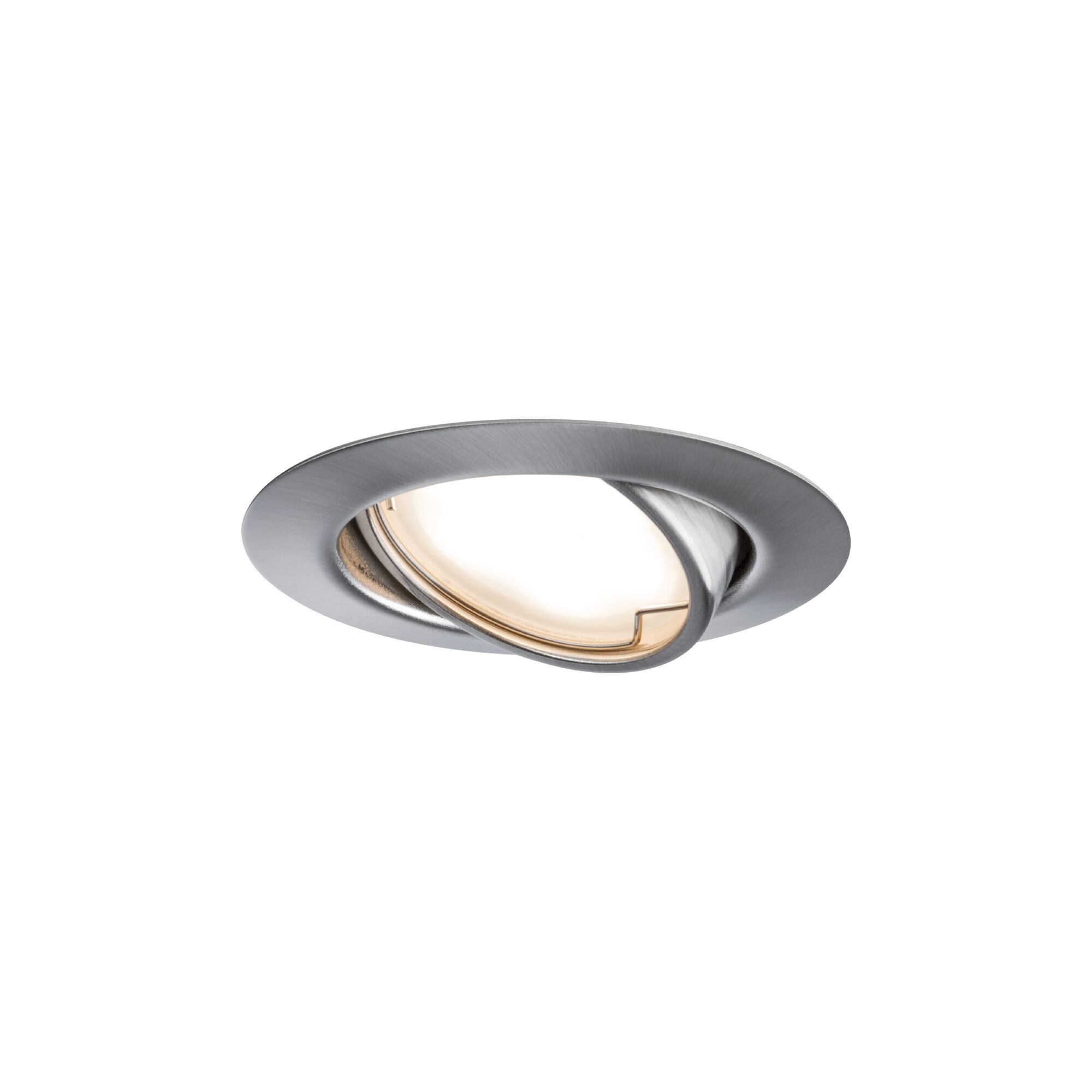

LED Recessed luminaire Base Coin Single luminaire Swivelling round 90mm 20° Coin 5W 370lm 230V 3000K Brushed iron

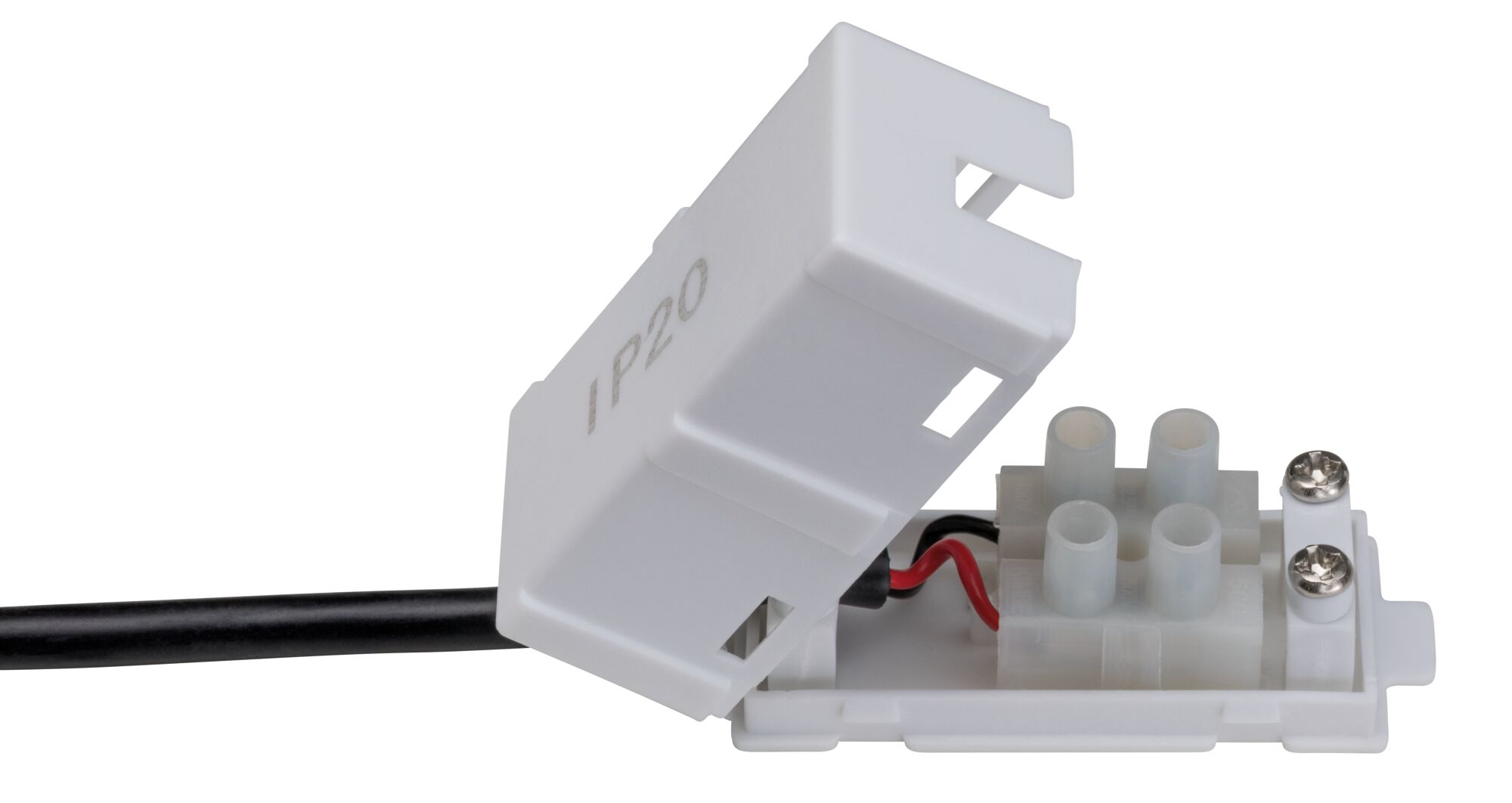

The robust and user-friendly Metal recessed Base spotlights 1x5W in Brushed iron are a great choice for new installations and for the replacement of existing installations. The junction box with quick clip for tool-less installation allow quick and easy – and most importantly: unlimited interlinking. The scope of delivery includes replaceable Coin LED lamps in warm white for a relaxing and attractive ambiance.
- Incl. replaceable LED lamp
- Color temperatur: 3000K - Warm white
- With swivelling spots for ideal illumination
- For 230 V direct connection

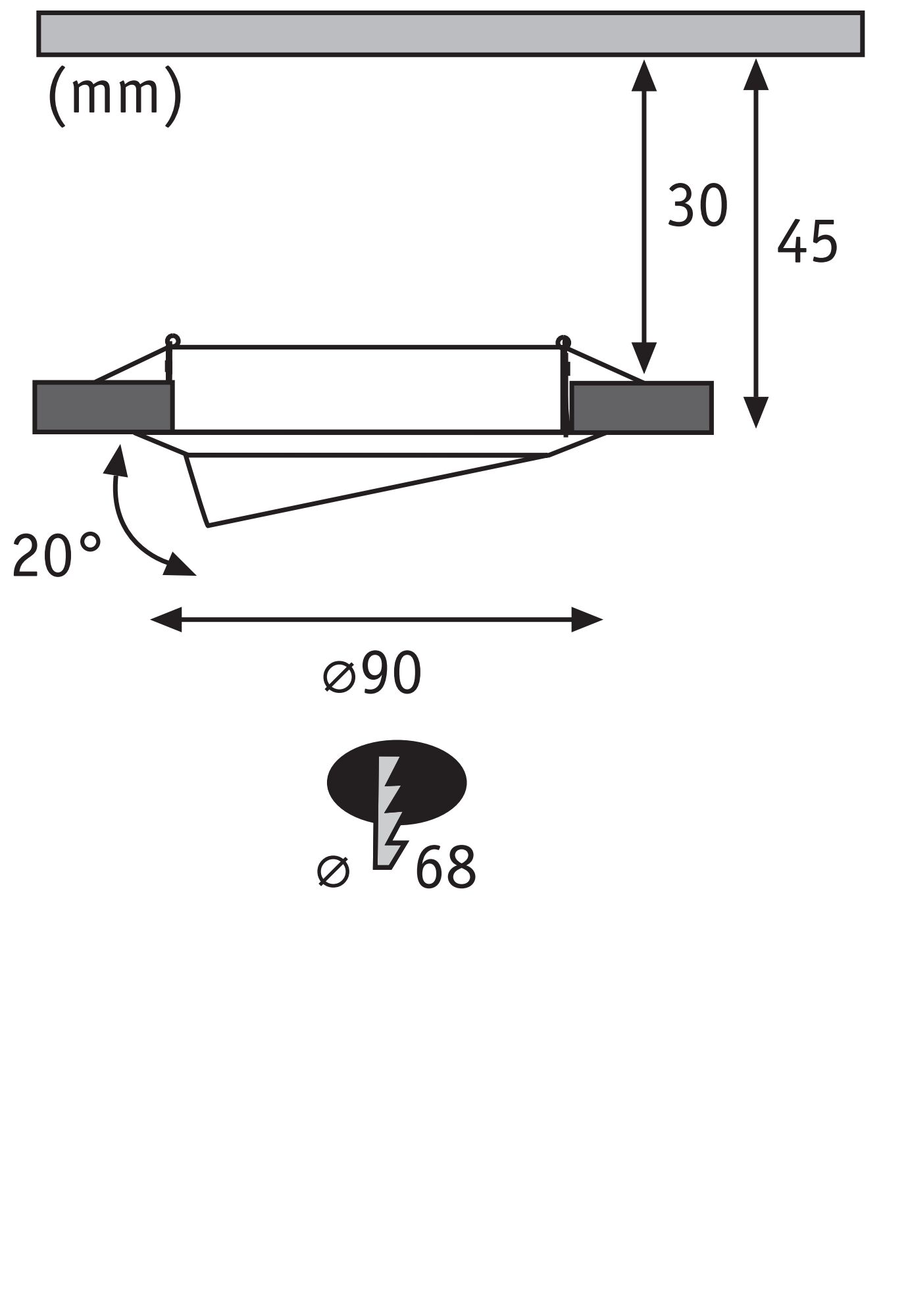

| Dimension | |
|---|---|
| mounting hole 2 | 73 mm |
| depth of hollow wall | 30 mm |
| Mounting depth | 45 mm |
| Ø | 90 mm |
| Mounting hole | 68 mm |
| Form | round |
| Depth of hollow wall | 30 mm |
| Design and Material | |
|---|---|
| Colour | Brushed iron |
| Material | Metal |
| Installation | |
|---|---|
| Installation site (recommendation) | Ceiling mounting |
| Energy consumption | |
|---|---|
| energy efficiency (A to G) | G |
| Service life | |
|---|---|
| lifetime | 15.000 h |
| Light Characteristics | |
|---|---|
| Color temp. | 3000 K |
| Beam angle | 100 ° |
| Useful luminous flux | 370 lm |
| color temp | 3.000 K |
| colour consistency | <= 6 Step of the MacAdam ellipse |
| Color rendering index | > 80 Ra |
| Lamp Features | |
|---|---|
| Component parts | 5 W |
| Swivel range | 20 ° |
| Technique | LED |
| Socket | Coin |
| Dimmable | No |
| Incandescent Equivalent | 34 W |
| Inclusive lamp | ✓ |
| Number of component parts | 1x |
| protection class | protection class II |
| Replacable | 2 Lightsource is replaceable without damage the lighting fixture by electrician. |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
