Article-No.:
93419
£102.00*
Prices incl. Standard rate VAT
Ready to ship, delivery within 2-3 working days
- Warmdimm function
- Set of 3 luminaires incl. LED module
- IP protection: IP44 splash-protected

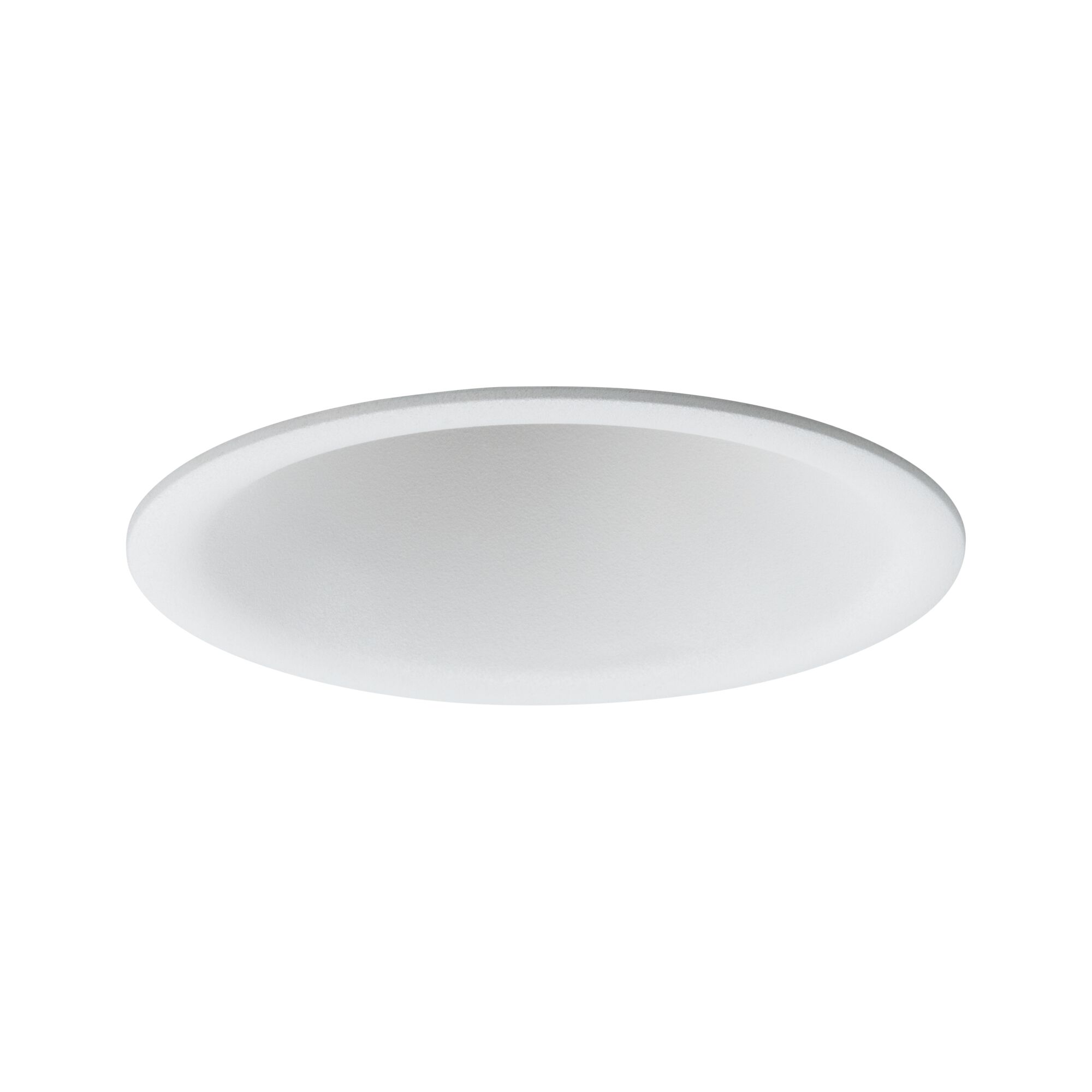

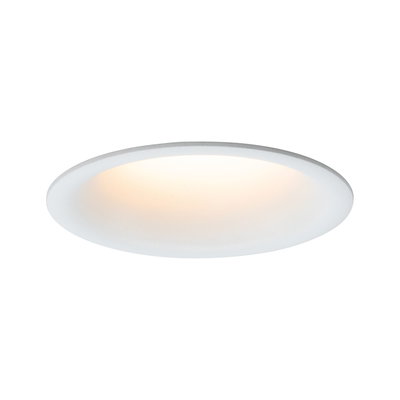

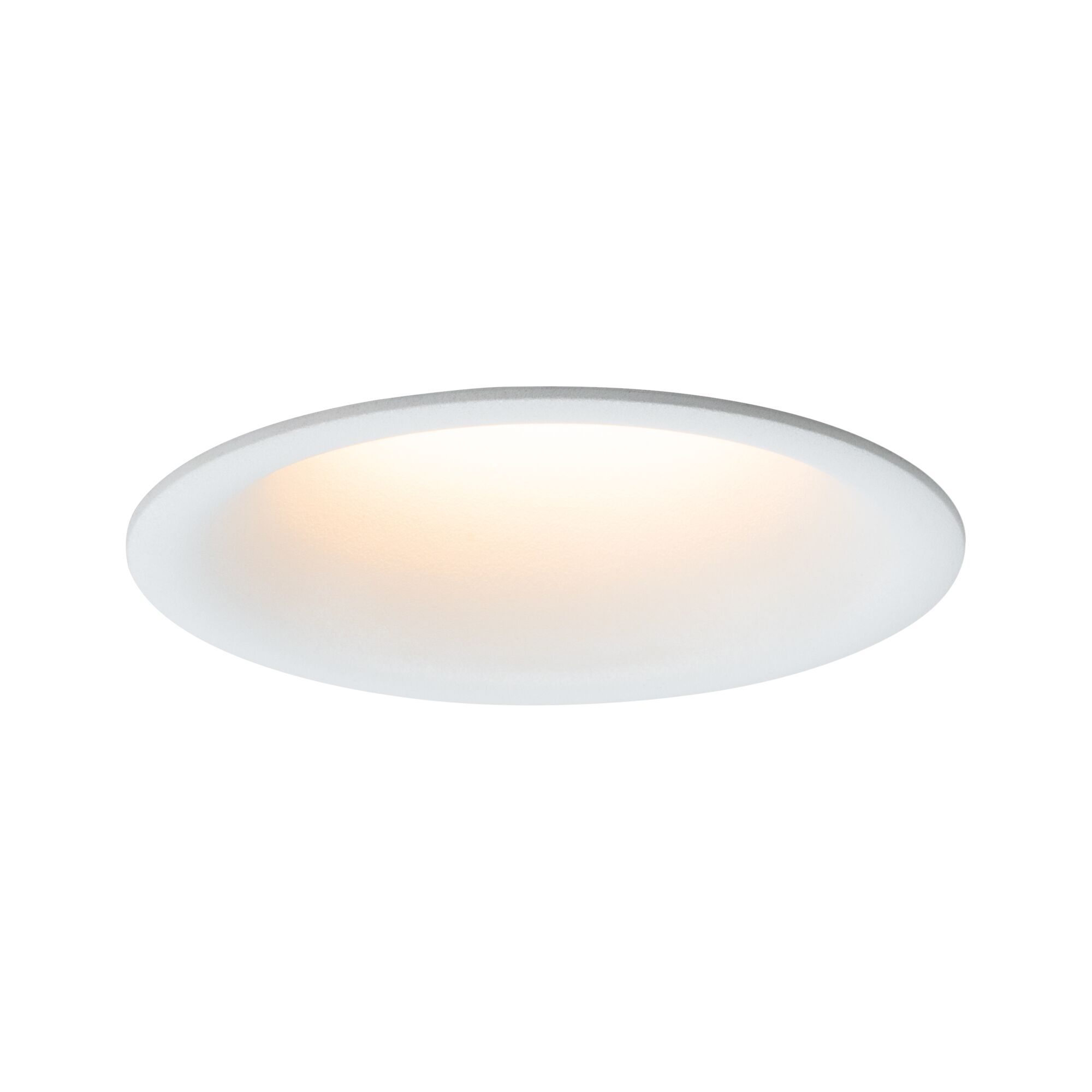

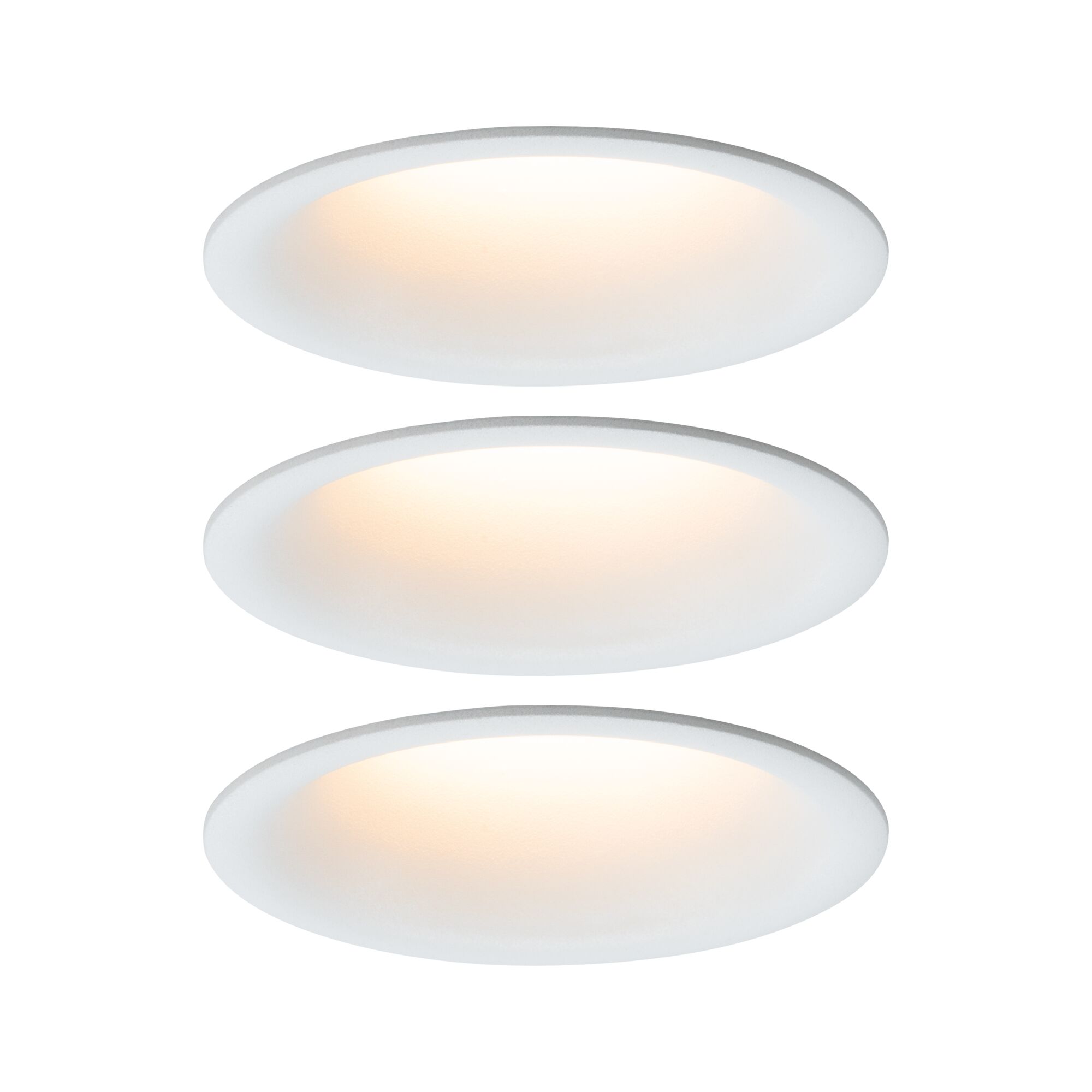

LED Recessed luminaire Cymbal Coin Basic Set IP44 round 77mm Coin 3x6W 3x440lm 230V dimmable Dim to warm Matt white

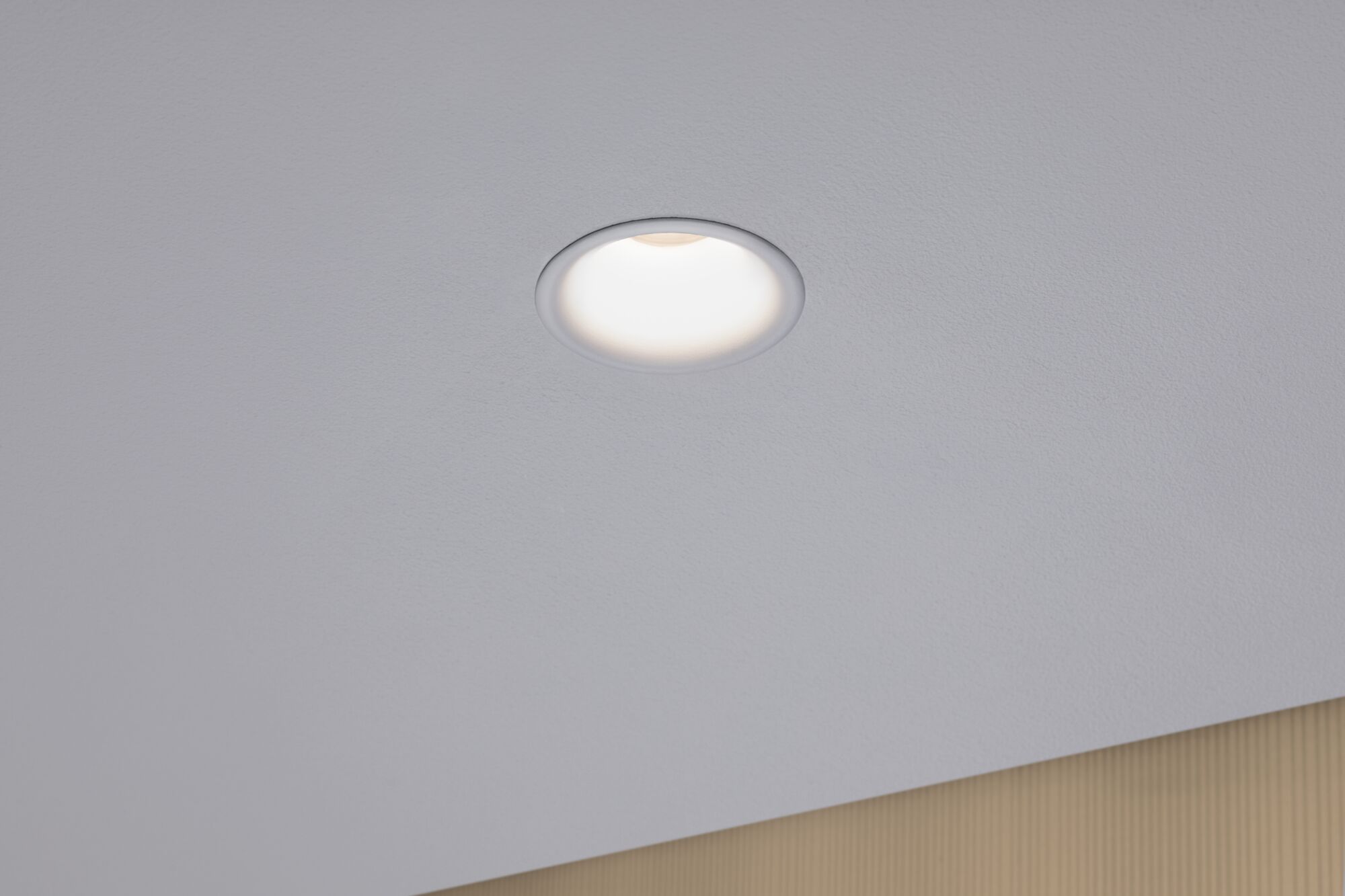

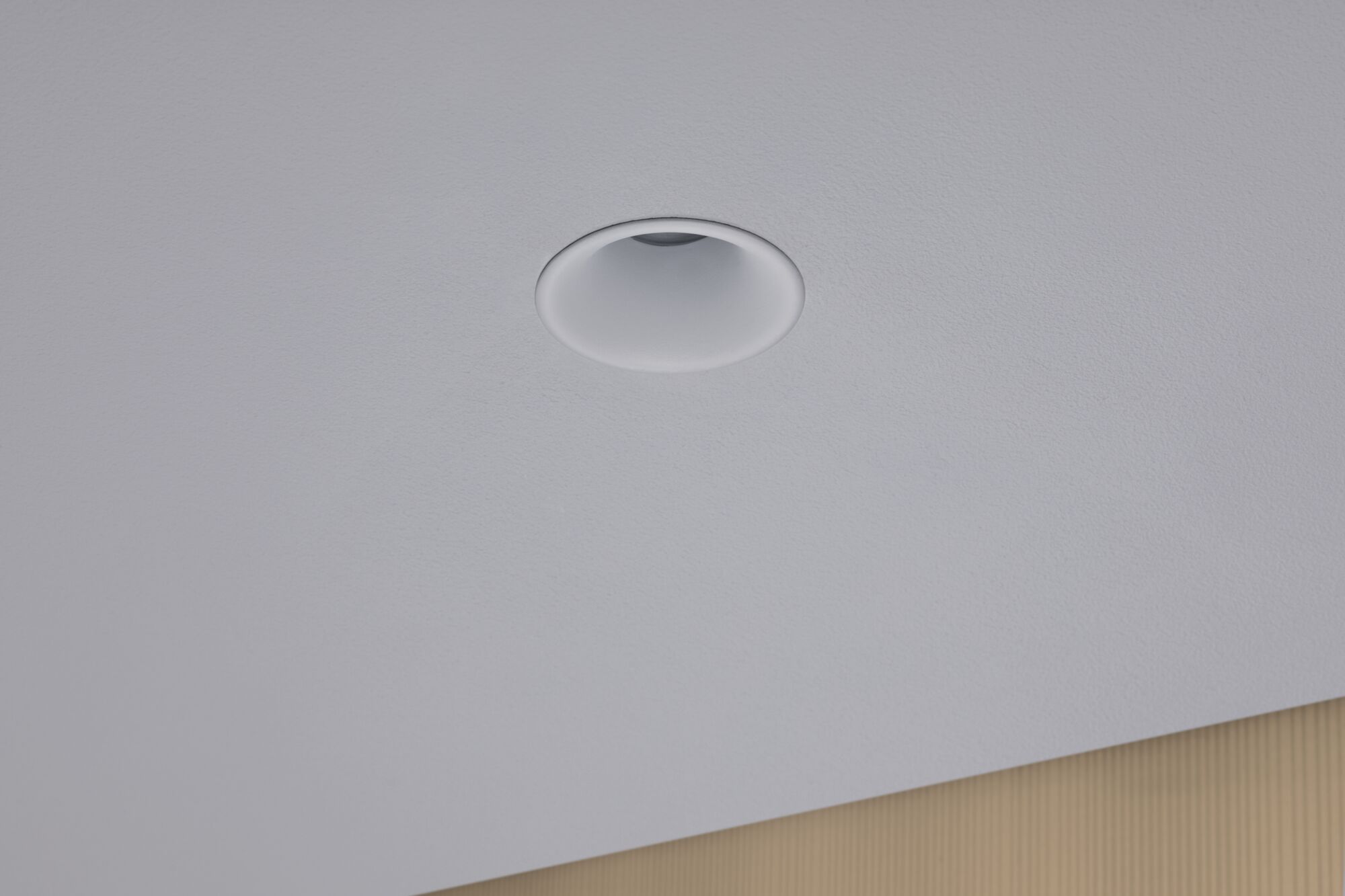

100% minimalist – the transparent material of the premium frameless recessed luminaires Cymbal makes them almost invisible when they are not lit. The slightly offset lamps ensure glare-free illumination. The light colour is steplessly dimmable between 2,000 Kelvin (gold light) and 2,700 Kelvin (warm white light). Use it to match the ambiance in your home to your mood.
- Warmdimm function

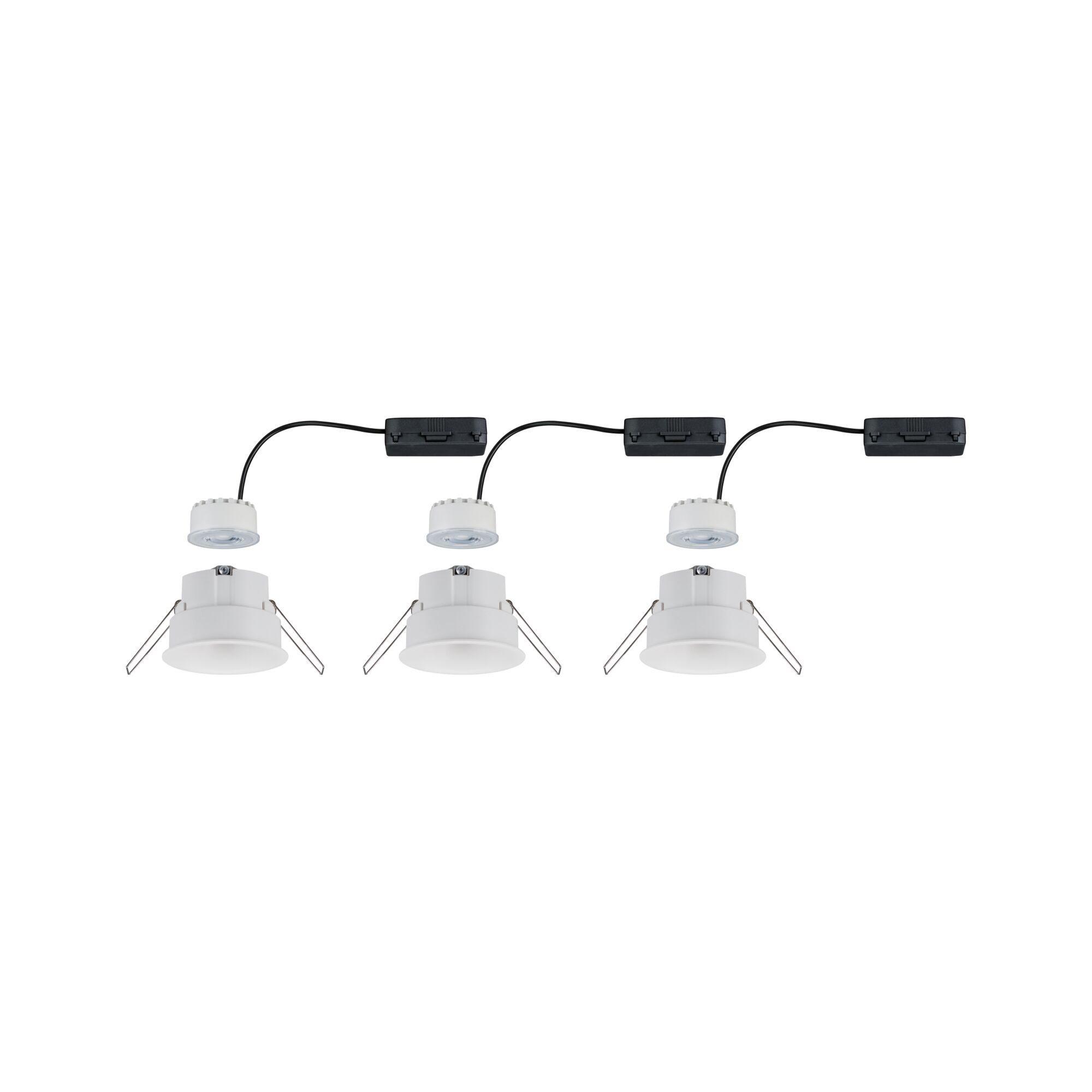

- Set of 3 luminaires incl. LED module
- IP protection: IP44 splash-protected
- Color temperatur: 2700K - Warm white
- For 230 V direct connection
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 50 mm |
| Diameter | 77 mm |
| Built-in diameter | 70 mm |
| Mounting depth | 70 mm |
| Depth of hollow wall | 55 mm |
| Design and Material | |
|---|---|
| Form | round |
| Type | Coin |
| Colour | Matt white |
| Material | Plastic |
| Installation | |
|---|---|
| Installation site (recommendation) | Ceiling mounting |
| Energy consumption | |
|---|---|
| Energy efficiency (LED Module) | F |
| Energy consumption | 6 kWh_1000h |
| Service life | |
|---|---|
| Lamp lumen maintenance factor 6000h | 80 % |
| luminous flux at the end of lamplife | 75 % |
| Number of switching cycles >= | 30000 |
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temperature to | 2700 K |
| Colour temperature | Gold light to Warm white, 2000 K |
| Nominal luminous flux | 440 lm |
| Colour consistency (SDCM) | 6 |
| Color rendering index | > 80 Ra |
| Beam angle | 45 ° |
| Colour change | Dim to warm |
| Lamp Features | |
|---|---|
| Dimmable | with dimmer R+C f.elect.trafos+230V bulbs |
| Inclusive lamp | yes |
| Lamp property | Leuchtmittel enthalten und wechselbar |
| Incandescent Equivalent | 40 W |
| Maximum wattage range | max. 3x10 W |
| IP protection | IP44 ceiling mounting |
| Protection class | Protection class II |
| Base/Socket | Coin |
| Technique | LED |
| Component parts | 6 W |
| Number of component parts | 3x |
| Replacable | 2 Lightsource is replaceable without damage the lighting fixture by electrician. |
| Adjustability | fixed |
| Voltage | 230 V |
| Voltage type | AC 50 Hz |
| Transformer | |
|---|---|
| apparent power | 7 VA |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
Downloads

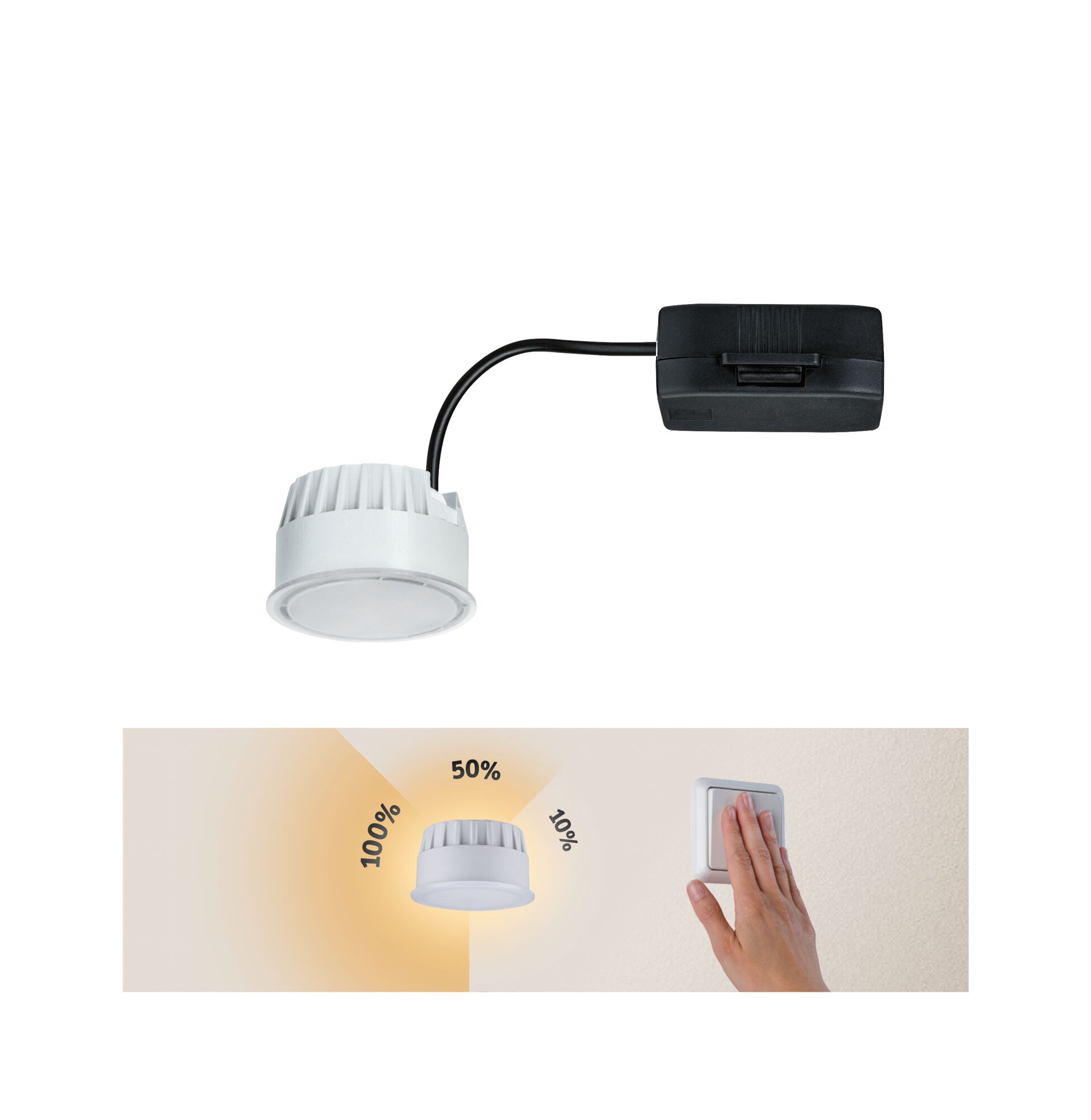

- LED Module recessed luminaire
round 51mm Coin 6W 470lm 230V dimmable 2700K Satin
£14.95*
Ready to ship

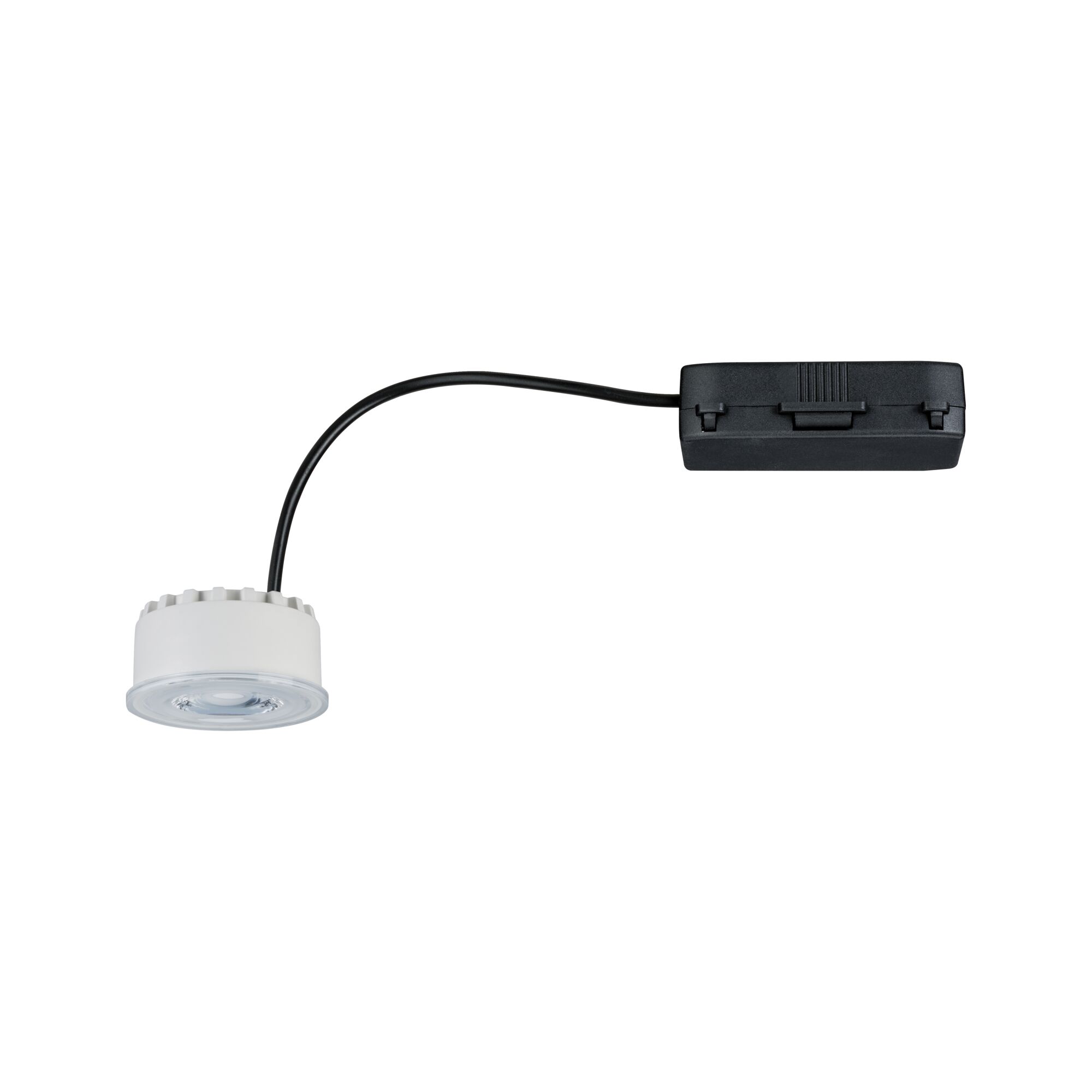

- LED Module recessed luminaire
