Article-No.:
92453
LED Recessed luminaire
Nova Single Luminaire
round 84mm 50° 2,8W 505lm 230V 4000K Matt white
round 84mm 50° 2,8W 505lm 230V 4000K Matt white
£28.95*
Prices incl. Standard rate VAT
Ready to ship, delivery within 2-3 working days

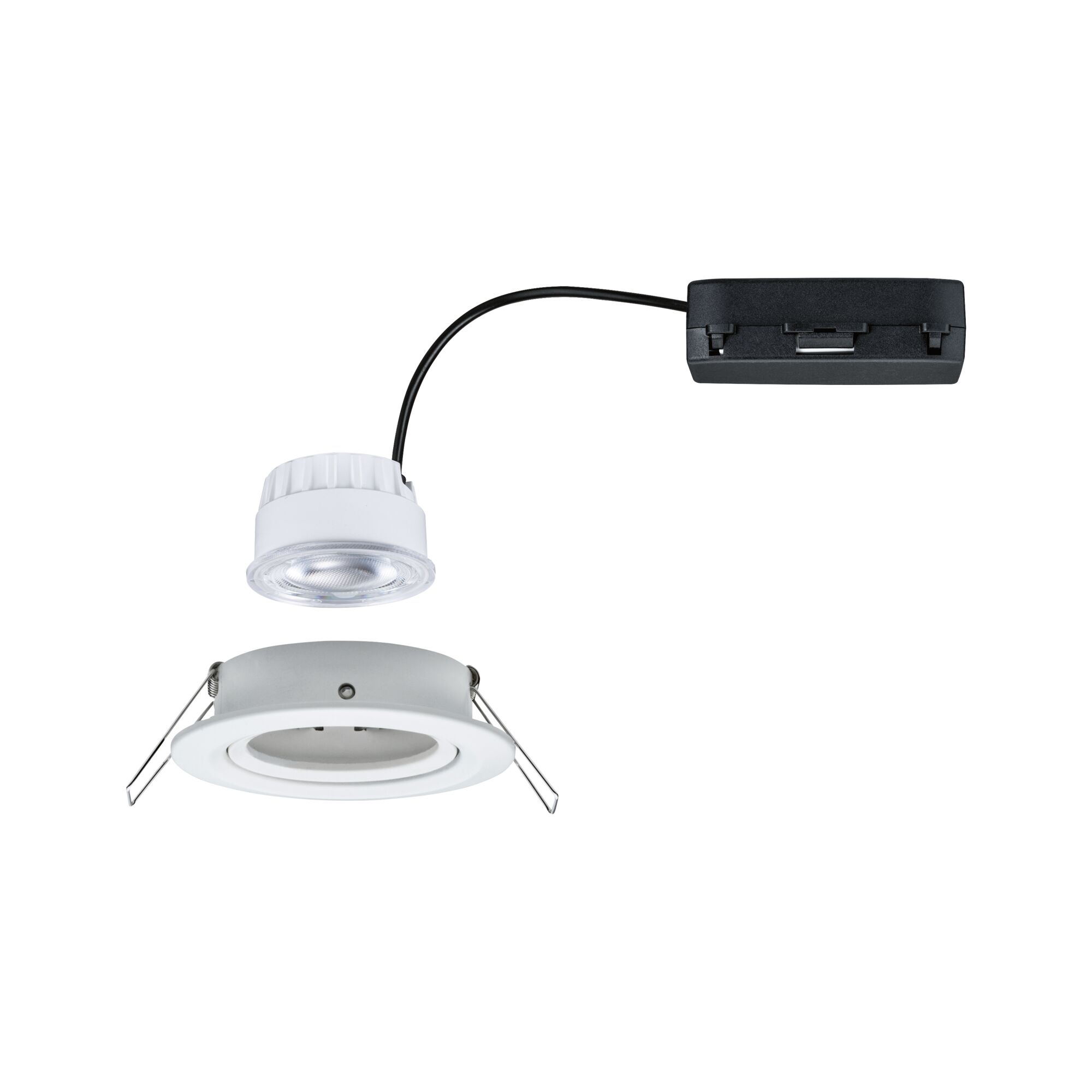

- Set of 1 luminaire incl. LED module
- RL Set with energy efficiency class A (LED module)
- Resource-saving thanks to a long service life of 50,000 hours
LED Recessed luminaire Nova Coin Single Luminaire round 84mm 50° 2,8W 505lm 230V 4000K Matt white
The Nova Coin EBL set in white matt is the innovative product solution for energy-efficient and long-lasting lighting. The set includes a high-quality aluminium light housing and powerful LEDCoins, which significantly reduce power consumption thanks to their energy efficiency class A rating. This is not only good for the environment, but also for your wallet thanks to the lower energy costs. With a light output of 505 lm/2.8W and a lifetime of up to 50,000 hours, the set provides a pleasant light that is particularly long-lasting. The Nova Coin Set also impresses with the recessed luminaire's ability to swivel. This allows the light to be directed flexibly and thus individually adapted to the requirements of the room. Its timeless design blends seamlessly into any living concept and bathes the room in a pleasant neutral white light. Installation is particularly simple and efficient thanks to the interlinkable and replaceable Coins, the low installation depth of just 45 mm and the 230 V direct connection. This makes the Nova Coin EBL Set an efficient and uncomplicated lighting solution that meets the highest demands.
- Set of 1 luminaire incl. LED module
- RL Set with energy efficiency class A (LED module)
- Resource-saving thanks to a long service life of 50,000 hours
- Color temperatur: 4000K - Neutral white
- High-quality die-cast aluminium
- Timeless design for individual living concepts
- The swivelling function ensures high flexibility
- Linkable coins for direct 230V connections
- Shallow installation depth of the Nova coin recessed luminaires
- Easy installation of the recessed luminaires
| Dimension | |
|---|---|
| Diameter | 84 mm |
| Built-in diameter | 68 mm |
| Mounting depth | 45 mm |
| Depth of hollow wall | 30 mm |
| net weight | 233 g |
| Design and Material | |
|---|---|
| Form | round |
| Light source shape | Reflector |
| Colour | Matt white |
| Material | Aluminium |
| Energy consumption | |
|---|---|
| Energy efficiency (spectrum A-G) (LED Module) | A |
| Energy consumption | 3 kWh_1000h |
| Service life | |
|---|---|
| Lifetime | 50000 h |
| Light Characteristics | |
|---|---|
| Nominal luminous flux | 505 lm |
| Color rendering index | > 80 Ra |
| Beam angle | 92 ° |
| Colour temperature | Neutral white, 4000 K |
| Colour consistency (SDCM) | 6 |
| Lamp Features | |
|---|---|
| Inclusive lamp | yes |
| Component parts | 2,8 W |
| light source property | Without light source |
| Swivel range | 50 ° |
| Incandescent Equivalent | 50 W |
| Base/Socket | Coin |
| Technique | LED |
| Adjustability | swivelling/tilting |
| Dimmable | No |
| IP protection | IP23 ceiling mounting |
| Protection class | Protection class II |
| Number of component parts | 1x |
| Replacable | 2 Lightsource is replaceable without damage the lighting fixture by electrician. |
| Power consumption | 2,8 W |
| Voltage | 230 V |
| Voltage type | AC 50 Hz |
| Transformer | |
|---|---|
| apparent power | 5.7 VA |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
