Article-No.:
93883
LED Recessed luminaire
Nova Plus Coin Rigid
IP65 round 78mm Coin 6W 470lm 230V dimmable 2700K Chrome
IP65 round 78mm Coin 6W 470lm 230V dimmable 2700K Chrome
£43.95*
Prices incl. Standard rate VAT
Ready to ship, delivery within 2-3 working days
- Set of 1 luminaire incl. LED module
- Color temperatur: 2700K - Warm white
- With satined protective glass

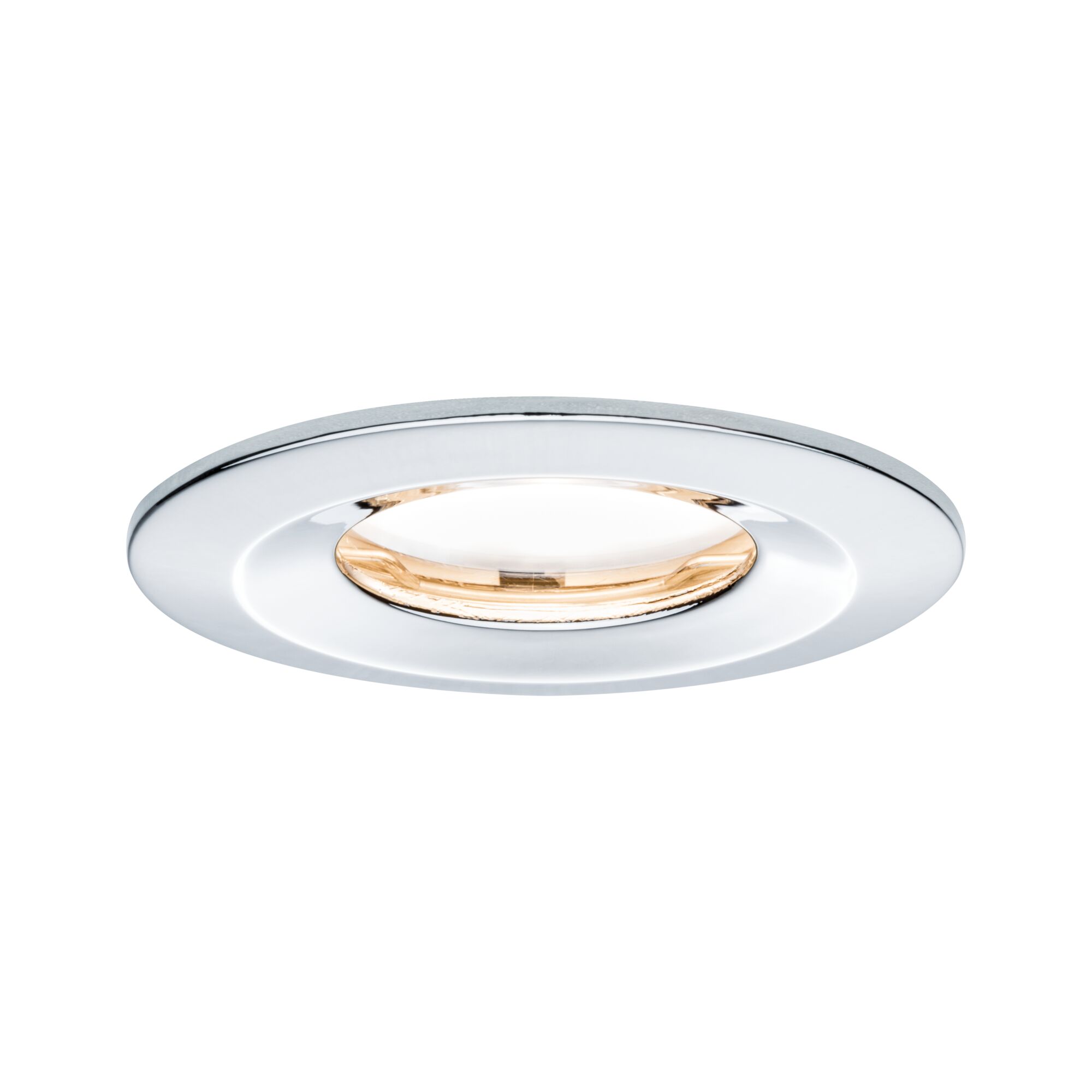

LED Recessed luminaire Nova Plus Coin Rigid IP65 round 78mm Coin 6W 470lm 230V dimmable 2700K Chrome

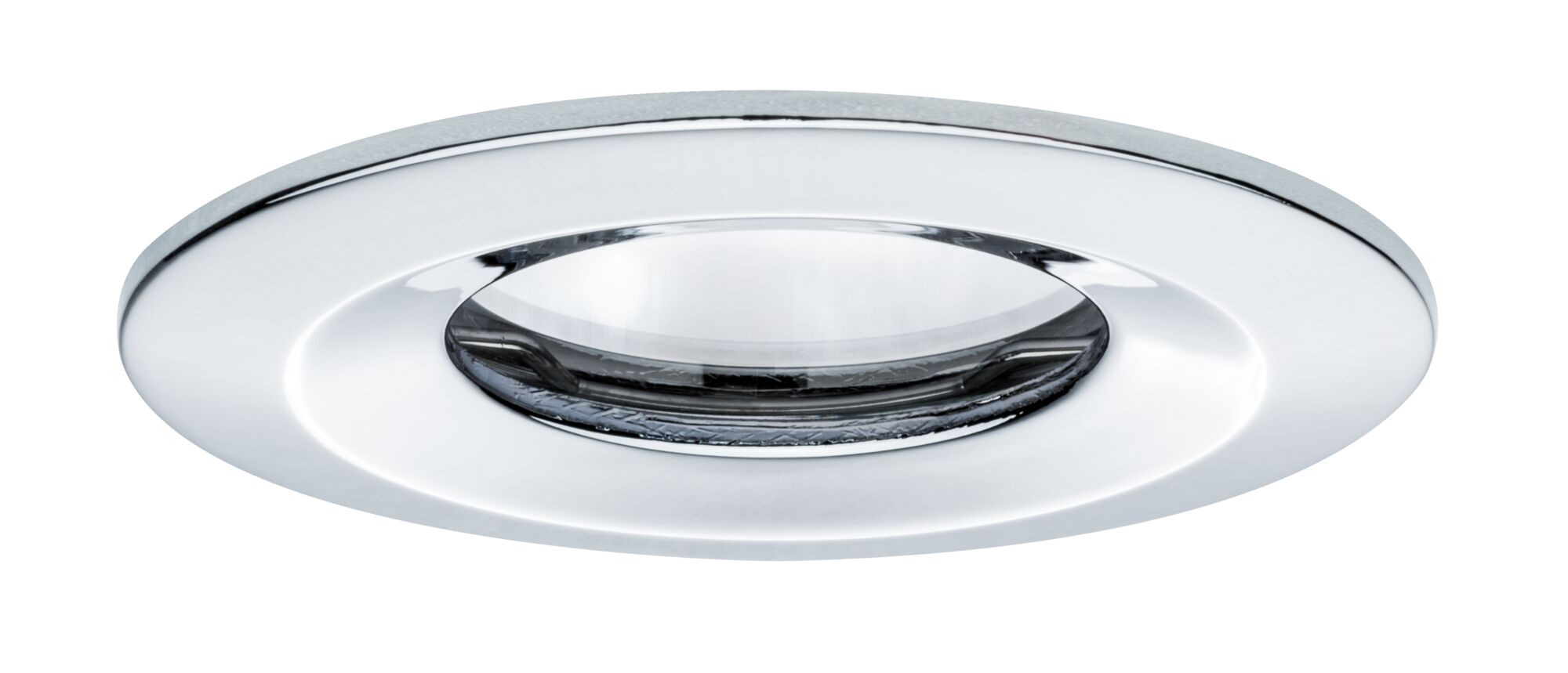

The round Nova Plus recessed luminaire (3-piece set) in Chrome with a replaceable LED coin is suitable for new installations, as well as for replacing existing installations. It is exceptionally flat, and can therefore be installed in ceilings with a cavity of only 30 millimetres. As the single luminaires can be easily linked together with quick clips, the installation is quick and easy. The dimming function lets you adjust the brightness according to your needs and emits a warm white work light and cosy mood lighting in one. Thanks to IP65 protection, the luminaire is specially protected against penetration by water jets, making it ideal for installation in wet rooms or outdoor areas.
- Set of 1 luminaire incl. LED module
- Color temperatur: 2700K - Warm white
- With satined protective glass

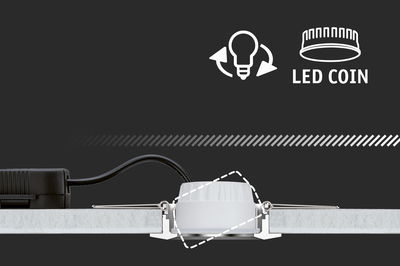

- Very flat – can also be mounted in small cavities of only 30 mm depth
- For 230 V direct connection

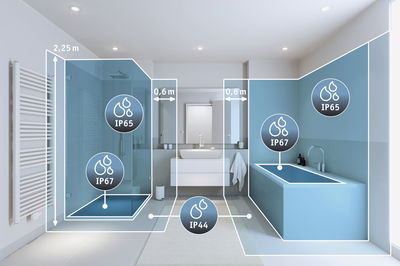

- IP protection: IP65 – water jet-protected
- Dimmable

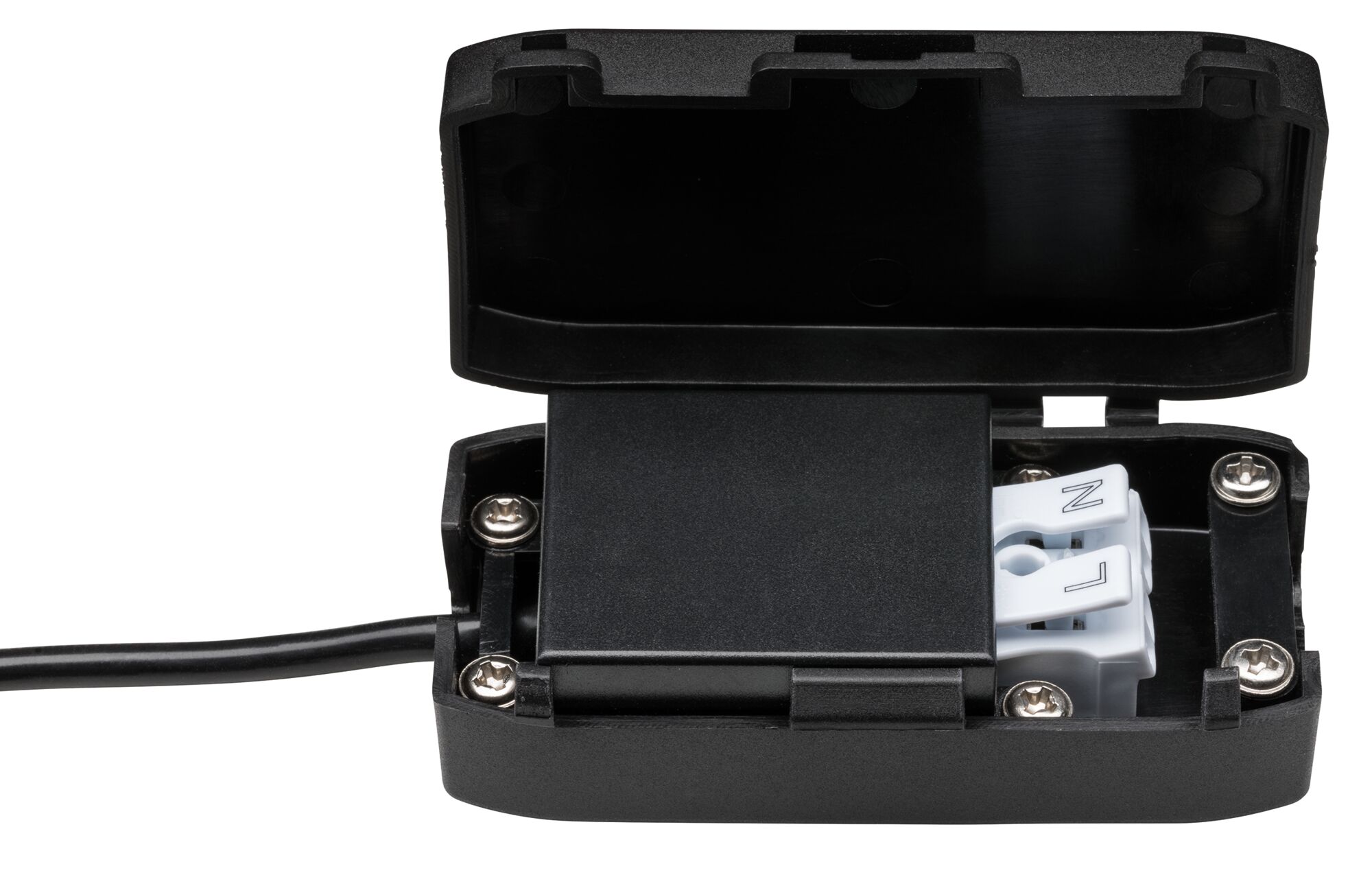

- Incl. junction box with double quick clamp for feeding through wires
Dimension | |
---|---|
Diameter | 78 mm |
Built-in diameter | 68 mm |
Mounting depth | 45 mm |
Depth of hollow wall | 30 mm |
Design and Material | |
---|---|
Form | round |
Type | Coin |
Colour | Chrome |
Material | Aluminium |
Installation | |
---|---|
Installation site (recommendation) | Ceiling mounting |
Energy consumption | |
---|---|
Energy efficiency (LED Module) | G |
Energy consumption | 6 kWh_1000h |
Service life | |
---|---|
Lifetime | 30000 h |
Light Characteristics | |
---|---|
Colour temperature | Warm white, 2700 K |
Nominal luminous flux | 470 lm |
Colour consistency (SDCM) | 6 |
Color rendering index | > 80 Ra |
Beam angle | 120 ° |
Lamp Features | |
---|---|
Dimmable | with dimmer R+C f.elect.trafos+230V bulbs |
Inclusive lamp | yes |
Lamp property | Leuchtmittel enthalten und wechselbar |
Incandescent Equivalent | 43 W |
IP protection | IP65 ceiling mounting |
Protection class | Protection class II |
Base/Socket | Coin |
Technique | LED |
Component parts | 6 W |
Number of component parts | 1x |
Replacable | 2 Lightsource is replaceable without damage the lighting fixture by electrician. |
Adjustability | fixed |
Voltage | 230 V |
Voltage type | AC 50 Hz |
Accessories | |
---|---|
Radio control included | no |
Labelling | |
---|---|
MM symbol | MM symbol |
WEEE-Reg.-No | DE 39236390 |
