Article-No.:
92964

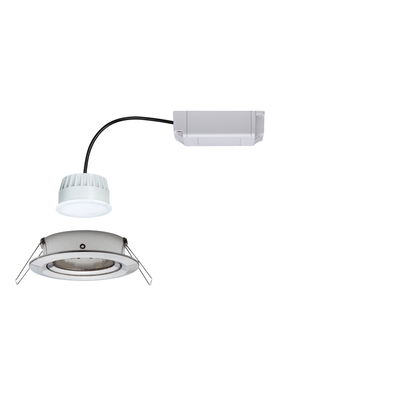

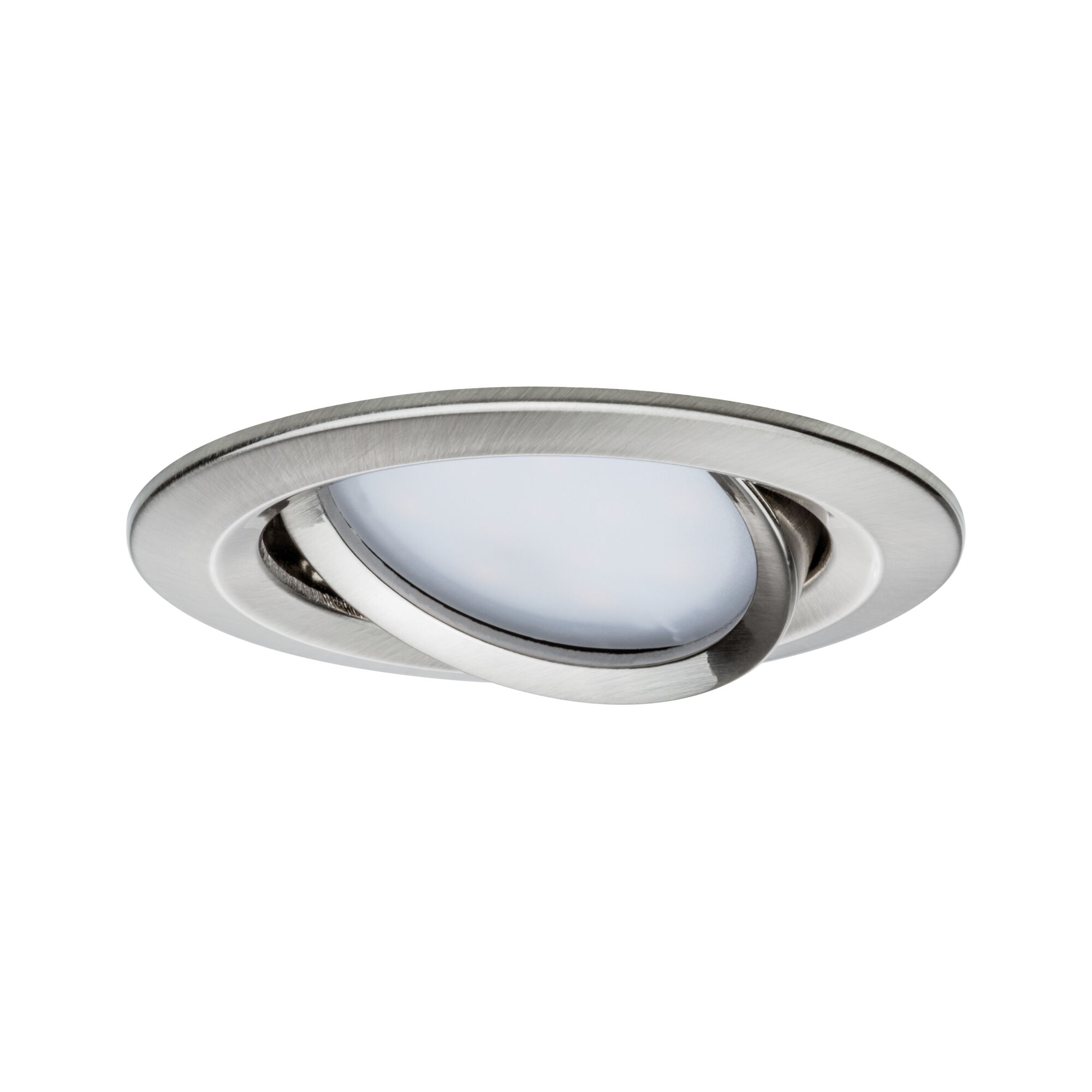

LED Recessed luminaire
Smart Home Zigbee 3.0
Nova Plus Coin Swivelling
round 84mm 50° Coin 5,2W 400lm 230V dimmable RGBW+ Brushed iron
round 84mm 50° Coin 5,2W 400lm 230V dimmable RGBW+ Brushed iron
- Usable with smart home gateways that have a Zigbee interface
- Can be controlled with the Smart Home Zigbee remote control
- Can still be switched on and off with the light switch
LED Recessed luminaire Smart Home Zigbee 3.0 Nova Plus Coin Swivelling round 84mm 50° Coin 5,2W 400lm 230V dimmable RGBW+ Brushed iron

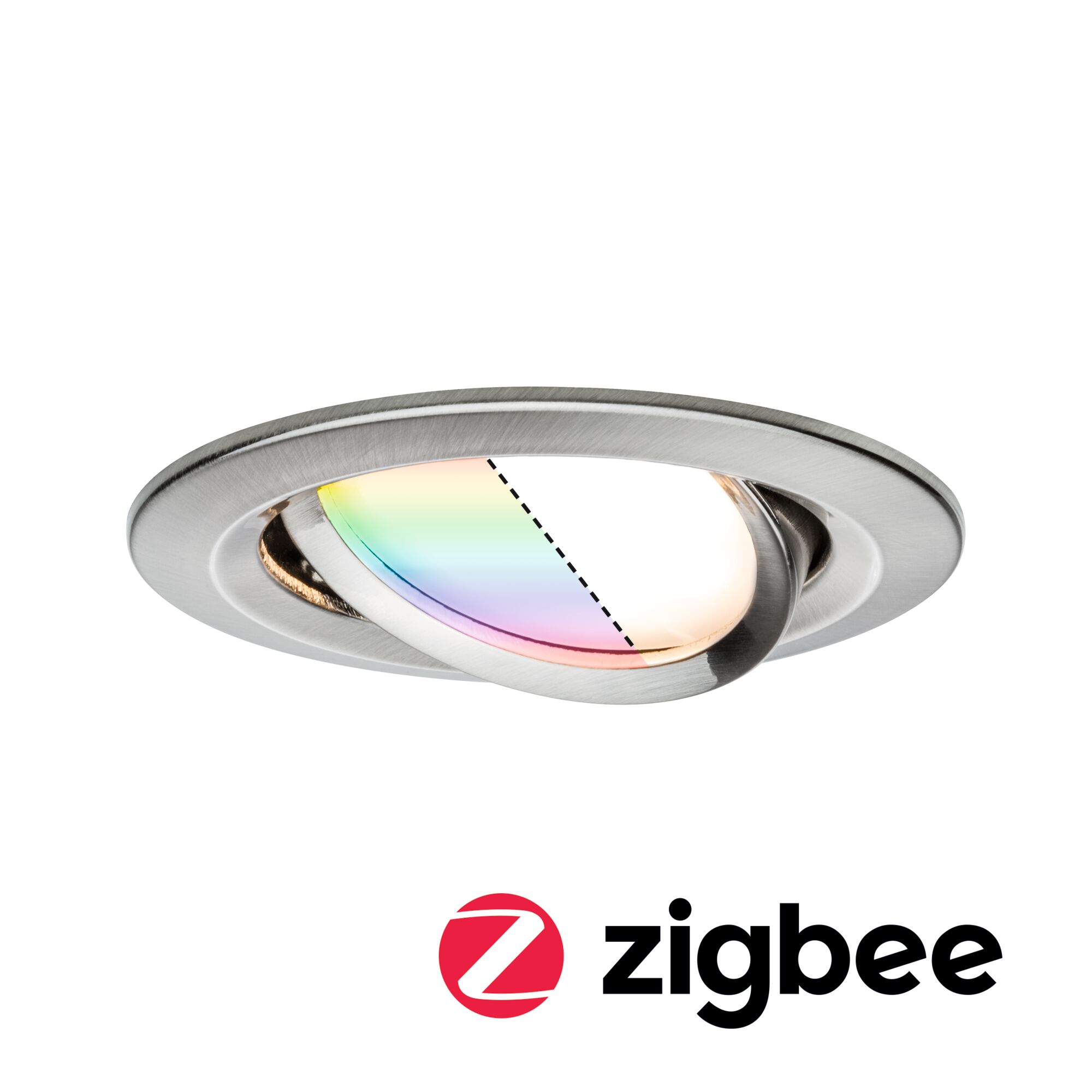

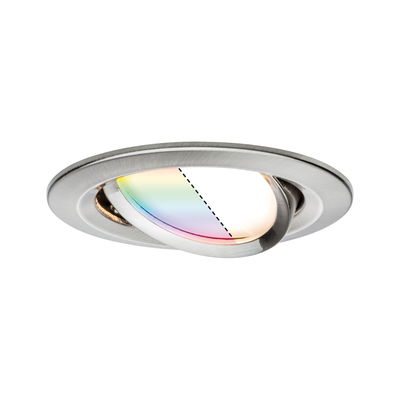

The Nova Plus coin RGBW recessed spotlight with colour-change function creates an individual atmosphere in your home. Depending on your mood, you can choose between daylight white, coloured light and various effects. A diode in white (W) additionally provides a cosy warm white light and makes it unnecessary to mix a white tone from the colours red, green and blue (RGB). The luminaire is Zigbee 3.0-compatible. Zigbee 3.0 is a radio transmission protocol that links up the devices of several manufacturers. This allows not only the centralised control of lighting; shutters, heating and alarm systems, for example, can also be integrated. To operate the control, you can choose between the Smart Friends Box, a gateway for the same standard by a different manufacturer, or a Smart Home Zigbee 3.0 hand-held transmitter. Individual components can be addressed, or switched on and off in groups as lighting scenarios.
- Usable with smart home gateways that have a Zigbee interface
- Can be controlled with the Smart Home Zigbee remote control
- Can still be switched on and off with the light switch
- Bidirectional data transfer
- For 230 V direct connection
- RGBW multicolour colour change
- Color temperatur: 2700K - Warm white - 6500K -Daylight white
| Dimension | |
|---|---|
| Depth of hollow wall | 30 mm, 30 mm |
| Total Mounting depth | 45 mm |
| Ø | 84 mm |
| Mounting hole | 68 mm |
| Form | round |
| Design and Material | |
|---|---|
| stainless | stainless alu |
| Colour | Brushed iron |
| Material | Aluminium zinc |
| Installation | |
|---|---|
| can be used with the following dimmers | Paulmann SmartHome Zigbee Gent2 501.40 |
| Installation site (recommendation) | Ceiling mounting |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | G |
| Energy consumption | 7 kWh_1000h |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 2700 K |
| Colour change | Color change RGBW, Tunable White |
| Beam angle | 100 ° |
| Usable luminous flux | 400 lm |
| color temp | 2700 - 6500 K |
| colour consistency | SDCM 6 |
| Color rendering index | > 80 Ra |
| Lamp Features | |
|---|---|
| Component parts | 5,2 W |
| Compatible Smart Home technology | Zigbee |
| Swivel range | 50 ° |
| Technique | LED |
| Socket | Coin |
| IP protection | IP23 ceiling mounting |
| Dim | with Smart Home |
| Dimmable | Yes |
| Inclusive lamp | yes |
| Incandescent Equivalent | 35 W |
| Number of component parts | 1x |
| protection class | protection class II |
| Replacable | 2 Lightsource is replaceable without damage the lighting fixture by electrician. |
| Transformer | |
|---|---|
| apparent power | 6.7 VA |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
| Smart Home | |
|---|---|
| Protocol type | Zigbee 3.0 |
| Zigbee certification | Zigbee zertifiziert |
| Radio frequency | 2,4 GHz |
| Radio range (Open field) | 20 m |
