Article-No.:
78401
LumiTiles
LED Tiles
Square 2-piece set
IP44 100x10mm 2x20lm 230/12V 2x0,8W 2700K White Plastic/Aluminium
IP44 100x10mm 2x20lm 230/12V 2x0,8W 2700K White Plastic/Aluminium
- LumiTiles LED tiles produce homogeneous light full of effects
- Area lighting
- Color temperatur: 2700K - Warm white
LumiTiles LED Tiles Square 2-piece set IP44 100x10mm 2x20lm 230/12V 2x0,8W 2700K White Plastic/Aluminium

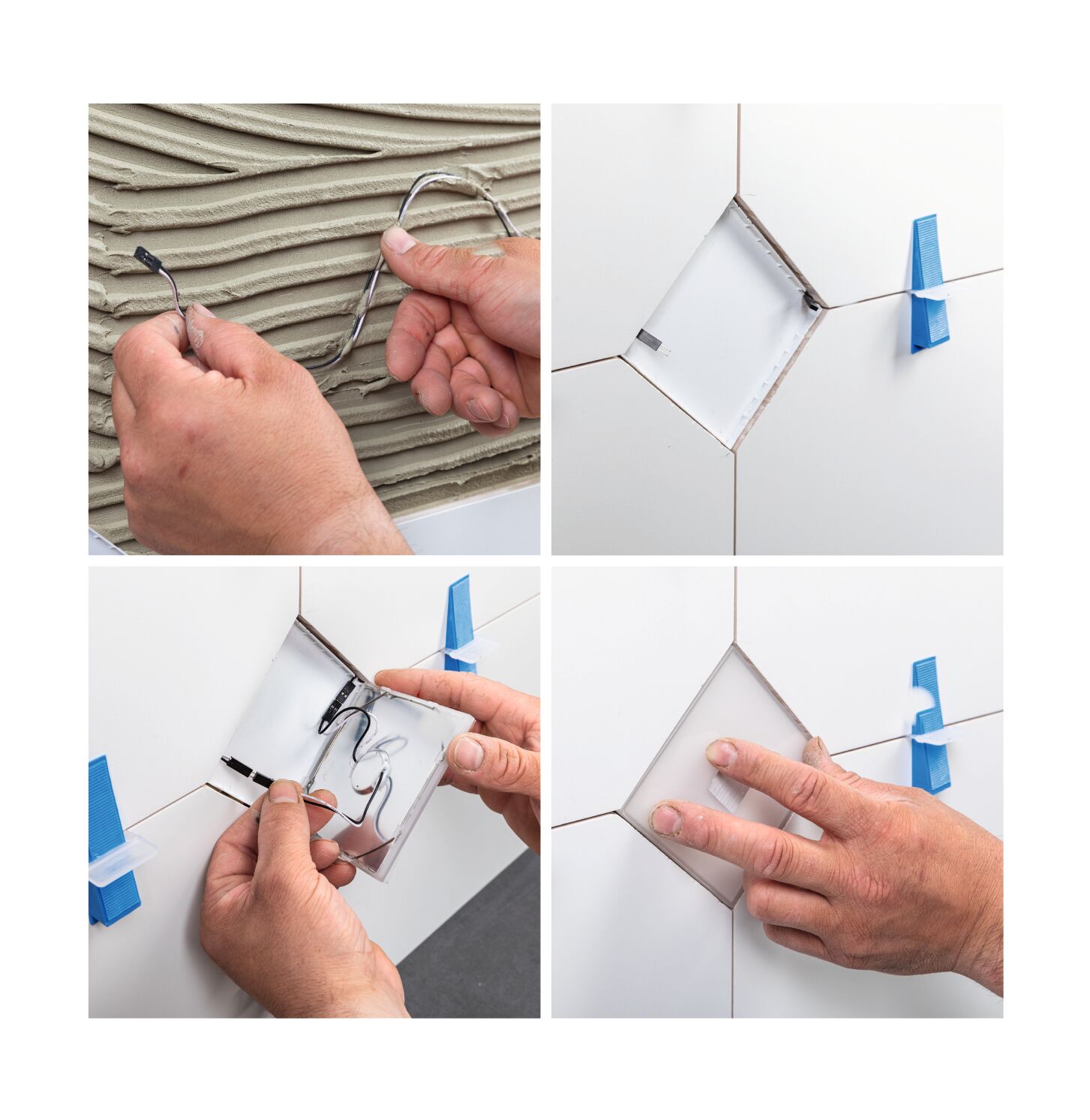

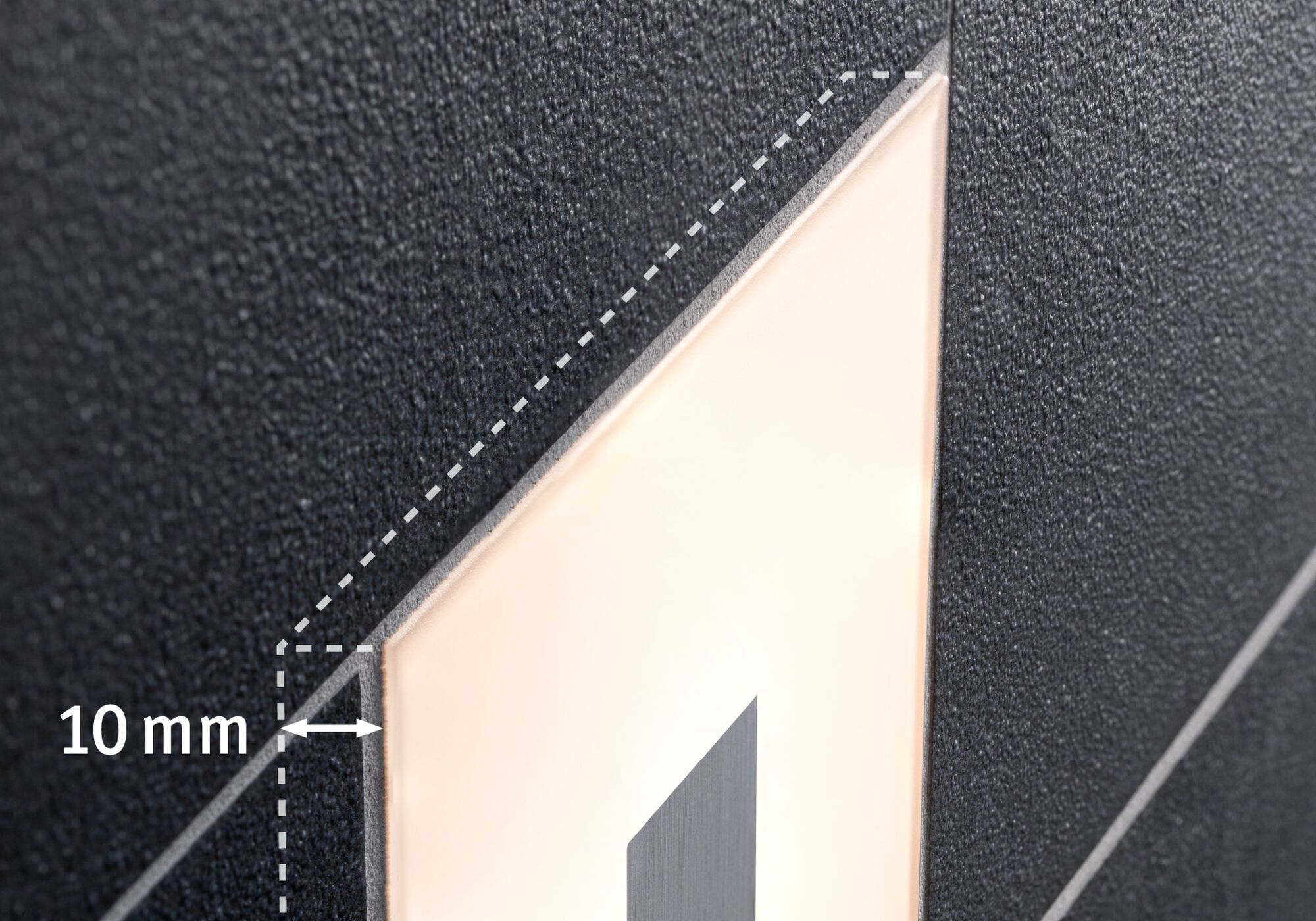

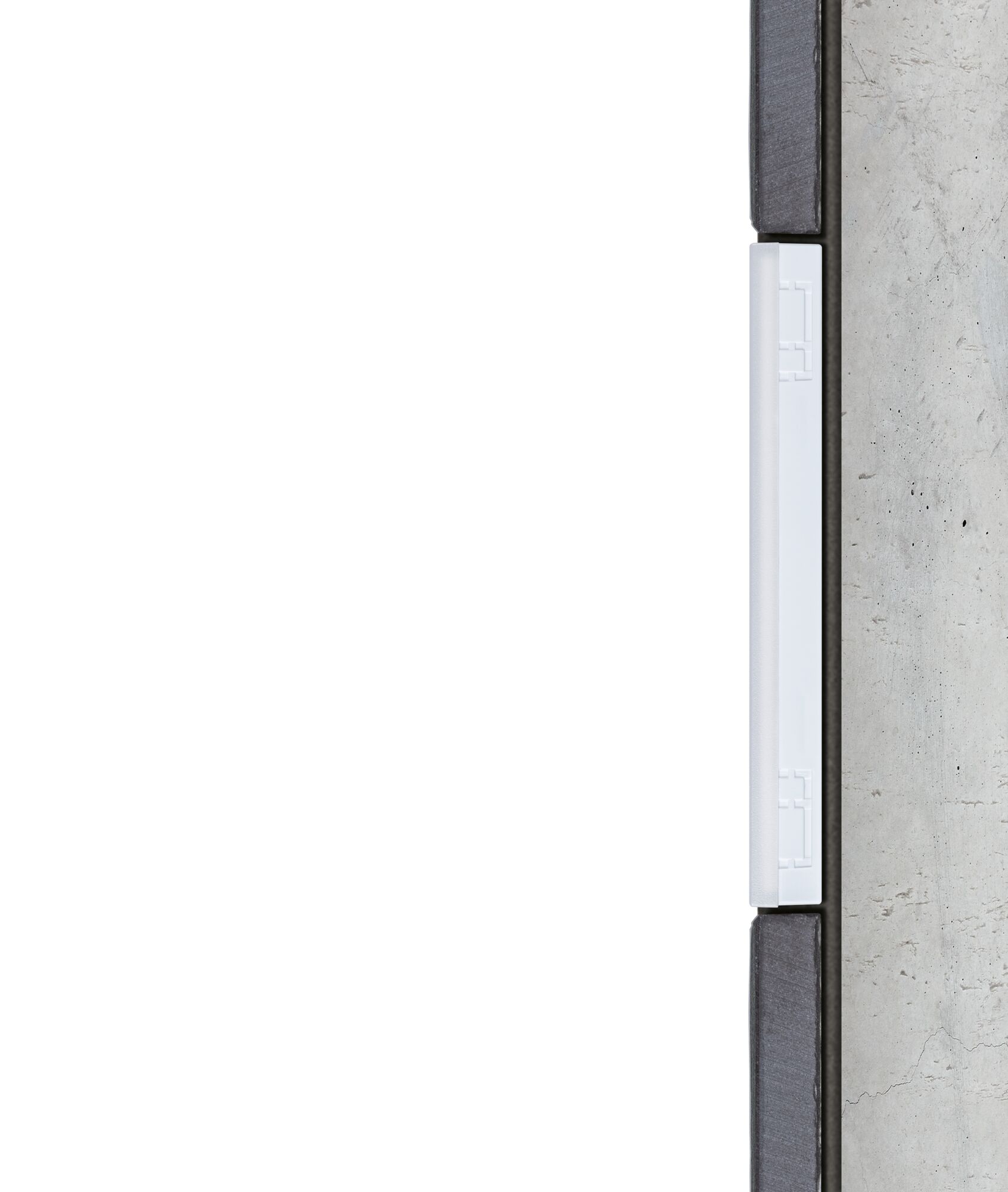

The efficient 100x10mm LumiTiles LED Square tile basic set, with an output of 2x0,8W, consists of two tiles, a connecting cable (length: 60 cm) and a transformer incl. connection. The warm white LED tiles have a minimal installation depth of only 10 mm. This means they fit between standard wall tiles and can be easily controlled via the connection to the light switch. The two light modules can be freely arranged within the tile pattern and connected very simply using the Plug & Play connector system. The modules can be connected by cables with 65, 105 or 205 cm spacing. Innovative luminous tiles turn your tiling project into a real highlight! The light modules generate decorative, diffuse accent lighting and are permanently integrated in the tile pattern of your bathroom or kitchen. Thanks to its outstanding flexibility, easy installation and extra-long service life, the Paulmann LumiTiles system is suitable for every project.
- LumiTiles LED tiles produce homogeneous light full of effects
- Area lighting
- Color temperatur: 2700K - Warm white
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 100 x B: 100 x T: 10 mm |
| Design and Material | |
|---|---|
| Colour | White |
| Material | Plastic, Aluminium |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | G |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 2700 K |
| Usable luminous flux | 20 lm |
| Luminous flux LED module | 70 lm |
| color temp | 2700 K |
| Lamp Features | |
|---|---|
| Component parts | 0,8 W |
| Technique | LED |
| IP protection | IP44 |
| Inclusive lamp | yes |
| Total Width | 100 mm |
| Number of component parts | 2x |
| protection class | protection class II |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|5 Control gear is replaceable without damage the lighting fixture by electrician. |
| Power consumption | 2,2 W |
| Transformer | |
|---|---|
| Transformer power | 12 VA |
| apparent power | 5.3 VA |
| Transformer height | 23 mm |
| Transformer width | 38 mm |
| Transformer depth | 80 mm |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
