Article-No.:
70627
MaxLED 500
LED Strip
Basic set 1,5m RGBW
coated 18W 500lm/m RGBW+ 36VA
coated 18W 500lm/m RGBW+ 36VA
£85.95*
Prices incl. Standard rate VAT
Ready to ship, delivery within 2-3 working days

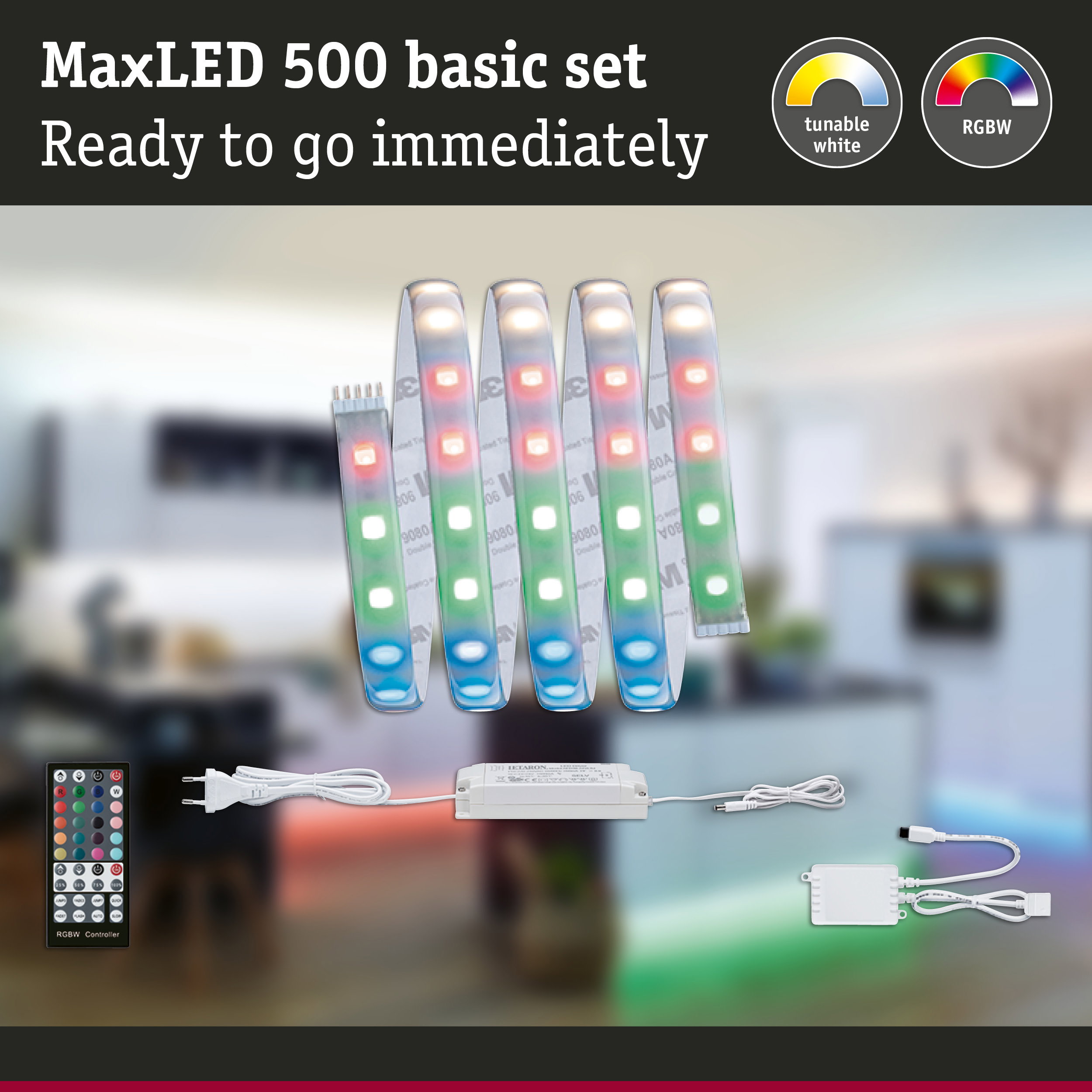

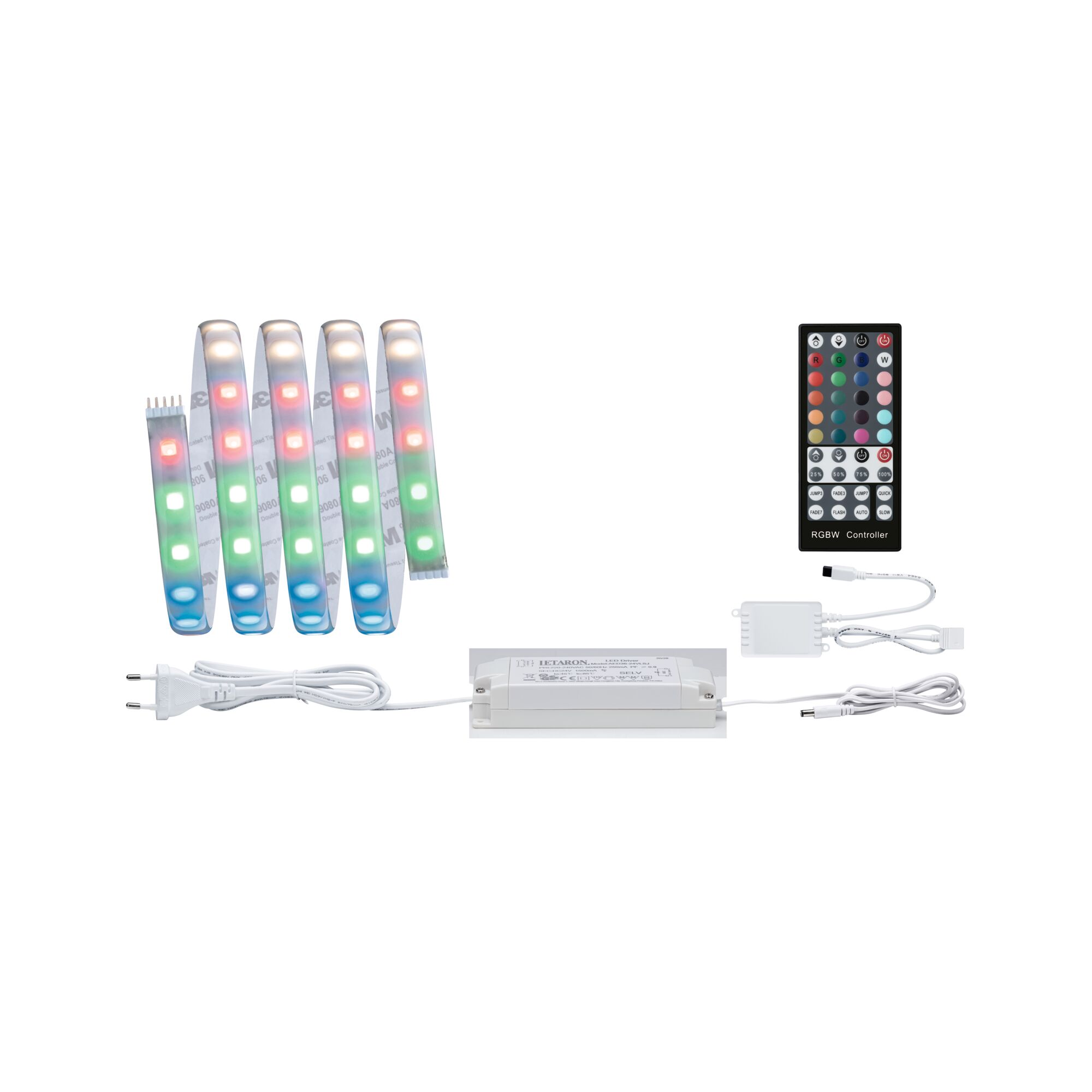

- Complete set incl. strip, power supply and remote control
- Coating protects against splashing water and dust
- In conjunction with a shrink-on sleeve, can also be used in wet rooms

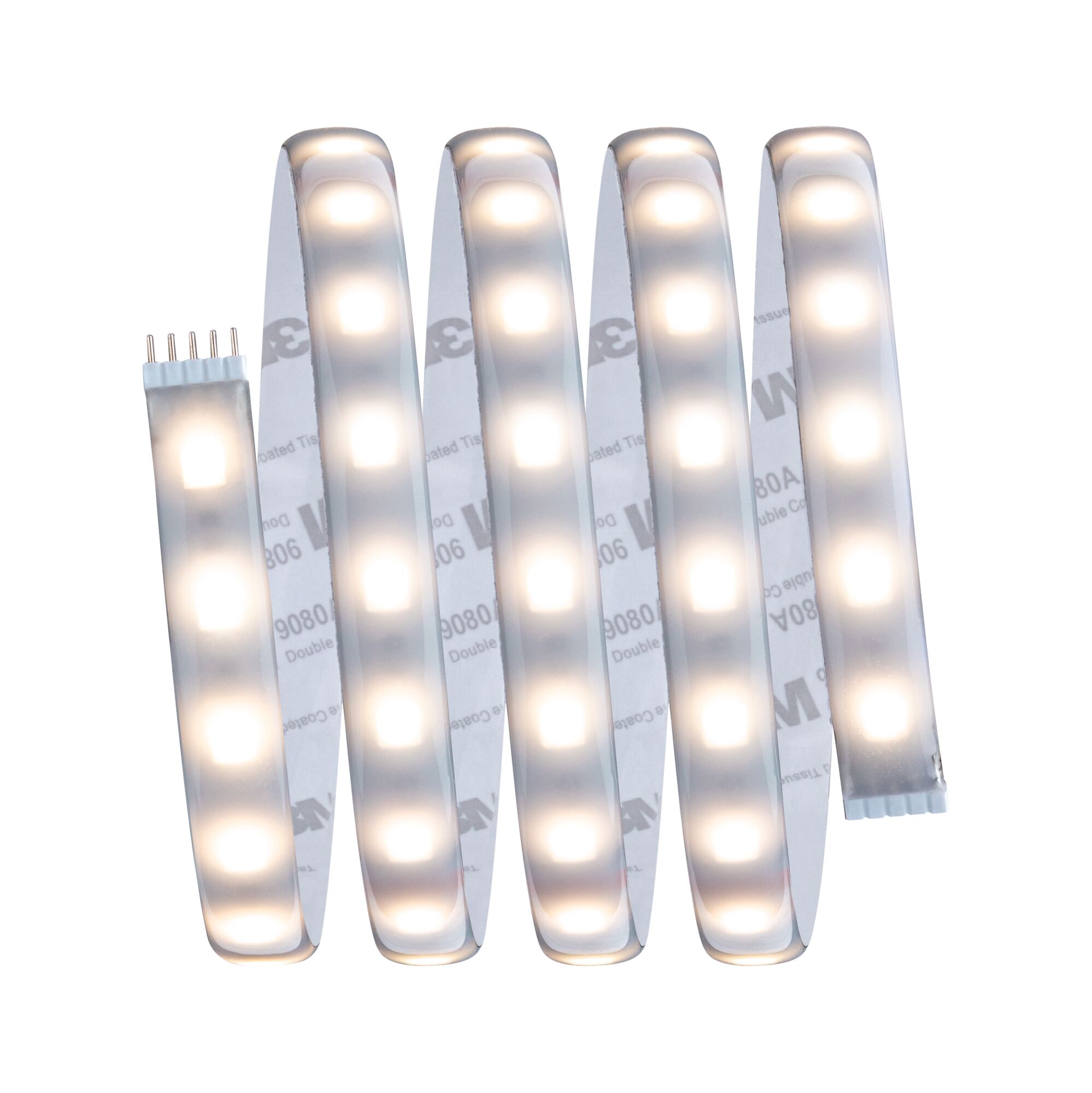

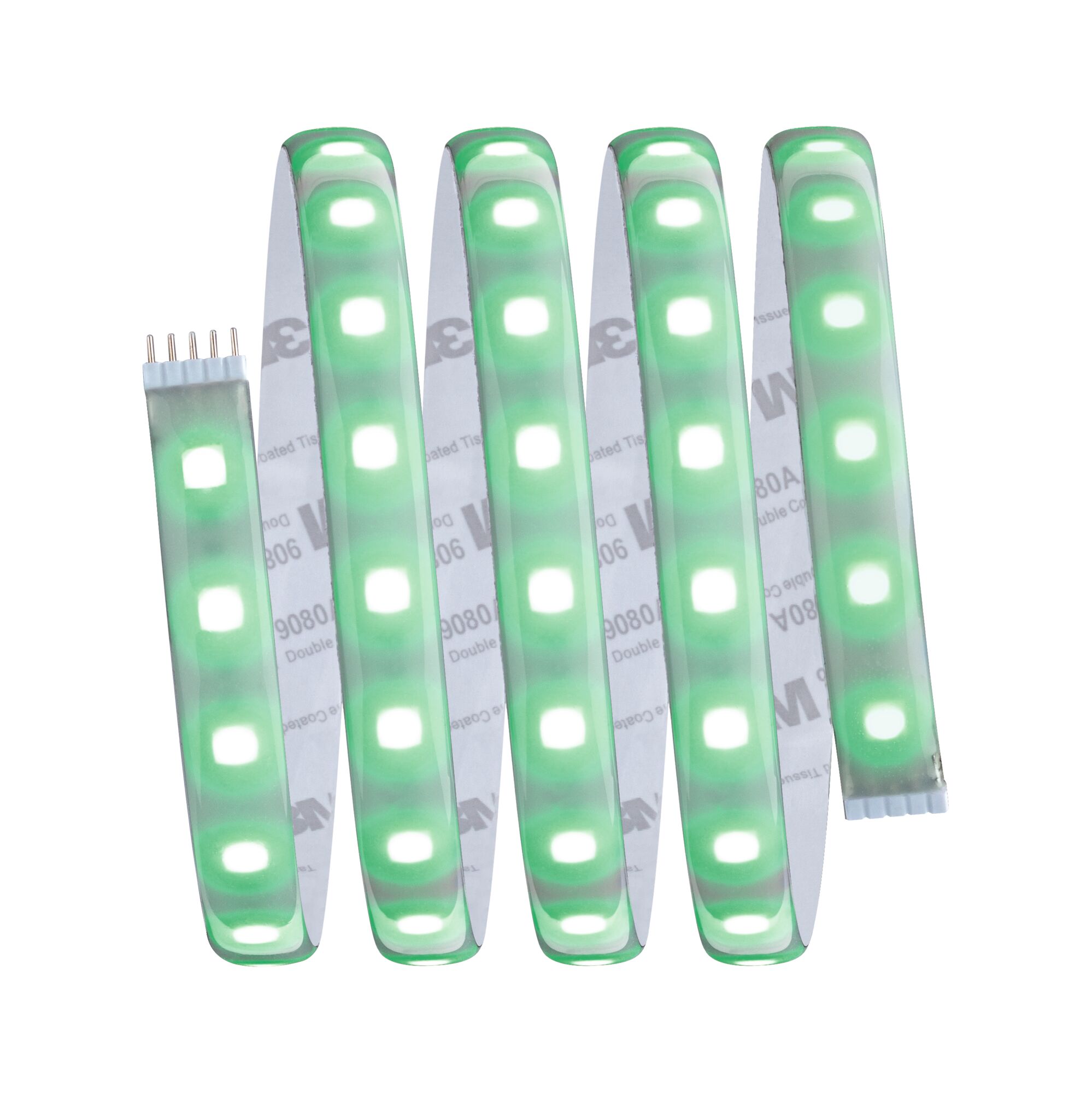

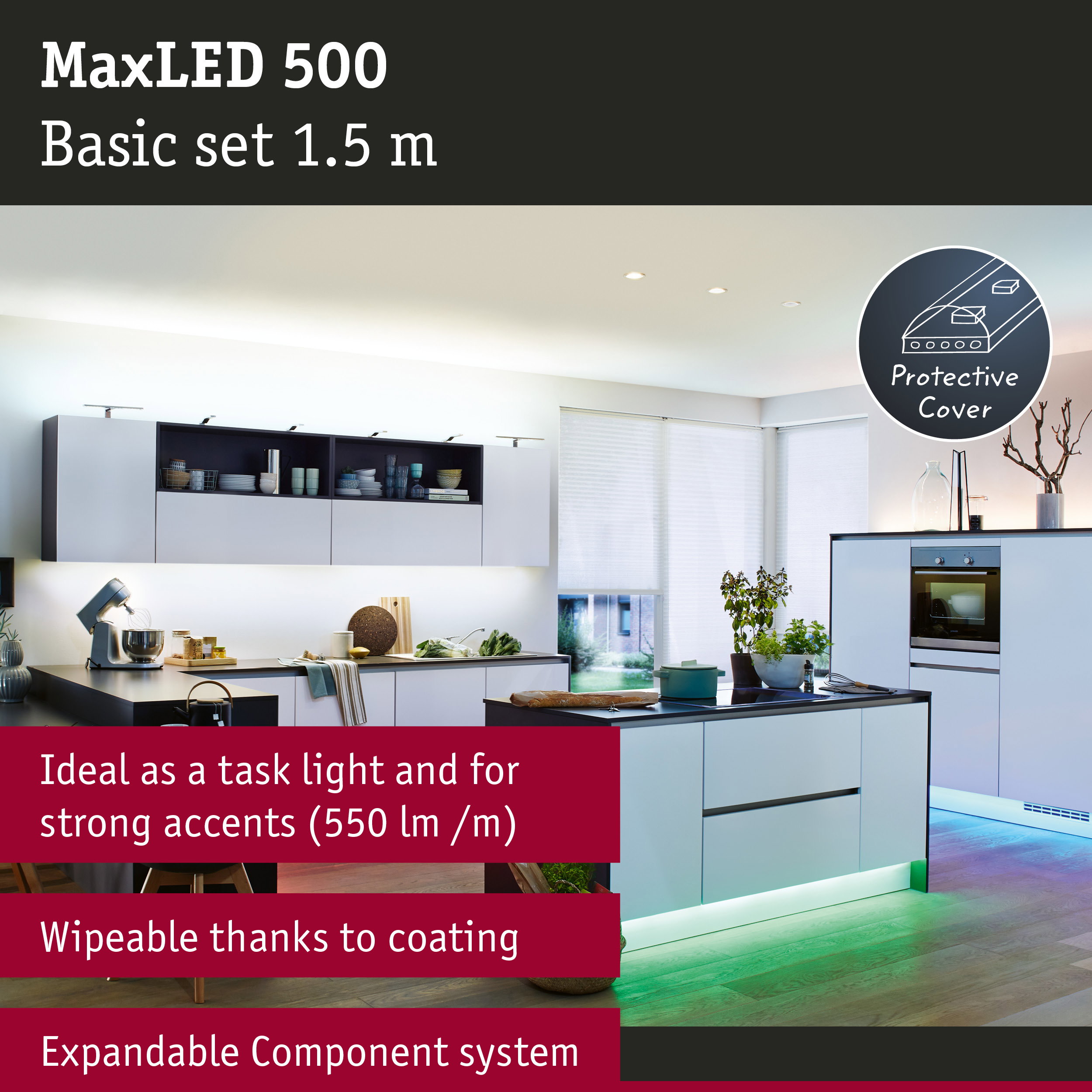

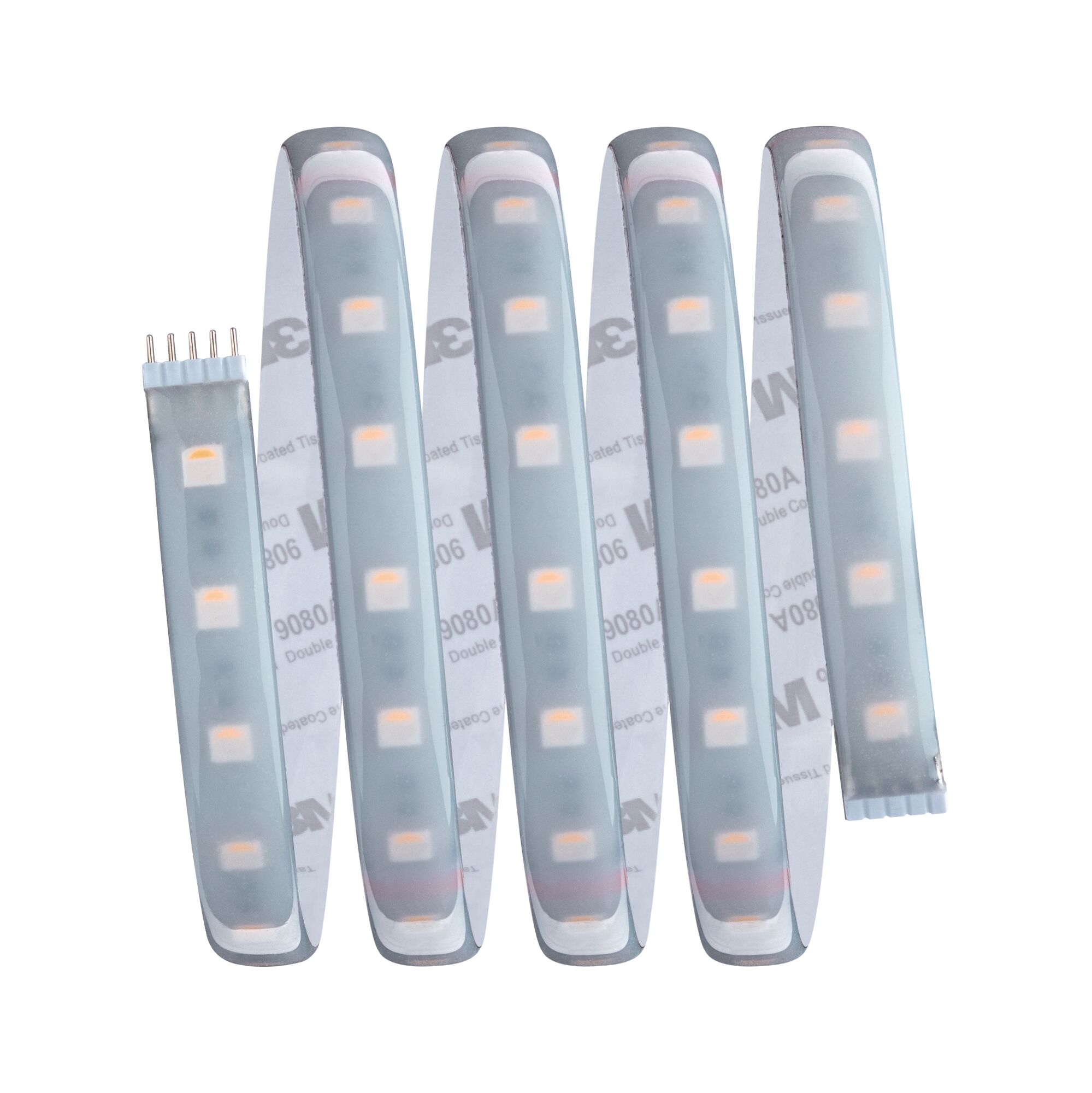

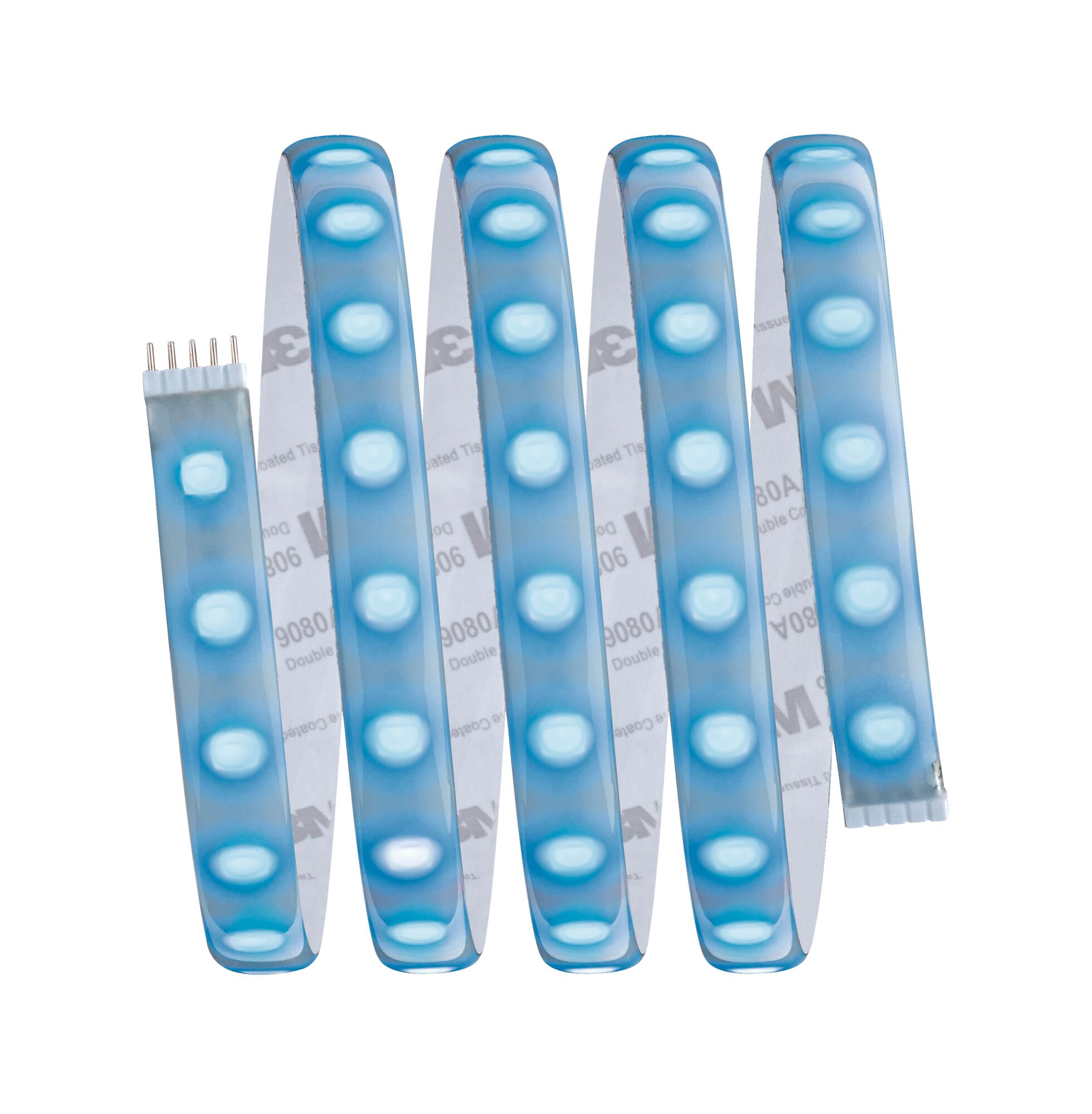

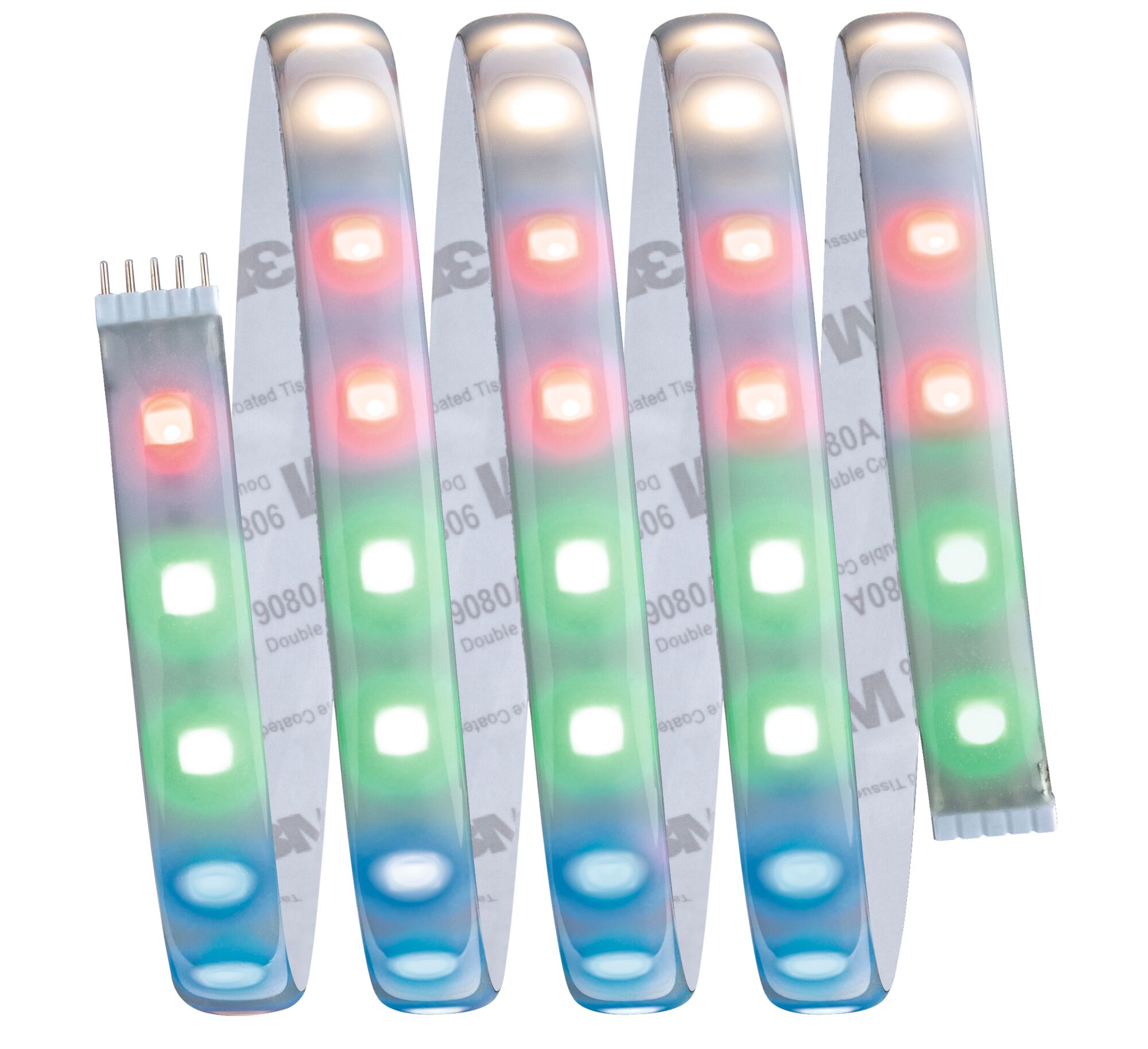

MaxLED 500 LED Strip Basic set 1,5m RGBW coated 18W 500lm/m RGBW+ 36VA

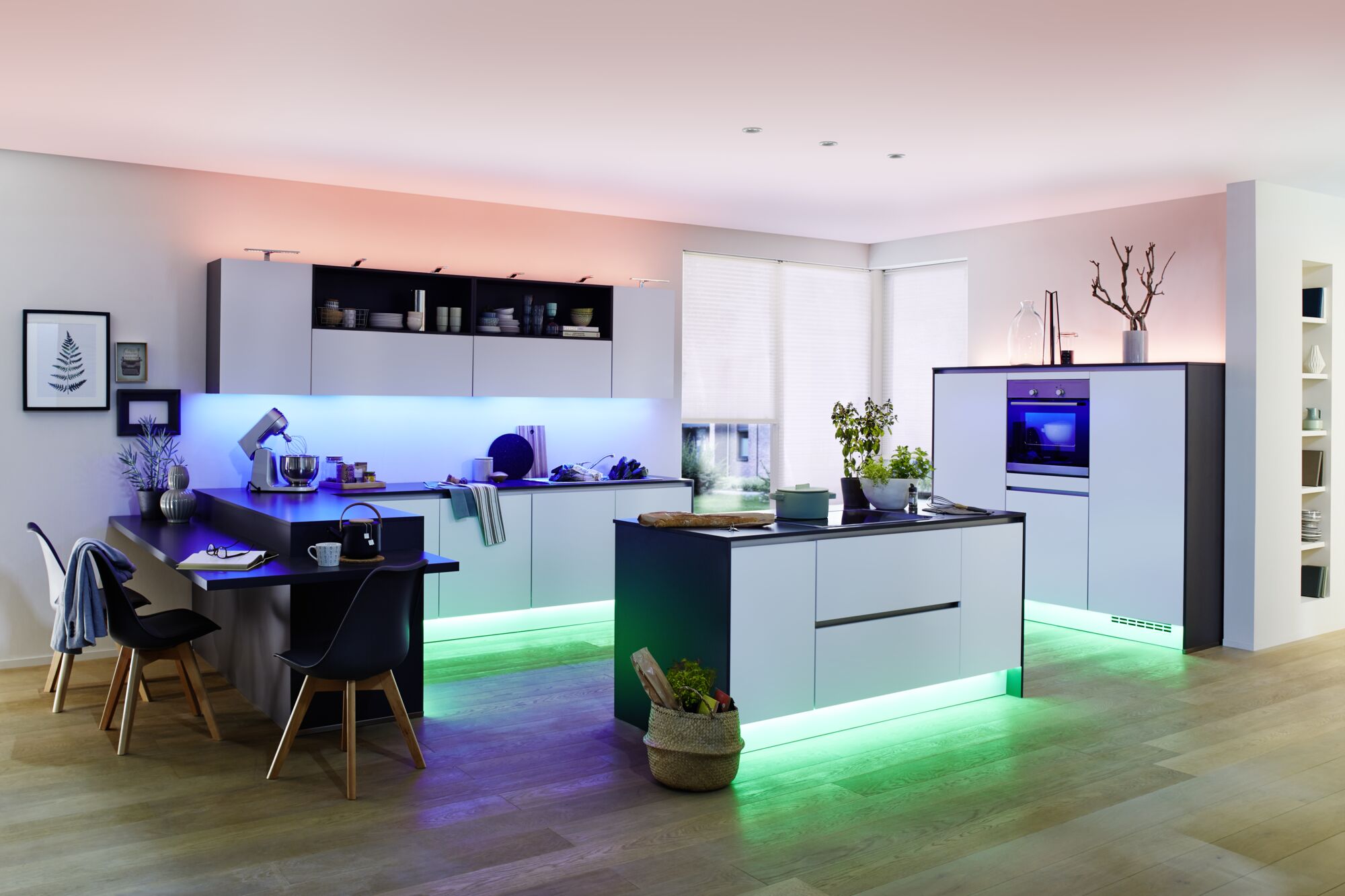

MaxLED strips are so powerful that they can easily be used as room lighting. They are real highlights especially in profiles. Thanks to the atmospheric colour change function they create an individual living ambience – where anything is possible, ranging from uni-coloured continuous lighting to multi-coloured light effects. A diode in white (W) additionally provides for a warm white light. As a result there is no need to mix white shade from the red, green and blue (RGB) colours. In addition to the strip, the basic set contains a suitable ballast and a control unit with remote control. Where required, it can be extended with additional strips, connectors and control units with remote control. When planning, please keep in mind the maximum length specified for the basic set, which must not be exceeded.
- Complete set incl. strip, power supply and remote control
- Coating protects against splashing water and dust
- In conjunction with a shrink-on sleeve, can also be used in wet rooms

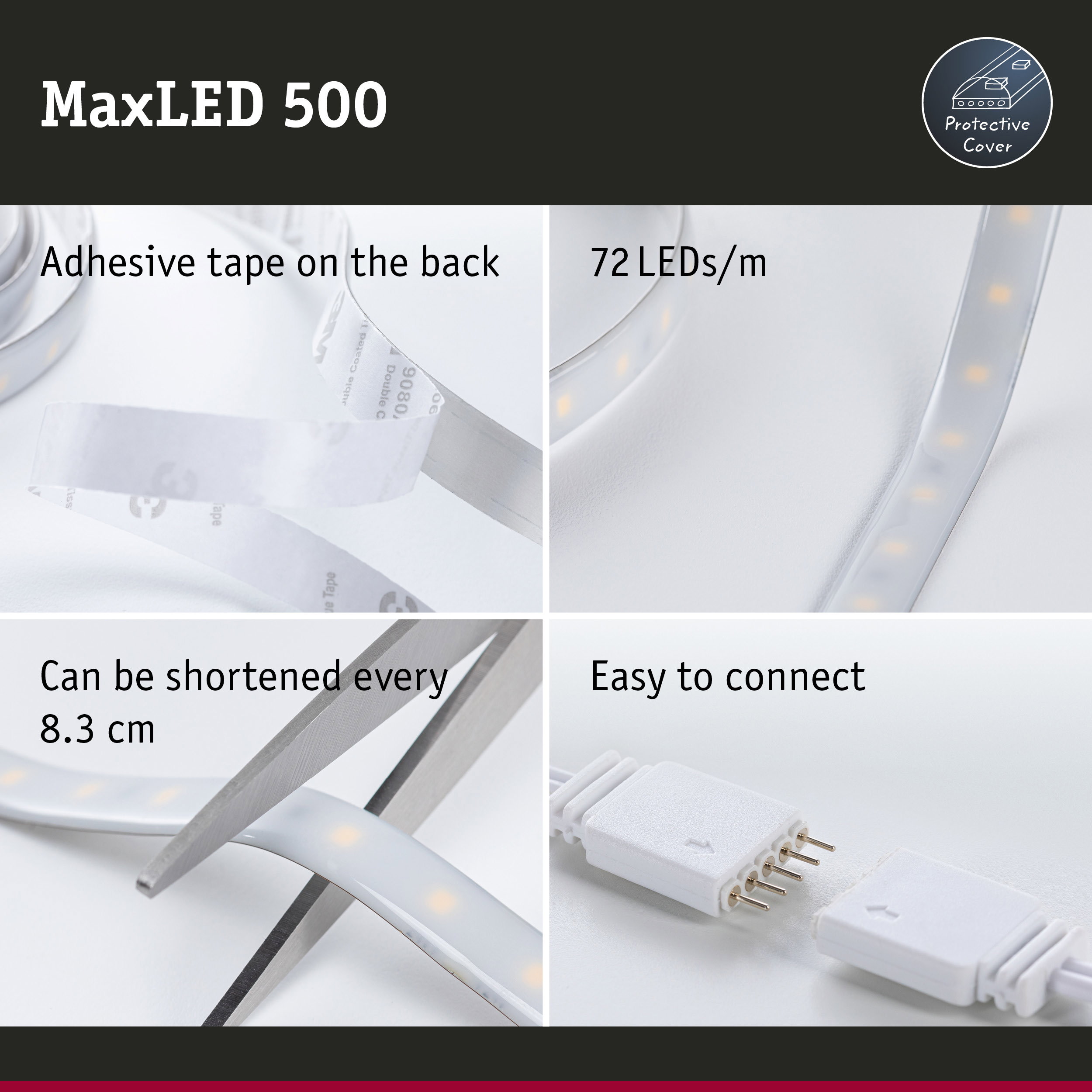

- Can be shortened as required
- Rear self-adhesive for simple installation
- Flexible material for installation on flat or arched base surfaces

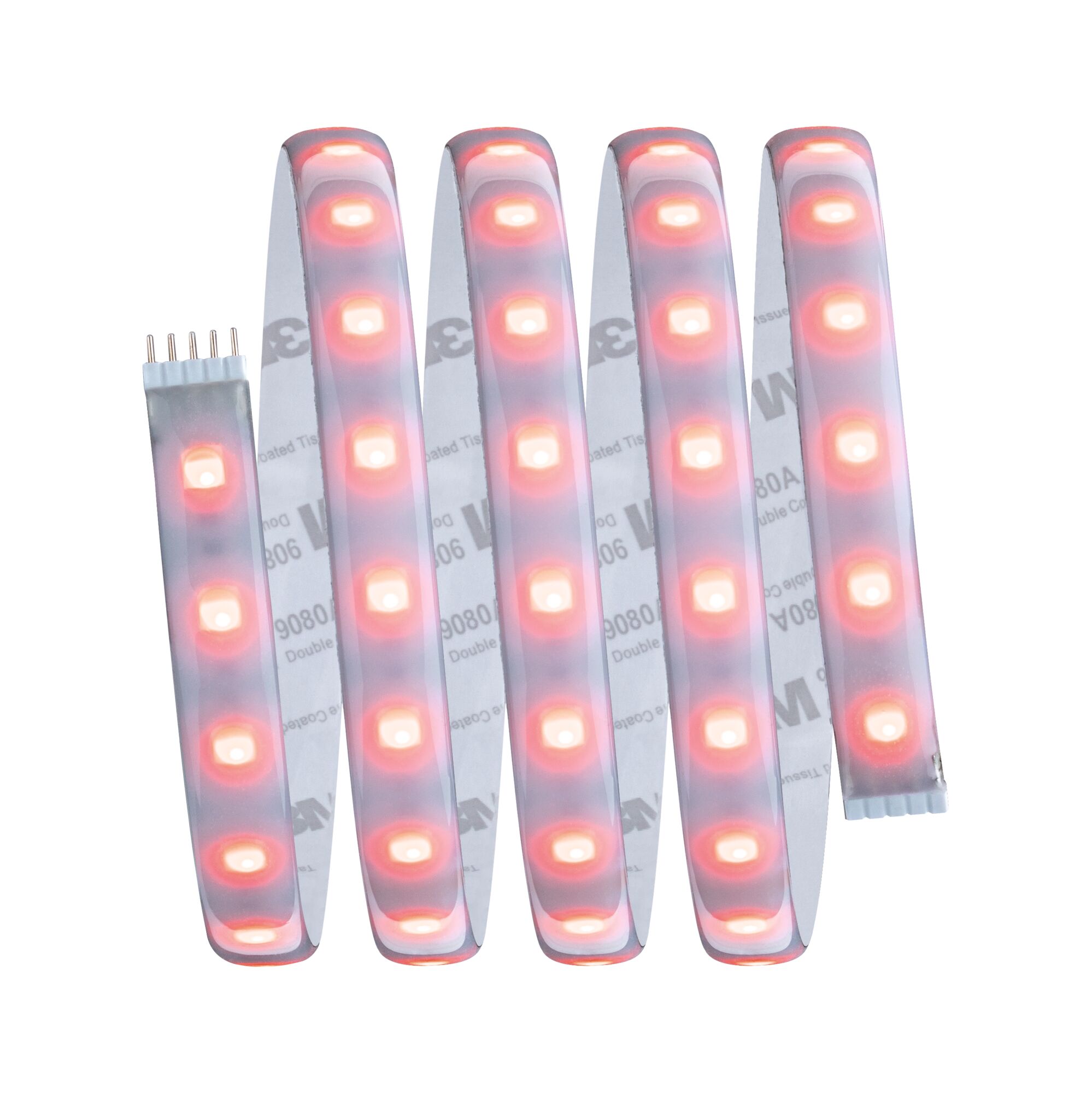

- RGB colour change
- Color temperatur: 3000K - Warm white
- Energy-saving LED technology conserves up to 80% energy in comparison to conventional filament lamps
- Incl. 5-pin plug for easy connection of the strips
- Simple plug-in system for easy installation
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 3 x T: 12,5 mm |
| Length | 1,5 m |
| Shortenability Strips | 100 mm |
| net weight | 441 g |
| Design and Material | |
|---|---|
| Colour | Silver |
| Material | Plastic |
| Installation | |
|---|---|
| Installation site (recommendation) | Universal |
| Length max. | 3 m |
| Connections | |
|---|---|
| Plug-and-socket connector | Plug-and-socket connector |
| Plug | Euro flat plug (type C-CEE 7/16) |
| Energy consumption | |
|---|---|
| Energy efficiency (spectrum A-G) (LED Module) | G |
| Features | |
|---|---|
| Blinking | Blinking |
| Flashlight function | Flashlight function |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Nominal luminous flux | 660 lm |
| Colour change | coloured light with Tunable White function (RGBW), Tunable White |
| Color rendering index | > 80 Ra |
| Beam angle | 120 ° |
| Lumens per metre | 500 lm/m |
| Colour temperature | Warm white, 3000 K |
| Luminous flux LED module | 750 lm |
| Lamp Features | |
|---|---|
| Dimming Control | with remote control |
| Inclusive lamp | yes |
| Component parts | 18 W |
| light source property | Light source integrated (non-replacable) |
| Incandescent Equivalent | 57 W |
| Technique | LED |
| Adjustability | fixed |
| Dimmable | Yes |
| IP protection | IP44 |
| Protection class | Protection class II |
| Number of component parts | 1x |
| Number of LED's per meter | 60 |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|4 Control gear is replaceable without damage the lighting fixture by enduser. |
| Power consumption | 21 W |
| Voltage | 230/24 V |
| Voltage type | AC / DC |
| Transformer | |
|---|---|
| Transformer power range | 36 VA |
| Transformer height | 27 mm |
| Transformer width | 48 mm |
| Transformer depth | 136 mm |
| Accessories | |
|---|---|
| Radio control included | yes |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
