Article-No.:
70581
MaxLED 500
LED Strip
Warm white Individual Strip
1m 6W 550lm/m 72 LEDs/m 2700K
1m 6W 550lm/m 72 LEDs/m 2700K
- Individual strips
- To extend the MaxLED basic set
- Can be shortened as required
MaxLED 500 LED Strip Warm white Individual Strip 1m 6W 550lm/m 72 LEDs/m 2700K

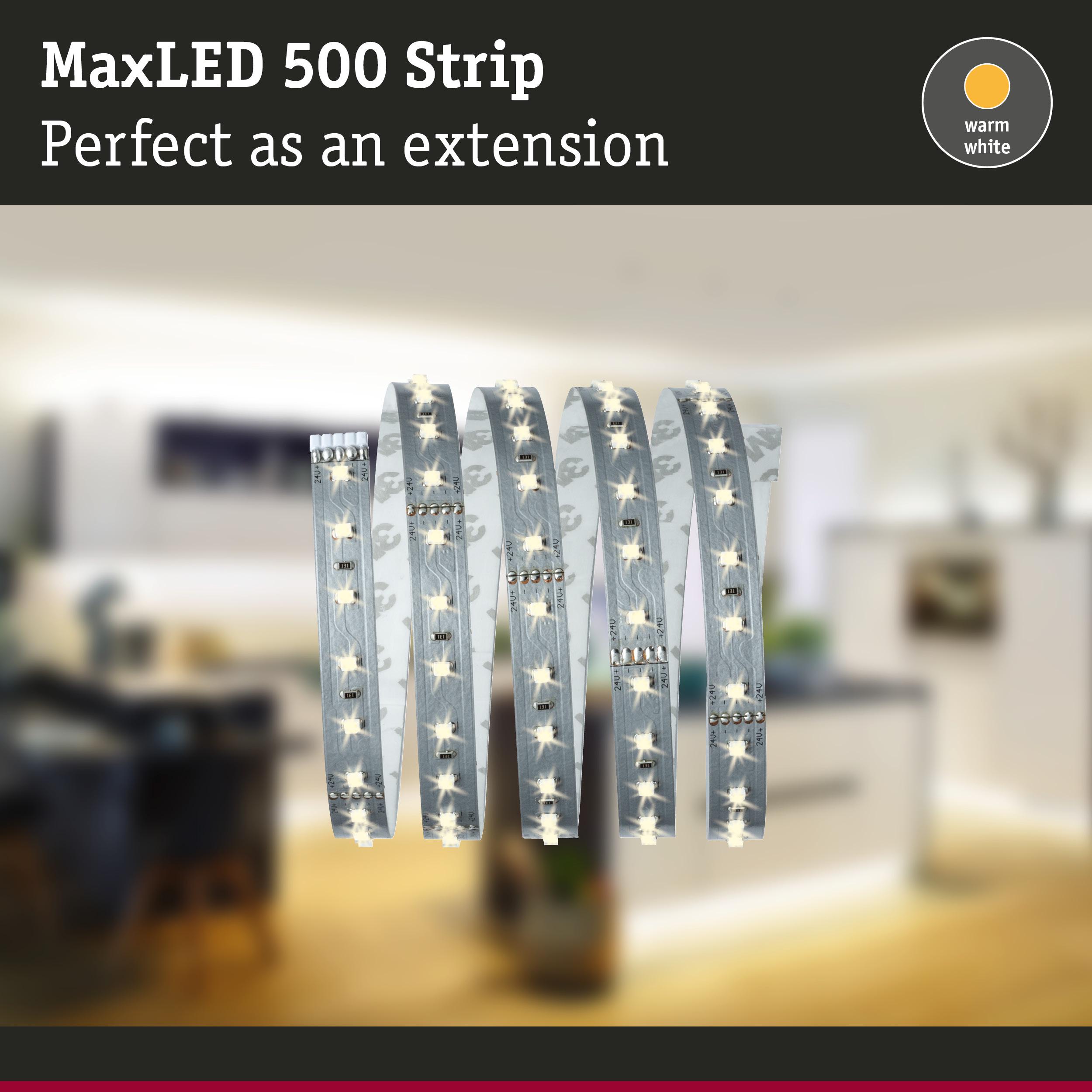

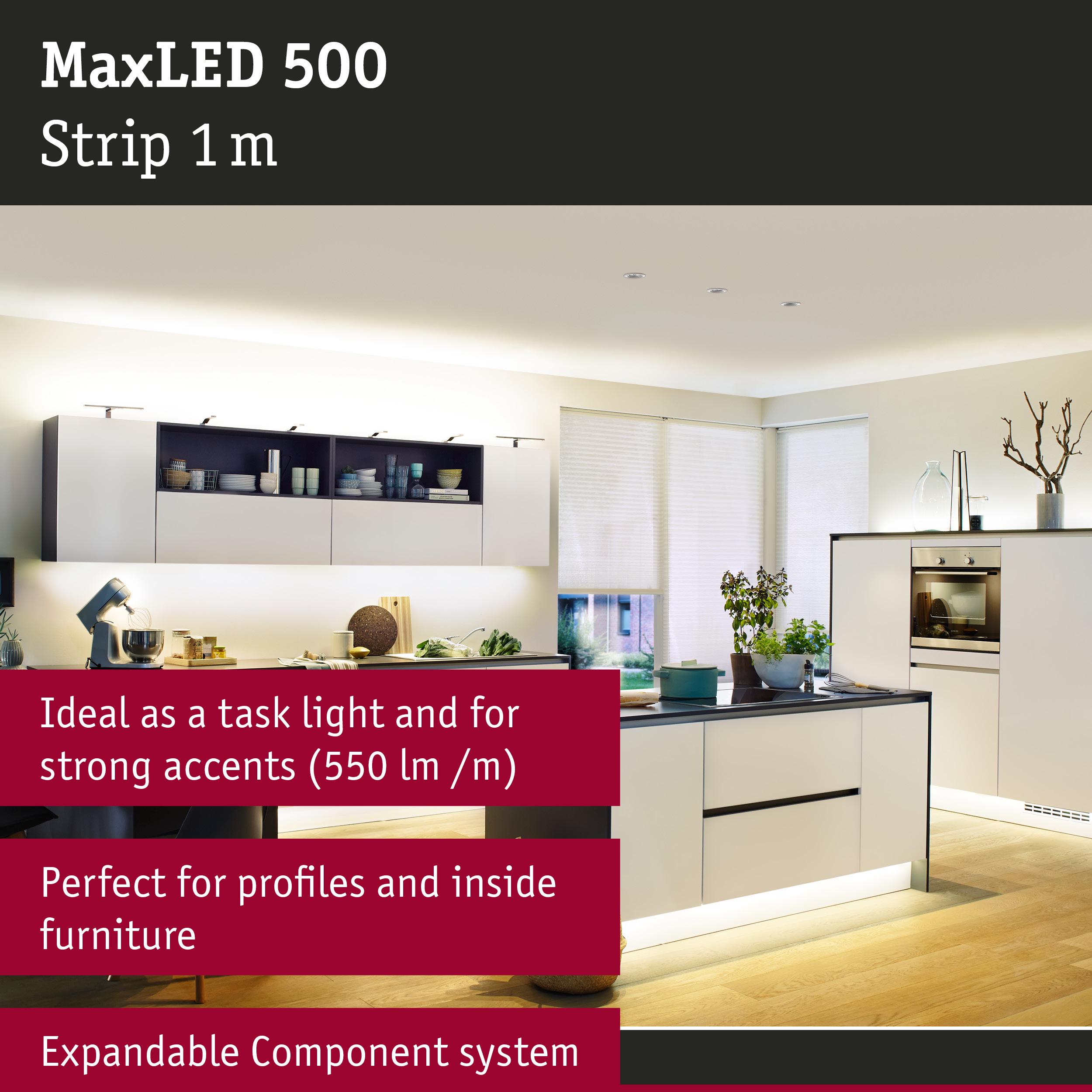

MaxLED strips are so powerful that they can easily be used as room lighting. They are real highlights especially in profiles. Warm white strips provide a cosy and relaxed room and workplace light. Where required, you can extend your basic set using single strips. Please note in your planning the maximum length specified for the basic set, which must not be exceeded.
- Individual strips
- To extend the MaxLED basic set
- Can be shortened as required

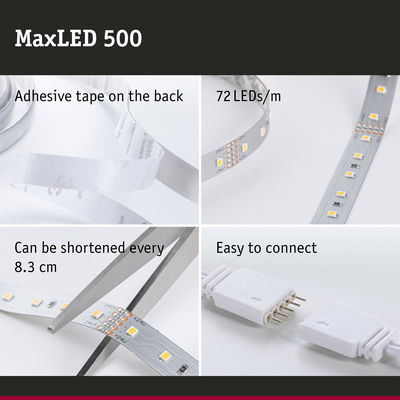

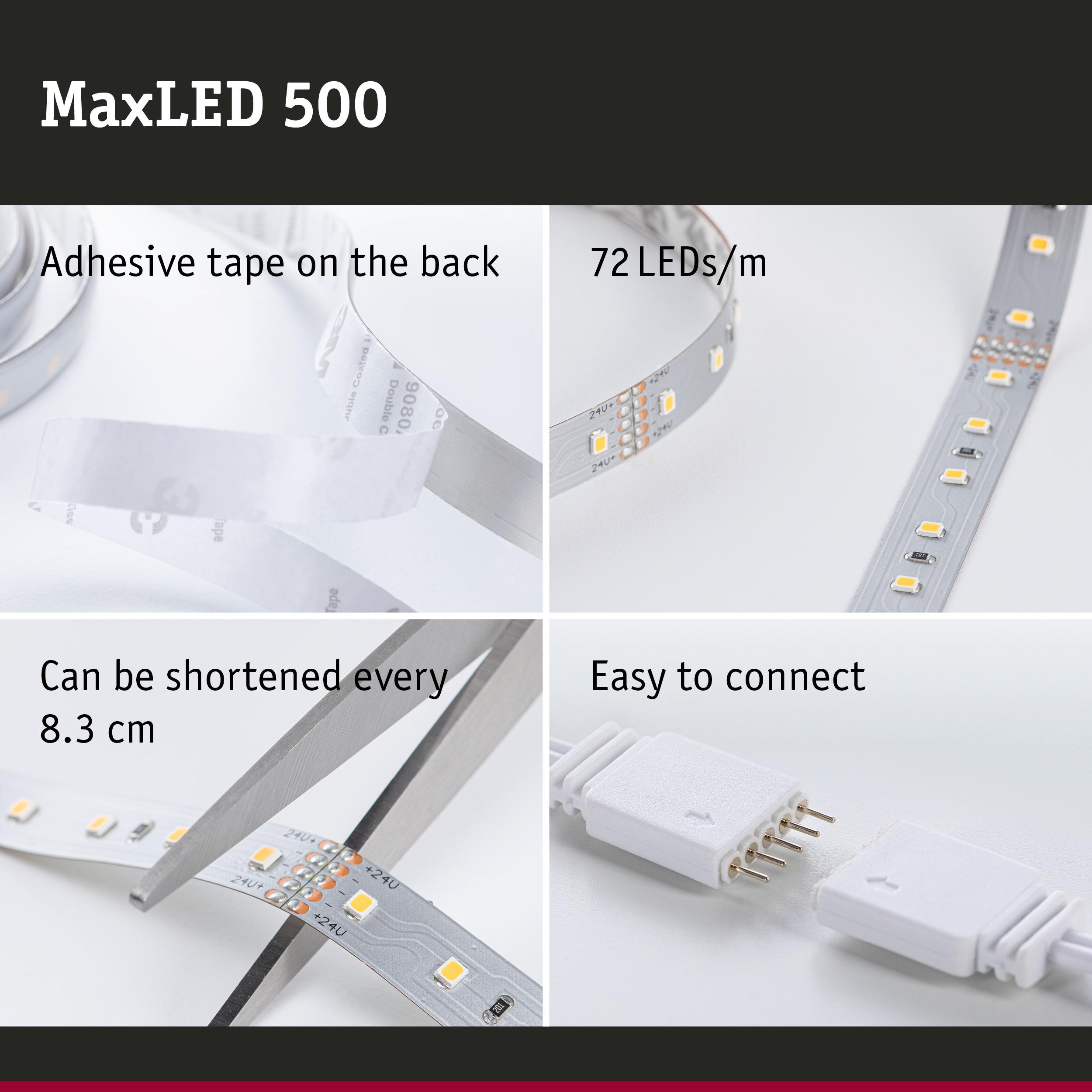

- Simple plug-in system for easy installation
- Rear self-adhesive for simple installation
- Flexible material for installation on flat or arched base surfaces
- Color temperatur: 2700K - Warm white
- Energy-saving LED technology (conserves up to 80% in comparison to conventional light bulbs)
- Dimmable with MaxLED dim/switch controller
- Incl. 5-pin plug for easy connection of the strips
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 3 x B: 12,5 x mm |
| Length | 1 m |
| Design and Material | |
|---|---|
| Colour | Silver |
| Material | Metal |
| Installation | |
|---|---|
| Installation site (recommendation) | Universal |
| Connections | |
|---|---|
| Plug-and-socket connector | Plug-and-socket connector |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | G |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Rated life time | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 2700 K |
| Usable luminous flux | 550 lm |
| Luminous flux LED module | 550 lm |
| color temp | 2700 K |
| Color rendering index | > 80 Ra |
| Rated luminous flux (Lumen) | 550 lm |
| Lamp Features | |
|---|---|
| Component parts | 6 W |
| Technique | LED |
| IP protection | IP20 |
| Dimmable | Yes |
| Inclusive lamp | yes |
| Total Width | 12,5 mm |
| Number of component parts | 1x |
| protection class | protection class III |
| Number of LED's per meter | 72 |
| Replacable | 1 Lightsource is replaceable without damage the lighting fixture by enduser. |
| Power consumption | 6 W |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
