Article-No.:
93921

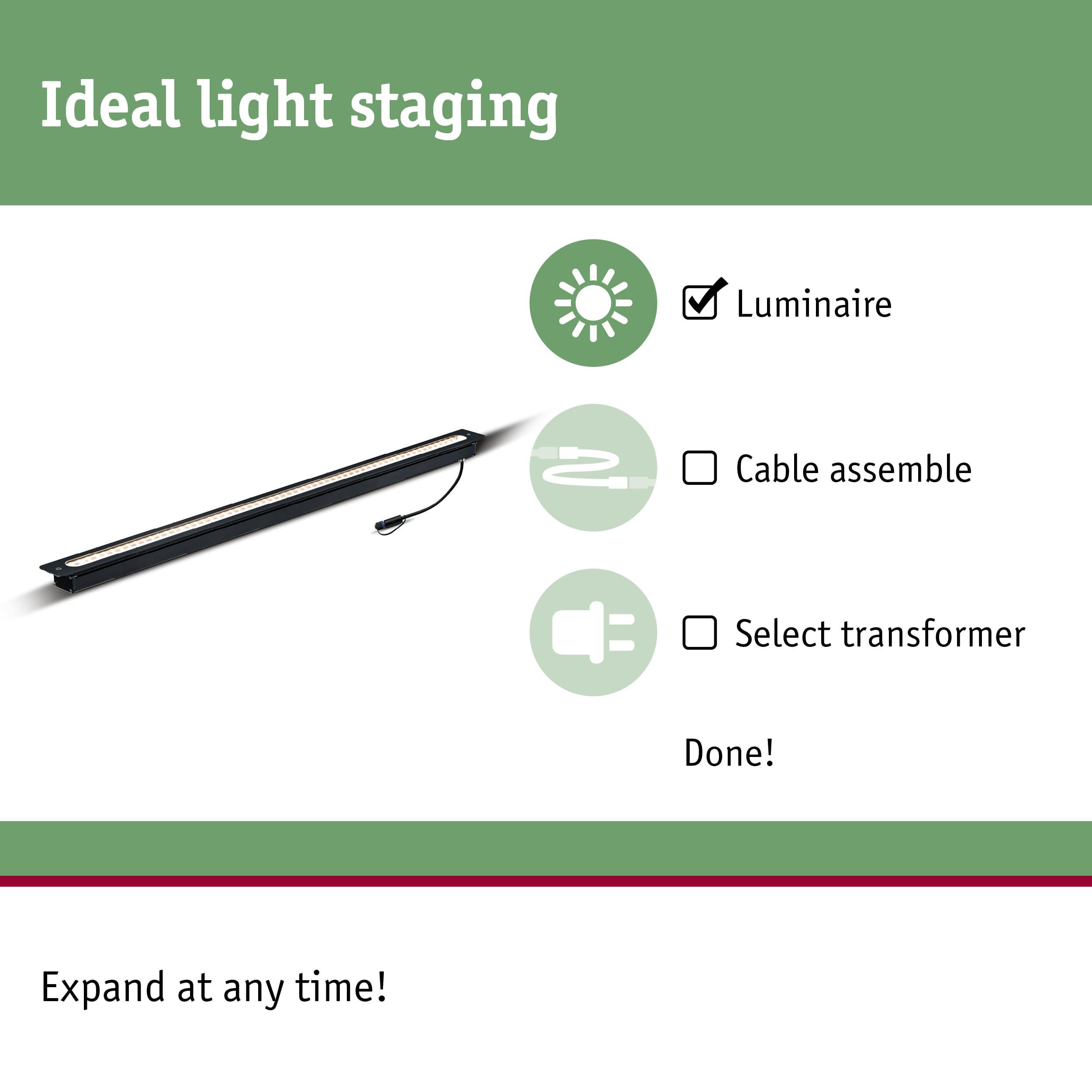

Plug & ShineLED Recessed floor luminaire
Surface-mounted light bar
IP67 3000K 8W Anthracite
IP67 3000K 8W Anthracite
£76.95*
Prices incl. Standard rate VAT
Ready to ship, delivery within 2-3 working days
- IP Protection: IP67 - protected against temporary immersion
- 24 V floor recessed luminaire
- Indirect and area lighting
Plug & Shine LED Recessed floor luminaire Surface-mounted light bar IP67 3000K 8W Anthracite
The Plug & Shine light bar for recessed floor installation provides wide-coverage lighting for hedges, fences and house walls. Weather-resistant pressure-cast aluminium and IP67 immersion protection make the bar a durable companion for outdoor spaces. With transformers, connectors and additional luminaires from the Plug & Shine series, you can compile individual outdoor lighting installations. It can't be walked on or driven over.
- IP Protection: IP67 - protected against temporary immersion
- 24 V floor recessed luminaire
- Indirect and area lighting
- LED lamp (fixed) included in scope of delivery
- Color temperatur: 3000K - Warm white
- Compatible with all accessories in the Plug & Shine series
- Don't forget: Order compatible transformers as well!
- Remember: Order the cable at the same time!
- Can be switched and dimmed via the plug & shine controller (Accessories) using the remote control.
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 45 x B: 900 x T: 54 mm |
| Einbauöffnung__Breite_x_Tiefe | 880 x 45 mm |
| Design and Material | |
|---|---|
| Form | elongated |
| Colour | Anthracite |
| Material | Die cast aluminium |
| Recycled material included | no |
| Installation | |
|---|---|
| Application | For wide-area illumination of hedges, fences and house walls |
| Energy consumption | |
|---|---|
| Energy efficiency (LED Module) | F |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temperature | Warm white, 3000 K |
| Nominal luminous flux | 570 lm |
| Luminous flux LED module | 820 lm |
| Color rendering index | > 80 Ra |
| Beam angle | 95 ° |
| Lamp Features | |
|---|---|
| Dimmable | Yes |
| Dim | with dimmer |
| Inclusive lamp | yes |
| Lamp property | Leuchtmittel fest integriert |
| Incandescent Equivalent | 64 W |
| IP protection | IP67 |
| Protection class | Protection class III |
| Technique | LED |
| Component parts | 8 W |
| Number of component parts | 1x |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced. |
| Power consumption | 7,9 W |
| Adjustability | fixed |
| Voltage | 24 V |
| Voltage type | DC |
| Transformer | |
|---|---|
| apparent power | 8 VA |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
Downloads
Product data, leaflets & safety instructions
Safety instructionsFlyer Plug & Shine 24V Outdoor System
