Article-No.:
92907
Premium

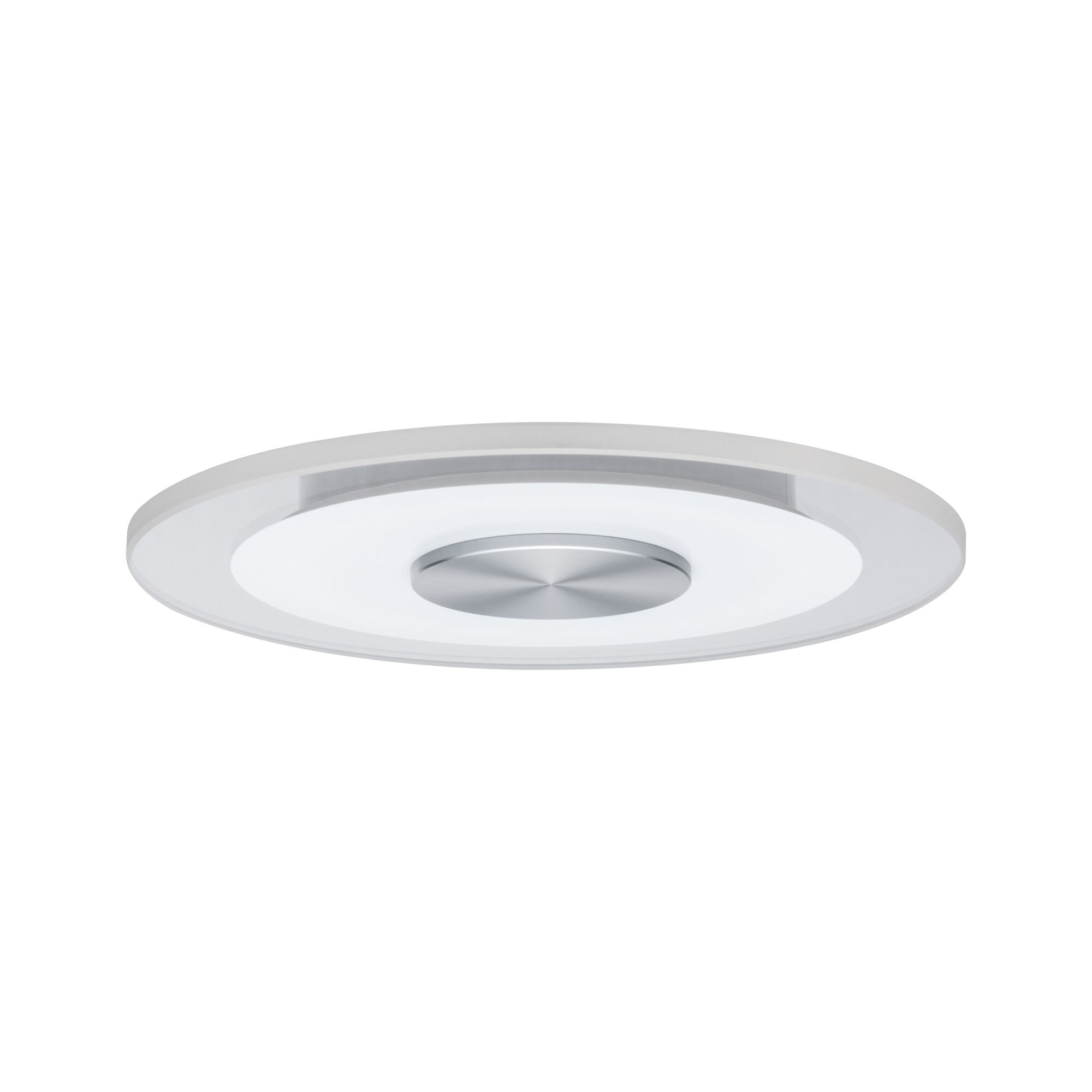

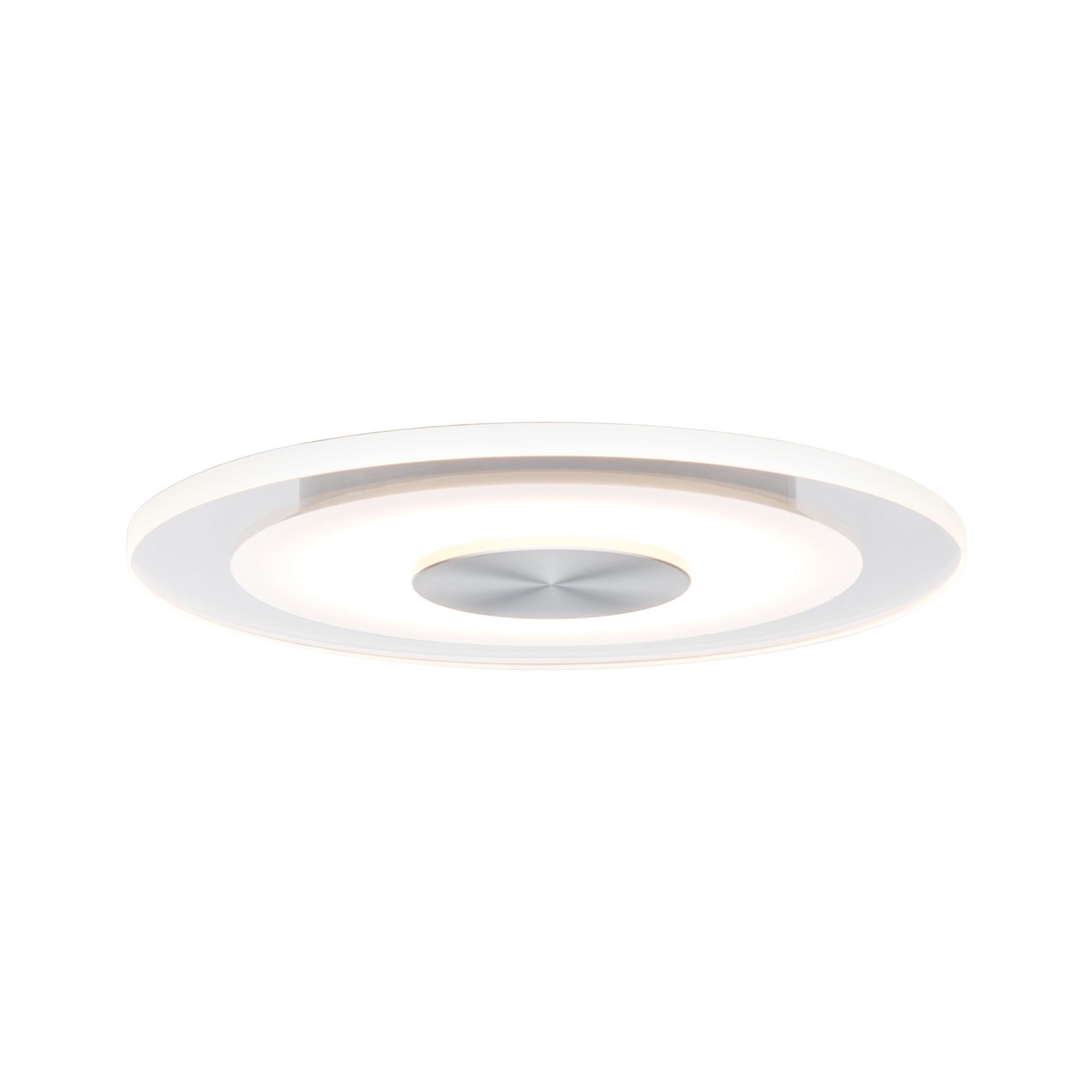

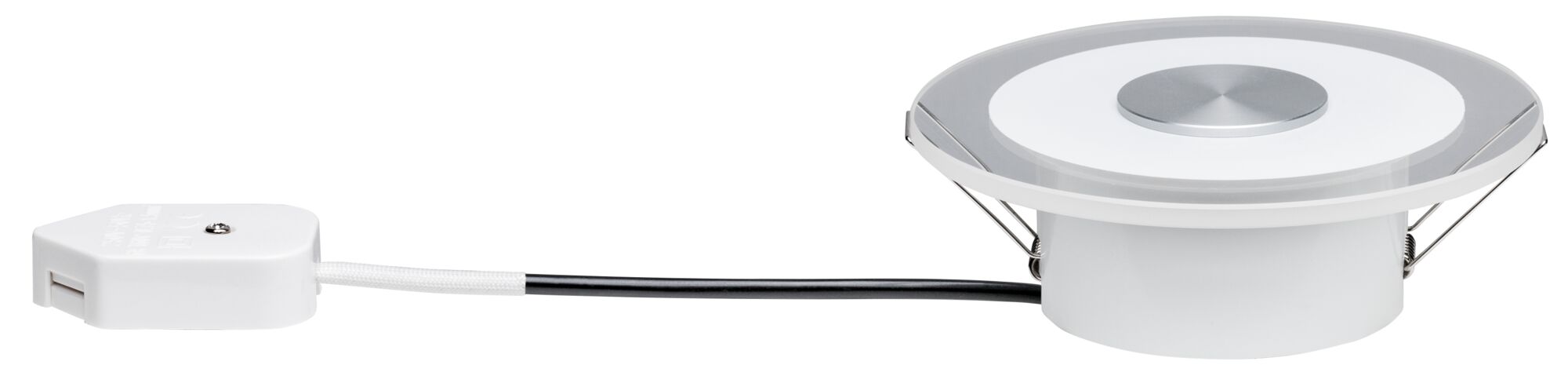

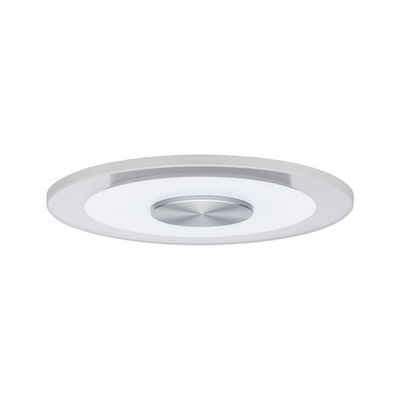

LED Recessed luminaire
Whirl Basic Set
round 120mm 3x4,9W 3x180lm 230V dimmable 3000K Turned aluminium/Satin
round 120mm 3x4,9W 3x180lm 230V dimmable 3000K Turned aluminium/Satin

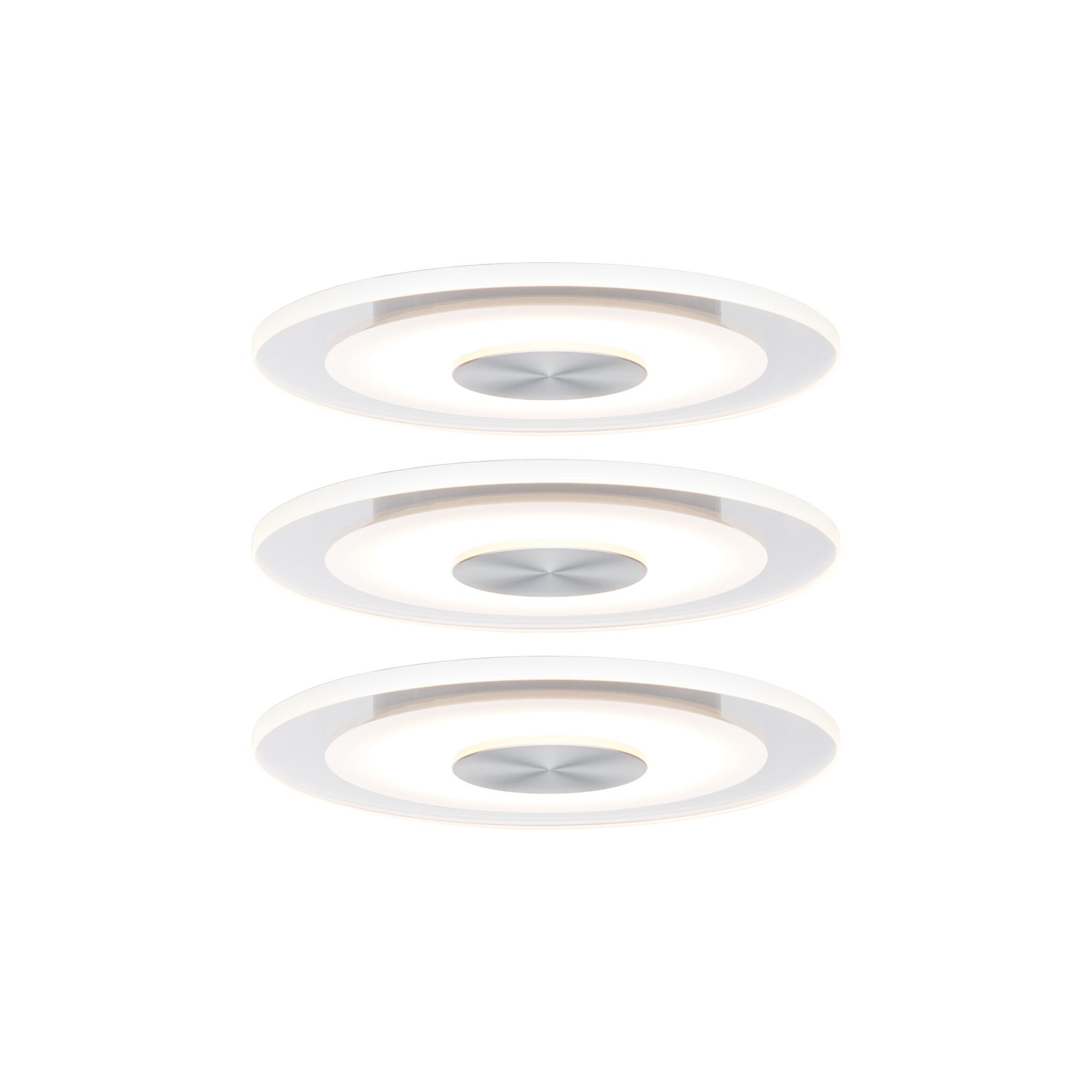

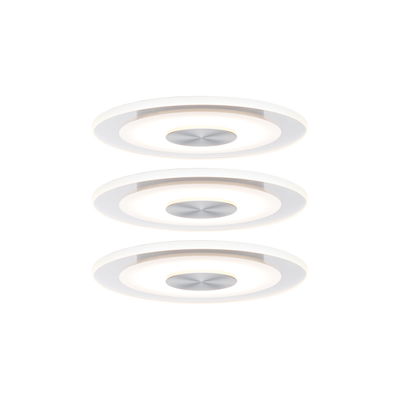

- Set of 3 luminaires
- Efficient LED technology
- LED lamp (fixed) included in scope of delivery
Premium LED Recessed luminaire Whirl Basic Set round 120mm 3x4,9W 3x180lm 230V dimmable 3000K Turned aluminium/Satin

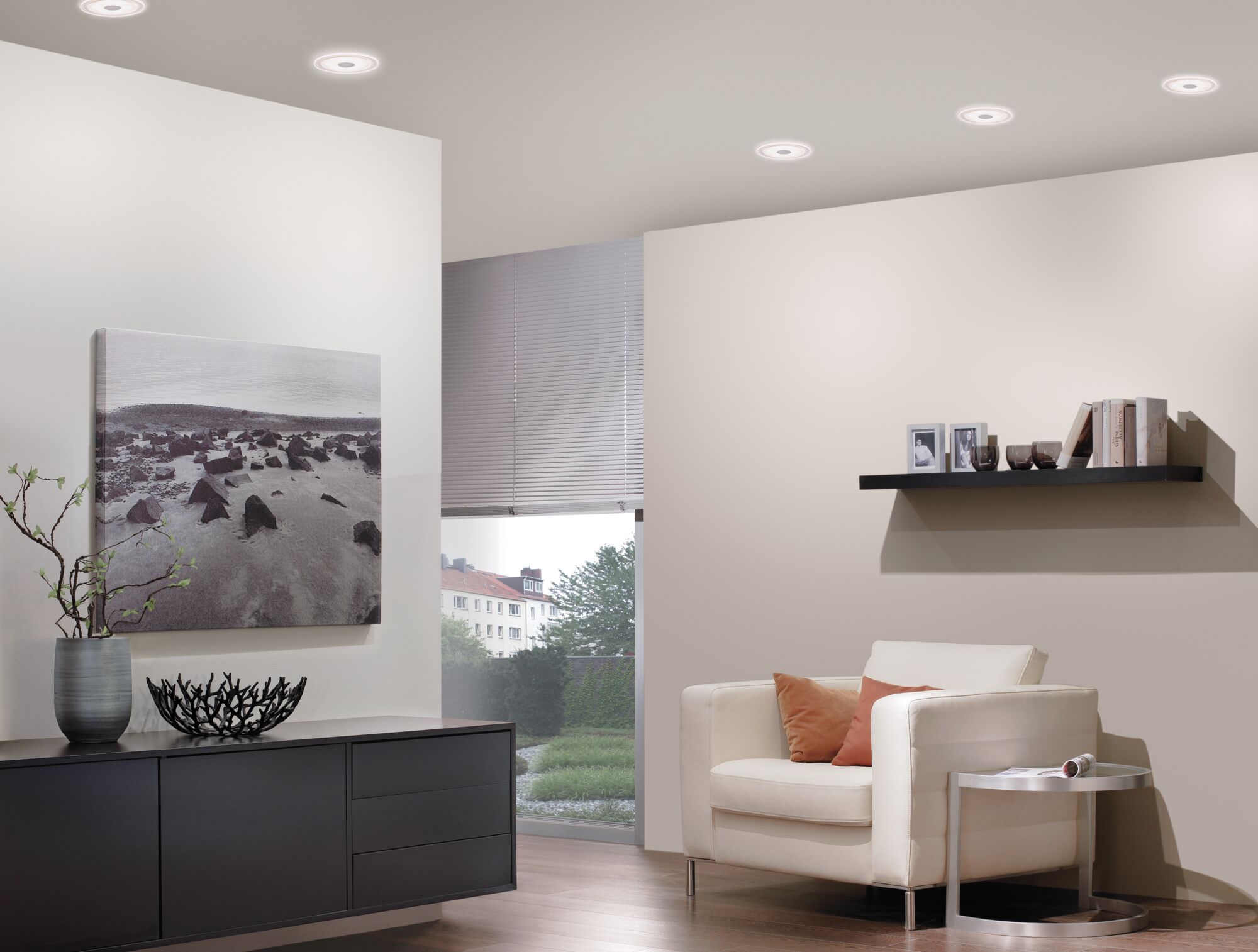

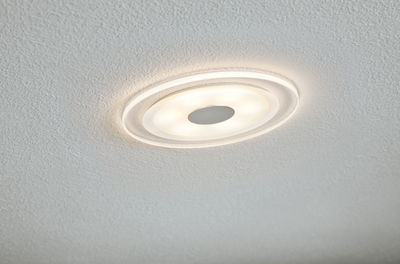

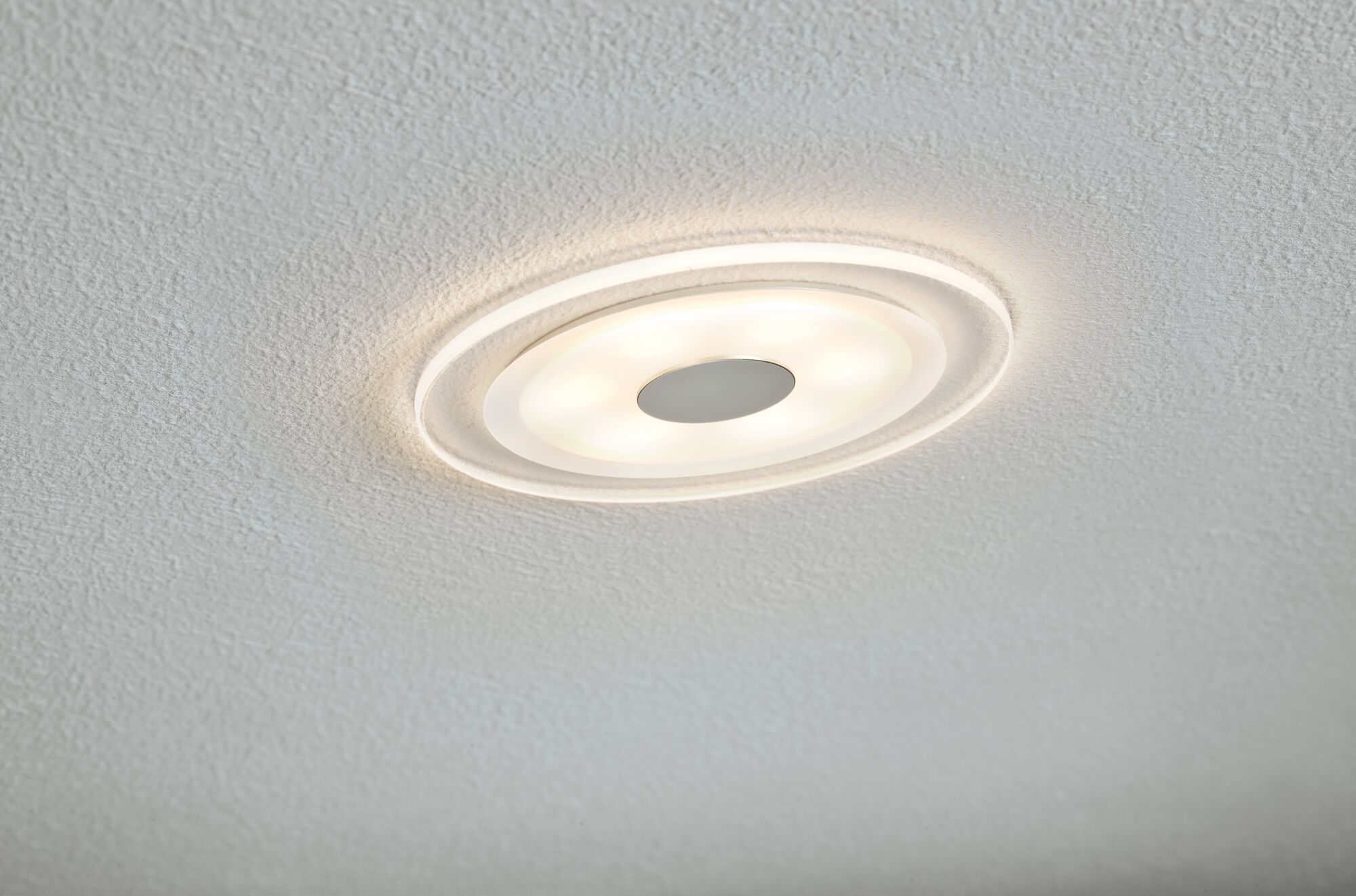

The decorative Whirl recessed spotlights with their partly satined surface emit a glare-free, wide-area light in homely warm white. They meet even the highest standards of material quality and design. Would you like bright work light and cosy feel-good lighting in one? The dimming function can be used to adapt the brightness in the room individually to match your mood.
- Set of 3 luminaires
- Efficient LED technology
- LED lamp (fixed) included in scope of delivery
- Color temperatur: 3000K - Warm white
- Type of protection: IP23 (ceiling mounting)
- Dimmable with universal dimmer for all transformers (R,L,C)
| Dimension | |
|---|---|
| Total Mounting depth | 40 mm |
| Dimensions (Height x Width x Depth) | H: 10 mm |
| Ø | 120 mm |
| Mounting hole | 74 mm |
| Form | round |
| Depth of hollow wall | 25 mm, 25 mm |
| Design and Material | |
|---|---|
| stainless | stainless alu |
| Colour | Turned aluminium, Satin |
| Material | Aluminium, Acrylic |
| Installation | |
|---|---|
| can be used with the following dimmers | RL Busch-Jäger 2247 U, RC Merten MEG 5136-0000, RLC Müller Paladin 873 030 LED, Paulmann Smart Home BLE 500.18, RL Merten MEG5133-0000, RC Busch-Jäger 6513U-102 |
| Installation site (recommendation) | Ceiling mounting |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | F |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Rated life time | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 3000 K |
| Beam angle | 110 ° |
| Usable luminous flux | 180 lm |
| Luminous flux LED module | 520 lm |
| color temp | 3000 K |
| Color rendering index | > 80 Ra |
| Lamp Features | |
|---|---|
| Component parts | 4,9 W |
| Technique | LED |
| IP protection | IP23 ceiling mounting |
| Dimmable | with dimmer R, L, C (universal compatibility) |
| Inclusive lamp | yes |
| Incandescent Equivalent | 41 W |
| Number of component parts | 3x |
| protection class | protection class II |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|6 Control gear is not replaceable, the complete lighting must be replaced. |
| Power consumption | 4,9 W |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
