Article-No.:
93664

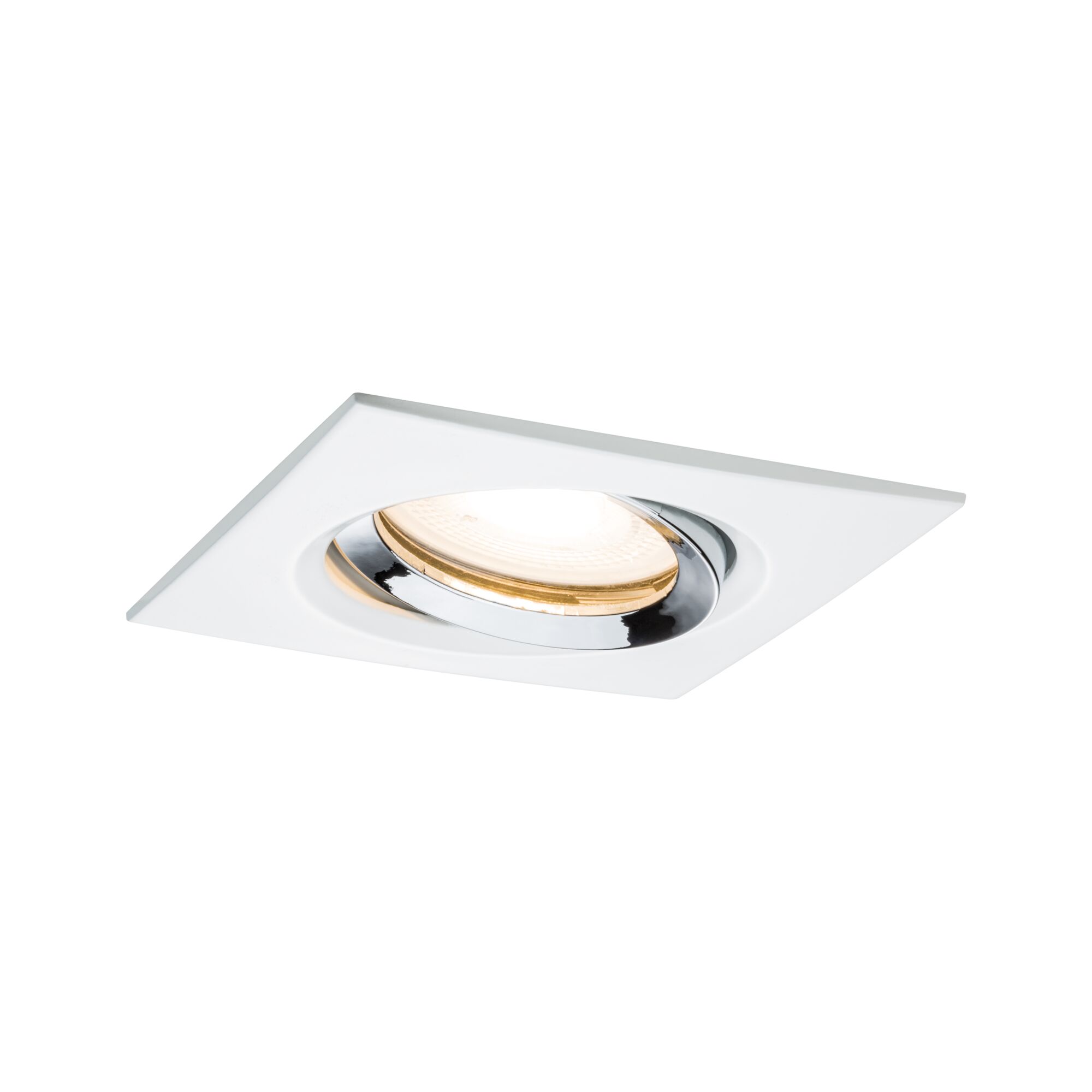

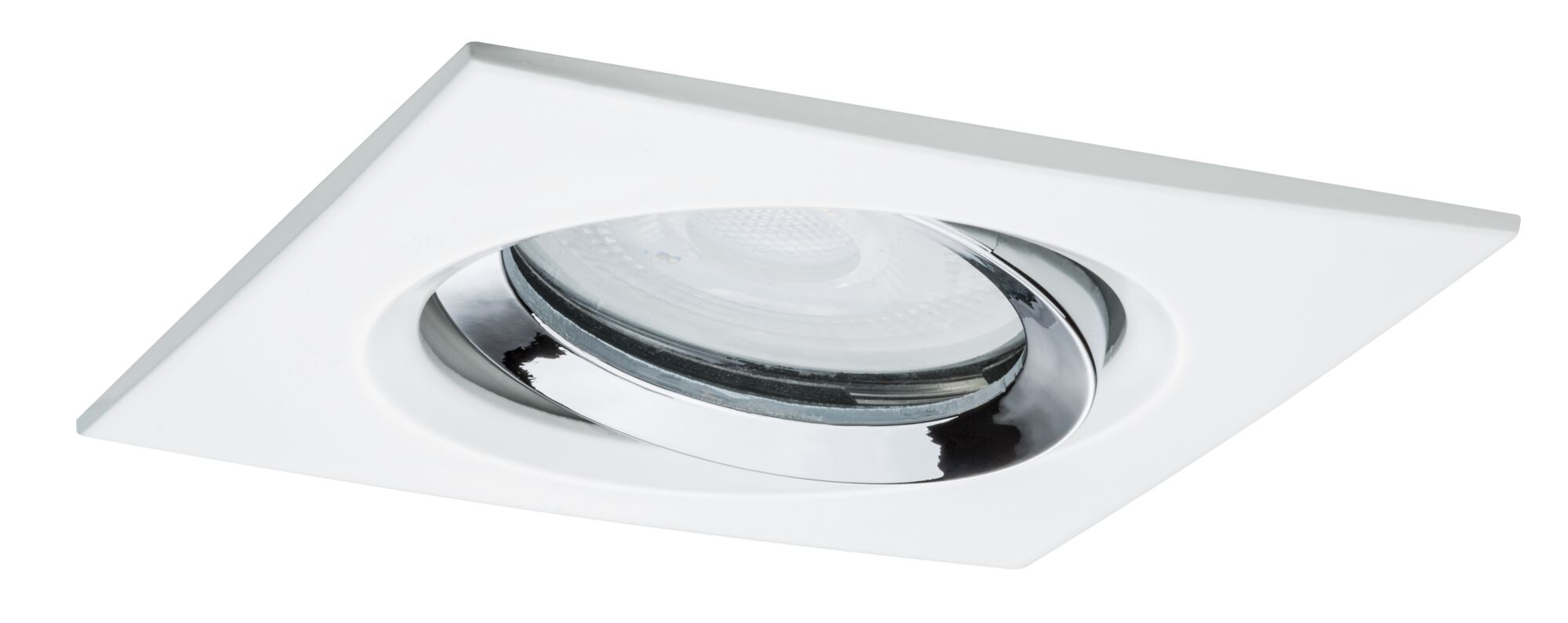

Recessed luminaire
Nova Plus Swivelling
IP65 angular 93x93mm 30° GU5,3 / GU10 max. 35W 230/12V dimmable Matt white/Chrome
IP65 angular 93x93mm 30° GU5,3 / GU10 max. 35W 230/12V dimmable Matt white/Chrome
£28.95*
Prices incl. Standard rate VAT
- Single luminaire
- With swivelling spots for ideal illumination
- The lamp can easily be fitted without a snap ring
Recessed luminaire Nova Plus Swivelling IP65 angular 93x93mm 30° GU5,3 / GU10 max. 35W 230/12V dimmable Matt white/Chrome
The angular Nova Plus recessed luminaire in Matt white/Chrome is suitable for new installations, as well as for replacing existing installations. It can be installed in ceilings with a cavity of only 75 millimetres. Straightforward mounting with retaining springs means that the ceiling remains undamaged, even after repeated installation and removal. The dimming function lets you adjust the brightness according to your needs and emits a warm white work light and cosy mood lighting in one. Thanks to the swivelling function, the spot can be individually directed. Thanks to IP65 protection, the luminaire is specially protected against penetration by water jets, making it ideal for installation in wet rooms or outdoor areas. The lamps are available separately, and can easily be fixed using a clamp in the inside of the mounting ring – without the need for snap rings.
- Single luminaire
- With swivelling spots for ideal illumination
- The lamp can easily be fitted without a snap ring
- Don’t forget: Include a suitable lamp in your order!

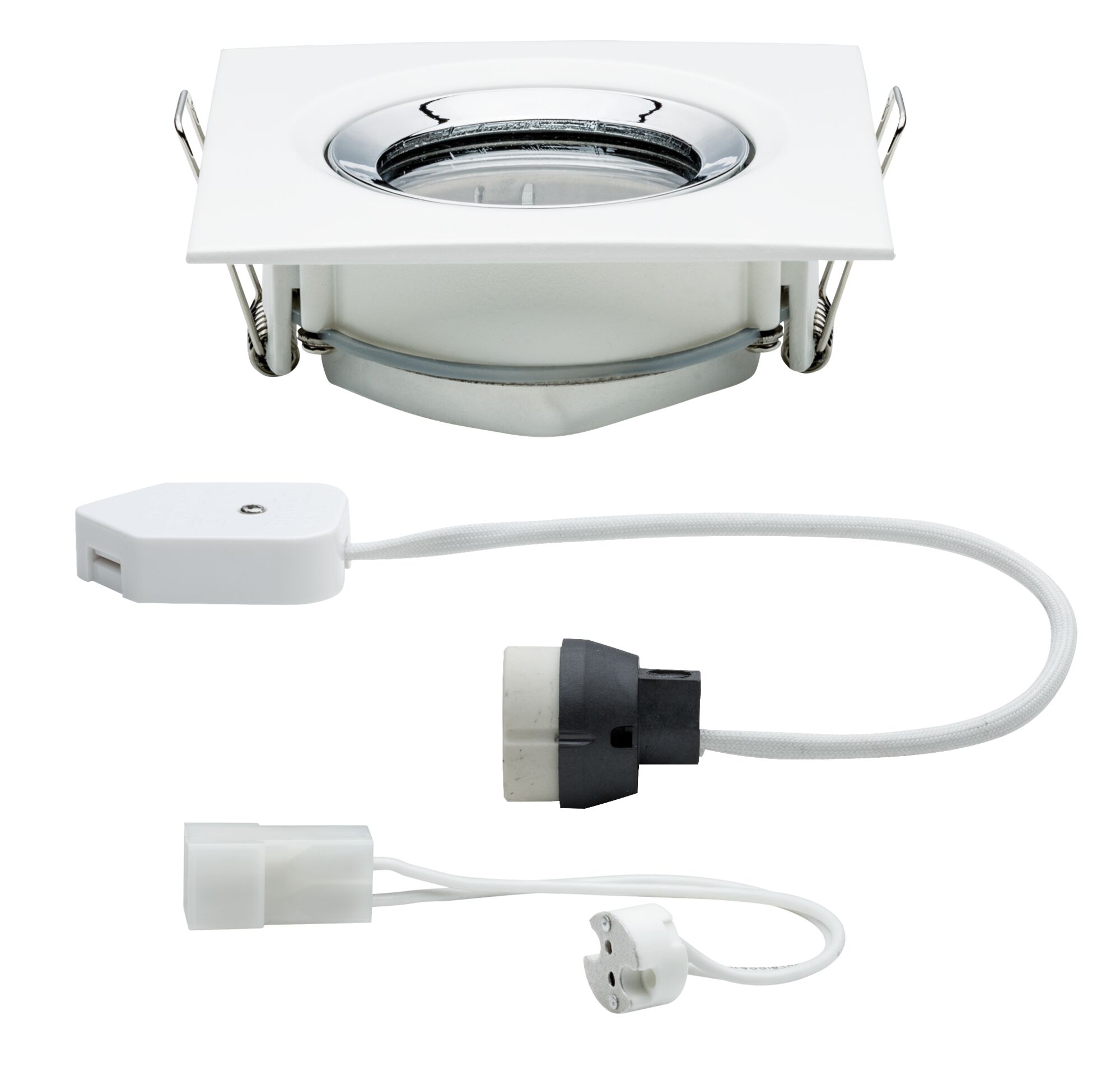

- Sockets for GU10 and GU5.3 included

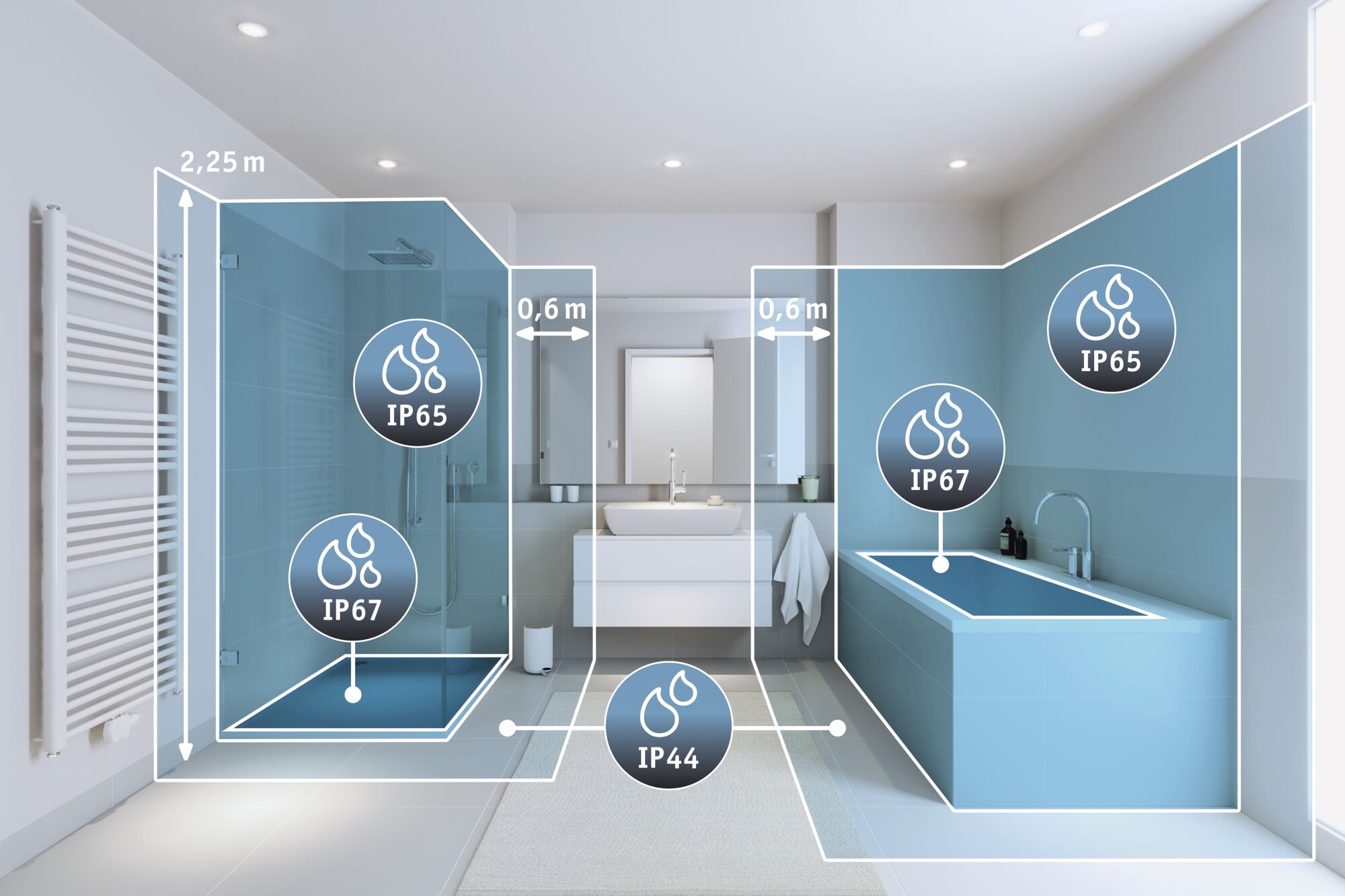

- IP protection: IP65 – water jet-protected
- Suitable for ceiling mounting
| Dimension | |
|---|---|
| Total Mounting depth | 60-90 mm |
| Dimensions (Height x Width x Depth) | B: 93 x T: 93 mm |
| Mounting hole | 83 mm |
| Form | angular |
| Depth of hollow wall | 45 mm, 45-75 mm |
| Design and Material | |
|---|---|
| Colour | Chrome, Matt white |
| Material | Aluminium zinc |
| Installation | |
|---|---|
| Installation site (recommendation) | Ceiling mounting |
| Lamp Features | |
|---|---|
| Swivel range | 30 ° |
| Technique | Lamp without bulb |
| Socket | GU5,3 / GU10 |
| IP protection | IP65 ceiling mounting |
| Dimmable | The luminaire is dimmable, and the dimming capability depends on the type of lamp and ballast used. |
| Inclusive lamp | no |
| Maximum wattage range | max. 35 W |
| protection class | protection class III |
| Replacable | 1 Lightsource is replaceable without damage the lighting fixture by enduser. |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
