Article-No.:
96996
URail
Connector
Line connector illuminated
189x57mm 5,3W Black
189x57mm 5,3W Black
- Dimmable
- Efficient LED technology
- Simple plug-in installation

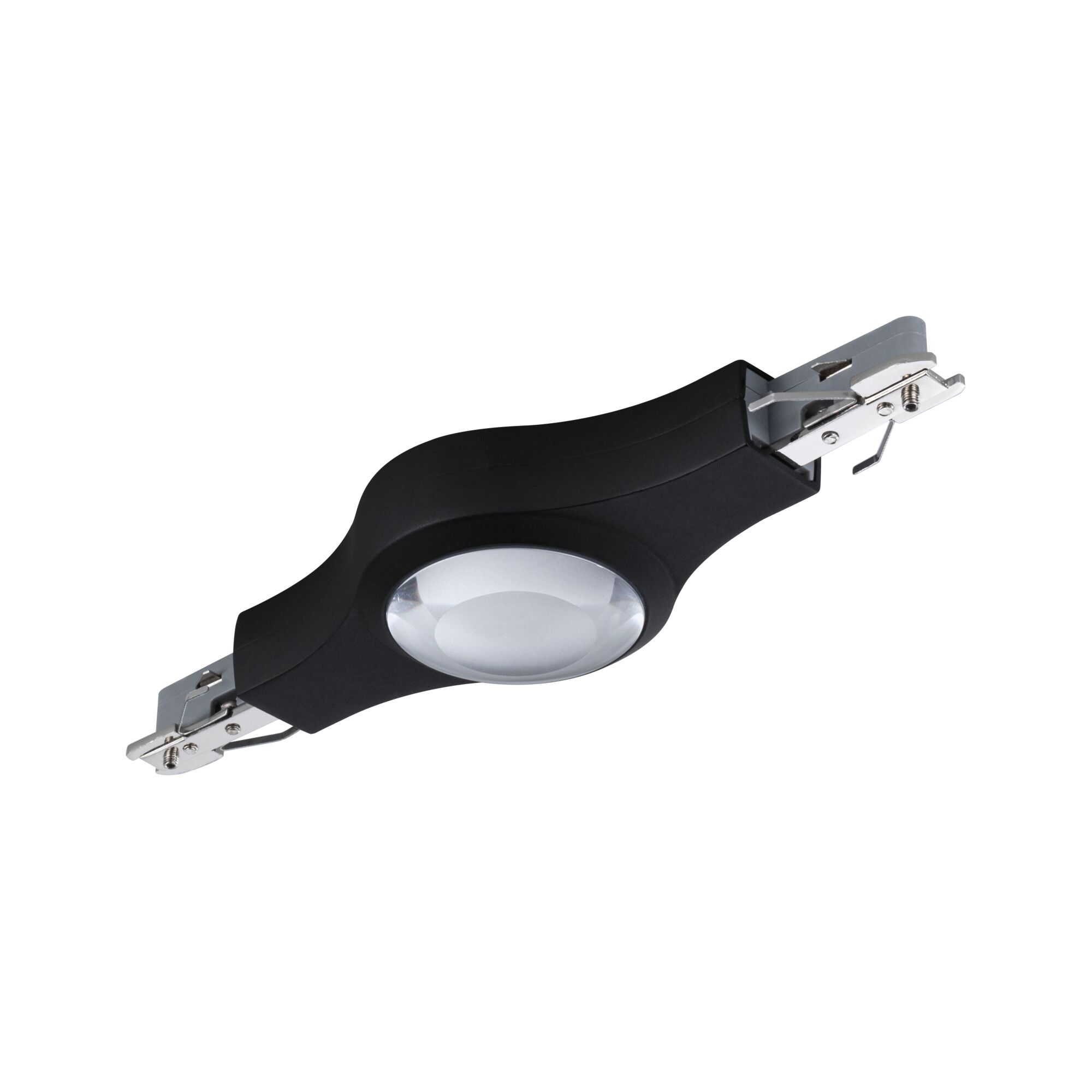

URail Connector Line connector illuminated 189x57mm 5,3W Black

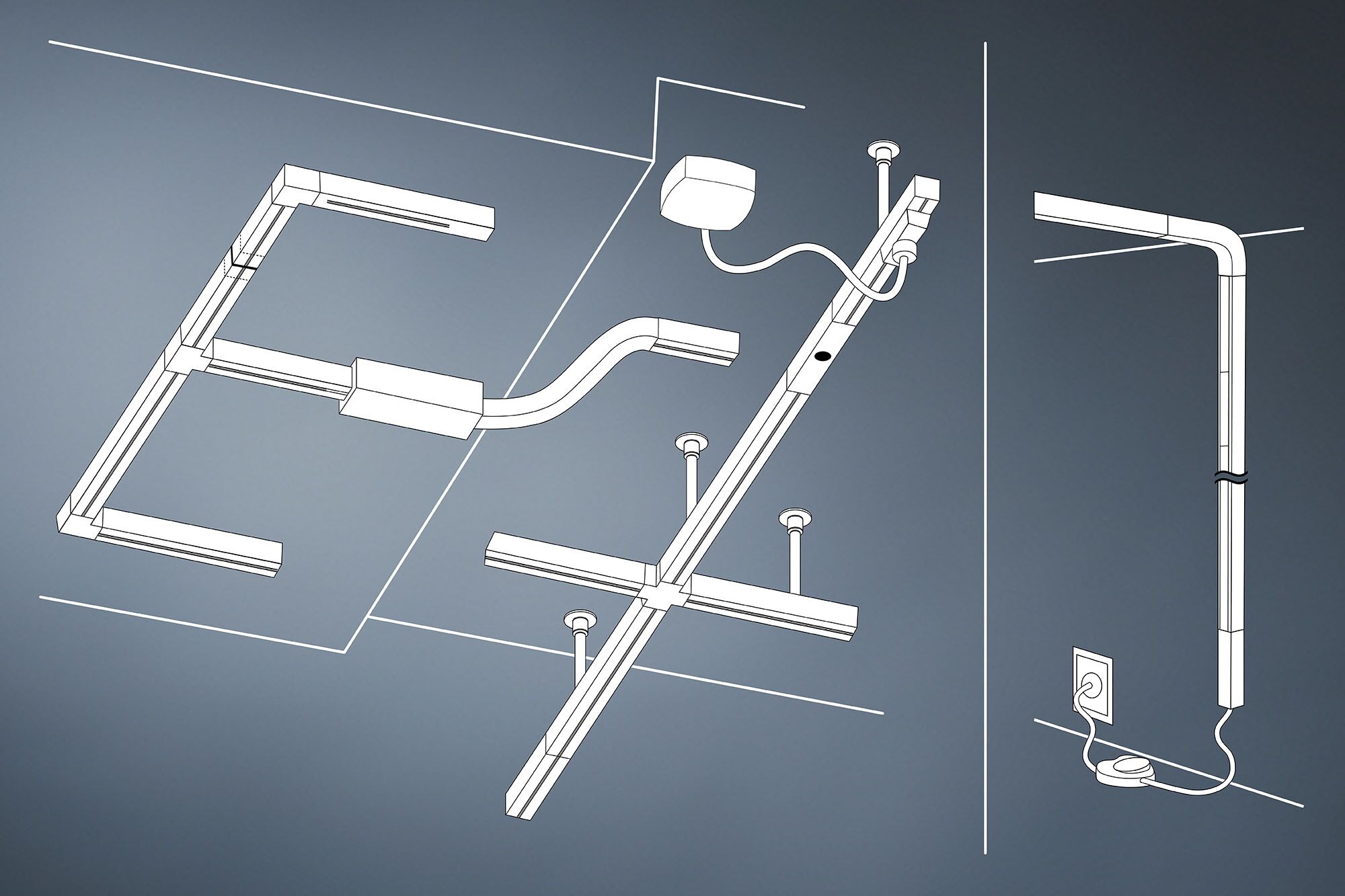

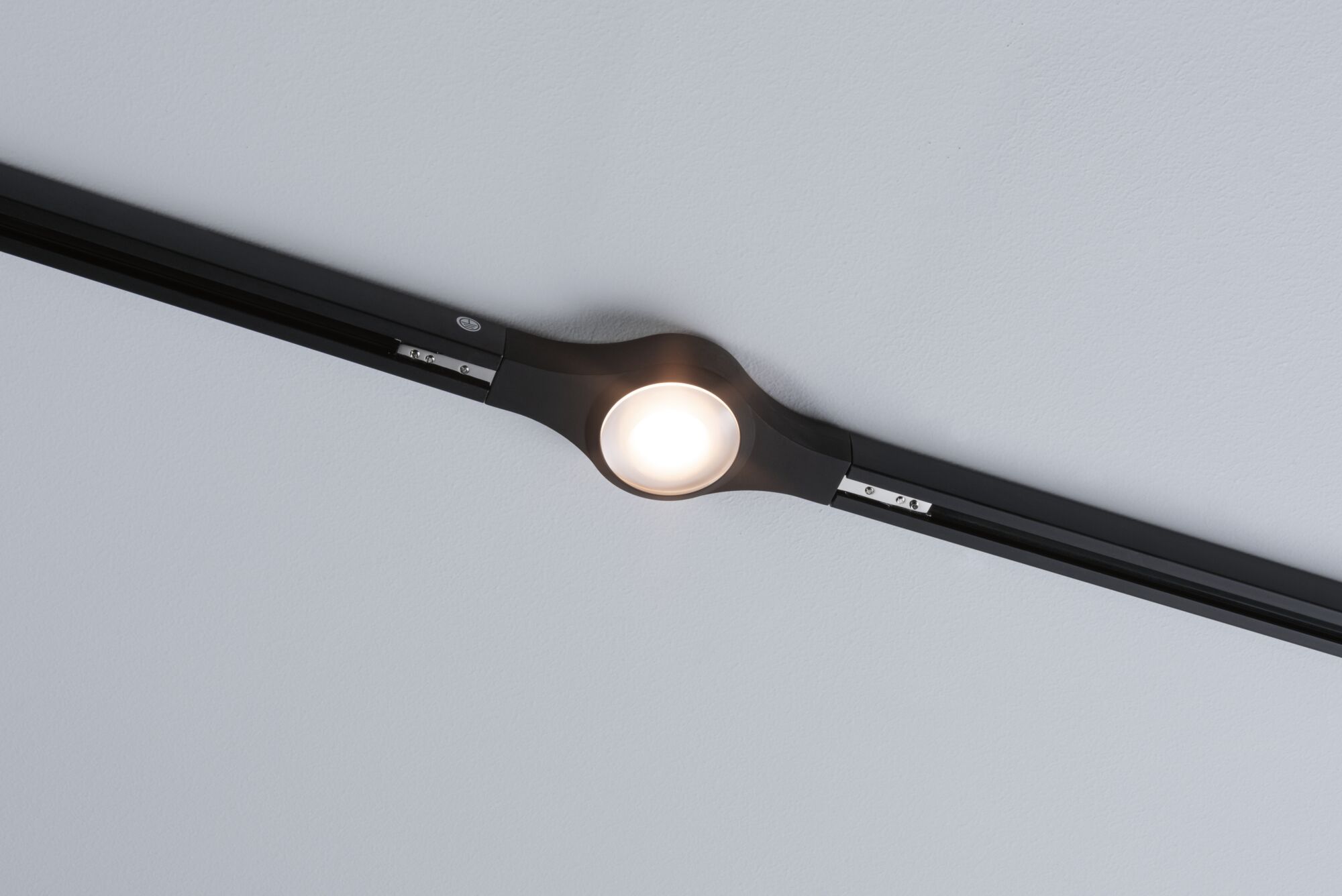

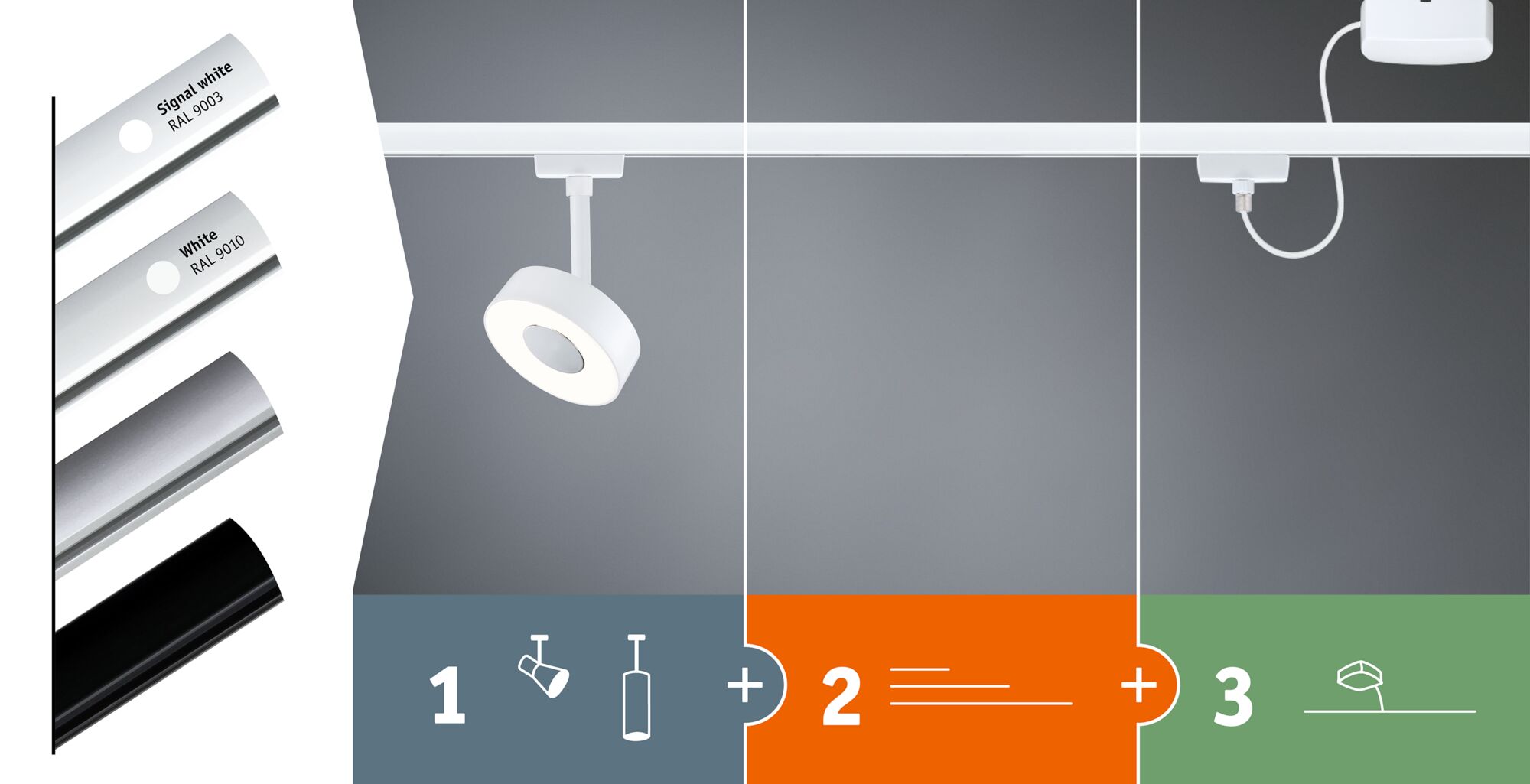

The illuminated URail LED line connector in black is dimmable and can easily be combined with additional URail components by simply plugging them together. Together with other items in the URail product range, it lets you create an individual rail system for basic lighting in your living space.
- Dimmable
- Efficient LED technology
- Simple plug-in installation
- Suitable only for URail rails
- URail line connector incl. assembly instructions
| Dimension | |
|---|---|

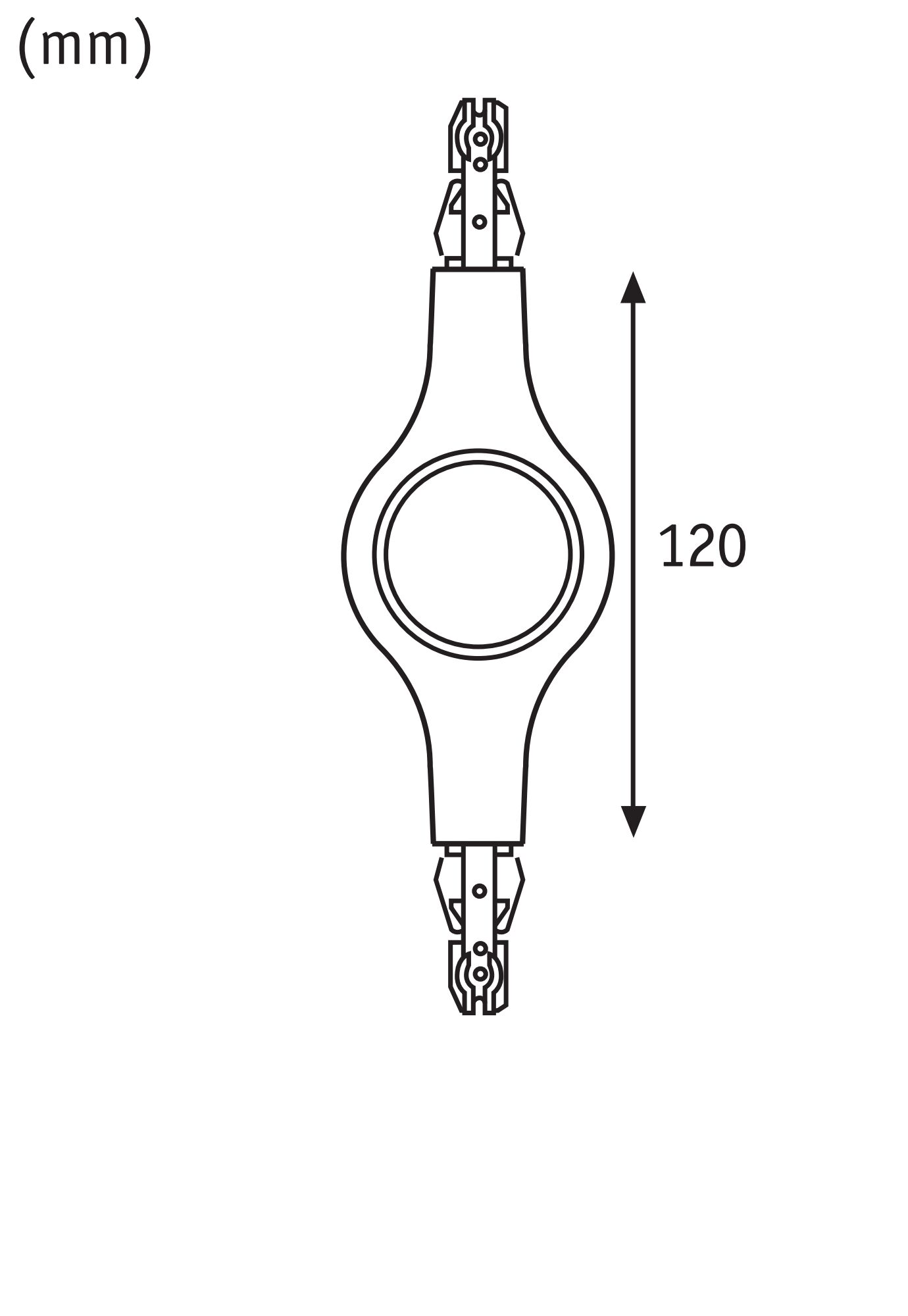

| Dimensions (Height x Width x Depth) | H: 27 x B: 189 x T: 57 mm |
| Design and Material | |
|---|---|
| Colour | Black |
| Material | Metal |
| Installation | |
|---|---|
| can be used with the following dimmers | RC Merten MEG 5136-0000, RLC Müller Paladin 873 030 LED |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 2700 K |
| Beam angle | 80 ° |
| Usable luminous flux | 399,6 lm |
| Luminous flux LED module | 440 lm |
| color temp | 2700 K |
| Beam angle LED module | 125 ° |
| Lamp Features | |
|---|---|
| Component parts | 5,3 W |
| Technique | LED |
| Dimmable | with dimmer R+C f.elect.trafos+230V bulbs |
| Inclusive lamp | yes |
| Total Width | 189 mm |
| Incandescent Equivalent | 38 W |
| Number of component parts | 1x |
| protection class | protection class I |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced. |
| Power consumption | 5,3 W |
| Transformer | |
|---|---|
| apparent power | 5.5 VA |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
