Article-No.:
93102
VariFit
LED Recessed panel
Dim to Warm
Areo
IP44 round 230mm 16W 1500lm 3 Step Dim to warm Black dimmable
IP44 round 230mm 16W 1500lm 3 Step Dim to warm Black dimmable

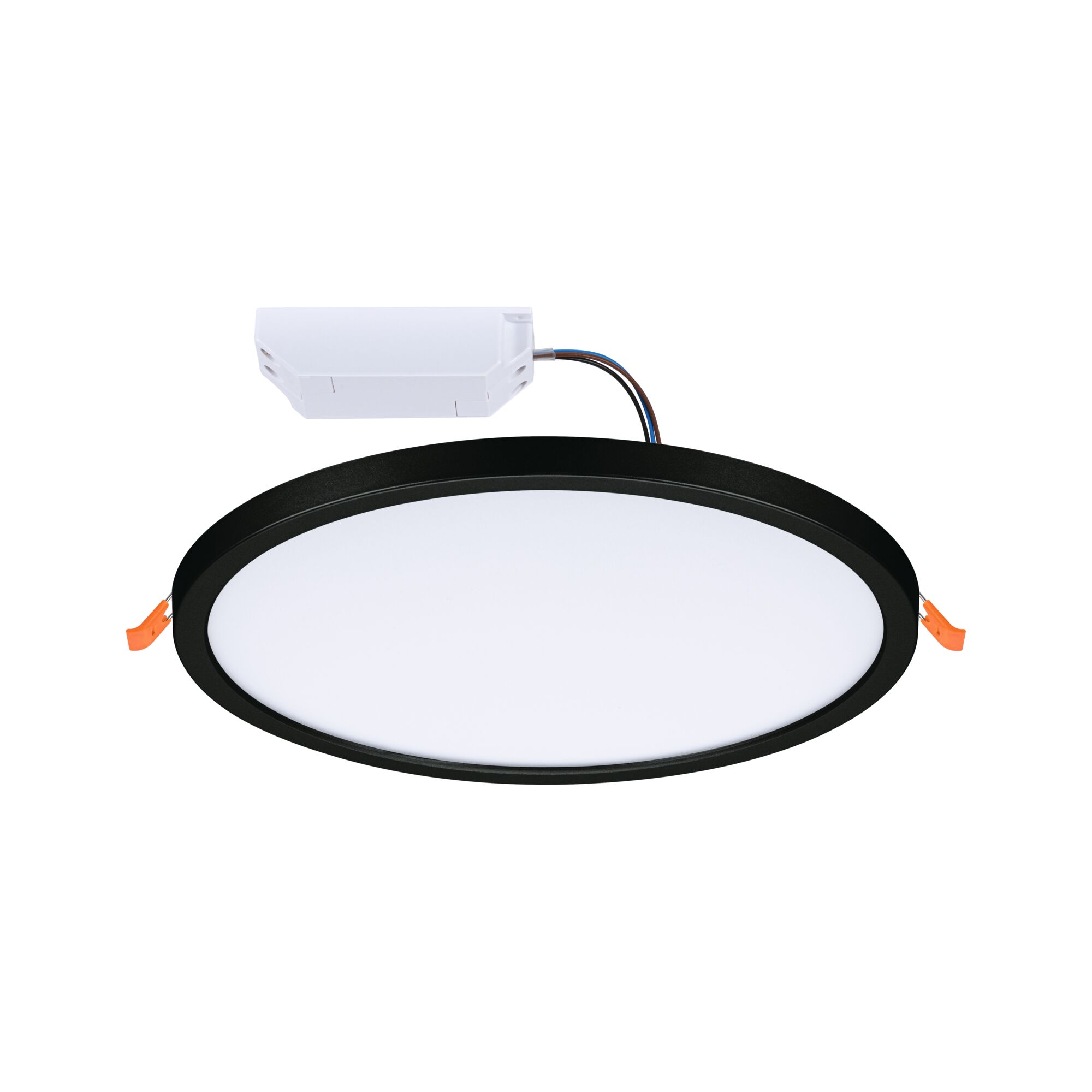

- VariFit – flexible installation with infinitely adjustable clamping springs
- Warmdimm function
- Made of easy-care plastic

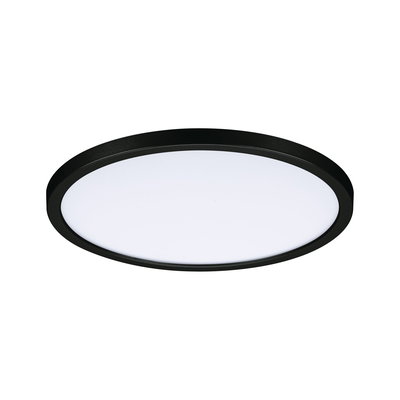

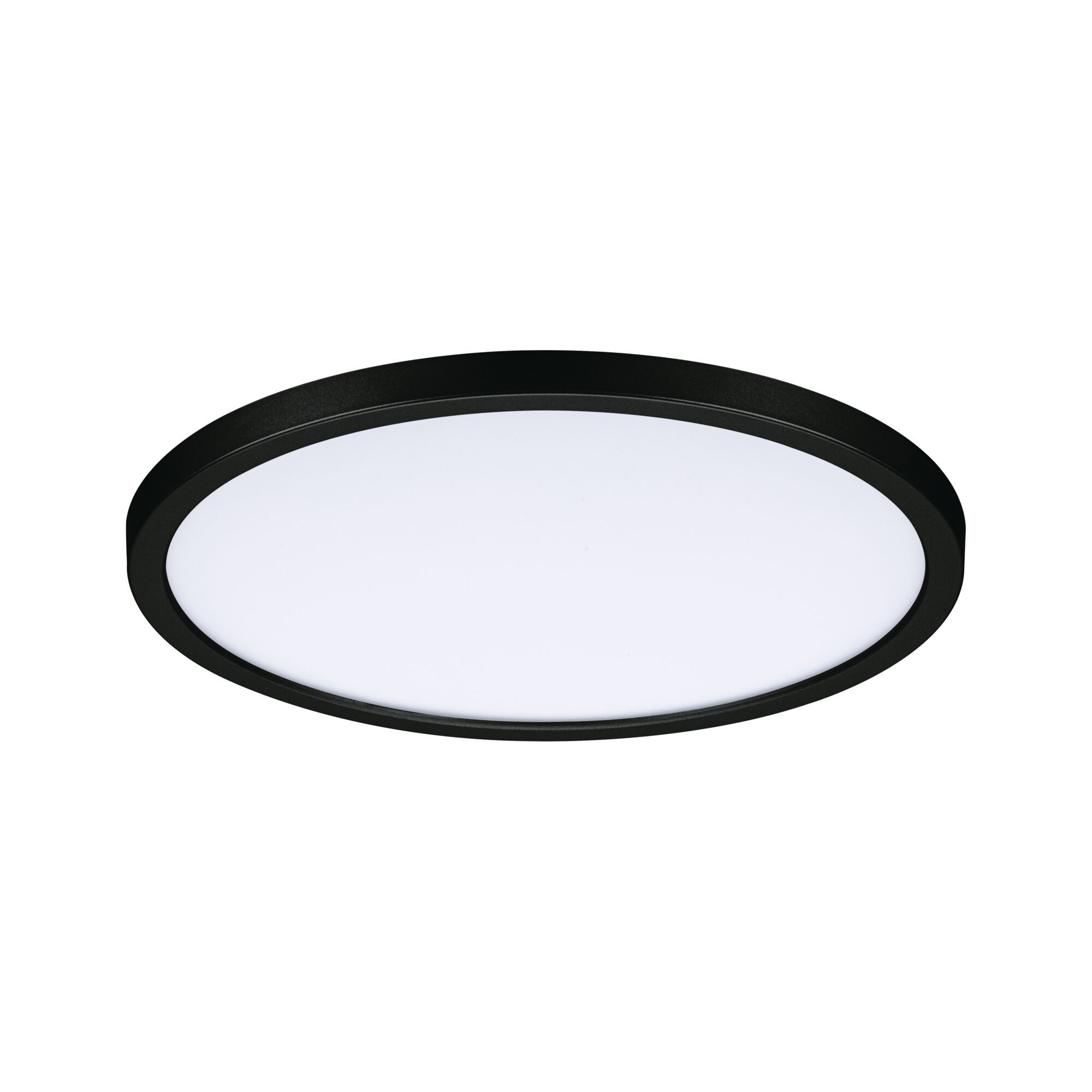

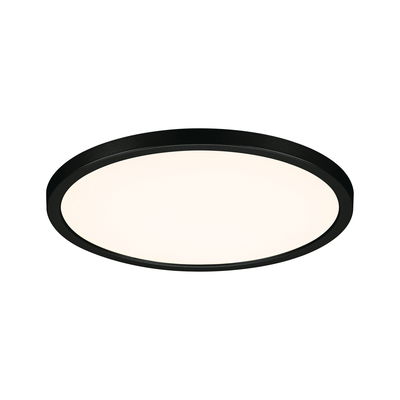

VariFit LED Recessed panel Dim to Warm Areo IP44 round 230mm 16W 1500lm 3 Step Dim to warm Black dimmable

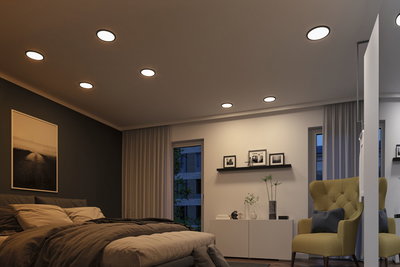

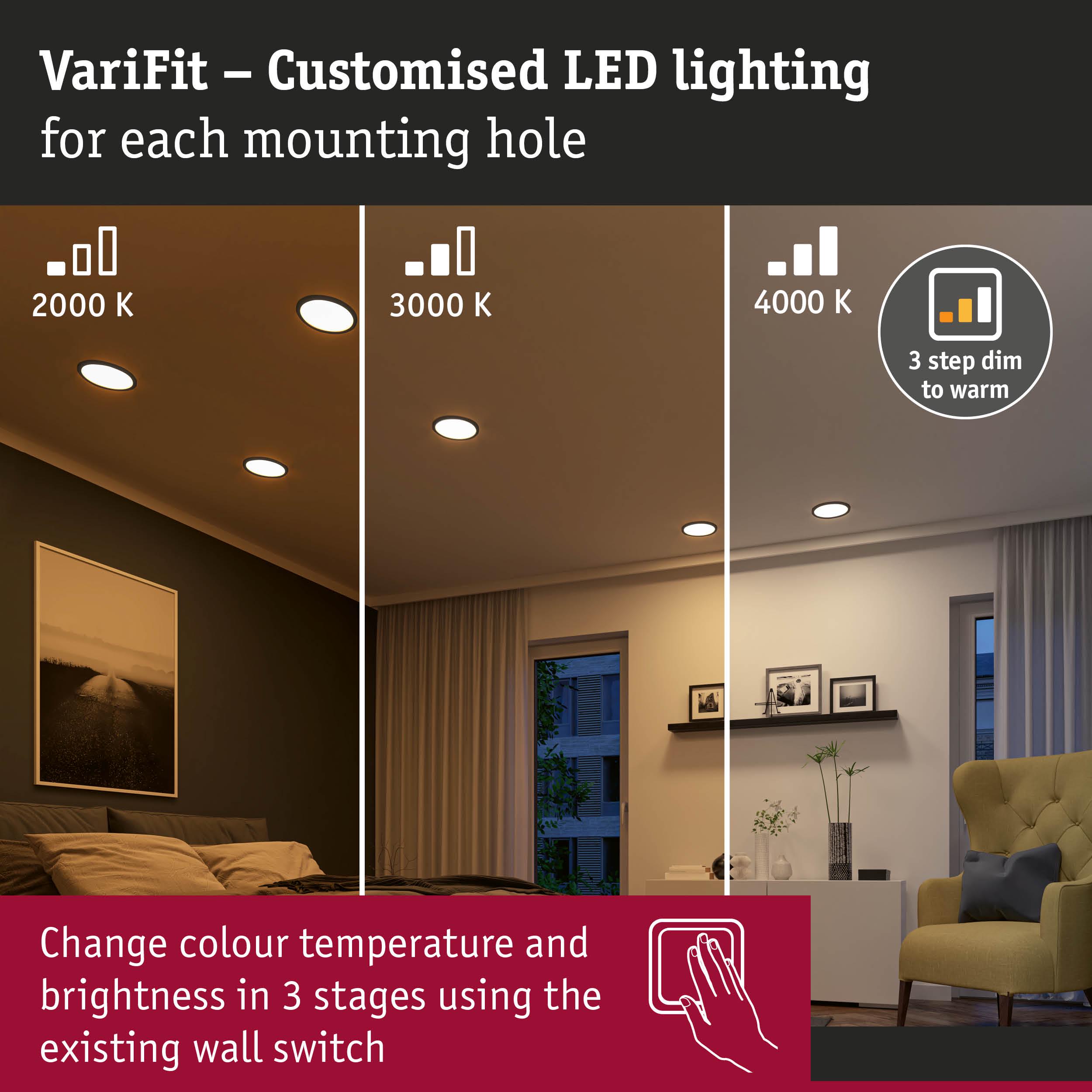

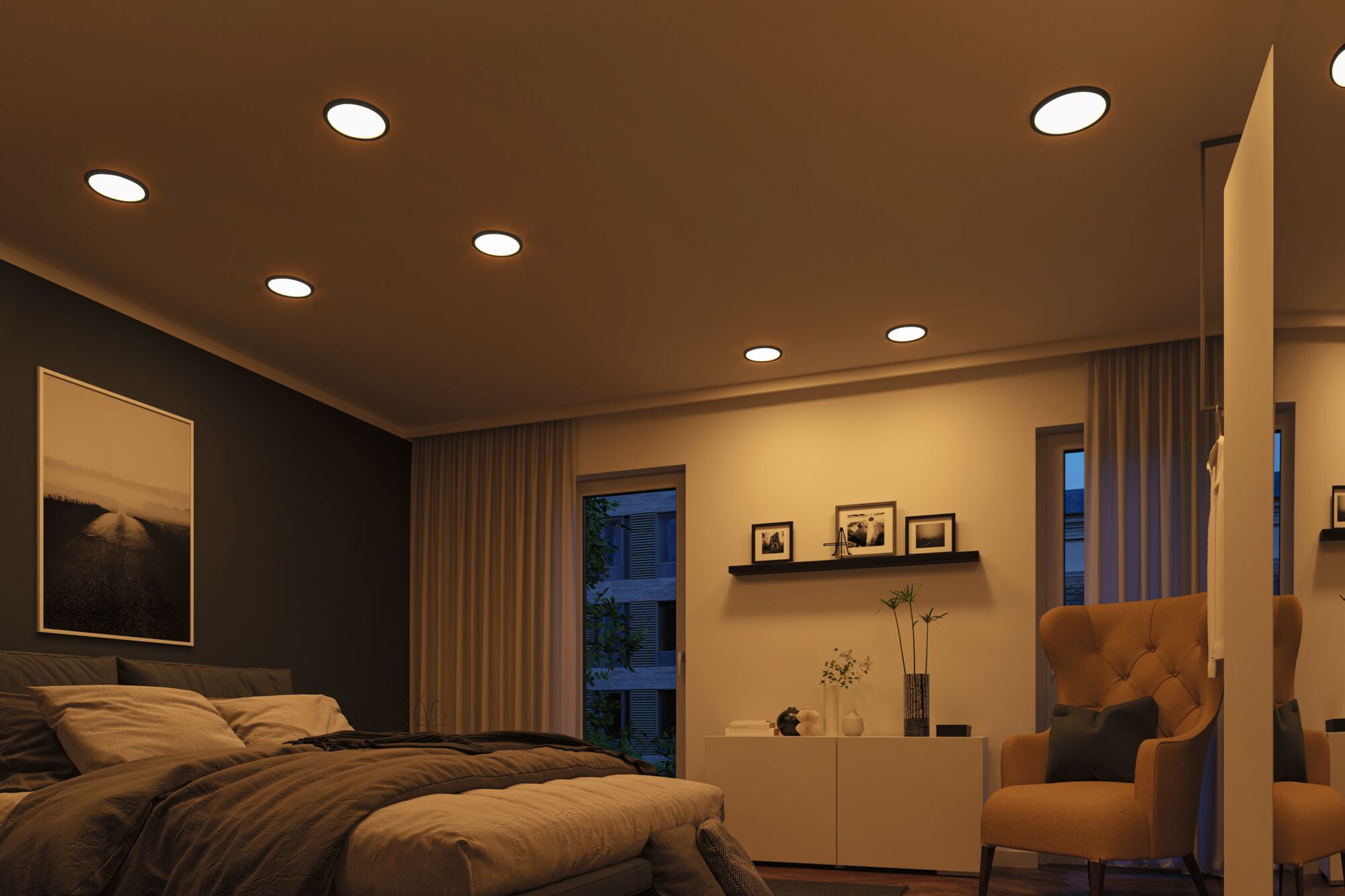

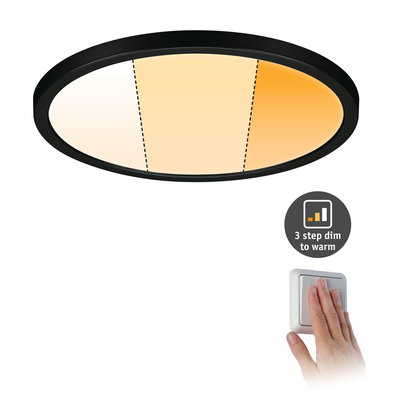

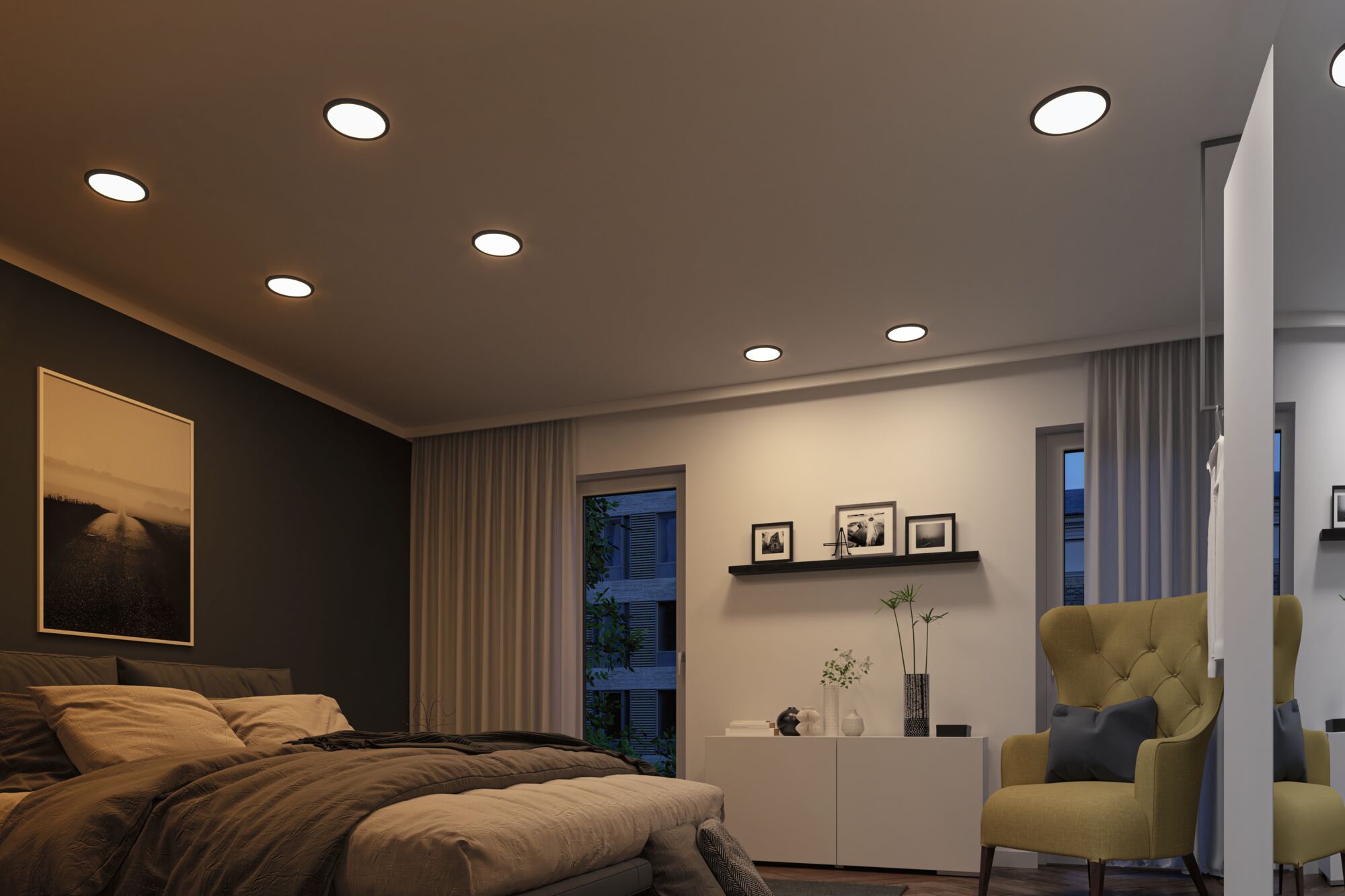

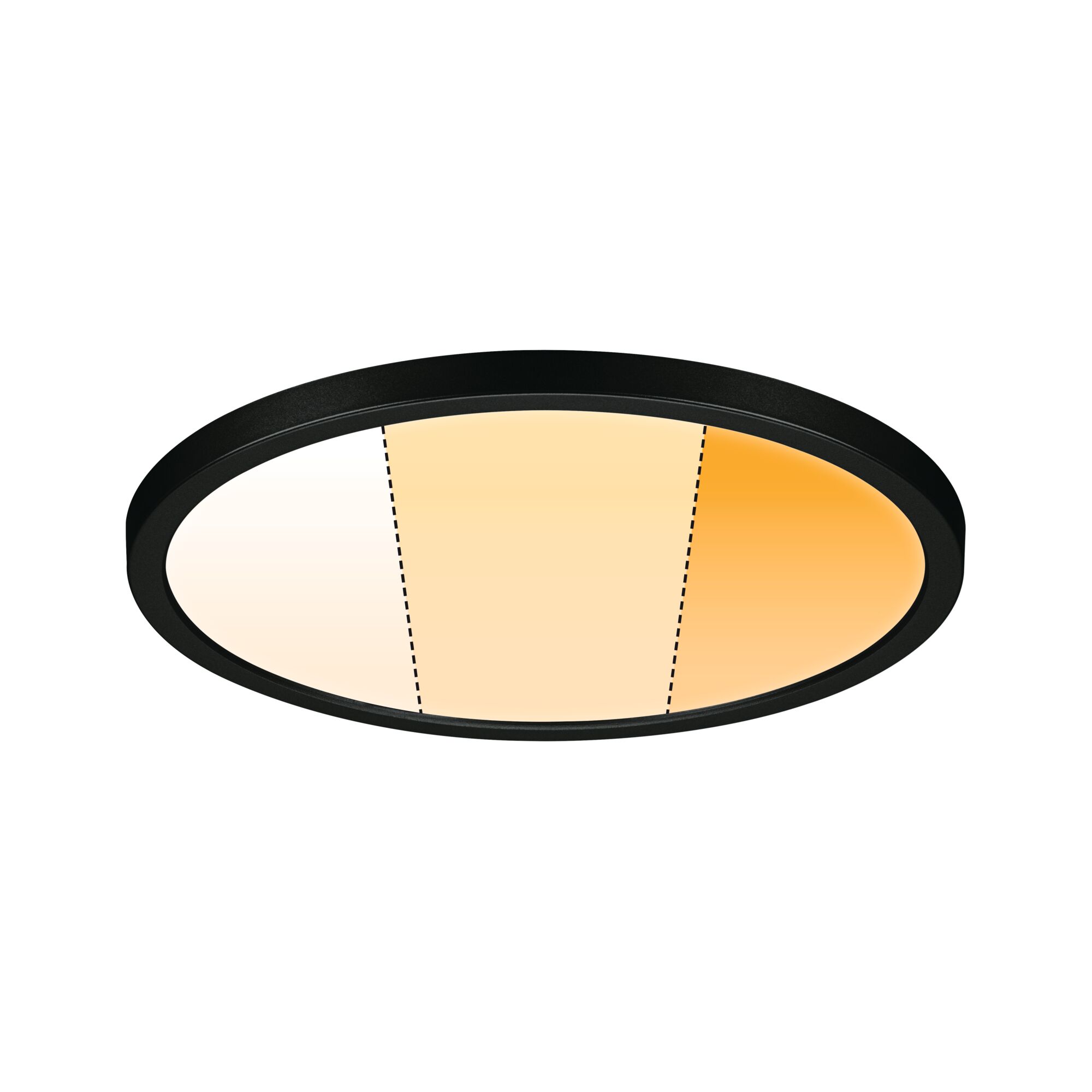

With an output of 16W, the rounde Areo VariFit LED recessed panel in Black and 230mm is ideal for basic lighting in living rooms, bedrooms and kitchens. The light of the panel provides uniform, wide-area room illumination. The light colour can be individually adjusted: choose between three colour temperatures between 2,000 Kelvin (gold light) and 4,000 Kelvin (neutral white light) by pressing the light switch multiple times. The lighting mood can therefore be changed according to individual requirements. Thanks to flexible VariFit technology, the clamping springs can be continuously adjusted for installation. The panel can therefore be installed both in existing boreholes and new ones.

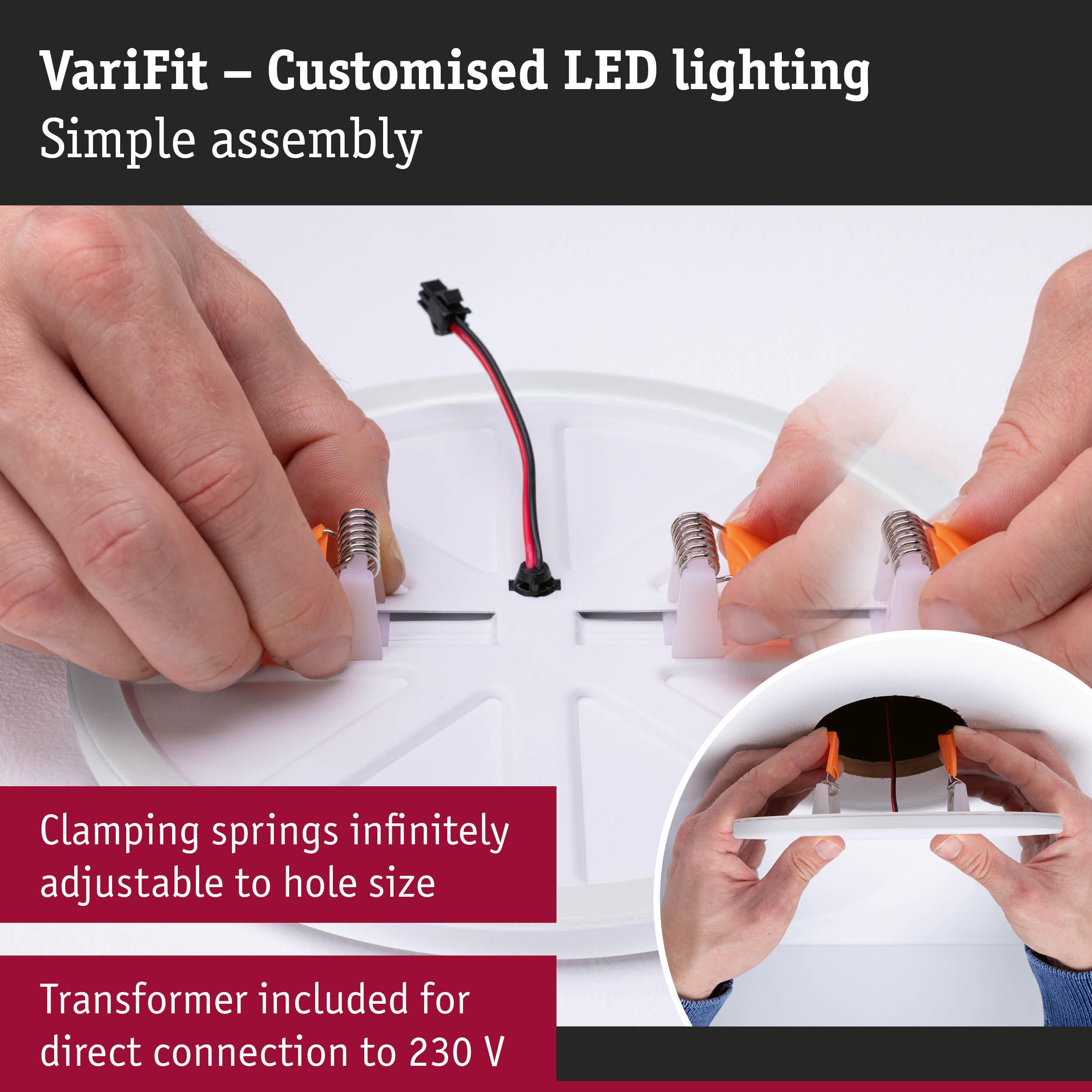

- VariFit – flexible installation with infinitely adjustable clamping springs
- Warmdimm function
- Made of easy-care plastic
- For 230 V direct connection

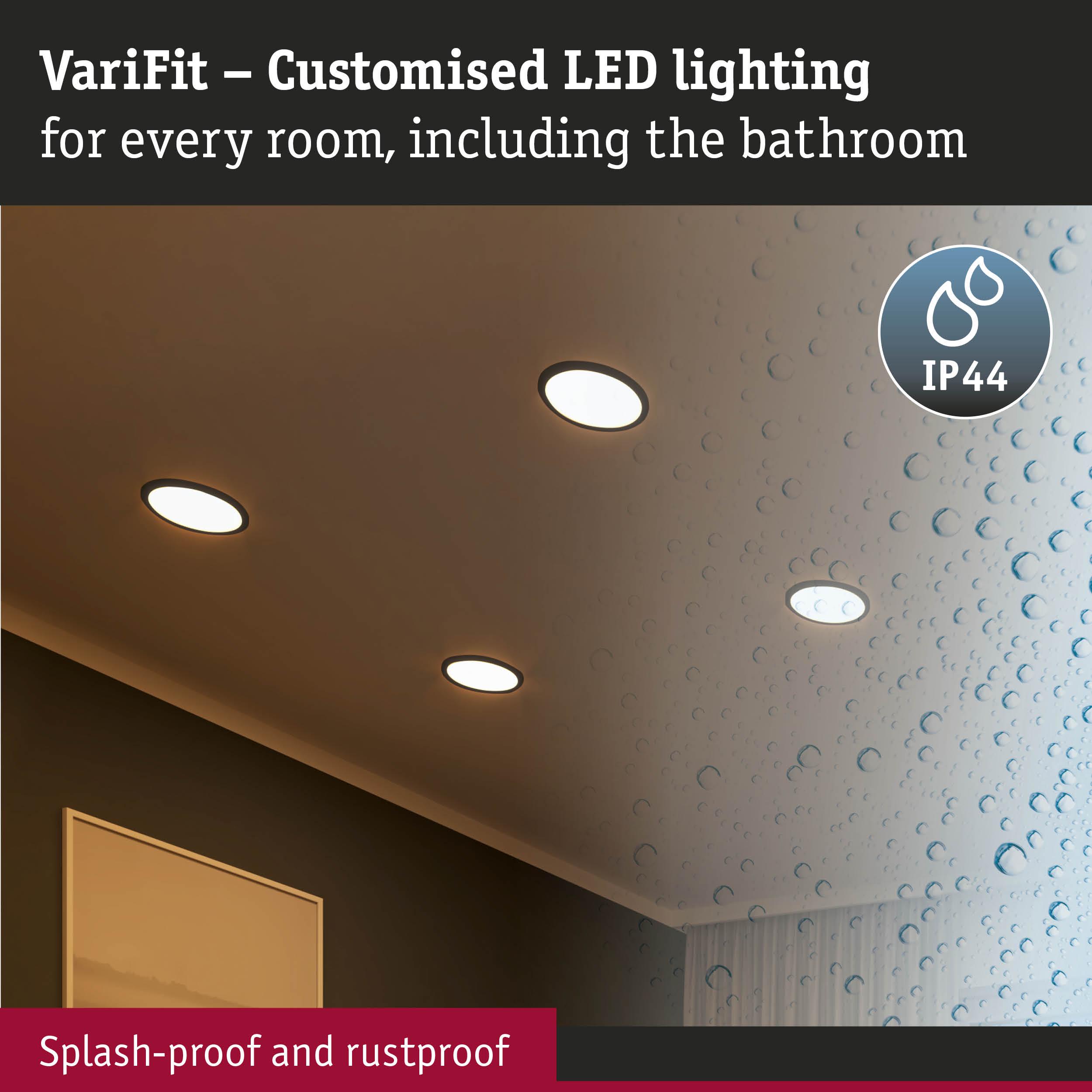

- IP protection: IP44 splash-protected

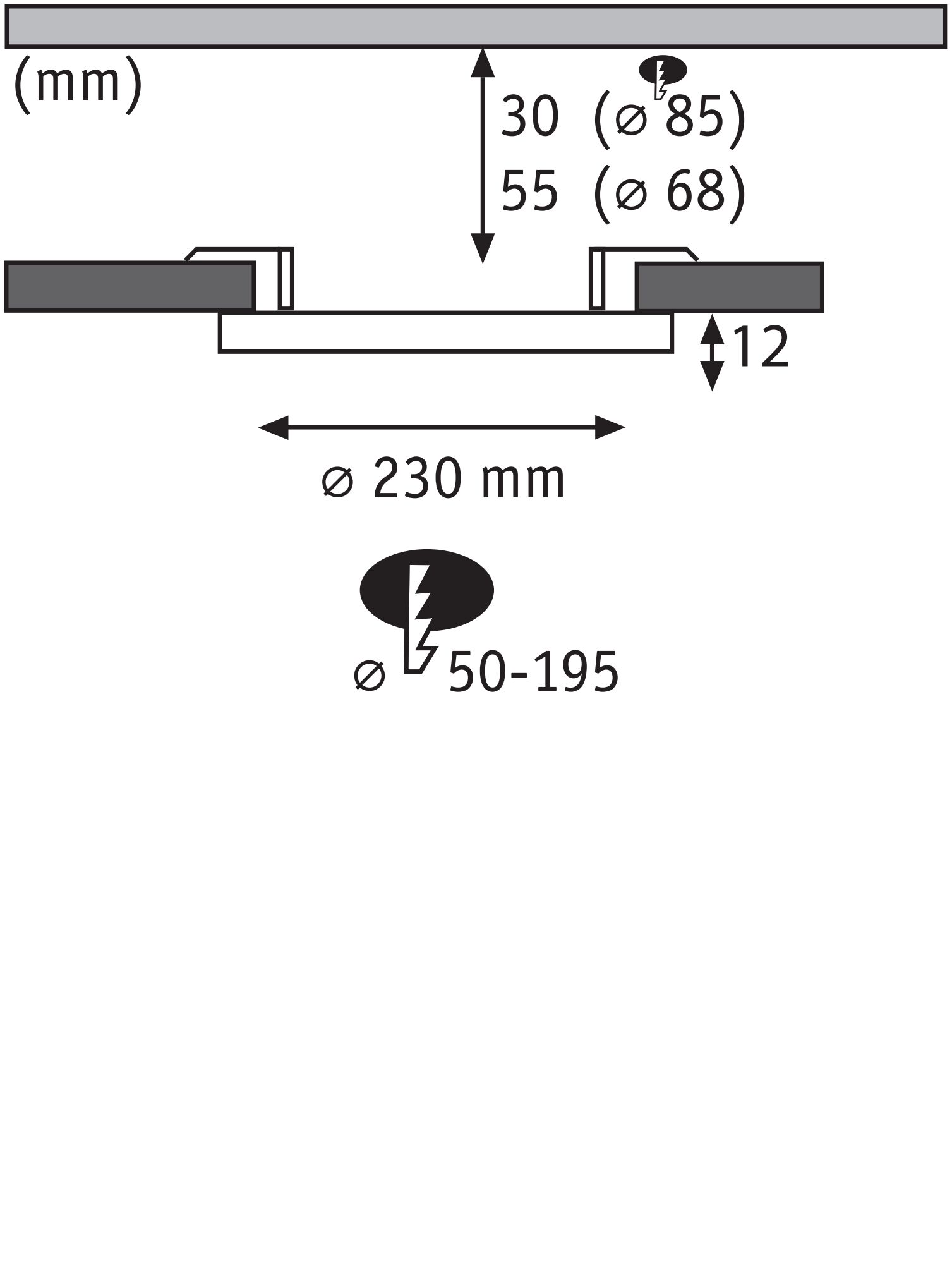

Dimension | |
---|---|
Dimensions (Height x Width x Depth) | H: 12 mm |
Ø | 230 mm |

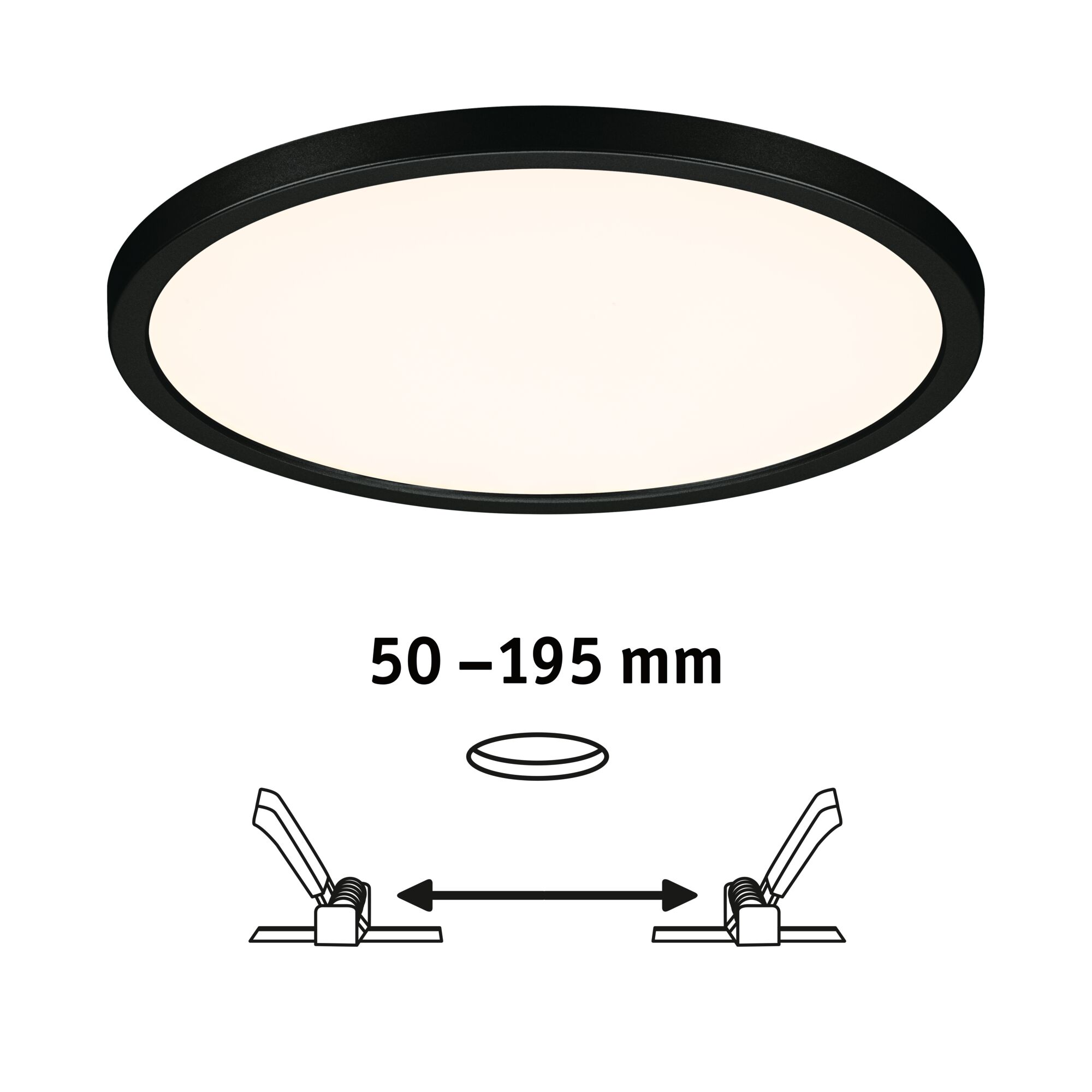

Mounting hole | 50 mm |
Form | round |
Design and Material | |
---|---|
Colour | Black |
Material | Plastic |
Energy consumption | |
---|---|
Energy efficiency (A to G) | E |
Service life | |
---|---|
Lifetime | 30000 h |
Light Characteristics | |
---|---|
Colour temp. | 2000 K |

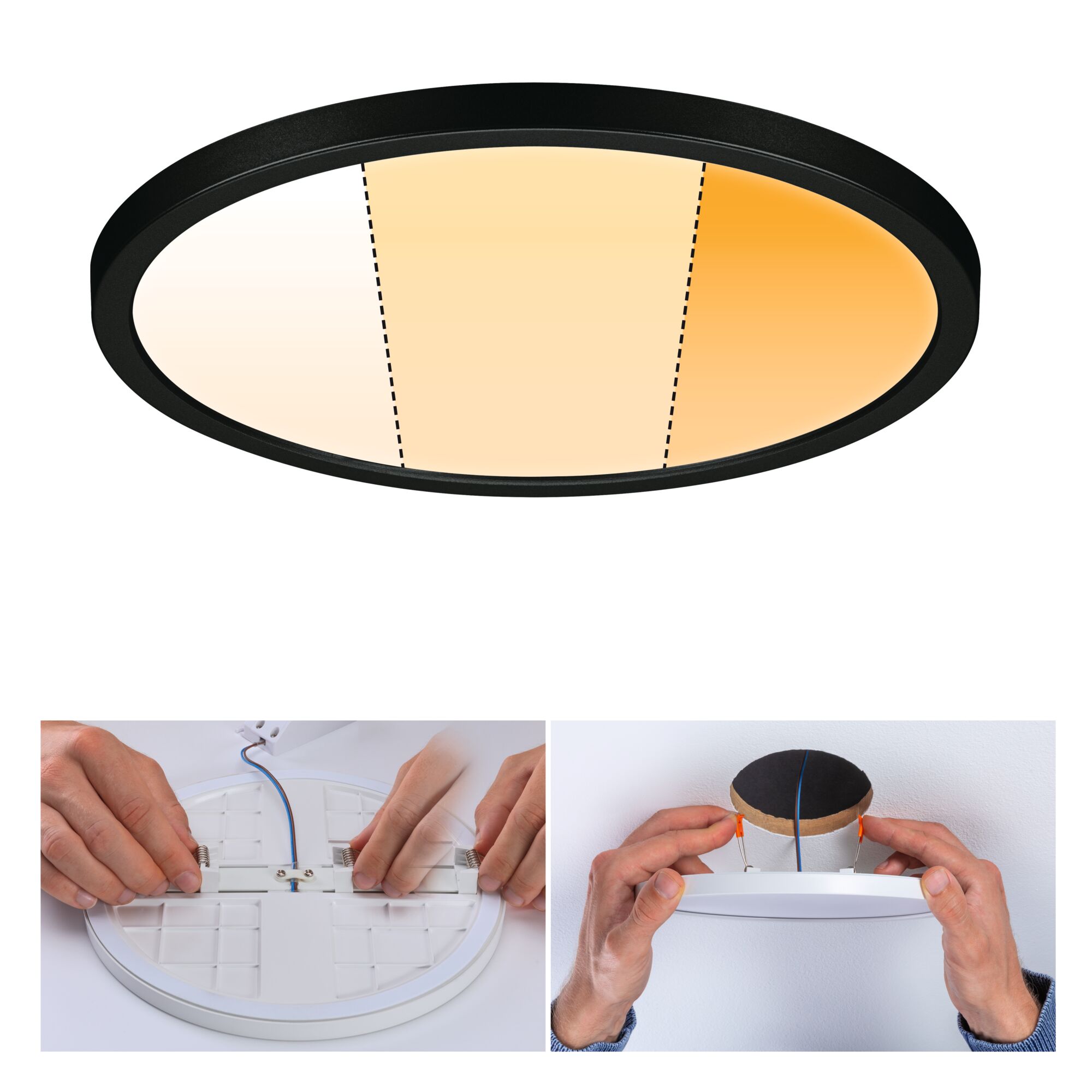

Colour change | 3 Step Dim to warm |
Usable luminous flux | 1500 lm |
Luminous flux LED module | 2000 lm |
color temp | 2000 - 4000 K |
Color rendering index | > 80 Ra |
Lamp Features | |
---|---|
Component parts | 16 W |
Technique | LED |
IP protection | IP44 ceiling mounting |
Dim | dimmable in 3 steps with integrated switch |
Dimmable | Yes |
Inclusive lamp | yes |
Incandescent Equivalent | 125.7 W |
Number of component parts | 1x |
protection class | protection class II |
Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|5 Control gear is replaceable without damage the lighting fixture by electrician. |
Power consumption | 18 W |
Transformer | |
---|---|
Transformer power | 18 VA |
apparent power | 36 VA |
Labelling | |
---|---|
WEEE-Reg.-No | DE 39236390 |
