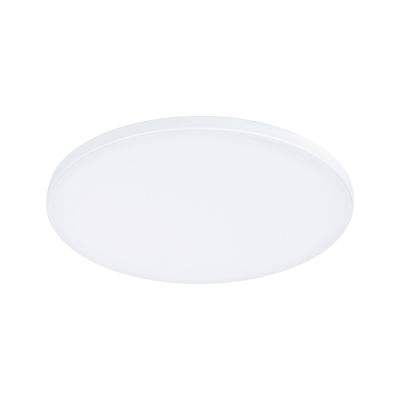

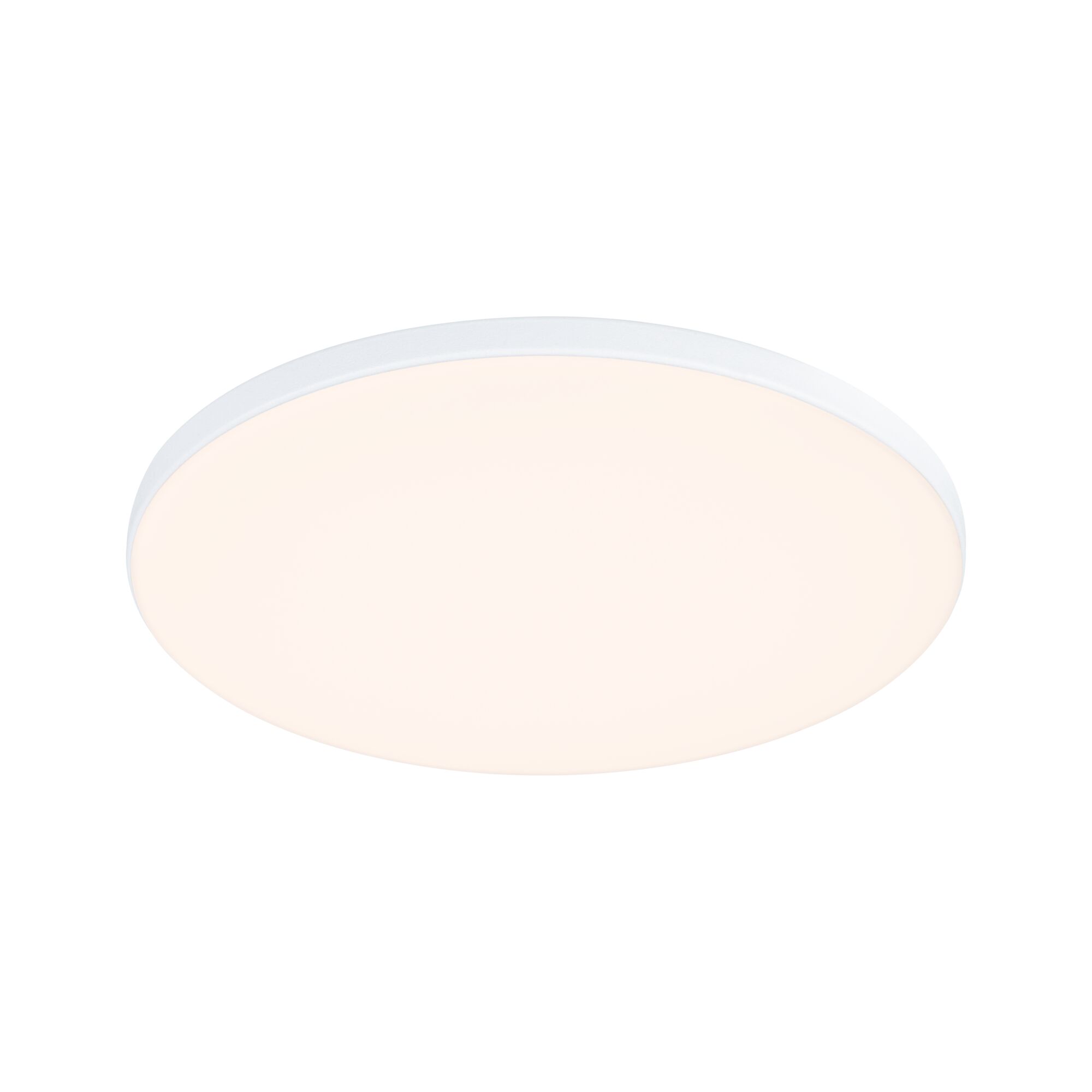

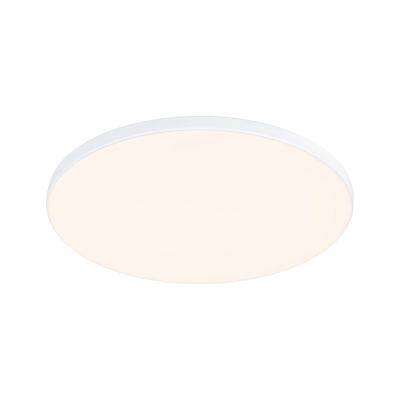

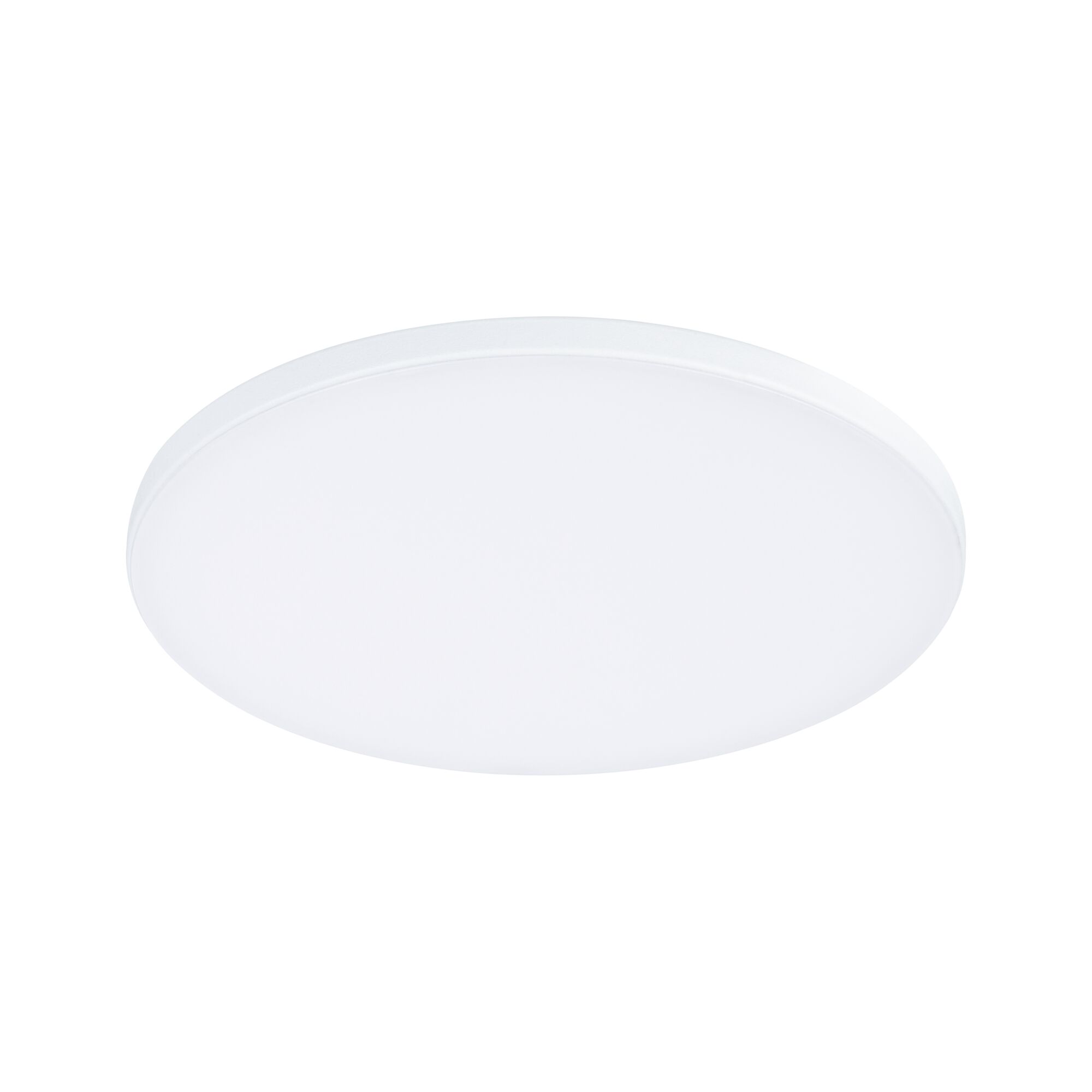

VariFit LED Recessed panel Veluna Edge IP44 round 160mm 12W 1100lm 3000K White

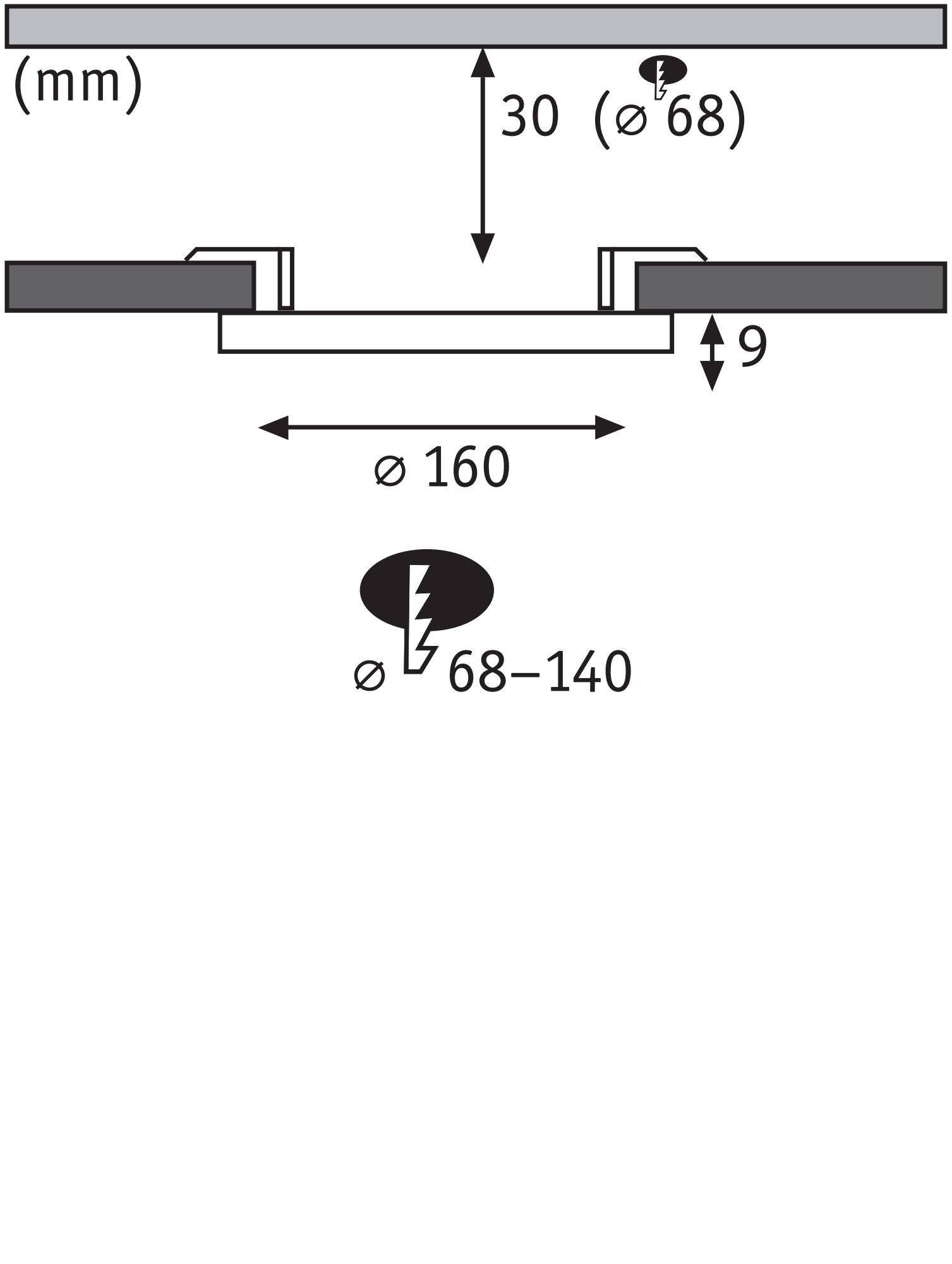

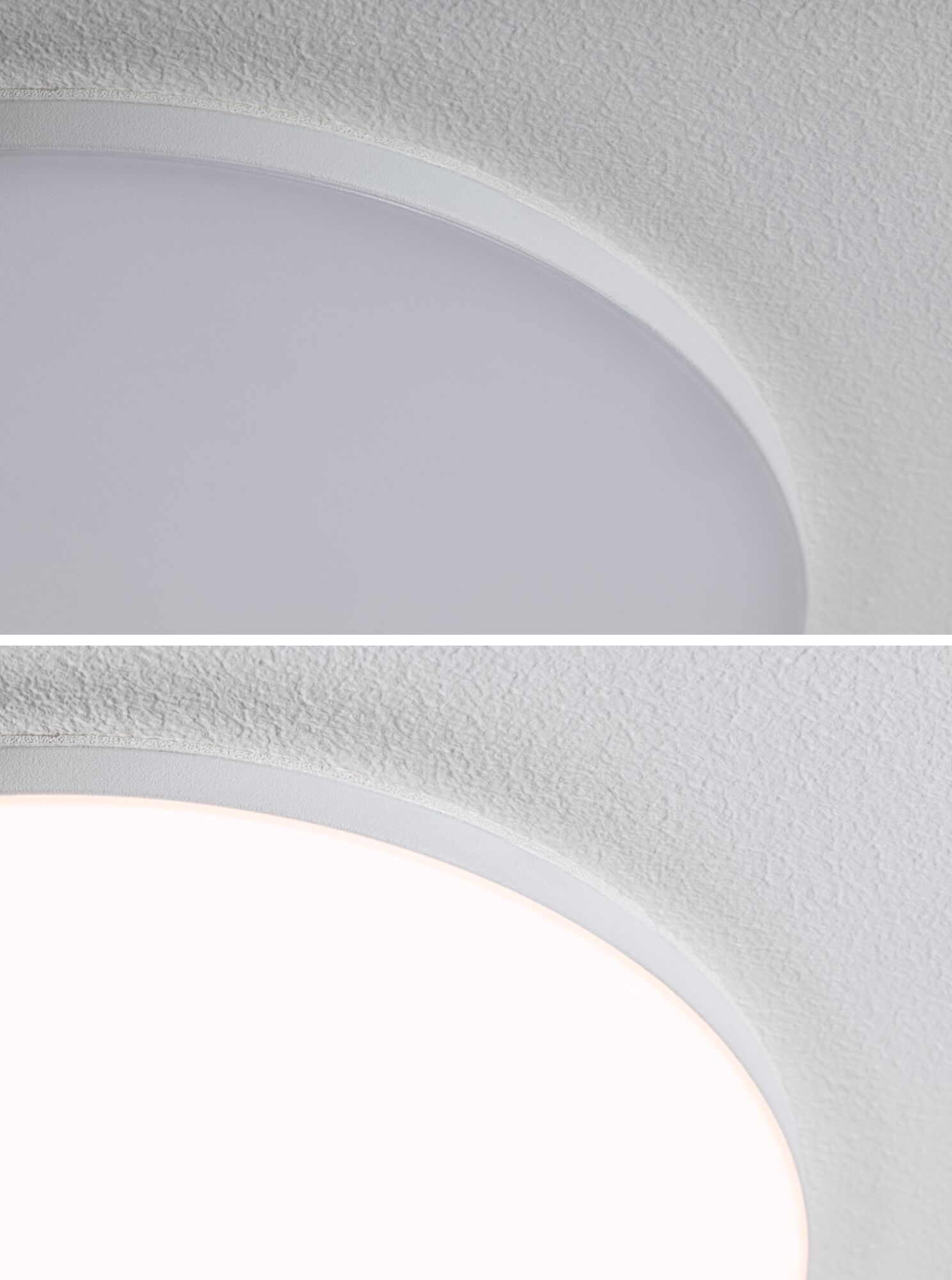

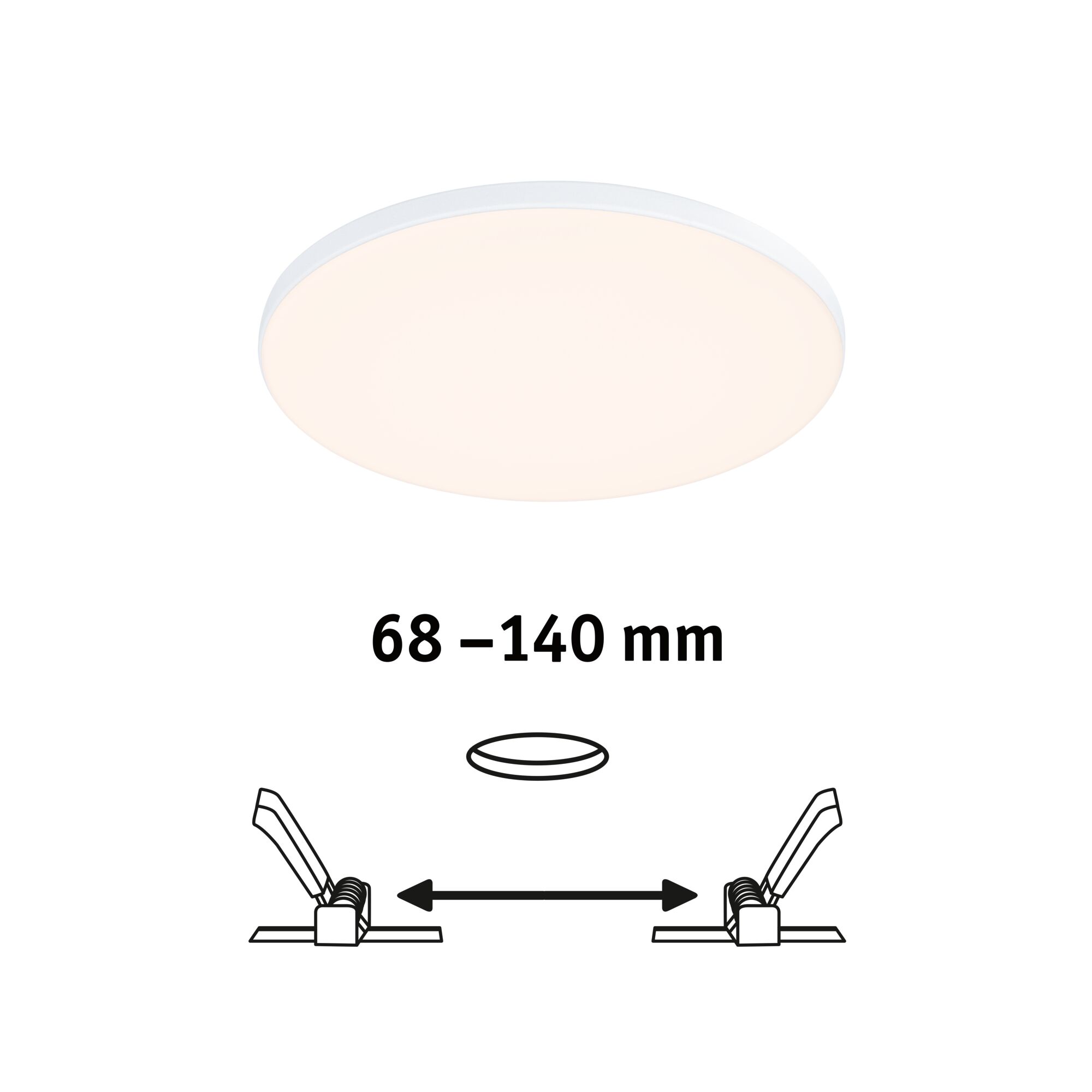

The rounde Veluna VariFit Edge recessed panel features a modern, frameless design in subtle White. With a diameter of 160 mm and a colour temperature of 3000 K, the panel has a high, uniform light yield. Thanks to flexible VariFit technology, the clamping springs can be continuously adjusted between 68 and 140 mm for installation. The panel can therefore be installed both in existing boreholes and in new ones. For hole diameters larger than 68 mm, a cavity depth of at least 30 mm is needed. The satined plastic cover provides finely diffused light and bright, cosy light in warm white.

Especially flat construction

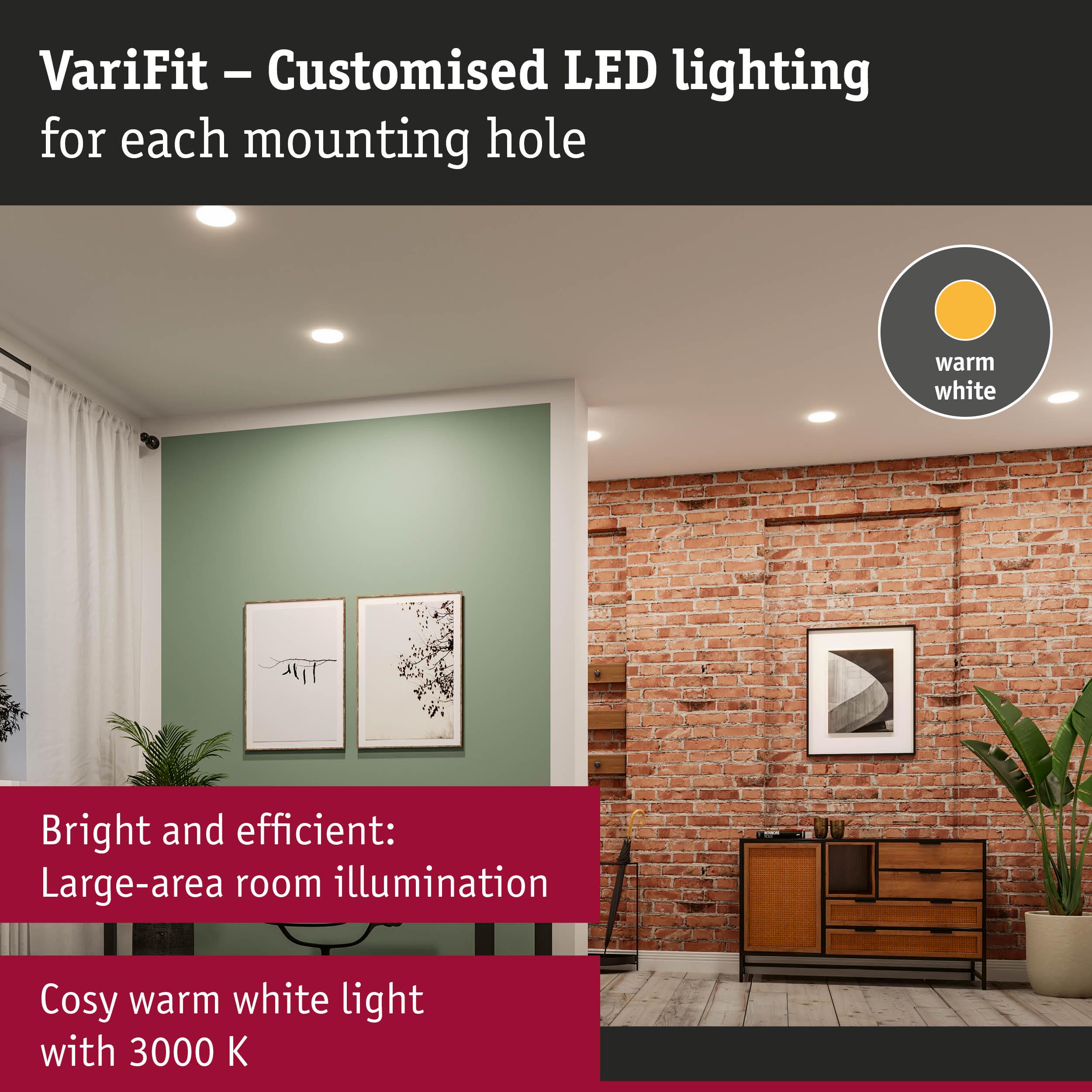

Color temperatur: 3000K - Warm white
Even room light based on cutting-edge LED technology
High light yield for area lighting

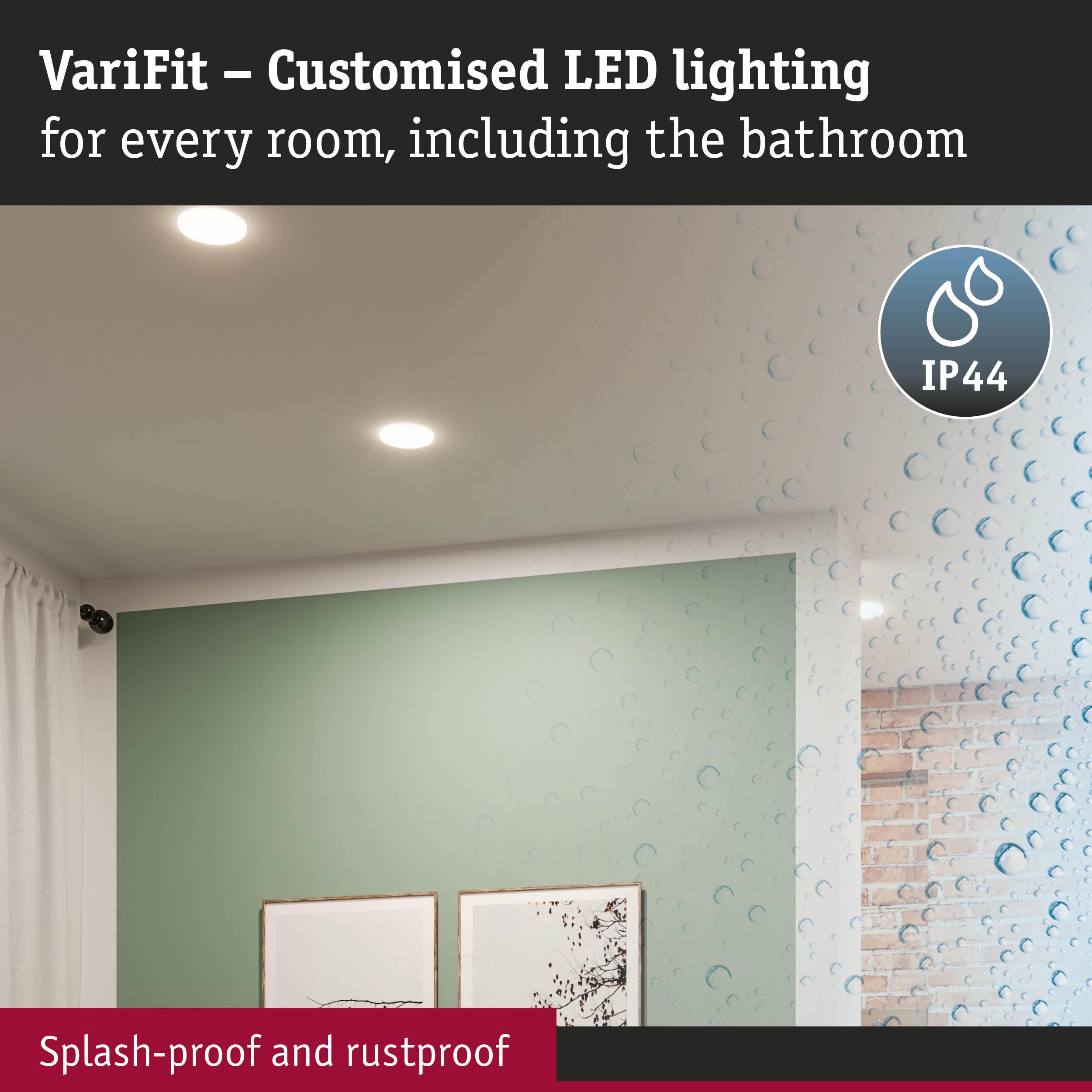

IP44 splash-protected for bathrooms and similar rooms
Satined plastic cover for fine diffusion of light

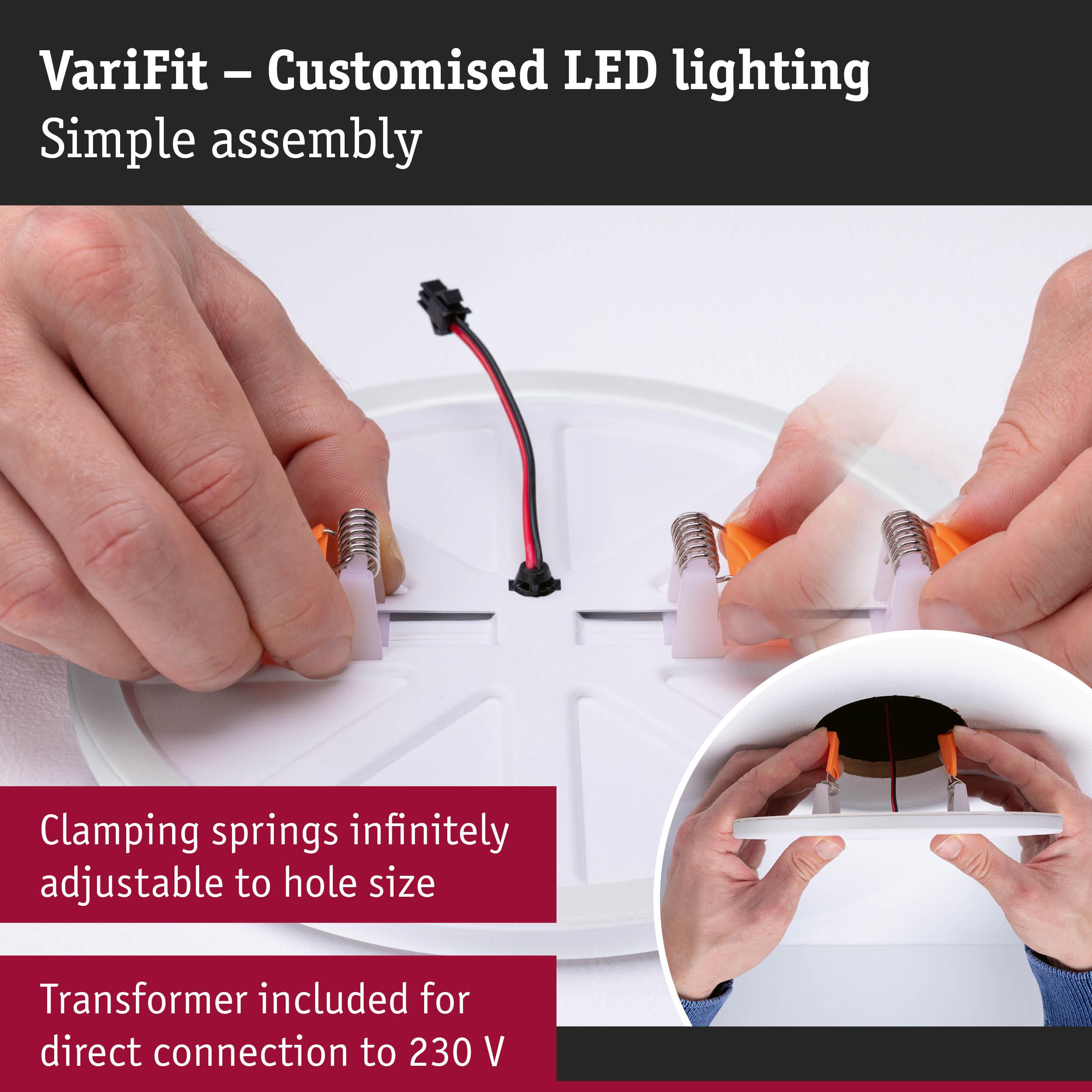

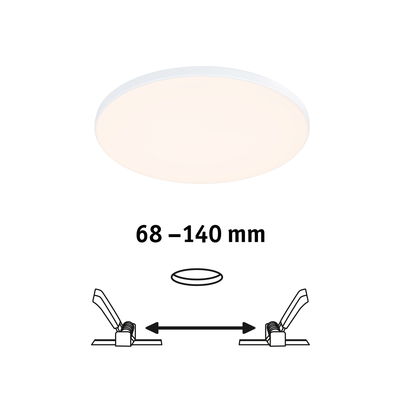

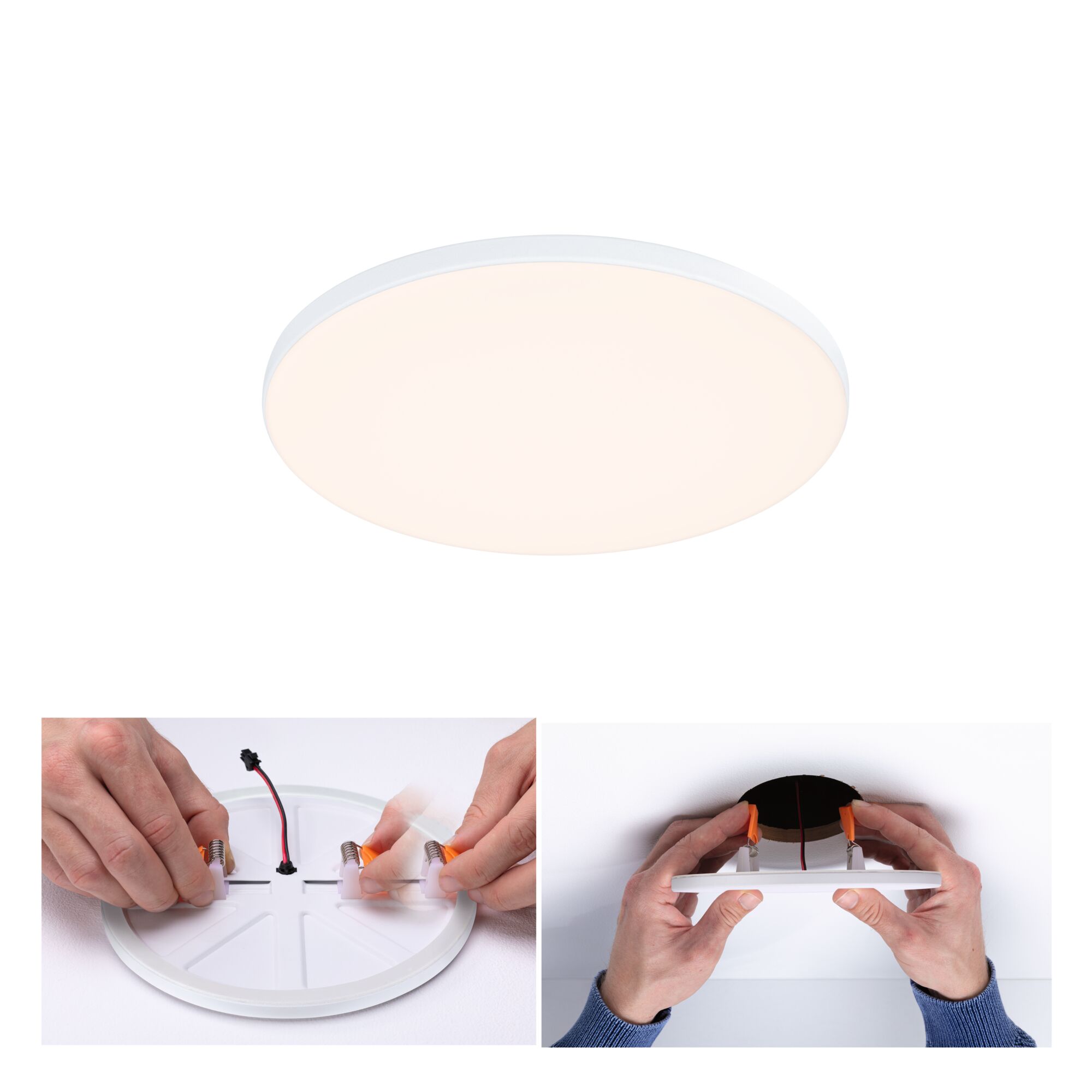

VariFit – flexible installation with infinitely adjustable clamping springs
With integrated LED bulb
Service life 50,000 hours

Dimension
Dimensions (Height x Width x Depth)	H: 9 mm
Ø	160 mm
Mounting hole	68 mm
Form	round

Design and Material
Colour	White
Material	Plastic

Installation
Installation site (recommendation)	Wall and ceiling mounting

Energy consumption
Energy efficiency (A to G)	E

Service life
Lifetime	50000 h

Light Characteristics
Colour temp.	3000 K
color temp	Warm white
Usable luminous flux	1100 lm
Luminous flux LED module	1600 lm
Color rendering index	> 80 Ra

Lamp Features
Component parts	12 W
Technique	LED
Inclusive lamp	yes
Incandescent Equivalent	104 W
Adjustability	fixed
Dimmable	No
IP protection	IP44 ceiling mounting
Number of component parts	1x
protection class	protection class II

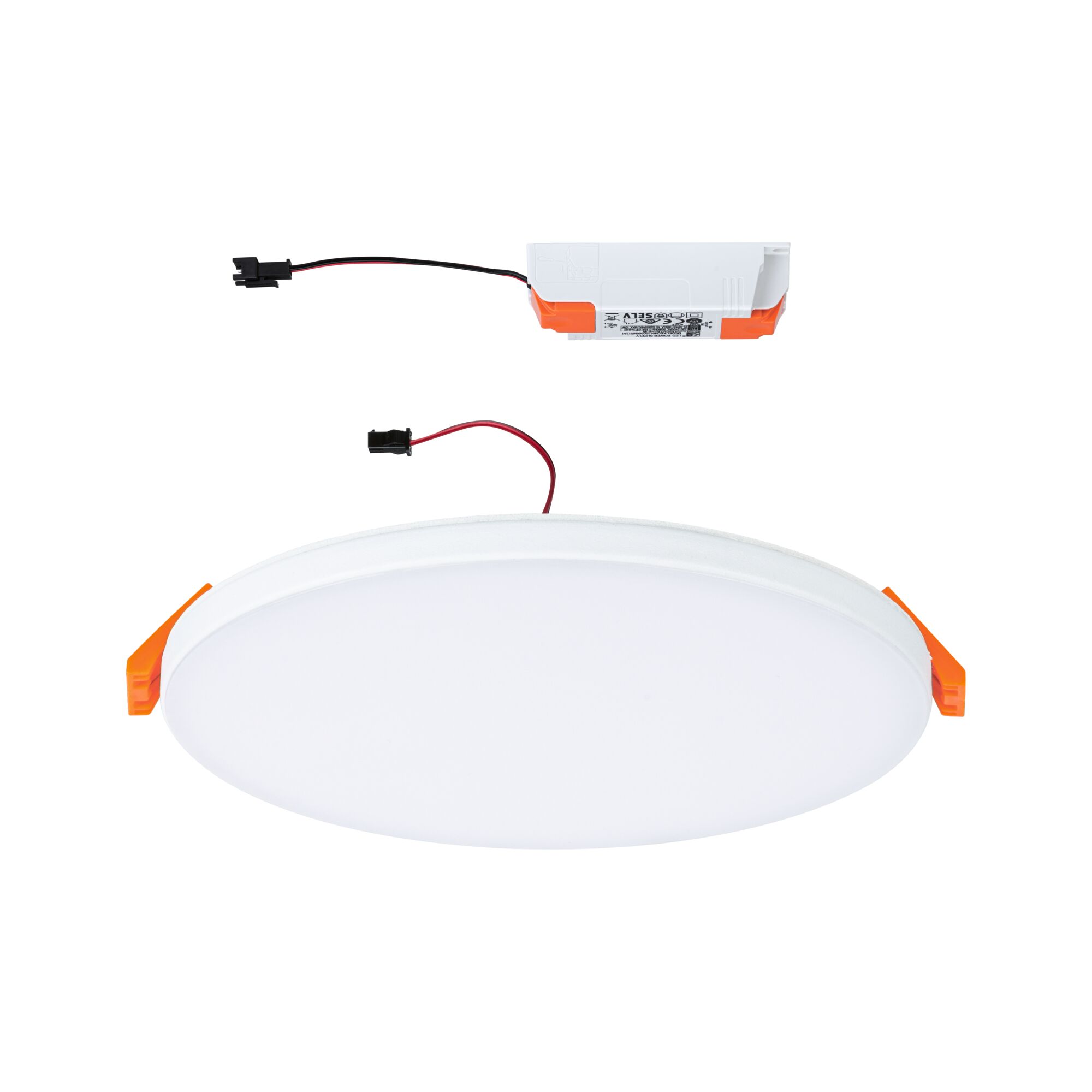

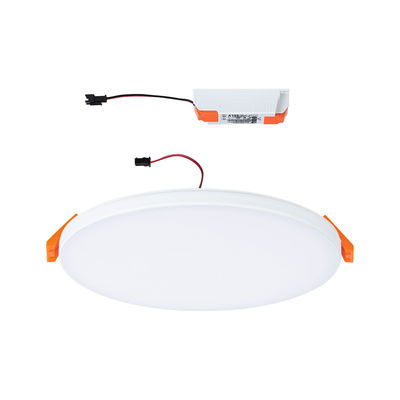

Replacable	3 Lightsource is not replaceable, the complete lighting must be replaced.\|5 Control gear is replaceable without damage the lighting fixture by electrician.
Power consumption	14 W

Transformer
apparent power	15 VA

Accessories
Radio control included	no

Labelling
WEEE-Reg.-No	DE 39236390
