Article-No.:
93944

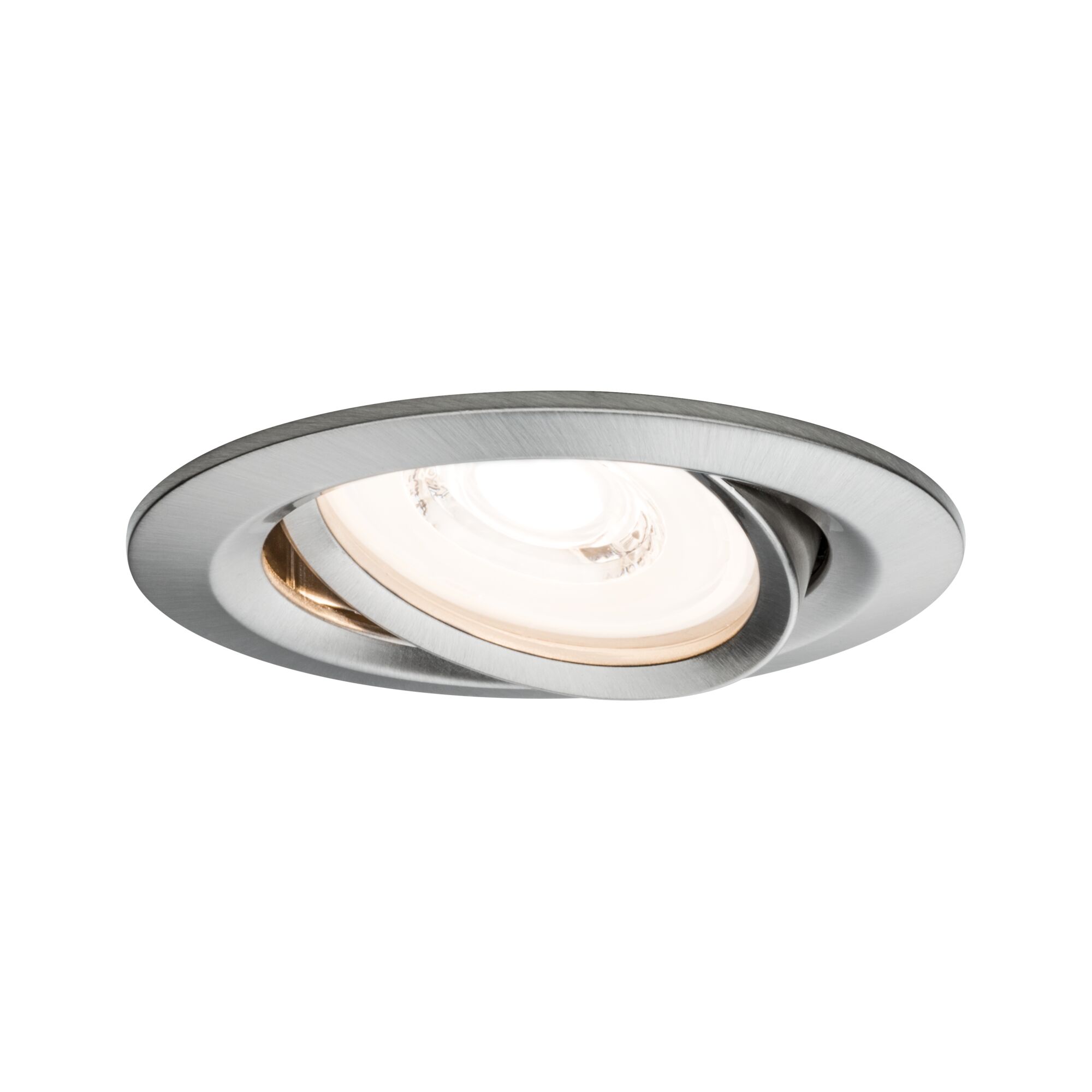

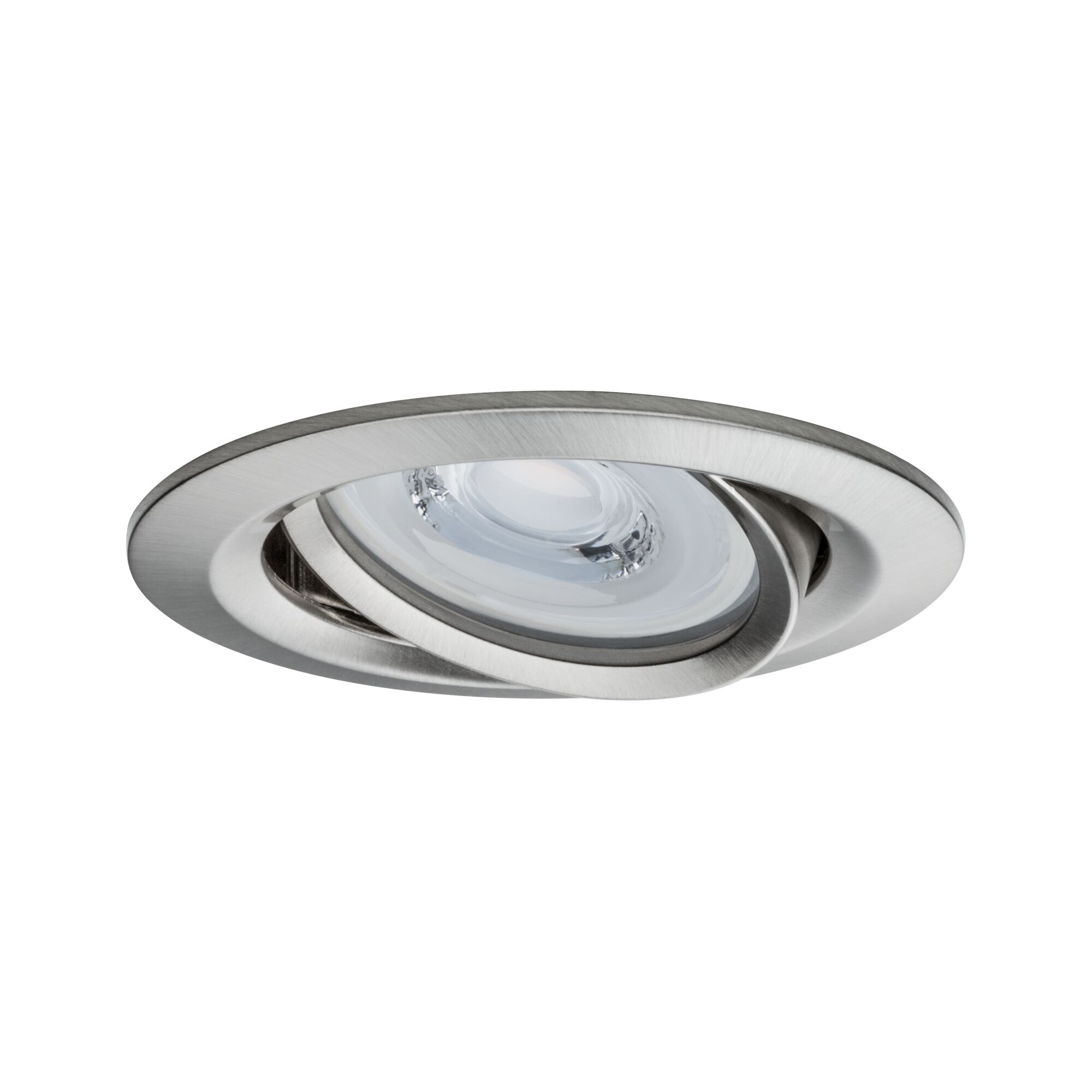

PremiumLED Recessed luminaire
LED Recessed luminaire Coin Basic Set Swivelling
round 84mm 50° Coin 3x6,3W 3x430lm 230V dimmable 2700K Brushed iron
round 84mm 50° Coin 3x6,3W 3x430lm 230V dimmable 2700K Brushed iron
£98.95*
Prices incl. Standard rate VAT
Ready to ship, delivery within 2-3 working days
- Set of 3 luminaires incl. LED module
- With swivelling spots for ideal illumination
- Directional light sets light accents by shining on objects.
Premium LED Recessed luminaire Coin Basic Set Swivelling round 84mm 50° Coin 3x6,3W 3x430lm 230V dimmable 2700K Brushed iron
Coin reflectors are user-friendly recessed spotlights with directed light for accent lighting. They are suitable for new installations as well as for replacing existing installations. Their flat design means that they can be installed in ceilings with a cavity of only 30 millimetres. You yourself can determine the spacing between the recessed spots. The simple and tool-free linking of single luminaires using quick clips saves you time and stress. The dimming function enables you to adjust the brightness to your individual mood and ensures bright light to work in and a cosy living atmosphere.

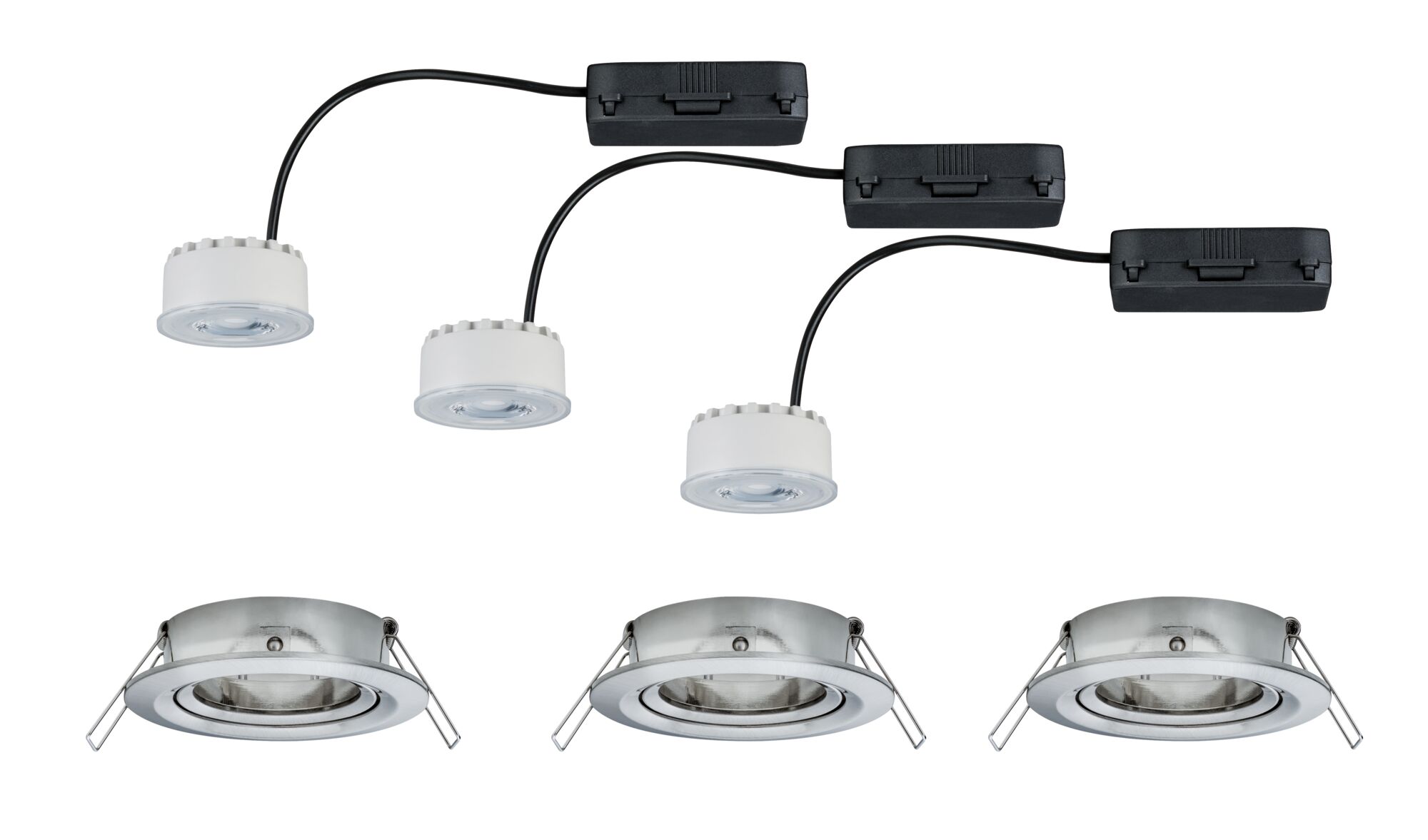

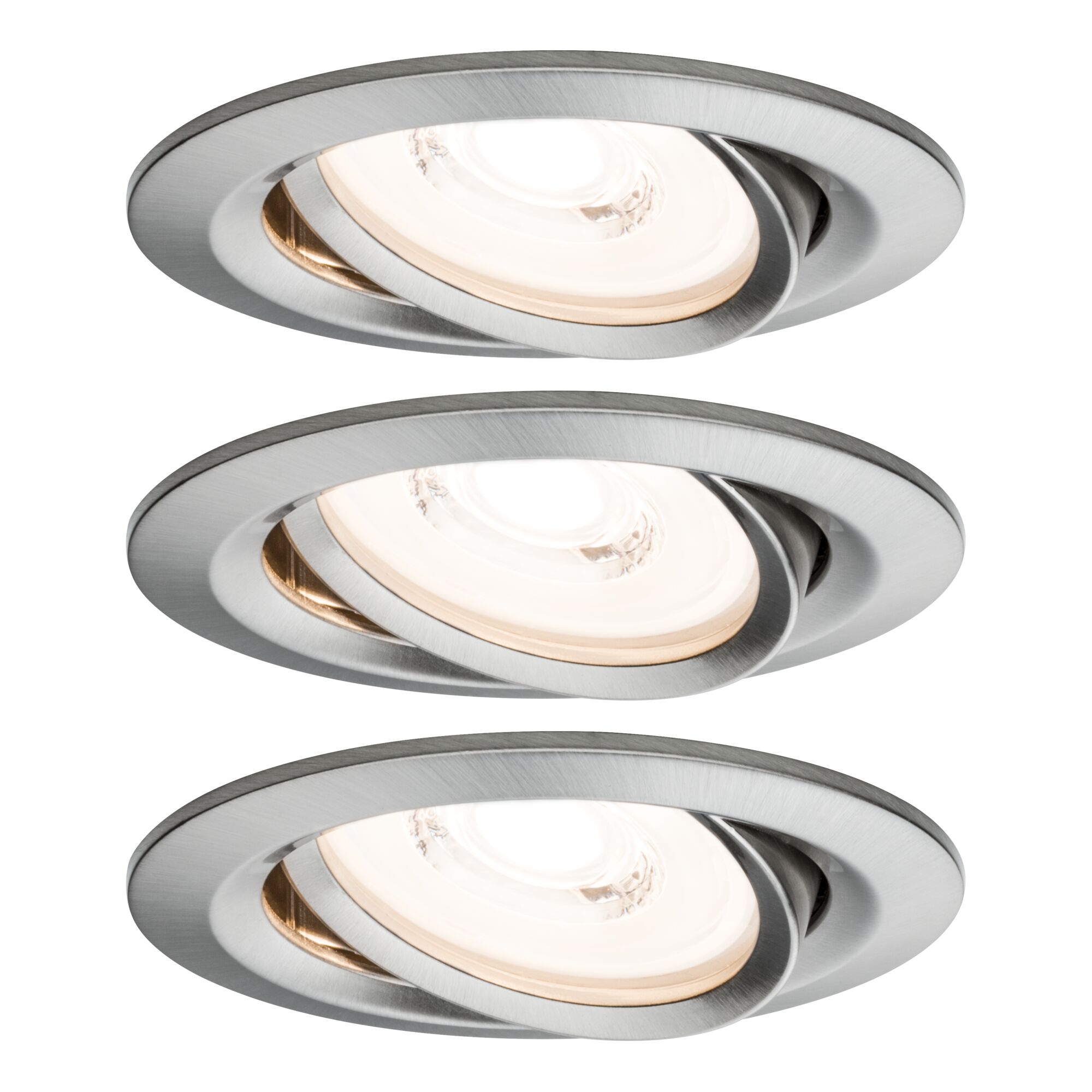

- Set of 3 luminaires incl. LED module
- With swivelling spots for ideal illumination
- Directional light sets light accents by shining on objects.
- For 230 V direct connection
- Color temperatur: 2700K - Warm white
- Dimmable

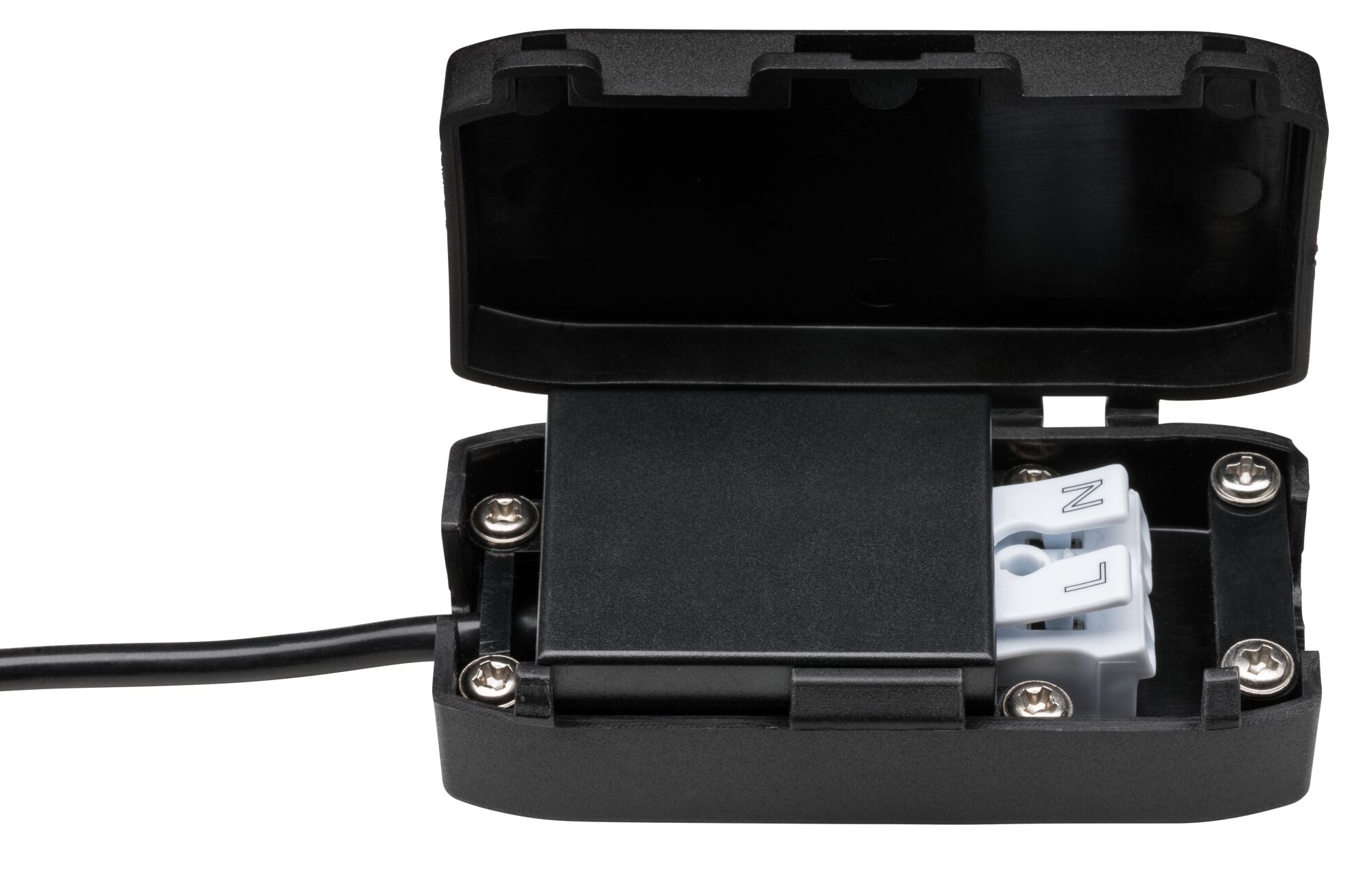

- Incl. junction box with double quick clamp for feeding through wires
- Efficient LED technology

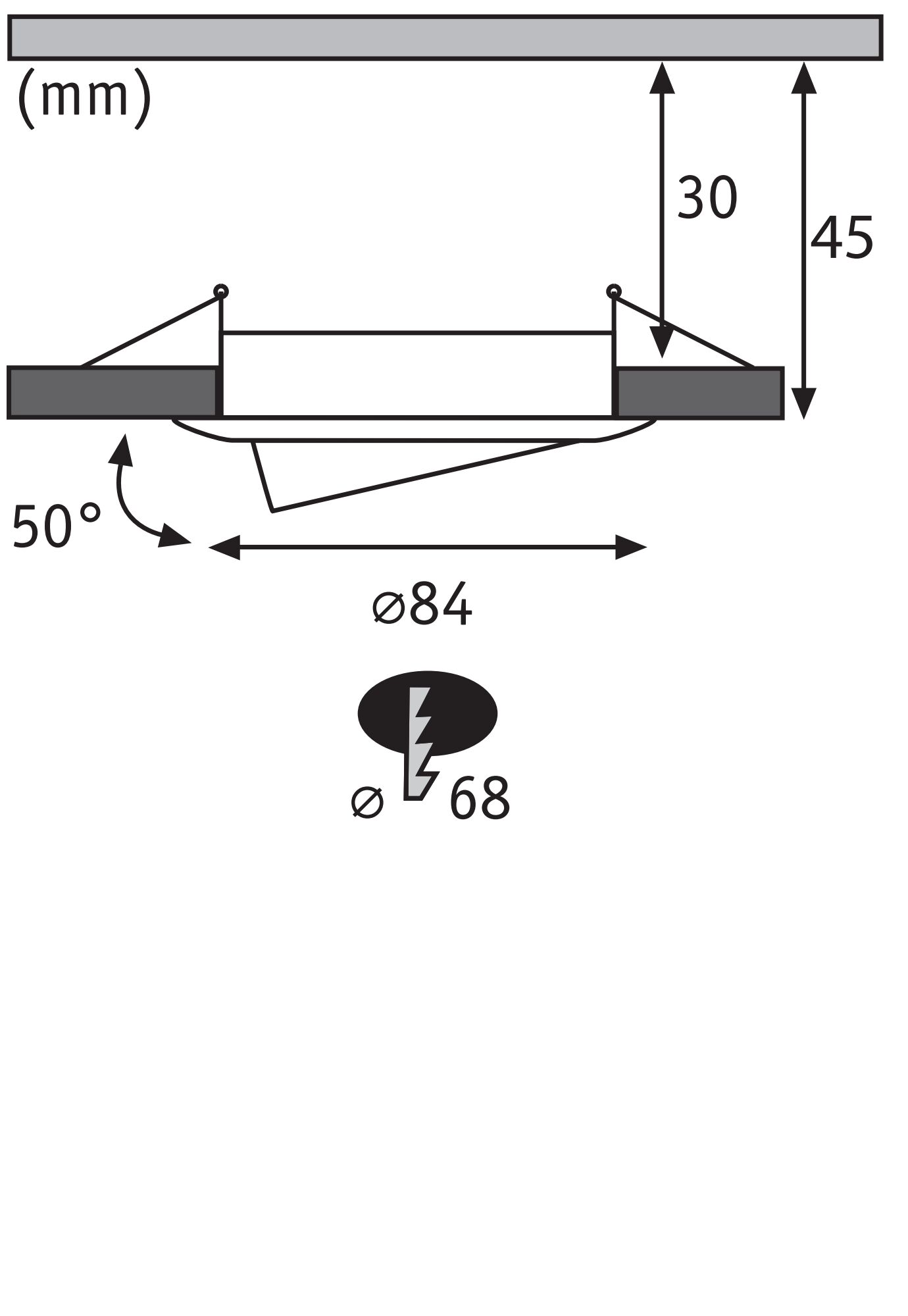

| Dimension | |
|---|---|
| Diameter | 84 mm |
| Built-in diameter | 68 mm |
| Mounting depth | 45 mm |
| Depth of hollow wall | 30 mm |
| Design and Material | |
|---|---|
| Form | round |
| Colour | Brushed iron |
| Material | Aluminium zinc |
| Installation | |
|---|---|
| Installation site (recommendation) | Ceiling mounting |
| Energy consumption | |
|---|---|
| Energy efficiency (spectrum A-G) (LED Module) | G |
| Energy consumption | 7 kWh_1000h |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temperature | Warm white, 2700 K |
| Nominal luminous flux | 430 lm |
| Colour consistency (SDCM) | 6 |
| Color rendering index | > 80 Ra |
| Beam angle | 38 ° |
| Lamp Features | |
|---|---|
| Dimmable | with dimmer R+C f.elect.trafos+230V bulbs |
| Inclusive lamp | yes |
| light source property | Without light source |
| Swivel range | 50 ° |
| Incandescent Equivalent | 37 W |
| IP protection | IP23 ceiling mounting |
| Protection class | Protection class II |
| Base/Socket | Coin |
| Technique | LED |
| Component parts | 6,3 W |
| Number of component parts | 3x |
| Replacable | 2 Lightsource is replaceable without damage the lighting fixture by electrician. |
| Adjustability | swivelling/tilting |
| Voltage | 230 V |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
