Article-No.:
28785
230 V Standard

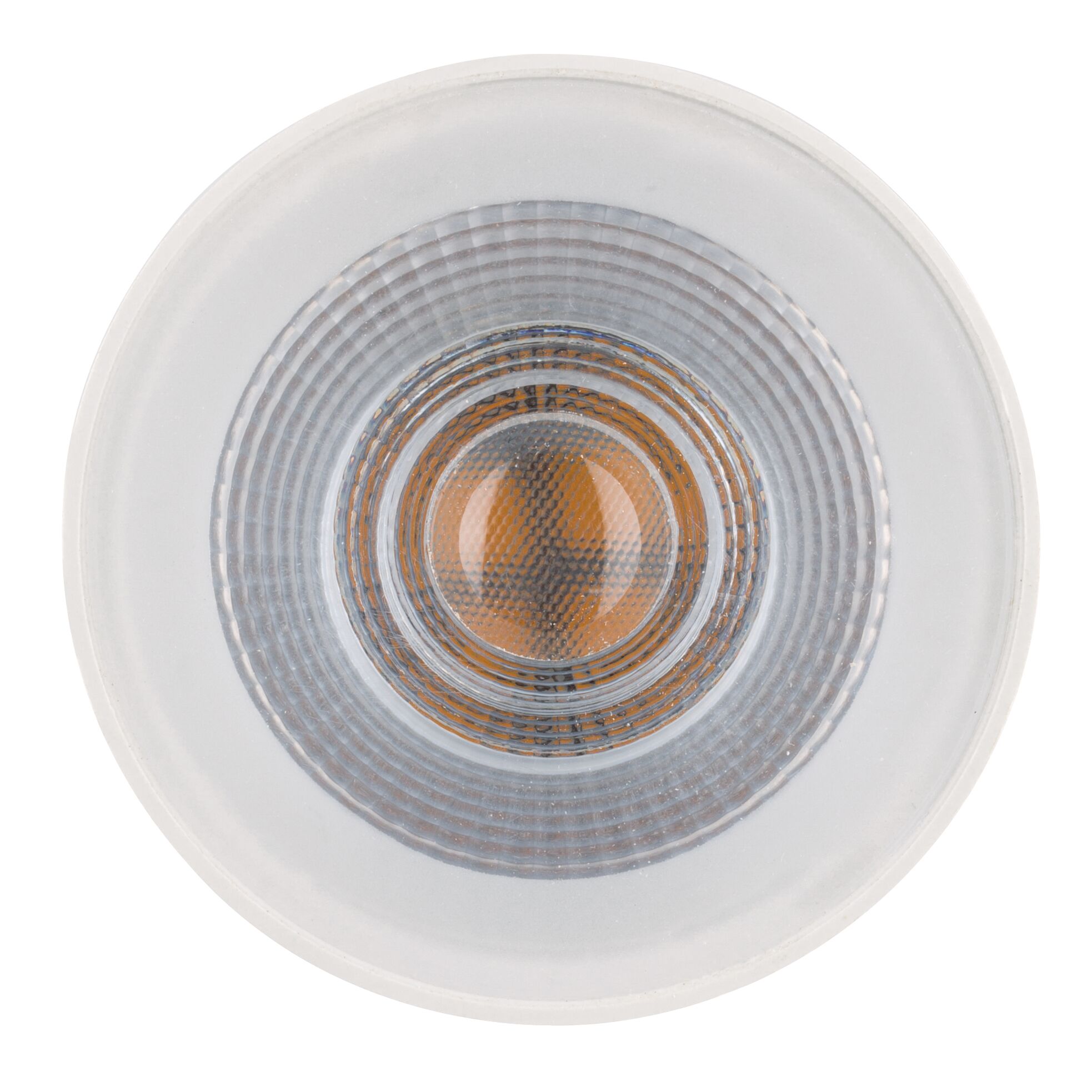

LED Reflector 3-Step dim

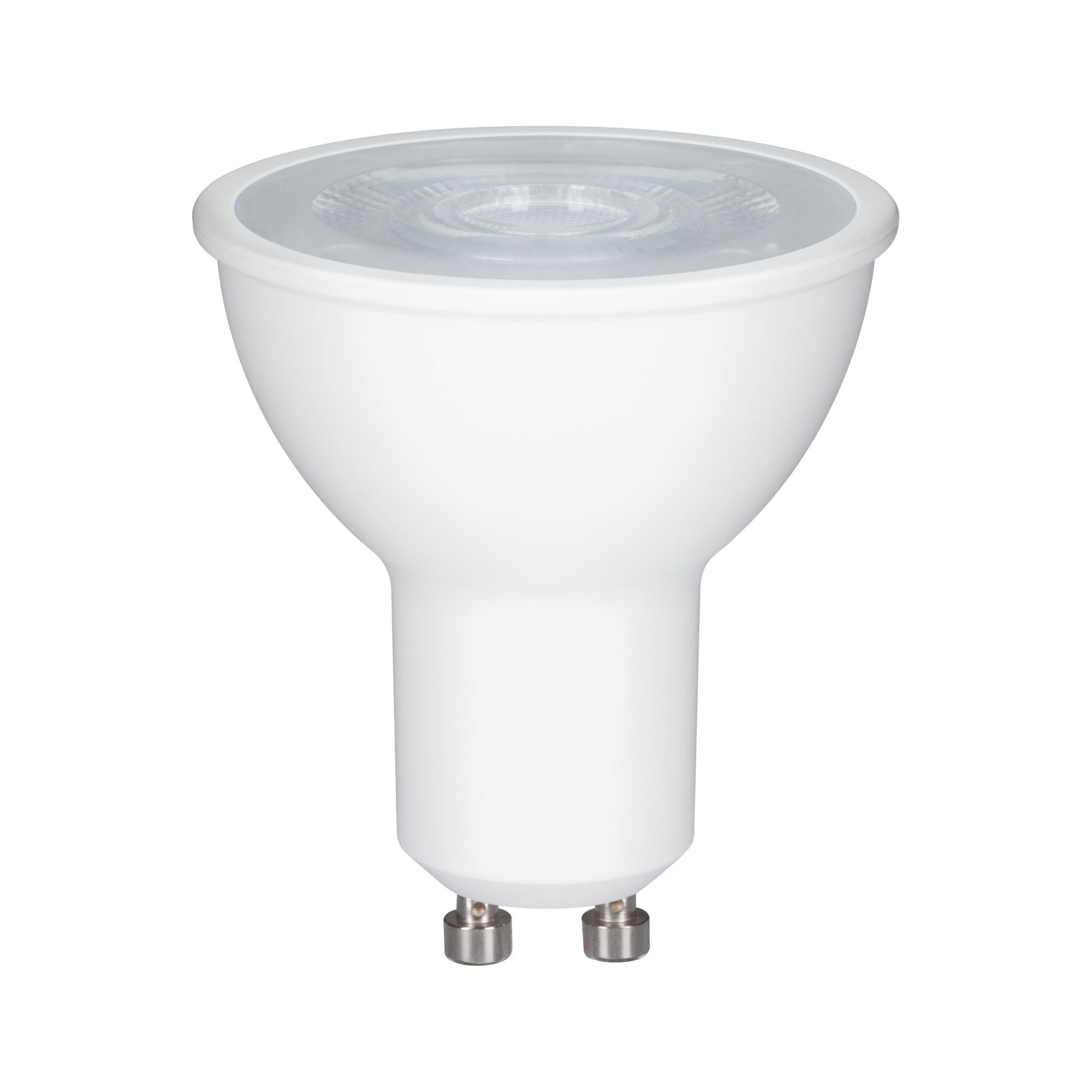

GU10 230V 3x460lm 3x6,5W 2700K dimmable White
GU10 230V 3x460lm 3x6,5W 2700K dimmable White
- For combination with Choose! spot sets

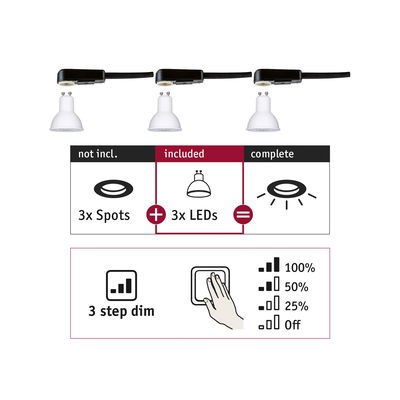

- Can be dimmed with a standard light switch, with 3 dimming levels

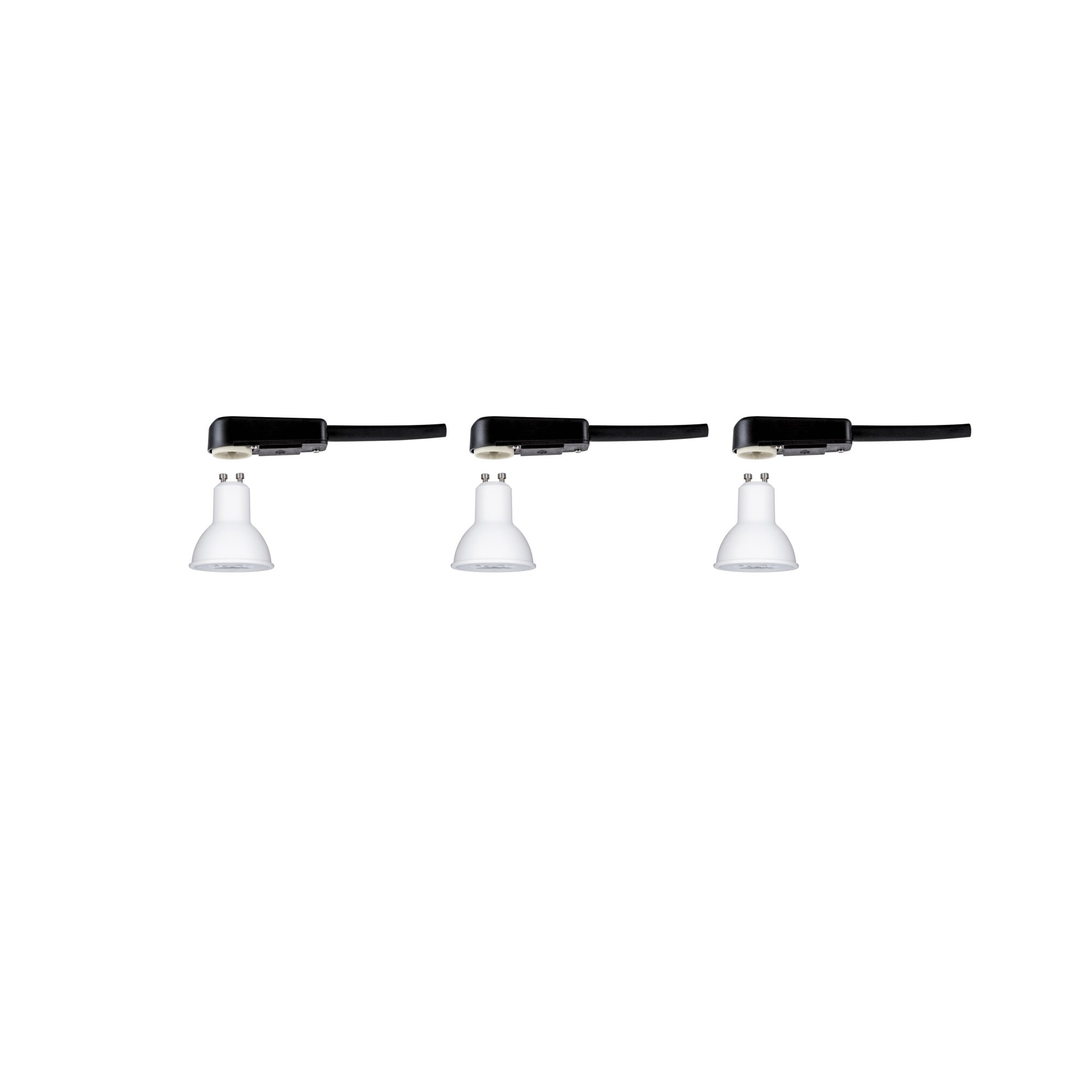

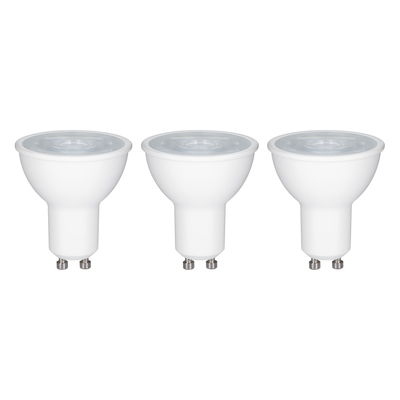

- Set of 3 LED modules and junction box with double terminal
230 V Standard 3-Step-Dim LED Reflector GU10 Choose 3-Step dim GU10 230V 3x460lm 3x6,5W 2700K dimmable White
The GU10 modules with 3-step dim are compatible with all mounting rings in the Choose series. The integrated 3-step dimming function offers three dimming levels with multiple pushes of a regular commercial light switch. Choose lets you combine the recessed luminaires you want. The recessed luminaires can be linked unlimited times, no transformer is needed and all lamps are replaceable.
- For combination with Choose! spot sets
- Can be dimmed with a standard light switch, with 3 dimming levels
- Set of 3 LED modules and junction box with double terminal
- Color temperatur: 2700K - Warm white
- Incl. replaceable LED lamp
| Dimension | |
|---|---|

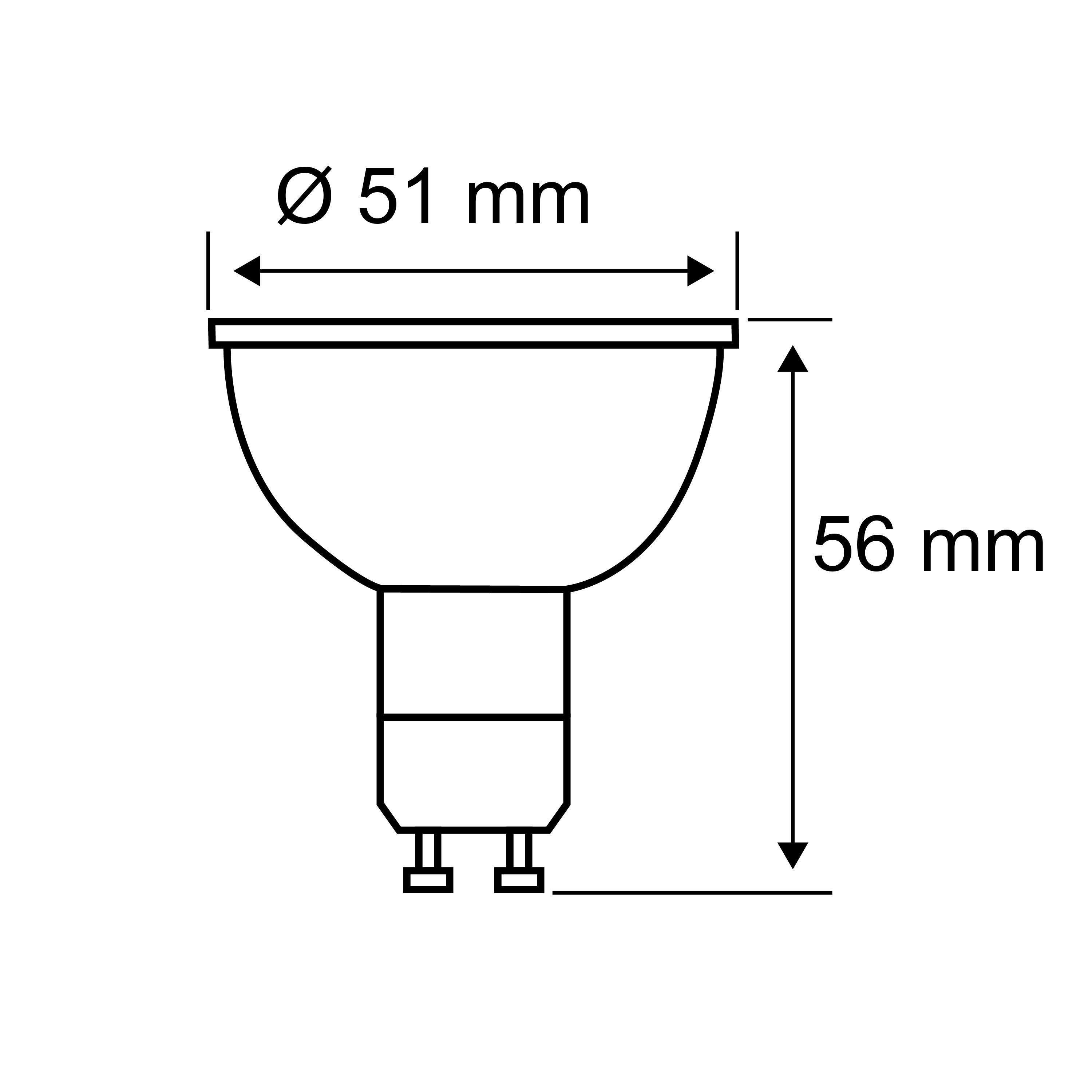

| Dimensions (Height x Width x Depth) | H: 56 mm |
| Ø | 51 mm |
| Form | round |
| Design and Material | |
|---|---|
| Colour | White |
| Energy consumption | |
|---|---|
| energy efficiency (A to G) | G |
| Energy consumption | 7 kWh_1000h |
| Service life | |
|---|---|
| Lamp lumen maintenance factor 6000h | 85 % |
| luminous flux at the end of lamplife | 0 % |
| Number of switching cycles >= | 50000 |
| lifetime | 15.000 h |
| Rated life time | 15000 h |
| Light Characteristics | |
|---|---|
| Color temp. | 2700 K |
| Beam angle | 38 ° |
| Useful luminous flux | 460 lm |
| color temp | 2.700 K |
| colour consistency | <= 6 Step of the MacAdam ellipse |
| Color rendering index | > 80 Ra |
| Rated peak intensity | 780 cd |
| Luminous intensity | 780 cd |
| Rated luminous flux (Lumen) | 460 lm |
| Lamp Features | |
|---|---|
| Component parts | 6,5 W |
| Technique | LED |
| Socket | GU10 |
| Type | Reflector |
| Dim | dimmable in 3 steps with normal light switch |
| Dimmable | Yes |
| Incandescent Equivalent | 32 W |
| Inclusive lamp | ✓ |
| Number of component parts | 3x |
| Replacable | 7 not concerned. |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
Downloads
Zubehoer

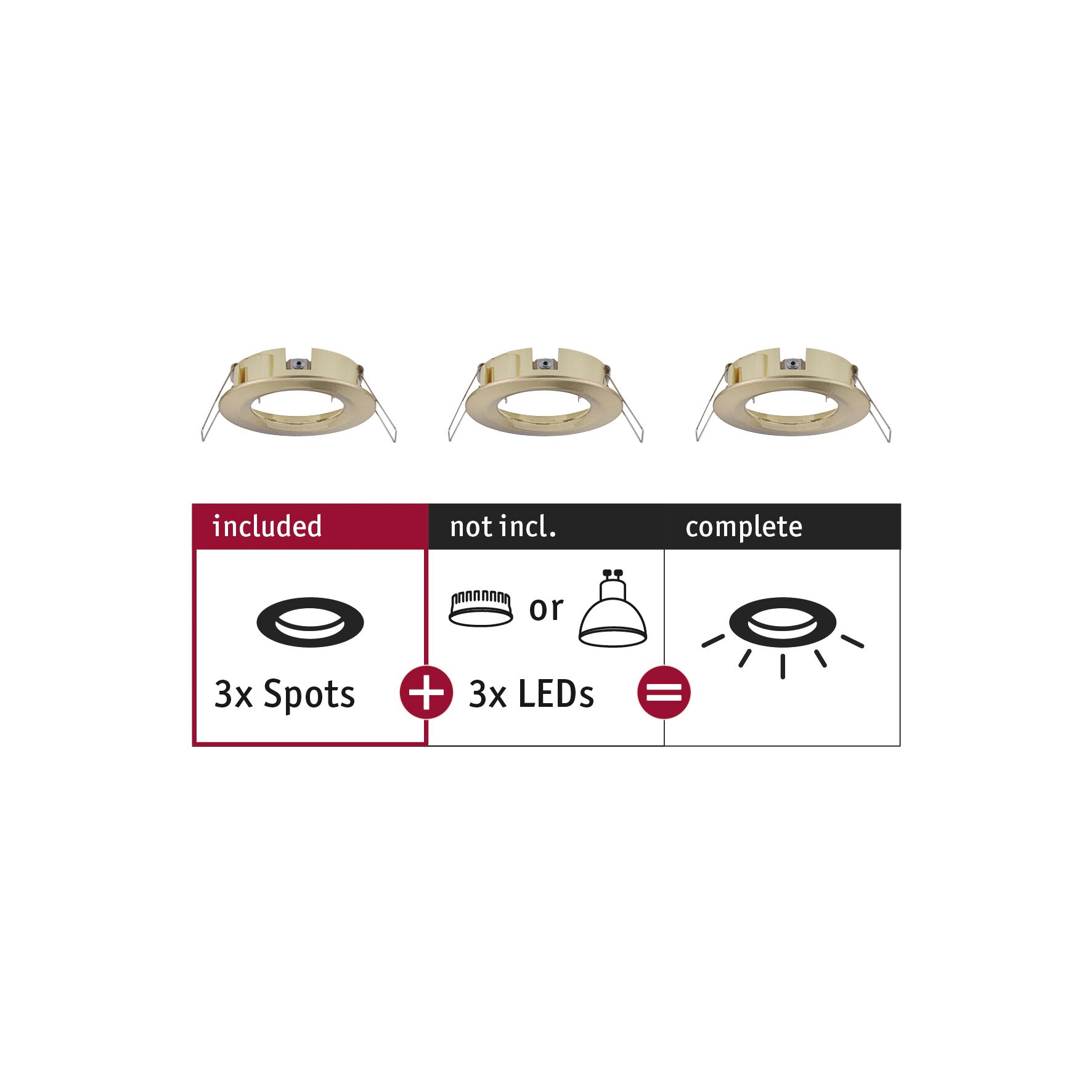

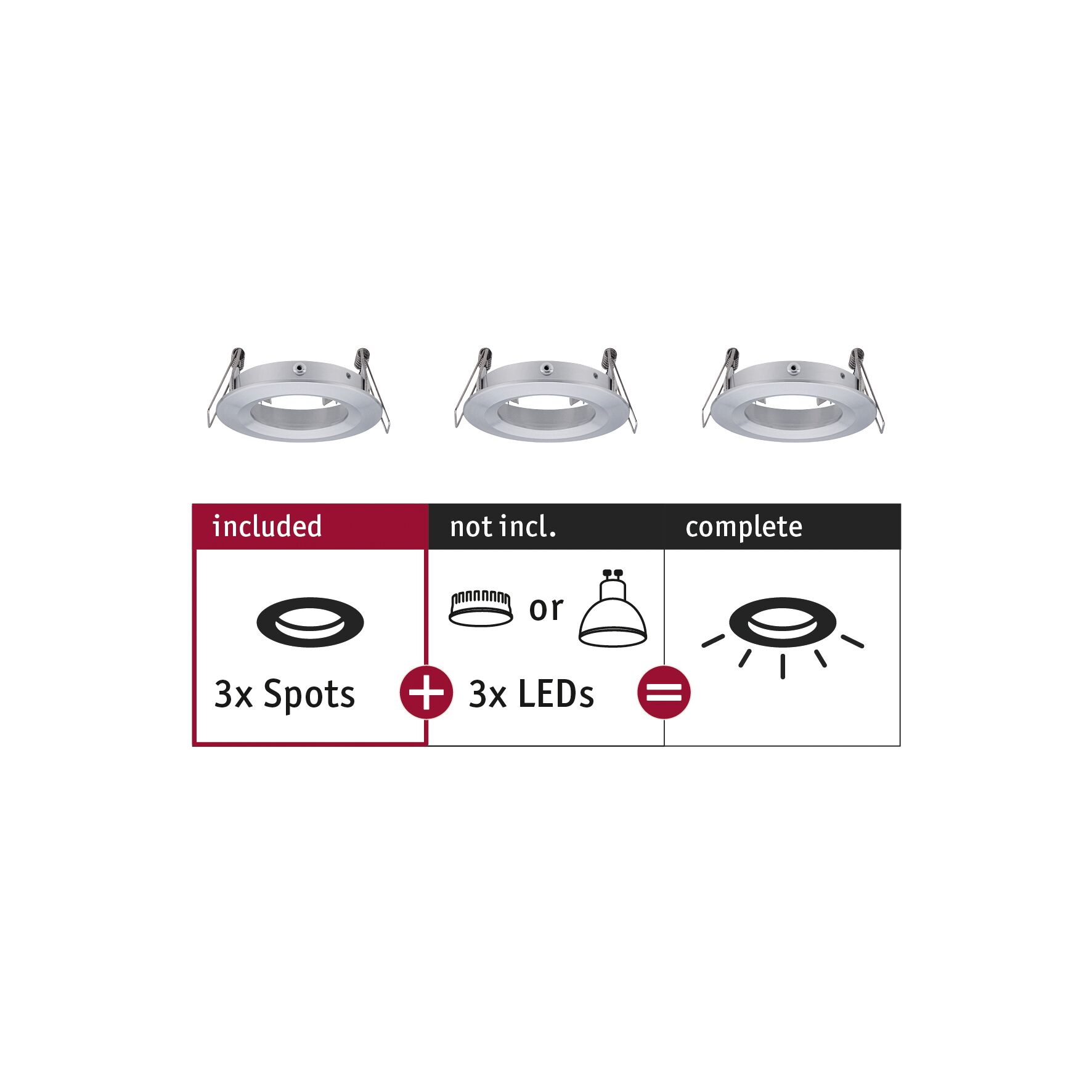

- Recessed luminaire

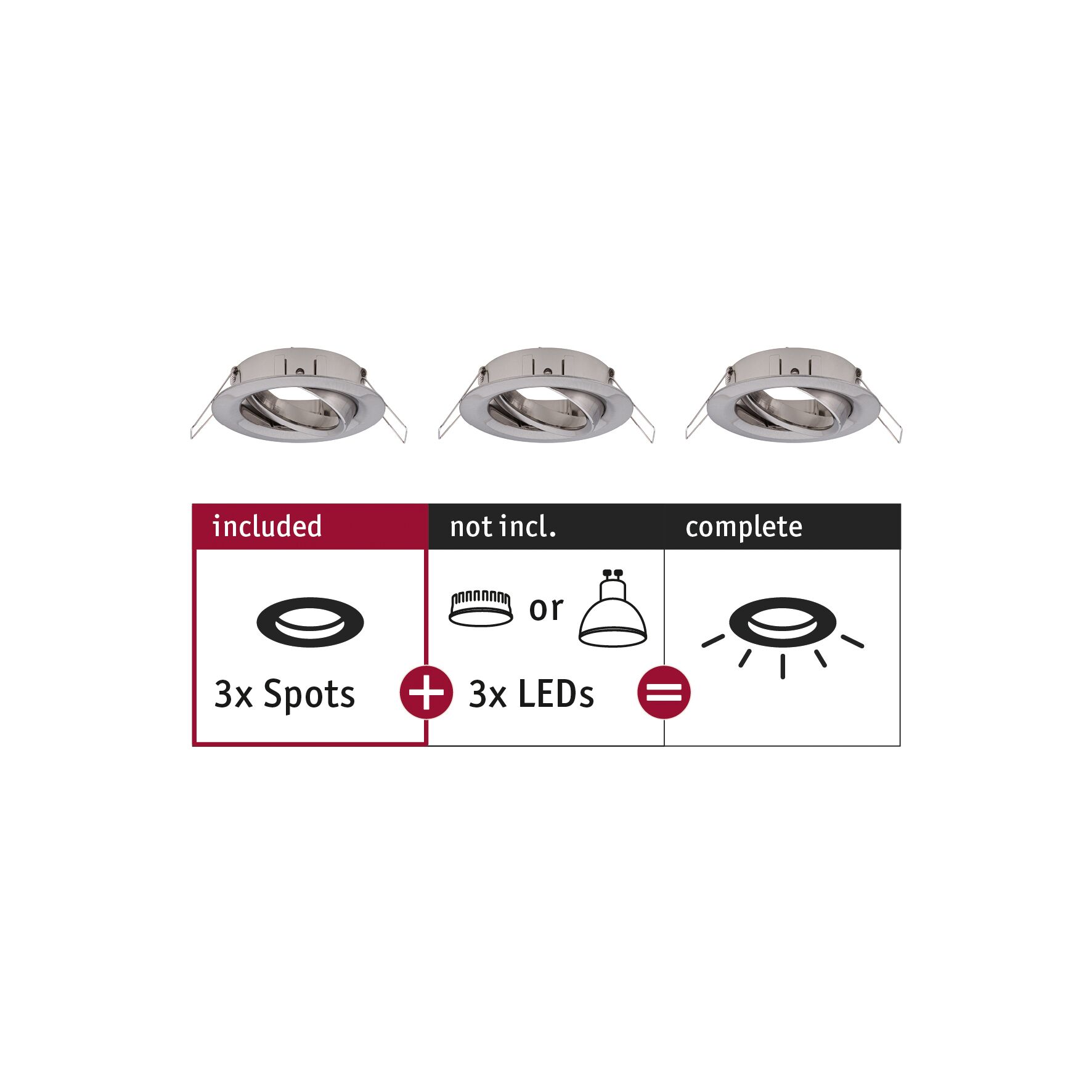

IP44 round 78mm max. 3x10W dimmable Turned aluminium
£32.95*
- Recessed luminaire
round 84mm 50° max. 3x10W dimmable Black matt
£30.95*

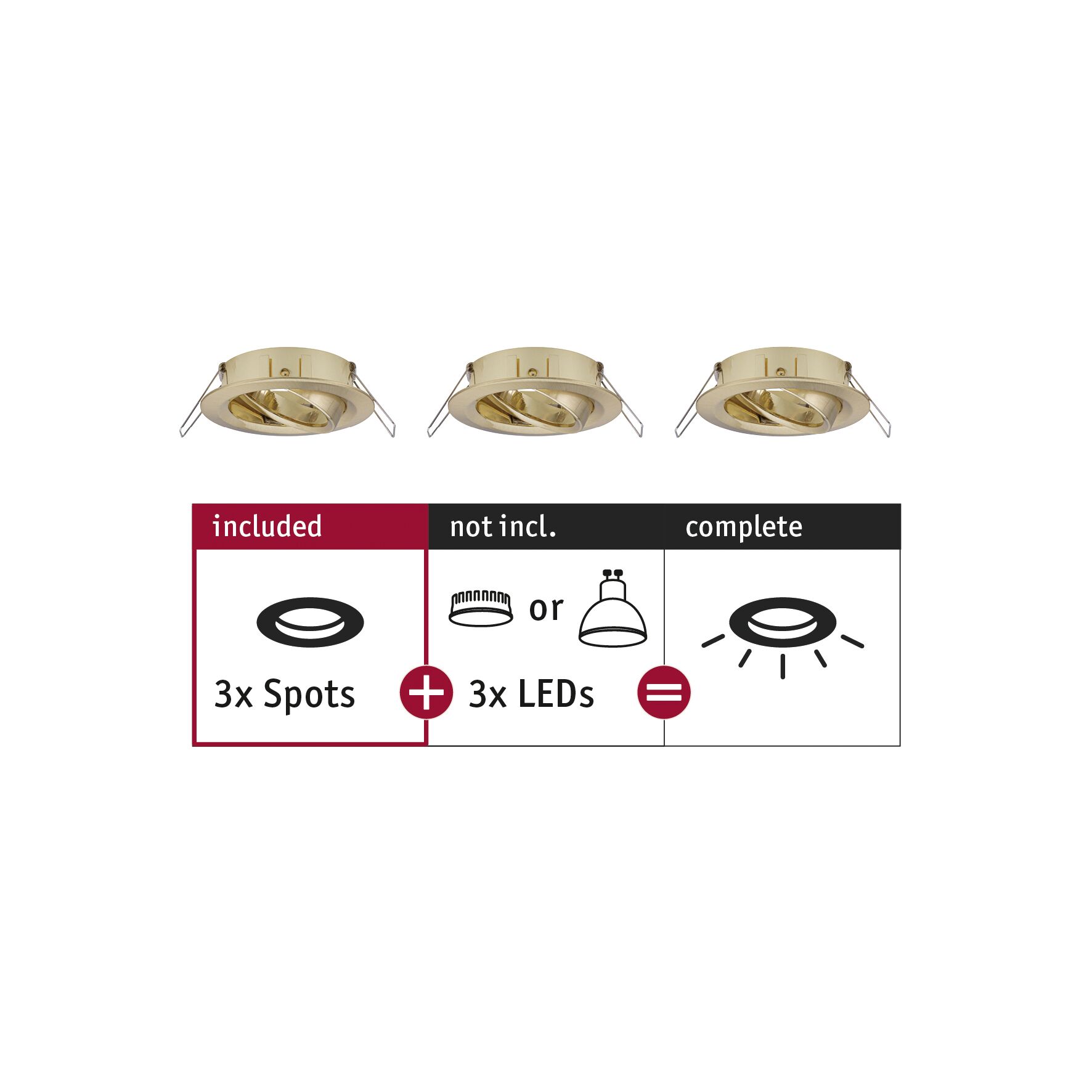

- Recessed luminaire
round 84mm 50° max. 3x10W dimmable Brushed brass
£30.95*
- Recessed luminaire
round 84mm 50° max. 3x10W dimmable Brushed iron
£30.95*

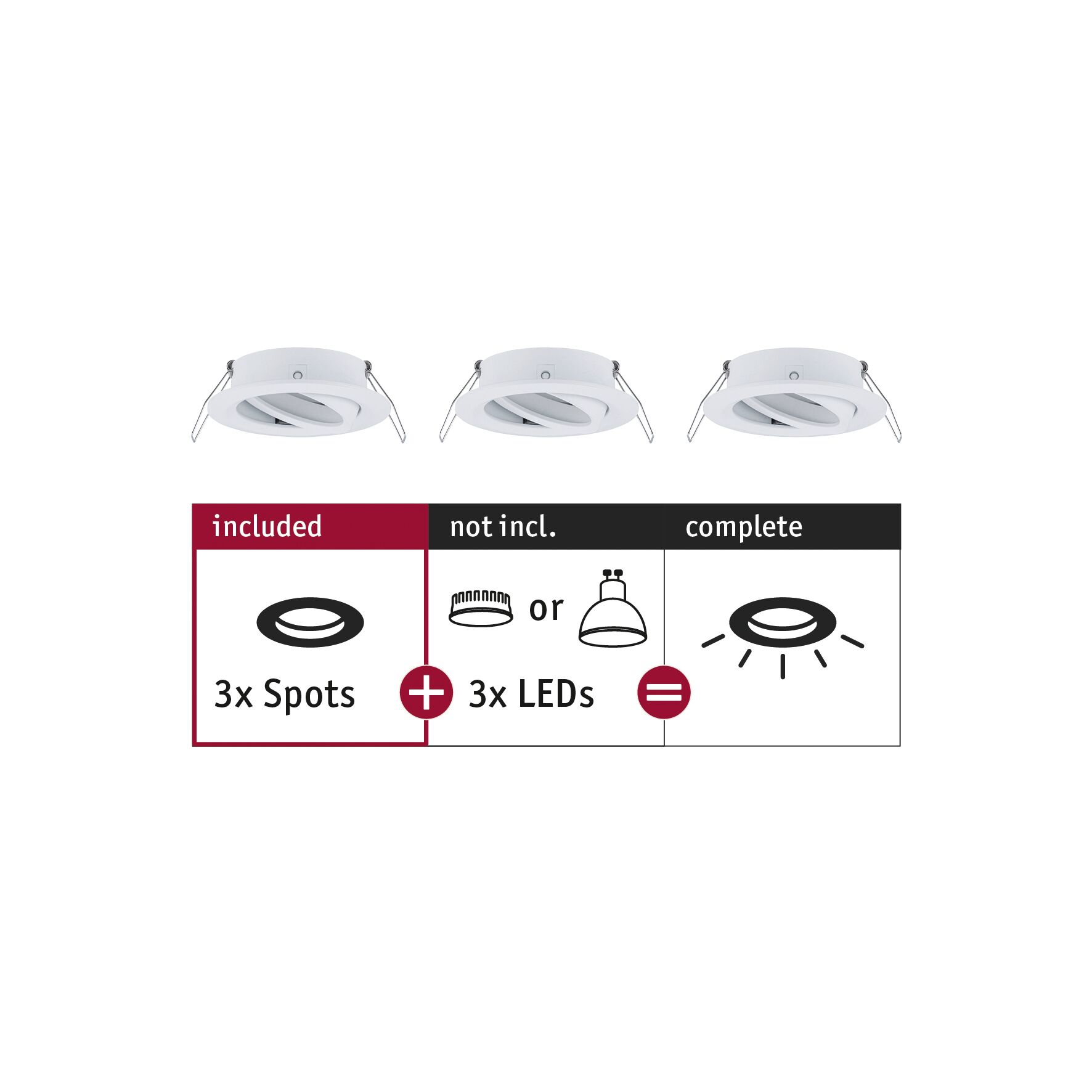

- Recessed luminaire
