Article-No.:
79517

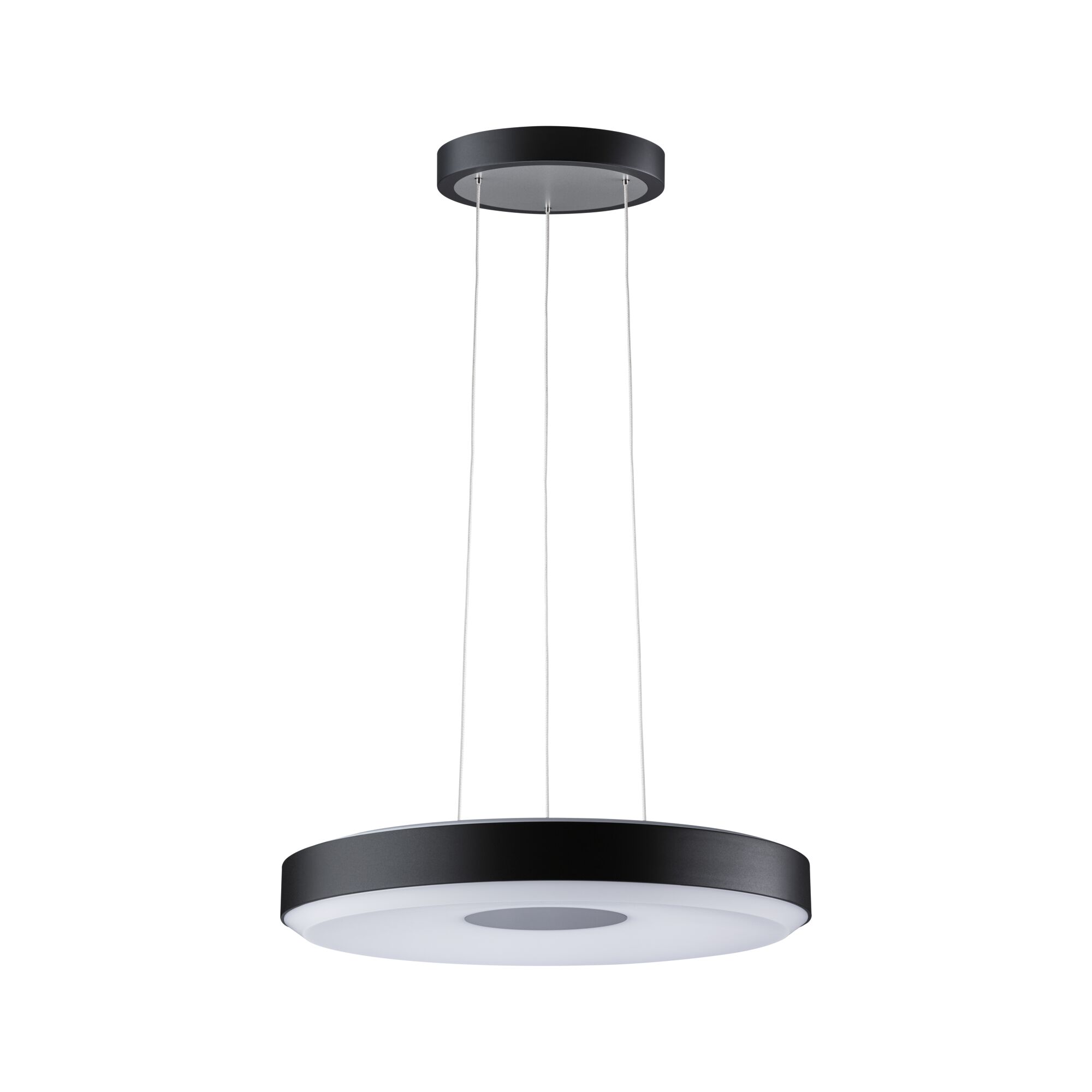

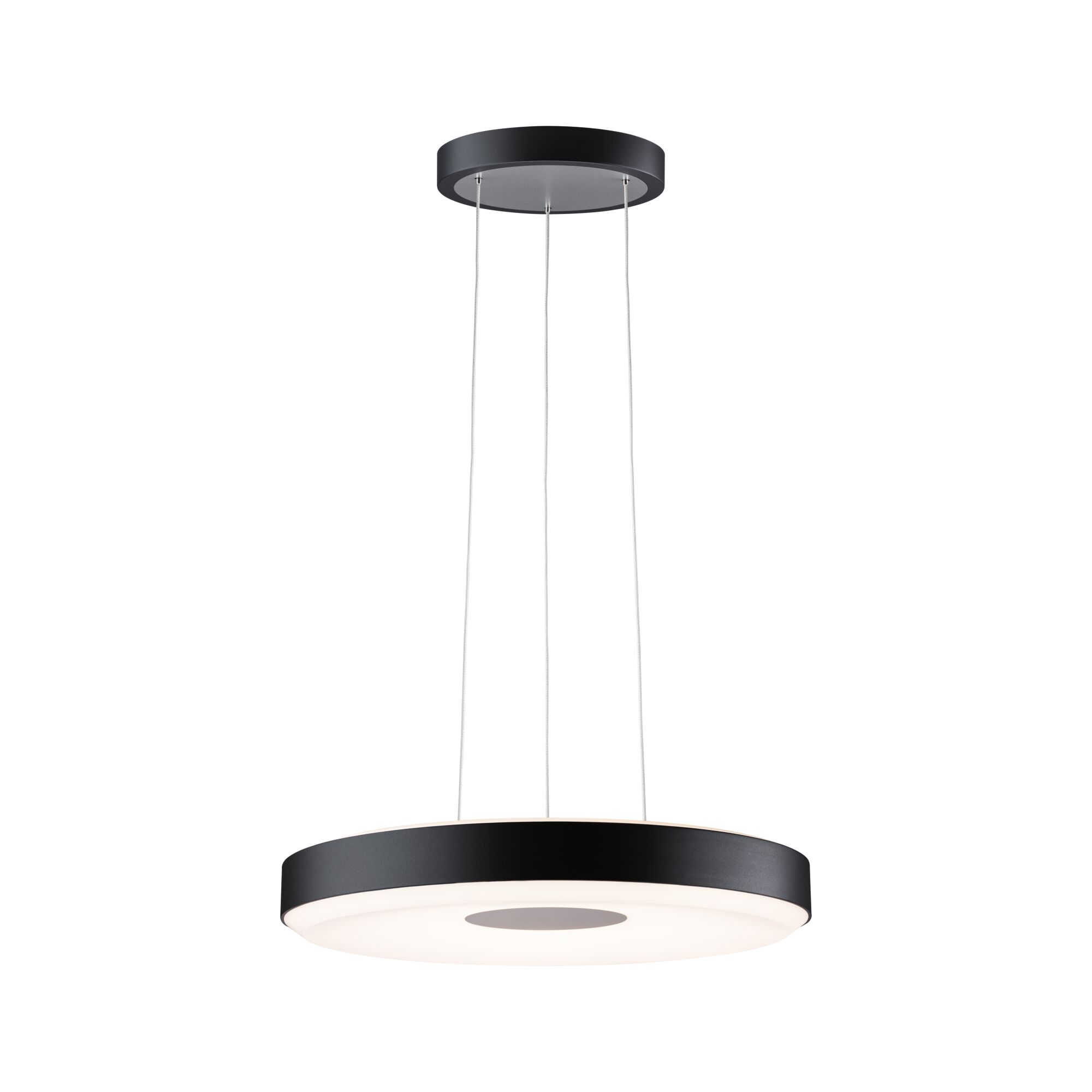

LED Pendant luminaire
3-Step-Dim
Puric Pane
2700K 1200lm / 1400lm 22W Black/Grey dimmable
2700K 1200lm / 1400lm 22W Black/Grey dimmable
- Dekorative Lichteffekte setzen die Decke in Szene
- Even room light based on cutting-edge LED technology
- Indirect ceiling light for pleasant, glare-free illumination
LED Pendant luminaire 3-Step-Dim Puric Pane 2700K 1200lm / 1400lm 22W Black/Grey dimmable
The pendant luminaire from the Puric Pane series creates fascinating lighting effects with its simple, minimal design. The technical design luminaire features modern technology. Its up and downlight function ensure optimal lighting in living and dining areas, enabling both direct and indirect light. Thanks to three-stage dimming via a wall switch and the height-adjustable pendant, it is possible to realize a wide variety of lighting designs.
- Dekorative Lichteffekte setzen die Decke in Szene
- Even room light based on cutting-edge LED technology
- Indirect ceiling light for pleasant, glare-free illumination

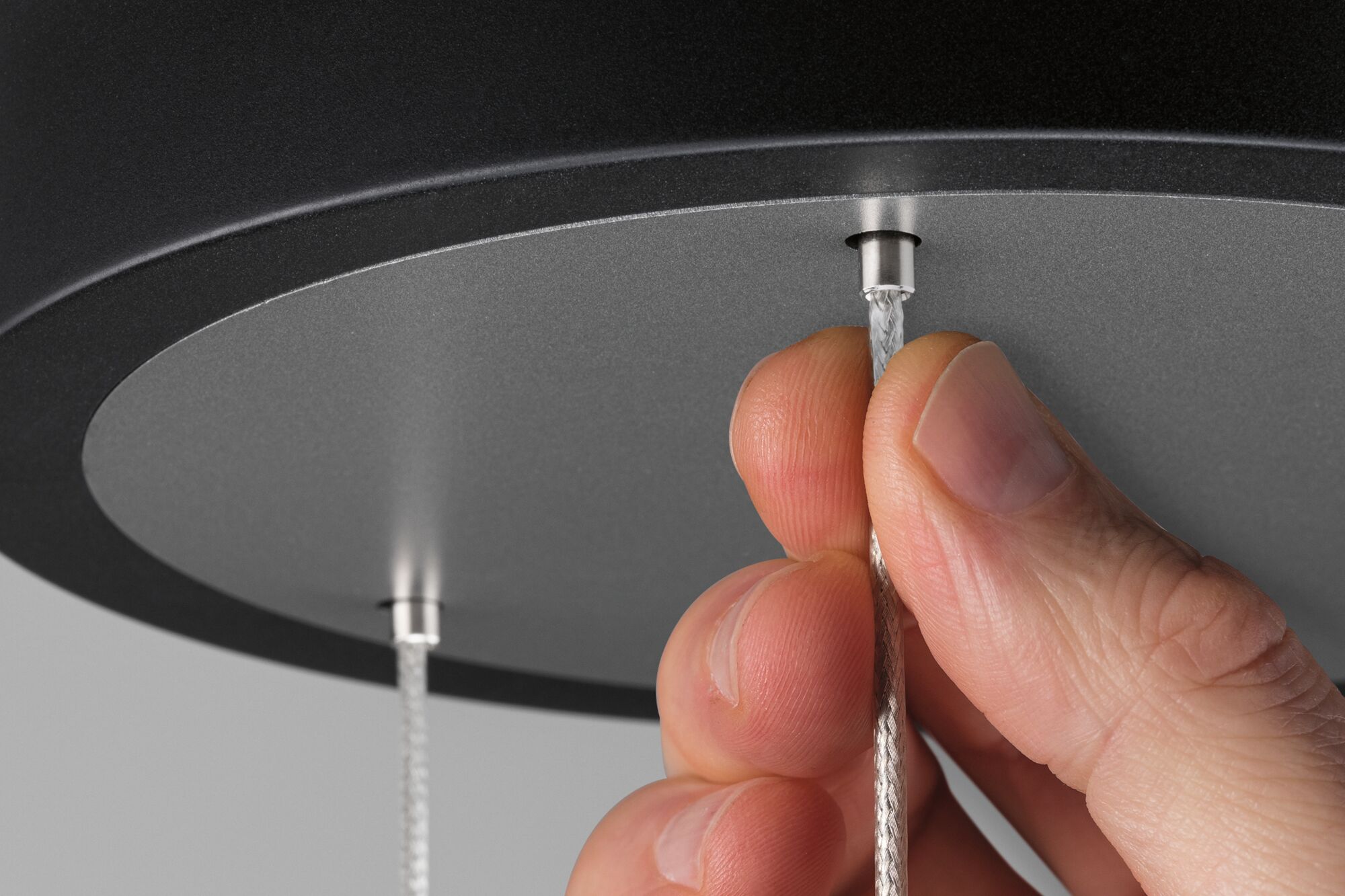

- Pendant height adjustable during installation

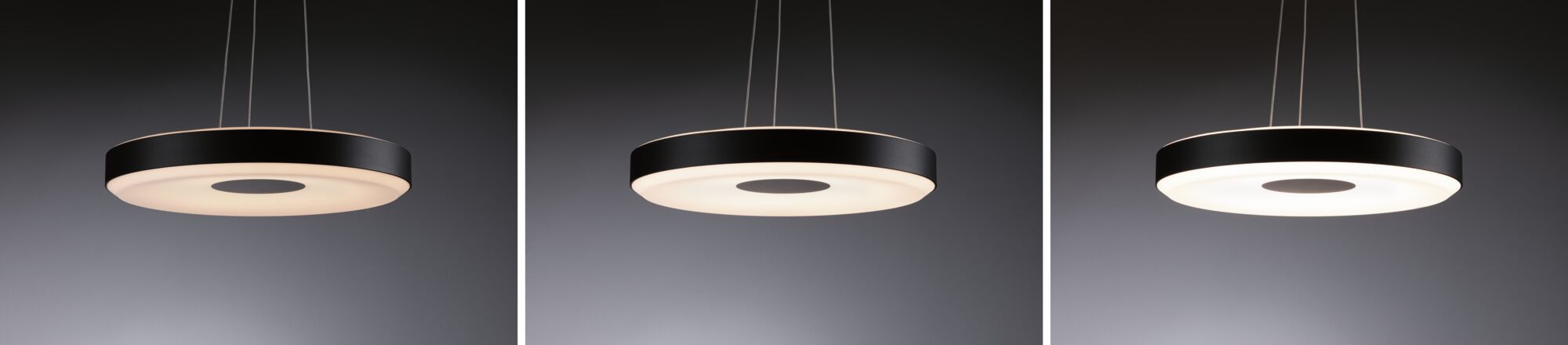

- 3 brightness levels
- Suitable for ceiling mounting

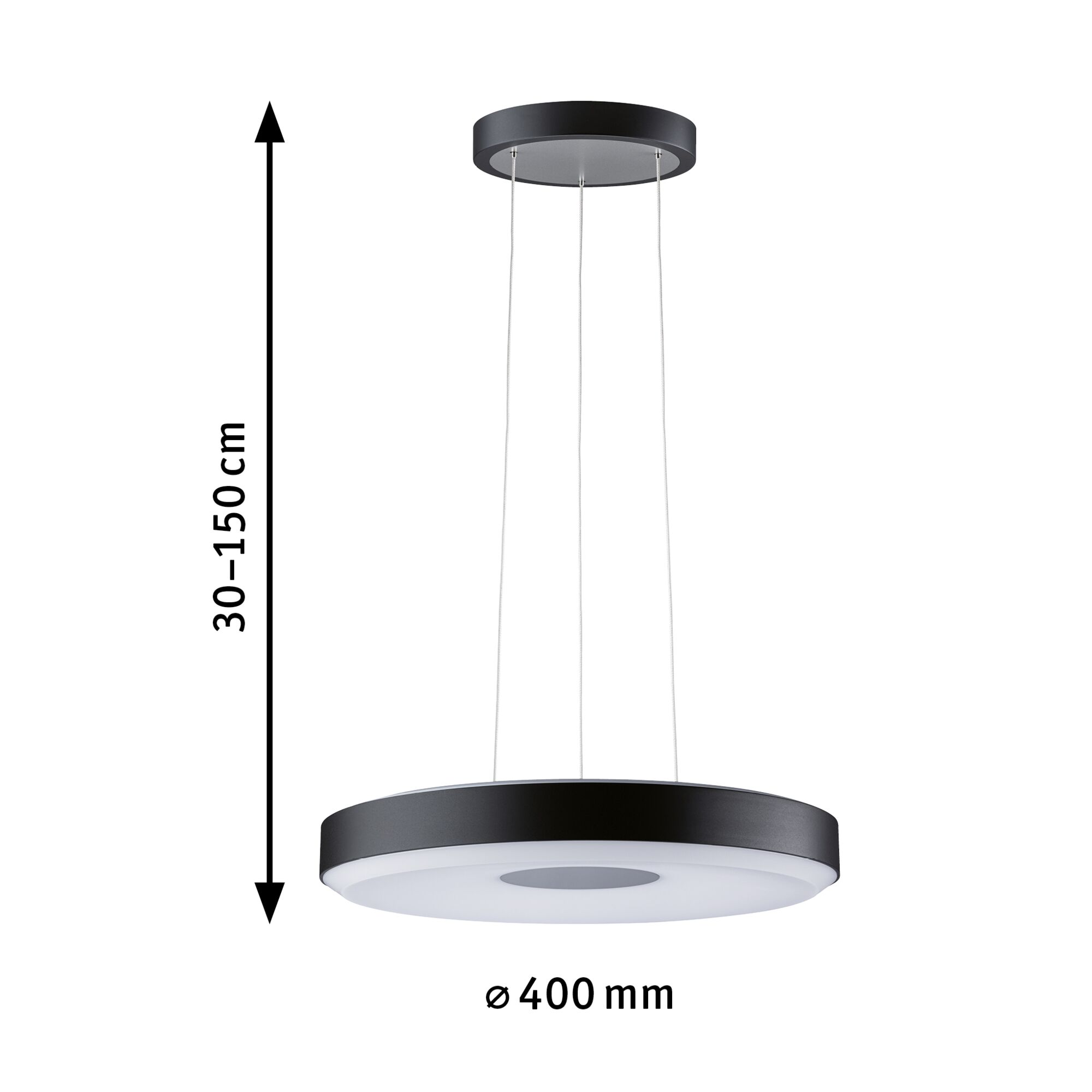

| Dimension | |
|---|---|
| Canopy depth | 23 mm |
| Ø | 400 mm |
| Pendulum length range | 30-150 cm |
| Design and Material | |
|---|---|
| Colour | Black, Grey |
| Material | Metal, Plastic |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | F |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 2700 K |
| Usable luminous flux | 1100 lm |
| Luminous flux LED module | 2600 lm |
| color temp | 2700 K |
| Lamp Features | |
|---|---|
| Component parts | 22 W |
| Technique | LED |
| Dim | dimmable in 3 steps with normal light switch |
| Dimmable | Yes |
| Inclusive lamp | yes |
| Incandescent Equivalent | 157 W |
| Number of component parts | 1x |
| protection class | protection class II |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|5 Control gear is replaceable without damage the lighting fixture by electrician. |
| Power consumption | 25 W |
| Transformer | |
|---|---|
| apparent power | 27 VA |
