Article-No.:
93426

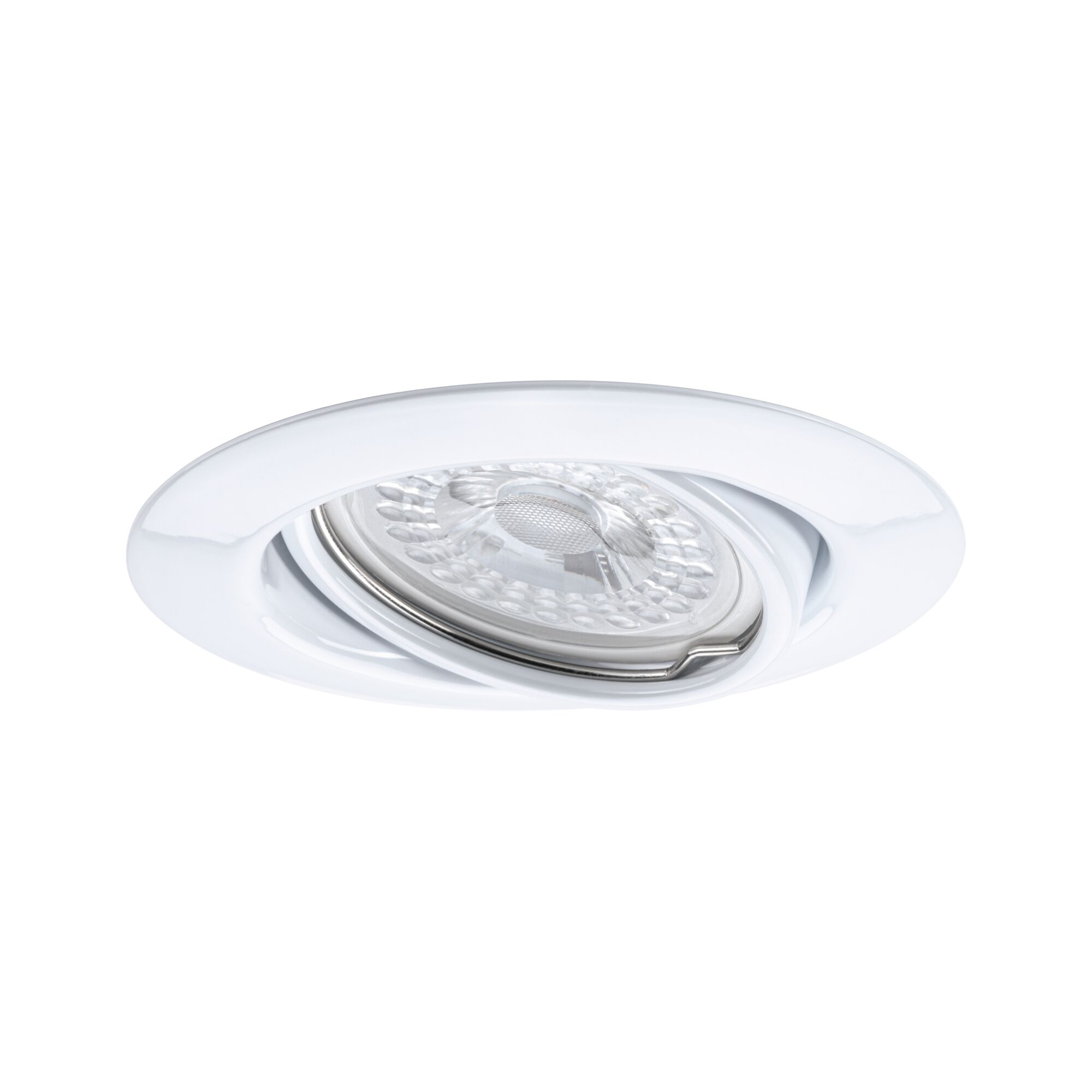

LED Recessed luminaire
3-Step-Dim
Base Basic Set Swivelling
round 90mm 20° GU10 3x5W 3x350lm 230V dimmable 3000K White
round 90mm 20° GU10 3x5W 3x350lm 230V dimmable 3000K White

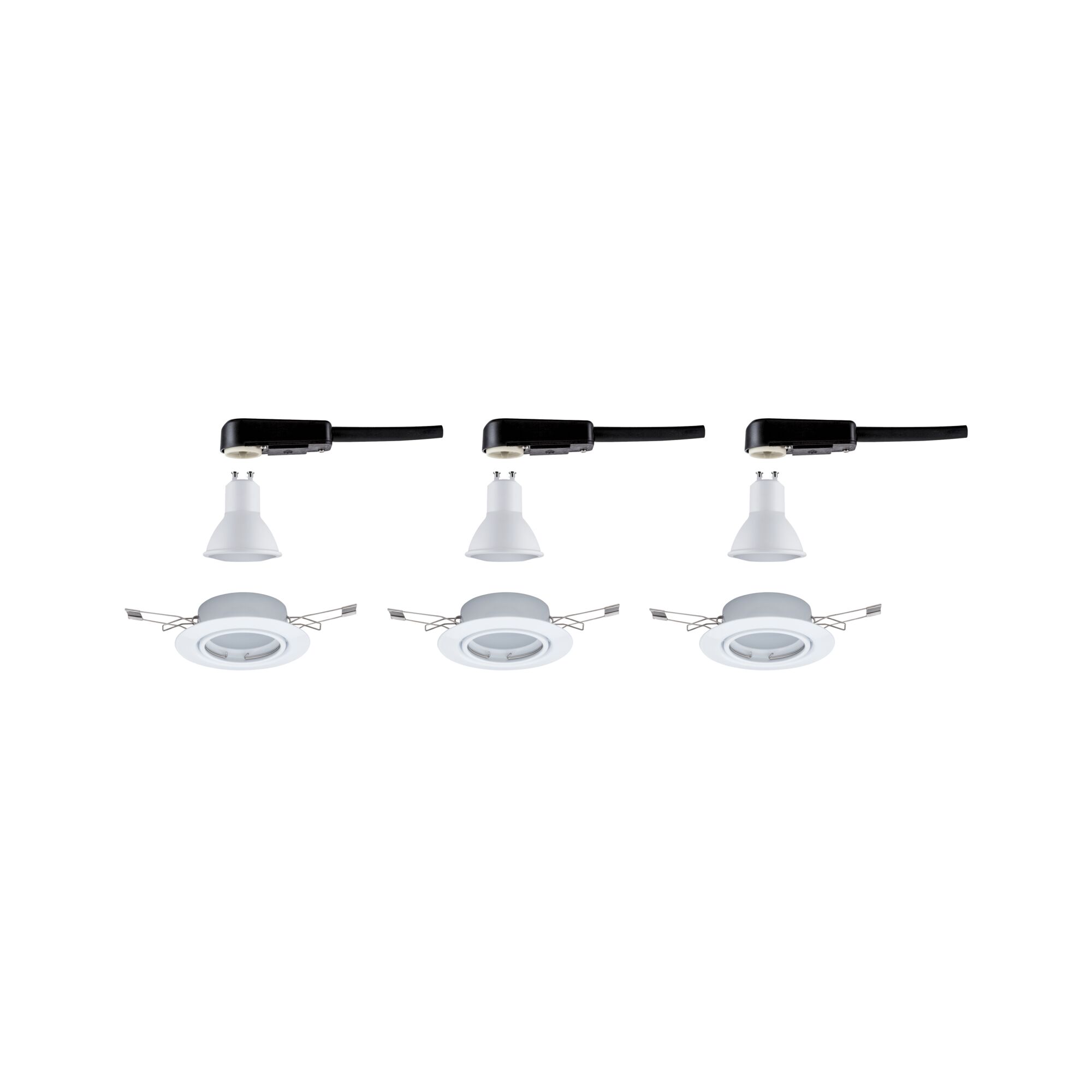

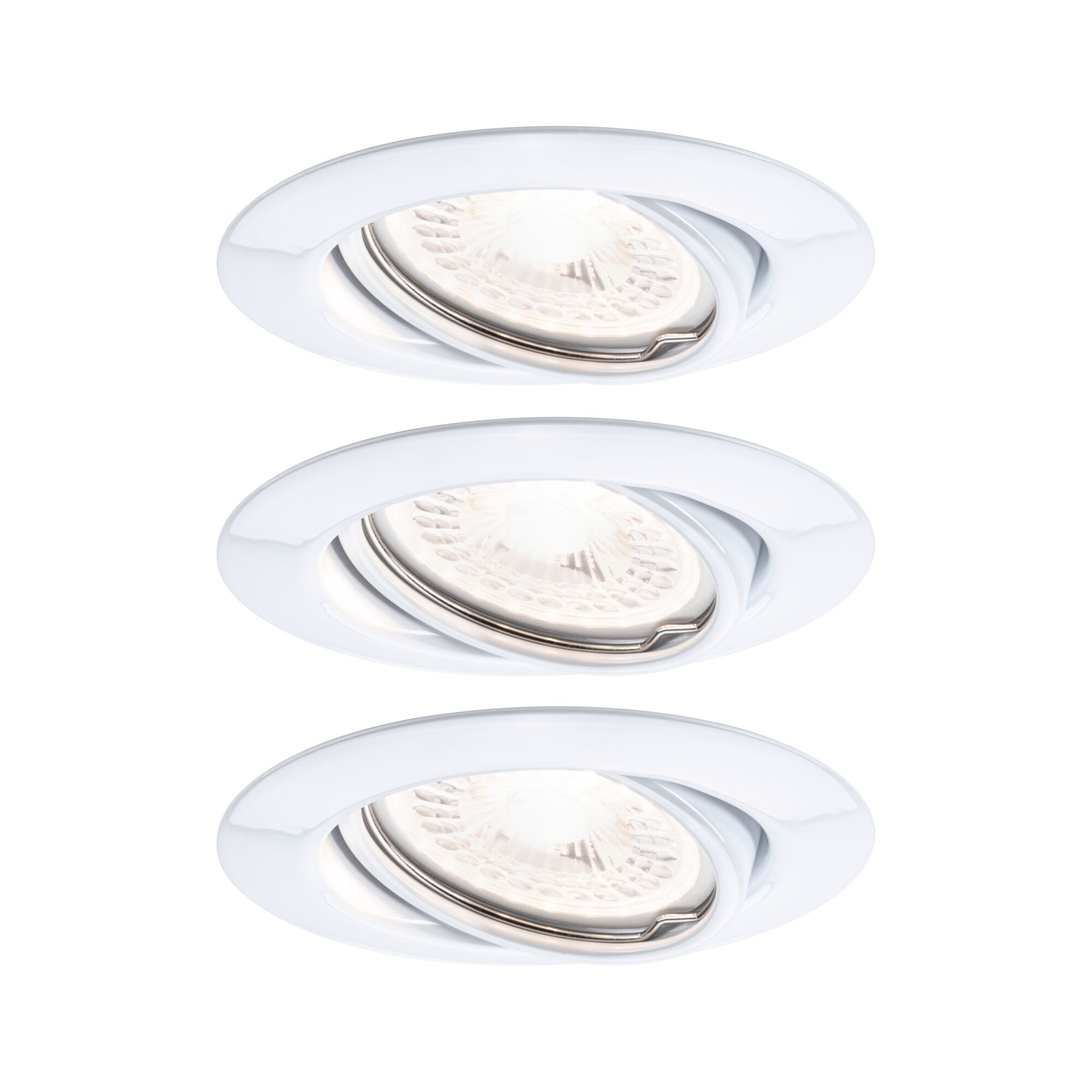

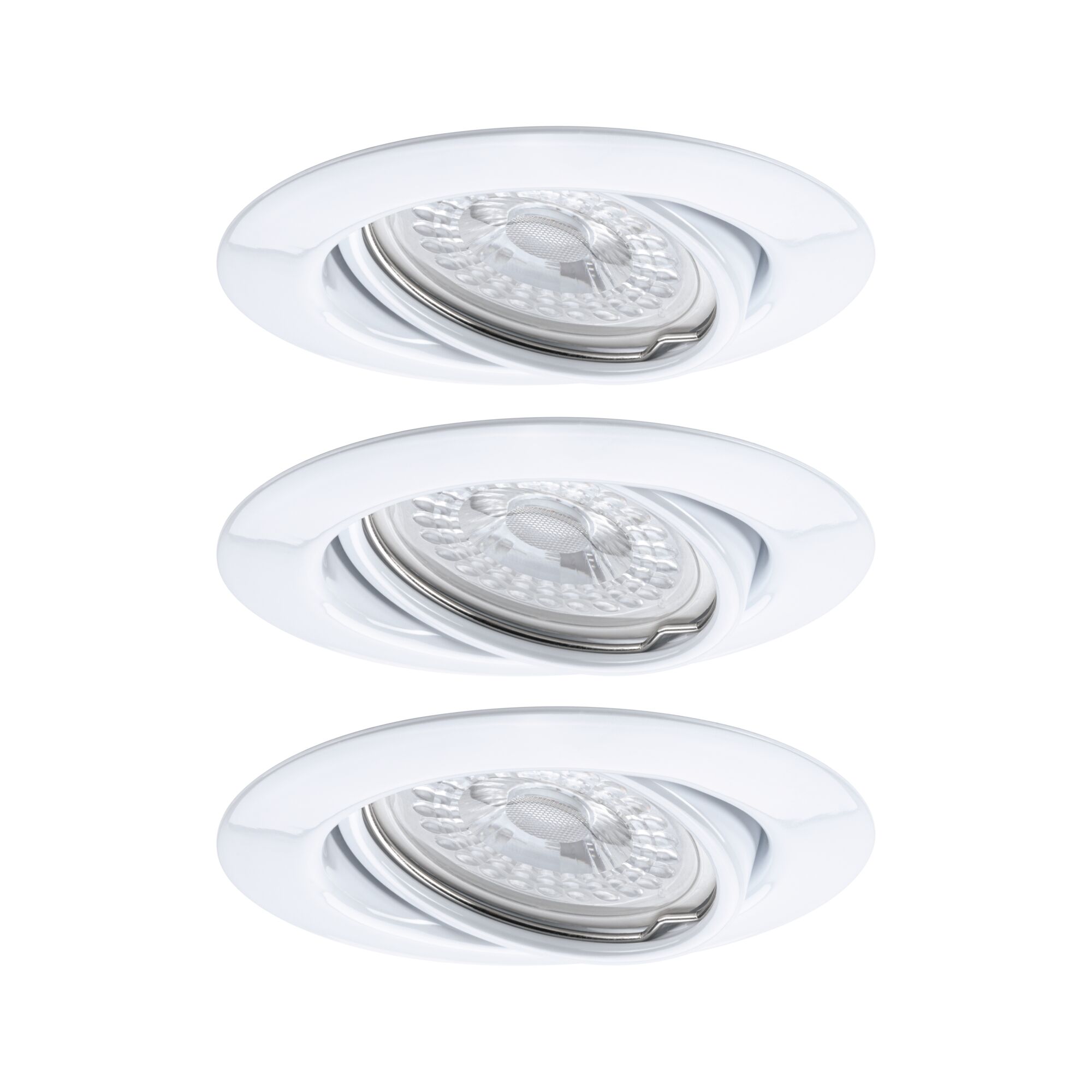

- Set of 3 luminaires
- Can be dimmed with a standard light switch, with 3 dimming levels
- Incl. replaceable LED lamp
LED Recessed luminaire 3-Step-Dim Base Basic Set Swivelling round 90mm 20° GU10 3x5W 3x350lm 230V dimmable 3000K White
The robust and user-friendly white metal recessed Base spotlights are a great choice for new installations and for the replacement of existing installations. The junction box with quick clip for tool-less installation allow quick and easy – and most importantly: unlimited interlinking. The scope of delivery includes replaceable LED lamps in warm white for a relaxing and attractive ambiance. The integrated 3-step dimmer allows you to dim the recessed spotlights via a standard light switch.
- Set of 3 luminaires
- Can be dimmed with a standard light switch, with 3 dimming levels
- Incl. replaceable LED lamp
- Color temperatur: 3000K - Warm white
- With swivelling spots for ideal illumination
- For 230 V direct connection

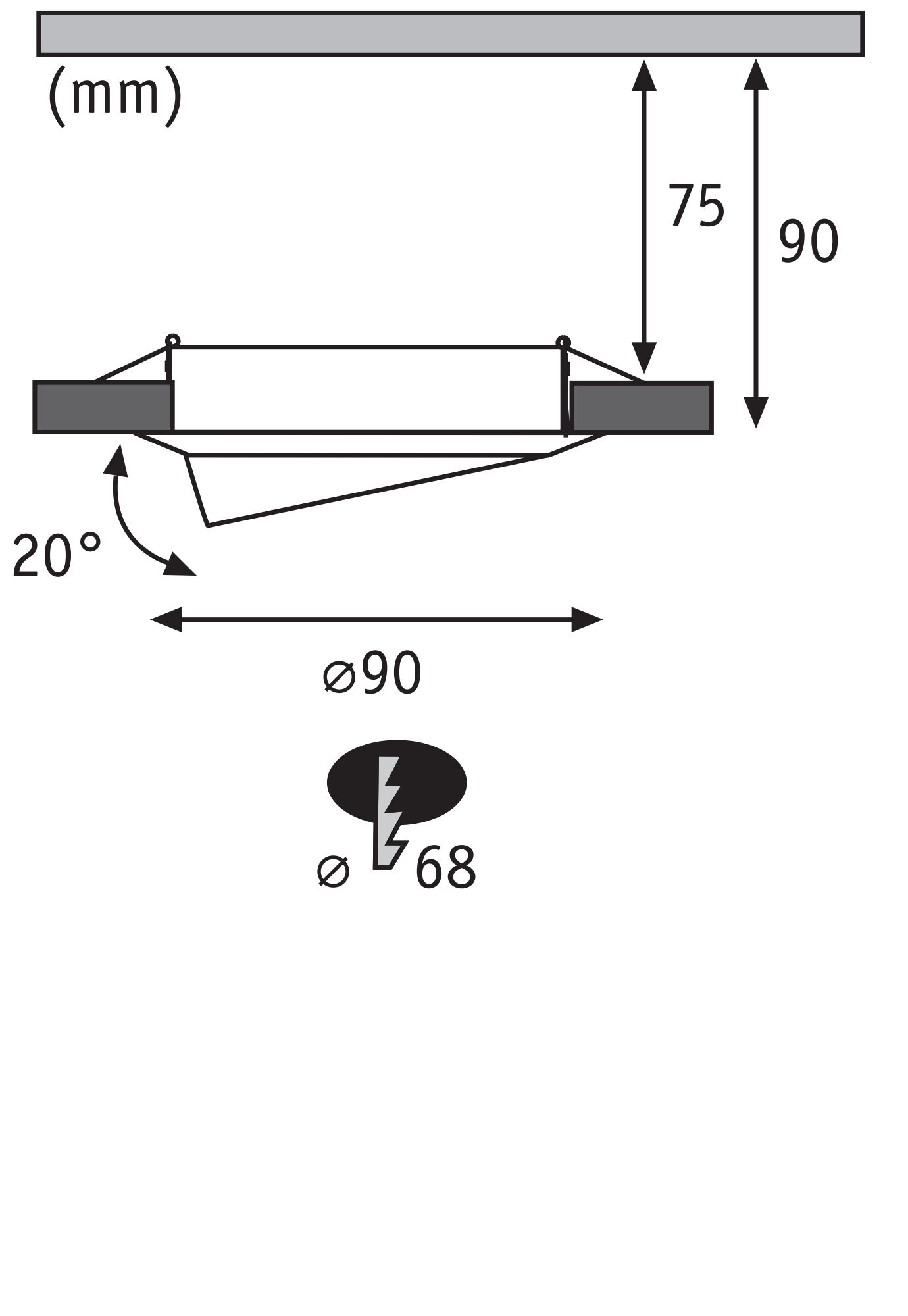

| Dimension | |
|---|---|
| mounting hole 2 | 73 mm |
| Depth of hollow wall | 75 mm, 75 mm |
| Total Mounting depth | 90 mm |
| Ø | 90 mm |
| Mounting hole | 68 mm |
| Form | round |
| Design and Material | |
|---|---|
| Colour | White |
| Material | Metal |
| Installation | |
|---|---|
| Installation site (recommendation) | Ceiling mounting |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | G |
| Energy consumption | 5 kWh_1000h |
| Service life | |
|---|---|
| Lifetime | 15000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 3000 K |
| Beam angle | 38 ° |
| Usable luminous flux | 350 lm |
| color temp | 3000 K |
| colour consistency | SDCM 6 |
| Color rendering index | > 80 Ra |
| Lamp Features | |
|---|---|
| Component parts | 5 W |
| Swivel range | 20 ° |
| Technique | LED |
| Socket | GU10 |
| IP protection | IP20 |
| Type | Reflector |
| Dim | dimmable in 3 steps with normal light switch |
| Dimmable | Yes |
| Inclusive lamp | yes |
| Incandescent Equivalent | 39 W |
| Number of component parts | 3x |
| protection class | protection class II |
| Replacable | 2 Lightsource is replaceable without damage the lighting fixture by electrician. |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
