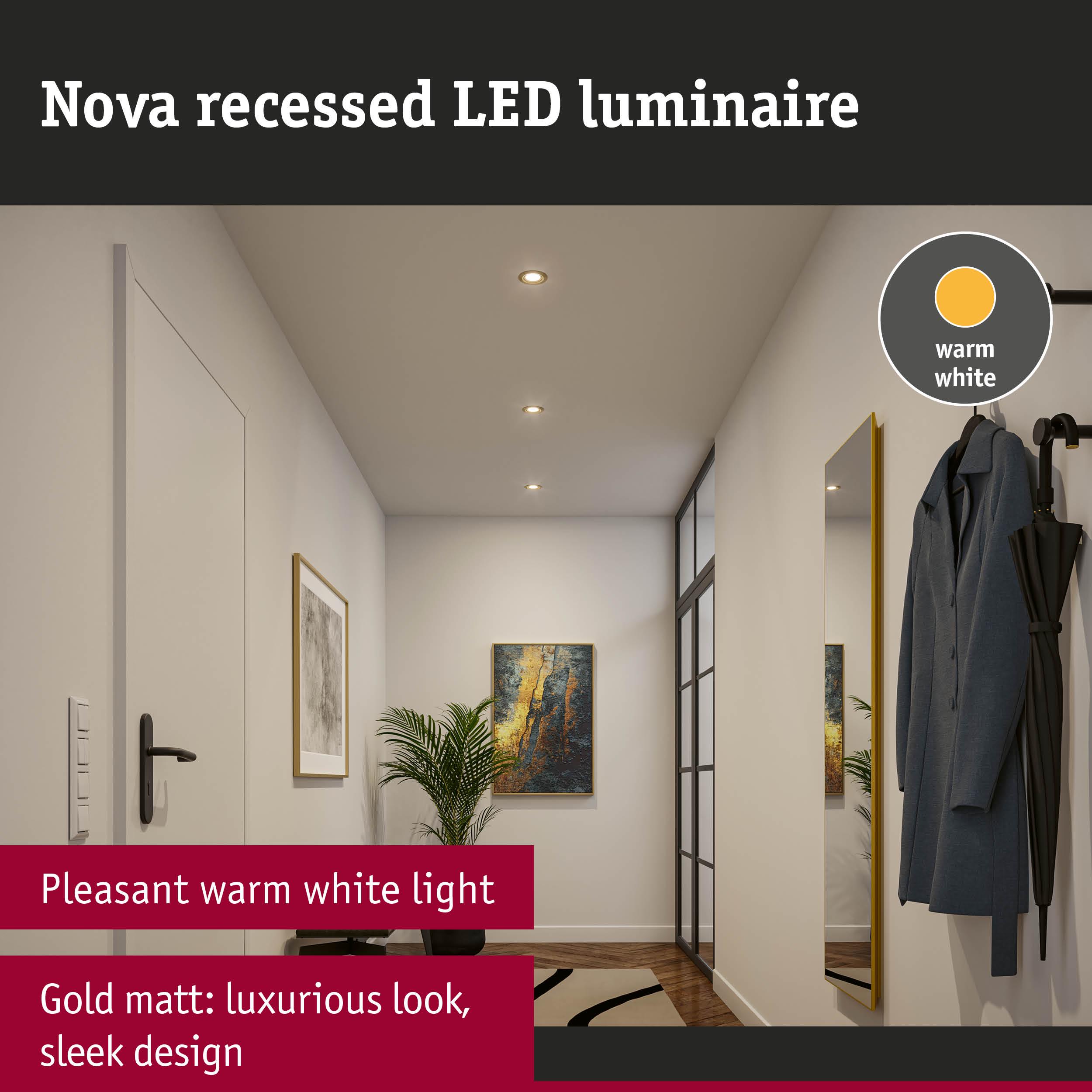

LED Recessed luminaire 3-Step-Dim Nova Coin Basic Set Swivelling round 84mm 50° Coin 3x6W 3x470lm 230V dimmable 2700K Gold matt

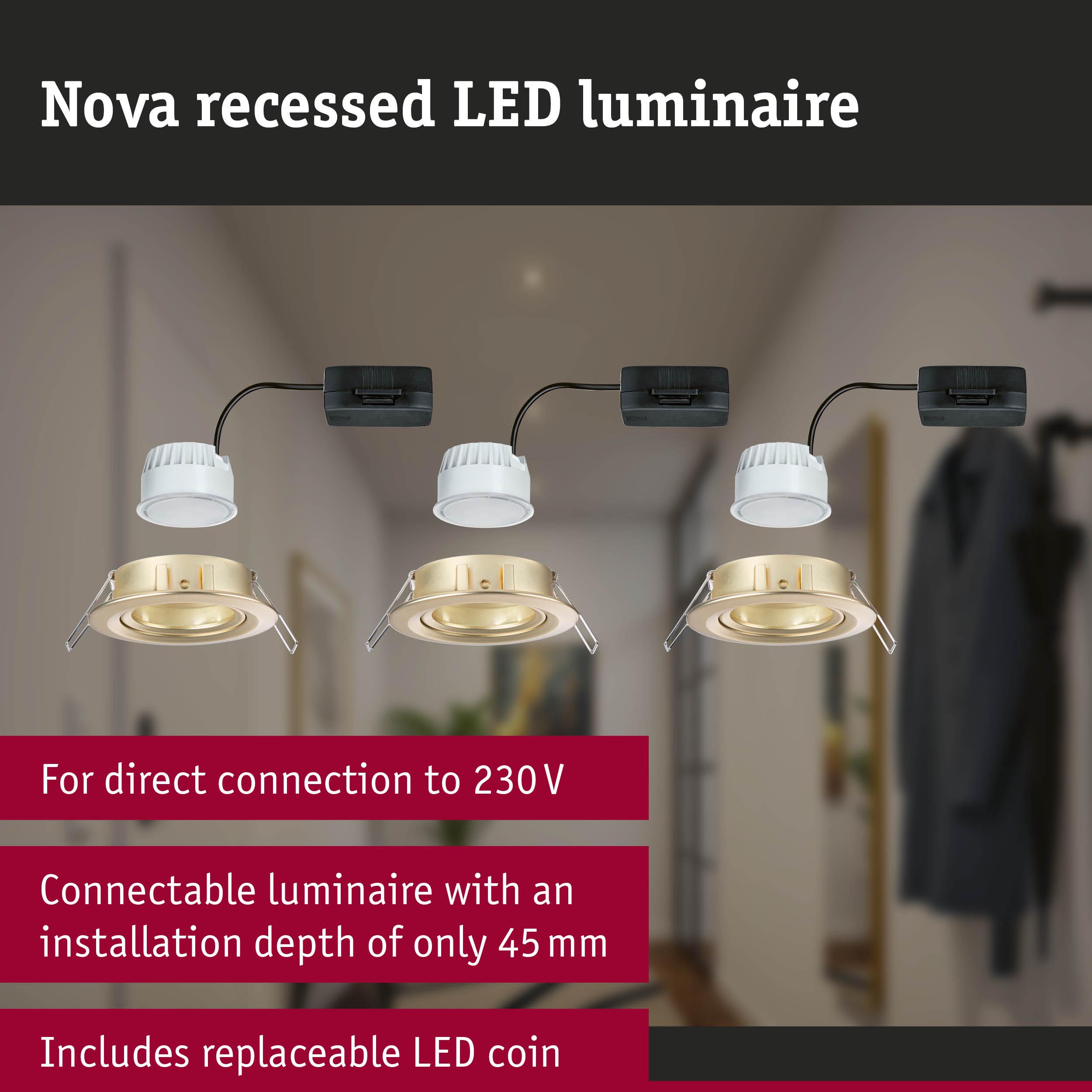

The round Nova coin recessed luminaire (3-piece set) in gold matt with 3 x 470 lm is the perfect choice for a functional and stylish lighting design. An integrated 3-Step-Dim function adds versatility: Repeated pressing of a regular light switch will dim the brightness in three stages. A swivel joint on the luminaire ensures that the light can be directed wherever it is needed. Manufactured as a durable aluminium die-cast unit with an installation depth of just 45 mm, this model is ideally suited for customised residential concepts. The minimalistic look is undisturbed by snap rings: No snap ring is needed, as the lamp is inserted back to front. The practical junction box allows a direct 230 V connection and ensures easy and unlimited interlinking of the luminaires. The simple mounting method with retaining springs means that the ceiling remains undamaged, even after repeated installations and removals. High-efficiency, long-life coin LED lamps are included in the delivery, which generate an attractive 2700 K warm white light for ambient lighting.
  • Set of 3 luminaires, 470 lm, gold matt
  • High-quality die-cast aluminium
  • Shallow installation depth of the Nova coin recessed luminaires

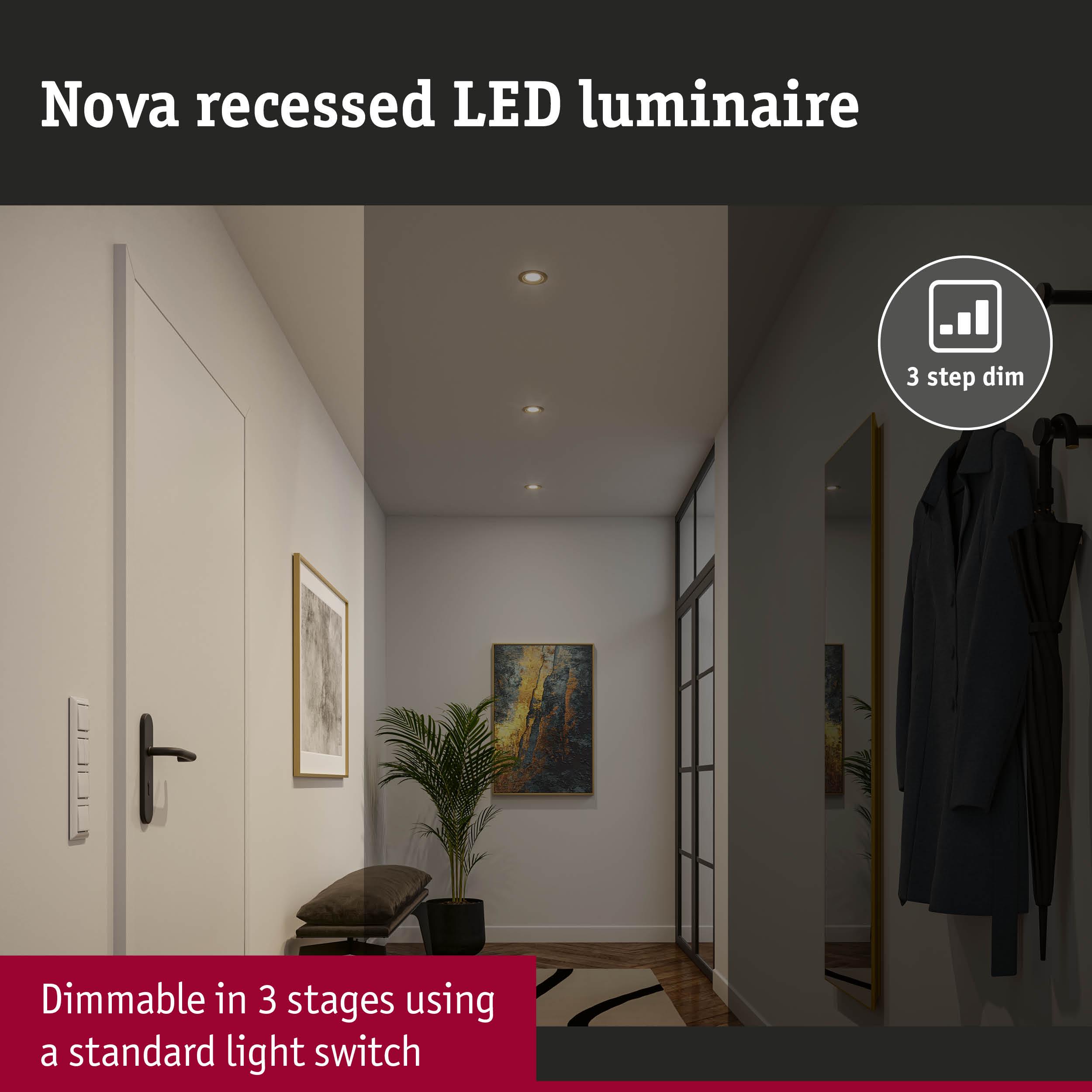

  • Dimmable in 3 stages with standard light switch
  • Linkable coins for direct 230V connections
  • Easy installation of the recessed luminaires
Dimension
Dimensions (Height x Width x Depth)H: 22 mm
Einbaudurchmesser68 mm
Mounting depth45 mm
Depth of hollow wall30 mm
Diameter84 mm
Design and Material
stainlessstainless alu
ColourGold matt
MaterialAluminium
Formround
Energy consumption
Energy efficiencyG
Service life
Lifetime30000 h
Light Characteristics
Colour temp.2700 K
Beam angle100 °
Nominal luminous flux470 lm
Color rendering index> 85 Ra
color tempWarm white
Lamp Features
Component parts6 W
Swivel range50 °
TechniqueLED
Base/SocketCoin
Dimdimmable in 3 steps with normal light switch
Inclusive lampyes
Incandescent Equivalent40 W
Adjustabilityswivelling/tilting
Lamp propertyLeuchtmittel enthalten und wechselbar
DimmableYes
IP protectionIP23 ceiling mounting
Number of component parts3x
protection classProtection class II
Replacable2 Lightsource is replaceable without damage the lighting fixture by electrician.
Voltage230 V
Voltage typeAC 50 Hz
Accessories
Radio control includedno
Labelling
MM symbolMM symbol
WEEE-Reg.-NoDE 39236390

Downloads

Flyer and Safety instructions
Safety instructions
