Article-No.:
93895

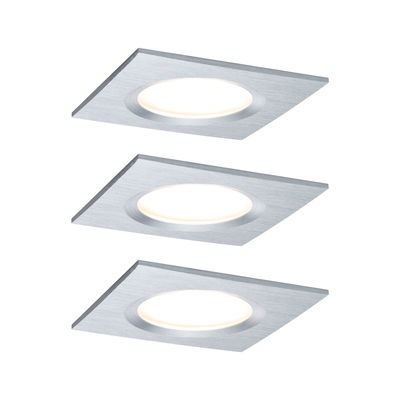

LED Recessed luminaire
Nova Plus Coin Basic Set Rigid
IP44 square 78x78mm Coin 3x6W 3x470lm 230V dimmable 2700K Turned aluminium
IP44 square 78x78mm Coin 3x6W 3x470lm 230V dimmable 2700K Turned aluminium
- Set of 3 luminaires incl. LED module
- Color temperatur: 2700K - Warm white
- With satined protective glass
LED Recessed luminaire Nova Plus Coin Basic Set Rigid IP44 square 78x78mm Coin 3x6W 3x470lm 230V dimmable 2700K Turned aluminium
The square Nova Plus recessed luminaires (3-piece set) in Turned aluminium with a replaceable LED coin are suitable for new installations, as well as for replacing existing installations. They are exceptionally flat, and can therefore be installed in ceilings with a cavity of only 30 millimetres. As the single luminaires can be easily linked together with quick clips, the installation is quick and easy. The dimming function lets you adjust the brightness according to your needs and emits a warm white work light and cosy mood lighting in one. The luminaires even provide cosy lighting in the kitchen and bathroom, thanks to their IP44 splash protection.
- Set of 3 luminaires incl. LED module
- Color temperatur: 2700K - Warm white
- With satined protective glass
- Very flat – can also be mounted in small cavities of only 30 mm depth
- For 230 V direct connection
- Incl. junction box with double quick clamp for feeding through wires
- IP protection: IP44 splash-protected
- Dimmable
| Dimension | |
|---|---|
| Depth of hollow wall | 30 mm, 30 mm |
| Total Mounting depth | 45 mm |
| Dimensions (Height x Width x Depth) | B: 78 x T: 78 mm |
| Mounting hole | 68 mm |
| Form | square |
| Design and Material | |
|---|---|
| stainless | stainless alu |
| Colour | Turned aluminium |
| Material | Aluminium zinc |
| Installation | |
|---|---|
| can be used with the following dimmers | RC Merten MEG 5136-0000, RLC Müller Paladin 873 030 LED, RC Busch-Jäger 6513U-102 |
| Installation site (recommendation) | Ceiling mounting |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | G |
| Energy consumption | 6 kWh_1000h |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 2700 K |
| Beam angle | 120 ° |
| Usable luminous flux | 470 lm |
| color temp | 2700 K |
| colour consistency | SDCM 6 |
| Color rendering index | > 80 Ra |
| Rated luminous flux (Lumen) | 3x425 lm |
| Lamp Features | |
|---|---|
| Component parts | 6 W |
| Technique | LED |
| Socket | Coin |
| IP protection | IP44 ceiling mounting |
| Dimmable | with dimmer R+C f.elect.trafos+230V bulbs |
| Inclusive lamp | yes |
| Total Width | 78 mm |
| Incandescent Equivalent | 43 W |
| Number of component parts | 3x |
| protection class | protection class II |
| Replacable | 2 Lightsource is replaceable without damage the lighting fixture by electrician. |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
Downloads
Manuals
Download Installation/MontageFlyer and Safety instructions
