Article-No.:
92961
LED Recessed luminaireSmart Home Zigbee 3.0
Nova Plus Coin Swivelling
round 84mm 50° Coin 6W 470lm 230V dimmable Tunable White Brushed iron
round 84mm 50° Coin 6W 470lm 230V dimmable Tunable White Brushed iron
£50.95*
Prices incl. Standard rate VAT
Ready to ship, delivery within 2-3 working days
- Usable with smart home gateways that have a Zigbee interface
- Can be controlled with the Smart Home Zigbee remote control
- Can still be switched on and off with the light switch
LED Recessed luminaire Smart Home Zigbee 3.0 Nova Plus Coin Swivelling round 84mm 50° Coin 6W 470lm 230V dimmable Tunable White Brushed iron

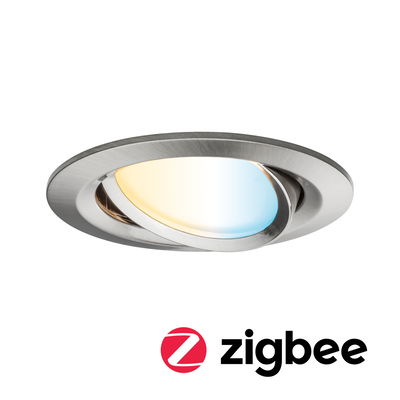

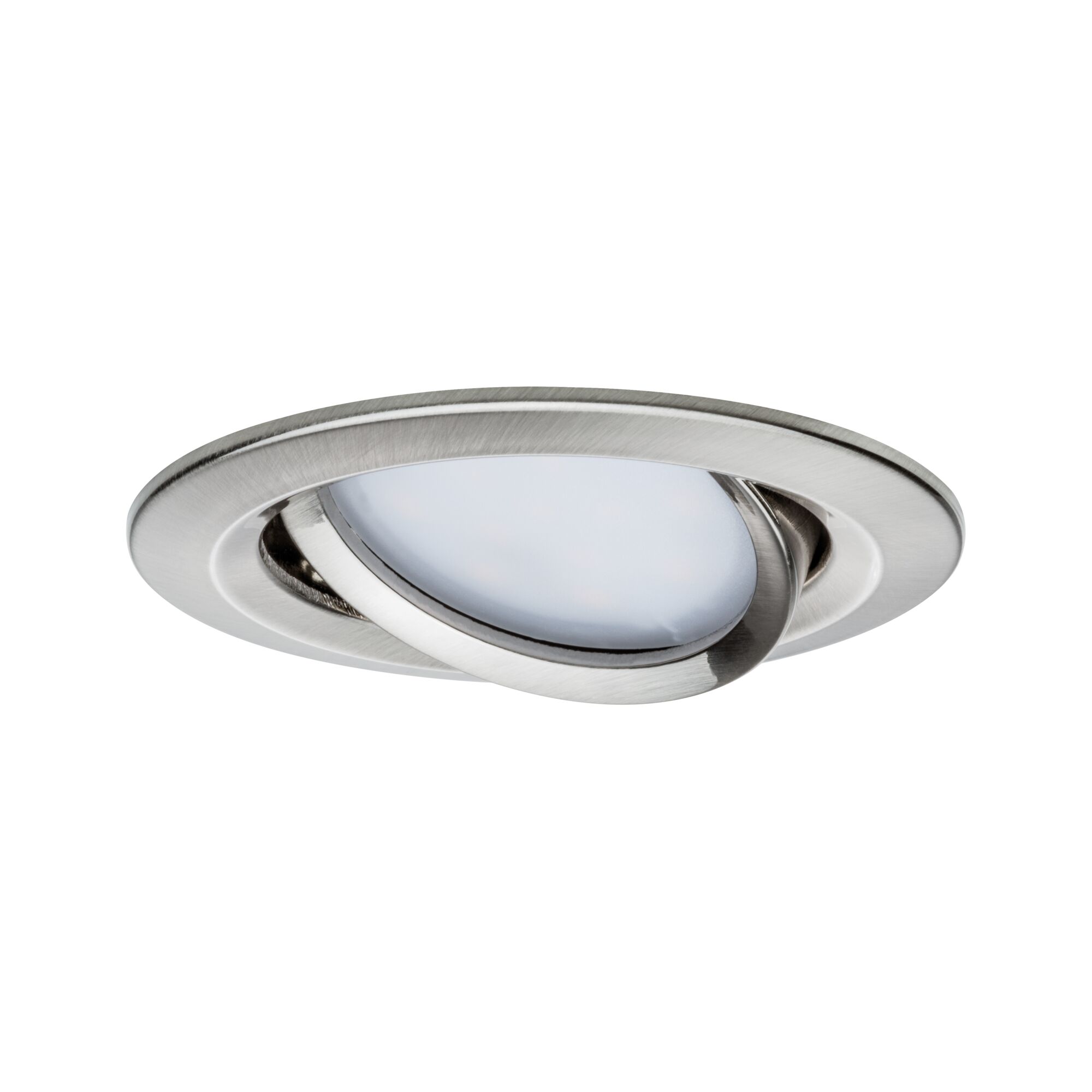

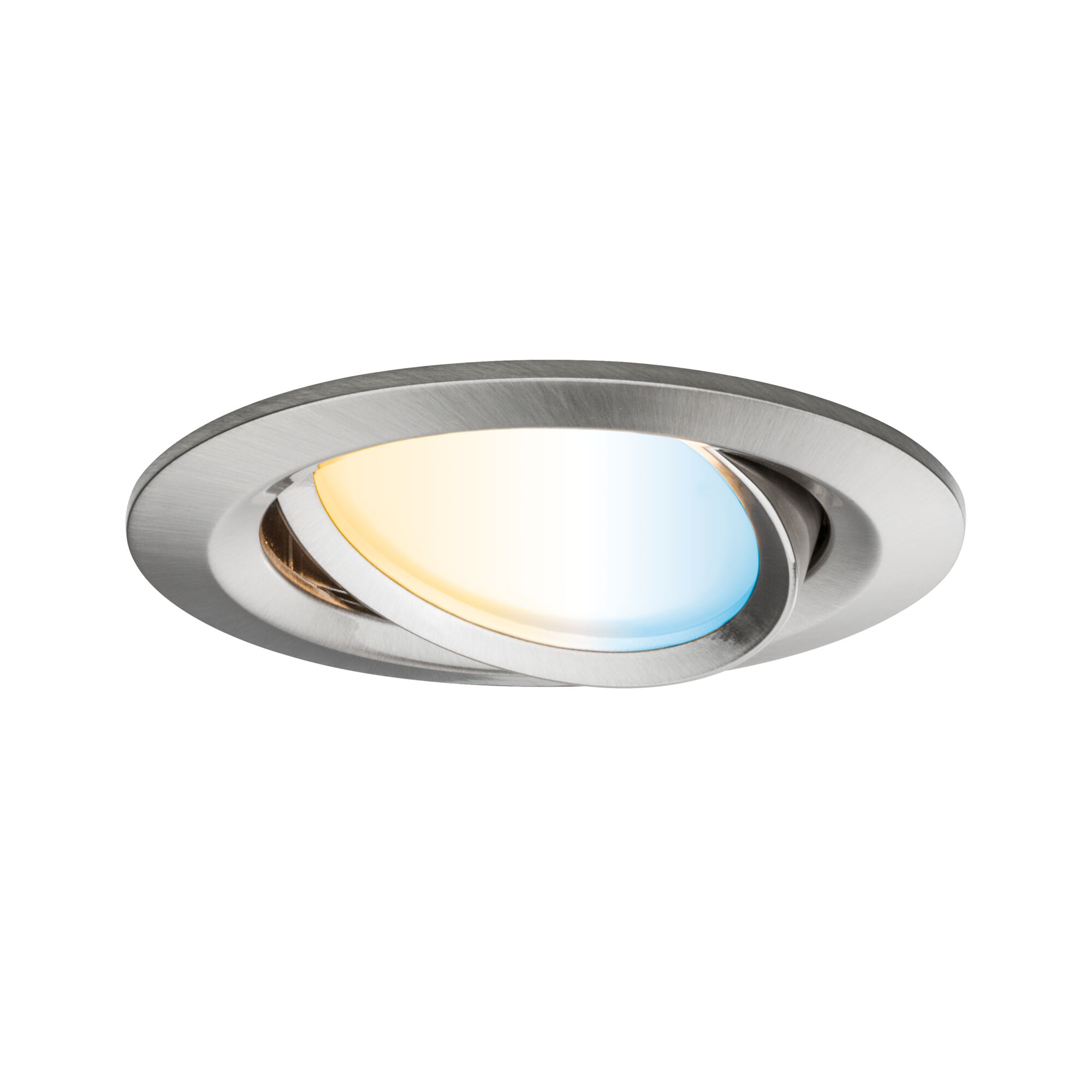

The Nova Plus recessed spotlight, made of aluminium in brushed iron, offers excellent lighting, an attractive design and high energy efficiency. The recessed spotlight is suitable for new installations as well as for replacing existing installations. The 230 V direct connection means easy and unlimited interlinking of the luminaires; no transformer required. Use the tunable white function to set the light colour to suit your needs: from daylight white working light to relaxing, warm white lighting. The luminaire is Zigbee 3.0-compatible. Zigbee 3.0 is a radio transmission protocol that links up the devices of several manufacturers. This allows not only the centralised control of lighting; shutters, heating and alarm systems, for example, can also be integrated. To operate the control, you can choose between the Smart Friends Box, a gateway for the same standard by a different manufacturer, or a Smart Home Zigbee 3.0 hand-held transmitter. Individual components can be addressed, or switched on and off in groups as lighting scenarios.
- Usable with smart home gateways that have a Zigbee interface
- Can be controlled with the Smart Home Zigbee remote control
- Can still be switched on and off with the light switch
- Bidirectional data transfer
- For 230 V direct connection
- Color temperatur: 2700K - Warm white - 6500K -Daylight white
Dimension | |
---|---|
Diameter | 84 mm |
Built-in diameter | 68 mm |
Mounting depth | 45 mm |
Depth of hollow wall | 30 mm |
Design and Material | |
---|---|
Form | round |
Type | Coin |
Colour | Brushed iron |
Material | Aluminium |
Stainless | stainless alu |
Installation | |
---|---|
Installation site (recommendation) | Ceiling mounting |
Energy consumption | |
---|---|
Energy efficiency (LED Module) | G |
Energy consumption | 7 kWh_1000h |
Service life | |
---|---|
Lifetime | 30000 h |
Light Characteristics | |
---|---|
Colour temperature to | 6500 K |
Colour temperature | Warm white to Daylight white, 2700 K |
Nominal luminous flux | 470 lm |
Colour consistency (SDCM) | 6 |
Color rendering index | > 85 Ra |
Beam angle | 100 ° |
Colour change | Tunable White |
Lamp Features | |
---|---|
Dimmable | Yes |
Dim | with Smart Home |
Inclusive lamp | yes |
Lamp property | Leuchtmittel enthalten und wechselbar |
Swivel range | 50 ° |
Incandescent Equivalent | 39 W |
IP protection | IP23 ceiling mounting |
Protection class | Protection class II |
Base/Socket | Coin |
Technique | LED |
Component parts | 6 W |
Number of component parts | 1x |
Compatible Smart Home technology | Zigbee |
Replacable | 2 Lightsource is replaceable without damage the lighting fixture by electrician. |
Adjustability | fixed |
Voltage | 230 V |
Voltage type | AC 50 Hz |
Transformer | |
---|---|
apparent power | 13.11 VA |
Accessories | |
---|---|
Radio control included | no |
Labelling | |
---|---|
MM symbol | MM symbol |
WEEE-Reg.-No | DE 39236390 |
Smart Home | |
---|---|
Protocol type | Zigbee 3.0 |
Zigbee certification | Zigbee zertifiziert |
Radio frequency | 2,4 GHz |
Radio range (Open field) | 20 m |
