Article-No.:
98449

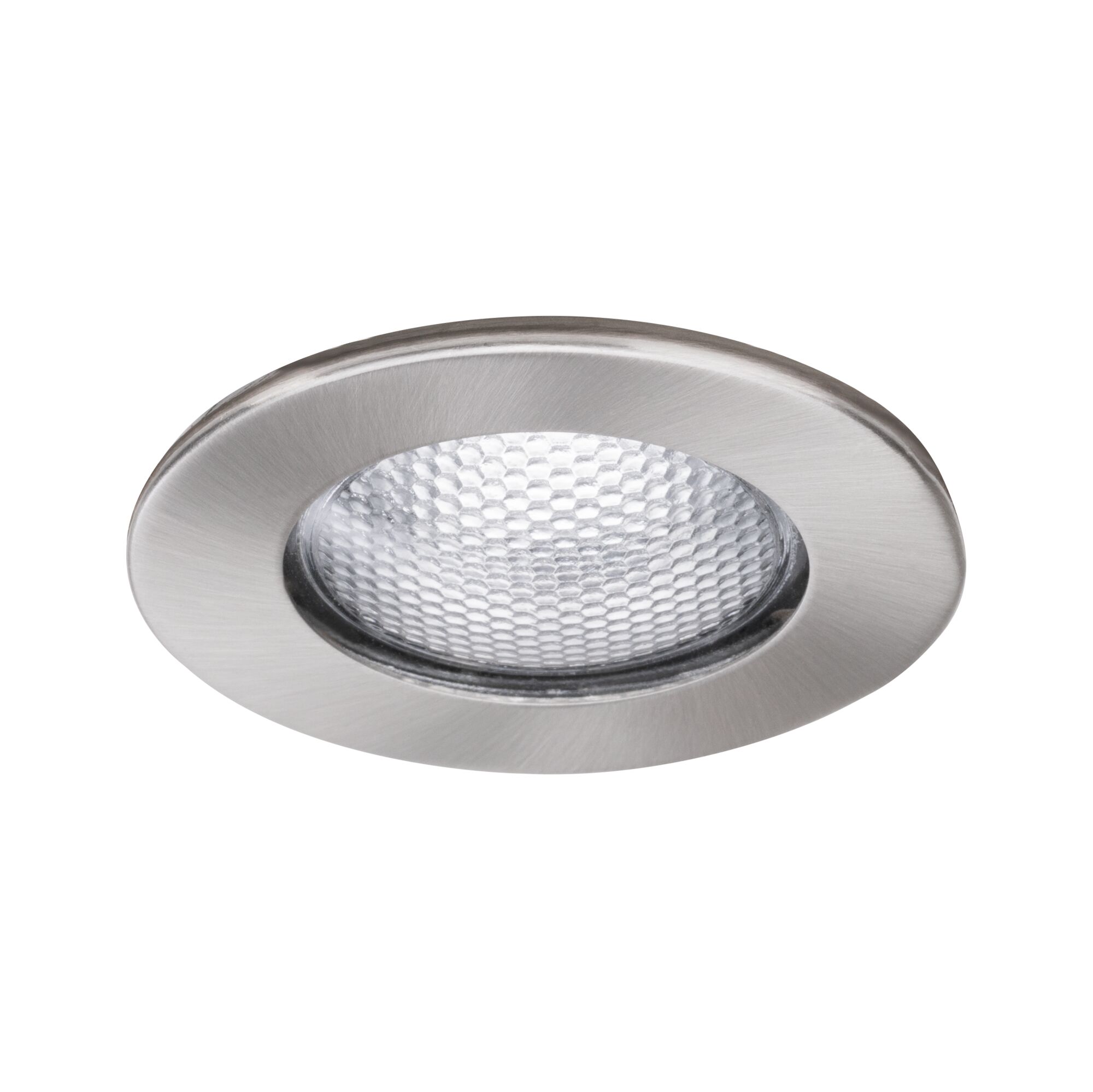

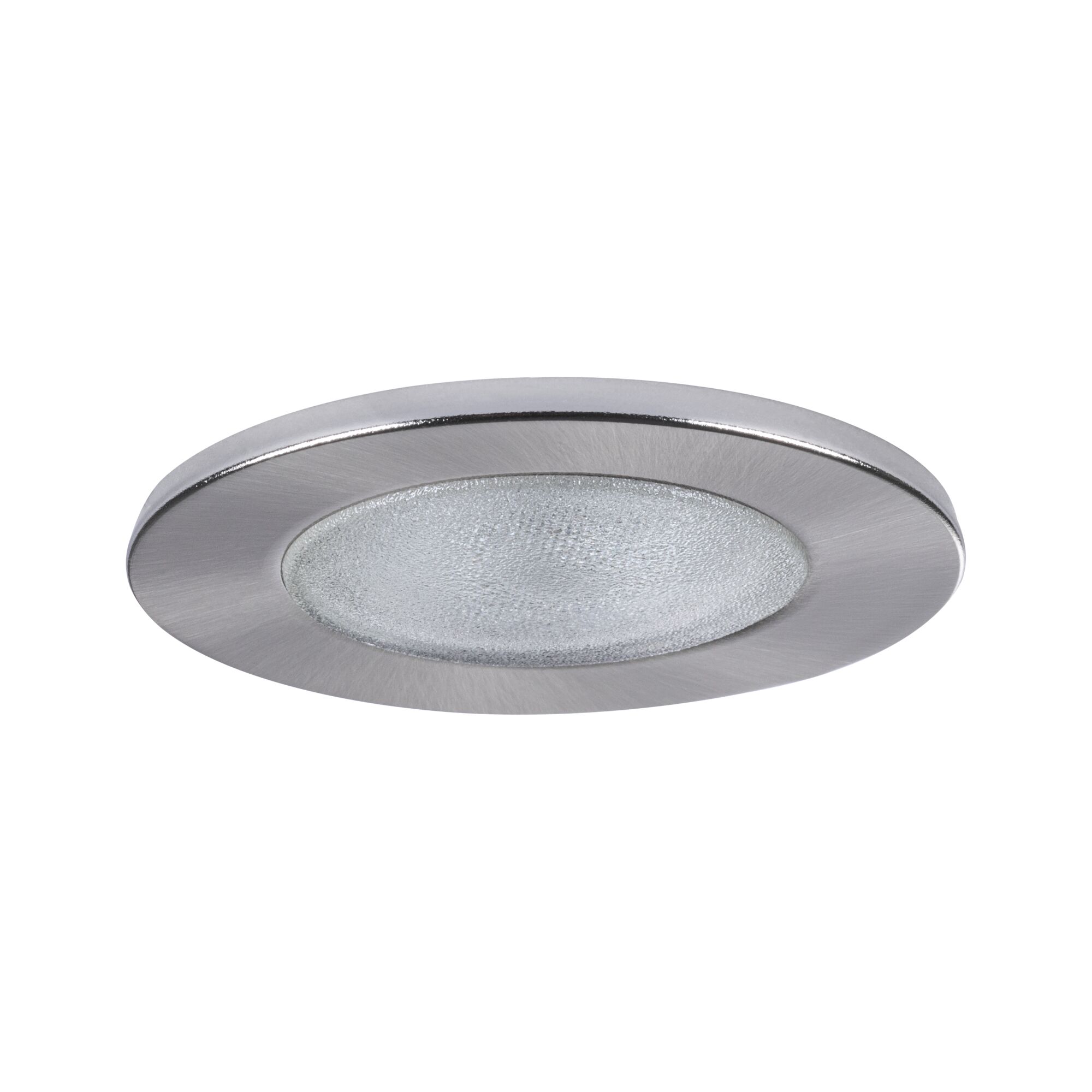

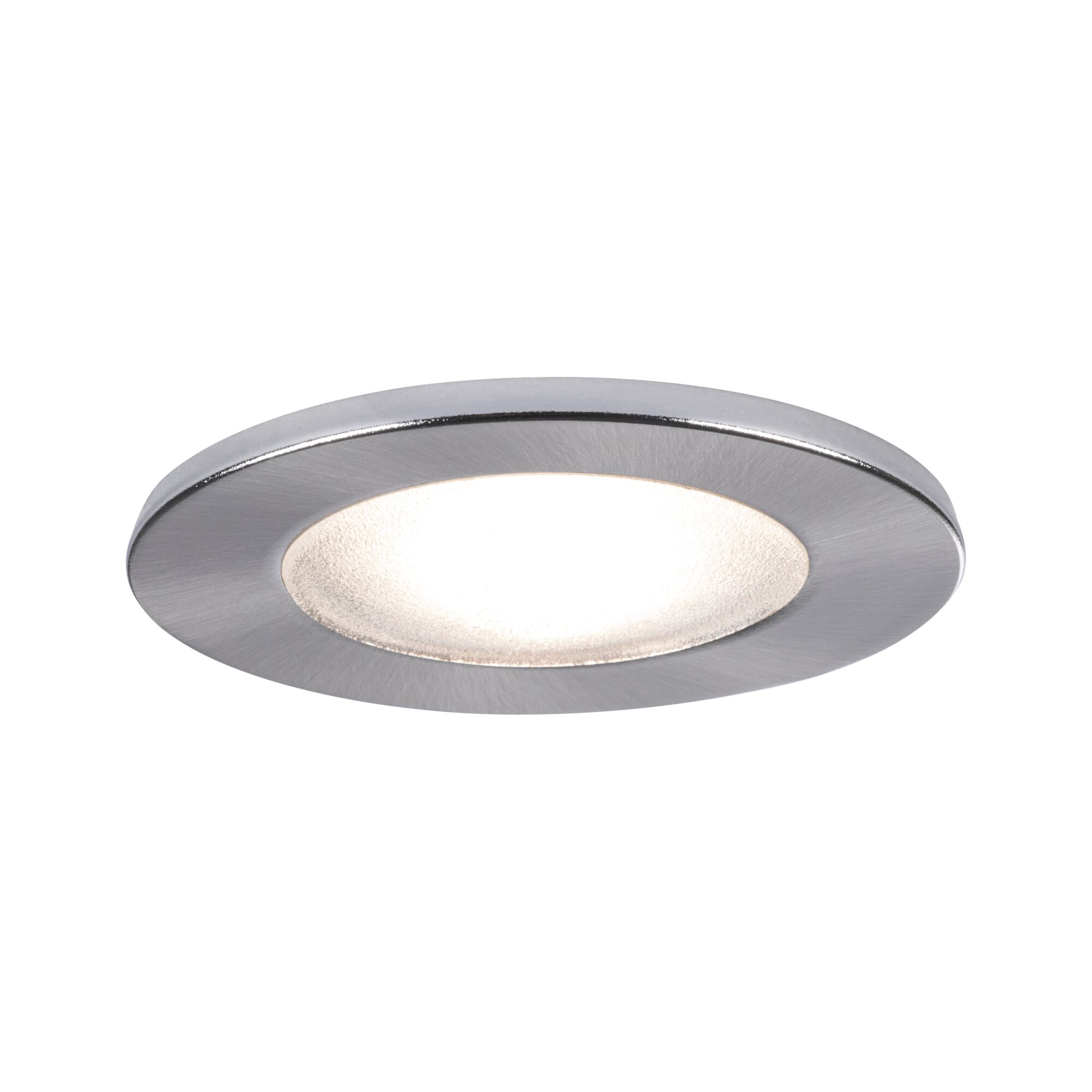

Recessed furniture light
Micro Line Structure
round 66mm max. 20W 12V dimmable Brushed iron
round 66mm max. 20W 12V dimmable Brushed iron
£16.95*
Prices incl. Standard rate VAT
Ready to ship, delivery within 2-3 working days
- Recessed light, suitable for 12V G4 LED or halogen bulbs (see suitable bulbs)
- Material: Metal / Glas}
- Color: Brushed iron
Recessed furniture light Micro Line Structure round 66mm max. 20W 12V dimmable Brushed iron

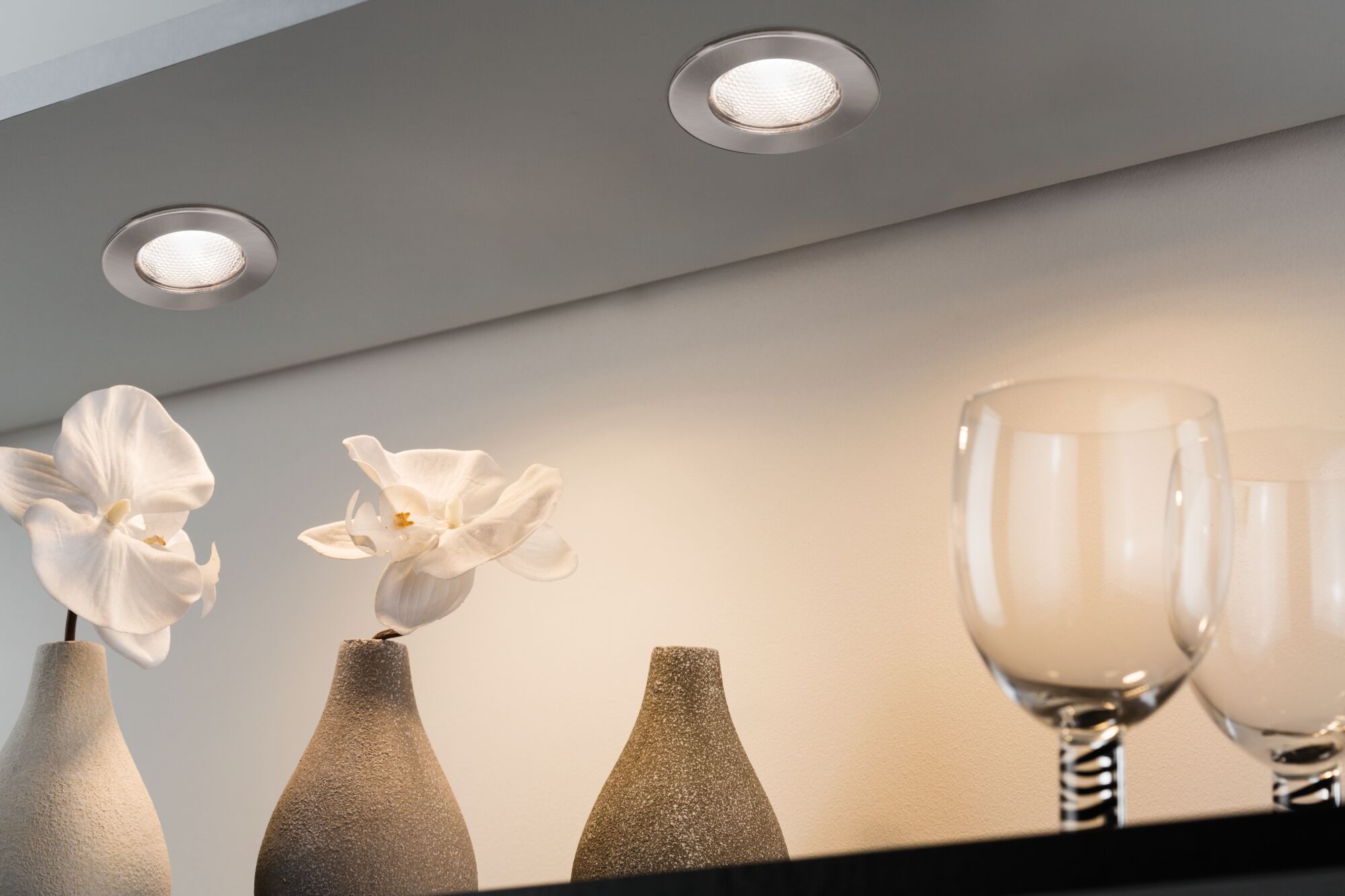

The Structure furniture recessed light is suitable for all situations where the installation depth is at least 25 mm. Its 12-V halogen technology gives off a brilliant light, which is also dimmable as an added extra. Its installation diameter of 54 mm makes this light particularly suitable for use in mirror bathroom cabinets. Depending on the light bulb used, the lamp is dimmable.
- Recessed light, suitable for 12V G4 LED or halogen bulbs (see suitable bulbs)
- Material: Metal / Glas}
- Color: Brushed iron

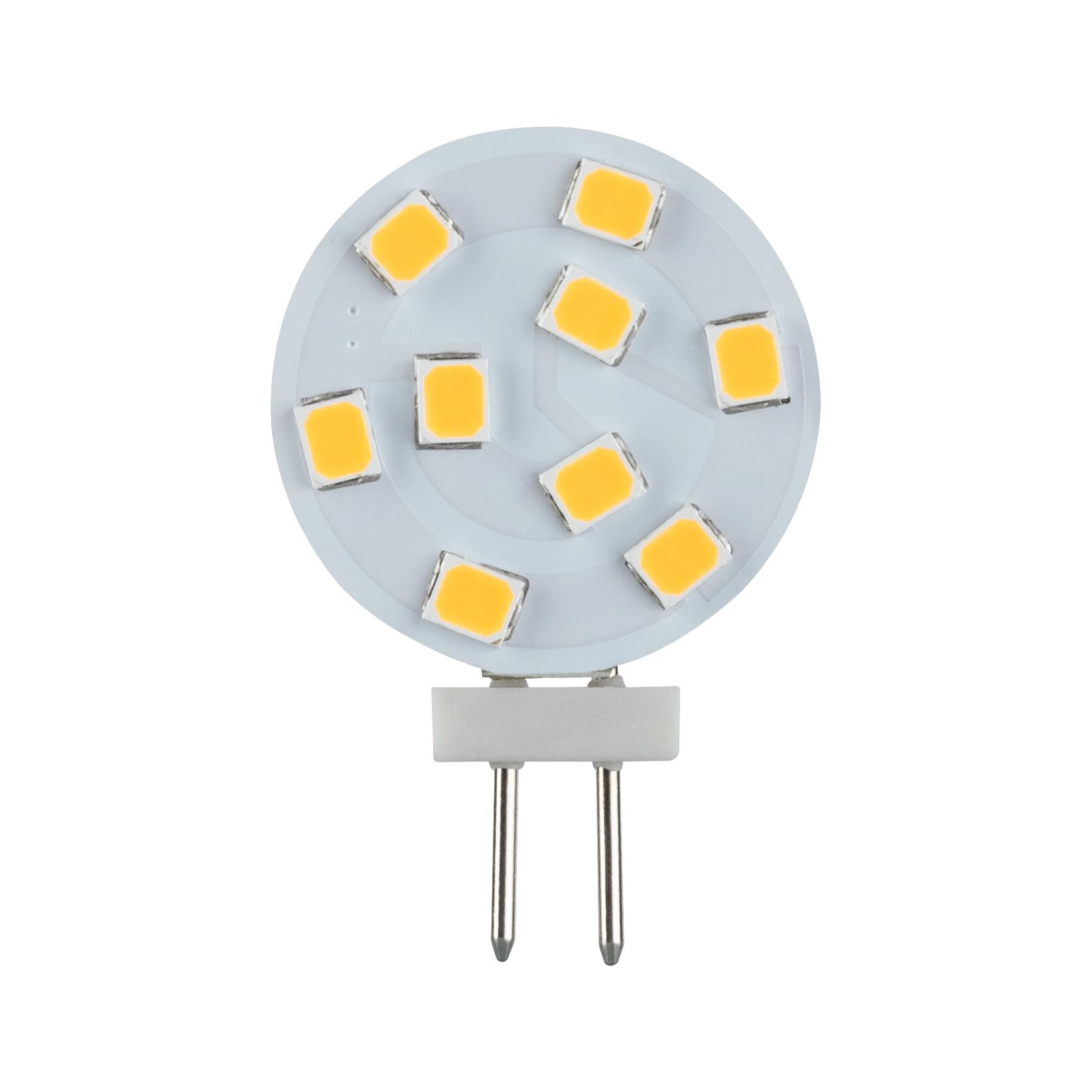

- LED and halogen pin base bulbs fit in this lamp,
- Low mounting depth: only 25 mm
- Diameter: 66mm
- Operating voltage: 12 V
- protection class III

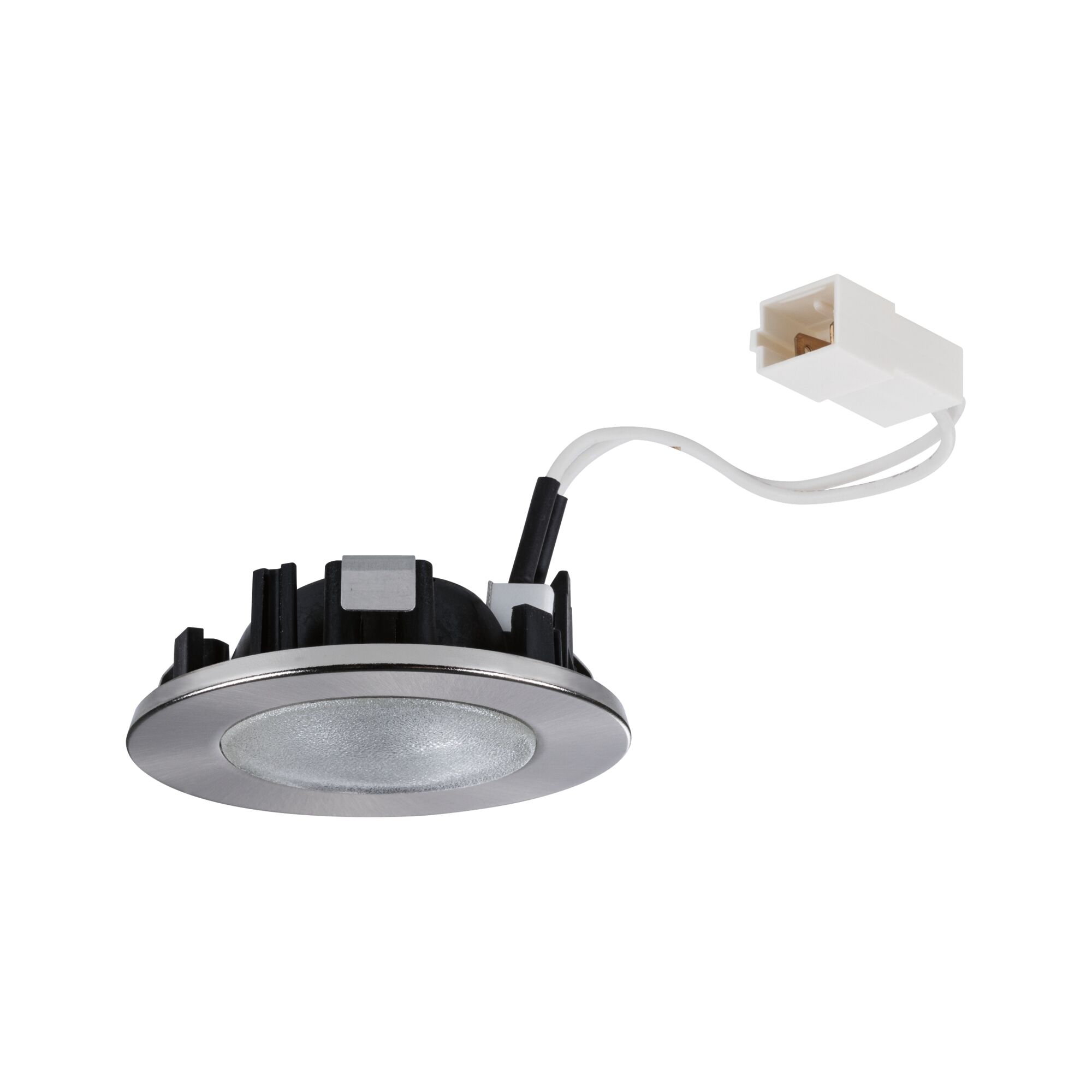

- Incl. plug-in connection

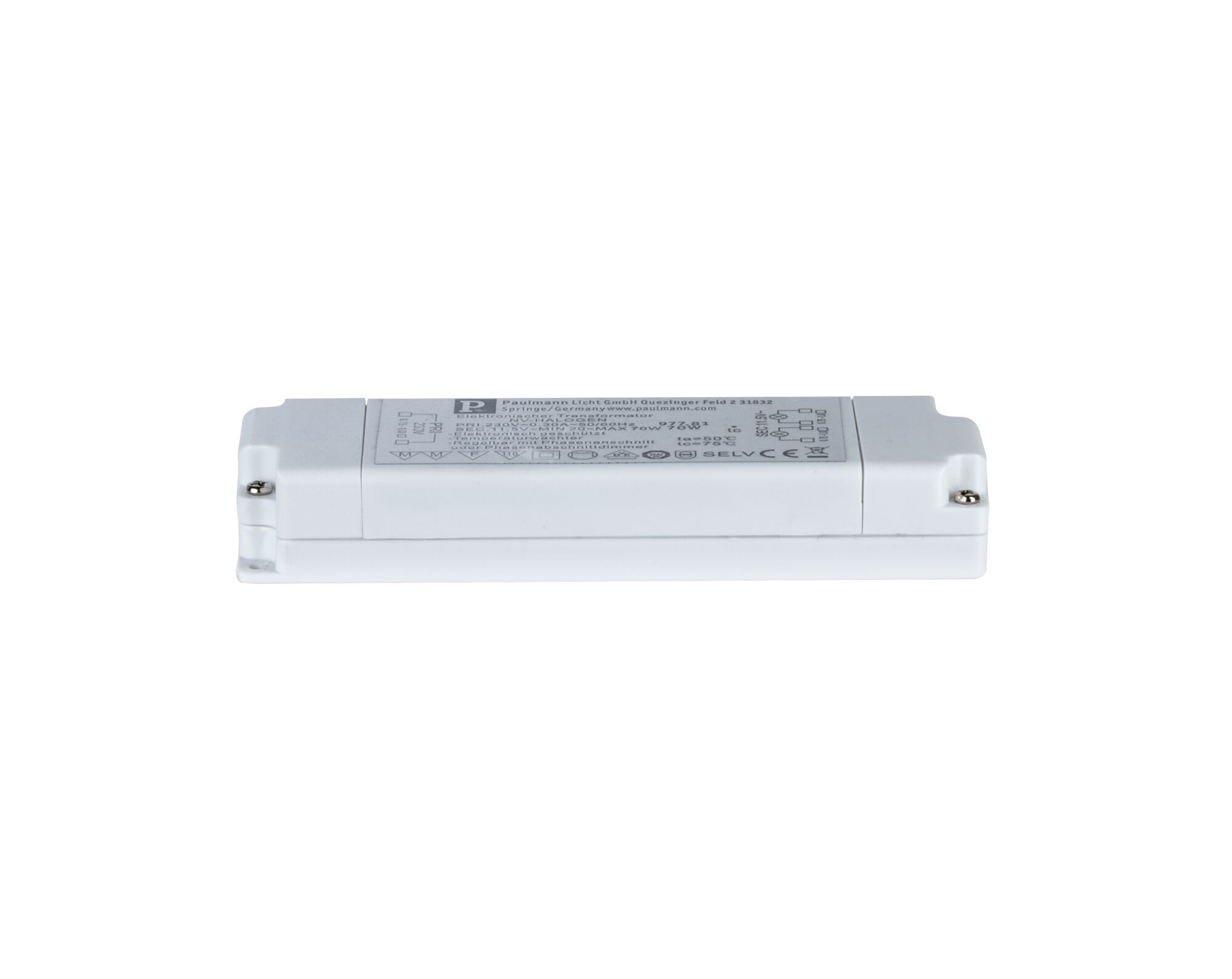

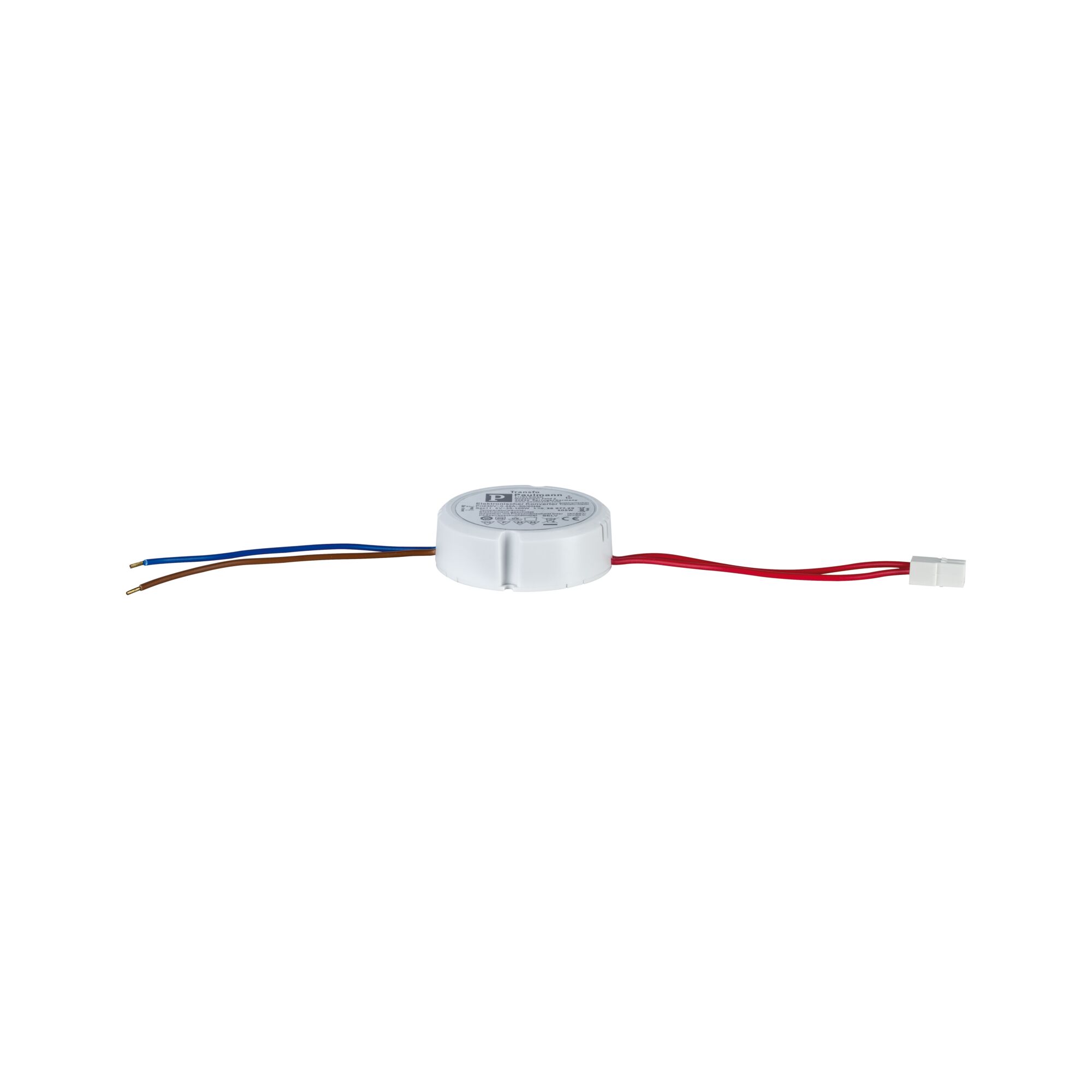

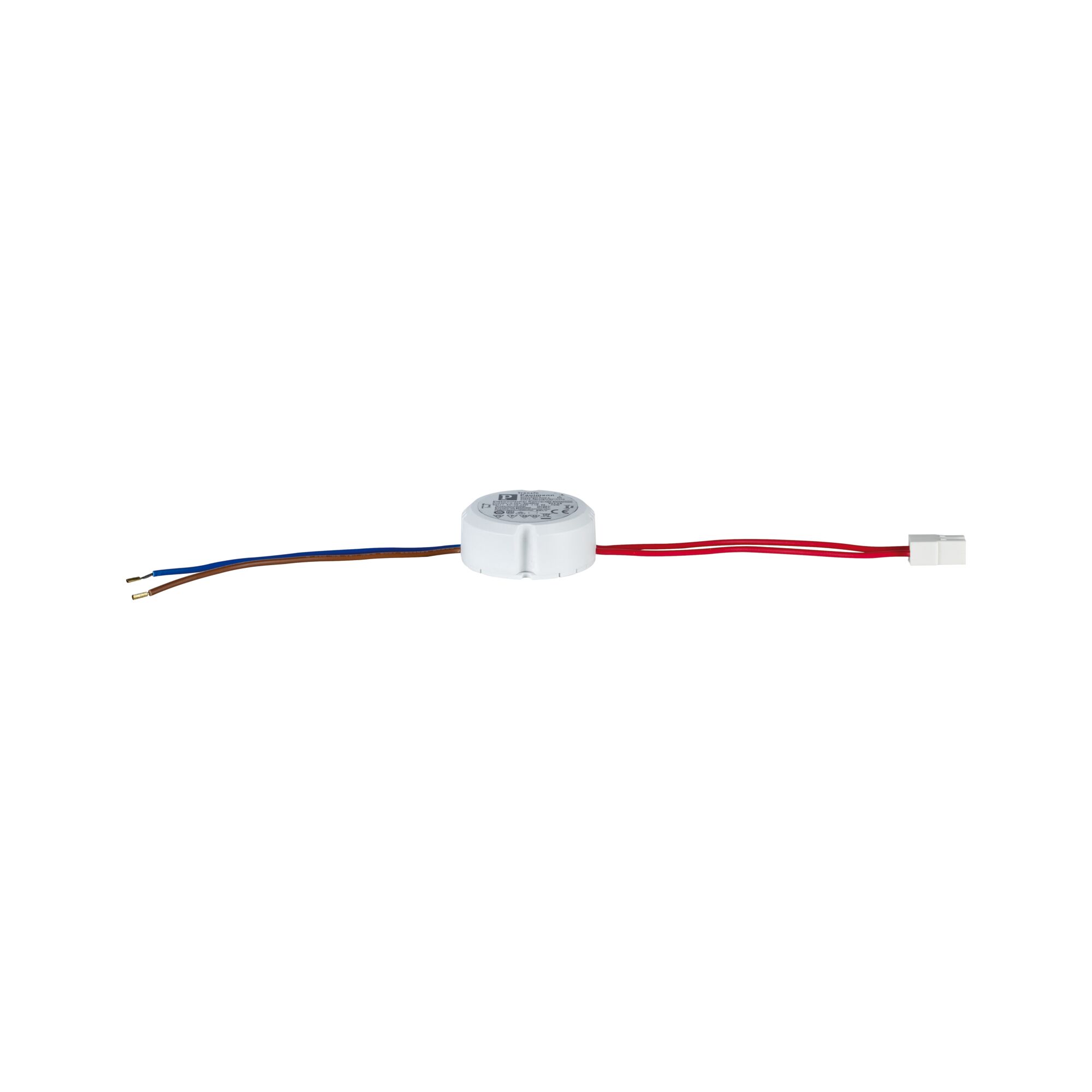

- Don't forget: Order compatible bulbs and transformers as well!
| Dimension | |
|---|---|
| Diameter | 66 mm |
| Dimensions (Height x Width x Depth) | H: 20 mm |
| Built-in diameter | 54 mm |
| Mounting depth | 25 mm |
| Depth of hollow wall | 10 mm |
| net weight | 71 g |
| Design and Material | |
|---|---|
| Form | round |
| Colour | Brushed iron |
| Material | Metal, Glass |
| Installation | |
|---|---|
| Installation site (recommendation) | Installation on cabinet |
| Connections | |
|---|---|
| Plug-and-socket connector | Plug-and-socket connector |
| Lamp Features | |
|---|---|
| Inclusive lamp | no |
| light source property | Without light source |
| Base/Socket | G4 |
| Technique | Lamp without bulb |
| Adjustability | fixed |
| Dimmable | The luminaire is dimmable, and the dimming capability depends on the type of lamp and ballast used. |
| Maximum wattage range | max. 20 W |
| IP protection | IP20 |
| Protection class | Protection class III |
| Replacable | 1 Lightsource is replaceable without damage the lighting fixture by enduser. |
| Voltage | 12 V |
| Voltage type | DC |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| 850°C test | 850°C test |
| WEEE-Reg.-No | DE 39236390 |
Downloads
Manuals
Download Installation/MontageProduct data, leaflets & safety instructions
Safety instructions Flyer Einbaustrahler Flyer Recessed spotlights 504100353_fr_Paulmann_EBL 504200353_nl_Paulmann_EBL
- Downlight Accessories

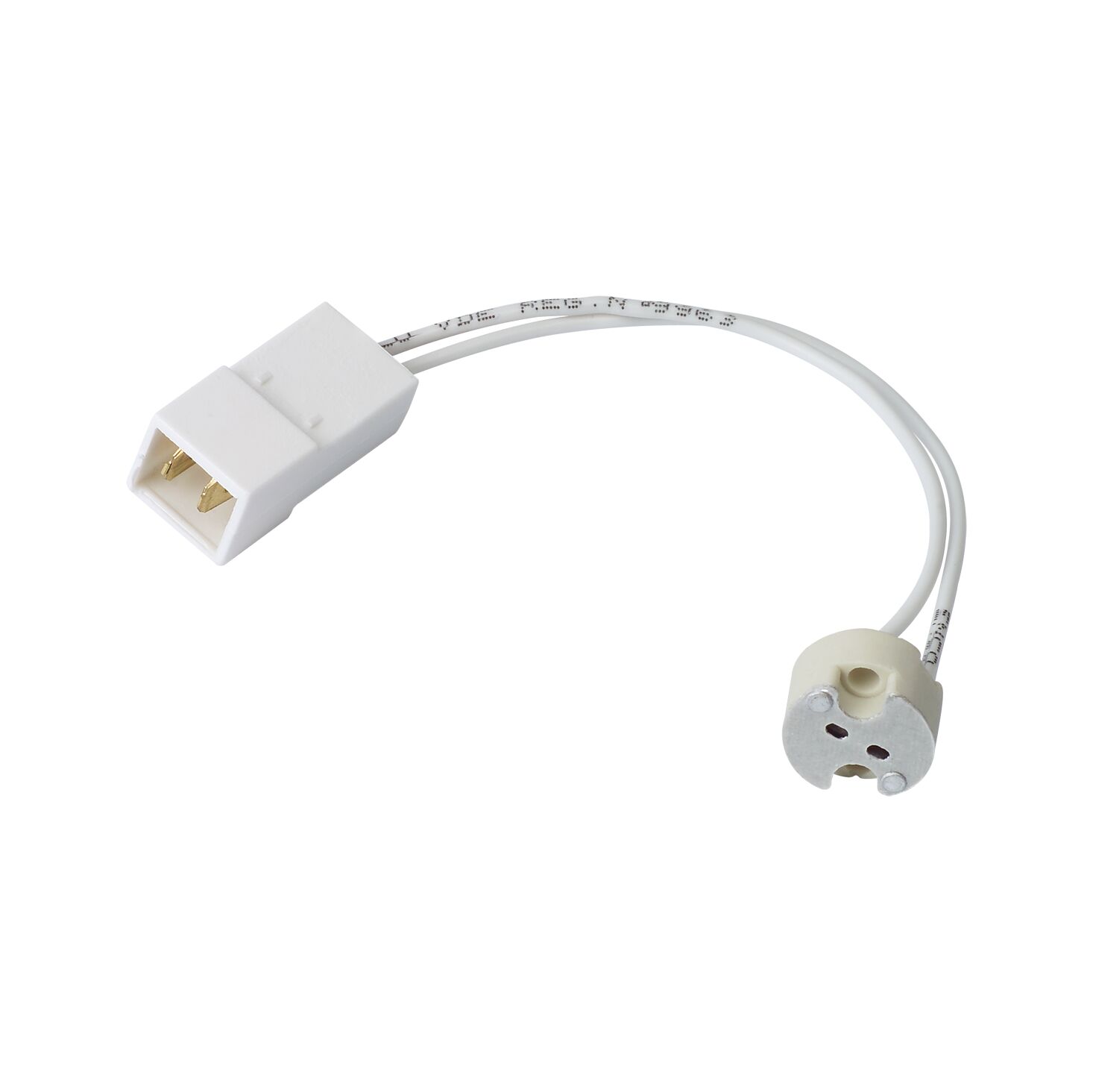

15x170mm 12V G4 / GX5,3 / GY6,35 White
