Article-No.:
93418
- Warmdimm function
- Color temperatur: 2700K - Warm white
- IP protection: IP44 splash-protected

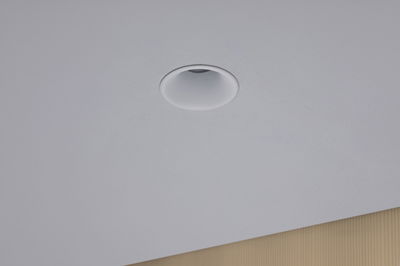

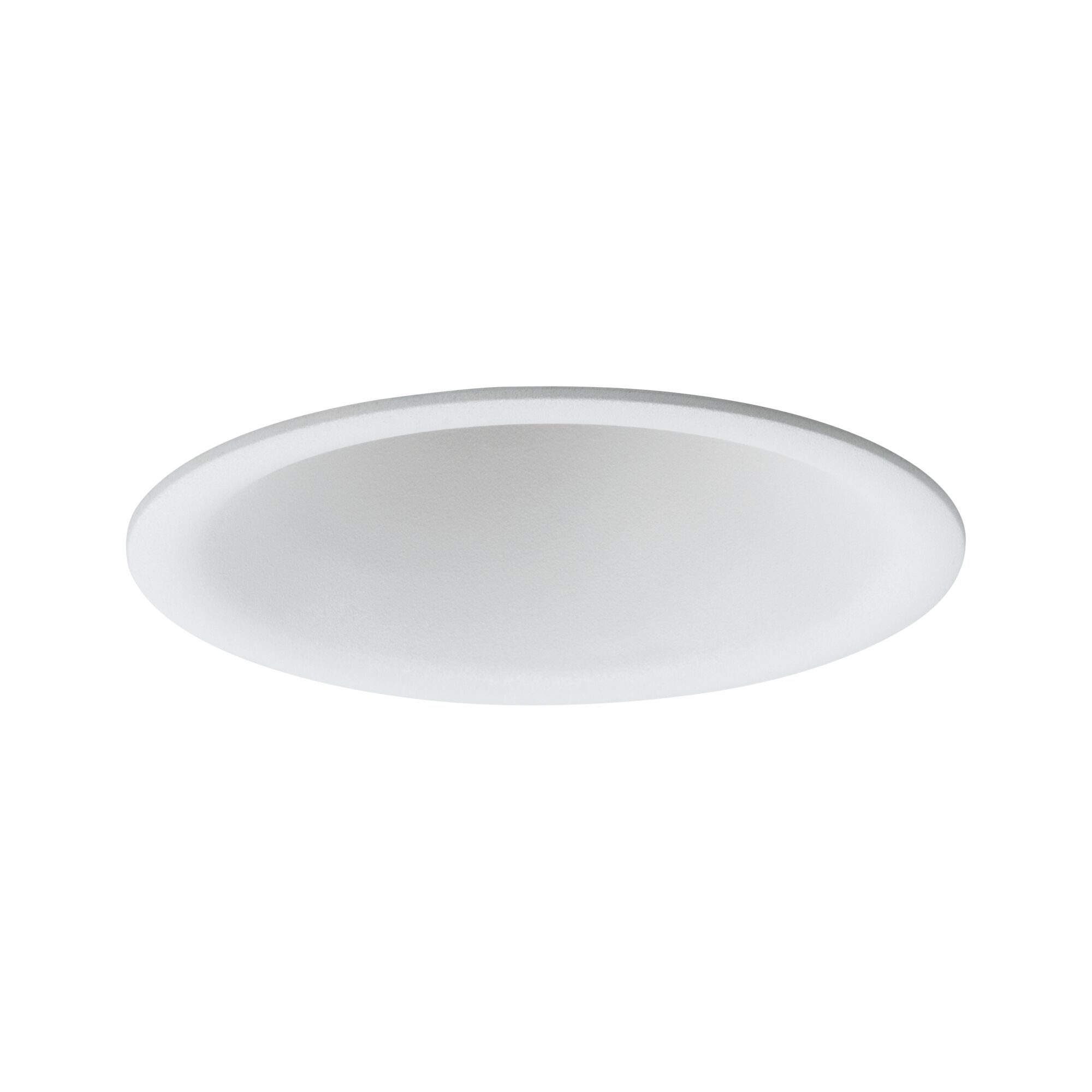

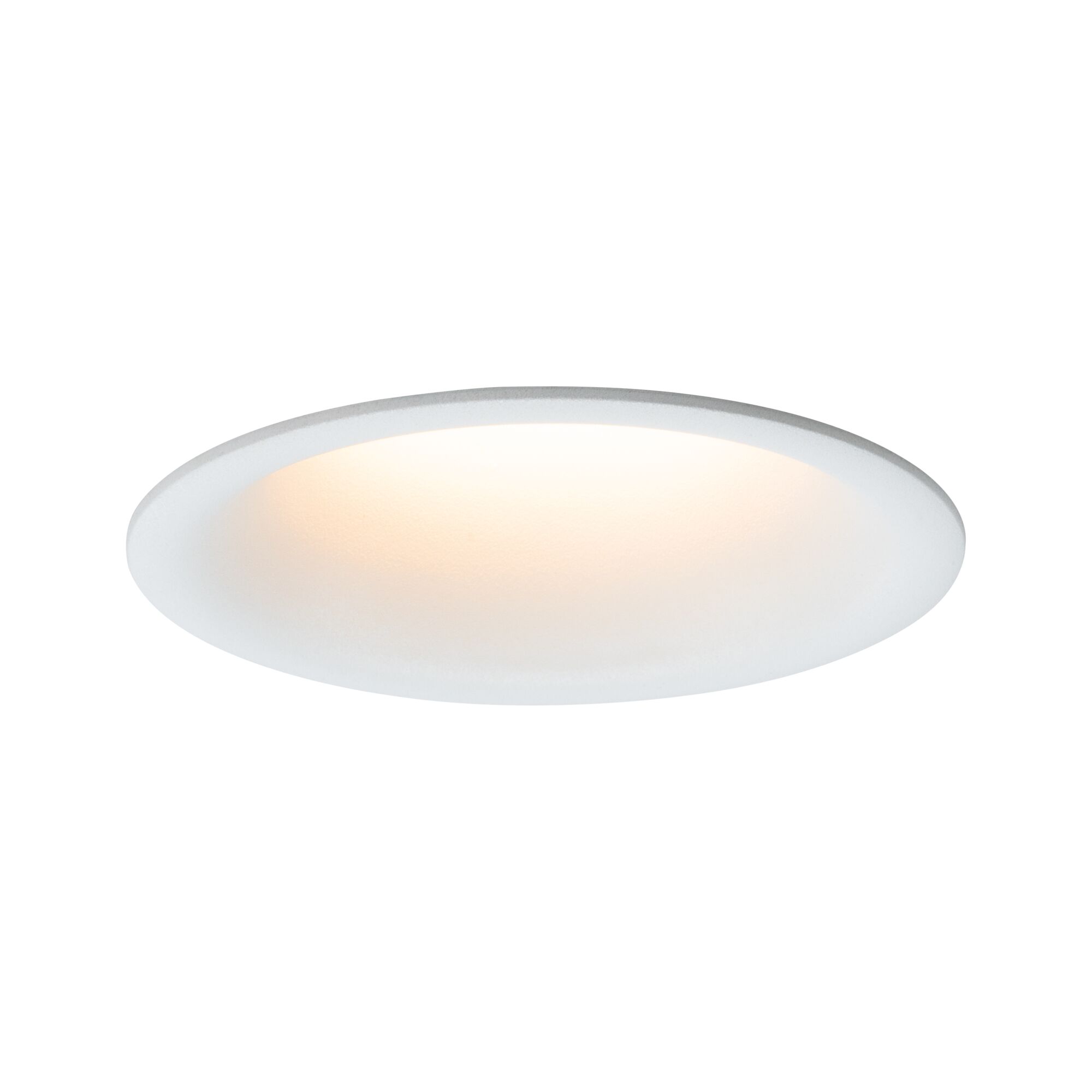

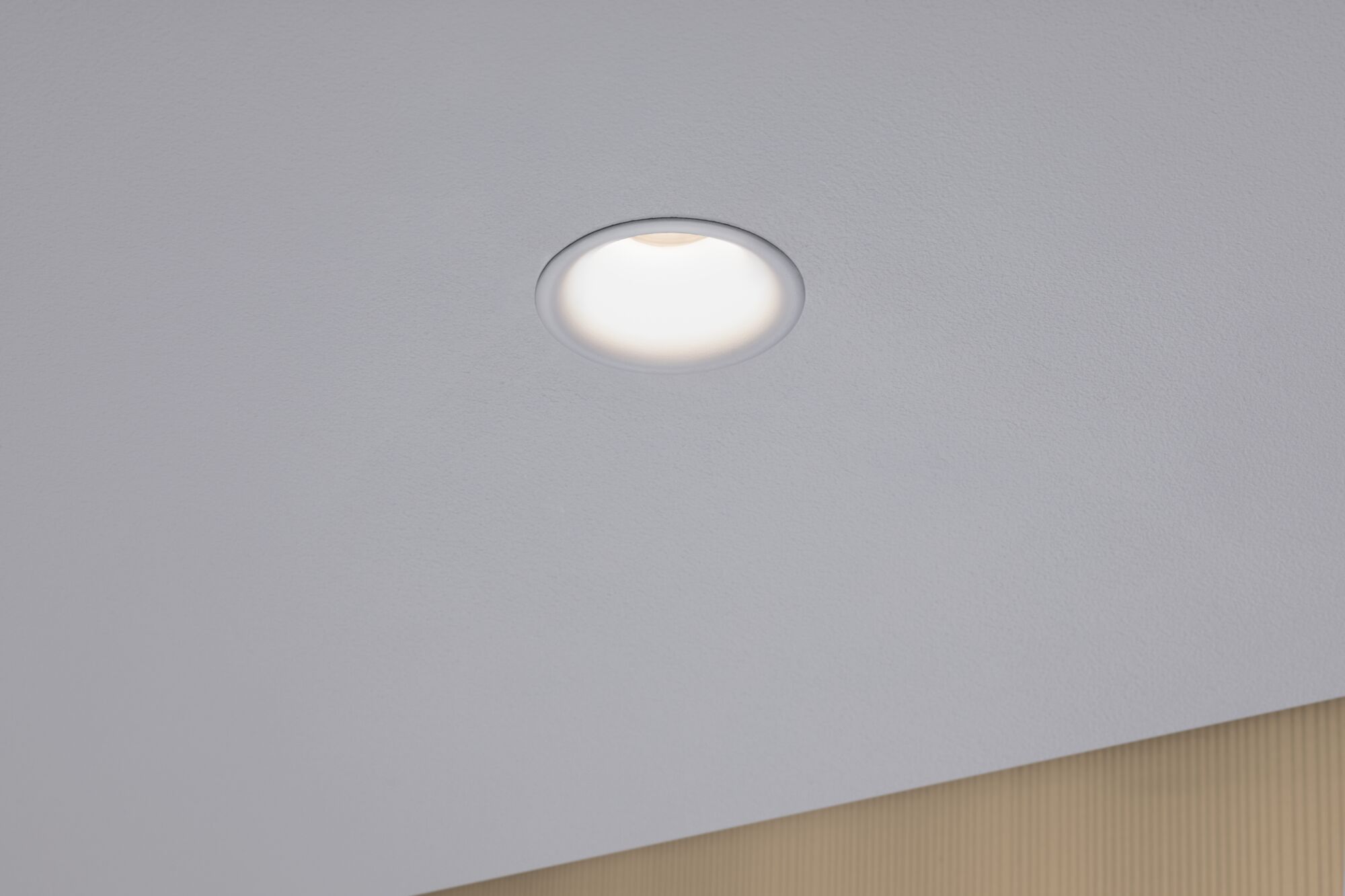

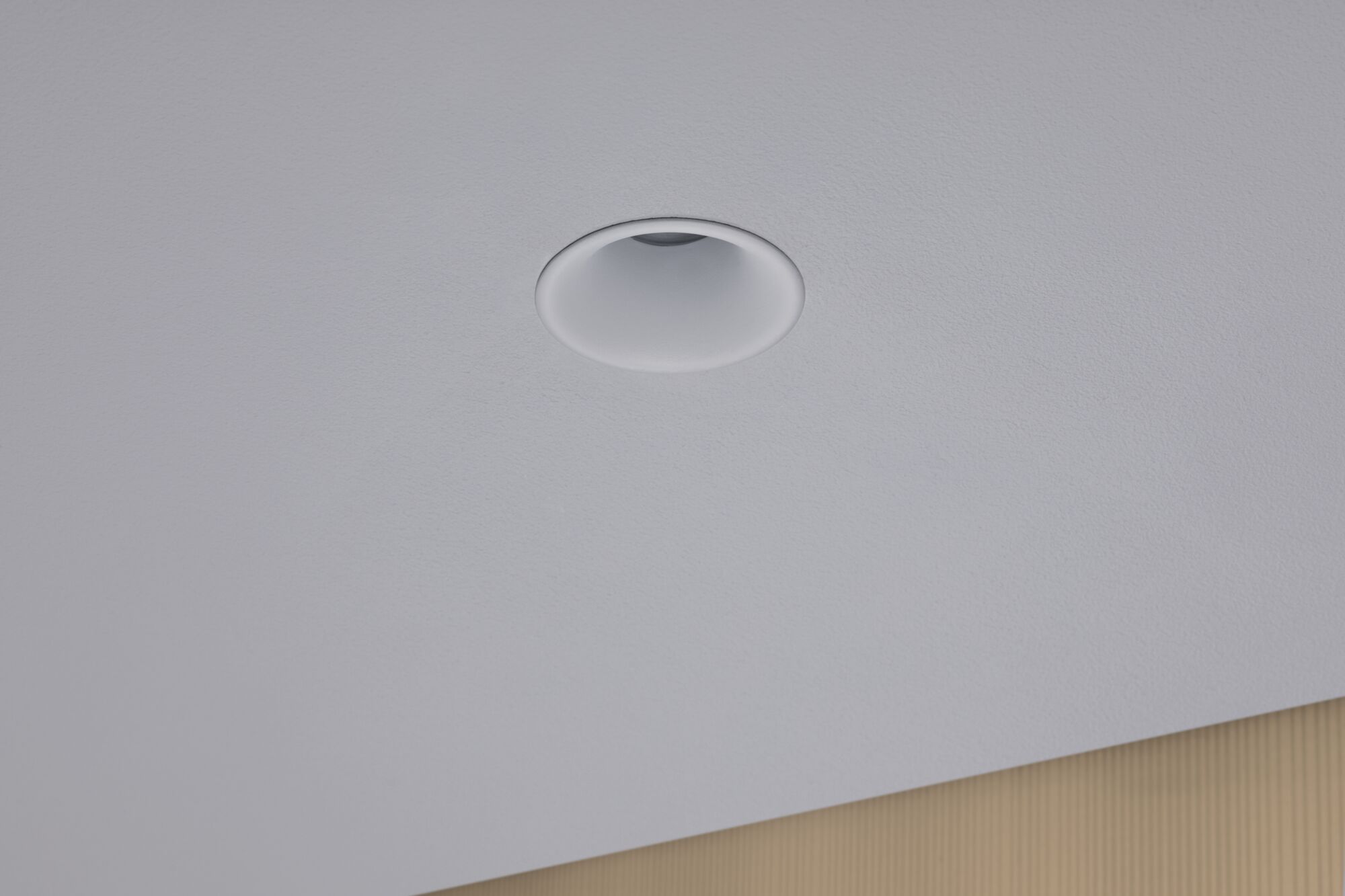

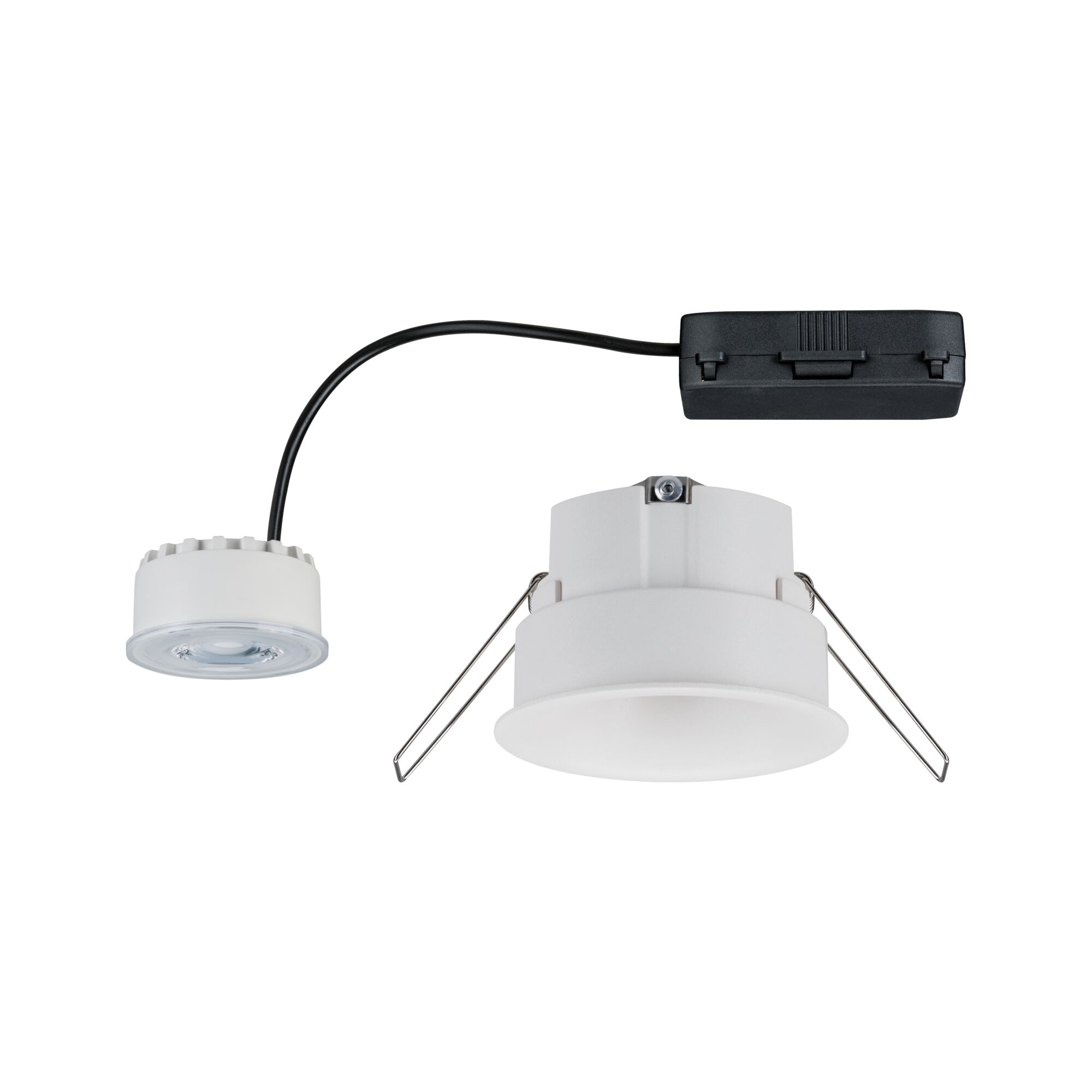

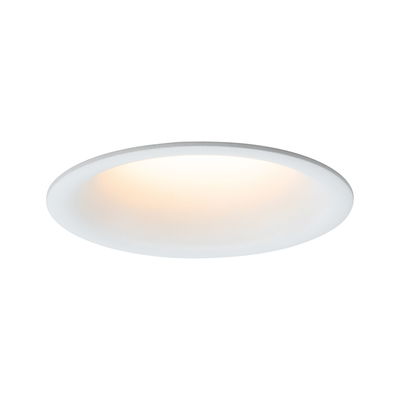

LED Recessed luminaire Cymbal Coin IP44 round 77mm Coin 6W 440lm 230V dimmable Dim to warm Matt white
100% minimalist – the transparent material of the premium frameless recessed luminaire Cymbal makes it almost invisible when it is not lit. The slightly offset lamp ensures glare-free illumination. The light colour is steplessly dimmable between 2,000 Kelvin (gold light) and 2,700 Kelvin (warm white light). Use it to match the ambiance in your home to your mood.
- Warmdimm function
- Color temperatur: 2700K - Warm white

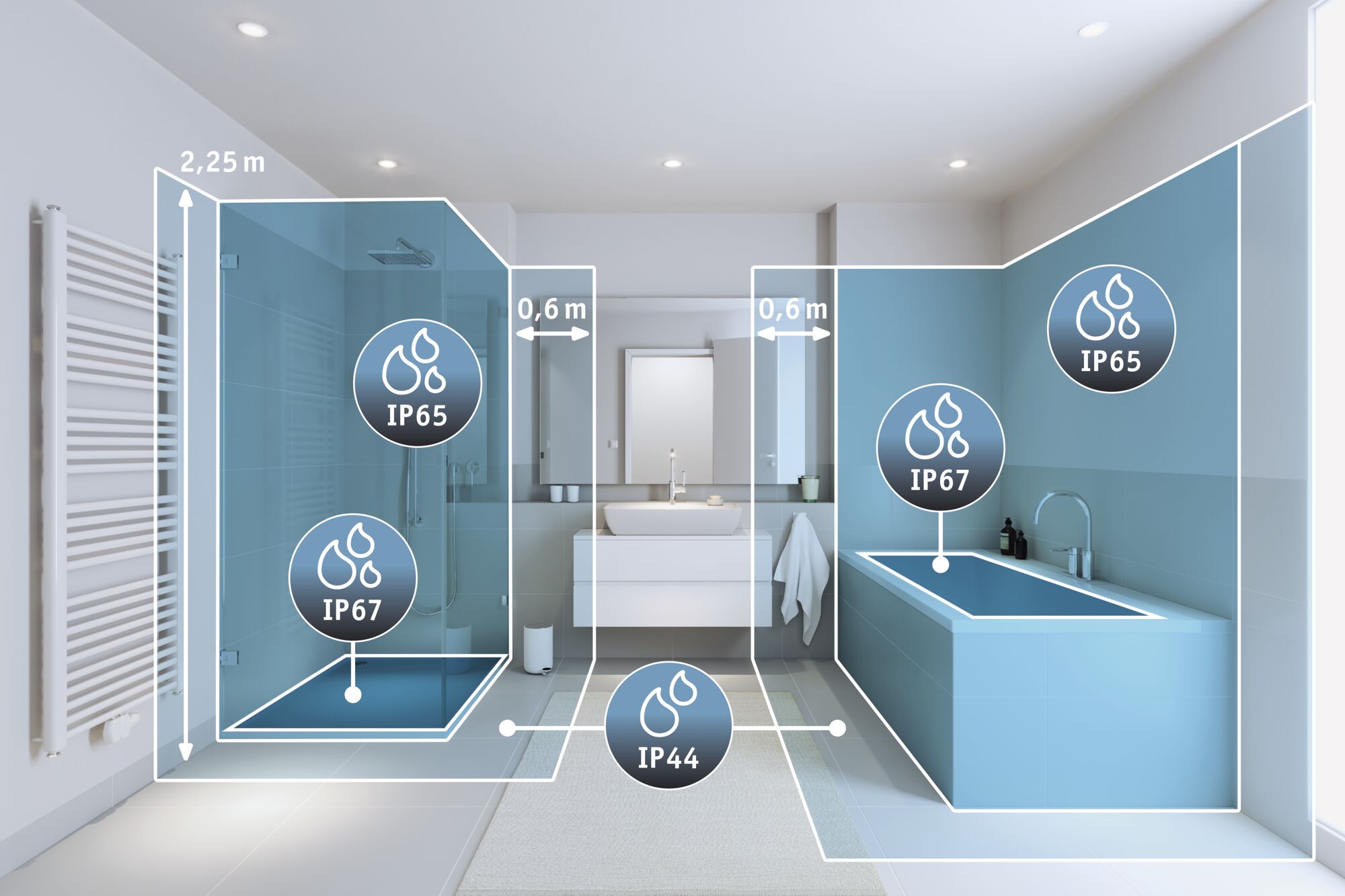

- IP protection: IP44 splash-protected
- For 230 V direct connection

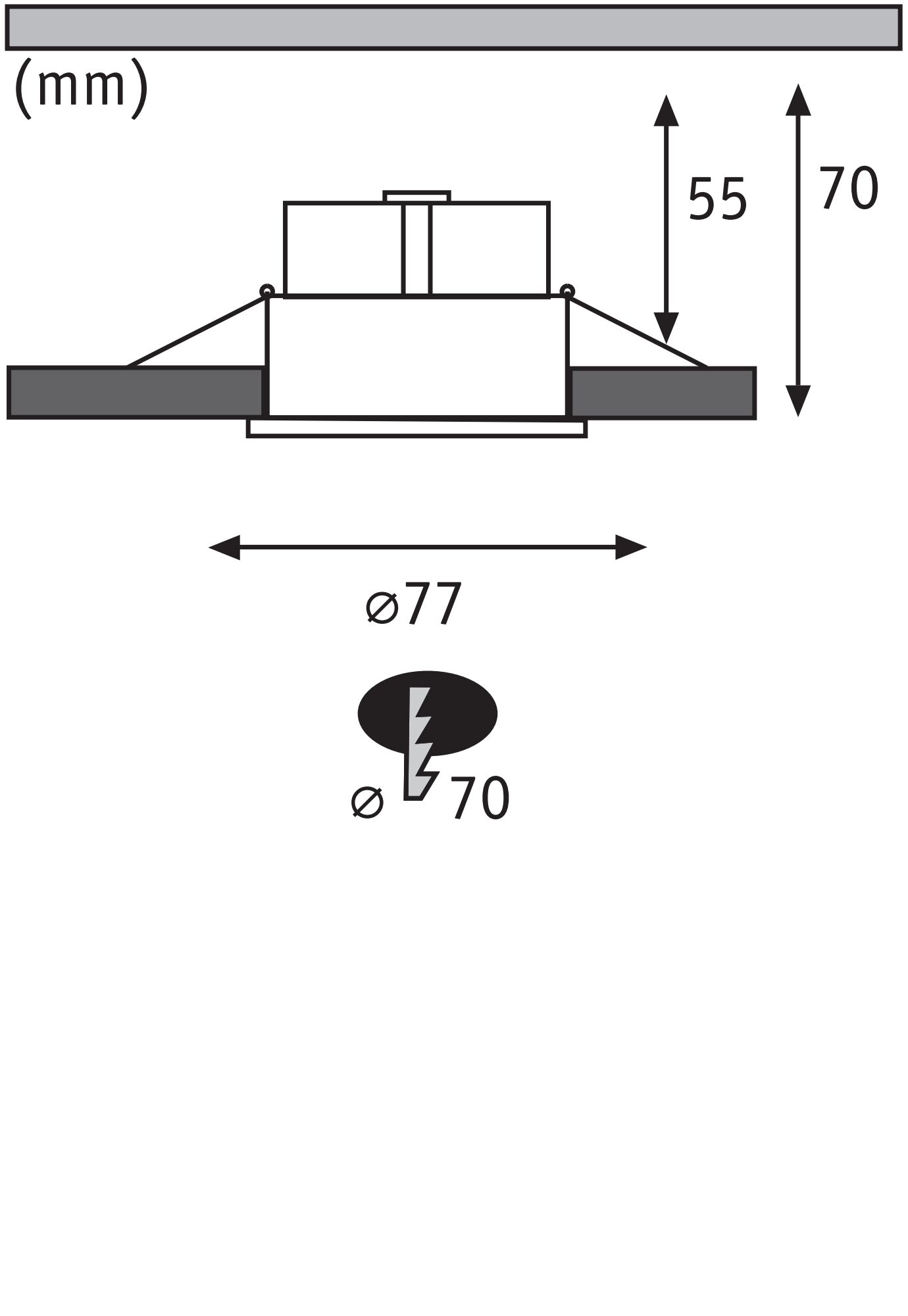

| Dimension | |
|---|---|
| Total Mounting depth | 70 mm |
| Dimensions (Height x Width x Depth) | H: 50 mm |
| Ø | 77 mm |
| Mounting hole | 70 mm |
| Form | round |
| Depth of hollow wall | 55 mm, 55 mm |
| Design and Material | |
|---|---|
| Colour | Matt white |
| Material | Plastic |
| Installation | |
|---|---|
| can be used with the following dimmers | RLC Müller Paladin 873 030 LED |
| Installation site (recommendation) | Ceiling mounting |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | F |
| Energy consumption | 6 kWh_1000h |
| Service life | |
|---|---|
| Lamp lumen maintenance factor 6000h | 80 % |
| luminous flux at the end of lamplife | 75 % |
| Number of switching cycles >= | 30000 |
| Lifetime | 30000 h |
| Rated life time | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 2000 K |
| Colour change | Dim to warm |
| Beam angle | 45 ° |
| Usable luminous flux | 440 lm |
| color temp | 2000 - 2700 K |
| colour consistency | SDCM 6 |
| Color rendering index | > 80 Ra |
| Beam angle LED module | 45 ° |
| Rated luminous flux (Lumen) | 480 lm |
| Lamp Features | |
|---|---|
| Component parts | 6 W |
| Technique | LED |

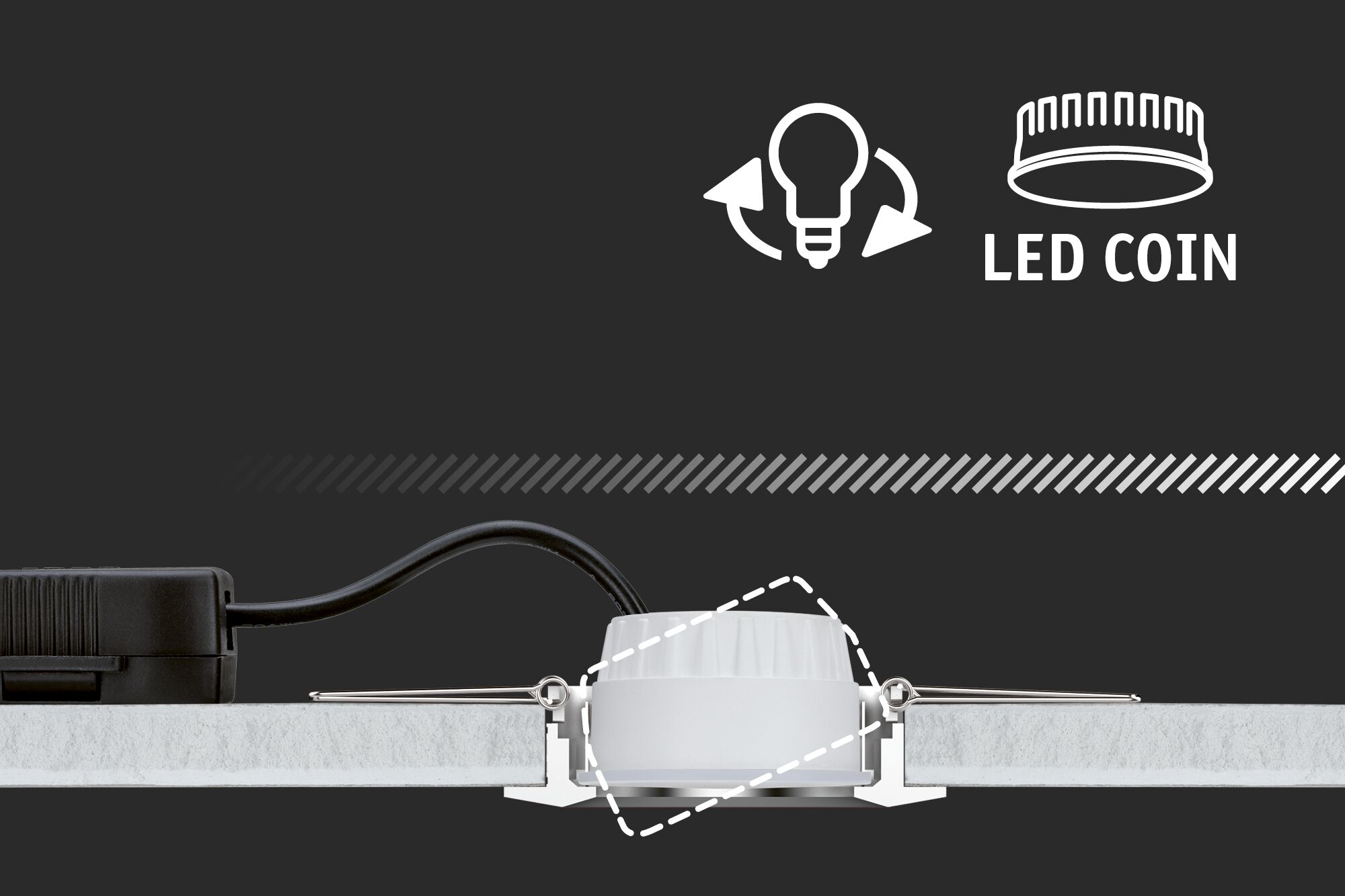

| Socket | Coin |
| IP protection | IP44 ceiling mounting |
| Dimmable | with dimmer R+C f.elect.trafos+230V bulbs |
| Inclusive lamp | yes |
| Incandescent Equivalent | 40 W |
| Maximum wattage range | max. 10 W |
| Number of component parts | 1x |
| protection class | protection class II |
| Replacable | 2 Lightsource is replaceable without damage the lighting fixture by electrician. |
| Transformer | |
|---|---|
| apparent power | 7 VA |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
Downloads
Manuals
Download Installation/MontageEmpfohlene Leuchtmittel
A
G
G

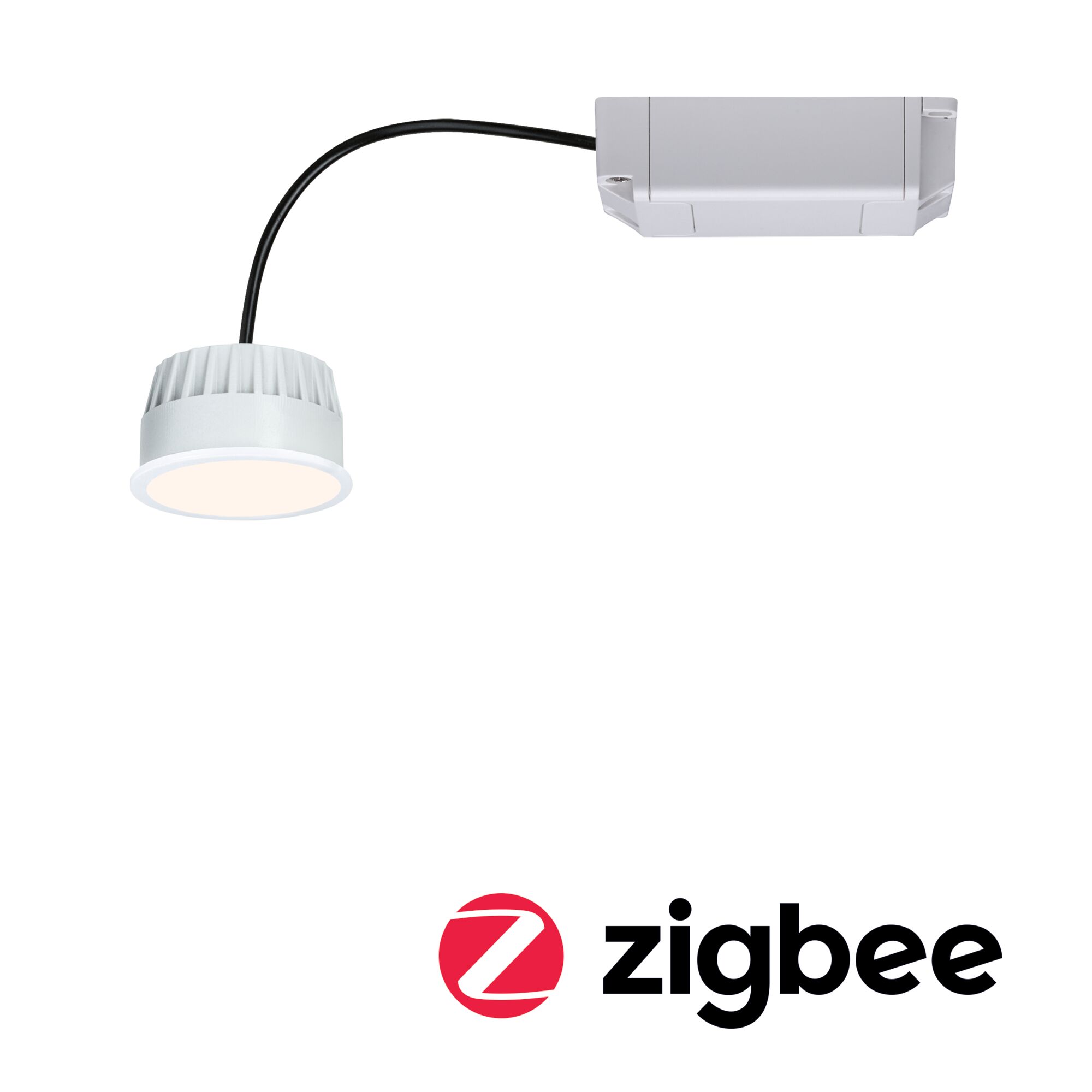

- LED Module recessed luminaire
round 51mm Coin 6W 470lm 230V dimmable 2700K Satin
£14.95*
A
G
G

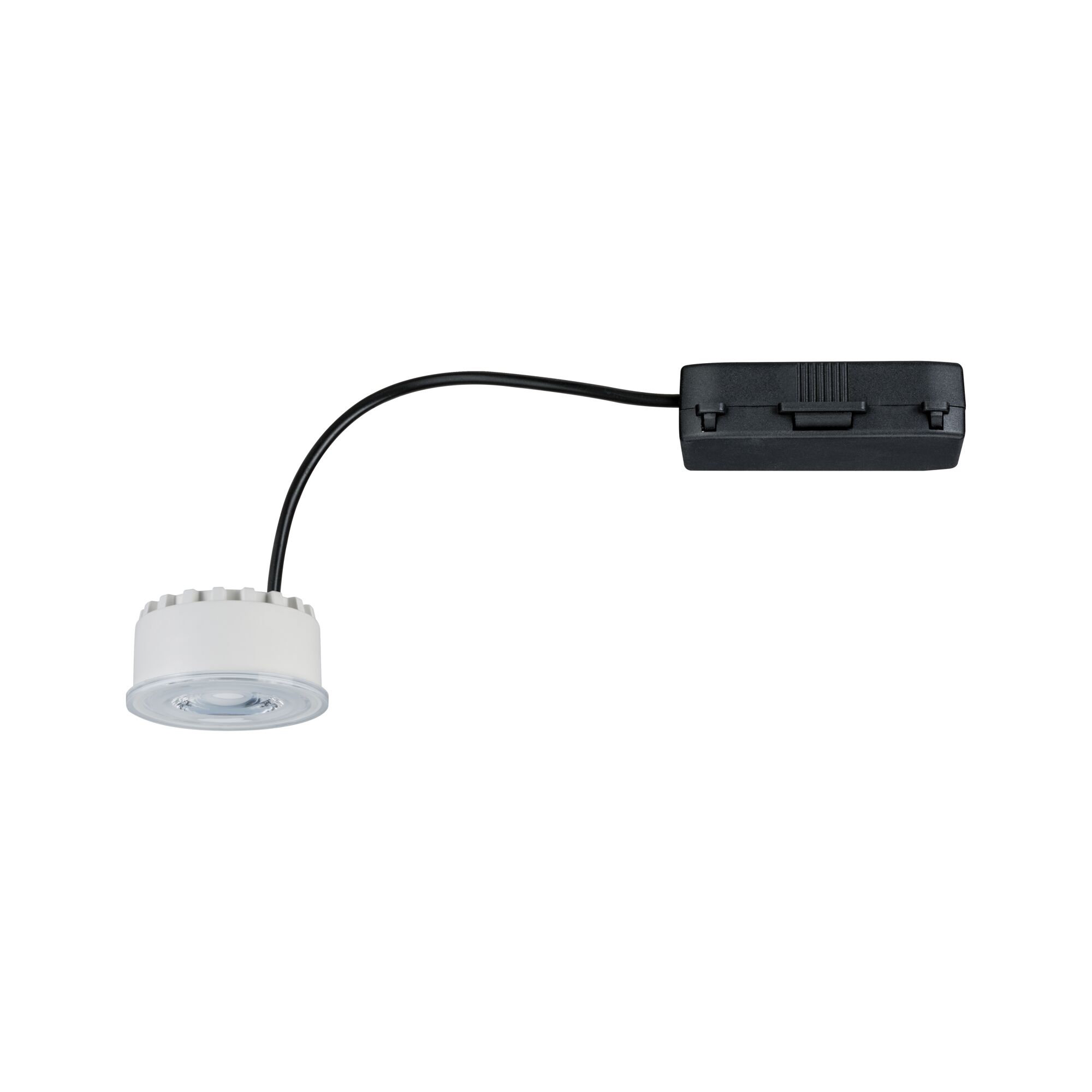

- LED Module recessed luminaire
round 50mm Coin 6,3W 430lm 230V dimmable 2700K Satin
£22.95*
A
G
G

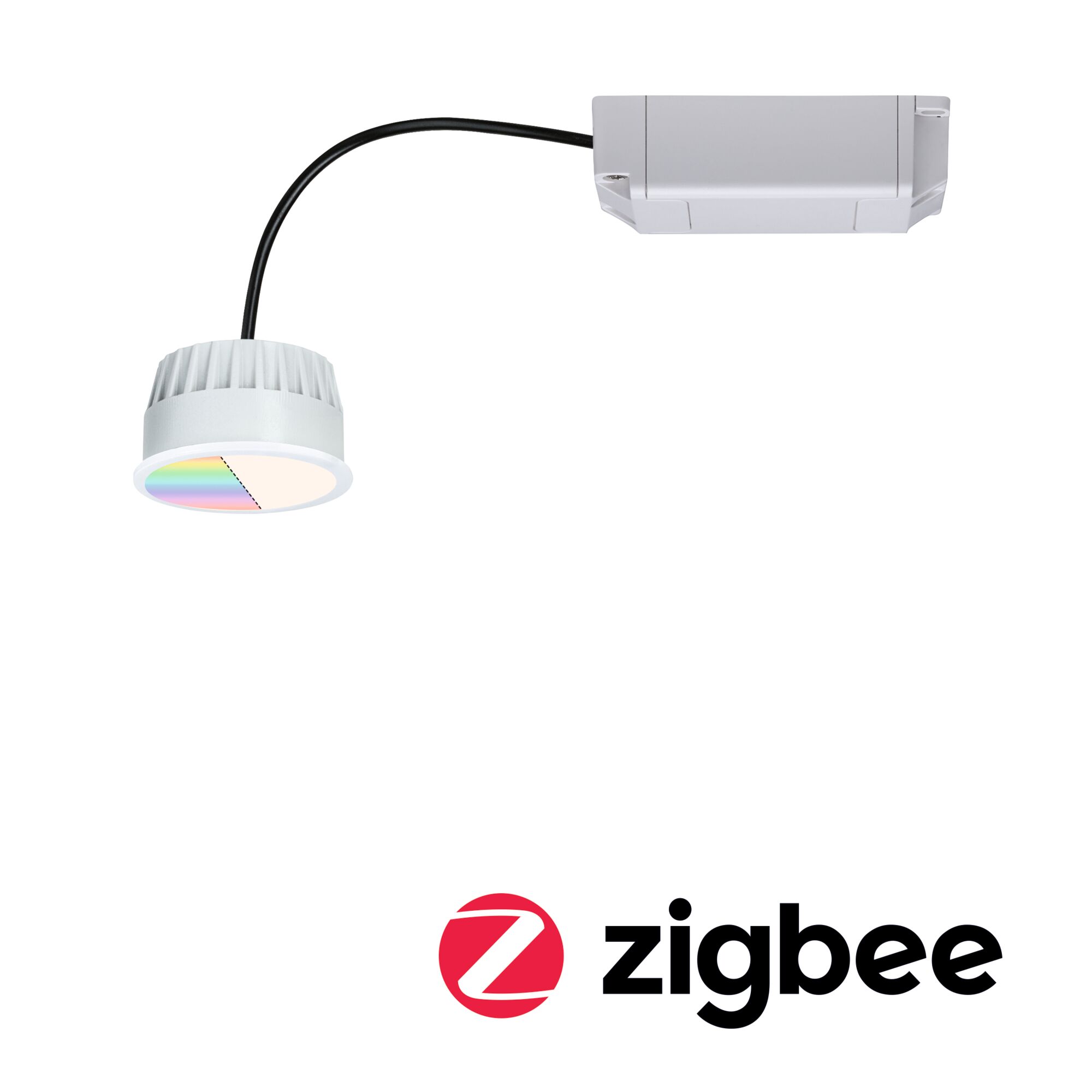

- LED Module recessed luminaire
