Article-No.:
92450

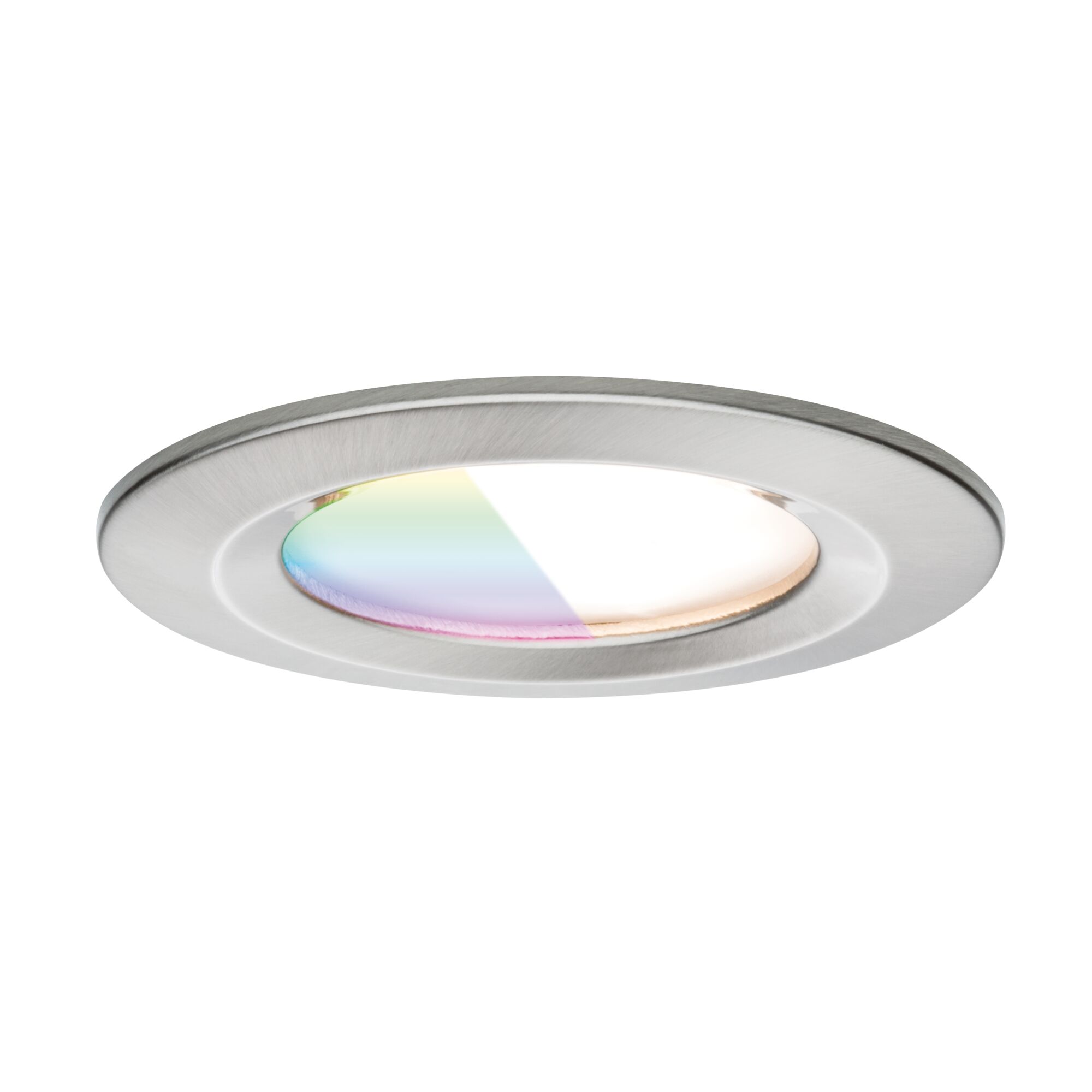

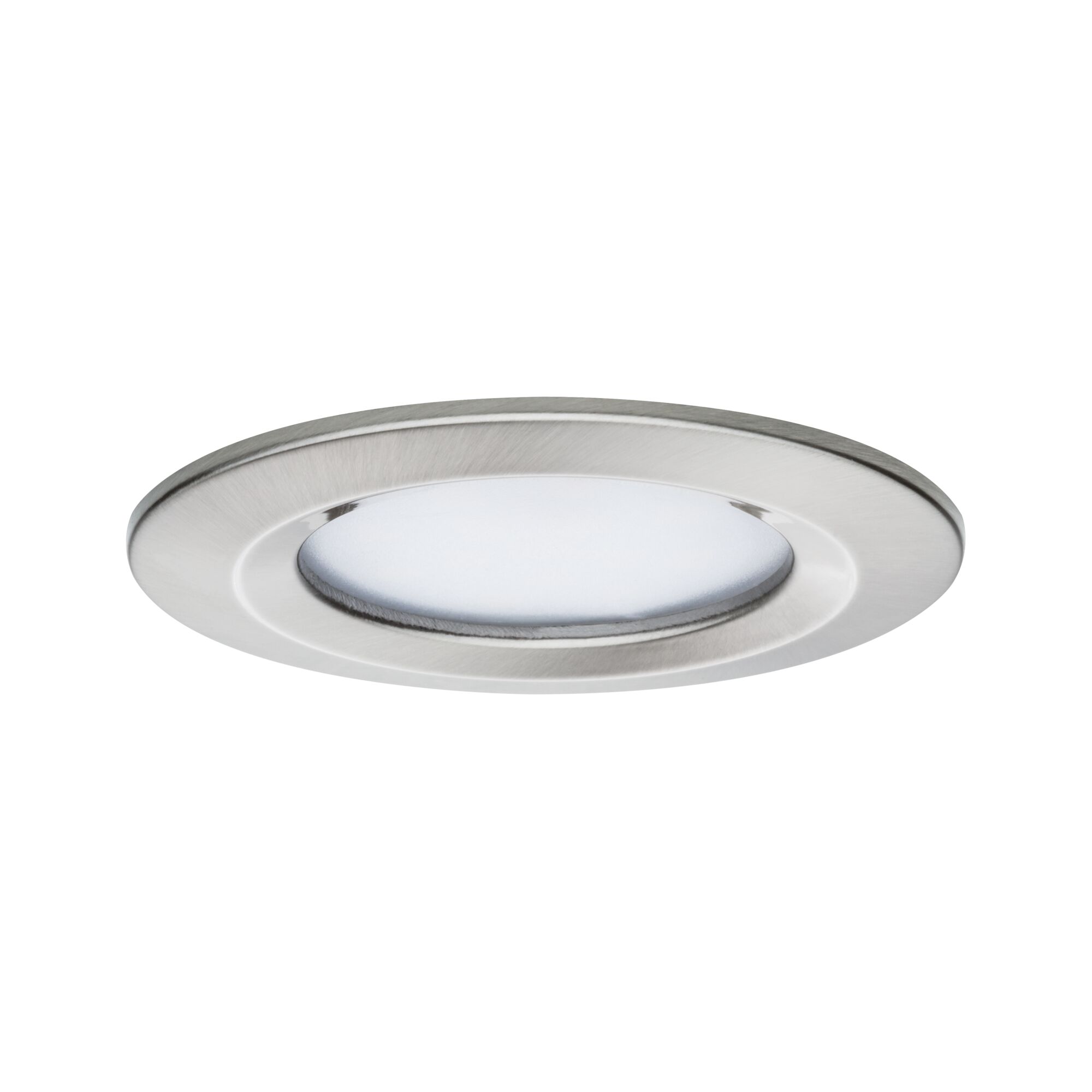

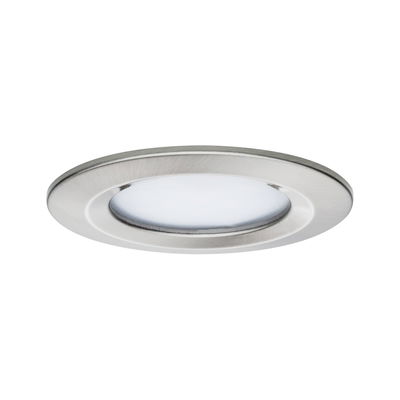

LED Recessed luminaire
Nova Coin
IP44 round 78mm RGBW+ 3x6W 3x500lm 230V Brushed iron Die cast aluminium
IP44 round 78mm RGBW+ 3x6W 3x500lm 230V Brushed iron Die cast aluminium
£94.95*
Prices incl. Standard rate VAT

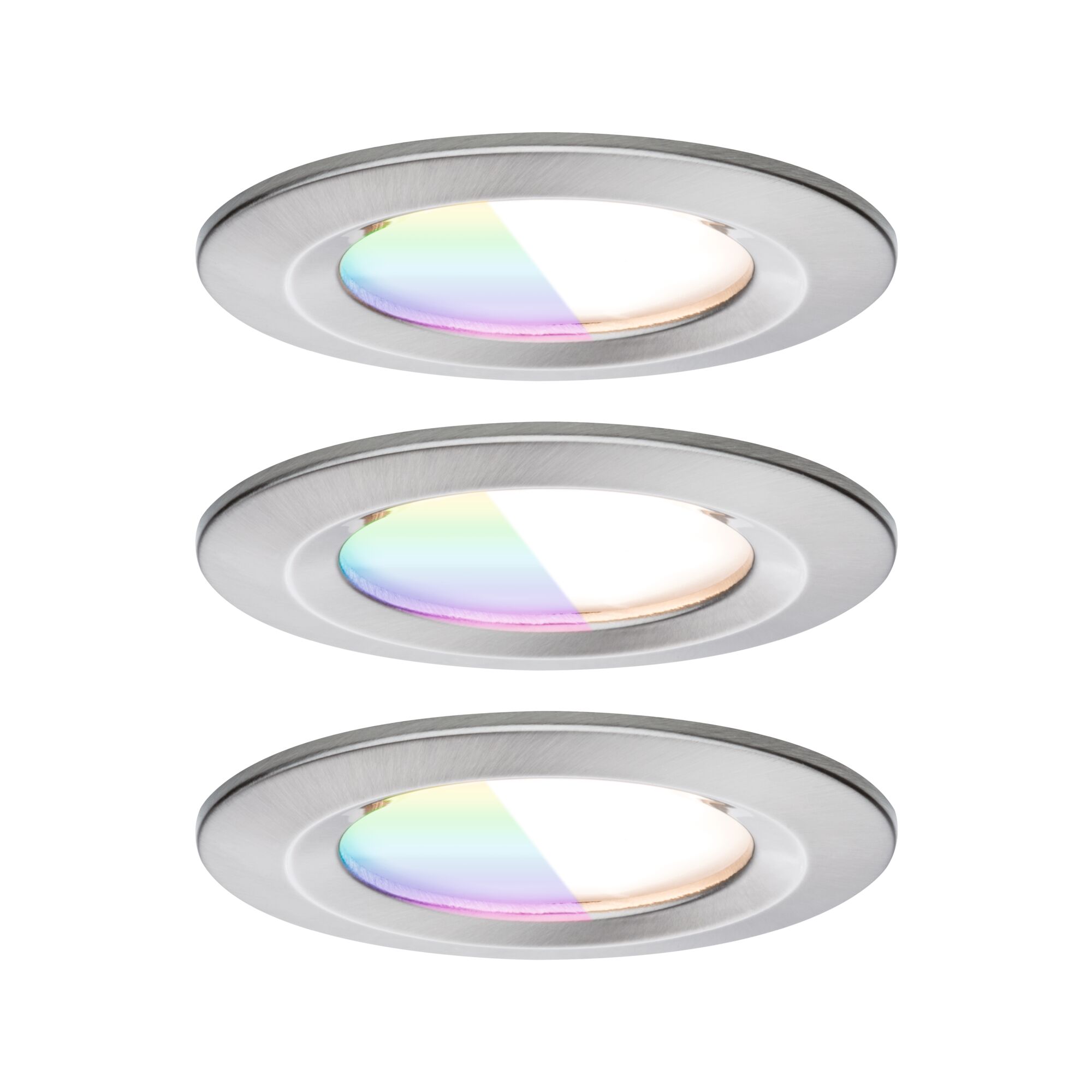

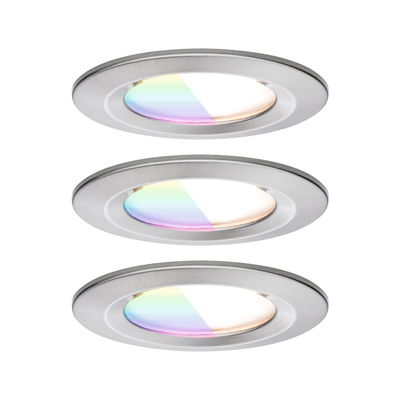

- Set of 3 luminaires incl. LED module
- IP protection: IP44 – splash protected
- Tunable white offers an infinitely adjustable selection from gold light (2200K) to daylight white (6500K)
LED Recessed luminaire Nova Coin IP44 round 78mm RGBW+ 3x6W 3x500lm 230V Brushed iron Die cast aluminium

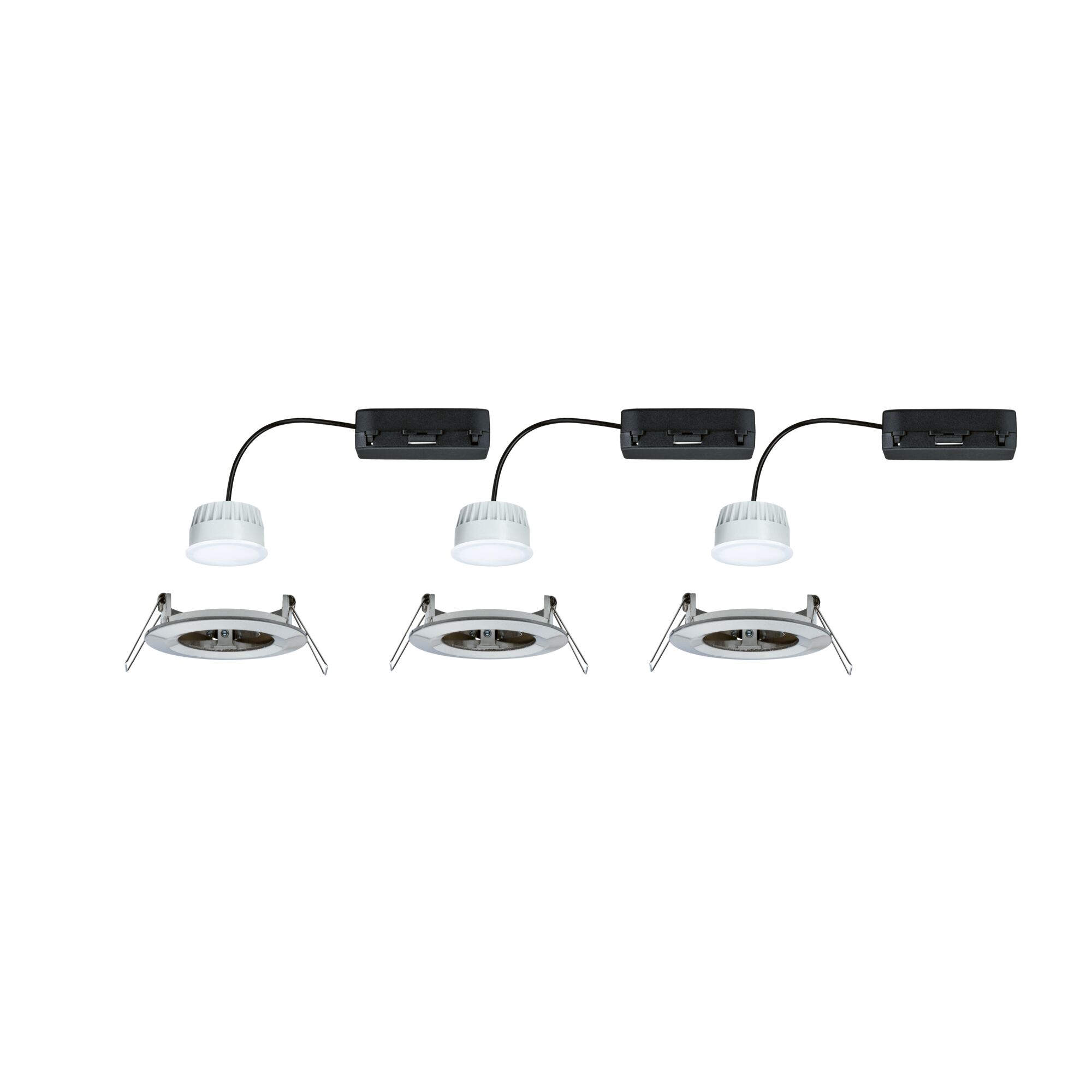

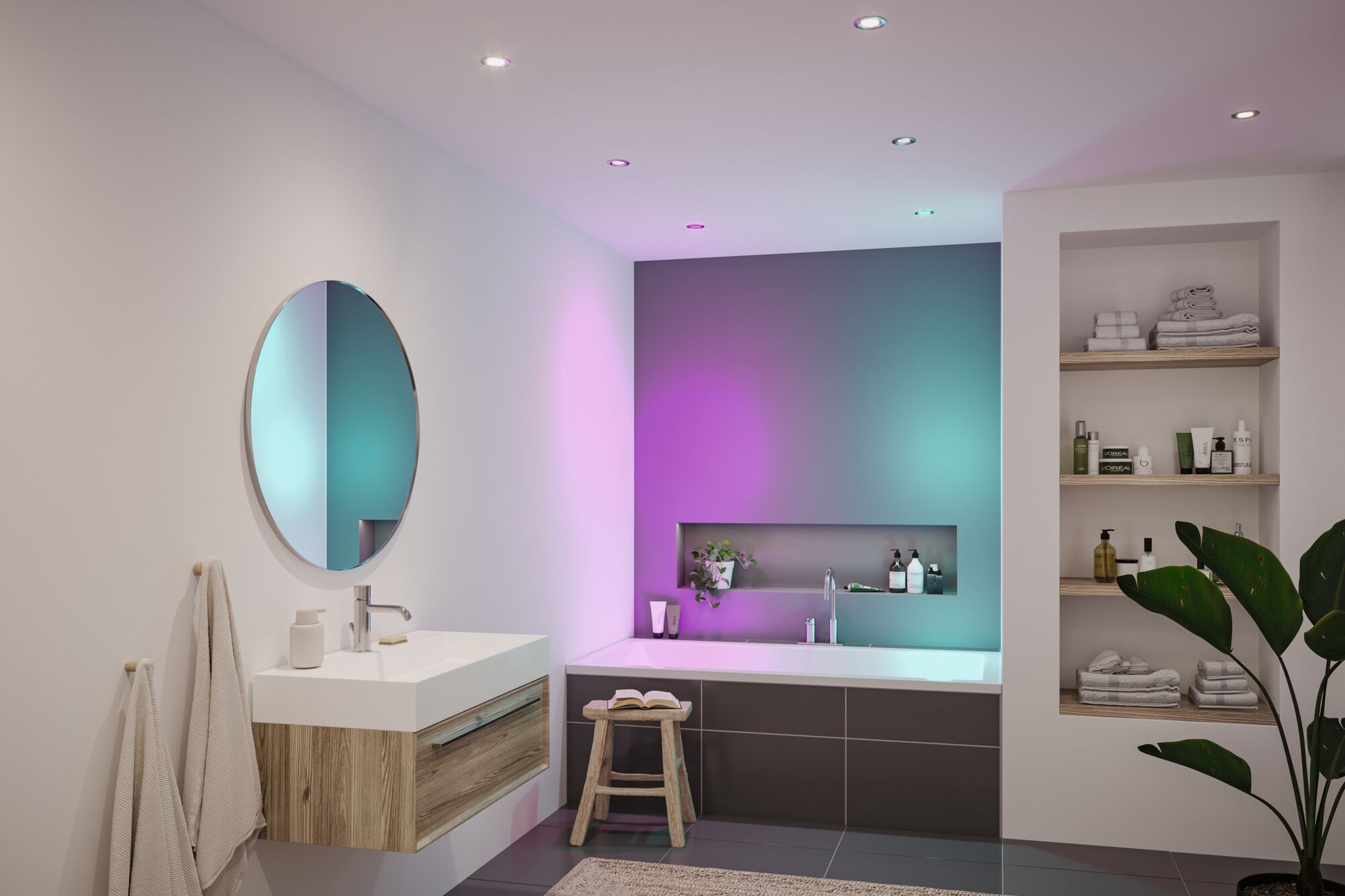

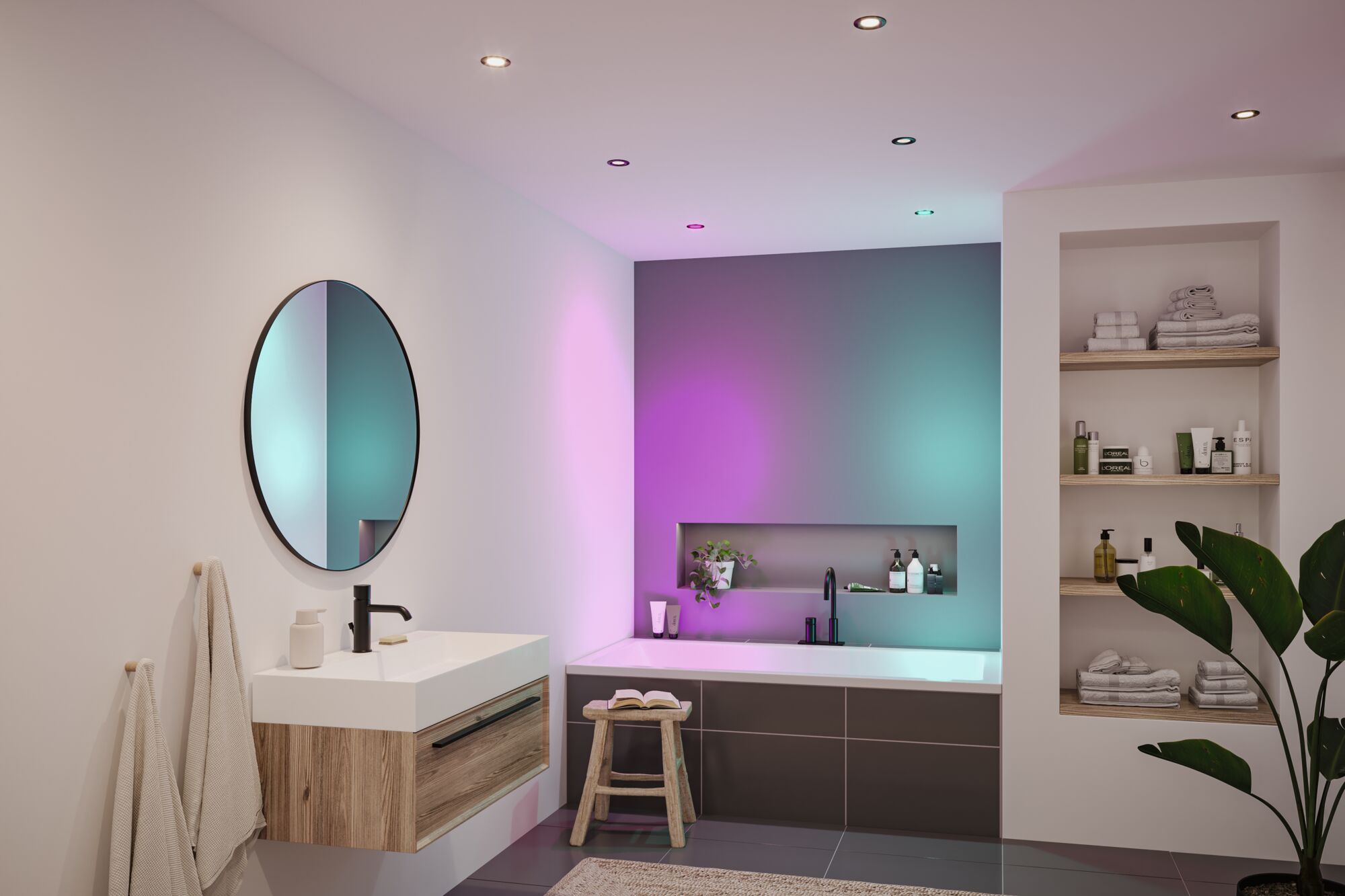

16 million colours, 16 million lighting moods – the smart Nova Coin recessed luminaire set in Brushed iron with colour-change function creates an individual living atmosphere in every room. Included in delivery are three replaceable LED lamps, including high-quality aluminium mounting rings. Exceptionally high IP44 protection makes the luminaires ideal for use in wet rooms and protects them against splash water. With an output of 3x6 watts and Zigbee 3.0 controls, the luminaire provides an efficient and innovative lighting solution. Zigbee 3.0 is a radio transmission protocol that interlinks devices from different manufacturers. The luminaires can be controlled individually or in groups via app, remote control, or voice command. From cosy, warm gold light (2200K) to functional daylight white (6500K) or colourful colour gradients: the combinations of tunable white, RGB and dimming function are virtually endless. The smart recessed luminaire can be simply and conveniently switched on and off using a conventional light switch. When doing so, the integrated memory function stores the most recently used setting for maximum convenience. A swivel joint on the luminaire ensures that the light can be directed wherever it is needed. Installation is particularly simple and efficient, thanks to the interlinkable and replaceable coins, the low installation depth of just 45 mm and the 230V direct connection.
- Set of 3 luminaires incl. LED module
- IP protection: IP44 – splash protected
- Tunable white offers an infinitely adjustable selection from gold light (2200K) to daylight white (6500K)
- RGBW multicolour colour change
- The memory function saves the last level used until the next time it is switched on

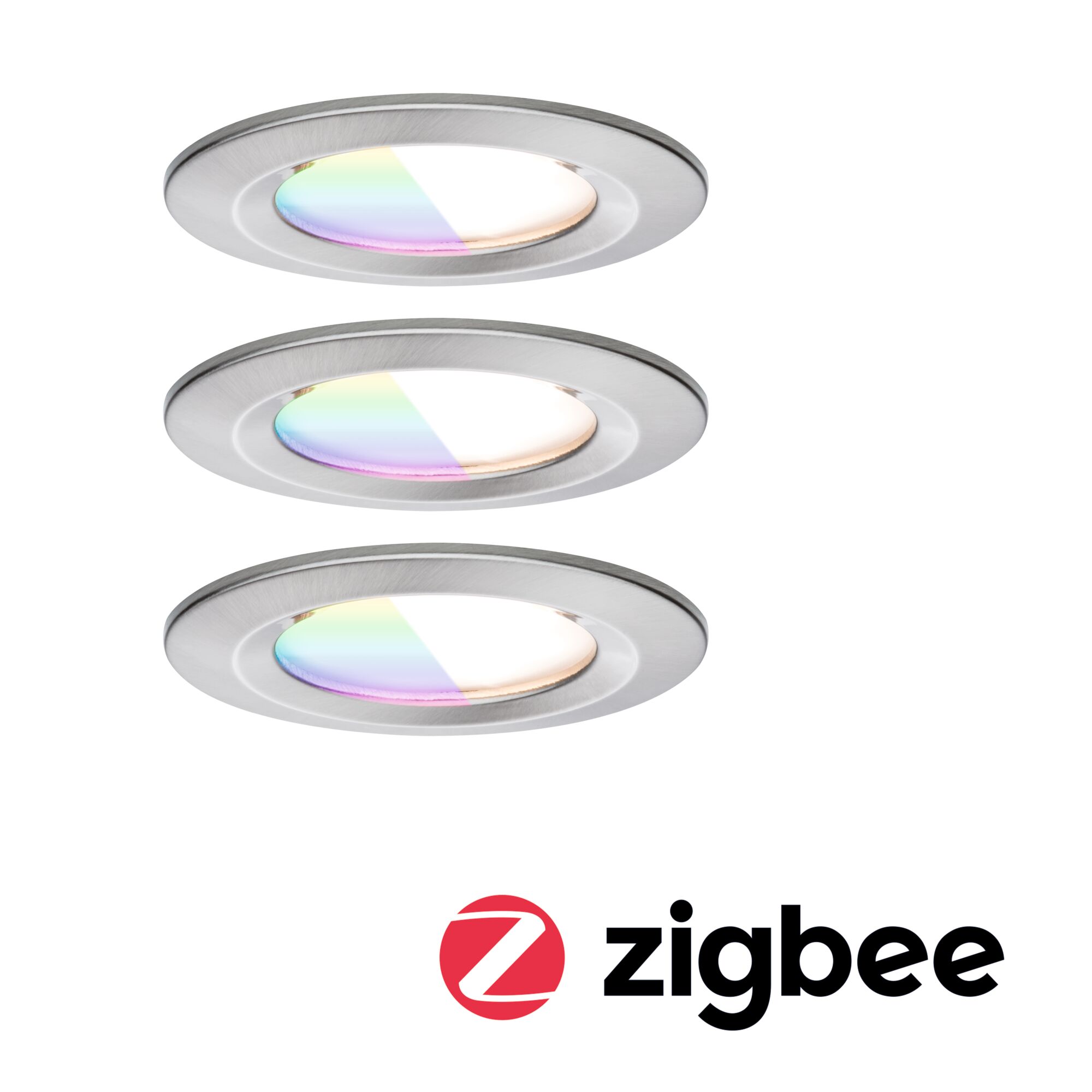

- Integrates seamlessly in existing Zigbee Smart Home infrastructures.
- Can still be switched on and off using the light switch
- Minimal installation depth (45 mm)
- Linkable coins for direct 230V connections
Dimension | |
---|---|
Depth of hollow wall | 30 mm, 30 mm |
Total Mounting depth | 45 mm |
Diameter | 78 mm |
Mounting hole | 68 mm |
Form | round |
Design and Material | |
---|---|
stainless | stainless alu |
Colour | Brushed iron |
Material | Die cast aluminium |
Installation | |
---|---|
Mounting location | ceiling |
Energy consumption | |
---|---|
Energy consumption | 6 kWh_1000h |
Energy efficiency | G |
Service life | |
---|---|
luminous flux at the end of lamplife | 94 % |
Lifetime | 30000 h |
Light Characteristics | |
---|---|
Colour temp. | 2200 K |
colour temperature to | 6500 K |
color temp | Gold light to Daylight white |
Colour change | coloured light with Tunable White function (RGBW), Tunable White |
Beam angle | 105 ° |
Nominal luminous flux | 500 lm |
Color rendering index | > 80 Ra |
Colour consistency (SDCM) | 6 |
Lamp Features | |
---|---|
Component parts | 6 W |
Compatible Smart Home technology | Zigbee |
Technique | LED |
Base/Socket | Coin |
Type | Reflector |
Dim | with Smart Home |
Inclusive lamp | yes |
Incandescent Equivalent | 42 W |
Adjustability | fixed |
Lamp property | Leuchtmittel enthalten und wechselbar |
Dimmable | Yes |
IP protection | IP44 ceiling mounting |
Number of component parts | 3x |
protection class | Protection class II |
Replacable | 2 Lightsource is replaceable without damage the lighting fixture by electrician. |
Transformer | |
---|---|
apparent power | 8.5 VA |
Accessories | |
---|---|
Radio control included | no |
Labelling | |
---|---|
WEEE-Reg.-No | DE 39236390 |
Smart Home | |
---|---|
Protocol type | Zigbee 3.0 |
Zigbee certification | Zigbee zertifiziert |
Radio frequency | 2,4 GHz |
Radio range (Open field) | 20 m |
