Article-No.:
92437
LED Recessed luminaire
Nova Coin
round 84mm 50° RGBW+ 3x6W 3x500lm 230V Black matt Die cast aluminium
round 84mm 50° RGBW+ 3x6W 3x500lm 230V Black matt Die cast aluminium
£97.95*
Prices incl. Standard rate VAT

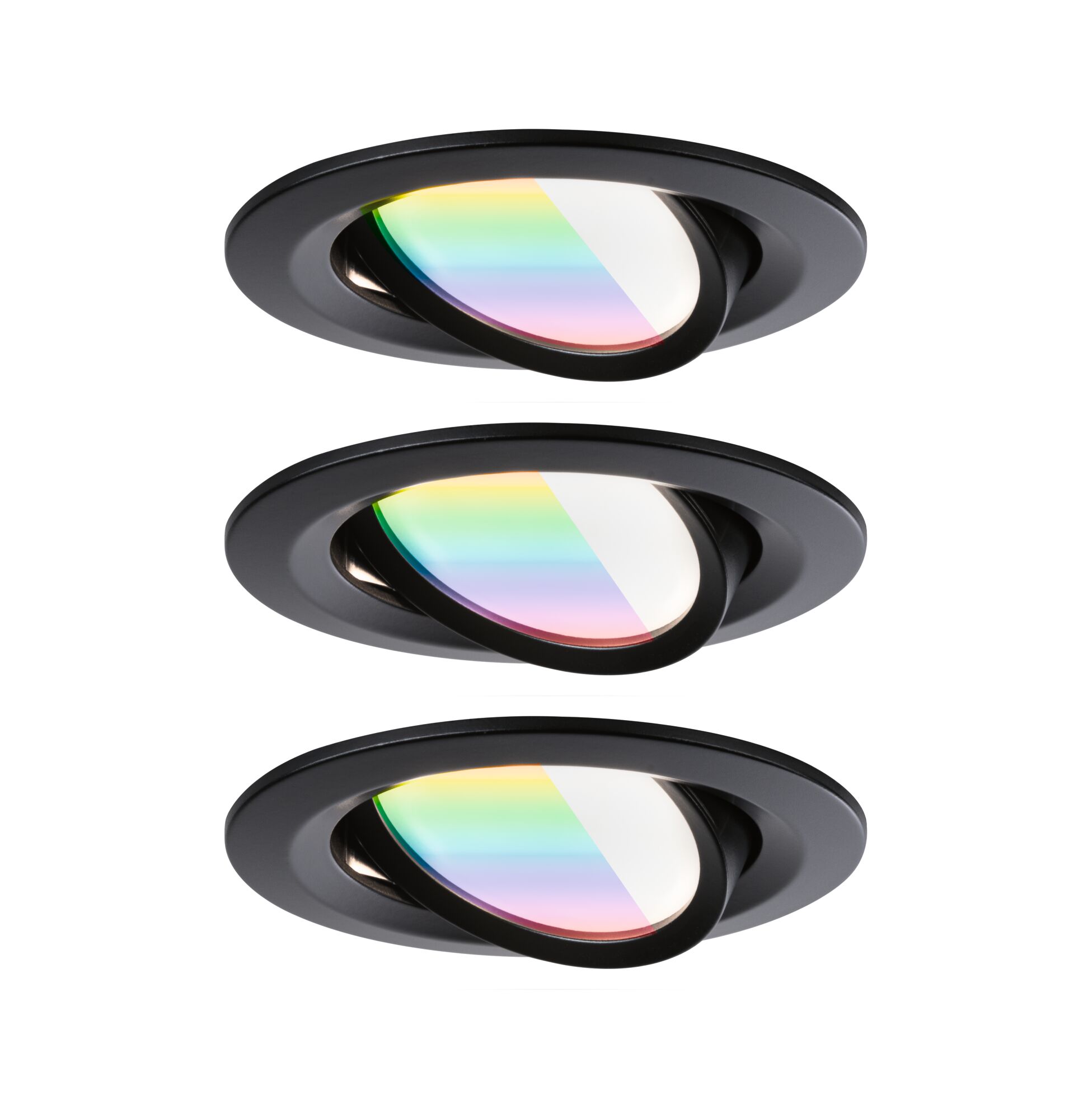

- Set of 3 luminaires incl. LED module
- Tunable white offers an infinitely adjustable selection from gold light (2200K) to daylight white (6500K)
- RGBW multicolour colour change

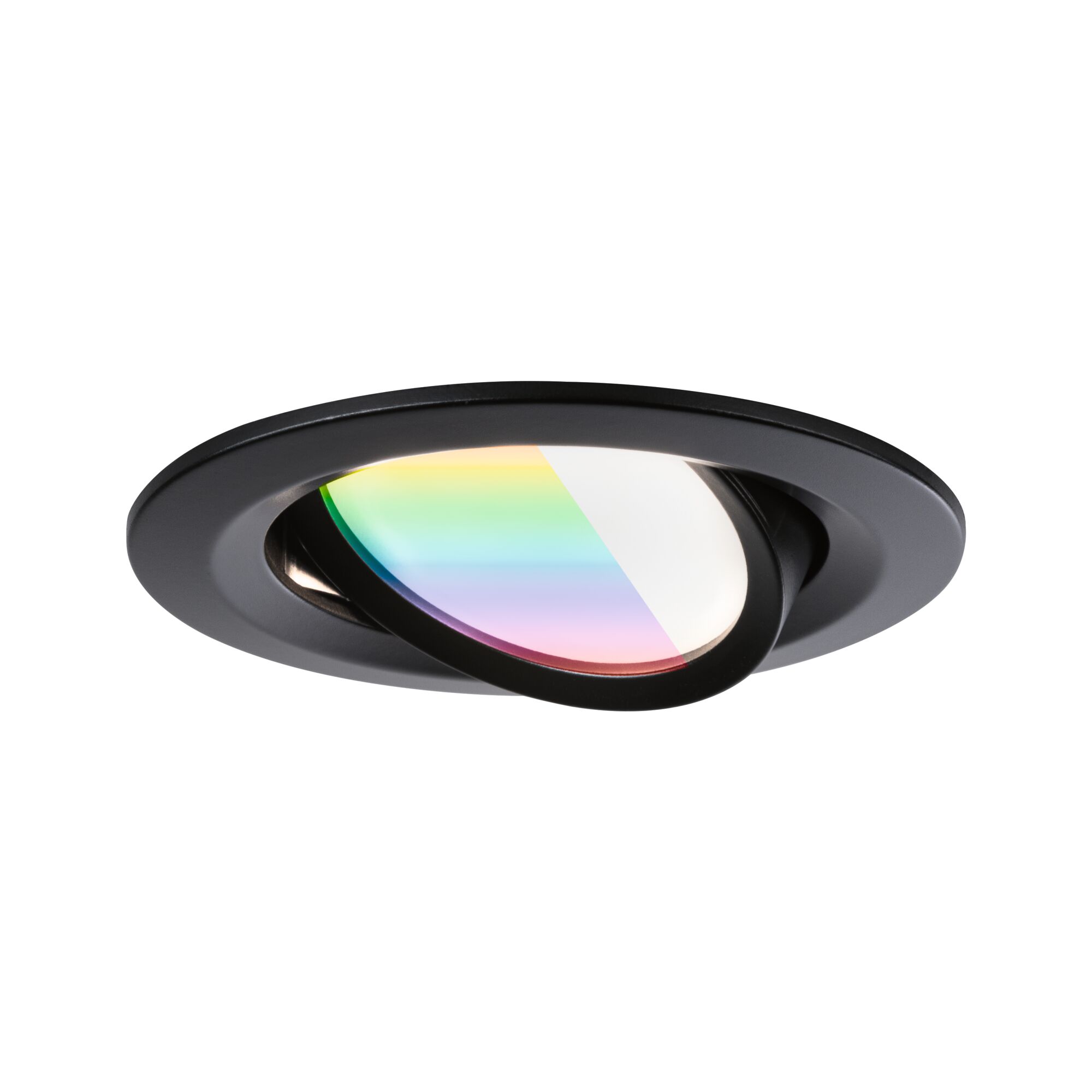

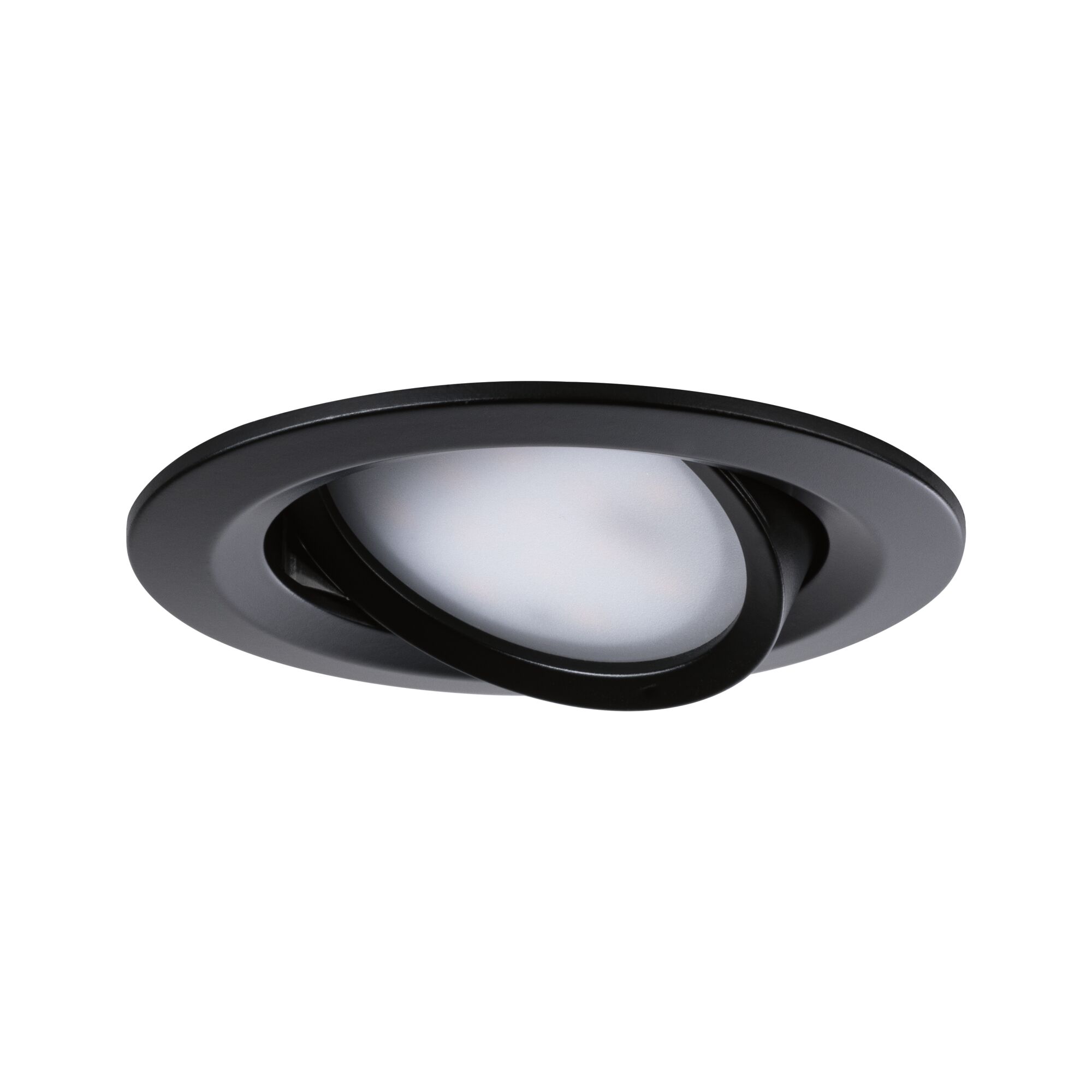

LED Recessed luminaire Nova Coin round 84mm 50° RGBW+ 3x6W 3x500lm 230V Black matt Die cast aluminium

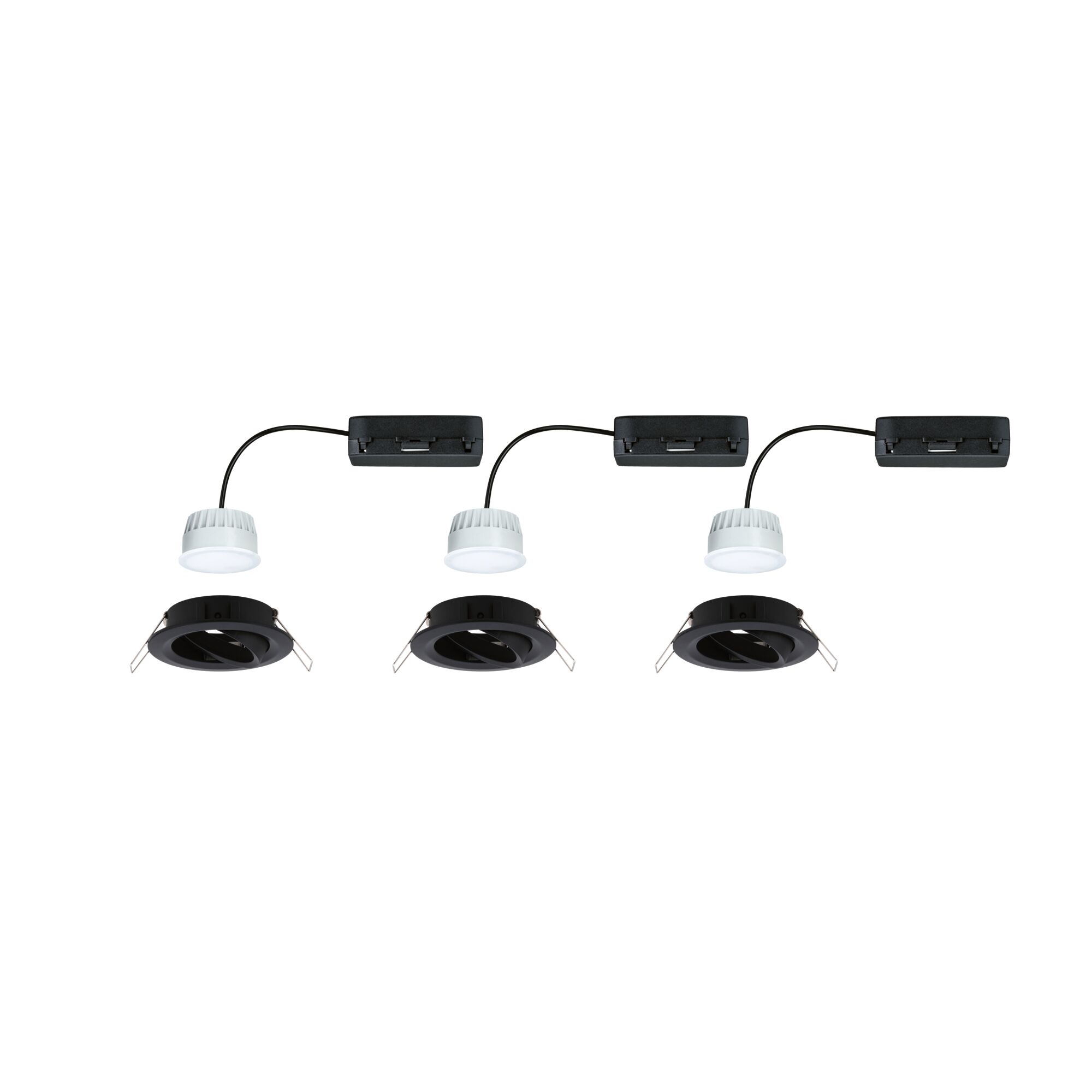

16 million colours, 16 million lighting moods – the smart Nova Coin recessed luminaire set in Black matt with colour-change function creates an individual living atmosphere in every room. Included in delivery are three replaceable LED lamps, including high-quality aluminium mounting rings. With an output of 3x6 watts and RGBW Zigbee 3.0 controls, the luminaires provide an efficient and innovative lighting solution. Zigbee 3.0 is a radio transmission protocol that interlinks devices from different manufacturers. The luminaires can be controlled individually or in groups via app, remote control, or voice command. From cosy, warm gold light (2200K) to functional daylight white (6500K) or colourful colour gradients: the combinations of tunable white, RGB and dimming function are virtually endless. The smart recessed luminaires can also be simply and conveniently switched on and off using a conventional light switch. When doing so, the integrated memory function stores the most recently used setting for maximum convenience. A swivel joint on the luminaire ensures that the light can be directed wherever it is needed. Installation is particularly simple and efficient thanks to the interlinkable and replaceable coins, the low installation depth of just 45mm and the 230V direct connection.
- Set of 3 luminaires incl. LED module
- Tunable white offers an infinitely adjustable selection from gold light (2200K) to daylight white (6500K)
- RGBW multicolour colour change
- The memory function saves the last level used until the next time it is switched on

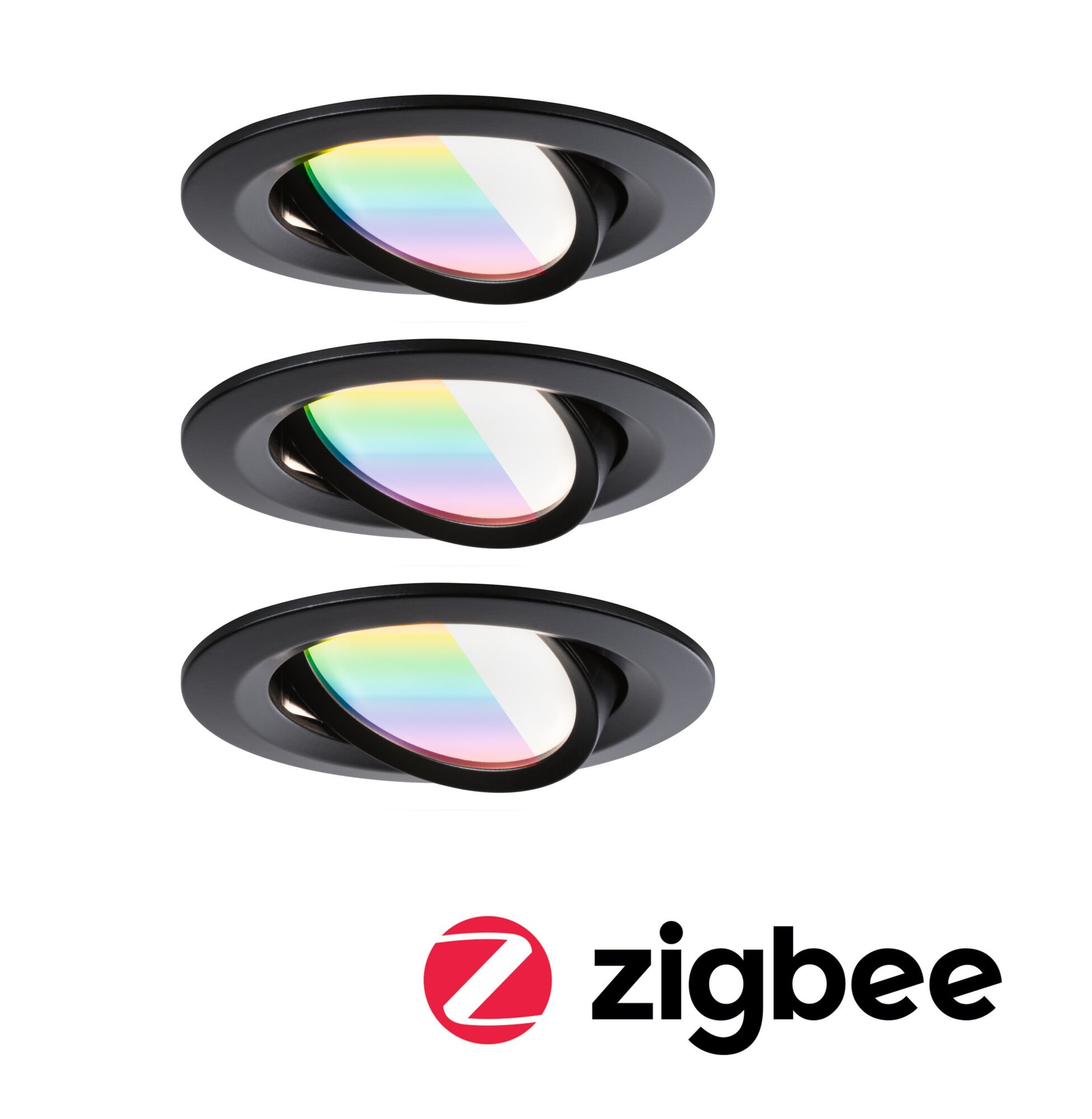

- Integrates seamlessly in existing Zigbee Smart Home infrastructures.
- Can still be switched on and off using the light switch
Dimension | |
---|---|
Depth of hollow wall | 30 mm, 30 mm |
Total Mounting depth | 45 mm |
Diameter | 84 mm |
Mounting hole | 68 mm |
Form | round |
Design and Material | |
---|---|
stainless | stainless alu |
Colour | Black matt |
Material | Die cast aluminium |
Installation | |
---|---|
Mounting location | ceiling |
Energy consumption | |
---|---|
Energy consumption | 6 kWh_1000h |
Energy efficiency | G |
Service life | |
---|---|
luminous flux at the end of lamplife | 94 % |
Lifetime | 30000 h |
Light Characteristics | |
---|---|
Colour temp. | 2200 K |
colour temperature to | 6500 K |
color temp | Gold light to Daylight white |
Colour change | coloured light with Tunable White function (RGBW), Tunable White |
Beam angle | 105 ° |
Nominal luminous flux | 500 lm |
Color rendering index | > 80 Ra |
Colour consistency (SDCM) | 6 |
Lamp Features | |
---|---|
Component parts | 6 W |
Compatible Smart Home technology | Zigbee |
Swivel range | 50 ° |
Technique | LED |
Base/Socket | Coin |
Type | Reflector |
Dim | with Smart Home |
Inclusive lamp | yes |
Incandescent Equivalent | 42 W |
Adjustability | swivelling/tilting |
Lamp property | Leuchtmittel enthalten und wechselbar |
Dimmable | Yes |
IP protection | IP20 |
Number of component parts | 3x |
protection class | Protection class II |
Replacable | 2 Lightsource is replaceable without damage the lighting fixture by electrician. |
Transformer | |
---|---|
apparent power | 8.5 VA |
Accessories | |
---|---|
Radio control included | no |
Labelling | |
---|---|
WEEE-Reg.-No | DE 39236390 |
Smart Home | |
---|---|
Protocol type | Zigbee 3.0 |
Zigbee certification | Zigbee zertifiziert |
Radio frequency | 2,4 GHz |
Radio range (Open field) | 20 m |
