Article-No.:
28787
230 V Standard
LED Reflector White Switch
GU10 230V 3x470lm 3x5,9W White Switch White
GU10 230V 3x470lm 3x5,9W White Switch White

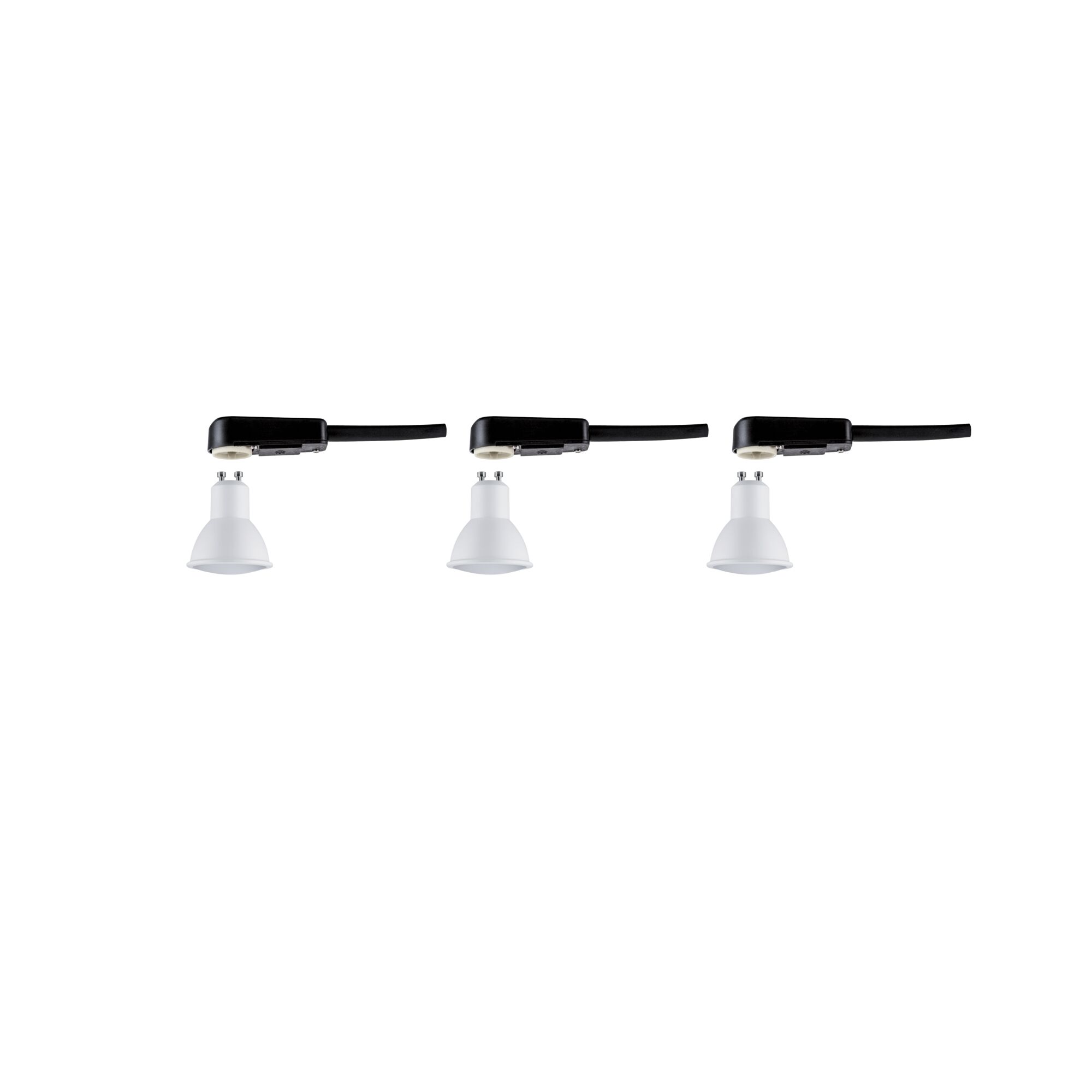

- Set of 3 LED modules and junction box with double terminal
- For combination with Choose! spot sets
- Color temperatur: 2700K - Warm white - 6500K -Daylight white
230 V Standard 3-Step-Dim LED Reflector GU10 Choose White Switch GU10 230V 3x470lm 3x5,9W White Switch White
The GU10 modules with WhiteSwitch are compatible with all mounting rings in the Choose series. The integrated WhiteSwitch function offers three-step adjustment of the light colour with multiple pushes of a regular commercial light switch. Choose lets you combine the recessed luminaires you want. The recessed luminaires can be linked unlimited times, no transformer is needed and all lamps are replaceable.
- Set of 3 LED modules and junction box with double terminal
- For combination with Choose! spot sets
- Color temperatur: 2700K - Warm white - 6500K -Daylight white
- Whiteswitch - the colour temperature can be set by pressing the wall switch several times
- Incl. replaceable LED lamp
| Dimension | |
|---|---|

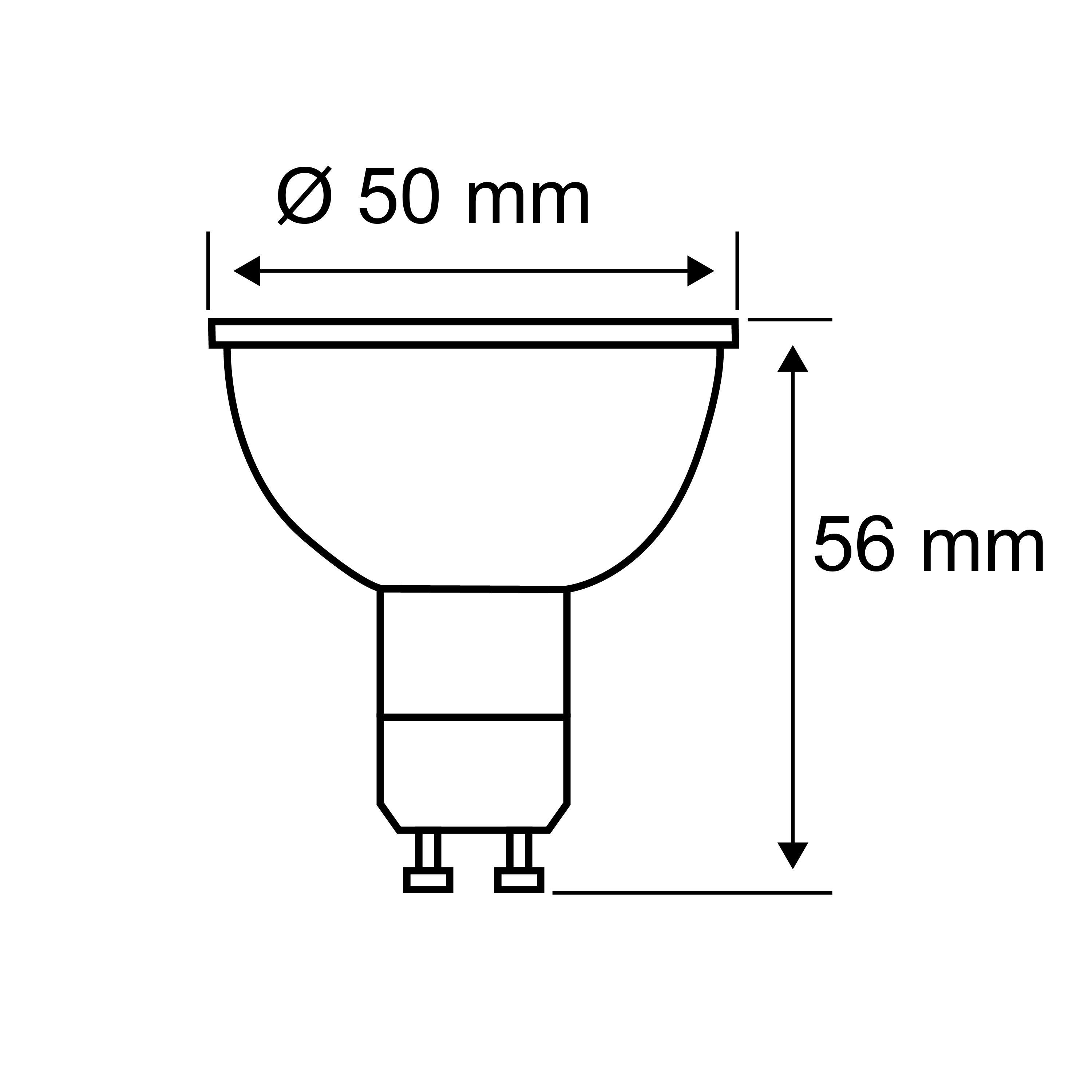

| Dimensions (Height x Width x Depth) | H: 56 mm |
| Ø | 50 mm |
| Form | round |
| Design and Material | |
|---|---|
| Colour | White |
| Energy consumption | |
|---|---|
| energy efficiency (A to G) | G |
| Energy consumption | 6 kWh_1000h |
| Service life | |
|---|---|
| Lamp lumen maintenance factor 6000h | 85 % |
| luminous flux at the end of lamplife | 75 % |
| Number of switching cycles >= | 50000 |
| lifetime | 15.000 h |
| Rated life time | 15000 h |
| Light Characteristics | |
|---|---|
| Color temp. | 2700 K |
| Color change | White Switch |
| Useful luminous flux | 470 lm |
| color temp | 2.700 - 6.500 K |
| colour consistency | <= 6 Step of the MacAdam ellipse |
| Color rendering index | > 80 Ra |
| Rated peak intensity | 198 cd |
| Rated luminous flux (Lumen) | 470 lm |
| Lamp Features | |
|---|---|
| Component parts | 5,9 W |
| Technique | LED |
| Socket | GU10 |
| Type | Reflector |
| Dim | dimmable in 3 steps with normal light switch |
| Dimmable | No |
| Inclusive lamp | ✓ |
| Number of component parts | 3x |
| Replacable | 7 not concerned. |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
Downloads
Manuals
Download Installation/MontageZubehoer
